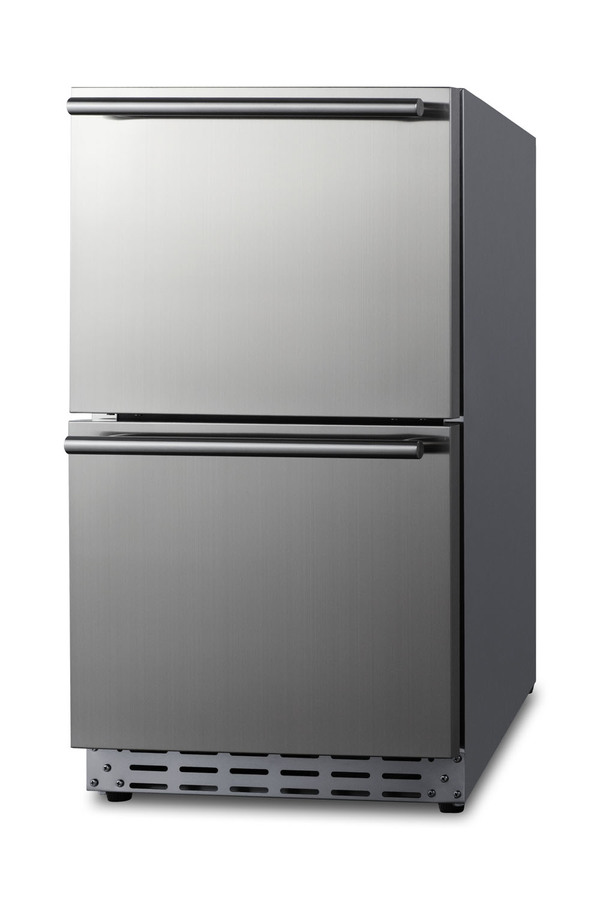

18" Wide Outdoor 2-Drawer All-Refrigerator, ADA Compliant

SKU: ADRD18OS
Weatherproof construction in stainless steel ensures long-lasting use in outdoor kitchens, with a unique 18" width for an easy fit
Estimated Time to Ship:

Next day shipping

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.
31.5" H x 17.75" W x 23.25" D
(80cm H x 45cm W x 59cm D)

Overview
Height of Cabinet 31.5" (80 cm)
Width 17.75" (45 cm)
Depth 23.25" (59 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 37.0" (94 cm)
Capacity 3.4 cu.ft. (96 L)
Defrost Type Frost-Free
Door Stainless Steel/Panel-Ready
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 259.0kWh/year
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Shipping Weight 119.0 lbs. (54 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101087443
Refrigerator Features
Sabbath Mode Yes
Door Swing Drawer
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.23oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs Qty 4
Interior Light Yes

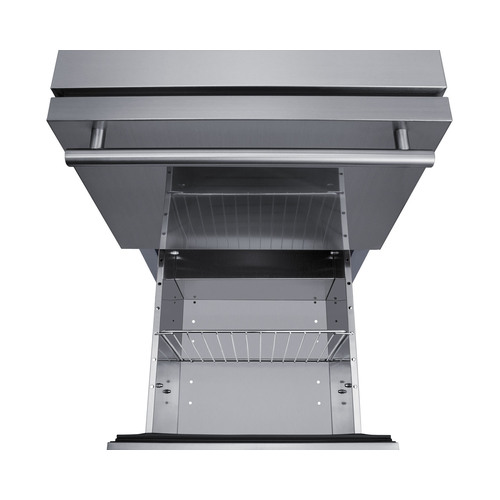

Interior Drawers Yes
Interior Drawers Qty 2
Temperature Range 34 to 65°F
Drawer Dimensions
Interior Height 1 8.75" (22 cm)
Interior Width 1 12.75" (32 cm)
Interior Depth 1 17.5" (44 cm)
Interior Height 2 10.5" (27 cm)
Interior Width 2 12.75" (32 cm)
Interior Depth 2 17.5" (44 cm)
Dimensions
Compressor Step Height 5.75" (15 cm)
Compressor Step Width 12.75" (32 cm)
Compressor Step Depth 4.75" (12 cm)

Outdoor design

Weatherproof construction designed for durable refrigeration in outdoor kitchens

18" wide drawer refrigerator

Two-drawer design in a unique 18" width ideal for undercounter spaces

ADA compliant

32” height allows for installation under lower ADA compliant counters

Commercially approved

ETL-S listed to NSF-7 standards for commercial use

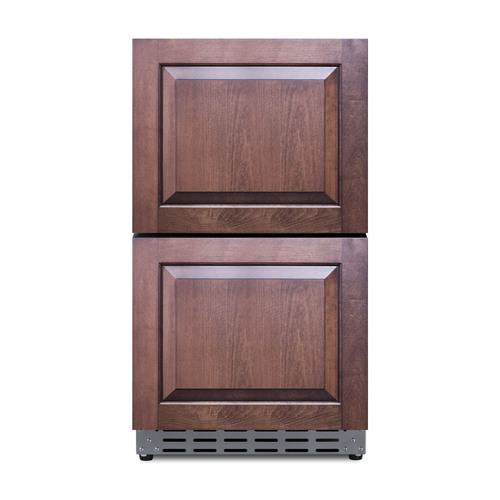

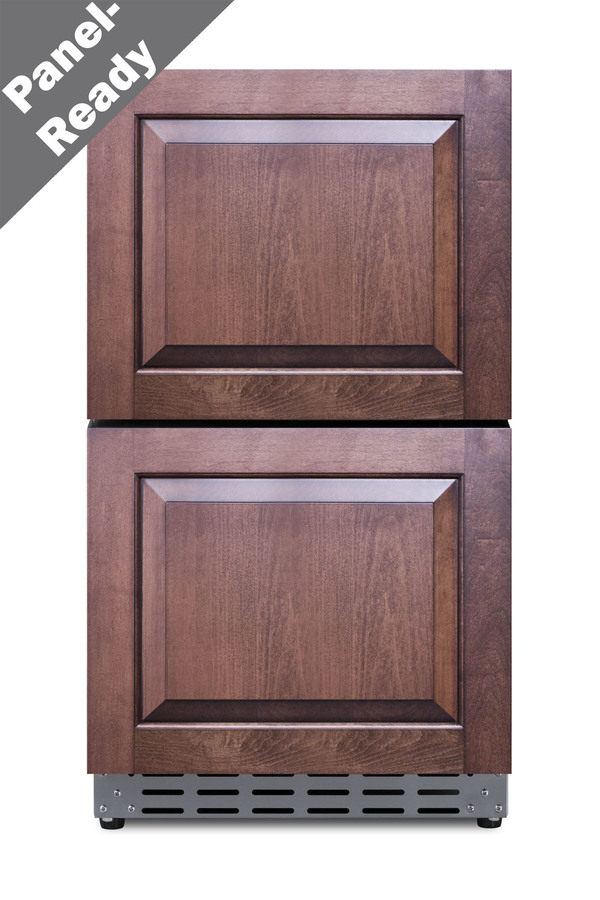

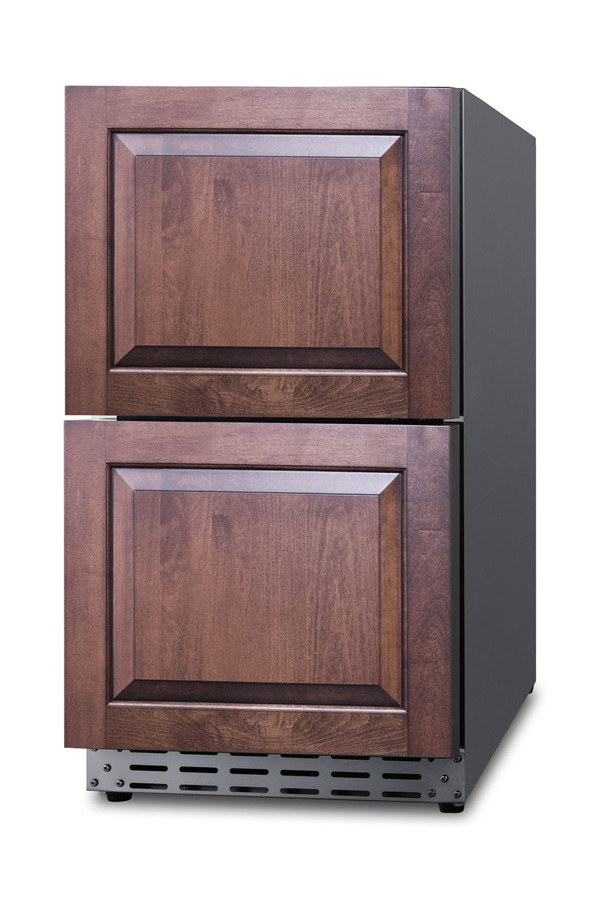

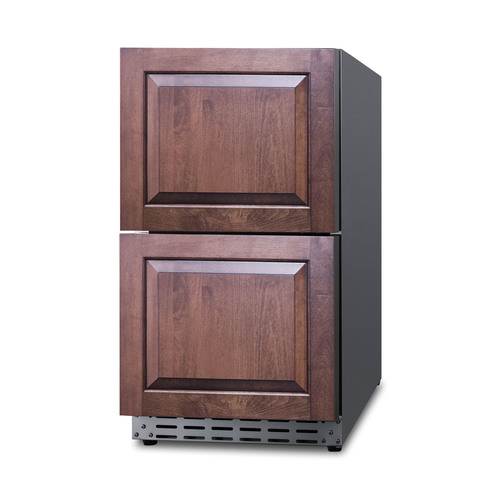

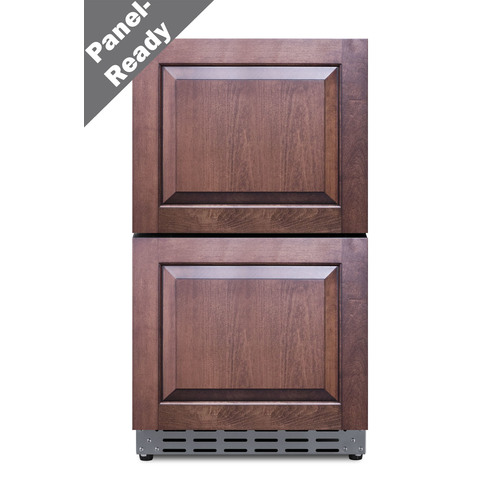

Panel-ready drawer fronts

Drawers can be customized with overlay panels sized (at 14" H x 17.7" W at 3/4" thick) to match or accent existing cabinetry

Built-in capable

Front-breathing design allows the unit to be built-in under counters

Stainless steel construction

Complete 304 grade stainless steel inside and out to ensure lasting durability with a luxurious look

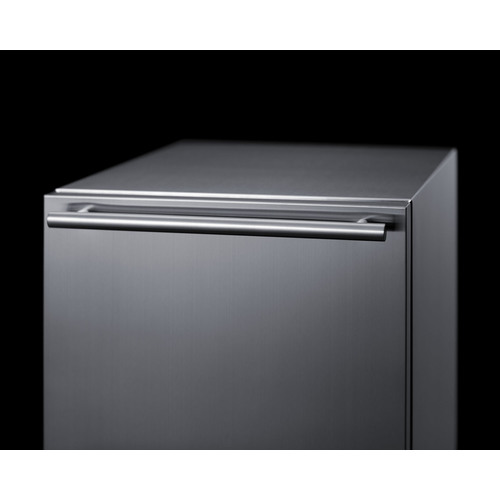

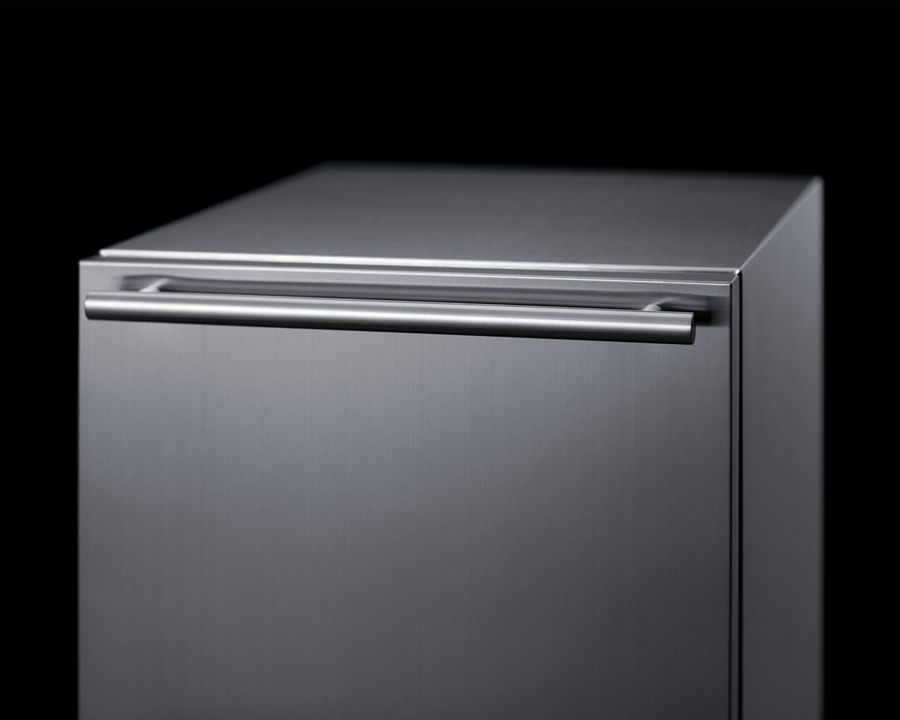

Professional handles

Stainless steel handles add style to any setting

Frost-free

No-frost operation for minimal user maintenance

Interior lighting

Soft LED lighting makes for easy viewing of each drawer’s contents

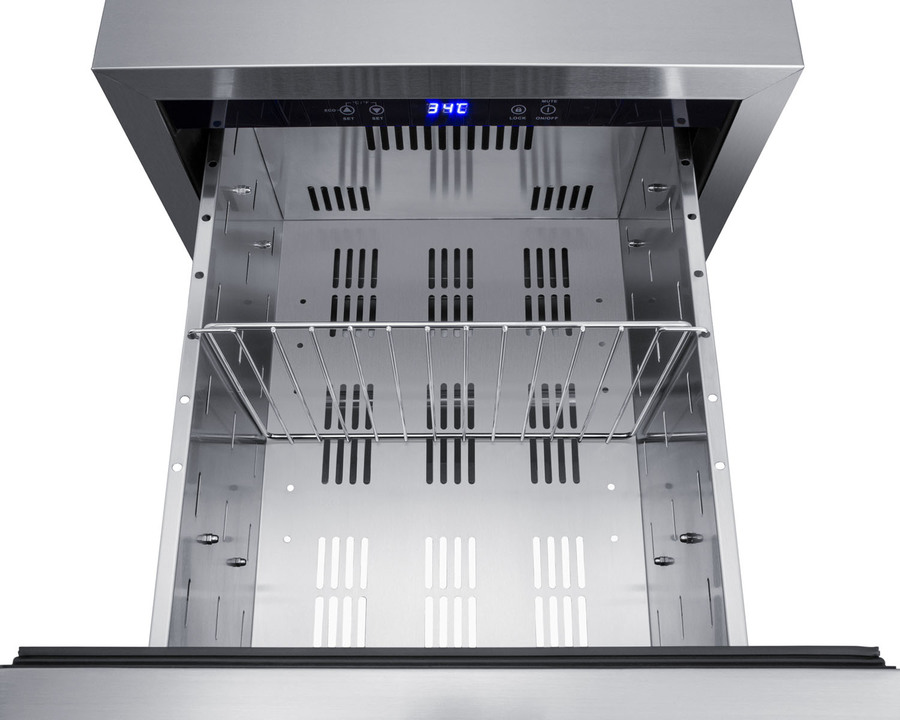

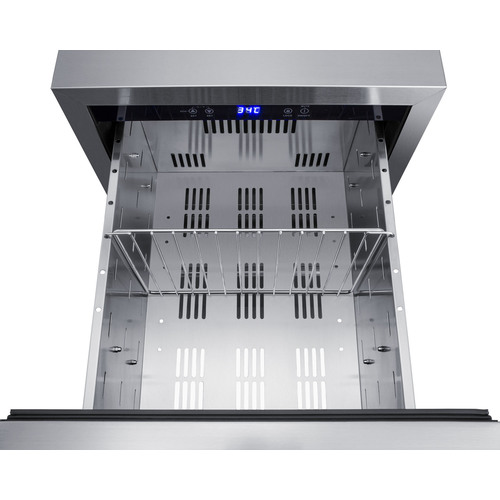

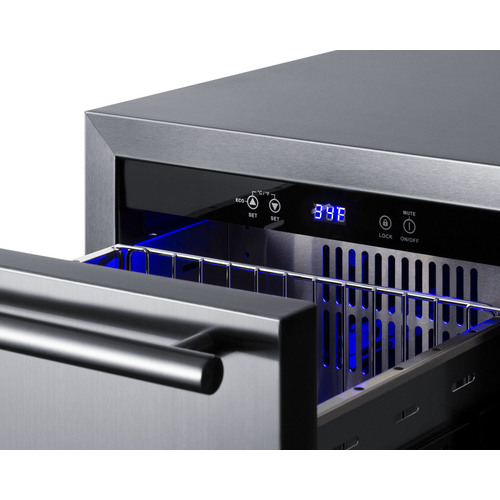

Digital thermostat

Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit

Digital display

Large display allows for easy readability and unit control

Temperature alarm

Alarm alerts you if the unit’s temperature goes beyond recommended high and low temperature ranges

Open drawer alarm

Audible alarm sounds if the drawers are left open for more than five minutes

Sabbath mode

Optional feature disables alarms, interior light, and displays for up to 96 hours

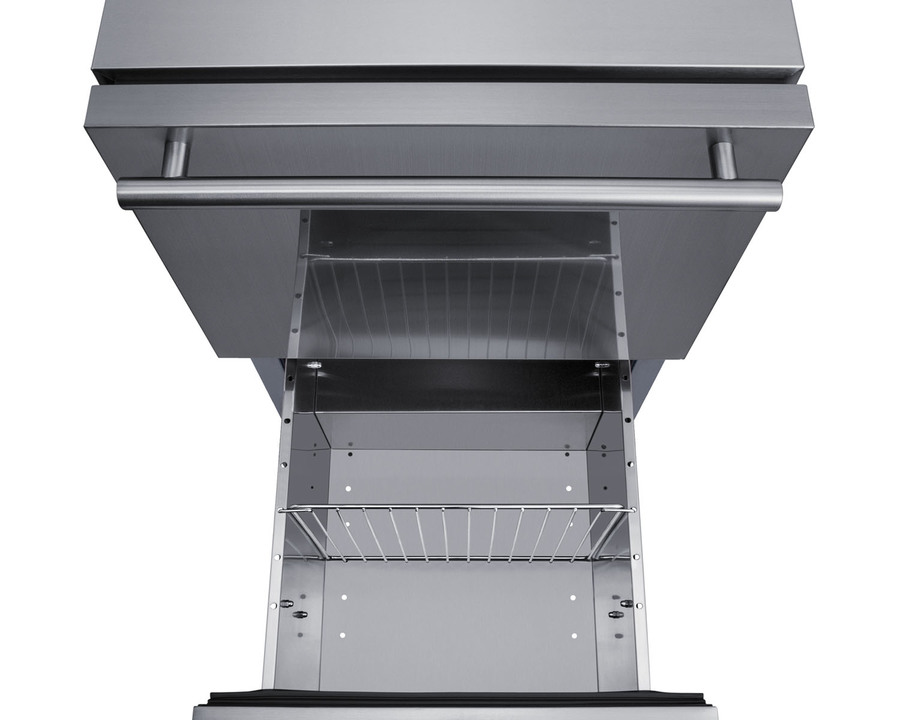

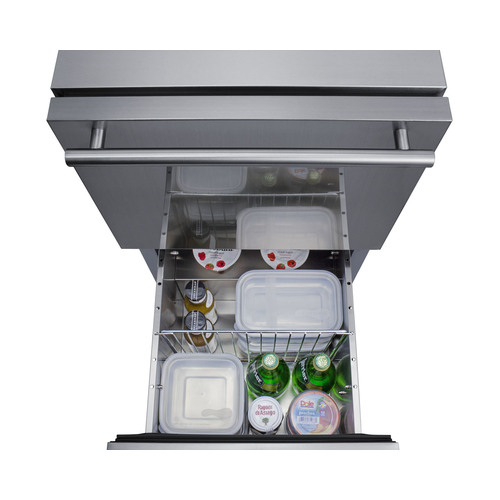

Drawer dividers

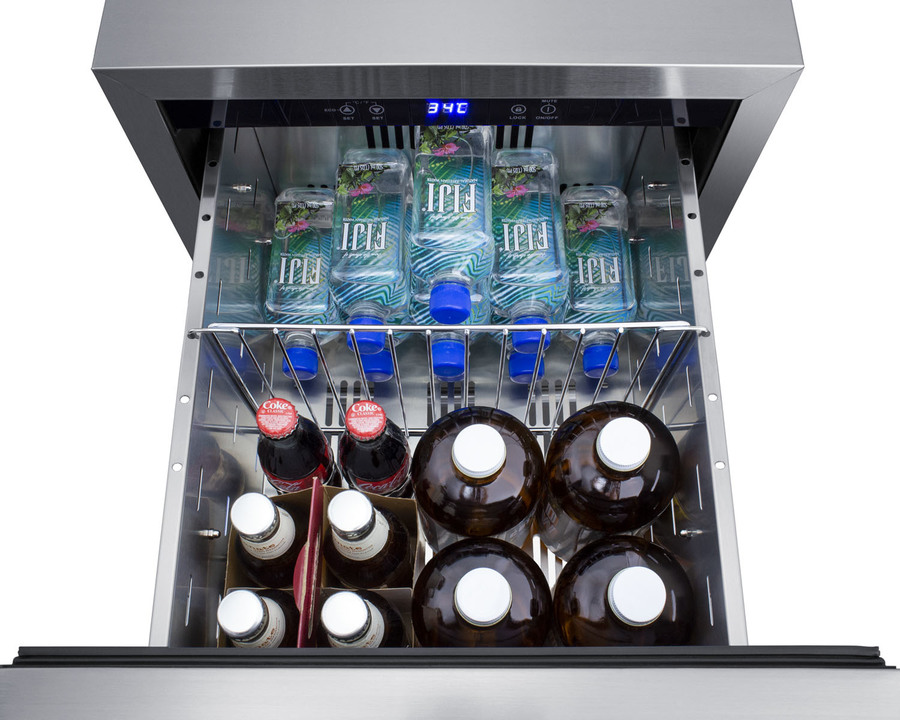

Each drawer includes an adjustable divider to allow easier organization of your storage

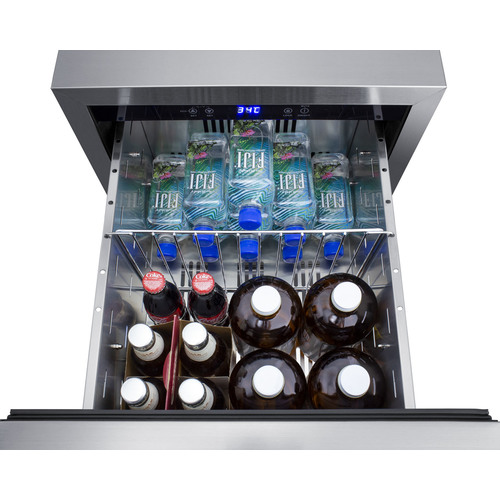

Holds tall bottles

Lower drawer has a 10.5" height to accommodate taller bottles as needed

Right-angle plug

Space-saving plug allows unit to sit flush against the wall

Sealed back

Ensures easier cleanup and a better fit with no exposed coils in the rear

Fan-forced cooling

Provides for efficient, even cooling of the entire unit

Soft-close drawers

Anti-slam drawers allow you to gently push to close

Anti-tip bracket

Included bracket recommended for installation to help prevent tipping for added safety

Fully finished cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit manufactures one of the industry's most extensive and unique selections of outdoor refrigeration, with weatherproof choices designed to bring user convenience and lasting durability to outdoor kitchens.

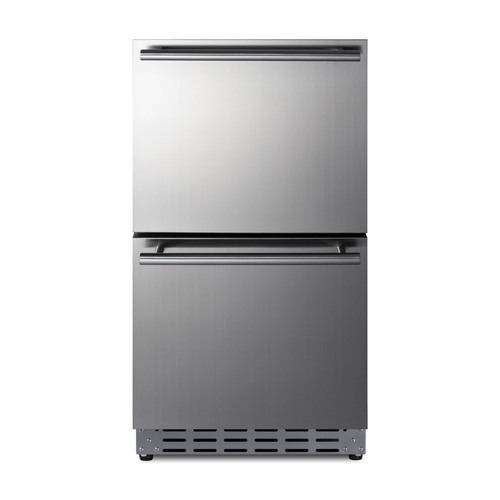

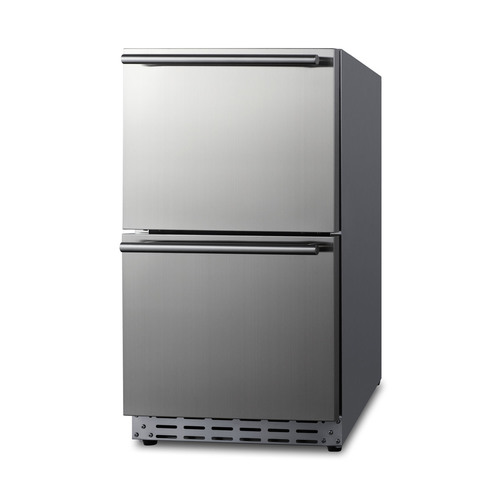

Sized at just 18" wide and 32" high, model ADRD18OS a two-drawer outdoor all-refrigerator that can be built-in under ADA compliant counters or used freestanding. Complete stainless steel construction inside and out is designed to hold up to the elements in style. Soft close glides allow you to gently close each drawer with a light touch. The drawers can also be customized with overlay panels to match or accent existing cabinetry design, while the stainless steel kickplate and stylish handles complete the look. This unit includes a right angle cord for a better fit. The sealed rear offers additional protection from outdoor elements.

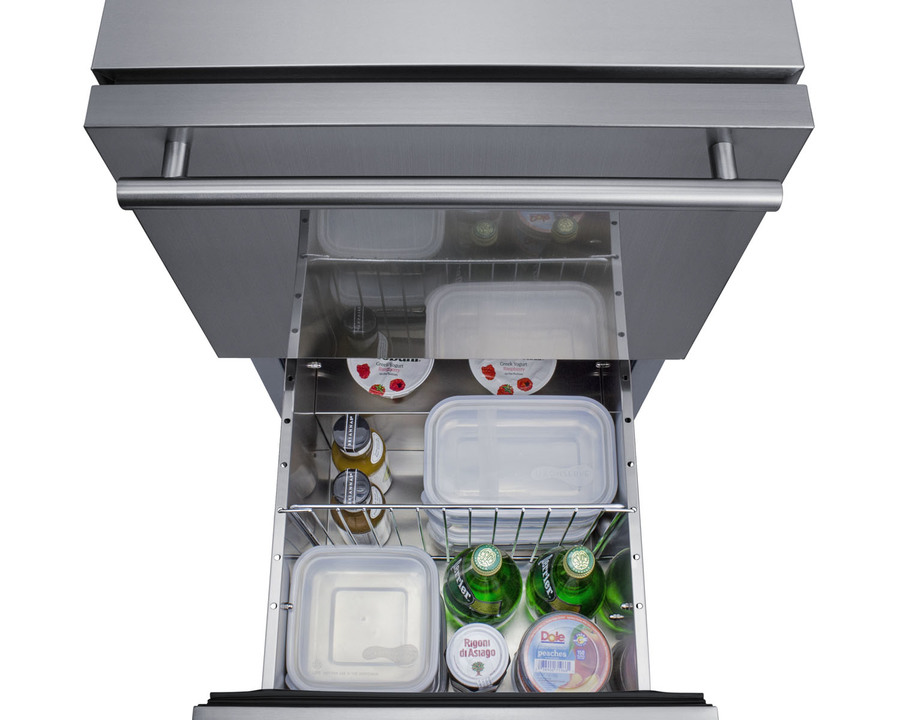

Frost-free operation ensures minimum user maintenance inside the 3.4 cu ft. interior. Each drawer includes a divider to make it easier to separate and organize your storage, with attractive and efficient LED lighting to illuminate the interior. Intuitive digital controls display a temperature readout switchable from Fahrenheit to Celsius to best suit your preference. High/low temperature alarms audibly warn if the interior goes out of the recommended range. Additional features include an open drawer alarm, child lock to secure the controls, sabbath mode for optional observance, and eco-mode for energy savings.

Model ADRD18OS is ETL-S listed to NSF-7 commercial standards and also meets DOE guidelines for residential use. Additional outdoor drawer refrigerators and freezers are available, including 15" and 24" wide choices. Browse the complete Summit lineup for more options.

Download
BROCHURE w/ DRAWINGS
ADRD18OS.pdf
Download
TECHNICAL DRAWING (.dwg)
ADRD18.dwg
Download
ASSEMBLY DRAWING
ADRD18-ASSEMBLY.pdf
Energy Guide

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
