24" Wide Outdoor 2-Drawer All-Freezer, ADA Compliant

SKU: ADFD243OS
Weatherproof construction ensures safe and long-lasting use in outdoor kitchens
Out of Stock; ETA:

02/17/2023

This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.
31.88" H x 23.38" W x 22.5" D
(81cm H x 59cm W x 57cm D)

Overview
Height of Cabinet 31.88" (81 cm)
Width 23.38" (59 cm)
Depth 22.5" (57 cm)
Depth with Handle 23.88" (61 cm)
Depth with door at 90° 34.25" (87 cm)
Capacity 3.7 cu.ft. (105 L)
Defrost Type Frost-Free
Door Stainless Steel/Panel-Ready
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 395.0kWh/year
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 106.0 lbs. (48 kg)
Shipping Weight 138.0 lbs. (63 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101088174
Freezer
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.31 oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs 4
Interior Drawers Yes
Drawers Qty 2
Interior Height - Drawer 1 8.0" (20 cm)
Interior Width - Drawer 1 17.0" (43 cm)
Interior Depth - Drawer 1 14.5" (37 cm)
Interior Height - Drawer 2 8.0" (20 cm)
Interior Width - Drawer 2 17.0" (43 cm)
Interior Depth - Drawer 2 14.5" (37 cm)
Compressor Step Height 4.0" (10 cm)
Compressor Step Width 17.0" (43 cm)
Compressor Step Depth 3.5" (9 cm)
Temperature Range -11°F to 11°F
Sabbath Mode Yes
Sound Level 33.8 dB

Exterior
SSK - Stainless steel kickplate
Stainless steel kickplate factory installed
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.

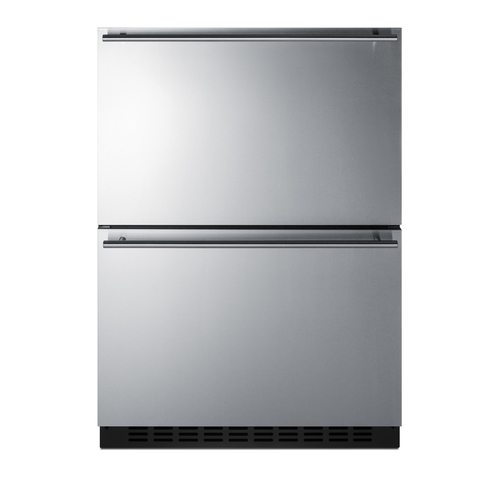

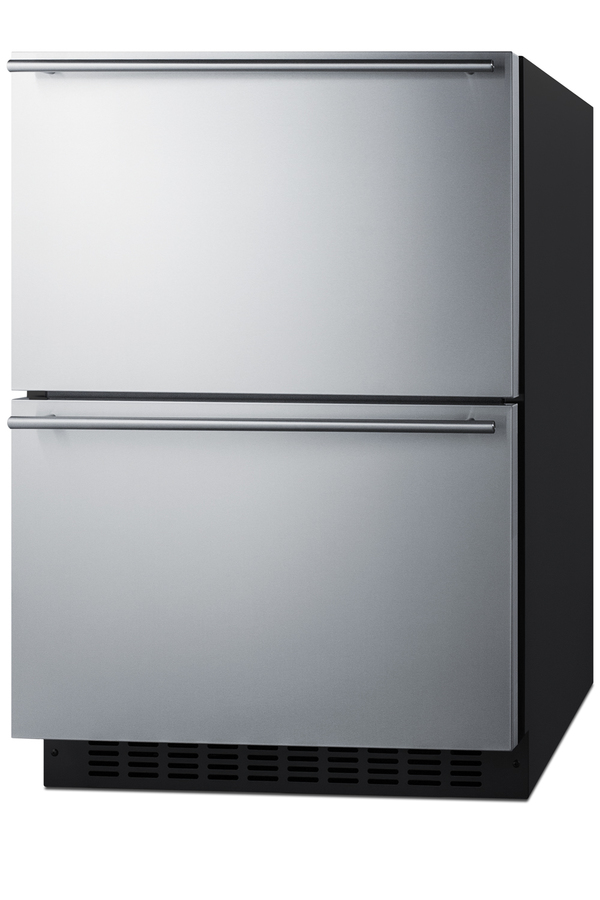

2-Drawer All-Freezer

24" wide 3.7 cu.ft. freezer with two gliding drawers

Weatherproof design for outdoor use

Durable construction allows safe installation in outdoor kitchens

ADA compliant design

Sized just under 32" high to allow installation under lower ADA compliant counters

Built-in capable

Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 24" wide openings

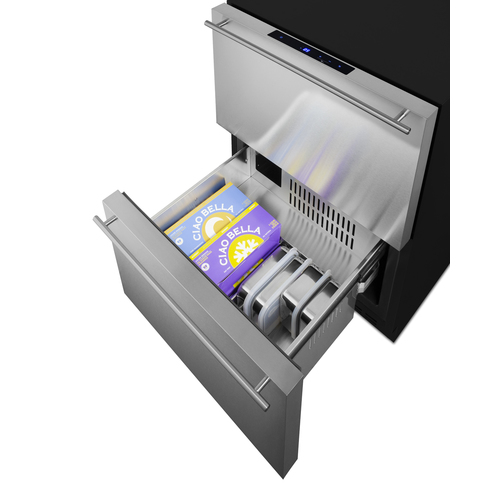

Stainless steel drawers

Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for weatherproof durability and elegant style

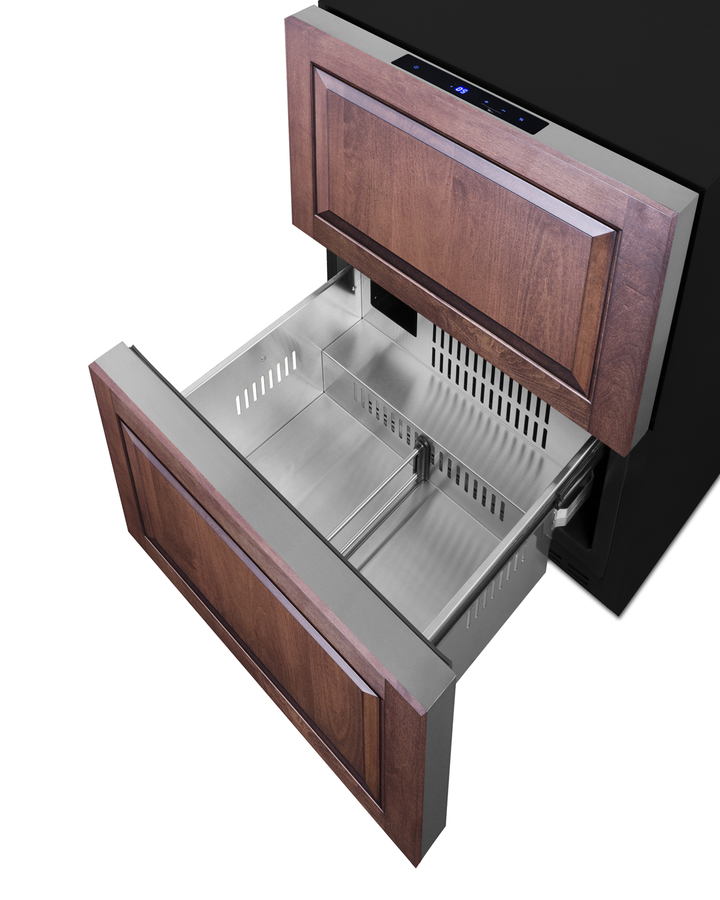

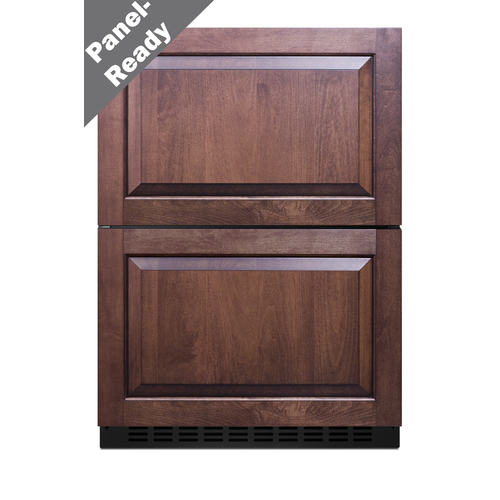

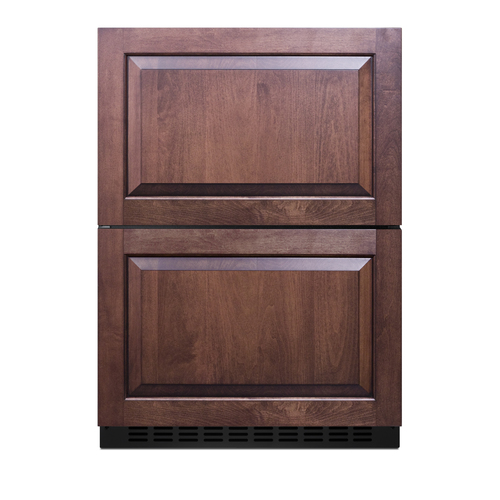

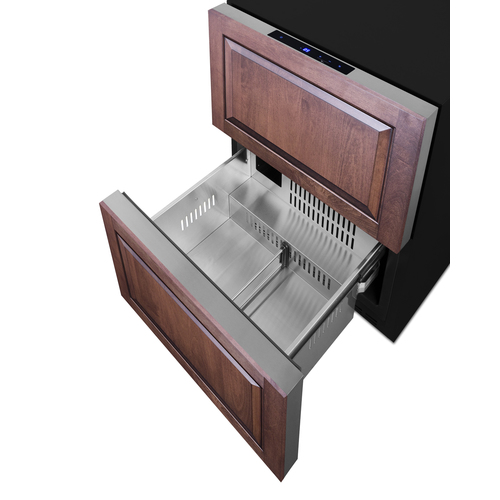

Panel-ready drawer fronts

Drawers accept overlay panels (size: 23.43" x 14.1" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design

Professional handles

Sleek stainless steel handles add an elegant touch to any setting

Frost-free operation

No-frost operation for minimum user maintenance

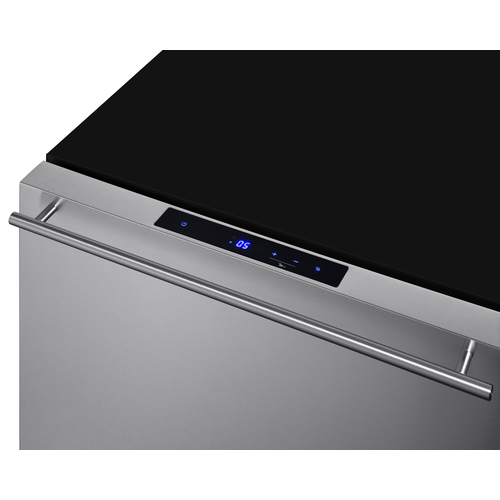

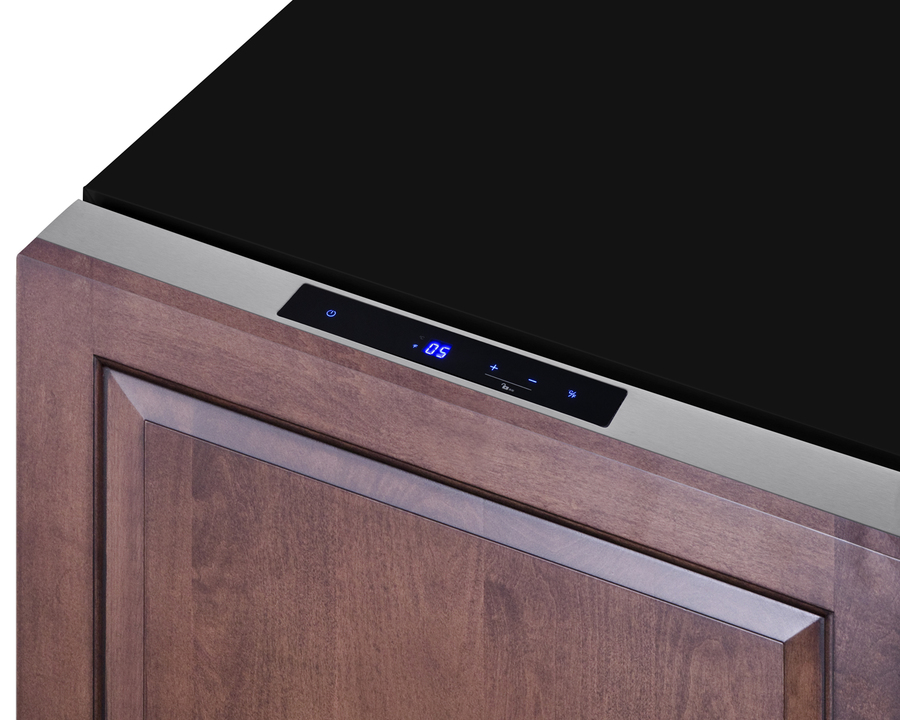

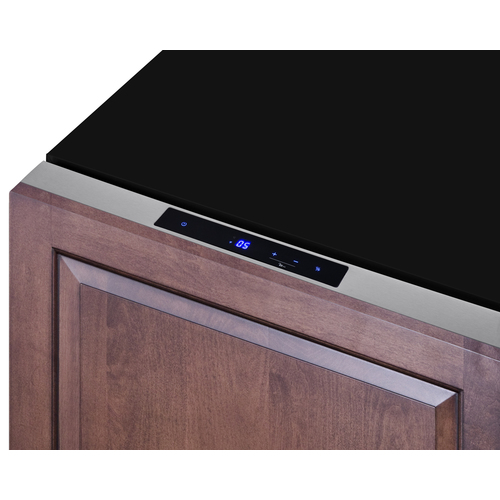

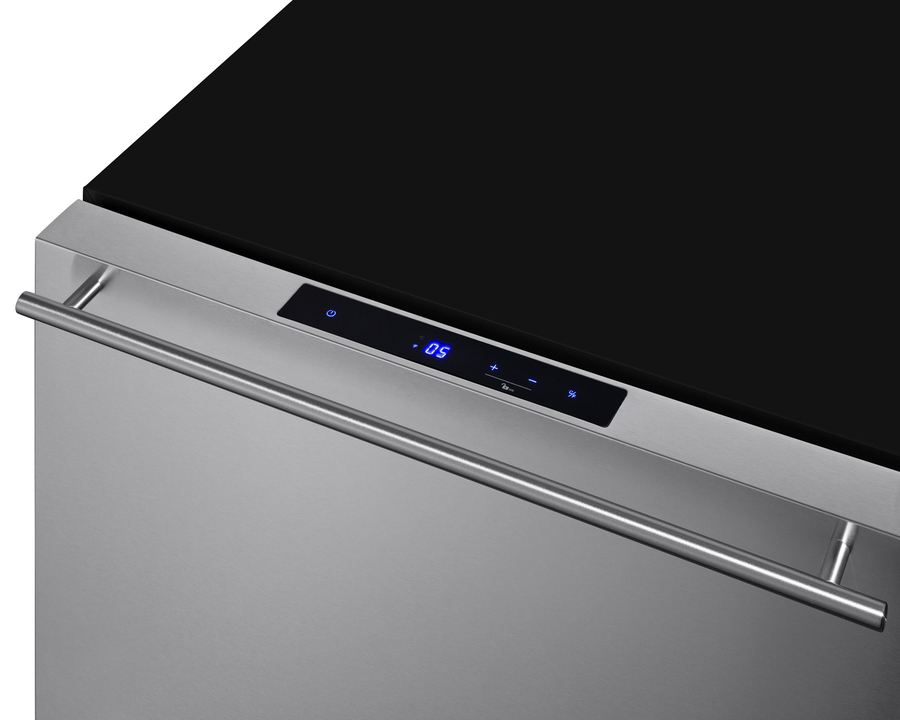

Digital thermostat

Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button

LED lighting

Elegant LED lighting in a gentle white hue illuminates the top drawer for an easy view of the interior

Internal fan

Fan-forced cooling ensures even temperature distribution from top to bottom

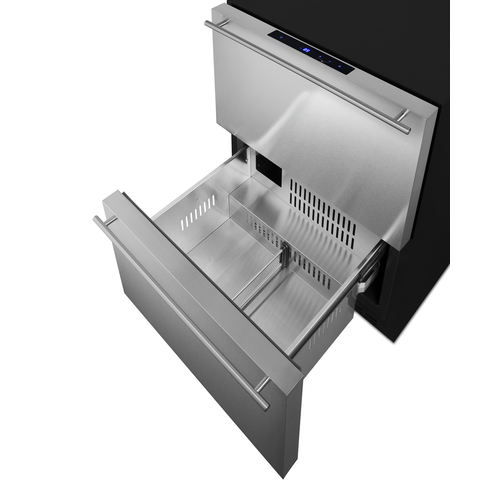

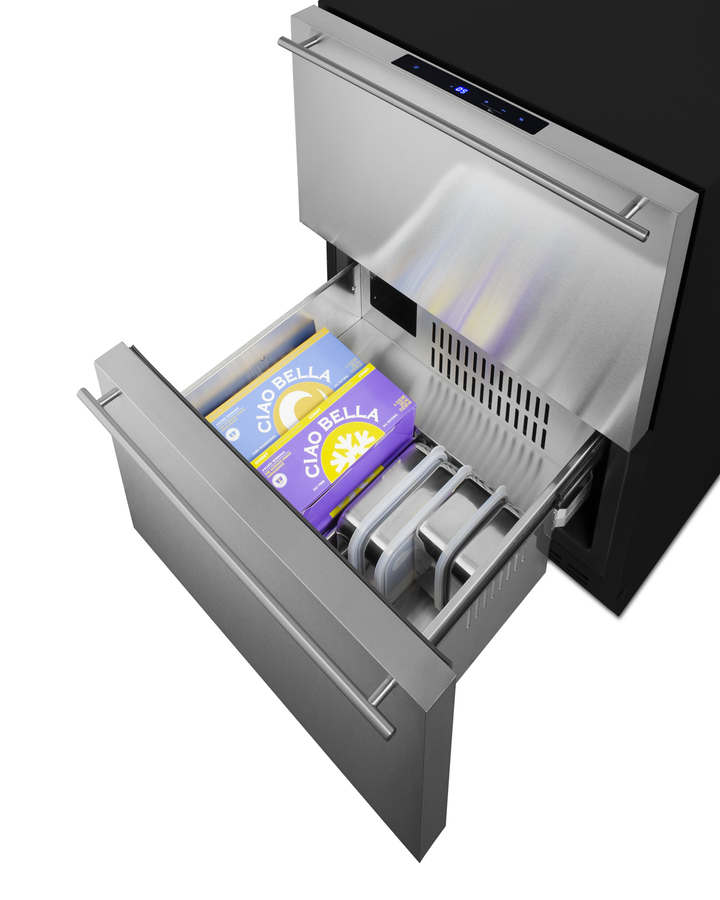

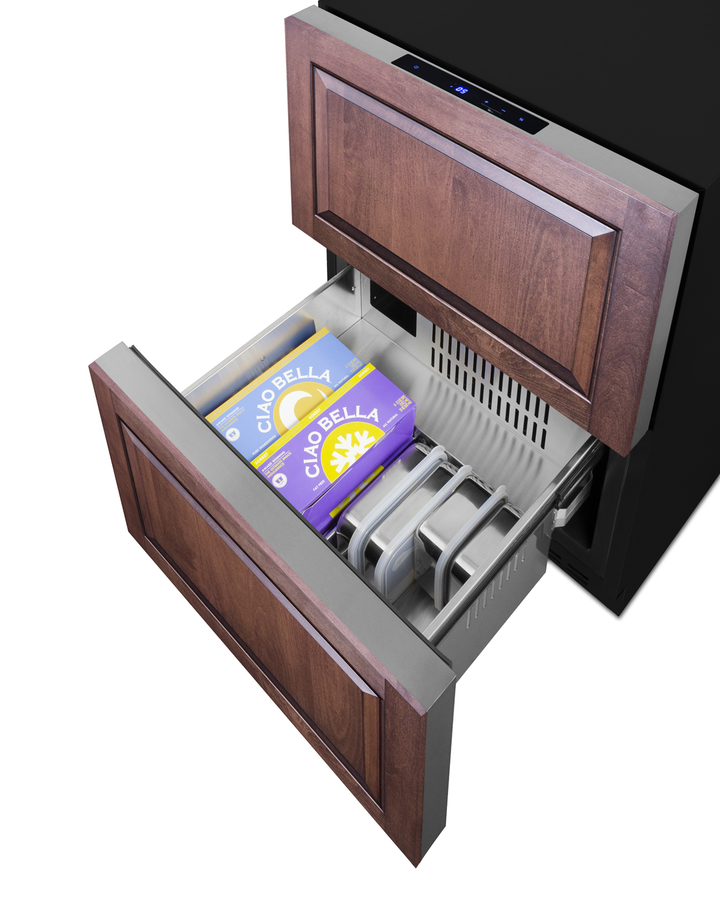

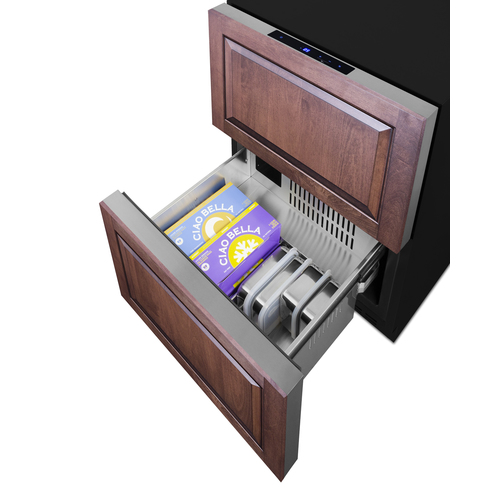

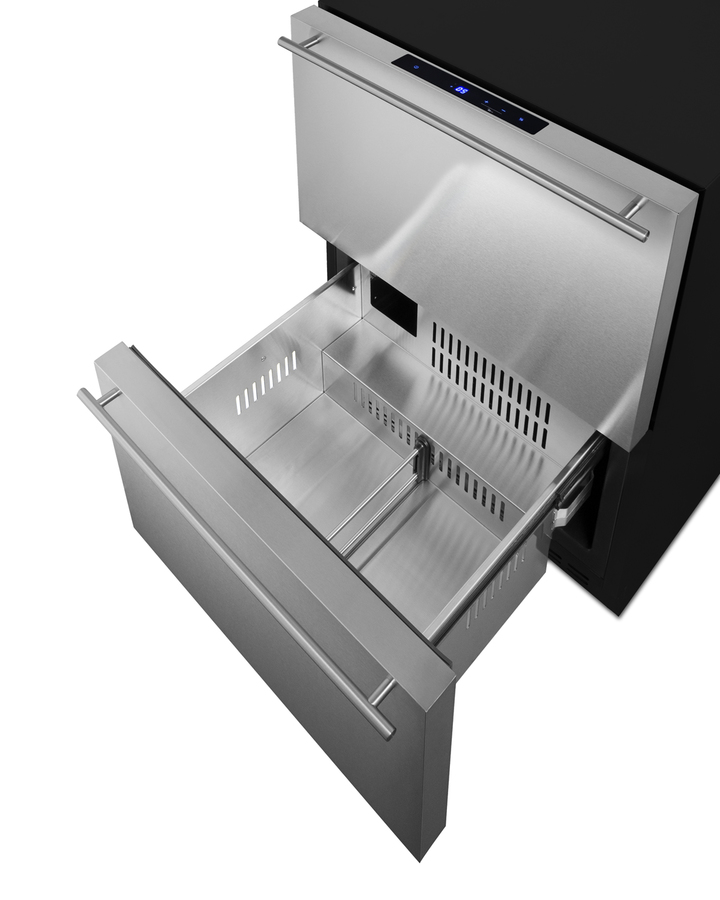

Drawer dividers

Two adjustable dividers make it easier to organize the drawer interiors

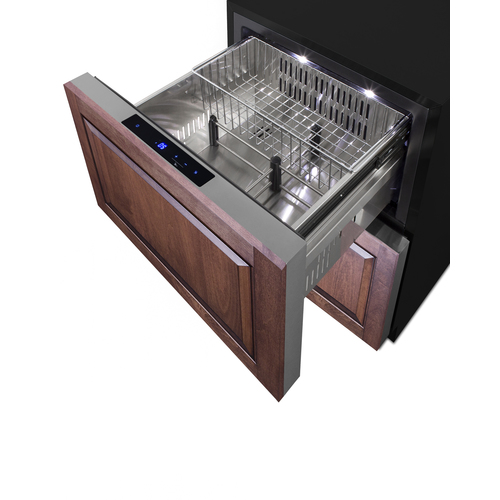

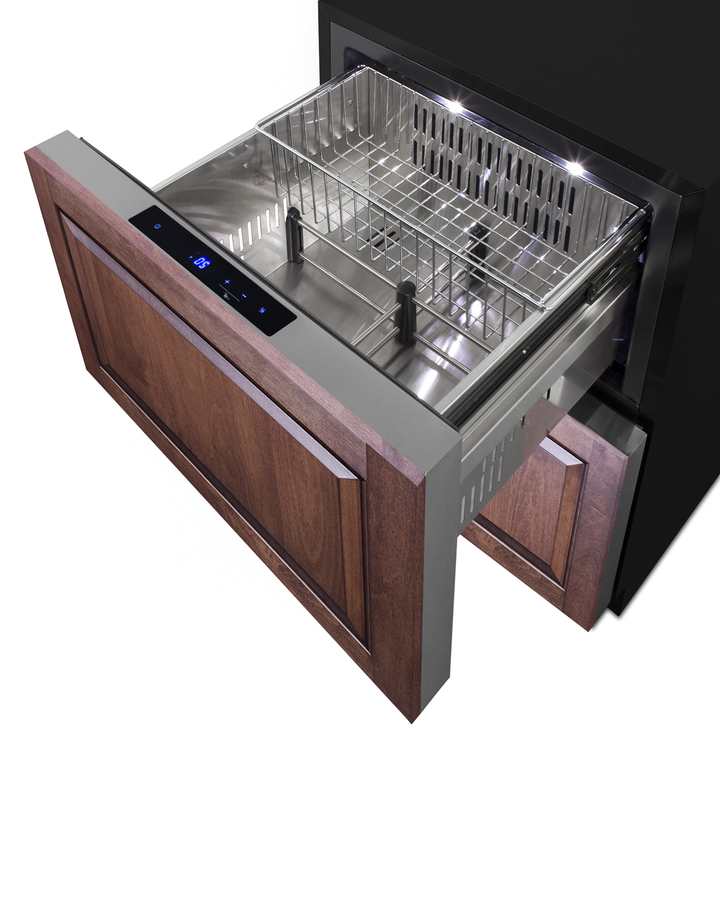

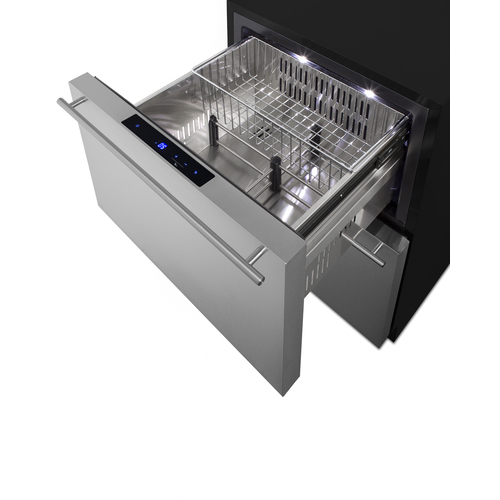

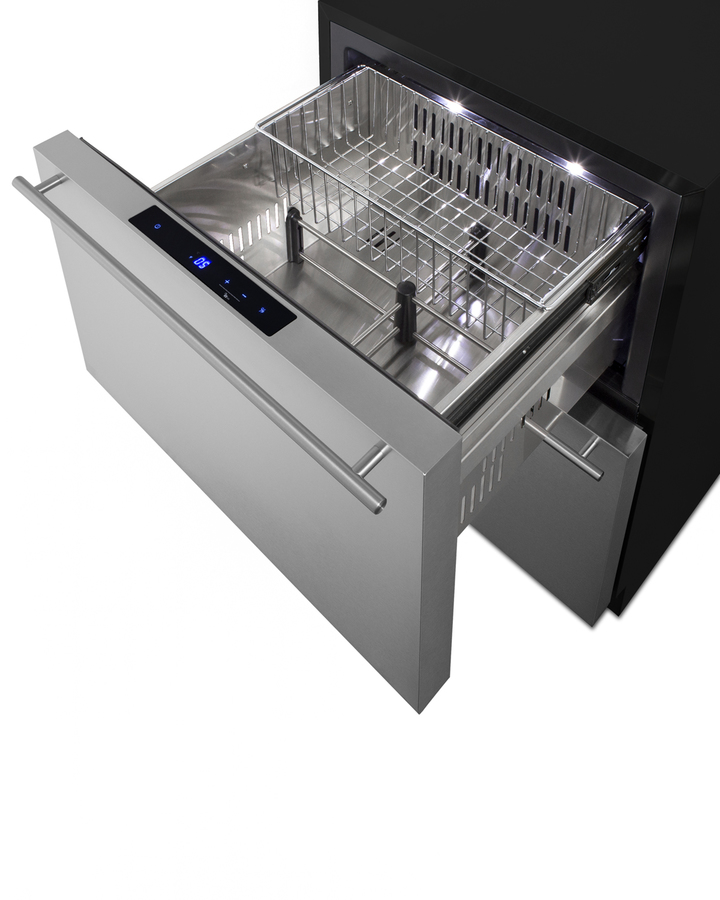

Sliding basket

Removable chrome basket included for added storage convenience

Temperature alarm

High temperature alarm sounds if the unit's interior goes out of the recommended range

Open drawer alarm

Audible alarm will sound if either drawer is left open longer than one minute

Sabbath Mode

Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance

SuperFreezer function

Allows you to lower the temperature and continuously run the compressor for short periods of time, ideal for recently loaded groceries

Child lock

Disables digital controls after two minutes of activity for added safety

Temperature Memory Function

Unit will restore the most recent temperature settings after losing power

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sealed back

Space-saving design with no exposed coils for easier cleanability and added protection from the elements

Fully finished black exterior cabinet

Allows the freezer to be used as a freestanding model

Anti-tip bracket

Included and recommended for user-installation to reduce the risk of tipping

Commercially approved

ETL-S listed to NSF-7 standards to allow use in commercial establishments

Matching refrigerator

Pair with the ADRD241 refrigerator to create a complete 2-drawer undercounter set

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit manufactures an extensive selection of built-in refrigeration specially constructed for safe and reliable cooling in outdoor kitchens.

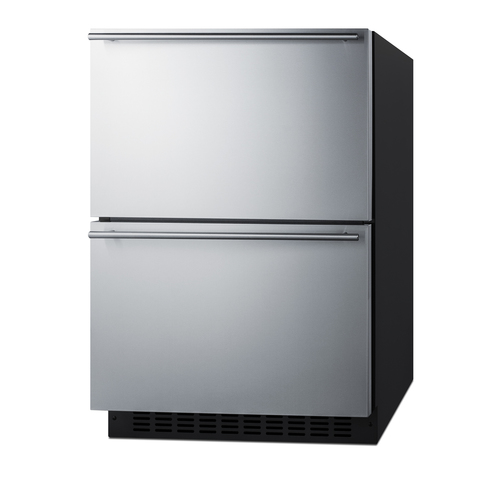

Sized at just under 24" wide and 32" high, model ADFD243OS is a 2-drawer freezer perfectly designed for built-in or freestanding installation in ADA compliant settings with lower counter height. The weatherproof construction allows safe use in outdoor settings, with a sealed back to ensure all components are protected from the elements. This unit comes with a jet black cabinet and stainless steel drawers. Sleek horizontally mounted handles complete the stylish look. The drawer fronts can also accept user-provided overlay panels to create a custom look that blends into existing cabinetry designs (panel dimensions: 23.43" W x 14.1" H  at 3/4" thick).

Inside, the ADFD243OS has a generous 3.7 cu.ft. capacity to accommodate your storage needs. Frost-free operation ensures minimal user maintenance, with fan-forced cooling to evenly distribute the temperature. A digital thermostat, located atop the upper drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two adjustable, removable dividers allow you to separate the drawer compartments into two or four zones to easily accommodate a variety of sizes. A full-width sliding removable chrome basket offers added storage convenience, while white LED lighting makes it easy to view stored contents. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance.

The ADFD243OS is ETL-S listed to NSF-7 commercial settings and also meets all residential standards for home use. We also offer a matching outdoor refrigerator drawer (model ADRD241OS) and this same unit as a 2-zone refrigerator-freezer drawer (model ADRF244OS). Browse the full Summit line to explore our extensive series of 15", 18", and 24" wide outdoor refrigerator drawers.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
