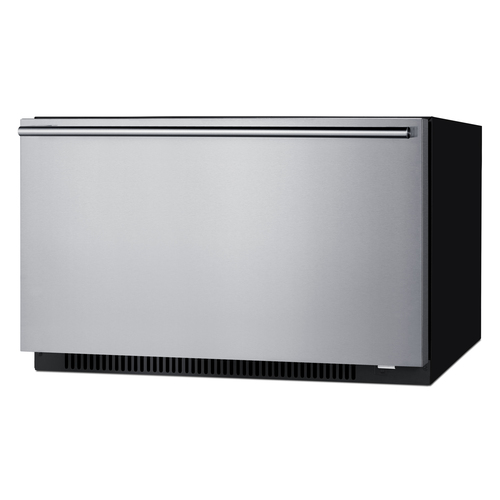

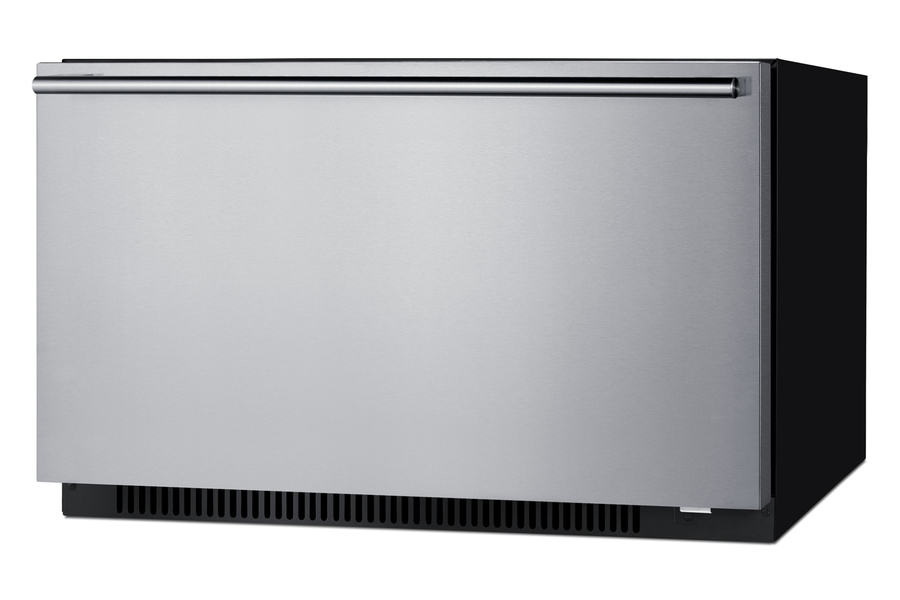

30" Wide Convertible Drawer Refrigerator/Warming Cabinet

SKU: SPHC30
True versatility designed for indoor or outdoor use, with a commercial grade stainless steel finish
Estimated Time to Ship:

Next day shipping

*Additional features may vary

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.
17.88" H x 29.5" W x 22.13" D
(45cm H x 75cm W x 56cm D)

Overview
Height of Cabinet 17.88" (45 cm)
Width 29.5" (75 cm)
Depth 22.13" (56 cm)
Depth with Handle 23.88" (61 cm)
Depth with door at 90° 37.88" (96 cm)
Capacity 2.4 cu.ft. (68 L)
Defrost Type Frost-Free
Door Stainless Steel/Panel-Ready
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 280.0kWh/year
Amps 15.0
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Shipping Weight 122.0 lbs. (55 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101102849
Refrigerator Features
Sabbath Mode Yes
Door Swing Drawer
Reversible No
Shelf Type Chrome
Shelf Qty 1
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.2oz.
Level Legs Qty 4
Temperature Range 36 to 43ºF/80 to 200ºF
Dimensions
Interior Height 10.75" (27 cm)
Interior Width 23.5" (60 cm)
Interior Depth 15.5" (39 cm)
Compressor Step Height 5.13" (13 cm)
Compressor Step Width 23.5" (60 cm)
Compressor Step Depth 4.88" (12 cm)

30" Wide Warming And Cooling Drawer

Specially designed to switch functions between a standard refrigerator or warming cabinet

Commercially approved

ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings

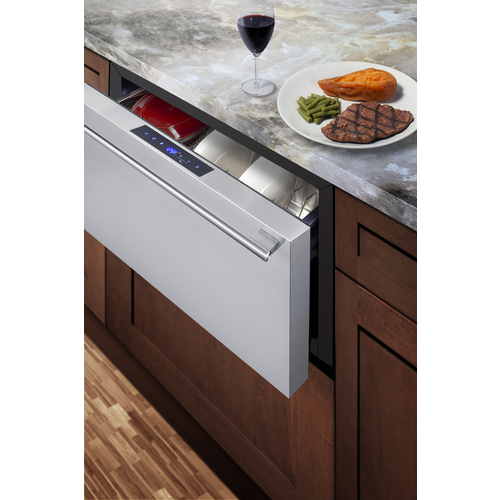

Built-in capable

Front-breathing design allows you to build the drawer into cabinetry

Weatherproof design

Durable construction allows safe installation in outdoor kitchens

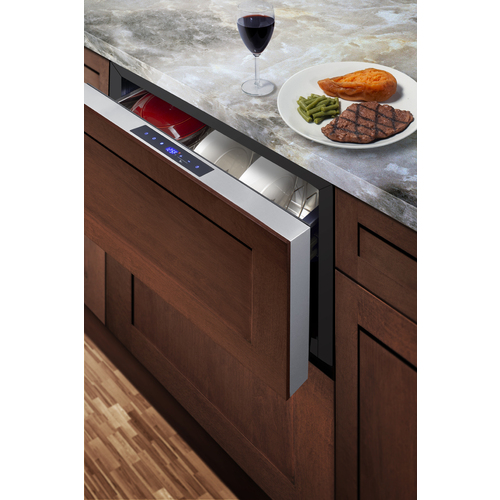

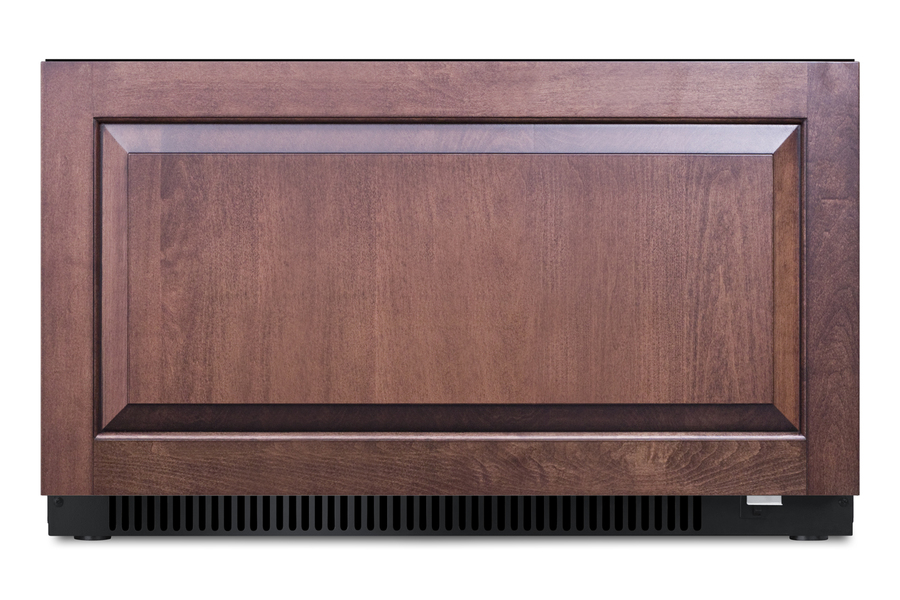

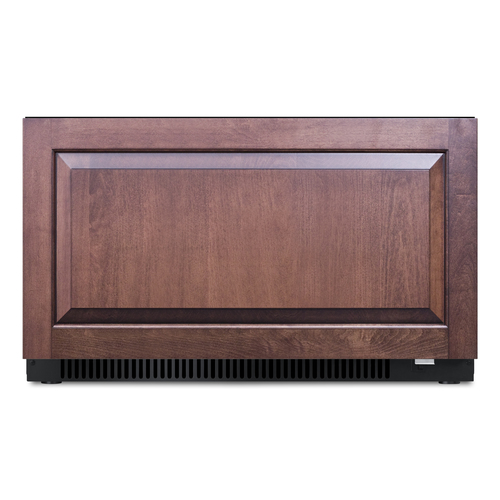

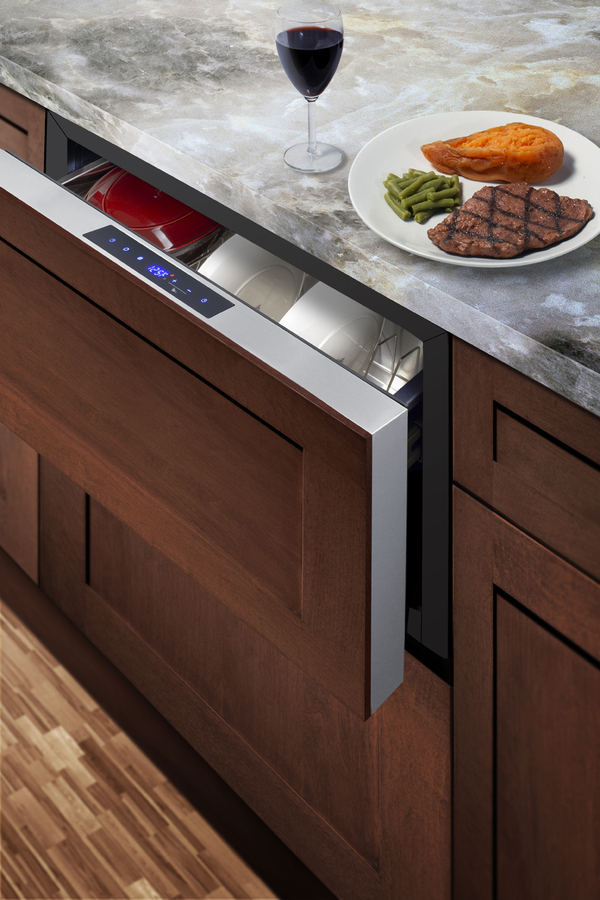

Panel-ready drawer front

Drawer accepts an overlay panel to let you seamlessly blend the unit into an existing cabinetry design

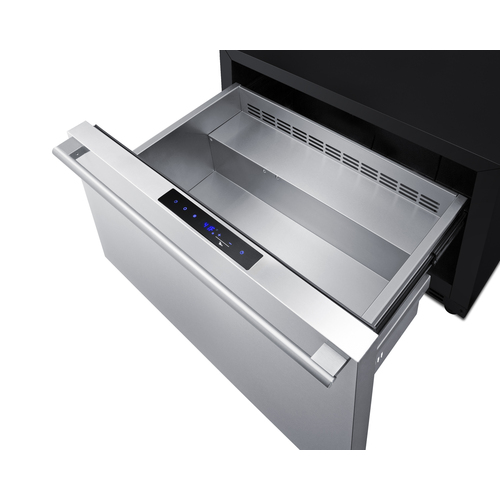

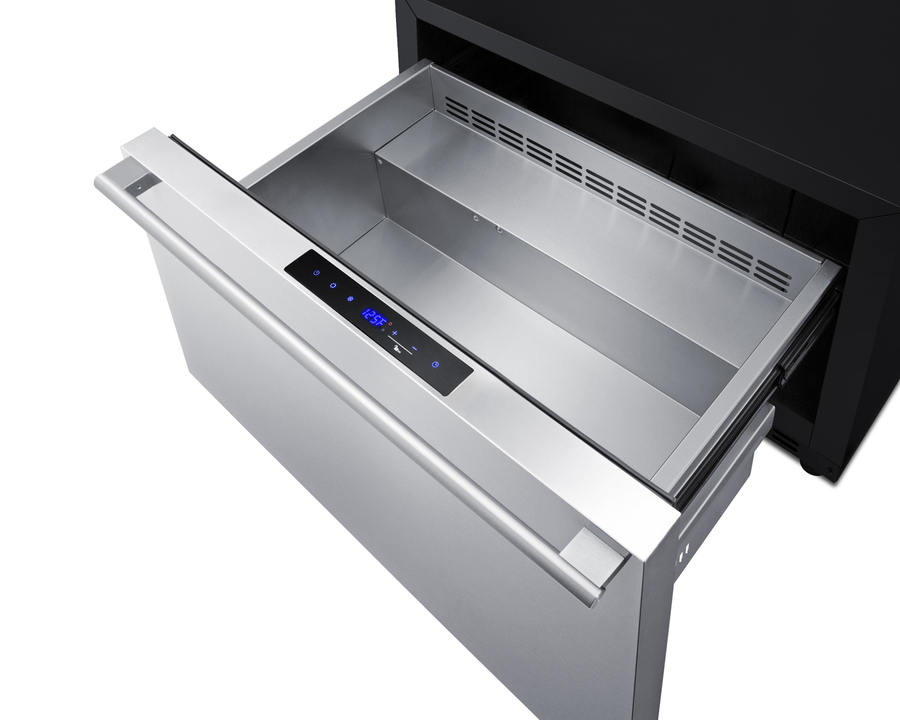

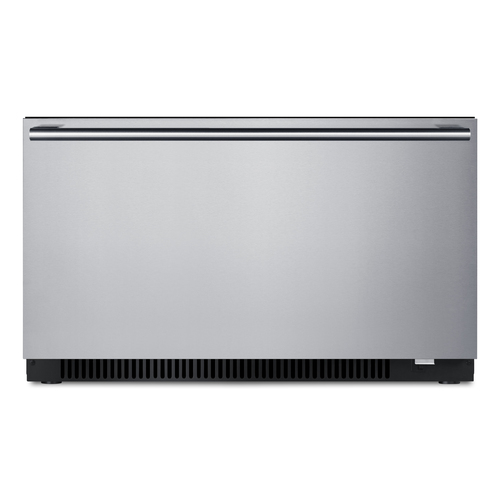

304 grade stainless steel drawer

Drawer front and interior constructed from stainless steel for added durability and easy cleanability

Warming function

Perfect for proofing bread with a temperature range of 80°F/20°C to 200°F/95°C

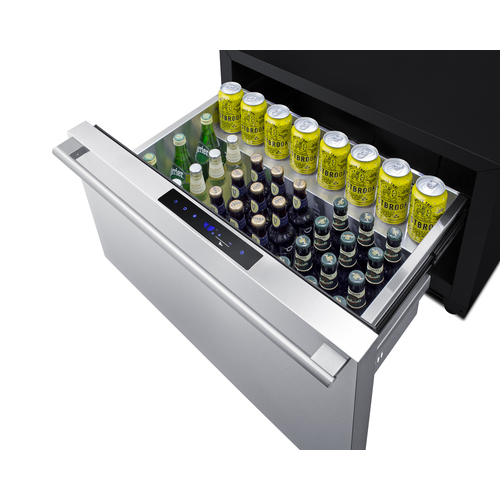

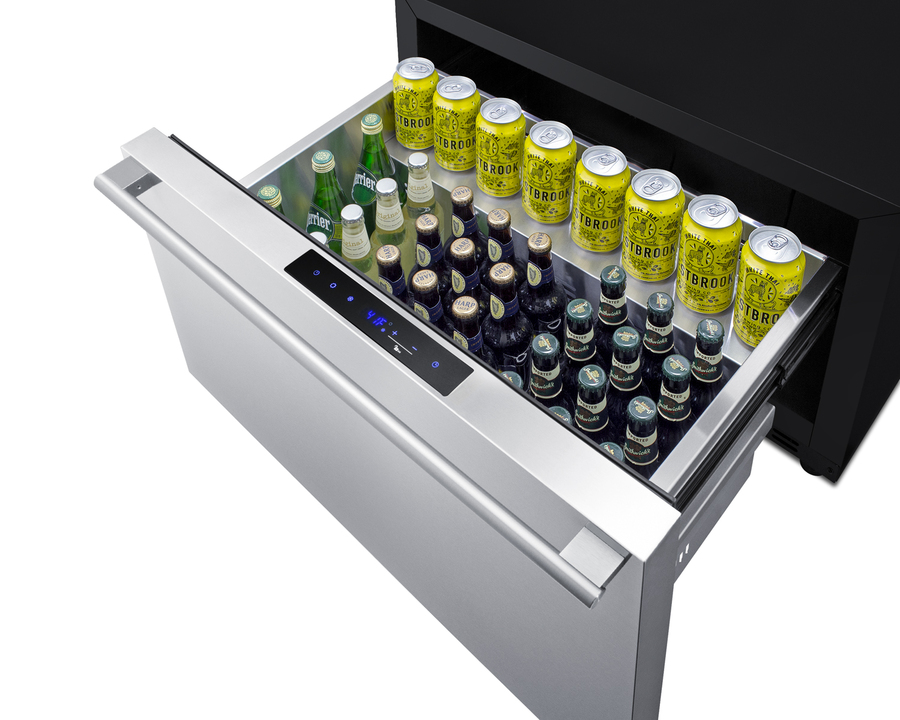

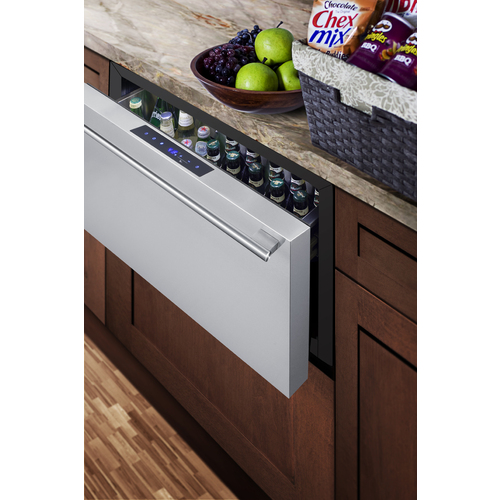

Cooling function

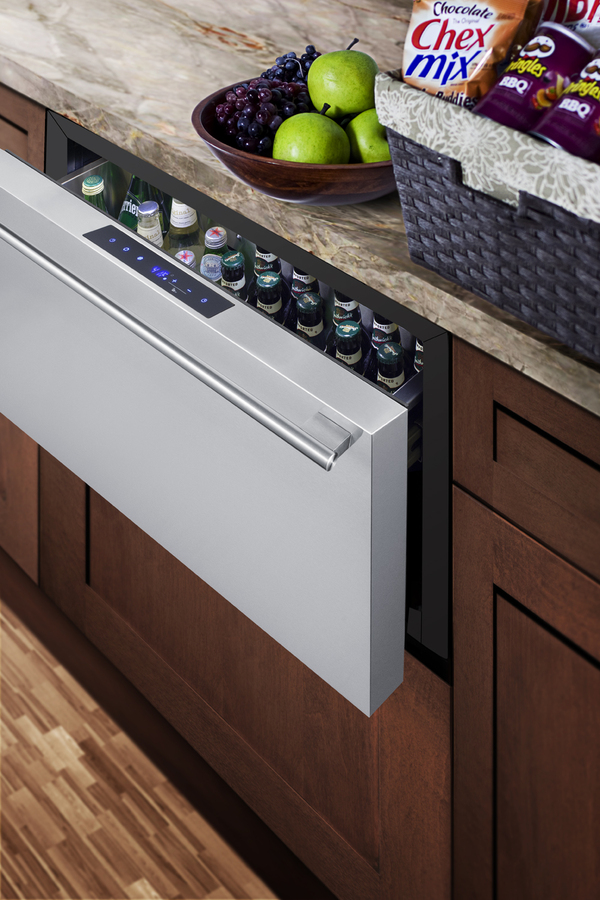

Perfect for chilling beverages with a temperature range of 36°F/2°C to 43°F/6°C

Frost-free operation

Minimum user maintenance with a fully no-frost operation system

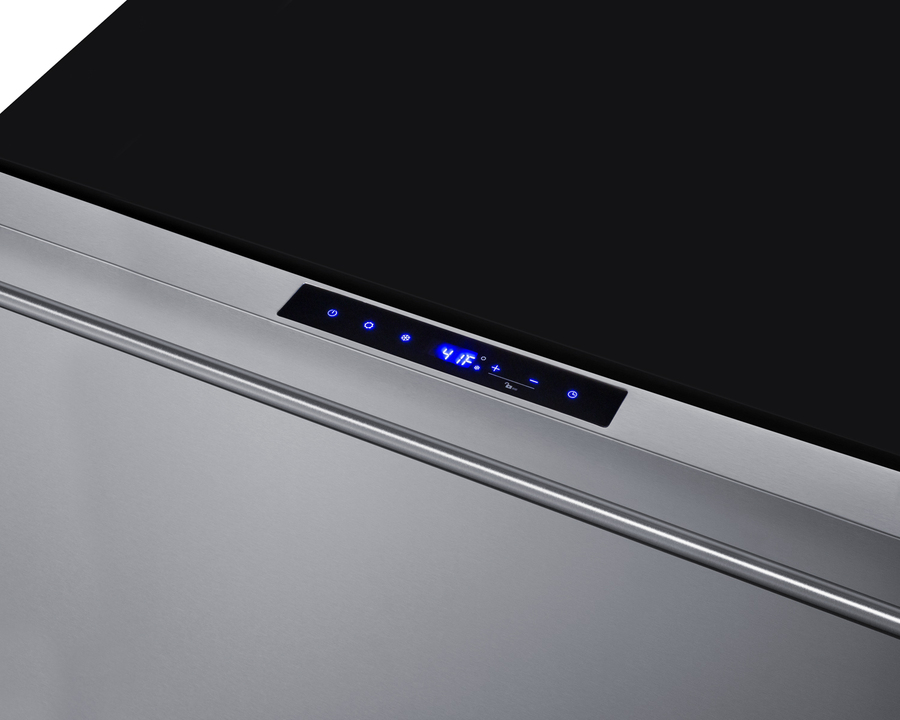

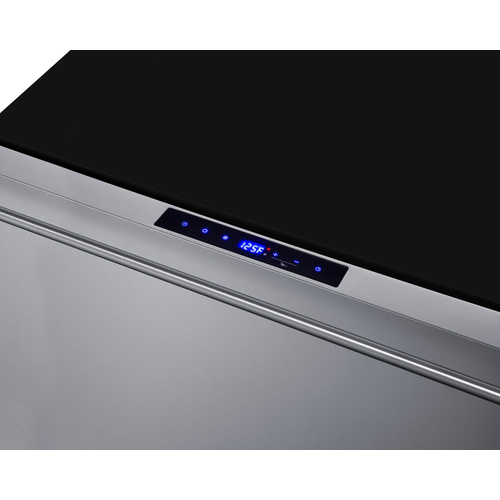

Digital thermostat

Electronic controls located on the top drawer ensure easy temperature management, with an external readout of Celsius or Fahrenheit

Internal fan

Fan-forced cooling ensures the unit is evenly cooled

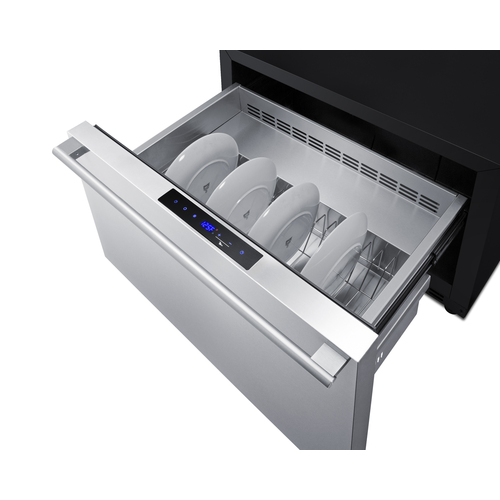

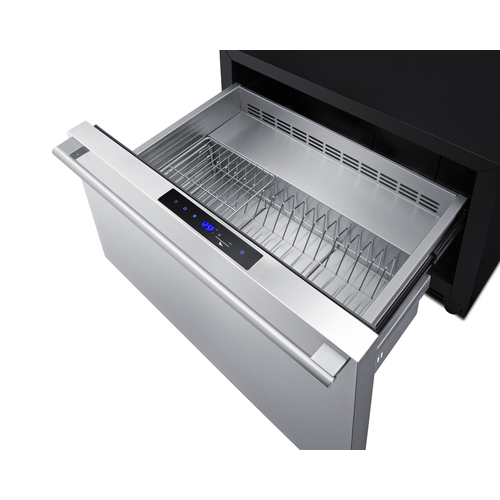

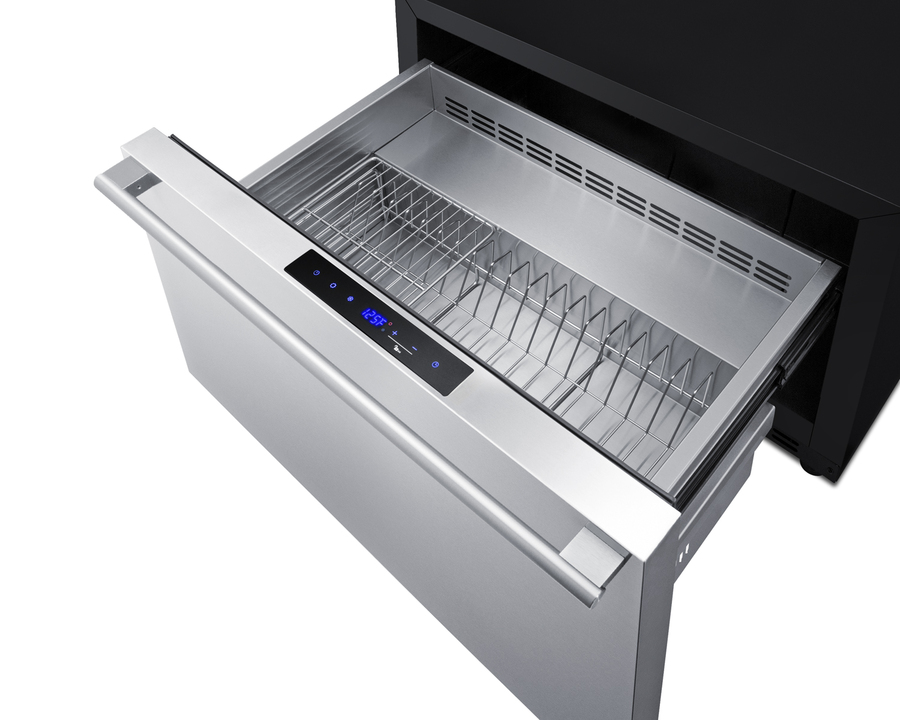

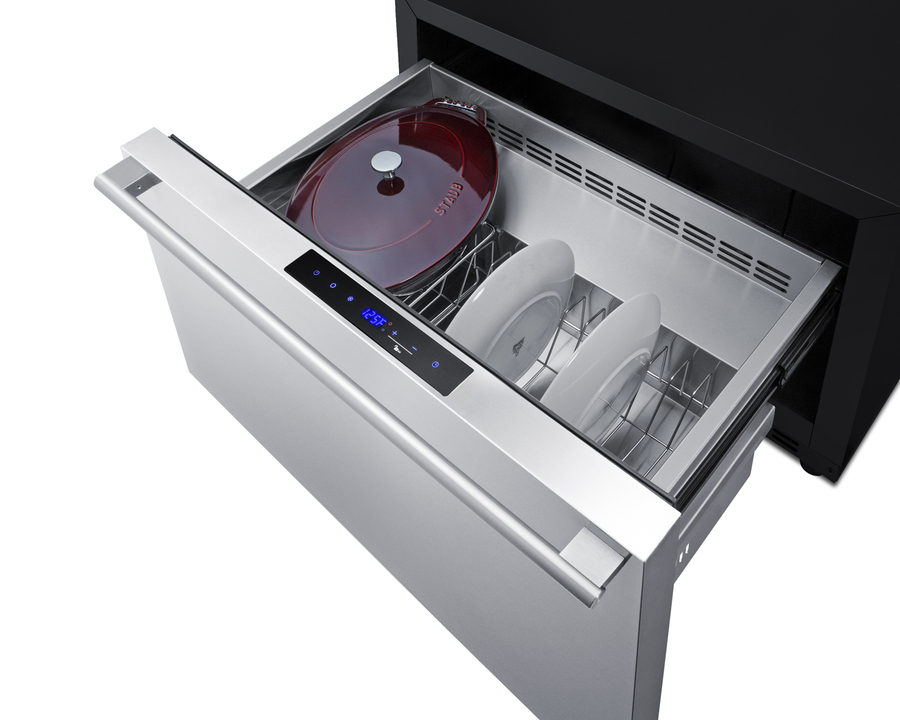

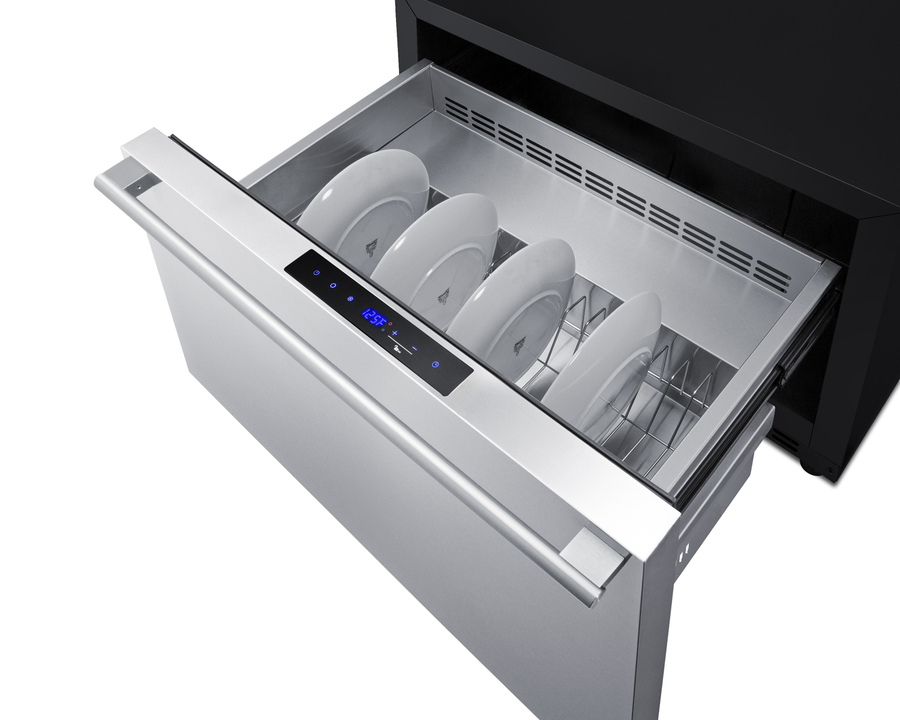

Removable dish rack

Steel rack included to maximize capacity by storing dishes upright

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Professional handle

A sleek stainless steel handle adds an elegant touch to any setting

Temperature alarm

High temperature alarm sounds if the unit's interior goes out of the recommended range

Open drawer alarm

Audible alarm will sound if the drawer is left open longer than one minute

Sabbath Mode

Optional setting lets you disable certain electrical functions during periods of religious observance for 48 hours

Child lock

Disables digital controls after two minutes of activity for added safety

Sealed back

Space-saving design with no exposed coils for easier cleanability

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit is excited to introduce our SPHC30, the industry's first convertible warming and cooling drawer.

The SPHC30 is sized at just under 30" wide for an easy fit in standard cutouts, with a front-breathing design that allows built-in installation. The drawer is constructed from 304-grade stainless steel, with a pro-style handle and a fully finished front. The drawer can be customized with overlay panels to match or accent existing cabinetry design, while the stainless steel handle completes the look.

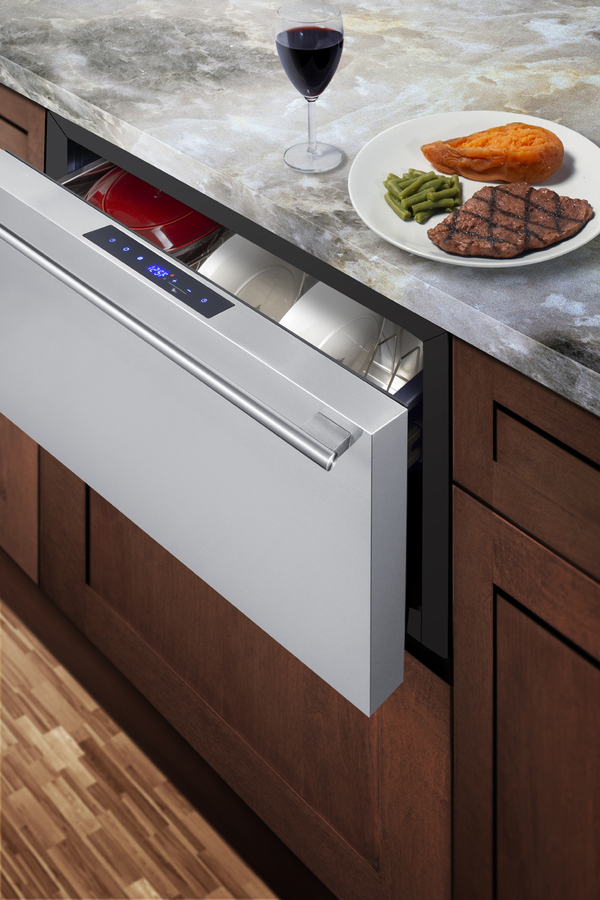

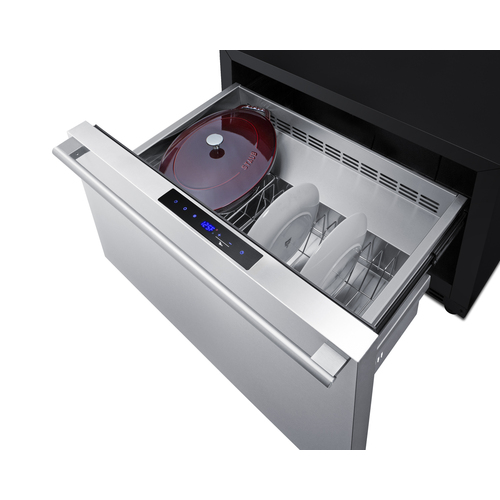

With 2.4 cu.ft of storage space and true versatility, our SPHC30 can function as both a cooling drawer and a warming drawer with a simple touch of a button. When in Cooling Mode, the unit is perfect for keeping beverages and snacks chilled (temperatures range from 36°F/2°C to  43°F/6°C.) Meanwhile, Warming Mode is ideal for helping bread dough rise, and can even be used to keep dishes warm until serving (temperatures range from 80°F/20°C to  200°F/95°C.) For maximum convenience, this unit ships with a removable dish rack.

The control panel includes a digital thermostat with an LED display (with Celsius or Fahrenheit readout) located atop the drawer. There's also a user-friendly timer, a temperature memory function in the event of a power interruption, a convenient sabbath mode, and even an automatic child lock to help prevent accidents. The SPHC30 is a 115v unit that ships with a power cord, though professional installation is required.

With its weatherproof construction, the SPHC30 is safe for use in both indoor and outdoor settings. With a sealed back and a fully finished black cabinet to ensure all components are protected from the elements. This unit is ETL-S listed to NSF-7 standards.

Though our SPHC30 is unique in functionality, we manufacture additional drawer-style refrigerators, freezers, and even wine cellars.

Visit summitappliance.com to browse our complete collections.

Download
BROCHURE w/ DRAWINGS
SPHC30.pdf
Download
TECHNICAL DRAWING (.dwg)
SPHC30.dwg
Download
ASSEMBLY DRAWING
SPHC30-Assembly.pdf
Download
3D DRAWING
SDR24.obj
Energy Guide

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
