24" Wide Built-In Kegerator, ADA Compliant

SKU: SBC58BLBICSSADA
32 inch height allows installation under lower counters following ADA guidelines
Estimated Time to Ship:

5 to 7 days

Application:
Indoor Outdoor
Color: Stainless Steel

*Additional features may vary

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.
This item can be ordered in one of our new vibrant door finishes: cobalt blue, lavender purple, emerald green, or saffron gold. Click the icon to explore our new palette!
32.25" H x 23.63" W x 22.75" D
(82cm H x 60cm W x 58cm D)

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 22.75" (58 cm)
Depth with Handle 24.75" (63 cm)
Depth with door at 90° 45.0" (114 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.2
Voltage/Frequency 115 V AC/60 Hz
Weight 110.0 lbs. (50 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101069647
Kegerator
Door Swing RHD
Reversible Factory Reversible
Tap Kit Yes
Height with Tap 47.5" (121 cm)
Number of Taps 2
Thermostat Type Dial
Interior Light Yes
Fan Type Exterior
Refrigerant R600a
Refrigerant Amount 0.64 oz.
High Side PSI 180.0
Low Side PSI 80.0
Inter Height 25.75" (65 cm)
Interior Width 21.0" (53 cm)
Interior Depth 17.75" (45 cm)
Compressor Step Height 6.5" (17 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 5.5" (14 cm)
Temperature Range 34º to 43ºF

Lock
L-SideLock
Add a single keyed lock located on the door's side (NOTE: side lock adds 1" to overall unit width and comes in white)
Exterior
SSK - Stainless steel kickplate
Stainless steel kickplate factory installed
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
LHD - Left hand door swing
Door reversal to left hand swing
Door
CDG-Emerald green door
Emerald green door wrap with horizontally mounted stainless steel handle and matching kickplate
CDY-Saffron gold door wrap
Saffron gold door wrap with horizontally mounted stainless steel handle and matching kickplate
CDB-Cobalt blue door wrap
Cobalt blue door wrap with horizontally mounted stainless steel handle and matching kickplate
CDP-Lavender purple door wrap
Lavender purple door wrap with horizontally mounted stainless steel handle and matching kickplate

ADA compliant height

Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters

Commercially approved

ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings

Built-in capable

Front-breathing design allows fully recessed installation under counters

Complete tap kit

Includes a 5 lb. CO2 tank and regulator, dual tap draft arm, Sankey American tap, and connection hardware

Dual tap system

Twin draft tower allows you to serve from two 1/6 (sixtel) sized kegs

Stainless steel finish

Door and cabinet are wrapped in 304 grade stainless steel for a professional look with lasting durability

Professional handle

Curved towel bar style handle in brushed stainless steel

Adjustable thermostat

Interior dial thermostat ensures easy temperature management

Automatic defrost

No-frost operation for minimum user maintenance

Stainless steel drip tray

Removable two-piece drip tray included for added convenience

Stainless steel guard rail

Durable railing makes it easier to neaten service

Interior light

Turn the light on when you need it and off when you're done with a convenient rocker switch

Interior CO2 holder

Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs

Stainless steel floor cover

Interior includes steel cover to protect the floor when loading kegs

One piece interior liner

Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Hidden evaporator

Cold wall design with hidden evaporator and seamless interior

Fully finished cabinet

Allows the unit to be used freestanding

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Summit Commercial brings unique appliance choices to ADA compliant settings with a new line of commercial beer dispensers made in Europe.

Sized at 32 inches high, the SBC58BLBICSSADA is designed to fit under lower ADA compliant counters. The front-breathing design allows built-in installation, while the fully finished cabinet also enables freestanding use. This unit comes with a stainless steel wrapped cabinet and door, complete with a pro style towel bar handle. We include a guard rail and two-piece stainless steel drip tray for cleaner service. The SBC58BBICSSADA ships with a complete Sankey American dual tap kit complete with a draft tower, regulator, 5 lb. CO2 tank, and all the equipment you need to serve beer on tap.

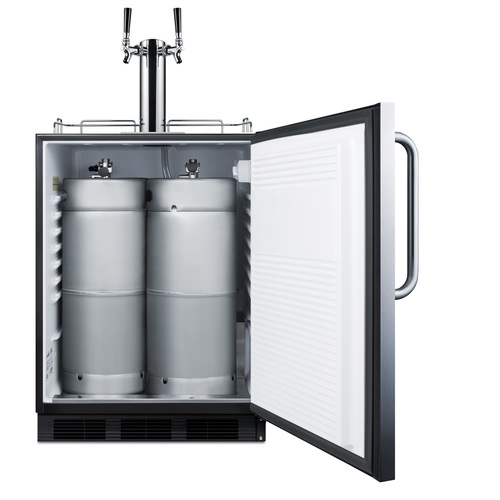

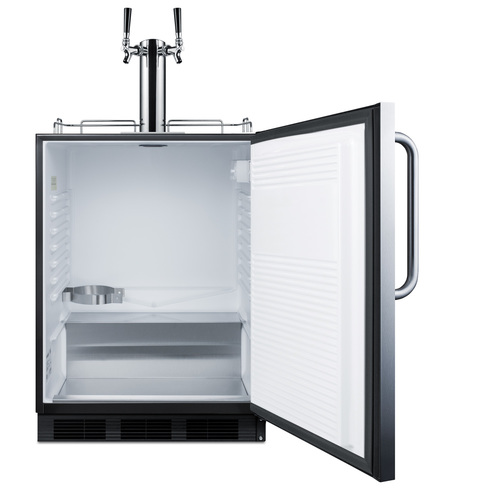

Inside, the SBC58BLBICSSADA is designed to hold two 1/6 (sixtel) kegs (note: interior does not accommodate a standard half barrel). Automatic defrost ensures easy user maintenance, with a seamless interior for easier cleaning. The stainless steel floor offers added durability when loading kegs. This unit includes an interior light with an on/off rocker switch and a dial thermostat for easy and intuitive temperature management. A CO2 tank bracket is located inside, allowing you to keep the tank inside and save on exterior depth.

The SBC58BLBICSSADA is ETL-S listed to NSF-7 commercial standards. Additional ADA compliant kegerator choices are available with panel-ready or glass doors. Browse our complete line for more choices.



Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
