Turnkey Oasis Wet Bar, ADA-Compliant
3 to 5 days; multi-piece orders may extend lead time. Call 718-893-3900 ext. 507 to discuss
(86cm H x 174cm W x 65cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 33.75" (86 cm) |
| Width | 68.5" (174 cm) |
| Depth | 25.5" (65 cm) |
| Depth with door at 90° | 48.25" (123 cm) |
| Capacity | 4.6 cu.ft. (130 L) |
| Defrost Type | Frost-Free |
| Door | Glass |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101153810 |
|
Kitchenette
|
|
| Refrigerator Included | AL57GPNR |
| Refrigerator Door Swing | RHD |
| Reversible | No |
| Adjustable Shelves | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.99 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Sink Height | 7.0" (18 cm) |
| Sink Width | 16.0" (41 cm) |
| Sink Depth | 17.63" (45 cm) |
FEATURES
The Oasis Wet Bar series includes sleek, functional, and fully assembled bars, featuring a 115V powered beverage center and a stainless steel sink complete with a faucet
Shaker-style cabinetry with laminate countertop ships in one piece
Set your cabinet in place, have a plumber install and connect your sink, and slide in the refrigerator to create your very own one-piece wet bar
Countertop is just under 34" high to comply with ADA guidelines
Hardwood cabinetry for lasting durability
This unit's shaker-style cabinetry comes in a classic white finish to elevate the aesthetic of any space

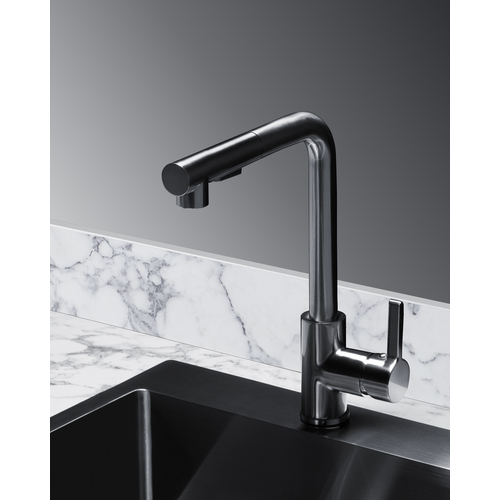

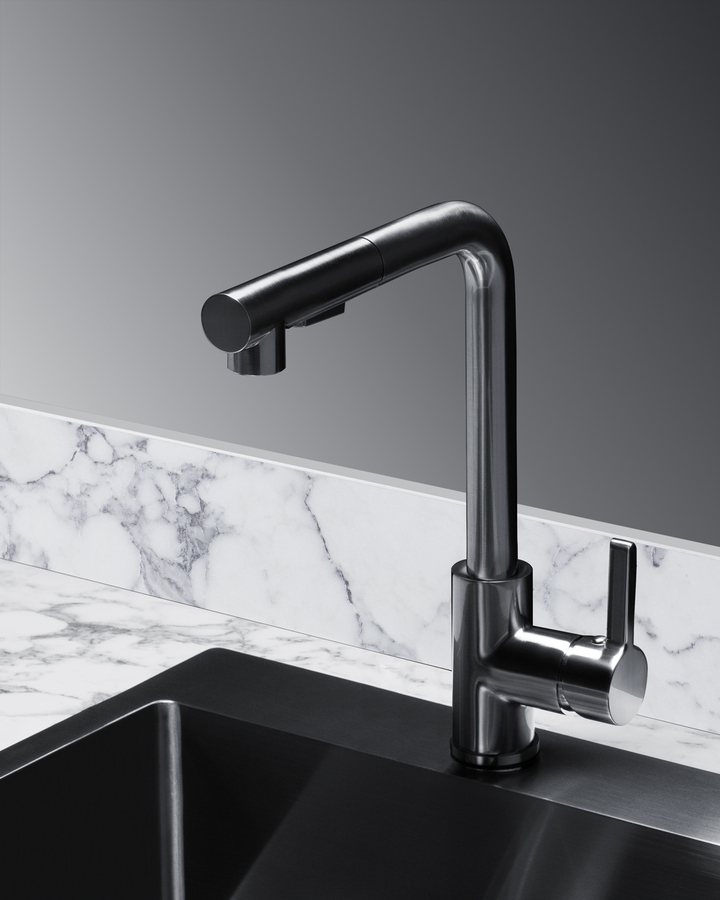

Swivel gooseneck faucet in brushed nickel with 17.63" L x 16" W x 7" D sink in18 gauge stainless steel equipped with SoundSHIELD technology to reduce noise
Solid laminate countertop in a marble look

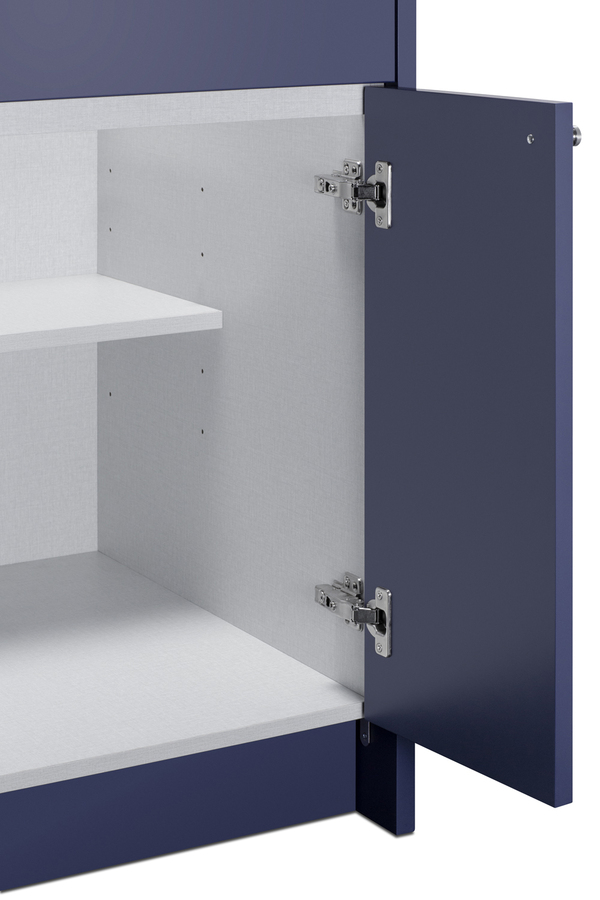

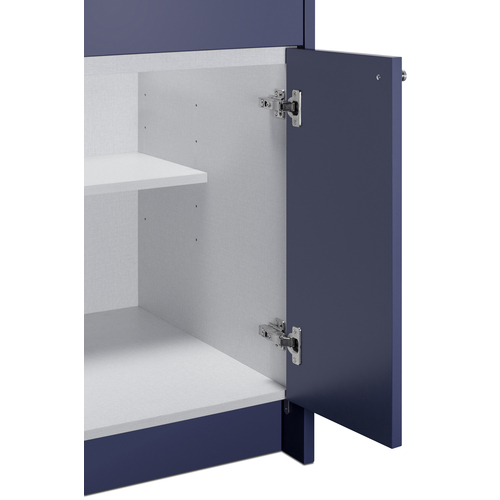

Includes a 1-door cabinet and 2-door cabinet under the sink, both with a removable shelf for flexible storage

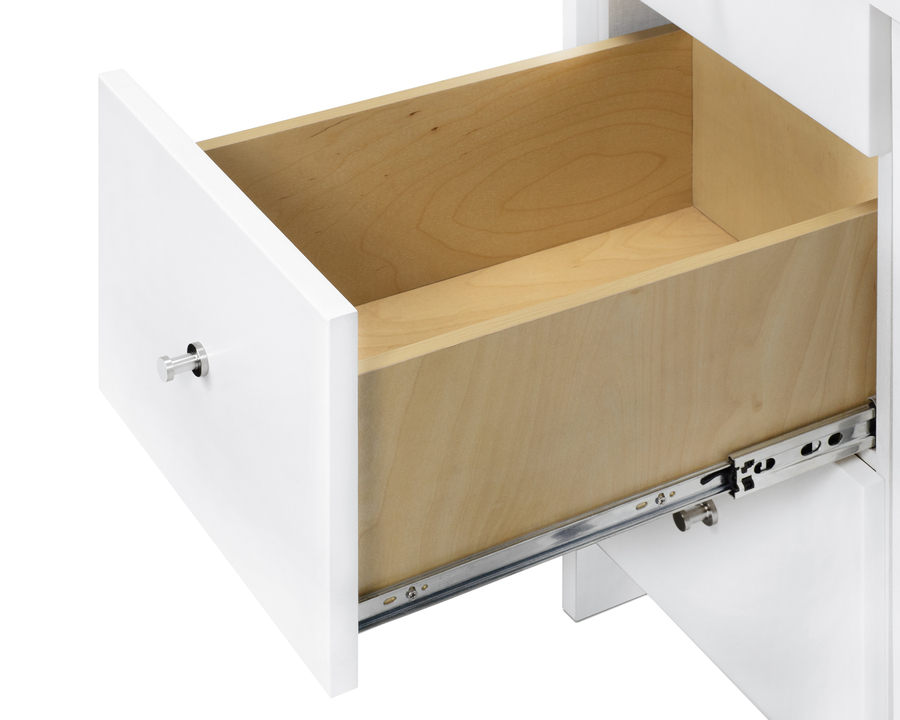

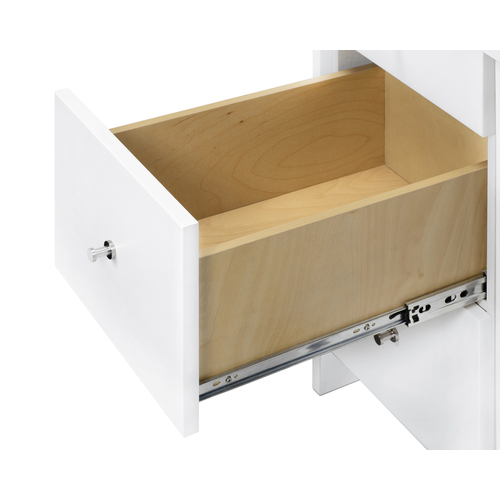

Hardwood storage drawer with soft-close glides is perfect for holding menus, beverage accessories, and other bar extras

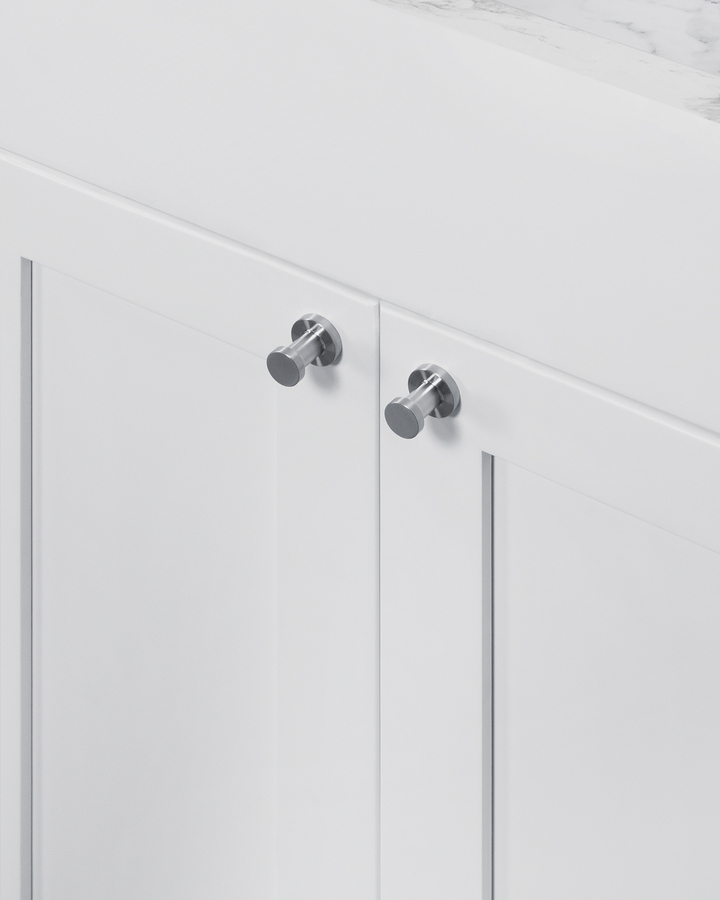

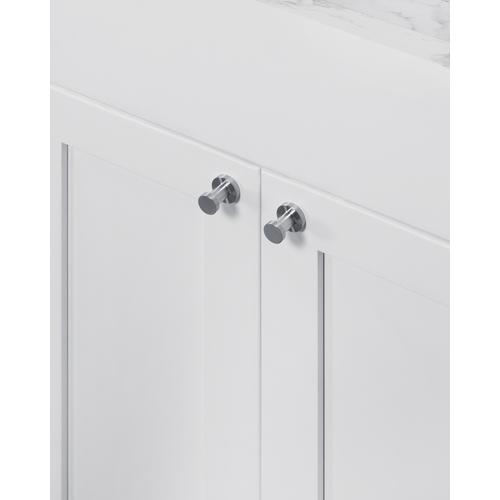

Cabinet and drawer knobs in brushed nickel finish packaged inside for easy installation

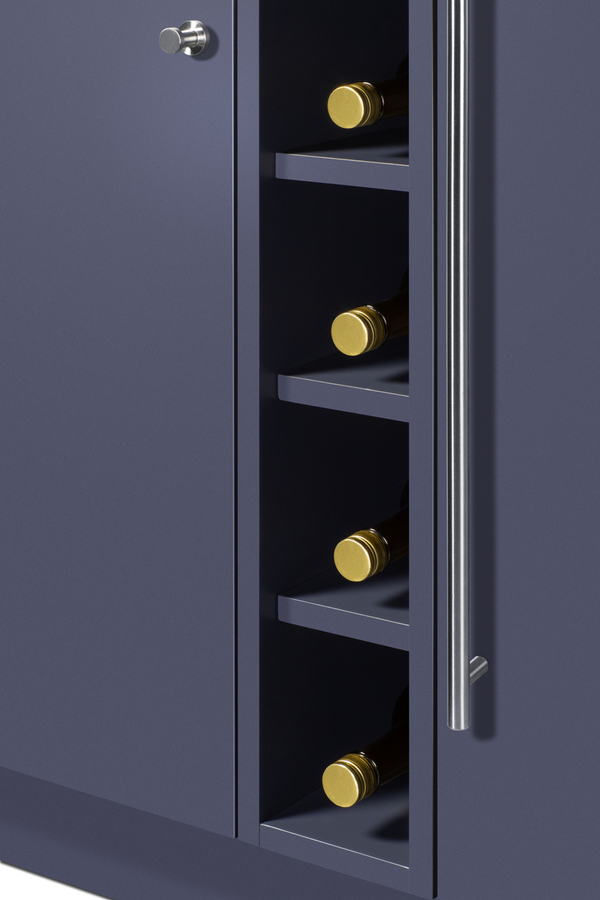

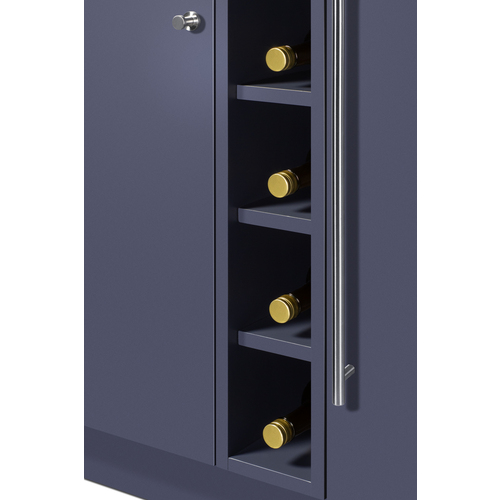

To maximize storage space this unit includes a 5-bottle wine cubby
This unit includes model AL57GPNR, a 24" wide frost-free beverage center
Beverage center comes with a pre-installed wood panel and stainless steel handle for an uninterrupted cabinetry design
Beverage center features no-frost operation for minimum user maintenance
Provides a full view of stored beverages, with a pre-installed wood panel to seamlessly match the cabinetry
Keyed lock for a secure interior (2 keys included)
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Matching backguard is packaged with the unit for optional use
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Environmentally friendly design with no ozone-damaging chemicals
Cabinetry and refrigerator are individually boxed and packaged together on one pallet for one-piece shipping. Once received, follow the written or video instructions to safely unpack. Overall shipping dimensions are 73" H x 77" W x 31" D. Cabinetry's packaged dimensions (with refrigerator removed) is 40" H x 73.5" W x 29.5" D.
DESCRIPTION

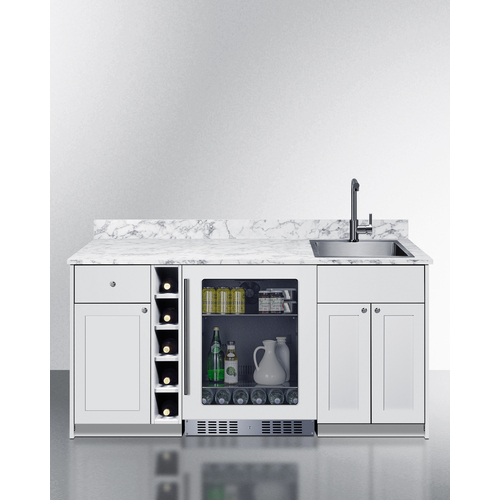

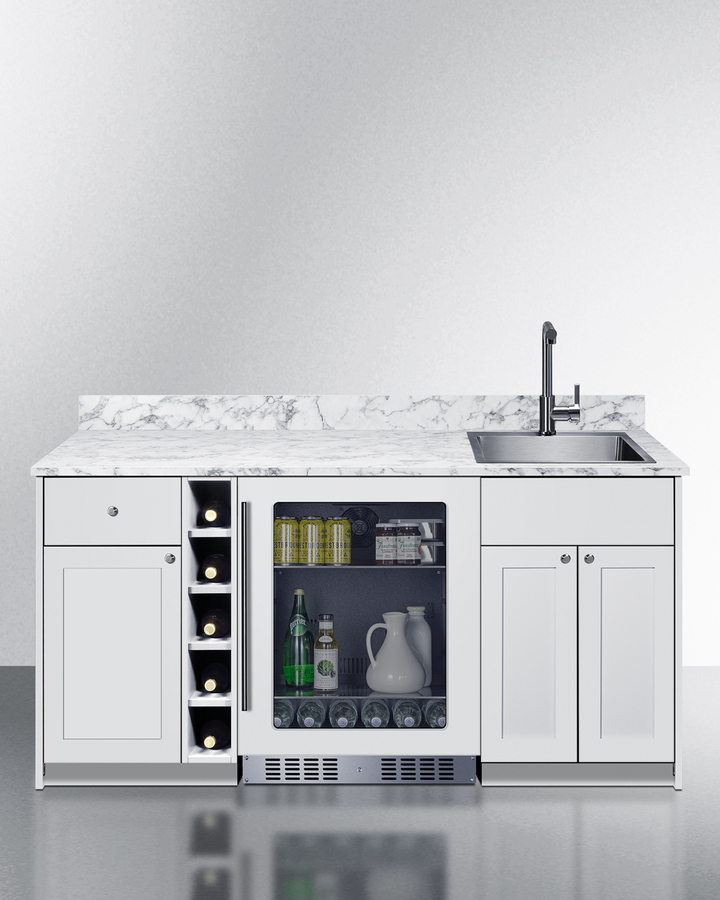

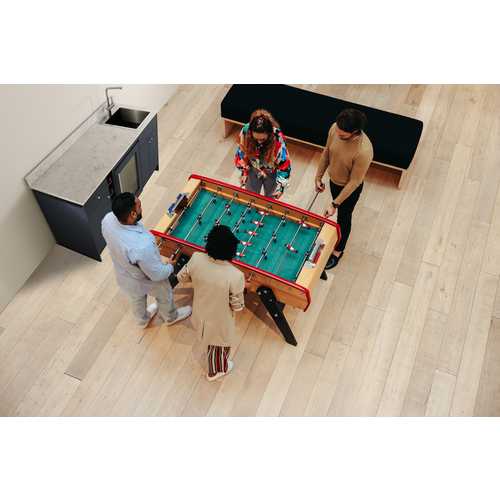

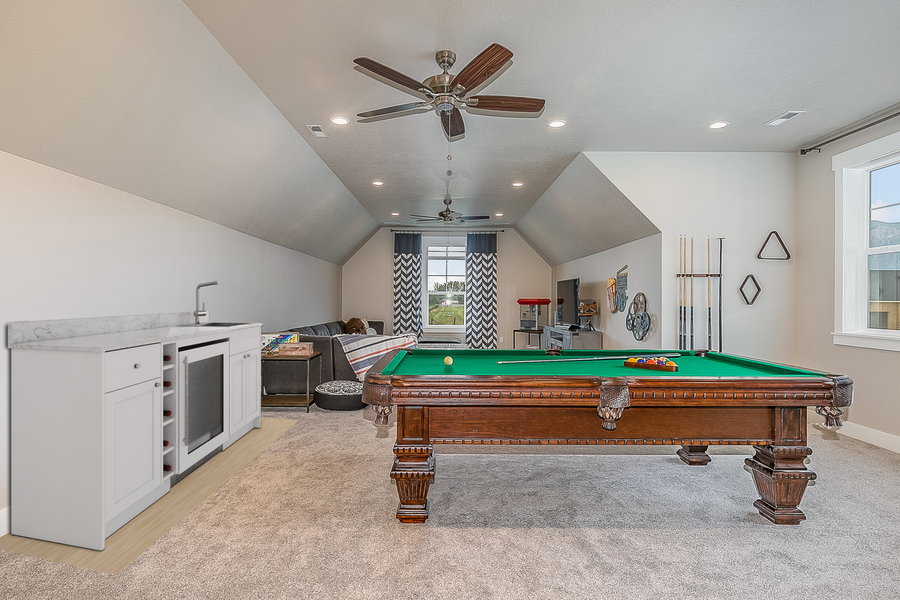

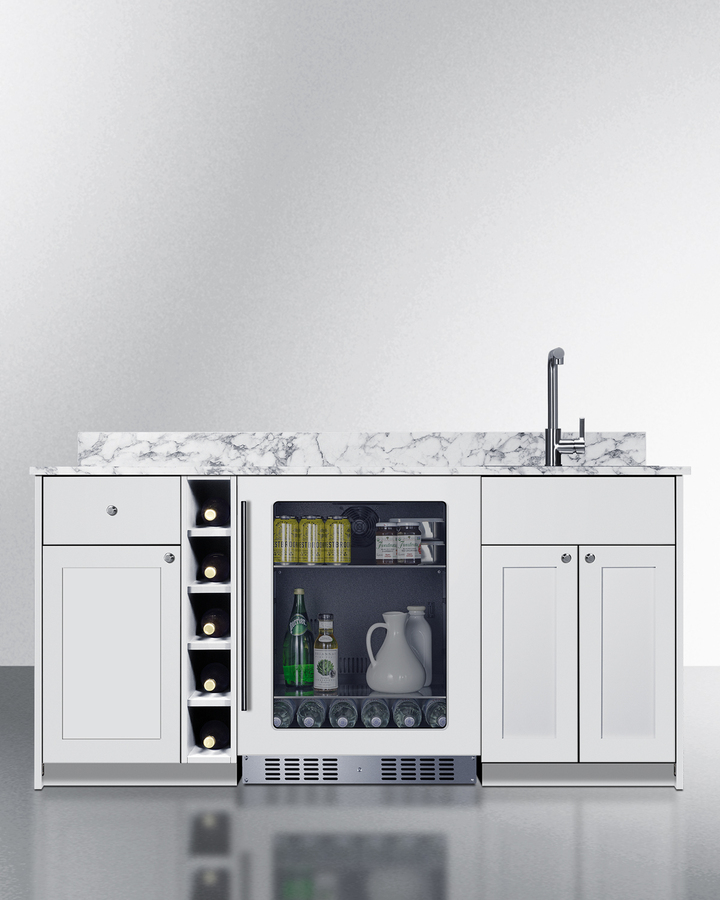

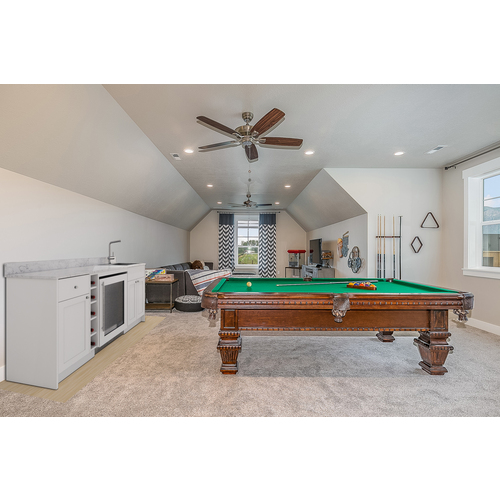

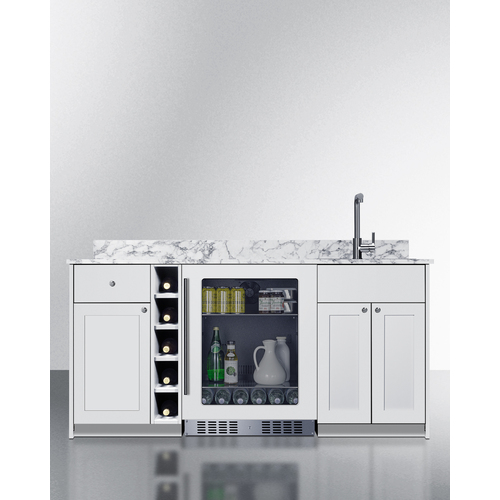

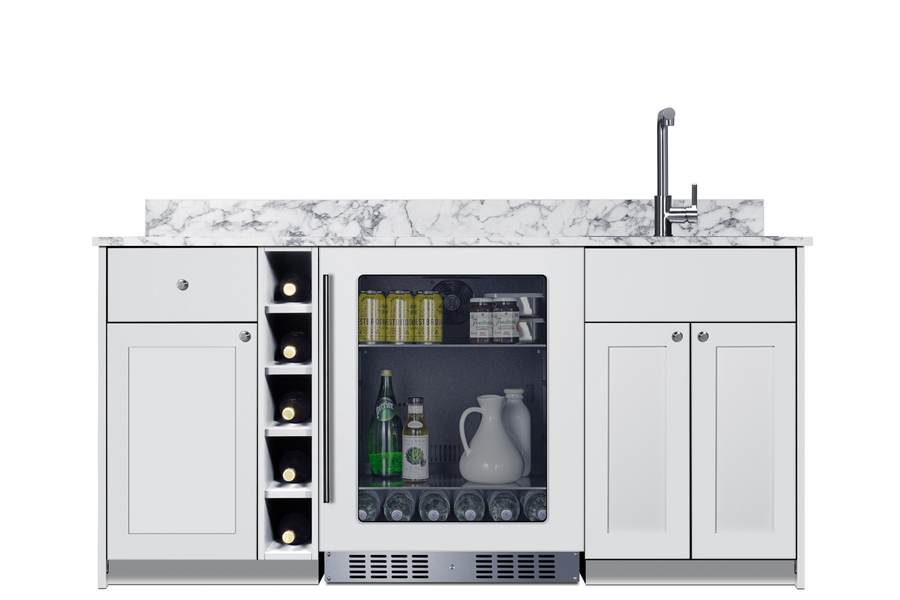

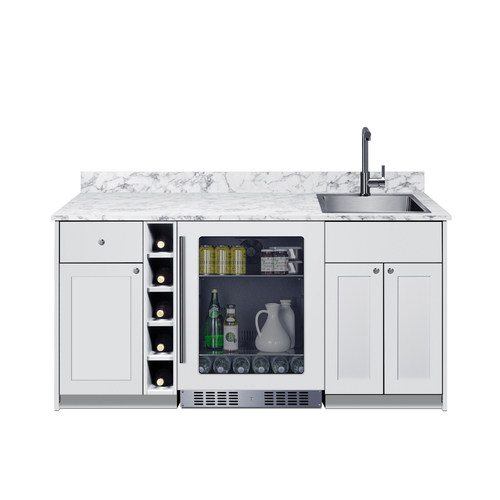

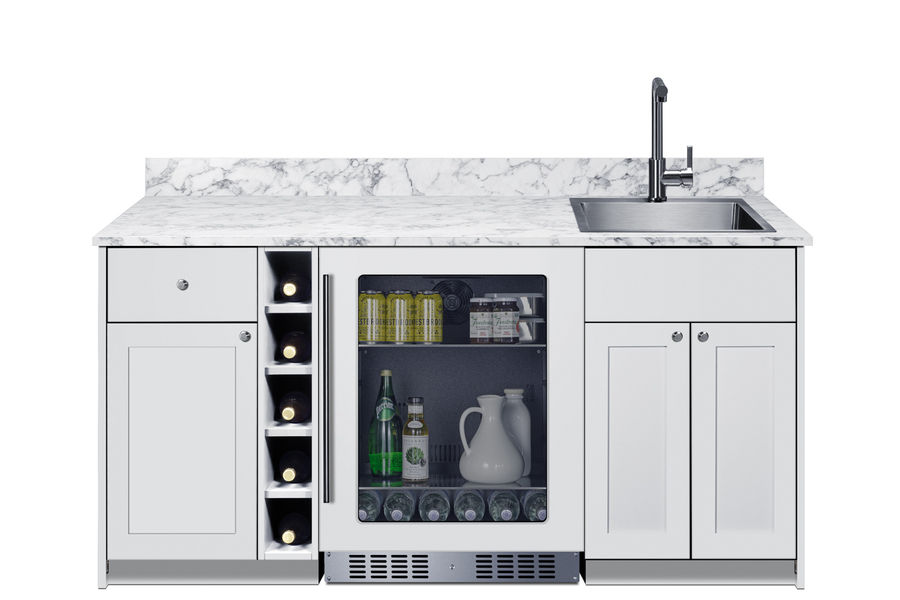

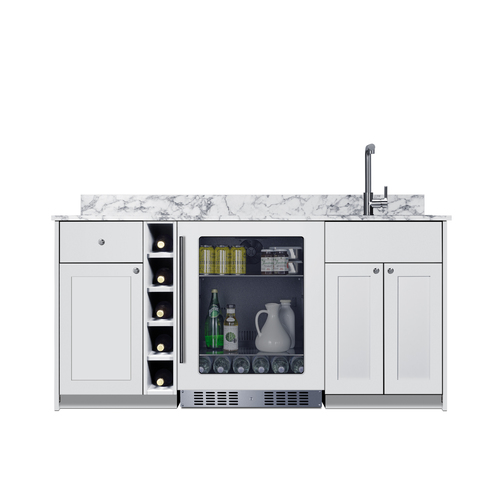

Summit's Turnkey Kitchens & Bars feature pre-installed cabinetry and matching appliances to bring effortless style & instant living to home bars, ADUs, tiny houses, rental properties, office break rooms, and hospitality settings. The Oasis Wet Bar is a 68.5" wide home wet bar in a classic white finish, sized just under 34" to comply with ADA guidelines for lower counter height. It features hardwood construction, a stainless steel sink with a faucet, and a pre-installed countertop made from a water-resistant laminate material with a marble look. We include a matching backsplash for optional use. To maximize storage, this model has two cabinets, a spacious drawer, and a wine cubby designed to hold five wine bottles. We also supply the door knobs in an attractive brushed nickel finish. The pre-assembled cabinetry comes in a classic shaker style. For this same unit with the sink positioned on the left side, see model OASISWH33SINKL. The OASISWH33 includes Summit's frost-free, 115V-powered commercial grade beverage center (model AL57GPNR). This 24" wide beverage refrigerator features a double-pane tempered glass door with a pre-installed wood panel for an uninterrupted cabinetry design. A stainless steel handle completes the look. The kickplate includes a factory-installed lock for optional security. Inside, the AL57GPNR features three adjustable glass shelves for flexible storage and convenient bottle slots on the floor. This beverage center includes recessed LED lighting, intuitive digital controls, an open-door alarm, high-temperature alarm, and a Sabbath mode setting. The OASISWH33 is shipped in two boxes on one pallet. Setup involves unpacking the unit and setting into place. A professional can install the sink and connect your plumbing. Then slide the refrigerator into the cabinetry, plug into a standard 115V outlet, and enjoy your home wet bar. We recommend your installation team watches the unboxing video before setup (summitappliance.com/turnkey-installation). Overall shipping dimensions are 73" H x 77" W x 31" D. Cabinetry's packaged dimensions (with refrigerator removed) is 40" H x 73.5" W x 29.5" D. Unpackaged, the final product dimensions are 33.75" H x 68.5" W x 25.5" D. With its classic design, ADA-compliant height, and easy plug-and-play setup, the OASISWH33 is the perfect solution to complete any home bar or hospitality space. For this unit in a midnight navy finish, see model OASISMN33. For this unit in a standard 36" counter height, see model OASISWH35. Summit’s Turnkey collection also features fully assembled dry bars and complete kitchens with full cooking capabilities. Explore the entire Turnkey Kitchens & Bars lineup at summitappliance.com.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
