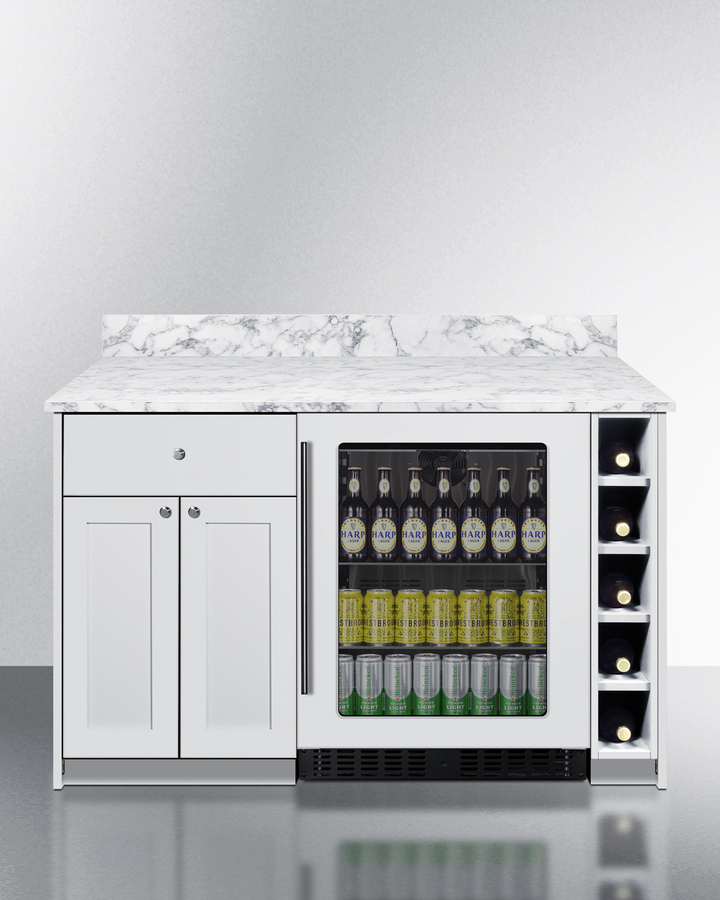

Turnkey Mesa Dry Bar, ADA-Compliant
3 to 5 days; multi-piece orders may extend lead time. Call 718-893-3900 ext. 507 to discuss
(86cm H x 137cm W x 53cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 33.75" (86 cm) |
| Width | 54.0" (137 cm) |
| Depth | 20.75" (53 cm) |
| Depth with door at 90° | 43.5" (110 cm) |
| Capacity | 3.25 cu.ft. (92 L) |
| Defrost Type | Frost-Free |
| Door | Glass |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101153773 |
|
Kitchenette
|
|
| Refrigerator Included | ASDG2411PNR |
| Refrigerator Door Swing | RHD |
| Reversible | No |
| Adjustable Shelves | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.38 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Temperature Range | 36 to 43ºF |
FEATURES
The Mesa Dry Bar series includes sleek, functional, and fully assembled bars, featuring a 115V powered beverage center
Ships with pre-assembled cabinetry and installed countertop for fast and easy setup
Simply slide the beverage center into place, plug in the unit, and enjoy
Countertop is just under 34" high to comply with ADA guidelines
Optimize any space with a 21" depth, perfect for small footprints
Hardwood cabinetry for lasting durability
This unit's shaker-style cabinetry comes in a classic white finish to elevate the aesthetic of any space
Solid laminate countertop in a marble look

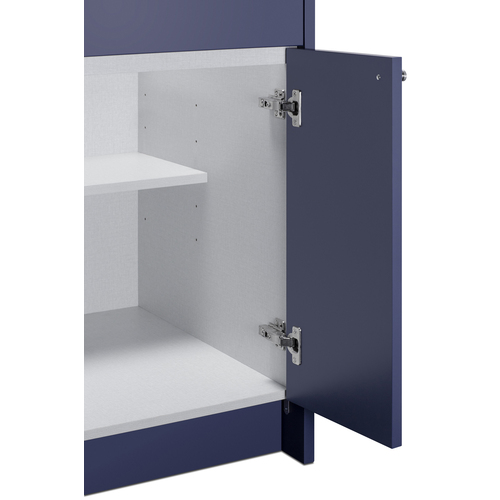

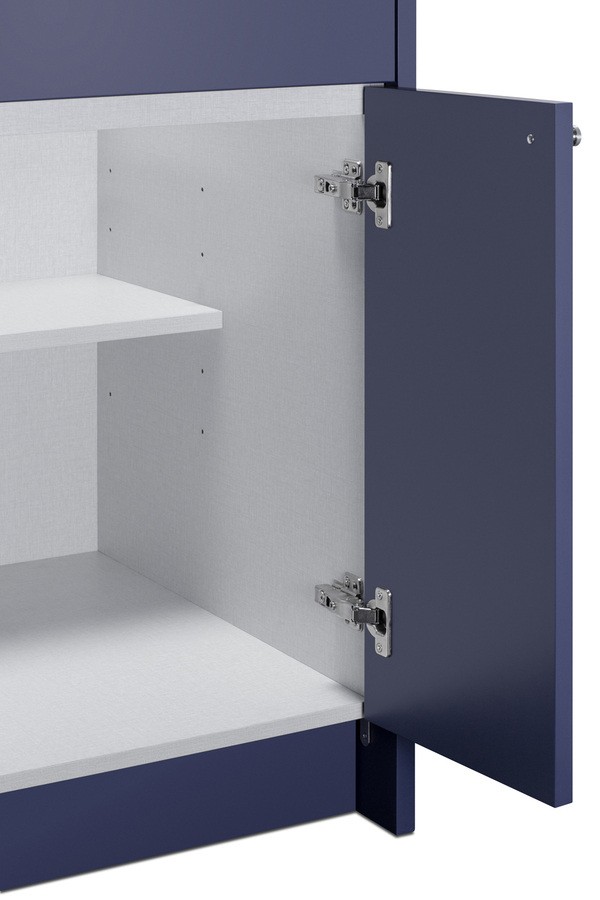

2-door cabinet with removable shelf ideal for storing supplies and non-refrigerated items

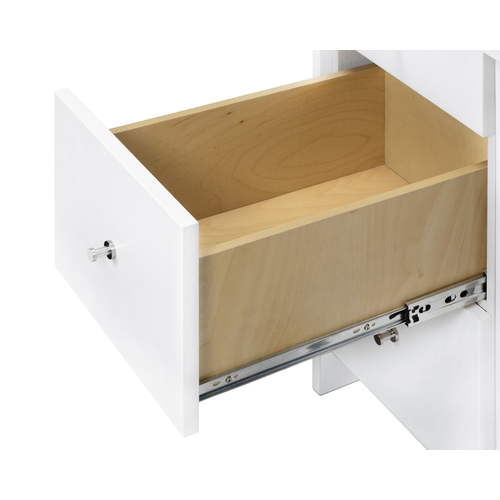

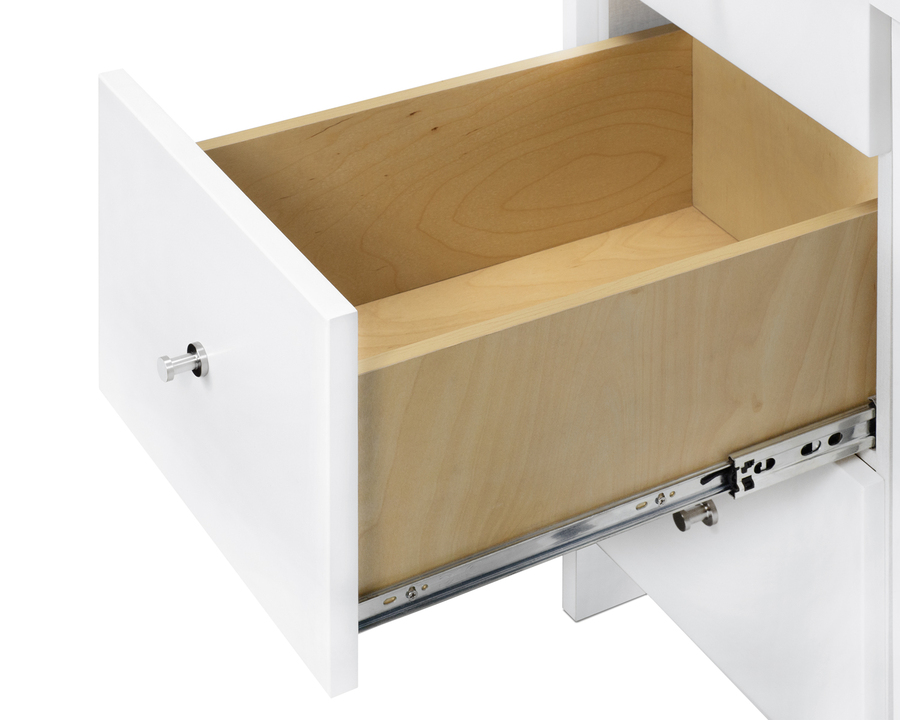

Hardwood storage drawer with soft-close glides is perfect for holding menus, beverage accessories, and other bar extras

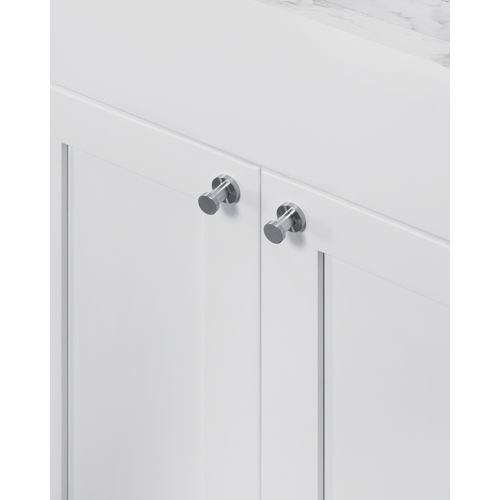

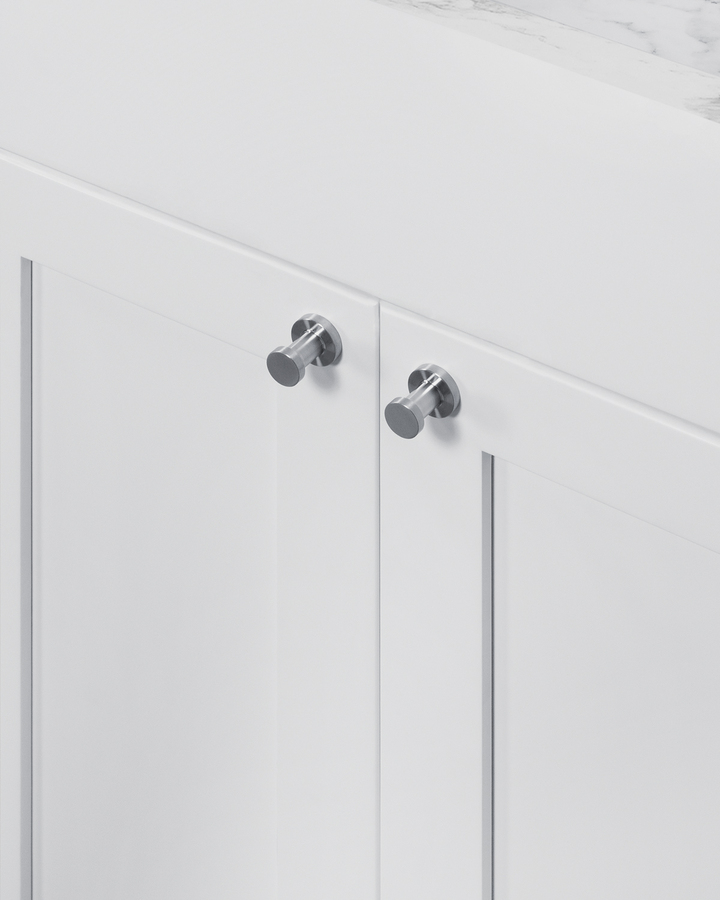

Cabinet knobs in brushed nickel finish packaged inside for easy installation

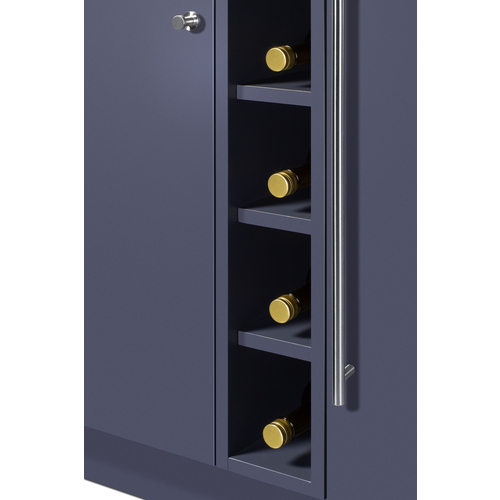

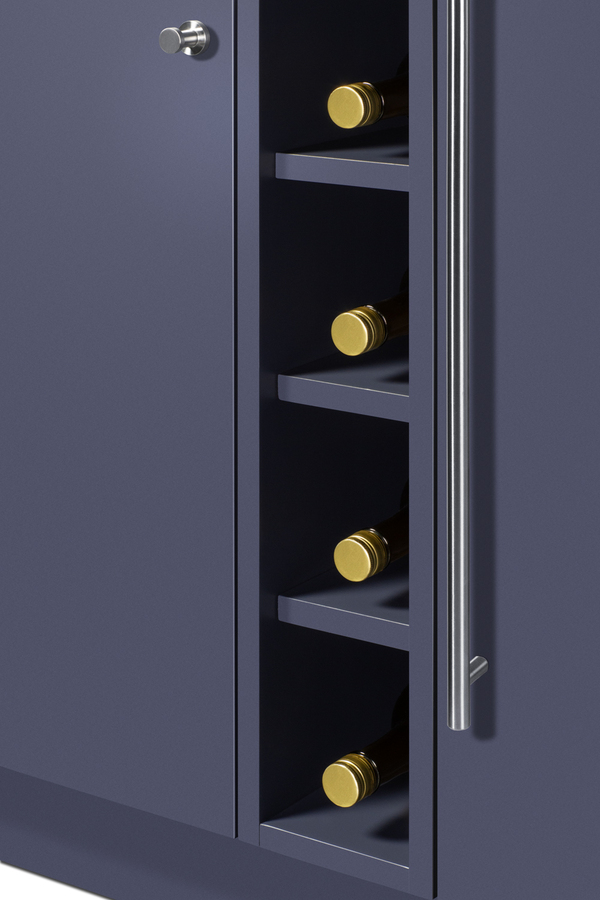

5-bottle wine cubby for convenient storage
This unit includes model ASDG2411PNR, a 24" wide frost-free beverage center
Beverage center comes with a pre-installed wood panel for an uninterrupted cabinetry design
Beverage center features no-frost operation for minimum user maintenance
The beverage center features an elegant double-pane tempered glass door with a pre-installed wood panel for a seamless design
The refrigerator's walls and floor are constructed from stainless steel for added strength and easy cleanup
Adjustable glass shelves with stainless steel clips allow you to adjust the shelf height for the best fit
Keyed lock for a secure interior
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Matching backguard is packaged with the unit for optional use
Matching backguard is packaged with the unit for optional use
Rear includes a finished panel to allow for freestanding use with proper anchoring (see user manual for more information)
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Environmentally friendly design with no ozone-damaging chemicals
Cabinetry and refrigerator are individually boxed and packaged together on one pallet for one-piece shipping. Once received, follow the written or video instructions to safely unpack. Overall shipping dimensions are 73" H x 31" W x 77" D. Cabinetry's packaged dimensions (with refrigerator removed) is 40" H x 56.25" W x 23.5" D.
DESCRIPTION

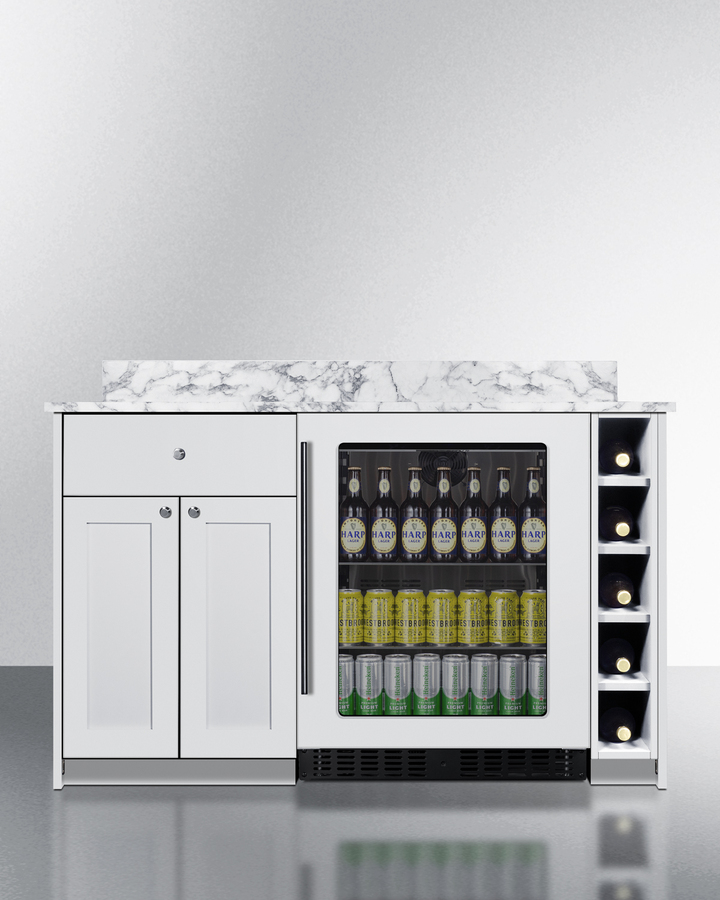

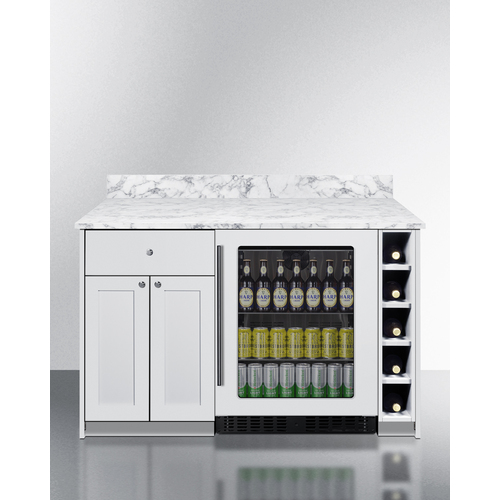

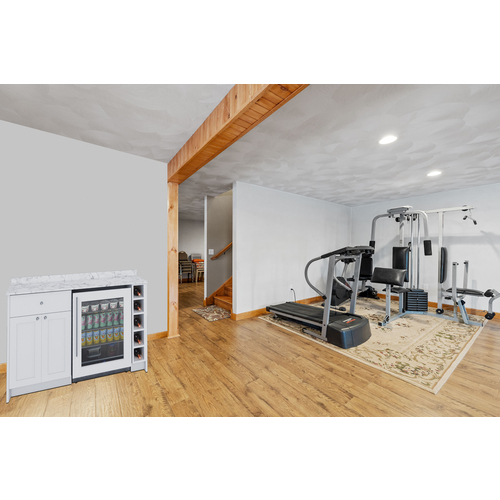

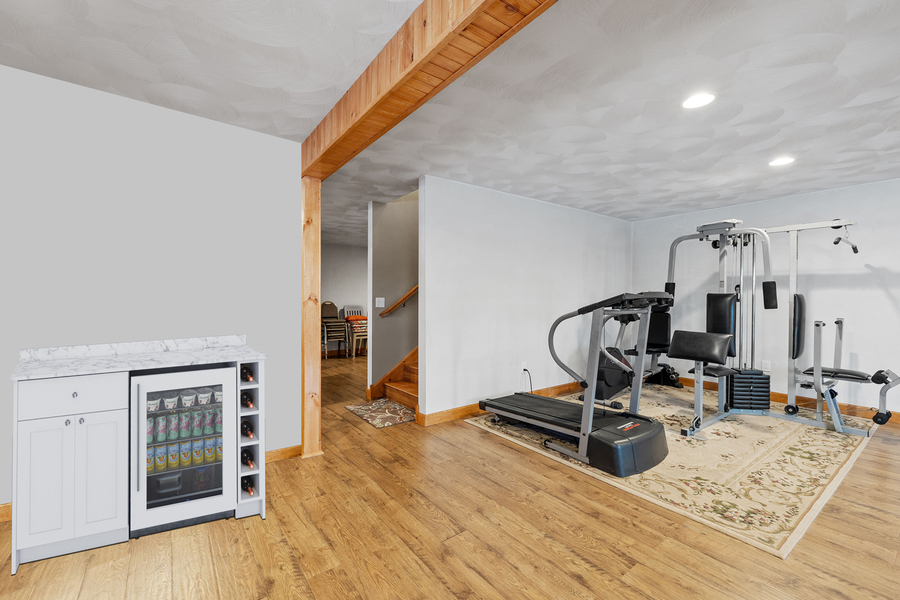

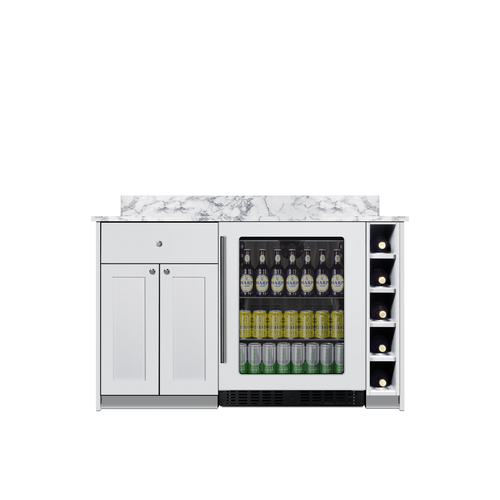

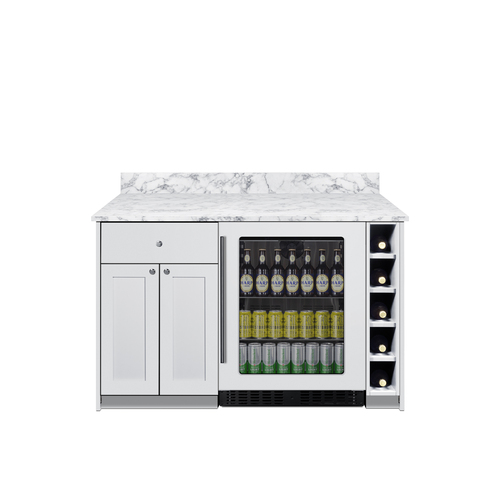

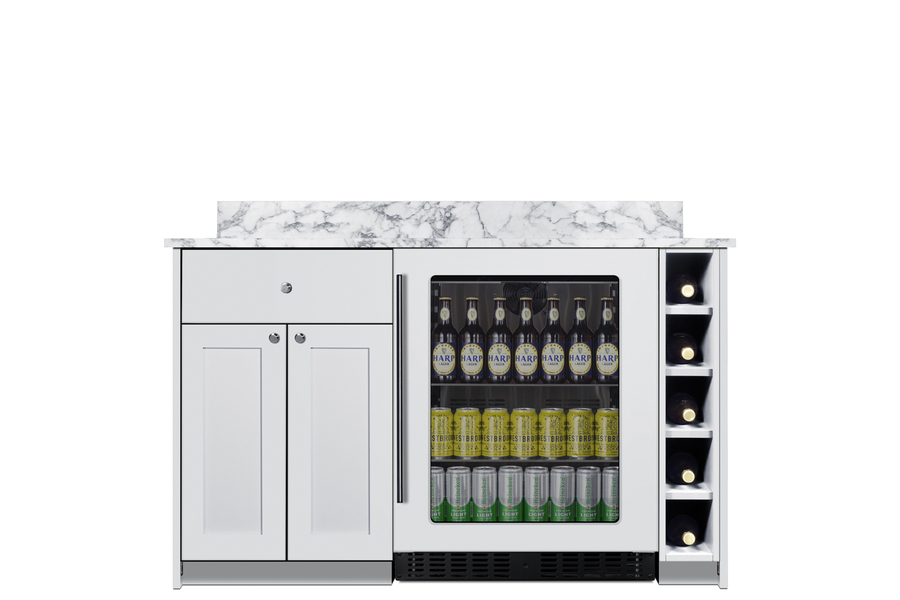

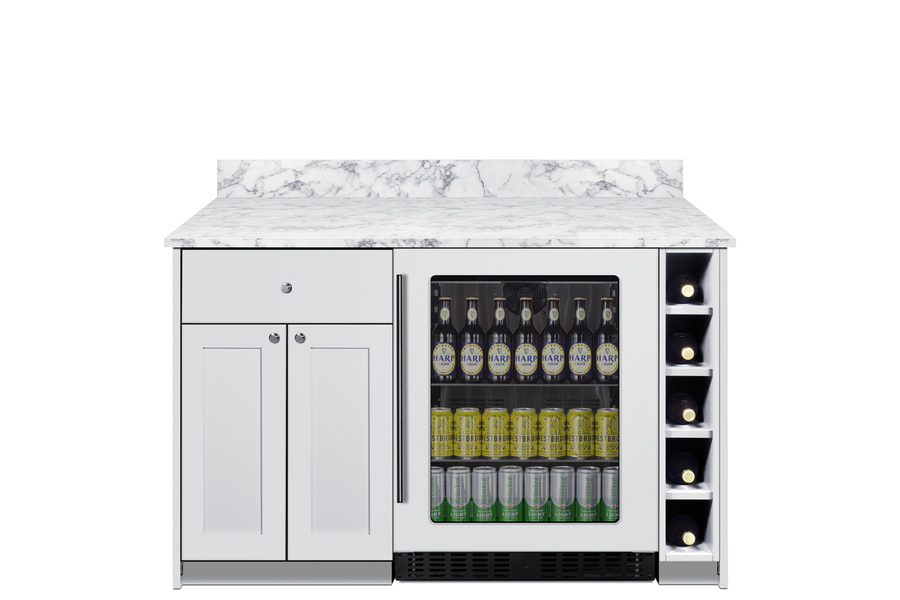

Summit's fully assembled Turnkey Kitchens & Bars bring effortless style & instant living to home bars, ADUs, tiny houses, rental properties, office break rooms, and other hospitality settings. The Mesa Dry Bar is a 54" wide home dry bar in a clean white finish that ships fully assembled for easy entertaining. Sized just under 34" high, it is ideal for ADA compliant spaces. It features hardwood construction and a pre-installed countertop made from a water-resistant laminate material with a marble look. This model has a two-door storage cabinet, soft-close drawer, and wine cubby designed to hold five bottles. The cabinetry comes in a classic shaker style. The MESAWH33 includes Summit's frost-free commercial grade beverage center (model ASDG2411PNR). This 24" wide beverage refrigerator features a double-pane tempered glass door with a pre-installed wood panel for an uninterrupted cabinetry design. A stainless steel handle completes the look. The kickplate includes a factory-installed lock for optional security. Inside, the ASDG2411PNR features stainless steel construction for improved durability. Three adjustable glass shelves utilize a cantilevered shelving system to accommodate any size and ensure flexible storage. This beverage center includes LED lighting, digital controls, an open door alarm, a high temperature alarm, and Sabbath mode setting. The MESAWH33 is shipped in two boxes on one pallet. Simply unbox both pieces, set in place, slide the beverage center under the counter, plug in, and start enjoying full bar capabilities. We recommend your installation team watches the unboxing video before setup (summitappliance.com/turnkey-installation). This unit has a finished back and can be used freestanding with proper installation (see manual for details). Overall shipping dimensions are 73" H x 77" W x 31" D. Cabinetry's packaged dimensions (with refrigerator removed) is 40" H x 56.25" W x 23.5" D. Unpackaged, the final product dimensions are 33.75" H x 54" W x 20.75" D. With its shallow 21" depth, ADA-compliant height, and easy plug-and-play setup, the MESAWH33 is the perfect solution to complete any home bar or hotel space. For this unit in a midnight navy finish, see model MESAMN33. For this unit featuring a standard height, see the model MESAWH35. Summit’s Turnkey collection also features wet bars with stainless steel sinks and faucets and complete kitchens with full cooking capabilities. Explore the entire Turnkey Kitchens & Bars lineup at summitappliance.com.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
