Turnkey Mesa Dry Bar
3 to 5 days; multi-piece orders may extend lead time. Call 718-893-3900 ext. 507 to discuss
(91cm H x 137cm W x 53cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 35.75" (91 cm) |
| Width | 54.0" (137 cm) |
| Depth | 20.75" (53 cm) |
| Depth with door at 90° | 43.5" (110 cm) |
| Capacity | 3.5 cu.ft. (99 L) |
| Defrost Type | Frost-Free |
| Door | Glass |
| Cabinet | Blue |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101153803 |
|
Kitchenette
|
|
| Refrigerator Included | SDHG2443PNR |
| Refrigerator Door Swing | RHD |
| Reversible | No |
| Adjustable Shelves | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.38 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Temperature Range | 36 to 43ºF |
FEATURES

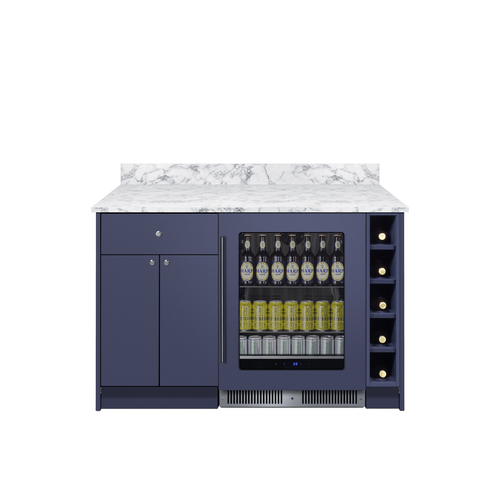

The Mesa Dry Bar series includes sleek, functional, and fully assembled bars, featuring a 115v powered beverage center
Ships with pre-assembled cabinetry and installed countertop for fast and easy setup
Simply slide the beverage center into place, plug in the unit, and enjoy
Optimize any space with a 21" depth, perfect for small footprints
Hardwood cabinetry for lasting durability
This unit's slab-style cabinetry comes in a modern midnight navy finish to elevate the aesthetic of any space
Solid laminate countertop in a marble look

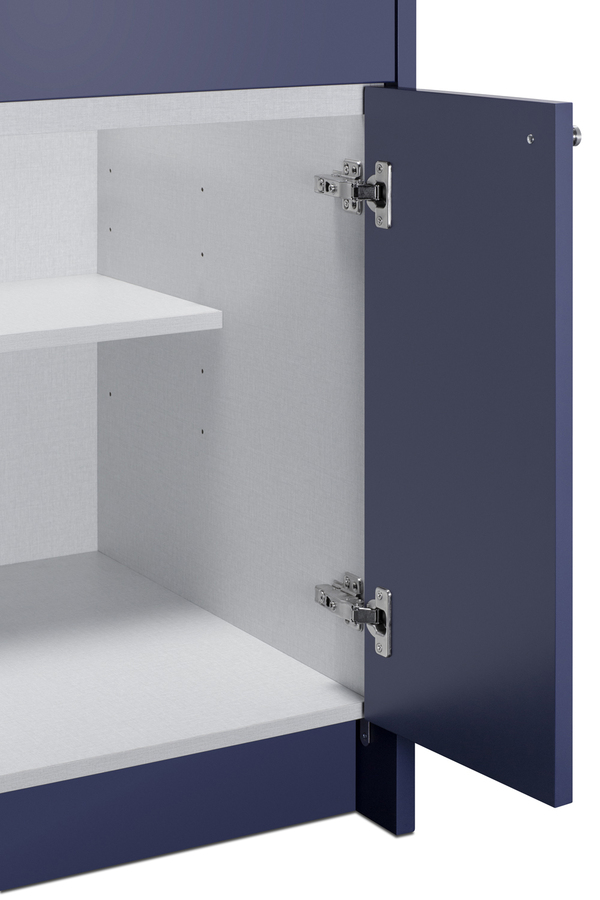

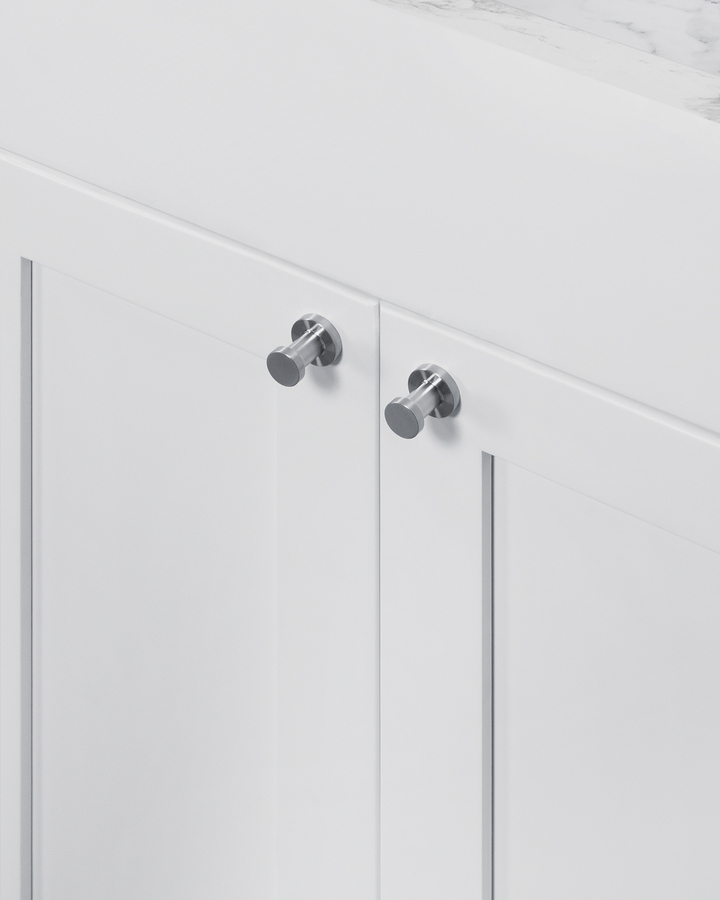

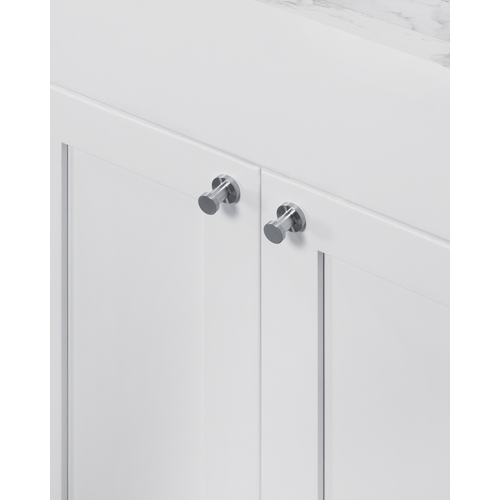

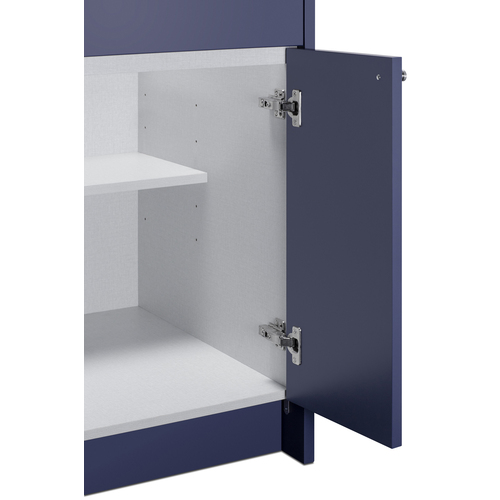

The Mesa Dry Bar includes a 2-door cabinet which includes a removable shelf

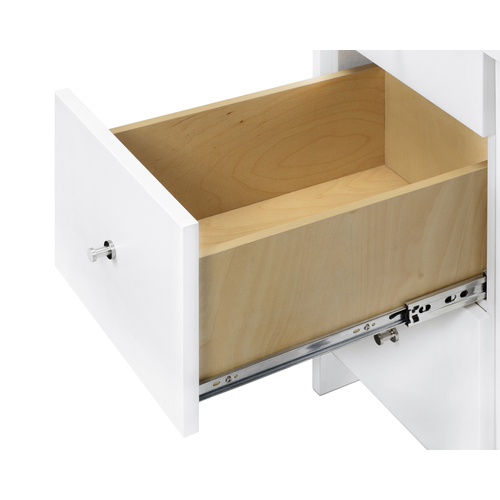

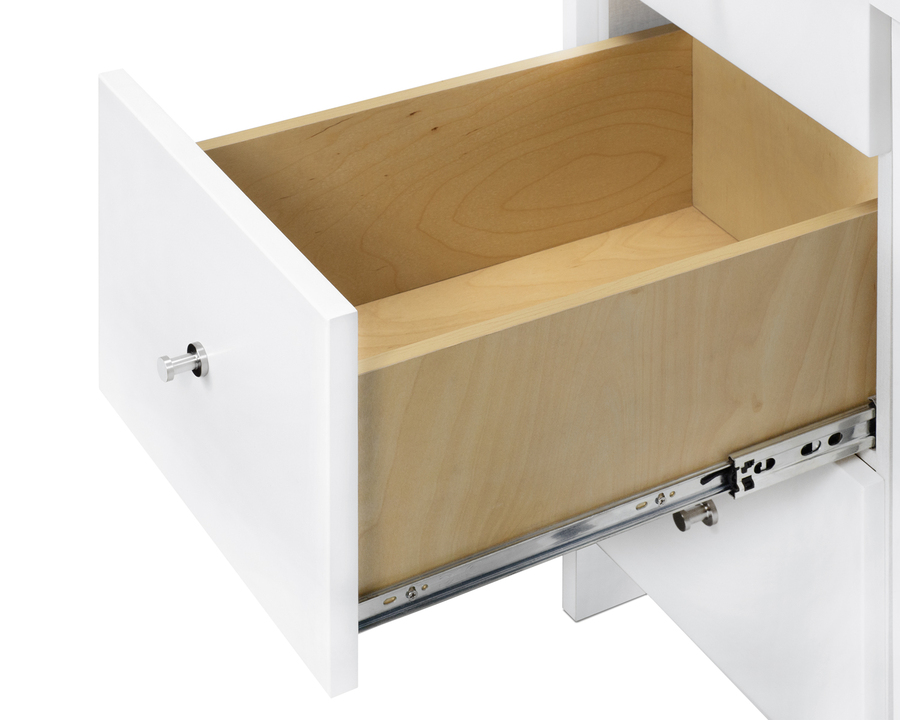

Hardwood storage drawer with soft-close glides is perfect for holding menus, beverage accessories, and other bar extras
5-bottle wine cubby for convenient storage
This unit includes model SDHG2443PNR, a 24" wide frost-free beverage center
Beverage center features n-frost operation for minimum user maintenance
Provides a full view of stored beverages, with a pre-installed wood panel to seamlessly match the cabinetry
The refrigerator's interior walls and floor are constructed from stainless steel for added strength and easy cleanup
Adjustable glass shelves with stainless steel clips allow you to adjust the shelf height for the best fit
Keyed lock for a secure interior
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Matching backguard is packaged with the unit for optional use
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Environmentally friendly design with no ozone-damaging chemicals
Cabinetry and refrigerator are individually boxed and packaged together on one pallet for one-piece shipping. Once received, follow the written or video instructions to safely unpack. Overall shipping dimensions are 73" H x 31" W x 77" D. Cabinetry's packaged dimensions (with refrigerator removed) is 40" H x 56.25" W x 23.5" D.
DESCRIPTION

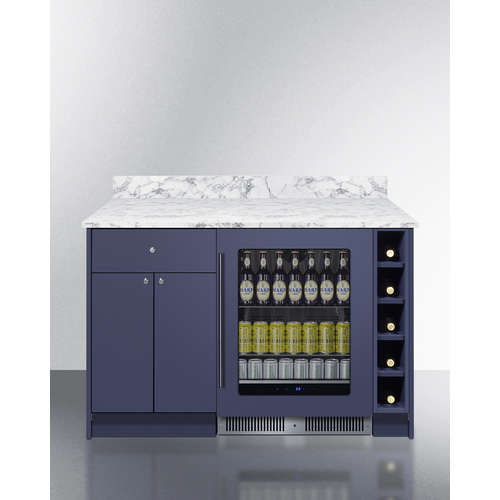

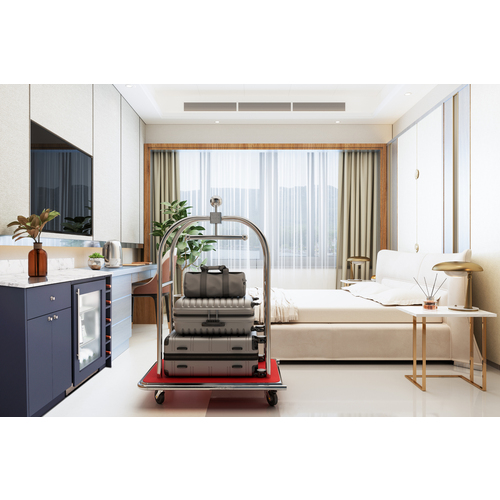

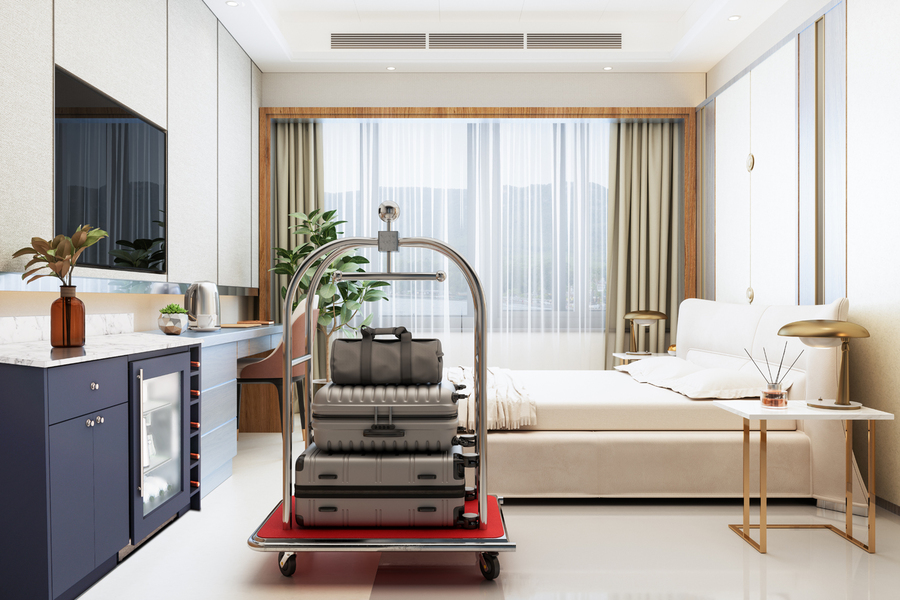

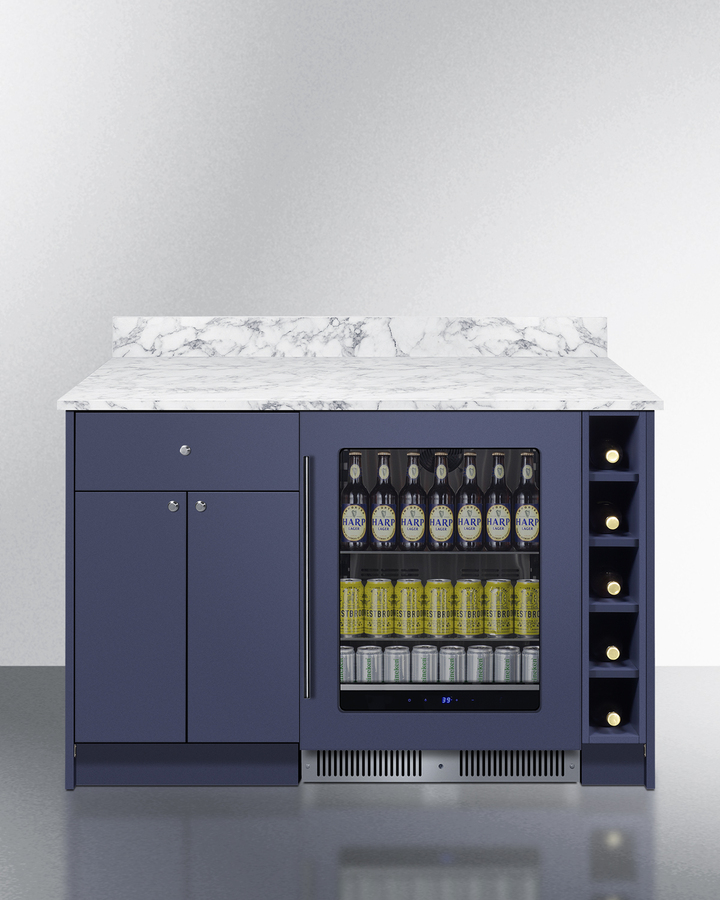

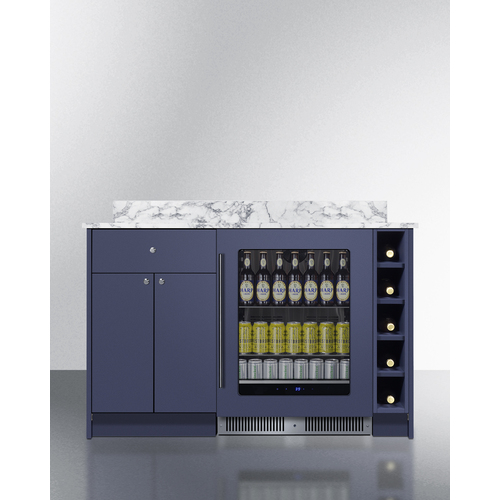

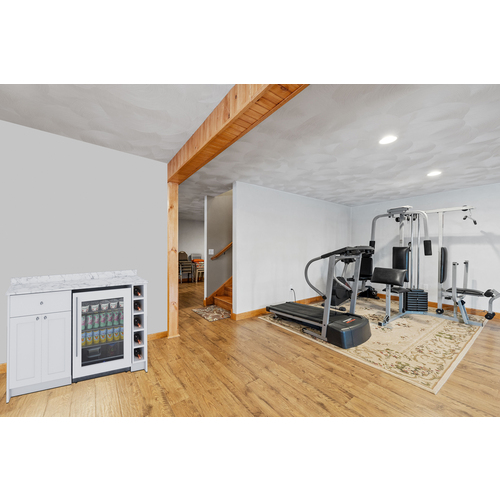

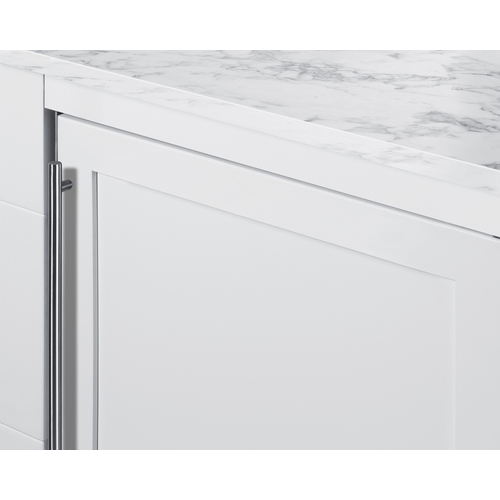

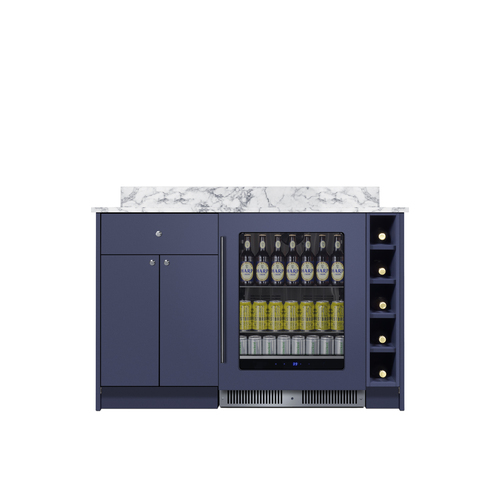

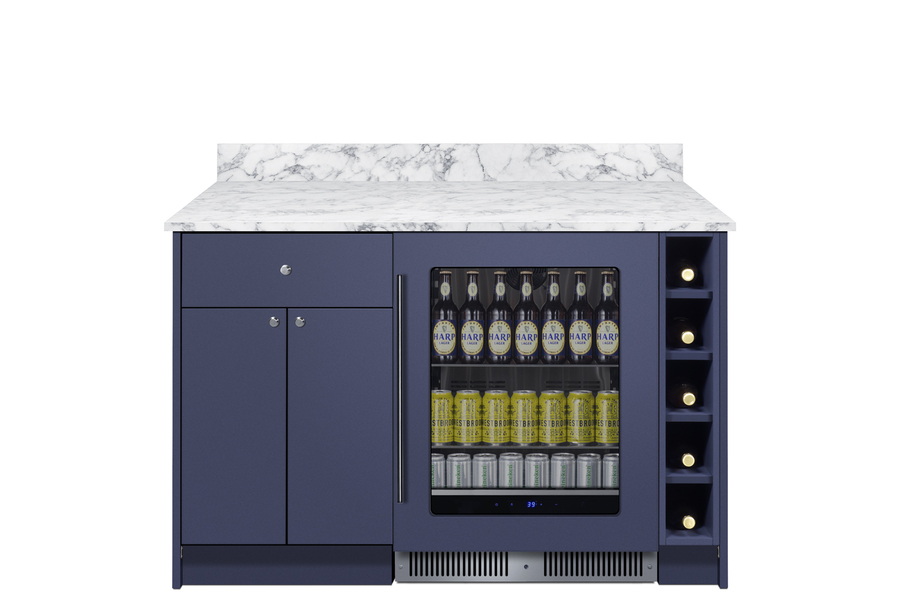

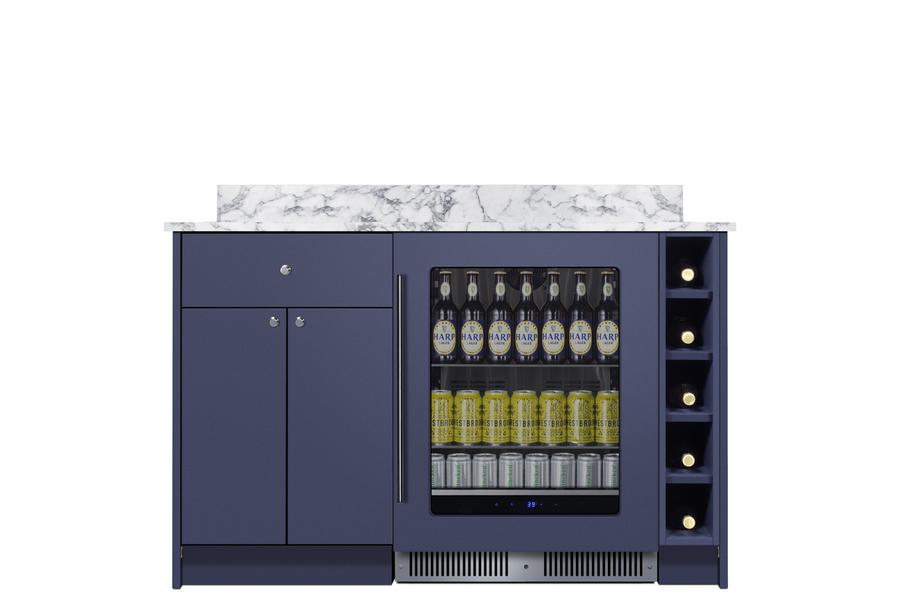

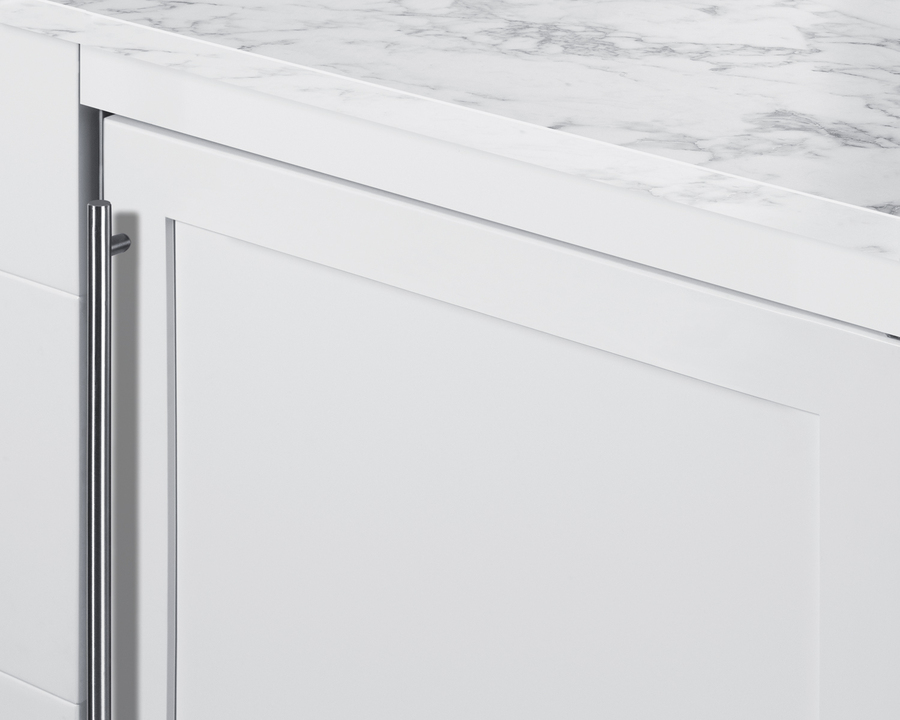

Summit's fully assembled Turnkey Kitchens & Bars bring effortless style & instant living to home bars, ADUs, tiny houses, rental properties, office break rooms, and other hospitality settings. The Mesa Dry Bar is a 54" wide home dry bar in a modern midnight navy finish that ships fully assembled for easy entertaining. It features hardwood construction and a pre-installed countertop made from a water-resistant laminate material with a marble look. This model has a two-door storage cabinet, soft-close drawer, and wine cubby designed to hold five bottles. The cabinetry comes in a modern slab style. The MESAMN35 (model SDHG2443PNR). This 24" wide beverage refrigerator features a double-pane tempered glass door with a pre-installed wood panel for an uninterrupted cabinetry design. A stainless steel handle completes the look. The kickplate includes a factory-installed lock for optional security. Inside, model SDHG2443PNR features stainless steel construction for improved durability. Three adjustable glass shelves utilize a cantilevered shelving system to accommodate any size and ensure flexible storage. This beverage center includes LED lighting, digital controls, an open door alarm, a high temperature alarm, and Sabbath mode setting. The MESAMN35 is shipped in two boxes on one pallet. Simply unbox both pieces, set in place, slide the beverage center under the counter, plug in, and start enjoying full bar capabilities. We recommend your installation team watches the unboxing video before setup (summitappliance.com/turnkey-installation). This unit has a finished back and can be used freestanding with proper installation (see manual for details). Overall shipping dimensions are 73" H x 77" W x 31" D. Cabinetry's packaged dimensions (with refrigerator removed) is 40" H x 56.25" W x 23.5" D. Unpackaged, the final product dimensions are 35.75" H x 54" W x 20.75" D. With its shallow 21" depth and easy plug-and-play setup, the MESAMN35 is the perfect solution to complete any home bar or hotel space. For this unit in a classic white finish, see model MESAWH35. For this unit in a 34" ADA compliant height, see model MESAMN33. Summit’s Turnkey collection also features wet bars with stainless steel sinks and faucets and complete kitchens with full cooking capabilities. Explore the entire Turnkey Kitchens & Bars lineup at summitappliance.com.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
