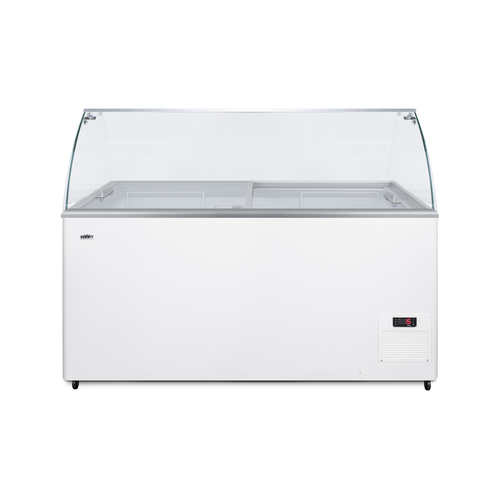

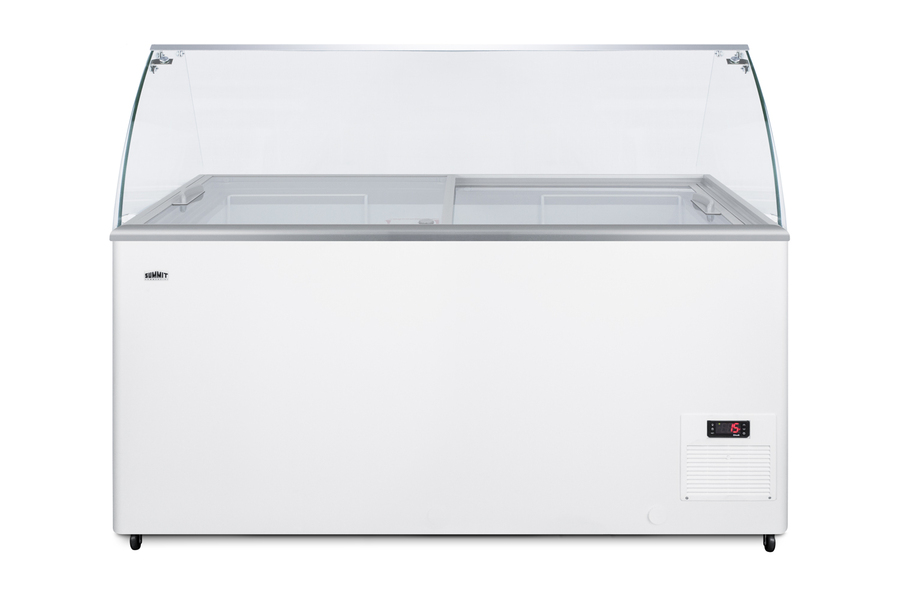

14 Cu.Ft. Dipping Cabinet (Unassembled)

SKU: NOVA45GDC
Made in Denmark with a durable glass sneezeguard included for fast installation to provide a clear but protected view of ice cream and other frozen treats
Out of Stock; ETA:

10/31/2024

*Additional features may vary

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.
49.5" H x 53.0" W x 27.25" D
(126cm H x 135cm W x 69cm D)

Overview
Height of Cabinet 49.5" (126 cm)
Width 53.0" (135 cm)
Depth 27.25" (69 cm)
Capacity 14.1 cu.ft. (399 L)
Defrost Type Manual
Door Glass
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation UL-S
Amps 7.2
Voltage/Frequency 115 V AC/60 Hz
Weight 250.0 lbs. (113 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101065021
Freezer
Door Swing Sliding
Interior Height 26.0" (66 cm)
Interior Width 46.75" (119 cm)
Interior Depth 21.0" (53 cm)
Thermostat Type Digital
Refrigerant Type R290
Refrigerant Amount 3.03 oz.
High Side PSI 345.0
Low Side PSI 140.0
Wheels 4
Compressor Step Height 9.75" (25 cm)
Compressor Step Width 7.88" (20 cm)
Compressor Step Depth 21.0" (53 cm)
Temperature Range -13 to 23ºF

Interior

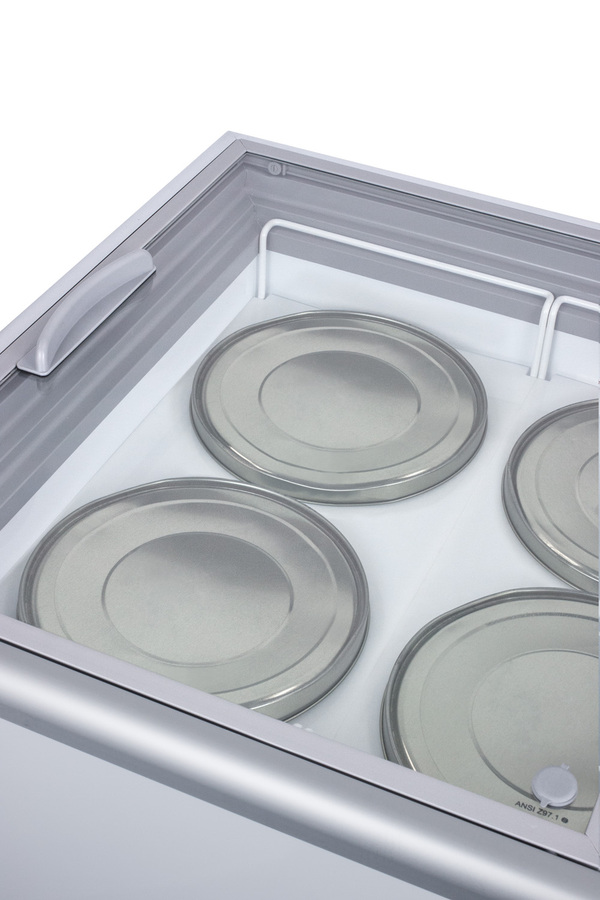

GLTO - Switch Baskets to Gelato Pan Holders
Substitute ice cream tub holders for gelato pan holders (no charge)

European dipping cabinet

Ice cream freezer made in Denmark with glass sneezeguard included for the optimum serving and storing conditions

Commercially listed

UL-S listed to NSF-7 Standards for use in commercial establishments

Glass sneezeguard included

3-piece glass sneezeguard made in Denmark with a curved front for optimum visbility

Aluminum work surface

Sneezeguard surface is finished in brushed aluminum to hold up to heavy duty use in busy commercial settings

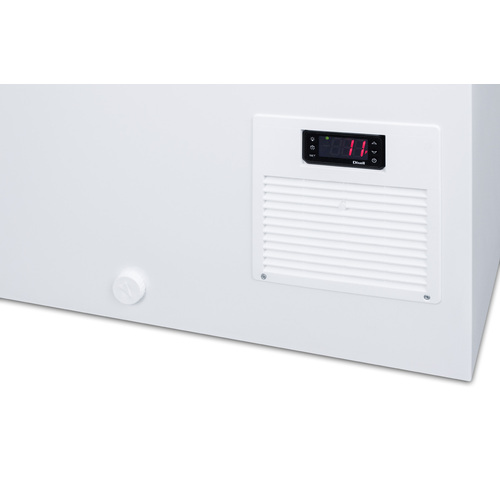

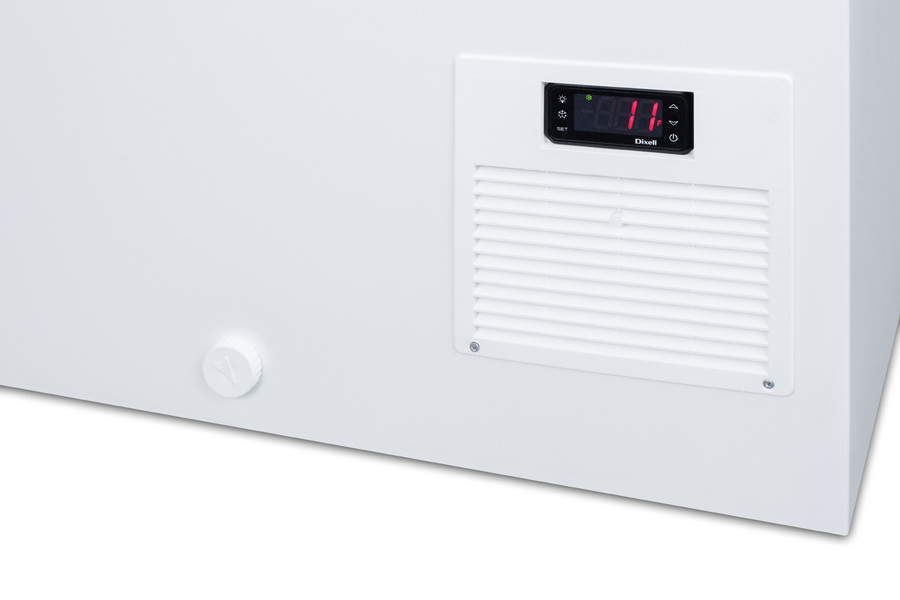

Digital thermostat

Electronic controls for more precise temperature management

Wide temperature range

Digital thermostat can be set between -13 and +23ºF to accommodate a variety of frozen treats

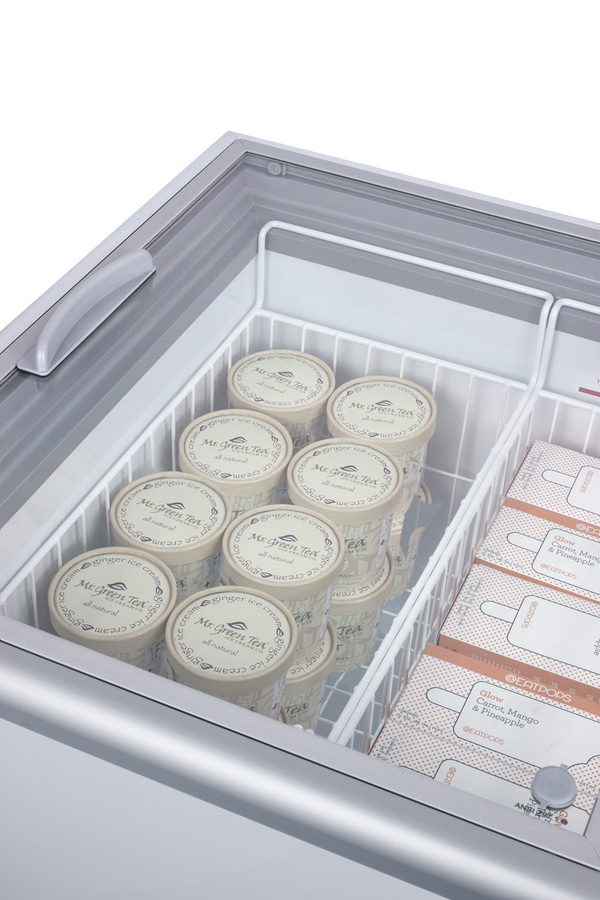

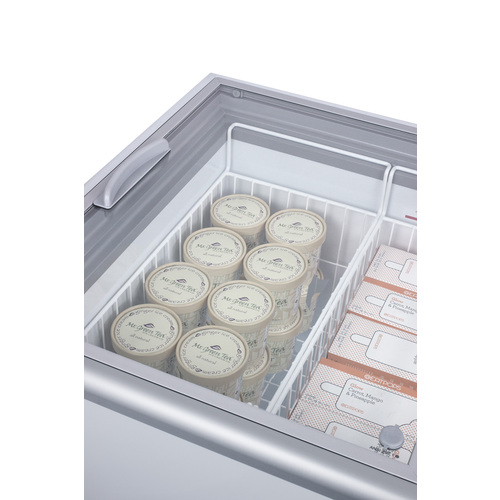

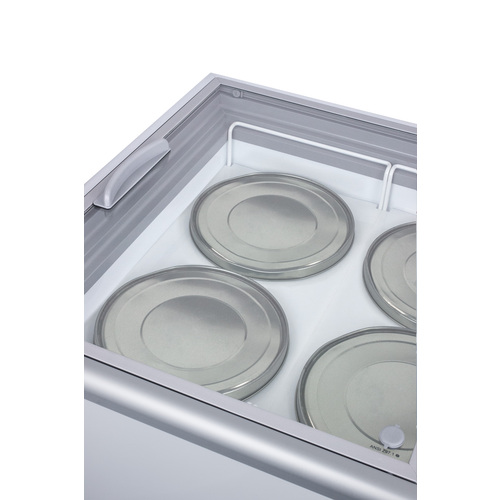

Ice cream tub holders

Four epoxy coated wire baskets with plastic lids included to hold standard ice cream tubs in place

Holds 14 standard 3 gallon tubs

Unit can store 6 tubs on the floor and display an additional 8 using the provided baskets

Novelty baskets included

Three extra epoxy-coated wire baskets packaged inside freezer for standard novelty treats

Sliding glass lid

Two tempered glass lids on ball-bearing glides slide open and closed easily for added efficiency

Strong insulation

3" thick insulation helps to ensure items stay cold

Casters

Heavy duty wheels for smooth mobility (ship unassembled)

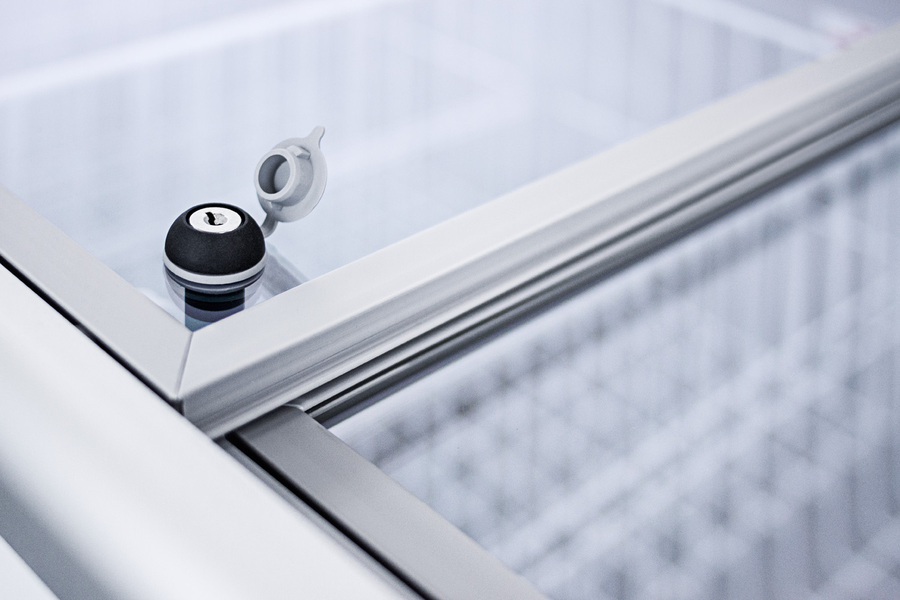

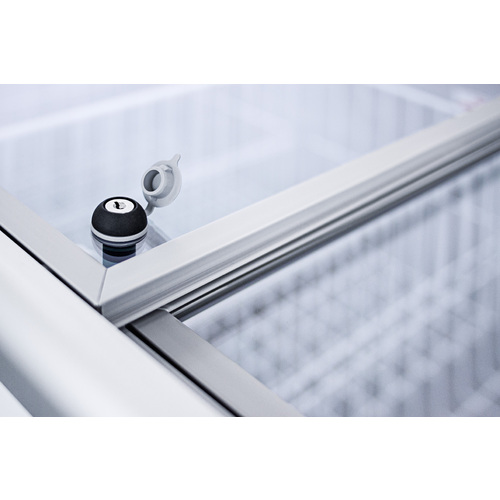

Removable lock

A keyed lock is included for optional use

Manual defrost

Static cooling system for improved temperature stability

Defrost drain

Front located for easier defrosting

Fan-cooled compressor

Offers improved temperature performance throughout the interior

Steel interior

Durable construction in a white finish for easy visibility

Easy assembly

Sneezeguard ships unassembled for safer transportation and can be installed in just a few easy steps

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit Commercial's line offers the industry's best value on European ice cream storage and display, with a full series of chest freezers and matching glass sneezeguards.

Made for us by Elcold in Denmark, the NOVA45GDC is a 53" wide flat top ice cream freezer and compatible glass sneezeguard with a curved design and aluminum work surface. The sneezeguard is packaged unassembled with the freezer for safer shipping and is easy to install for fast use.

The NOVA45 freezer features 14.1 cu.ft. of storage. Two tempered glass lids on ball-bearing glides open and close smoothly to save your staff time and ensure ice cream isn't overexposed to warmer air temperature. We include a removable keyed lock to allow users the option of securing their goods. The white cabinet suits any setting, while the gray lid trim offers an added touch of clean style. Casters are included for optional installation. The digital thermostat is externally located for easy temperature management, with a wide range from -13 to 23ºF to accommodate a variety of desserts. We pre-set the unit to -4ºF.

Inside, the NOVA45 freezer features a steel interior in a clean white finish designed for lasting durability in busy commercial settings. We include 4 wire tub holder baskets with plastic lids to hold 8 11" round/3 gallon ice cream tubs, with room to store an additional 6 under the baskets. Extra novelty baskets are also packaged inside for alternate storage. This unit utilizes a manual defrost cooling system with environmentally friendly R290a cooling agent and extra thick insulation to ensure added reliability. A drain is included for easy defrosting.

The NOVA45GDC is UL-S listed to NSF-7 commercial standards. Additional sizes are available.

Note: Gelato pan holders are also available. To substitute the baskets, add complimentary upgrade "GLTO" or contact our sales team at 718-893-3900 ext. 507.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
