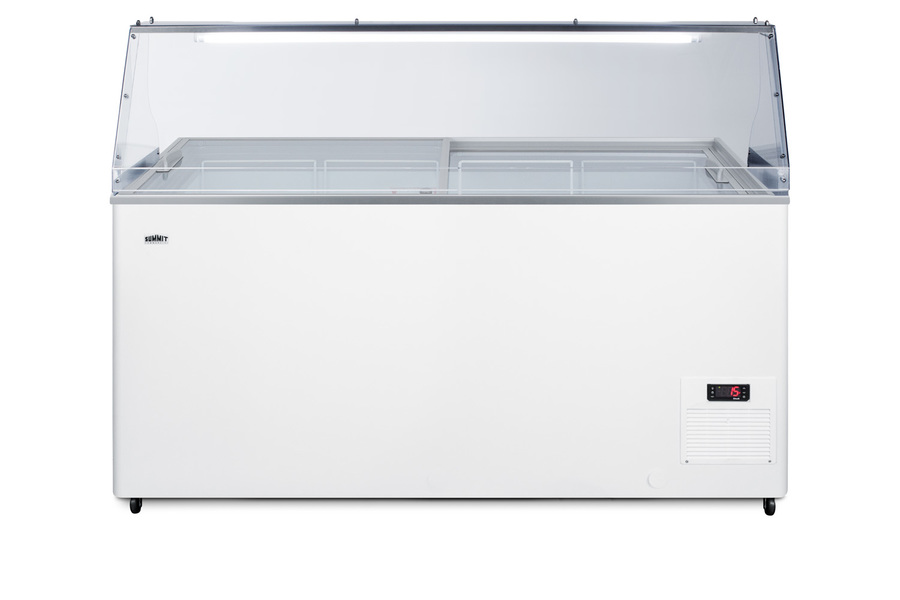

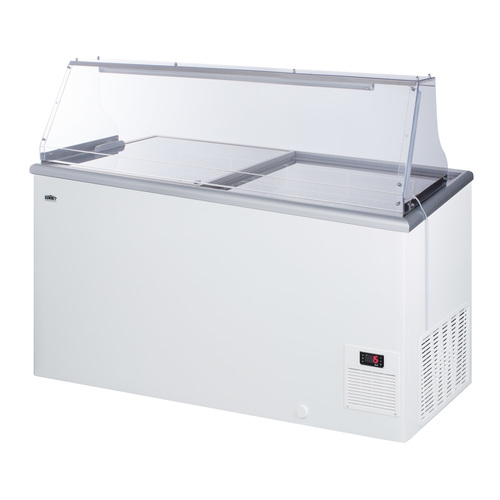

14 Cu.Ft. Dipping Cabinet
SKU: NOVA45PDC
Fully assembled with sneezeguard, tub holder baskets, casters, and digital thermostat for easy ice cream service
Estimated Time to Ship: 5 to 7 days

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.
45.5" H x 53.0" W x 27.25" D
(116cm H x 135cm W x 69cm D)
SPECIFICATIONS
Overview | |
---|---|
Height of Cabinet | 45.5" (116 cm) |
Width | 53.0" (135 cm) |
Depth | 27.25" (69 cm) |
Capacity | 14.1 cu.ft. (399 L) |
Defrost Type | Manual |
Door | Glass |
Cabinet | White |
US Electrical Safety | UL |
Canadian Electrical Safety | ULC |
Sanitation | UL-S |
Amps | 7.2 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 160.0 lbs. (73 kg) |
Shipping Weight | 180.0 lbs. (82 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101060170 |
Freezer | |
Door Swing | Sliding |
Interior Height | 26.0" (66 cm) |
Interior Width | 46.75" (119 cm) |
Interior Depth | 21.0" (53 cm) |
Thermostat Type | Digital |
Refrigerant Type | R290a |
Refrigerant Amount | 3.03 oz. |
High Side PSI | 345.0 |
Low Side PSI | 140.0 |
Wheels | 4 |
Compressor Step Height | 9.75" (25 cm) |
Compressor Step Width | 7.88" (20 cm) |
Compressor Step Depth | 21.0" (53 cm) |
Temperature Range | -13 to 23ºF |
AVAILABLE UPGRADES
Exterior | ||
---|---|---|
|
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
California residents:

Note: Nickel is a component of stainless steel.
FEATURES
Commercially listed
UL-S listed to NSF-7 Standards for use in commercial establishments
UL-S listed to NSF-7 Standards for use in commercial establishments

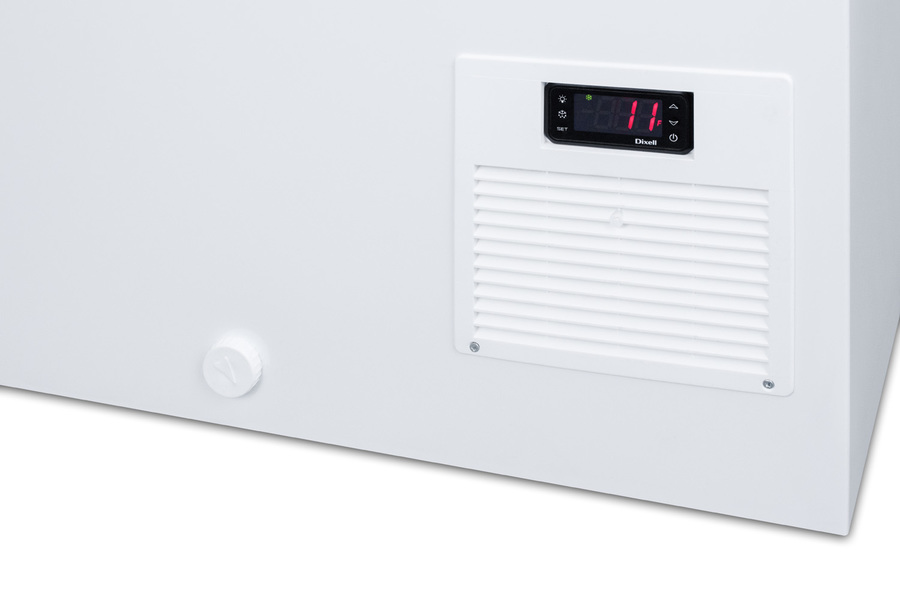

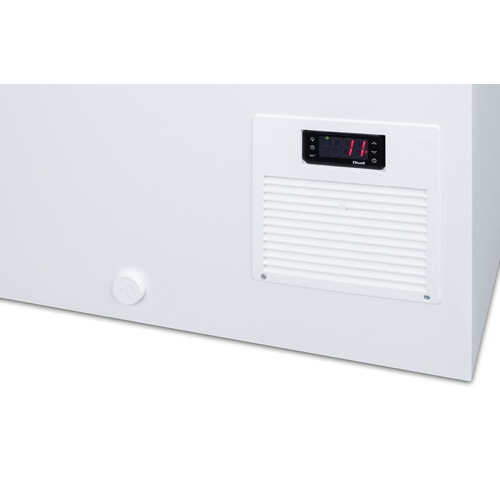

Digital thermostat
Electronic controls for more precise temperature management
Electronic controls for more precise temperature management
Wide temperature range
Digital thermostat can be set between -13 and +23ºF to accommodate a variety of frozen treats
Digital thermostat can be set between -13 and +23ºF to accommodate a variety of frozen treats
Sneezeguard
Durable polycarbonate sneezeguard is pre-installed
Durable polycarbonate sneezeguard is pre-installed

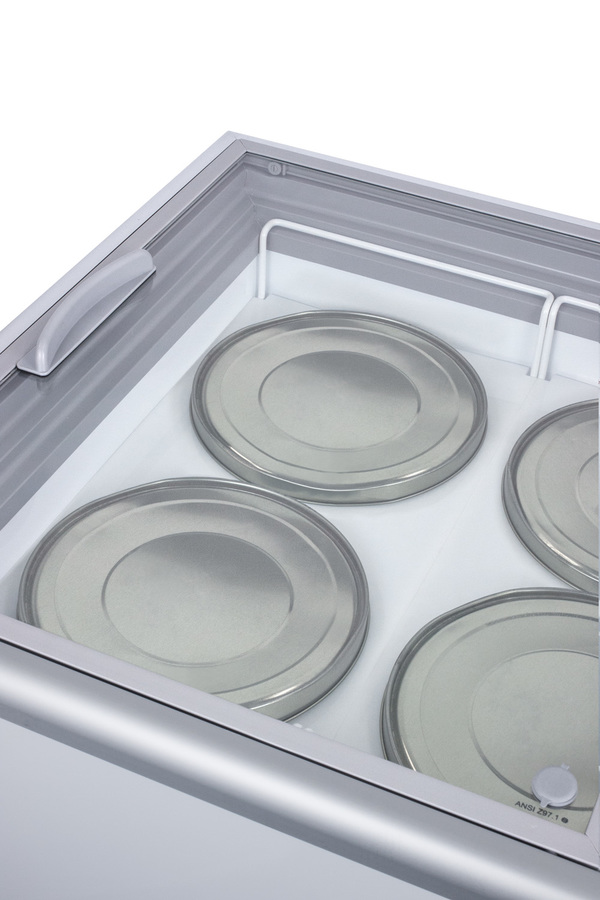

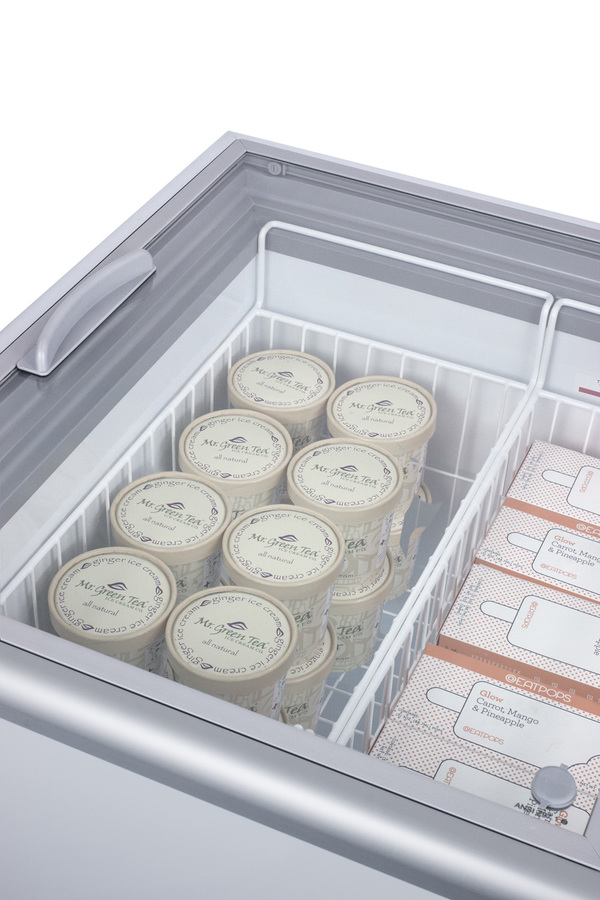

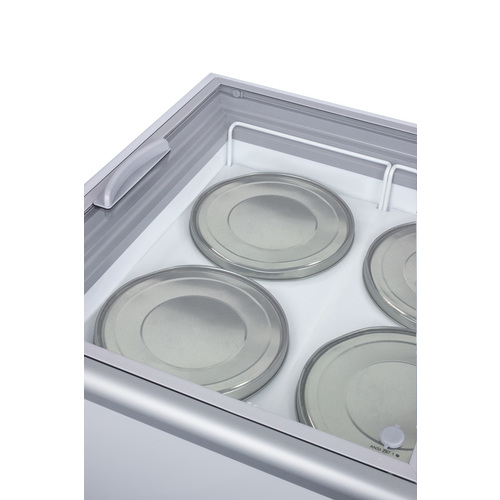

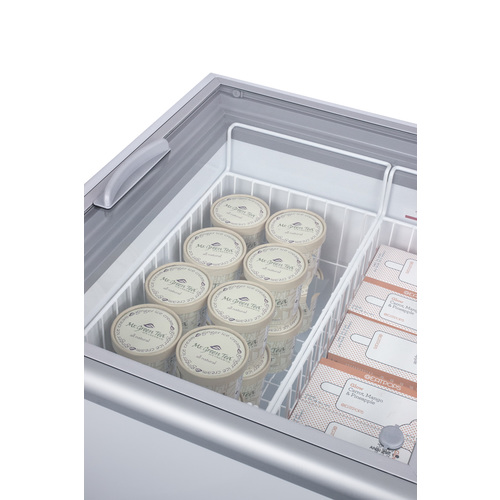

Ice cream tub holders
Four epoxy coated wire baskets with plastic lids included to hold standard ice cream tubs in place
Four epoxy coated wire baskets with plastic lids included to hold standard ice cream tubs in place
Holds 14 standard 3 gallon tubs
Unit can store 6 tubs on the floor and display an additional 8 using the provided baskets
Unit can store 6 tubs on the floor and display an additional 8 using the provided baskets
Strong insulation
3" thick insulation helps to ensure items stay cold
3" thick insulation helps to ensure items stay cold
Casters
Heavy duty wheels for smooth mobility (ship unassembled)
Heavy duty wheels for smooth mobility (ship unassembled)
Sliding glass lid
Two tempered glass lids on ball-bearing glides slide open and closed easily for added efficiency
Two tempered glass lids on ball-bearing glides slide open and closed easily for added efficiency

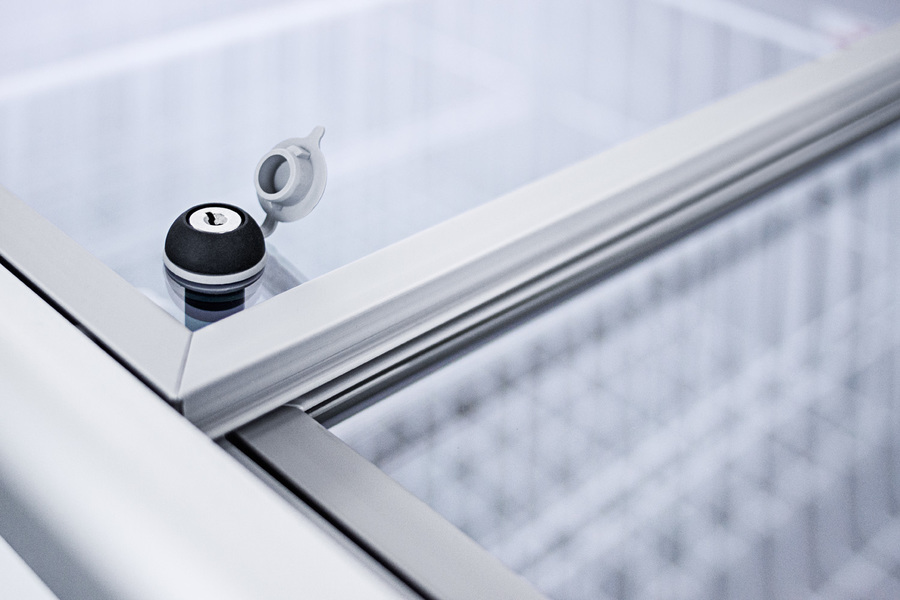

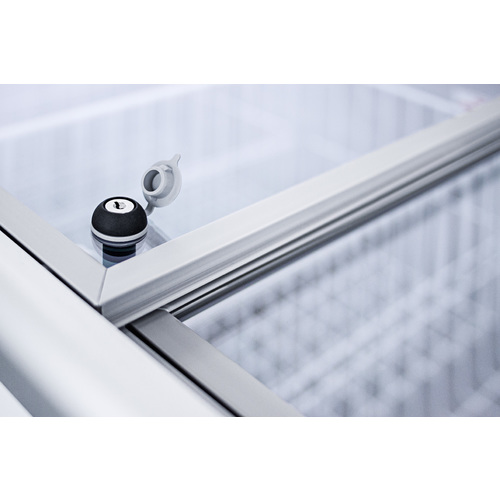

Removable lock
A keyed lock is included for optional use
A keyed lock is included for optional use
Manual defrost
Static cooling system for improved temperature stability
Static cooling system for improved temperature stability
Fan-cooled compressor
Offers improved temperature performance throughout the interior
Offers improved temperature performance throughout the interior
Steel interior
Durable construction in a white finish for easy visibility
Durable construction in a white finish for easy visibility
Light
Sneezeguard light for added visibility
Sneezeguard light for added visibility
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly design with no ozone-damaging chemicals
DESCRIPTION

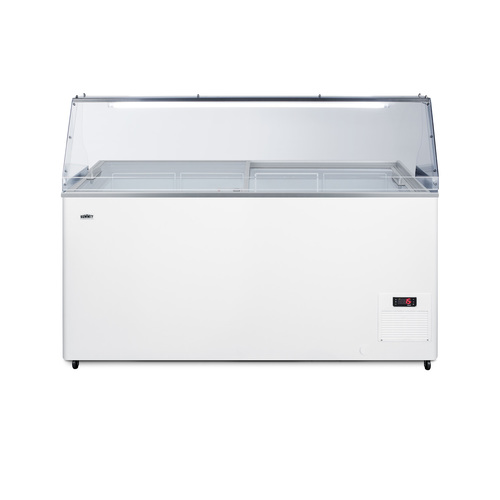

Summit Commercial's line offers the industry's best value on fully assembled dipping cabinets, with European ice cream freezers equipped with durable sneezeguards for convenient serving. Made for us by Elcold in Denmark, the NOVA45PDC is a 53" wide flat top ice cream freezer with a clear polycarbonate sneezeguard installed on top. Two tempered glass lids on ball-bearing glides open and close smoothly to save your staff time and ensure ice cream isn't overexposed to warmer air temperature. We include a removable keyed lock to allow users the option of securing their goods. The white cabinet suits any setting, while the gray lid trim offers an added touch of clean style. Casters are included for optional installation. The digital thermostat is externally located for easy temperature management, with a wide range from -13 to 23ºF to accommodate a variety of desserts. We pre-set the unit to -4ºF. Inside, the NOVA45PDC features a steel interior in a clean white finish designed for lasting durability in busy commercial settings. We include 4 wire tub holder baskets with plastic lids to hold 8 11" round/3 gallon ice cream tubs, with room to store an additional 6 under the baskets. This unit utilizes a manual defrost cooling system with environmentally friendly R290a cooling agent and extra thick insulation to ensure added reliability. A drain is included for easy defrosting. The NOVA45PDC is UL-S listed to NSF-7 commercial standards and ships fully assembled for easy use. Additional sizes are available. Note: Gelato pan holders are also available. To substitute the baskets, contact our sales team at 718-893-3900 ext. 507.
