11.7 Cu.Ft. Dipping Cabinet

SKU: NOVA35PDC

Fully assembled with sneezeguard, tub holder baskets, casters, and digital thermostat for easy ice cream service

Estimated Time to Ship: 5 to 7 days
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

45.5" H x 43.0" W x 27.25" D

(116cm H x 109cm W x 69cm D)

SPECIFICATIONS

Overview
Height of Cabinet 45.5" (116 cm)
Width 43.0" (109 cm)
Depth 27.25" (69 cm)
Capacity 11.7 cu.ft. (331 L)
Defrost Type Manual
Door Glass
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation UL-S
Amps 7.2
Voltage/Frequency 115 V AC/60 Hz
Weight 152.0 lbs. (69 kg)
Shipping Weight 160.0 lbs. (73 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101064895
Freezer
Door Swing Sliding
Interior Height 26.0" (66 cm)
Interior Width 36.75" (93 cm)
Interior Depth 21.0" (53 cm)
Thermostat Type Digital
Refrigerant Type R290a
Refrigerant Amount 3.03 oz.
High Side PSI 345.0
Low Side PSI 140.0
Compressor Step Height 9.75" (25 cm)
Compressor Step Width 7.88" (20 cm)
Compressor Step Depth 21.0" (53 cm)
Temperature Range -13 to 23ºF
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

FEATURES

Commercially approved
UL-S listed to NSF-7 Standards for use in commercial establishments
Sneezeguard
Durable polycarbonate sneezeguard with light is pre-installed
Digital thermostat
Electronic controls for more precise temperature management
Wide temperature range
Digital thermostat can be set between -13 and +23ºF to accommodate a variety of frozen treats
Ice cream tub holders
Three epoxy coated wire baskets with plastic lids included to hold standard ice cream tubs in place
Holds 10 standard 3 gallon tubs
Unit can store 4 tubs on the floor and display an additional 6 using the provided baskets
Sliding glass lid
Two tempered glass lids on ball-bearing glides slide open and closed easily for added efficiency
Strong insulation
3" thick insulation helps to ensure items stay cold
Manual defrost
Static cooling system for improved temperature stability

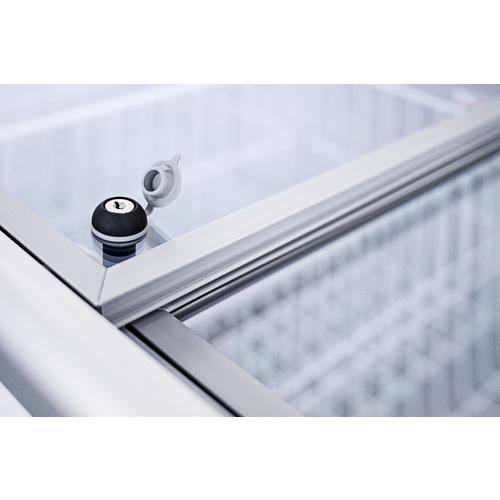

Removable lock
A keyed lock is included for optional use
Steel interior
Durable construction in a white finish for easy visibility
Casters
Heavy duty wheels for smooth mobility (ship unassembled)
Fan-cooled compressor
Offers improved temperature performance throughout the interior
Defrost drain
Front located for easier defrosting
Light
Sneezeguard light for added visibility
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

DESCRIPTION

Summit Commercial's line offers the industry's best value on fully assembled dipping cabinets, with European ice cream freezers equipped with durable sneezeguards for convenient serving.

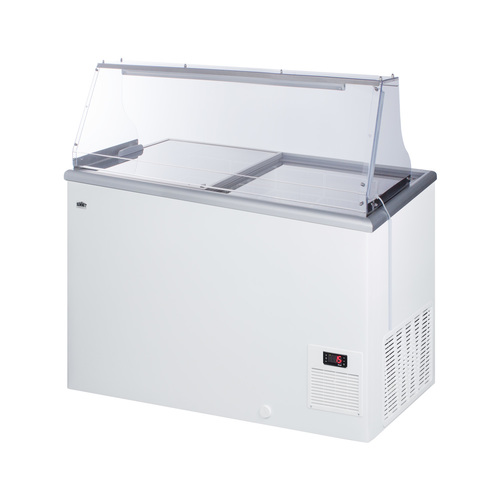

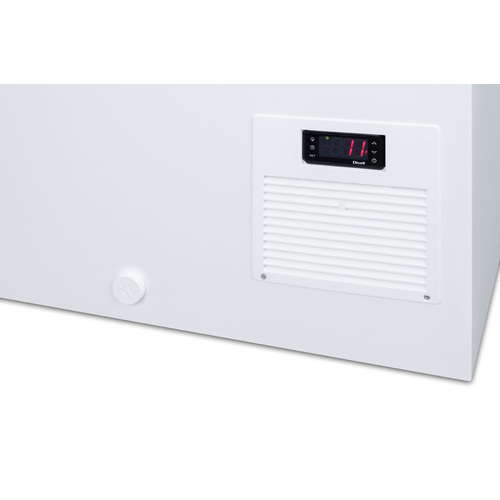

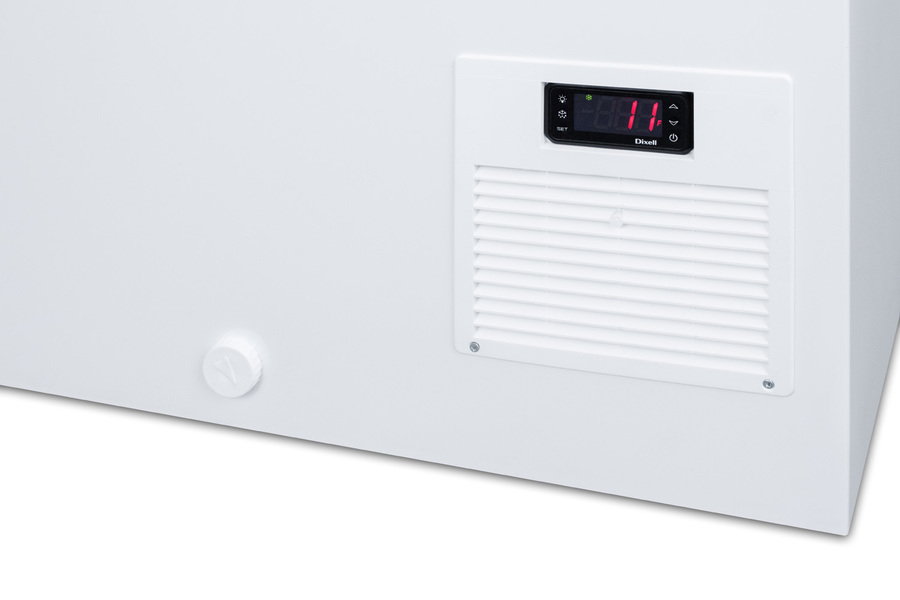

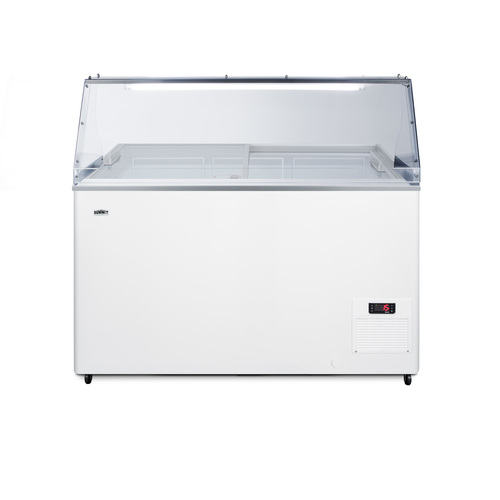

Made for us by Elcold in Denmark, the NOVA35PDC is a 43" wide flat top ice cream freezer with a clear polycarbonate sneezeguard installed on top.  Two tempered glass lids on ball-bearing glides open and close smoothly to save your staff time and ensure ice cream isn't overexposed to warmer air temperature. We include a removable keyed lock to allow users the option of securing their goods. The white cabinet suits any setting, while the gray lid trim offers an added touch of clean style. Casters are included for optional installation. The digital thermostat is externally located for easy temperature management, with a wide range from -13 to 23ºF to accommodate a variety of desserts. We pre-set the unit to -4ºF.

Inside, the NOVA35PDC features a steel interior in a clean white finish designed for lasting durability in busy commercial settings. We include 3 wire tub holder baskets with plastic lids to hold 6 11" round/3 gallon ice cream tubs, with room to store an additional 4 under the baskets. This unit utilizes a manual defrost cooling system with environmentally friendly R290a cooling agent and extra thick insulation to ensure added reliability. A drain is included for easy defrosting.

The NOVA35PDC is UL-S listed to NSF-7 commercial standards and ships fully assembled for easy use. Additional sizes are available.

Note: Gelato pan holders are also available. To substitute the baskets, contact our sales team at 718-893-3900 ext. 507.


SPECIFICATIONS

Overview
Height of Cabinet 45.5" (116 cm)
Width 43.0" (109 cm)
Depth 27.25" (69 cm)
Capacity 11.7 cu.ft. (331 L)
Defrost Type Manual
Door Glass
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation UL-S
Amps 7.2
Voltage/Frequency 115 V AC/60 Hz
Weight 152.0 lbs. (69 kg)
Shipping Weight 160.0 lbs. (73 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101064895
Freezer
Door Swing Sliding
Interior Height 26.0" (66 cm)
Interior Width 36.75" (93 cm)
Interior Depth 21.0" (53 cm)
Thermostat Type Digital
Refrigerant Type R290a
Refrigerant Amount 3.03 oz.
High Side PSI 345.0
Low Side PSI 140.0
Compressor Step Height 9.75" (25 cm)
Compressor Step Width 7.88" (20 cm)
Compressor Step Depth 21.0" (53 cm)
Temperature Range -13 to 23ºF

DOWNLOADS

Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
