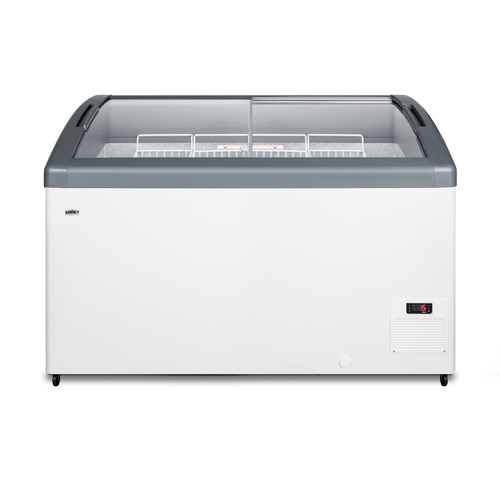

12 Cu.Ft. Chest Freezer

SKU: FOCUS131

Made for Summit by Elcold in Denmark, with digital controls and improved insulation for optimum storage

Estimated Time to Ship: Next day shipping
Delivery
This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
Commercial meets nsf
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

30.75" H x 51.38" W x 25.88" D

(78cm H x 131cm W x 66cm D)

SPECIFICATIONS

Overview
Height of Cabinet 30.75" (78 cm)
Width 51.38" (131 cm)
Depth 25.88" (66 cm)
Capacity 12.4 cu.ft. (351 L)
Defrost Type Manual
Door Glass
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation UL-S
Amps 7.2
Voltage/Frequency 115 V AC/60 Hz
Weight 140.0 lbs. (64 kg)
Shipping Weight 145.0 lbs. (66 kg)
Estimated Time to Ship Next day shipping
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing Sliding
Interior Height 20.75" (53 cm)
Interior Width 45.25" (115 cm)
Interior Depth 19.63" (50 cm)
Thermostat Type Digital
Refrigerant Type R290a
Refrigerant Amount 3.35 oz.
High Side PSI 345.0
Low Side PSI 140.0
Compressor Step Height 9.75" (25 cm)
Compressor Step Width 7.88" (20 cm)
Compressor Step Depth 19.63" (50 cm)
Temperature Range -13 to 23ºF
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

FEATURES

Commercially approved
UL-S listed to NSF-7 Standards for use in commercial establishments

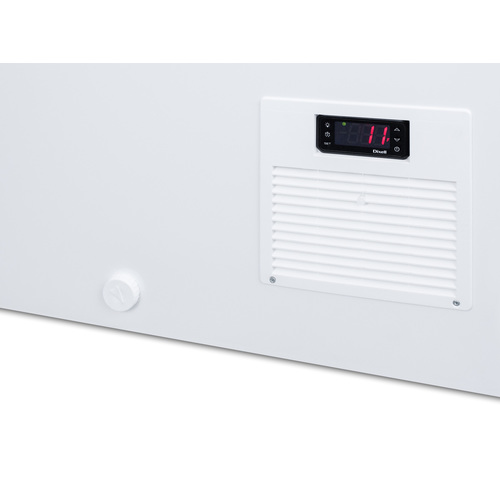

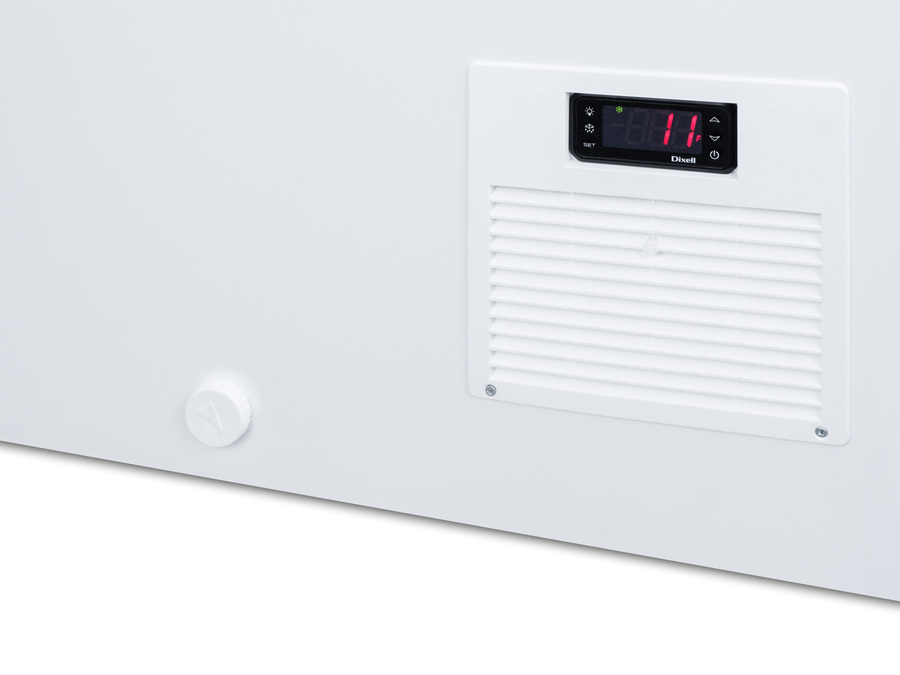

Digital thermostat
Electronic controls for more precise temperature management
Wide temperature range
Digital thermostat can be set between -13 and +23ºF to accommodate a variety of frozen treats

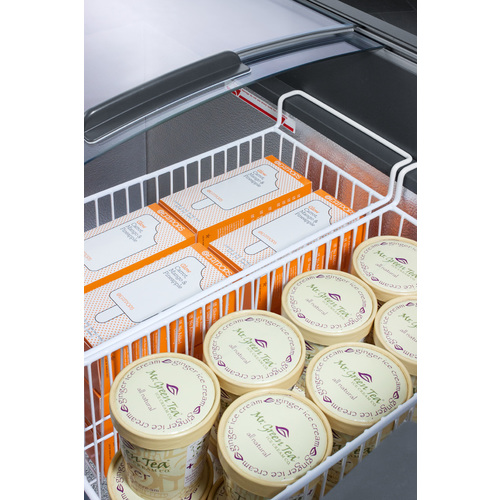

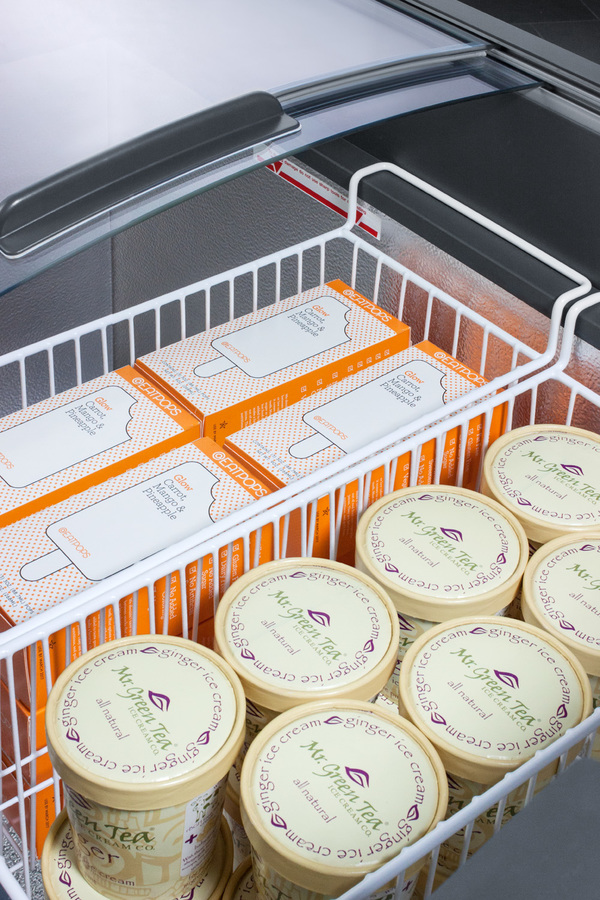

Baskets included
Four epoxy-coated wire baskets included to store novelty items

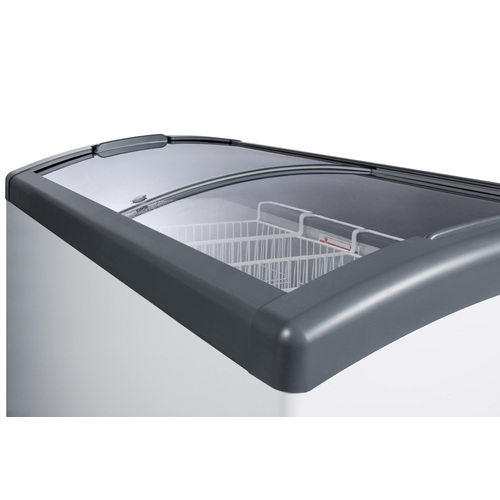

Angled top
Curved design makes it easier for customers to view interior contents

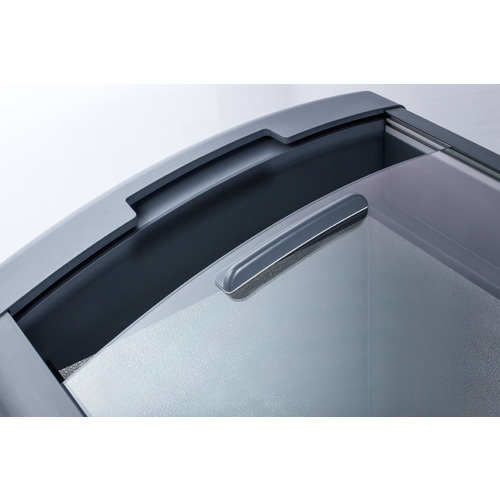

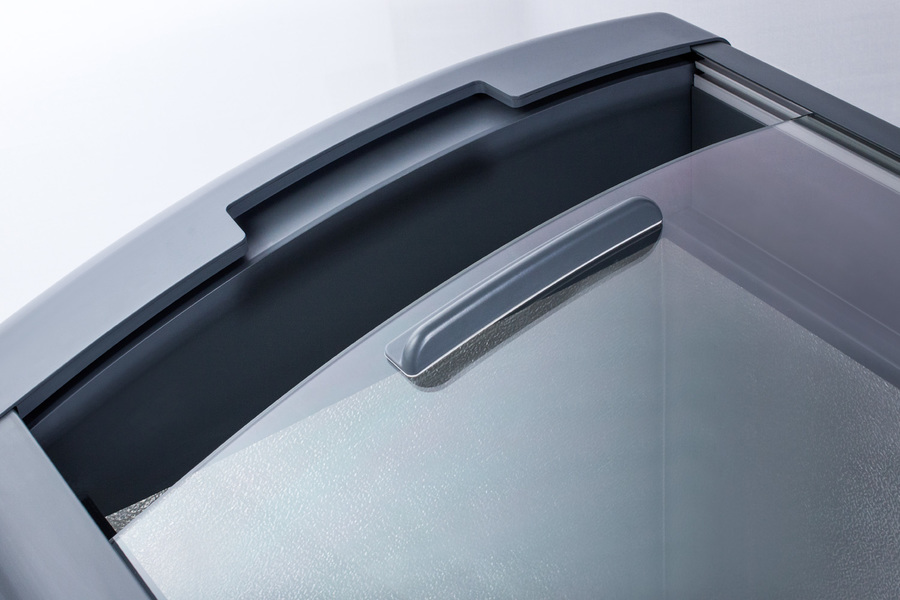

Sliding glass lid
Two tempered glass lids glide smoothly for easy use
Strong insulation
3" thick insulation helps to ensure items stay cold
Manual defrost
Static cooling system for improved temperature stability

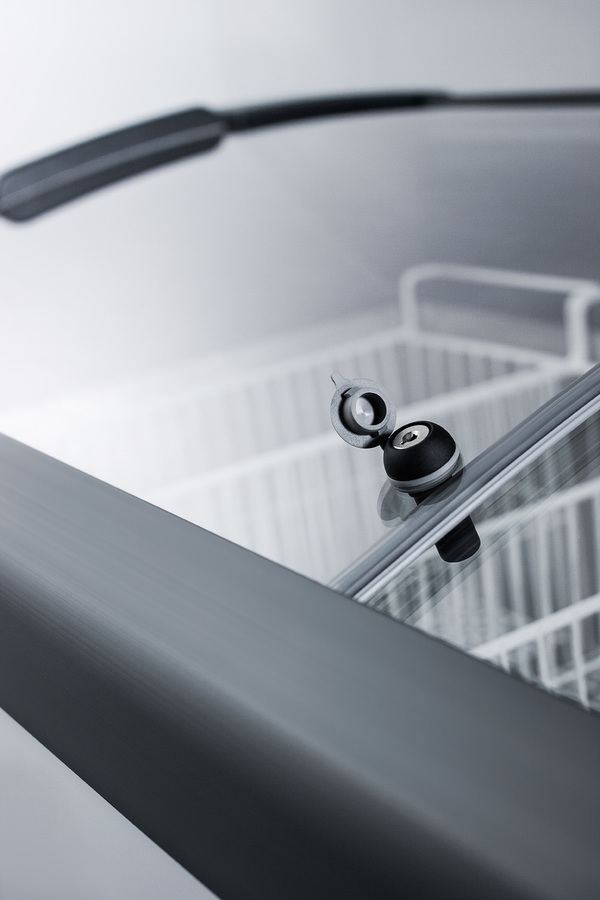

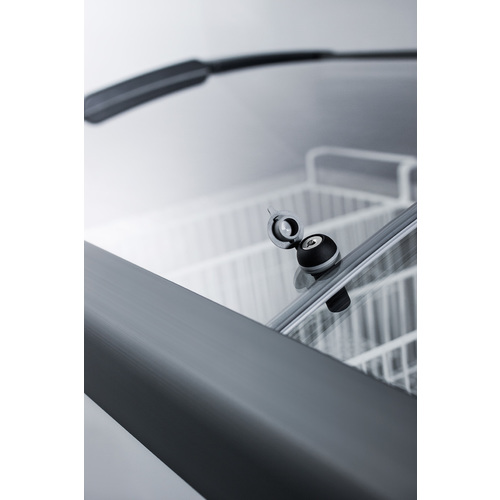

Removable lock
A keyed lock is included for optional use
Hammered aluminum interior
Durable and easy to clean
Casters
Heavy duty wheels for smooth mobility (ship unassembled)
Fan-cooled compressor
Offers improved temperature performance throughout the interior
Defrost drain
Front located for easier defrosting
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

DESCRIPTION

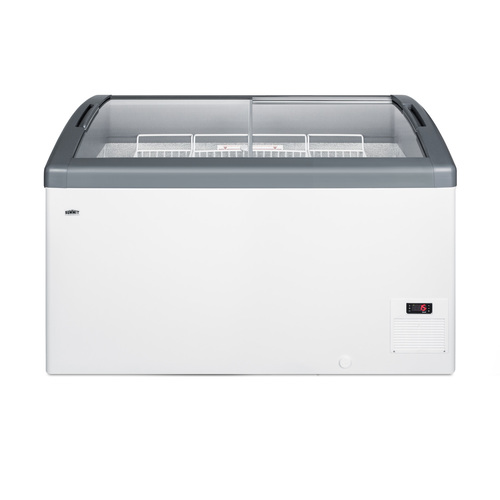

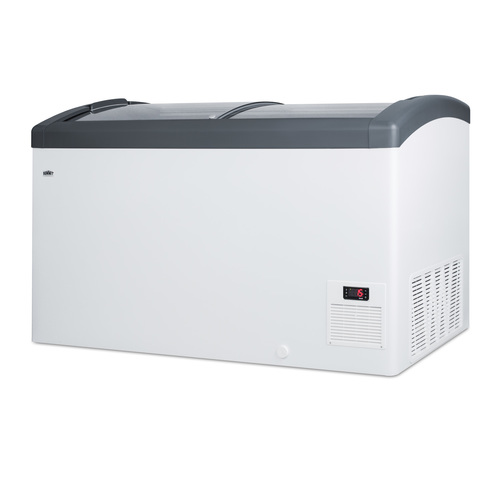

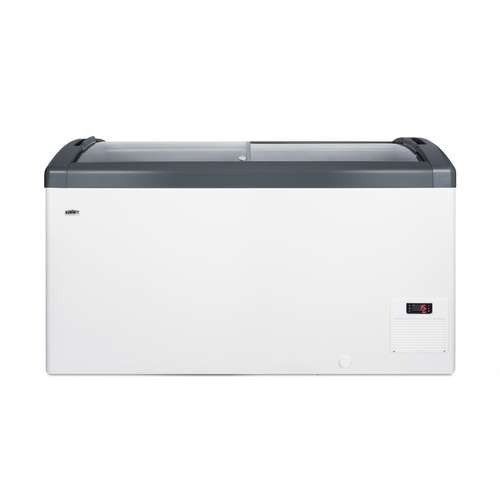

Summit Commercial's line of curved top ice cream freezers features a deluxe European design to provide quality storage and an optimum product display.

Made for us by Elcold in Denmark, the FOCUS131 features two smoothly sliding tempered glass lids. The angled top offers increased visibility to help maximize impulse sales. This unit includes a removable keyed lock to allow users the option of securing their goods. The white cabinet suits any setting, while the gray lid trim offers an added touch of clean style. We include a set of sturdy commercial casters for users to install if they prefer the freezer more mobile. The digital thermostat is externally located for easy temperature management, with a wide range from -13 to 23ºF to accommodate a variety of desserts. We pre-set the unit to -4ºF.

Inside, the FOCUS131 features hammered aluminum walls designed for lasting durability in busy commercial settings. We include four epoxy coated wire novelty baskets, ideal for storing frozen treats and designed to easily glide back and forth as needed. This unit utilizes a manual defrost cooling system with environmentally friendly R290a cooling agent and extra thick insulation to ensure added reliability. A drain is included for easy defrosting.

The FOCUS131 is UL-S listed to NSF-7 commercial standards. Additional sizes are available.

SPECIFICATIONS

Overview
Height of Cabinet 30.75" (78 cm)
Width 51.38" (131 cm)
Depth 25.88" (66 cm)
Capacity 12.4 cu.ft. (351 L)
Defrost Type Manual
Door Glass
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation UL-S
Amps 7.2
Voltage/Frequency 115 V AC/60 Hz
Weight 140.0 lbs. (64 kg)
Shipping Weight 145.0 lbs. (66 kg)
Estimated Time to Ship Next day shipping
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing Sliding
Interior Height 20.75" (53 cm)
Interior Width 45.25" (115 cm)
Interior Depth 19.63" (50 cm)
Thermostat Type Digital
Refrigerant Type R290a
Refrigerant Amount 3.35 oz.
High Side PSI 345.0
Low Side PSI 140.0
Compressor Step Height 9.75" (25 cm)
Compressor Step Width 7.88" (20 cm)
Compressor Step Depth 19.63" (50 cm)
Temperature Range -13 to 23ºF

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
FOCUS131.pdf
Download
TECHNICAL DRAWING (.dwg)
FOCUS_131__FREEZER__A-C_2010_.dwg
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
