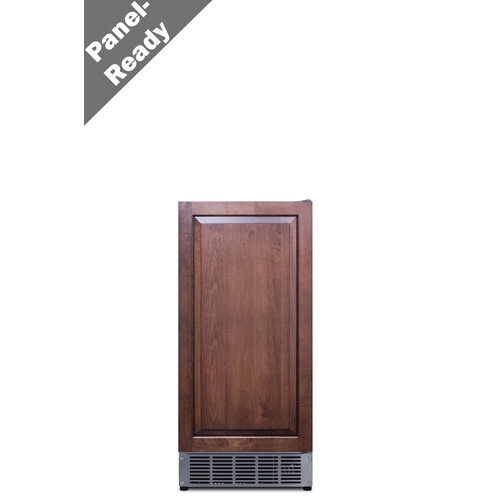

Built-In 45 lb. Clear Icemaker, ADA Compliant (Panel Not Included)
7/30/2026

(82cm H x 37cm W x 57cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 31.88" (81 cm) |
| Height to Hinge Cap | 32.13" (82 cm) |
| Width | 14.63" (37 cm) |
| Depth | 22.5" (57 cm) |
| Depth with Panel | 23.25" (59 cm) |
| Depth with door at 90° | 36.25" (92 cm) |
| Defrost Type | Automatic |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Sanitation | ETL-S |
| Amps | 2.5 |
| Plug Type | NEMA 5-15P |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101093192 |
|
Icemaker
|
|
| Door Swing | RHD |
| Drain Required | Yes |
| Daily Ice Production | 45.0 lbs. (20 kg) |
| Ice Storage Capacity | 25.0 lbs. (11 kg) |
| Ice Shape | Cube |
| Size of Cube | 7/8" x 7/8" x 7/8" |
| Number of Ice Cube Sizes | 1 |
| Interior Light | Yes |
| Fan Type | Exterior |
| Refrigerant Type | R290a |
| Refrigerant Amount | 1.87 oz. |
| High Side PSI | 286.0 |
| Low Side PSI | 110.0 |
| Interior Height | 18.75" (48 cm) |
| Interior Width | 11.25" (29 cm) |
| Interior Depth | 15.5" (39 cm) |
| Level Legs | 4 |
FEATURES
Built-in undercounter icemaker produces up to 45 lbs. of clear cubes
Efficient performance for commercial use
32 1/8" height fits under lower ADA compliant counters
ETL-S listed to NSF-12 standards for use in commercial environments
Internal pump allows more flexibility in placing the unit
Make the best use of space by installing your appliance under the counter

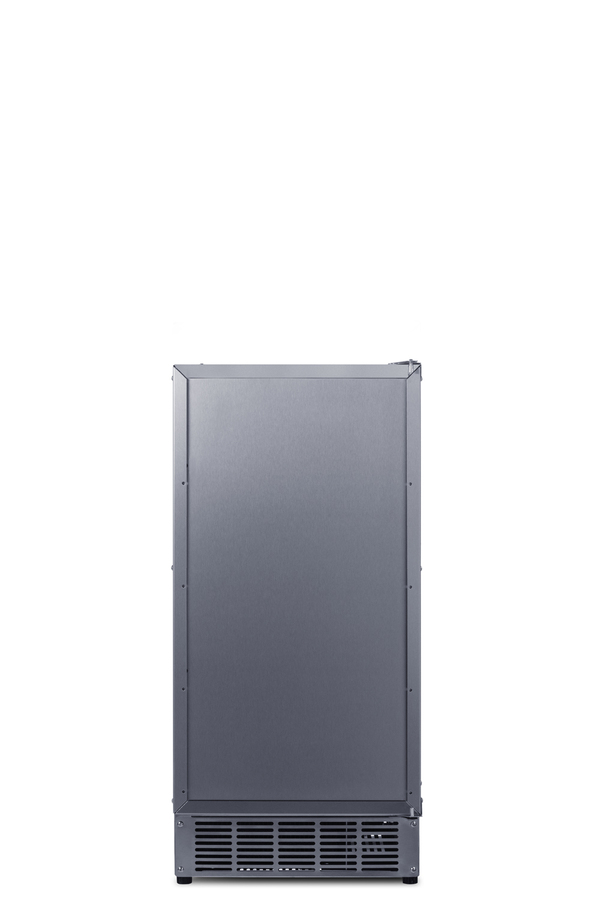

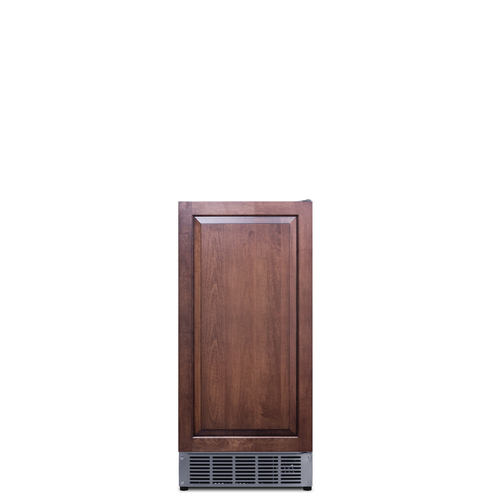

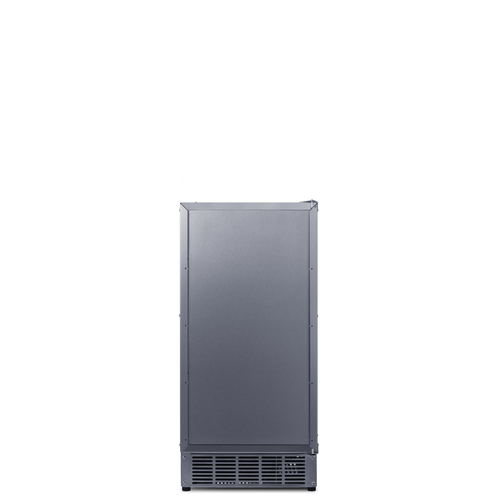

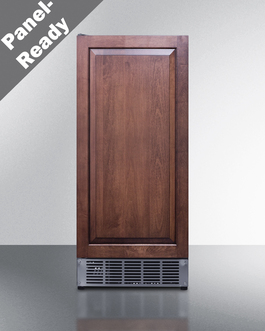

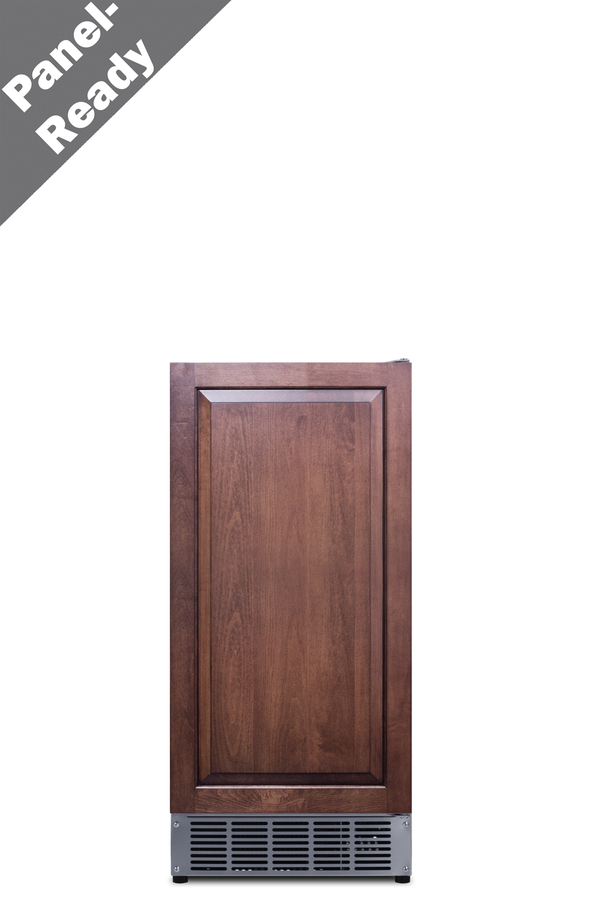

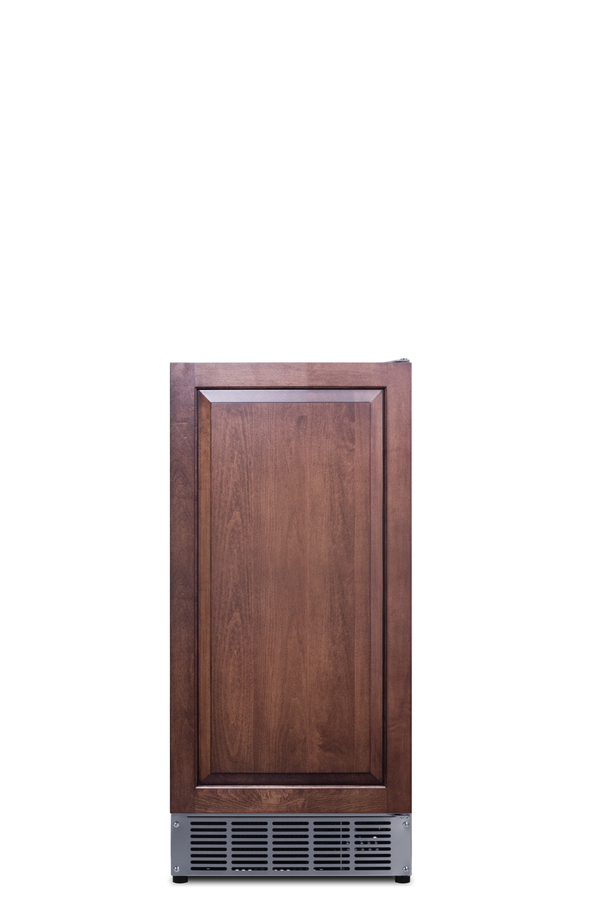

Stainless steel door frame accepts full overlay panels to match adjacent cabinetry (panel size: 27" H x 14 1/2" W and at least 3/4" thick; maximum weight: 10 lbs.)
Clear cubes offer the perfect cooling of your beverages; NOTE: ice is produced in sheets and can easily be broken into cubes using the provided scoop
Reduced maintenance with auto defrost system
LED lighting in a soft blue hue for easy viewing of the interior
Ice stays frozen longer inside this cold-protected bin
Water supply and drain hose packaged inside for easy setup

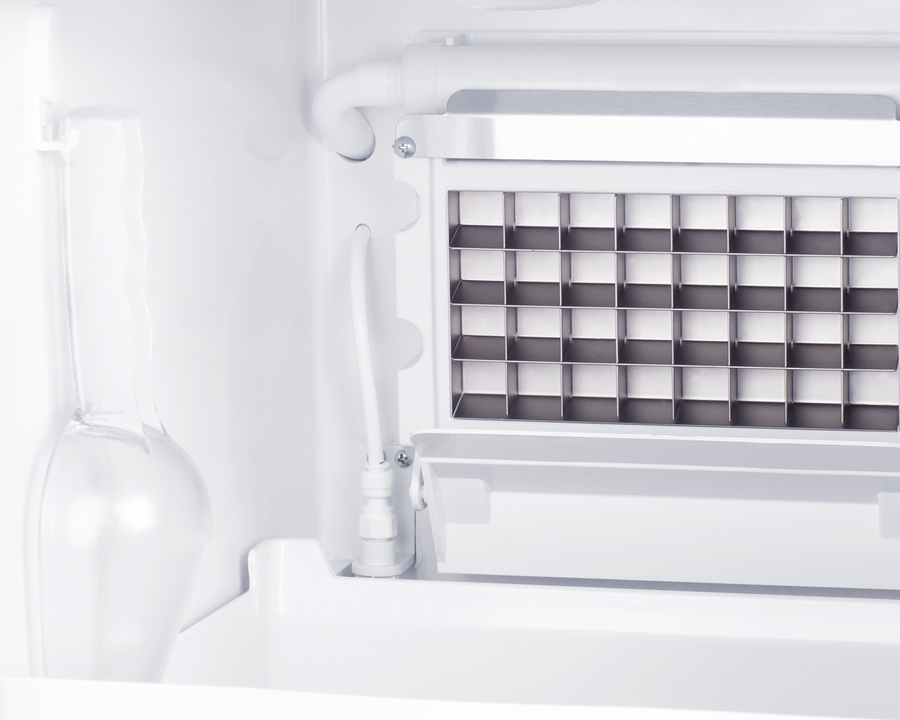

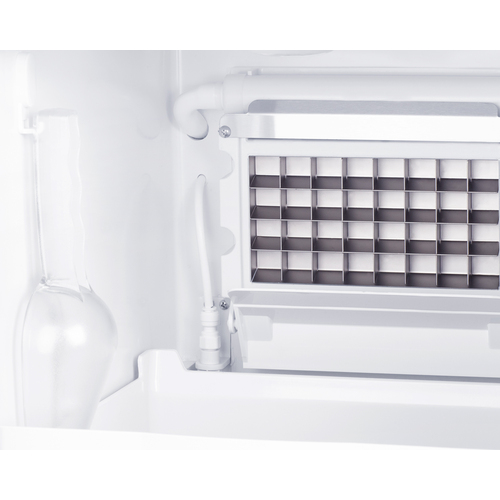

Large scoop included, with a hanging hook located inside for easy storage
Space saving design for easier cleanability
Four leveling legs help to keep the unit level on uneven surfaces
Allows the unit to be used freestanding
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Environmentally friendly design with no ozone-damaging chemicals
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
DESCRIPTION
Summit's commercially approved icemakers are an attractive and durable solution to keeping a continuous supply of clear ice on hand in virtually any kitchen space. ENERGY STAR certified for commercial use, BIM44GIFADARHD is just 32 1/8"high, ideal for use under lower counters following ADA compliant guidelines. The front-breathing design allows built-in use under counters, while the fully finished cabinet also allows freestanding use, with a sealed back for easier cleanup. The door features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel dimensions: 27" H x 14 1/2" W at 3/4" thick). Customers provide their own handle to complete the look. Inside, the BIM44GFADARHD has a touch control panel for easy operation. Indicator lights alert users to each step in the production process, as well as to when the bin is full. This unit can produce up to 45 lbs. of clear cube-shaped ice, with an adjustable bin capacity that can hold up to 25 lbs. The ice is produced in sheets and can easily be broken into cubes with the provided scoop, which can be mounted on brackets inside for easy use. An interior light in a blue hue allows for easy viewing of the interior, while automatic defrost operation makes maintenance simple and stress-free. This model comes equipped with an internal pump, while four adjustable leveling legs keep the unit level on uneven surfaces. Sized at 15" wide, BIM44GIFADARHD is ETL-S listed to NSF-12 for use in foodservice settings and can also be installed in any kitchen or wet bar. For this unit in a standard height, see the BIM44GIF.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
