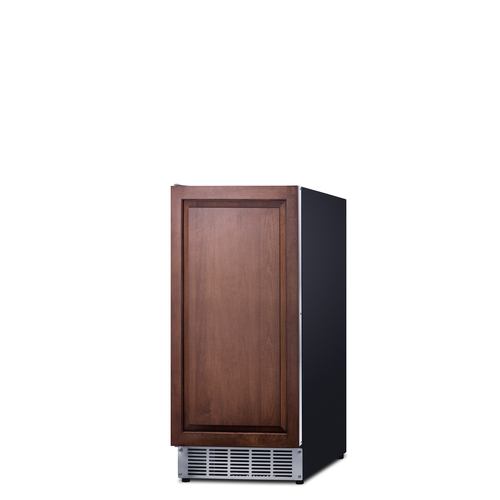

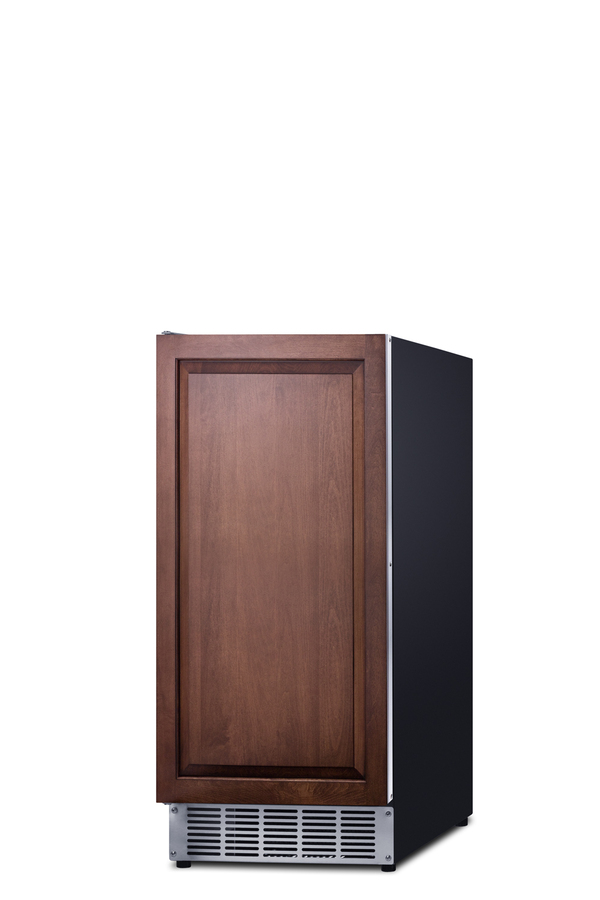

BIM44GIF

Estar commercial 0f84a2c117405e1b03d7d709b4257b0b4e1fa195edae4c1fa459461c57944b1e
Commercial home ea581a399e3ae77121f807aa081394156550222354be8f27504df77d2fff3a44
This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

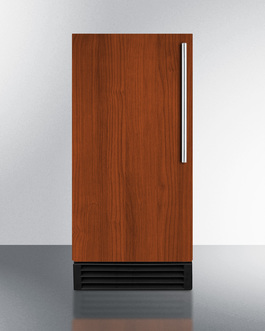

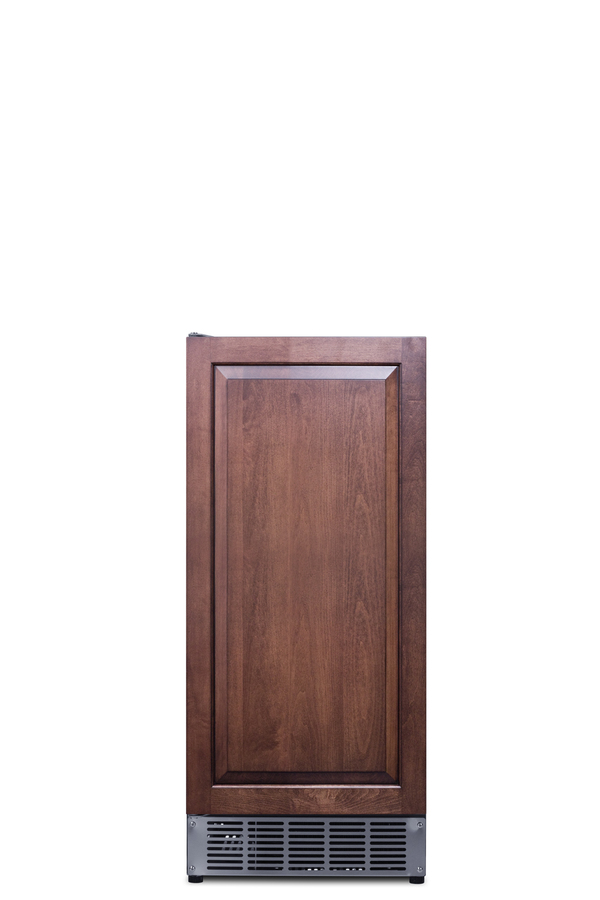

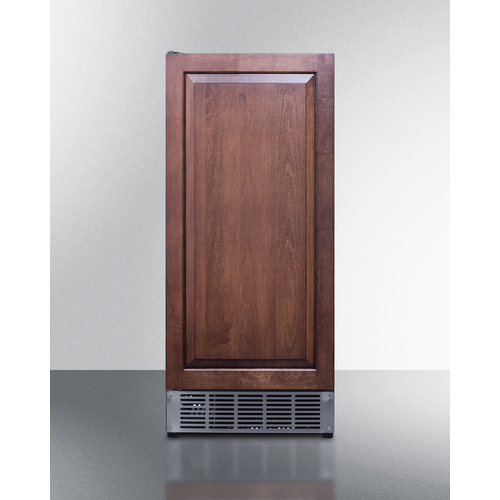

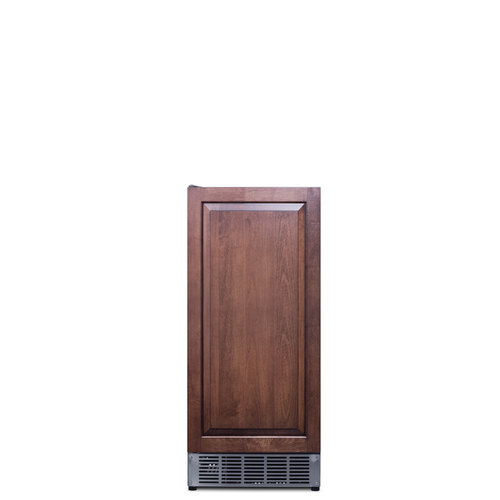

Panel-ready door lets you customize your icemaker to blend into your own cabinetry design

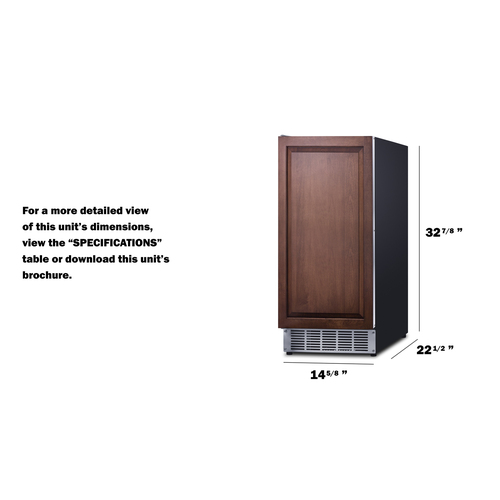

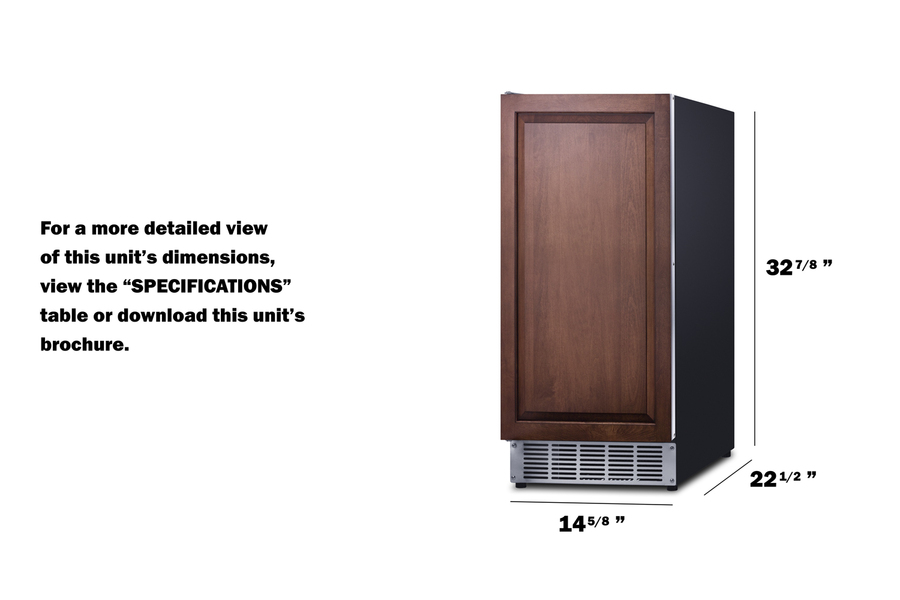

33.0" H x 14.5" W x 23.5" D

(84cm H x 37cm W x 60cm D)

OVERVIEW

  • Commercial ENERGY STAR certification
  • Flexible design allows built-in or freestanding use in 15" wide spaces
  • Integrated door frame accepts full overlay panels for a true custom look
  • Save time and energy with low maintenance automatic defrost
  • Makes up to 50 lbs. of ice in a day cycle
  • Commercially listed to NSF-7 standards

SPECIFICATIONS

Overview
Height of Cabinet 33.0" (84 cm)
Width 14.5" (37 cm)
Depth 23.5" (60 cm)
Defrost Type Automatic
Door Panel-Ready
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation NSF
Amps 4.8
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Shipping Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Icemaker
Door Swing LHD
Reversible Factory Reversible
Drain Required Yes
Daily Ice Production 50.0 lbs. (23 kg)
Ice Storage Capacity 25.0 lbs. (11 kg)
Ice Shape Cube
Size of Cube 3/4" x 3/4" x 1"
Number of Ice Cube Sizes 1
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 3.88 oz.
High Side PSI 350.0
Low Side PSI 130.0
Interior Height 18.5" (47 cm)
Interior Width 12.0" (30 cm)
Interior Depth 16.0" (41 cm)
Level Legs 4

AVAILABLE UPGRADES

Exterior
RHD - Right hand door swing
Door reversal to right hand door swing
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

SUMMIT BIM44GIF is an auto defrost clear icemaker designed for true convenience in operation and placement.

At just under 15" wide, the BIM44GIF is ideal for finishing any kitchen or wet bar. The door includes an integrated stainless steel frame that can accept full overlay panels for a seamless look that blends into matching cabinetry. Users supply their own handles.

Automatic defrost makes maintenance simple and stress-free, while the BIM44GIF's front-breathing cooling system and fully finished sides allow built-in or freestanding use. This model now comes equipped with an internal pump.

The BIM44GIF can make up to 50 pounds of clear cube-shaped ice, with an adjustable bin capacity that can temporarily hold up to 25 pounds. This unit must be used with a drain.

For this icemaker in an ADA compliant 32 1/2" height, see the BIM44GIFADA. The BIM44GIF is NSF listed for commercial use and is ENERGY STAR certified for commercial use.

FEATURES

ENERGY STAR certified commercial performance
Efficient performance for commercial use
Commercially approved
NSF listed for use in commercial establishments
Built-in capable
Make the best use of space by installing your appliance under the counter
Built-in pump
Internal pump allows more flexibility in placing the unit

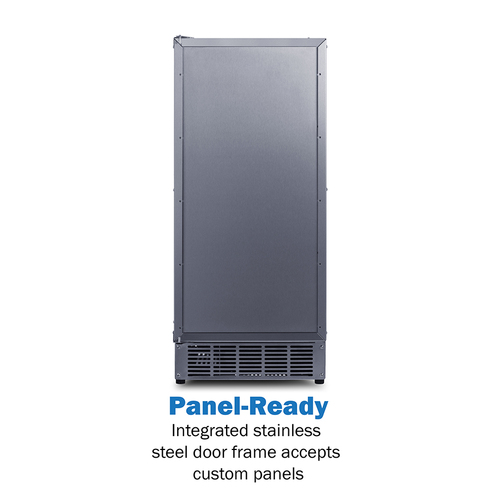

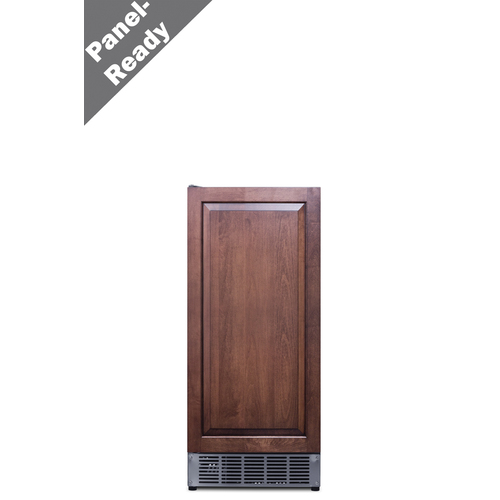

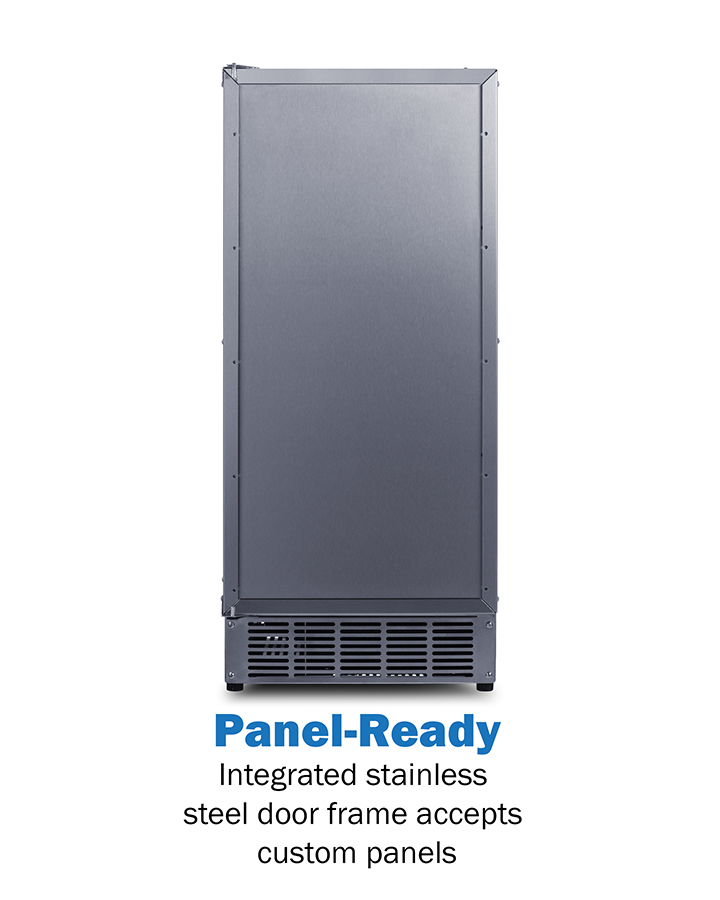

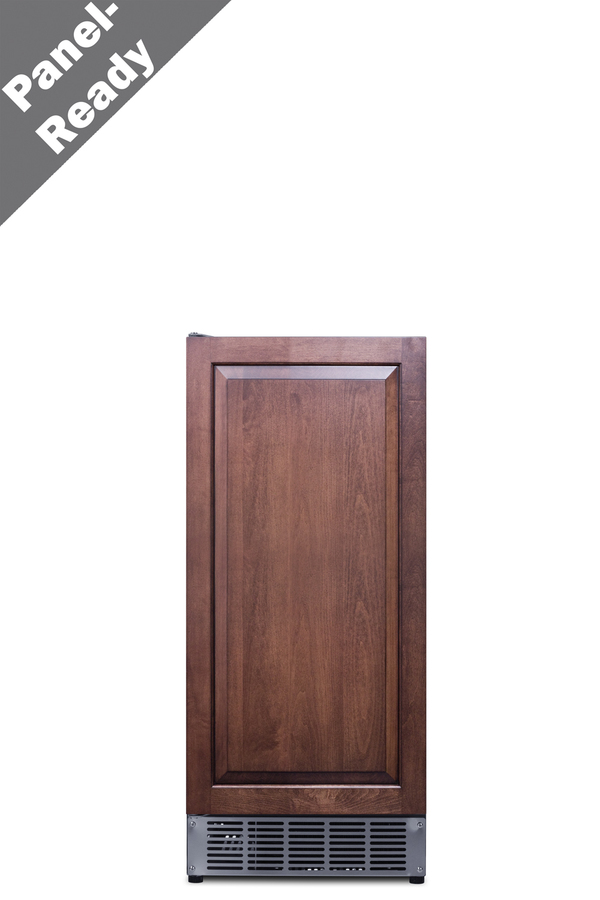

Panel-ready door
Stainless steel door frame accepts full overlay panels to match adjacent cabinetry (panel size: 27 7/8" H x14 5/8" W and at least 3/4" thick; maximum weight: 10 lbs.)
Automatic defrost
Reduced maintenance with auto defrost system

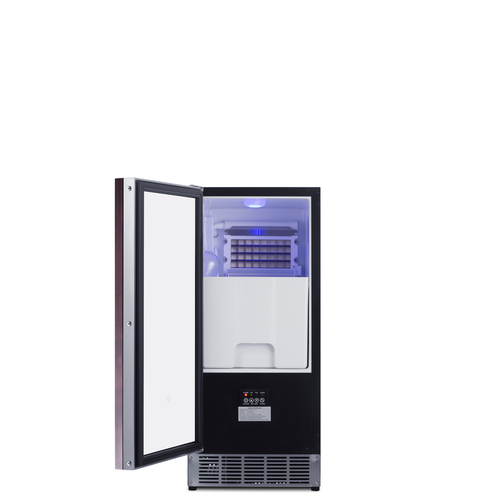

Insulated storage bin
Ice stays frozen longer inside this cold-protected bin

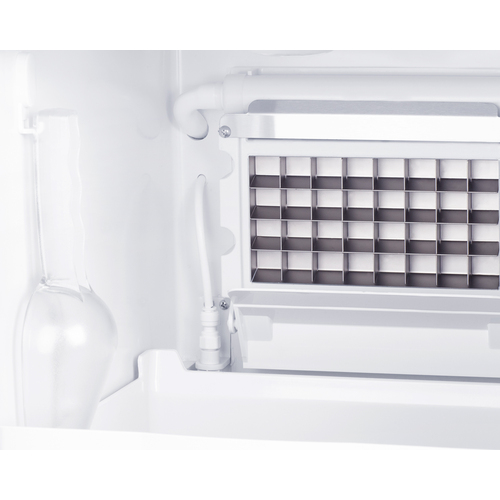

Clear ice cube production
Makes cubes sized at 3/4" x 3/4" x 1"
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 33.0" (84 cm)
Width 14.5" (37 cm)
Depth 23.5" (60 cm)
Defrost Type Automatic
Door Panel-Ready
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation NSF
Amps 4.8
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Shipping Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Icemaker
Door Swing LHD
Reversible Factory Reversible
Drain Required Yes
Daily Ice Production 50.0 lbs. (23 kg)
Ice Storage Capacity 25.0 lbs. (11 kg)
Ice Shape Cube
Size of Cube 3/4" x 3/4" x 1"
Number of Ice Cube Sizes 1
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 3.88 oz.
High Side PSI 350.0
Low Side PSI 130.0
Interior Height 18.5" (47 cm)
Interior Width 12.0" (30 cm)
Interior Depth 16.0" (41 cm)
Level Legs 4

AVAILABLE UPGRADES

Exterior
RHD - Right hand door swing
Door reversal to right hand door swing
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
