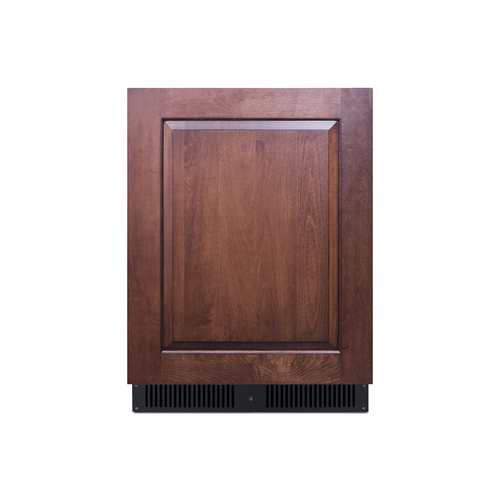

24" Wide Built-In All-Refrigerator, ADA Compliant (Panel Not Included)
3 to 5 days
(81cm H x 59cm W x 57cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.63" (57 cm) |
| Capacity | 4.8 cu.ft. (136 L) |
| Defrost Type | Frost-Free |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 270.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101091143 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | LHD |
| Reversible | No |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Full Door Shelf Qty | 2 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.99oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 to 43ºF |
| Sound Level | 33.3dB |
|
Dimensions
|
|
| Interior Height | 25.0" (64 cm) |
| Interior Width | 20.0" (51 cm) |
| Interior Depth | 17.5" (44 cm) |
| Compressor Step Height | 3.25" (8 cm) |
| Compressor Step Width | 20.0" (51 cm) |
| Compressor Step Depth | 5.25" (13 cm) |
AVAILABLE UPGRADES
| Handle | |
|---|---|
|
|
| Exterior | |
|
FEATURES
32" height allows easy installation under lower ADA compliant counters
Front-breathing design lets you make the best use of space by installing your appliance under the counter

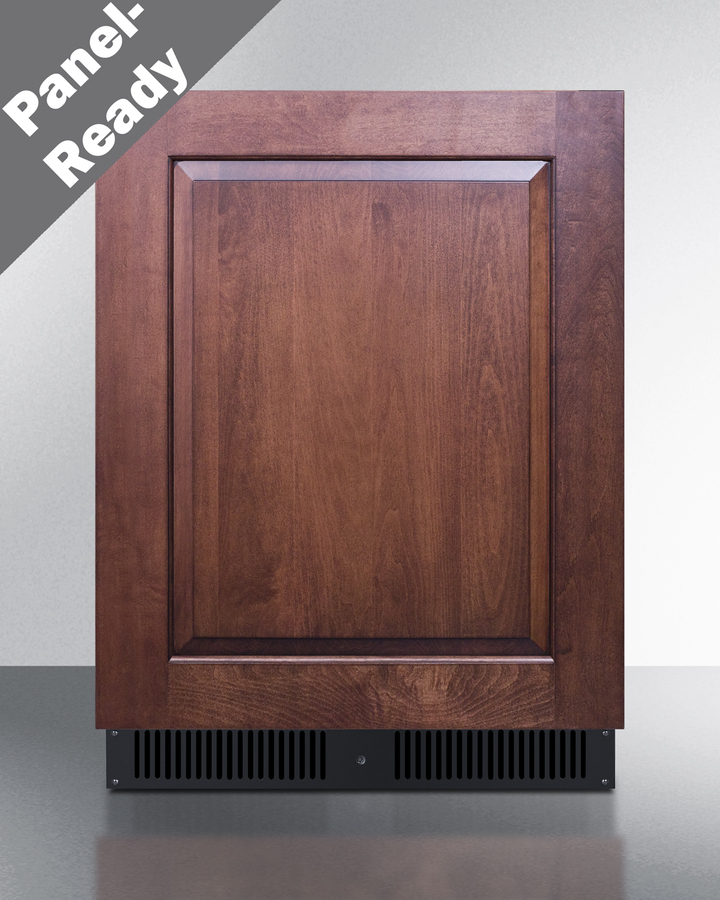

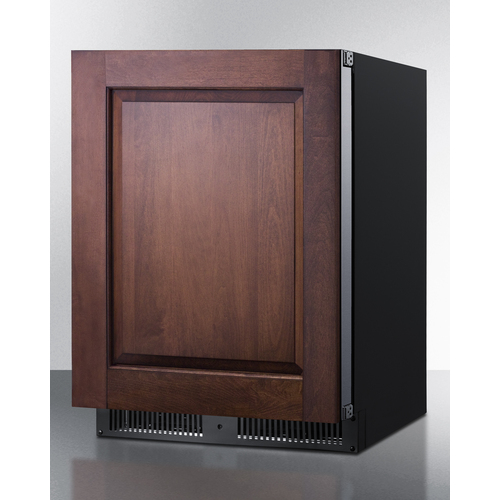

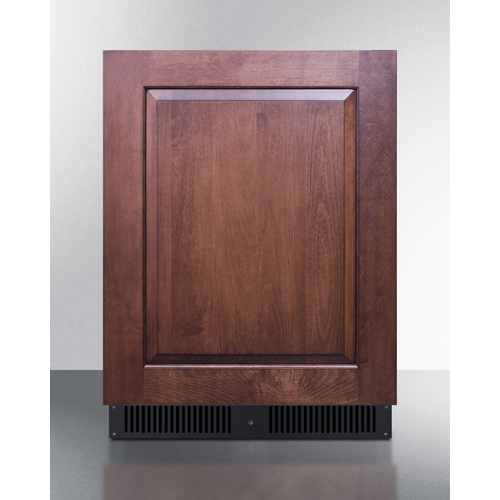

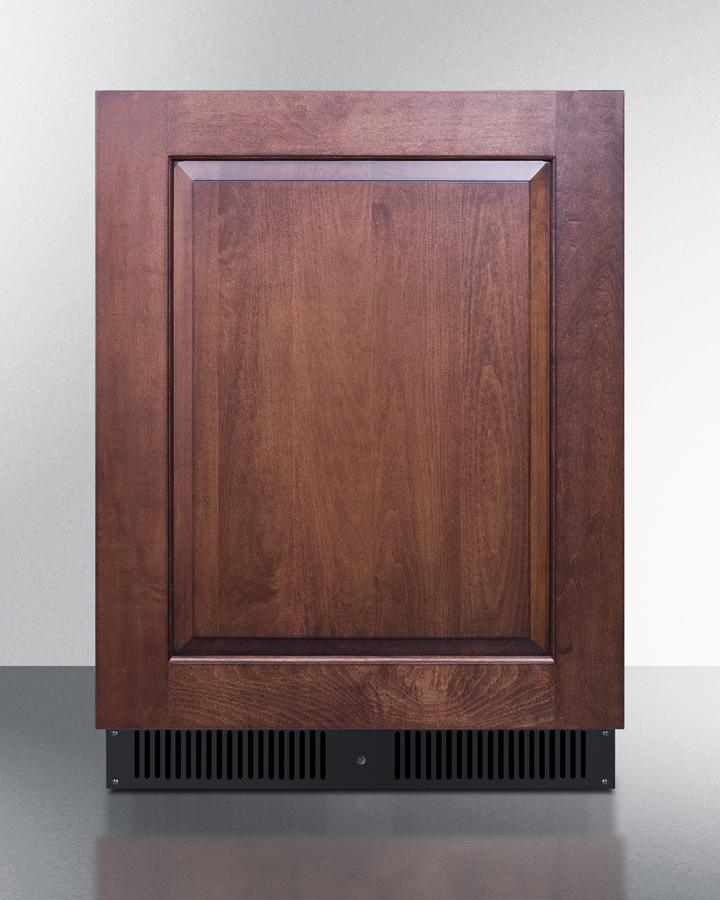

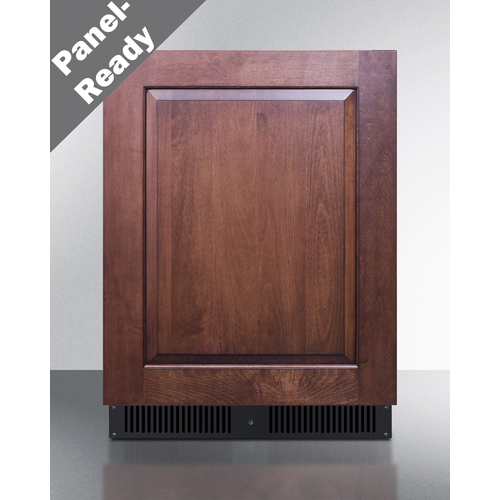

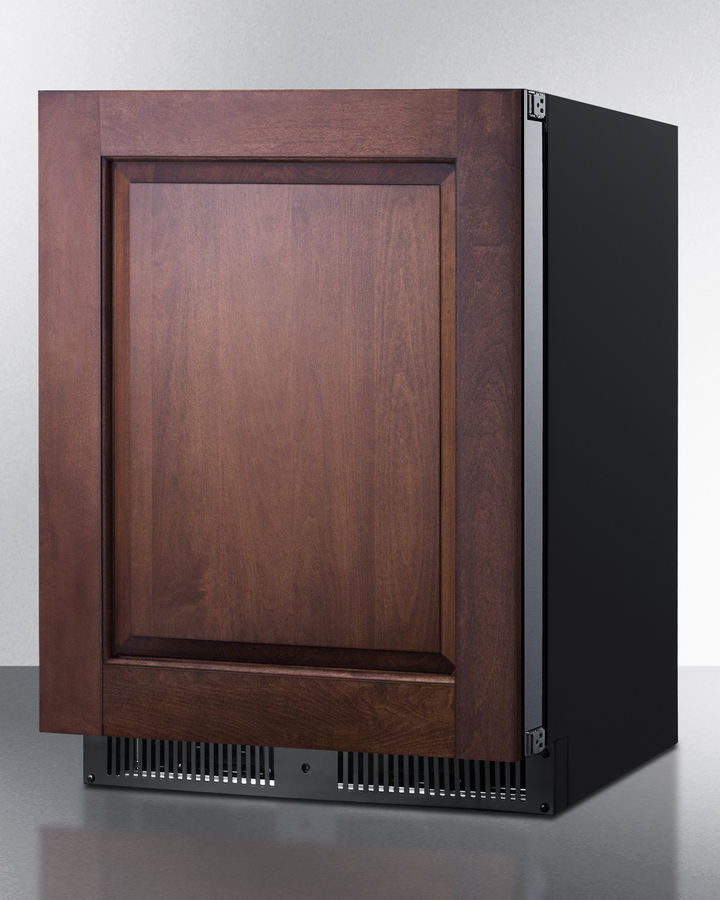

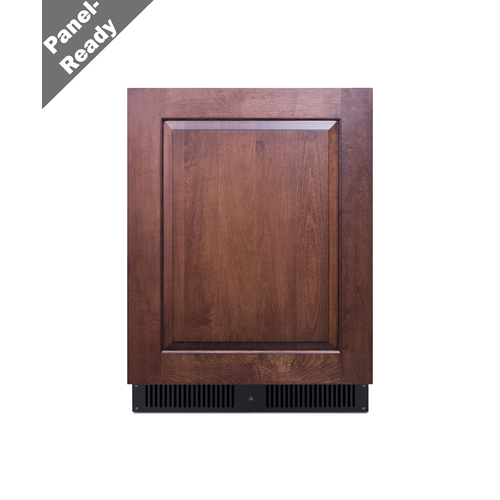

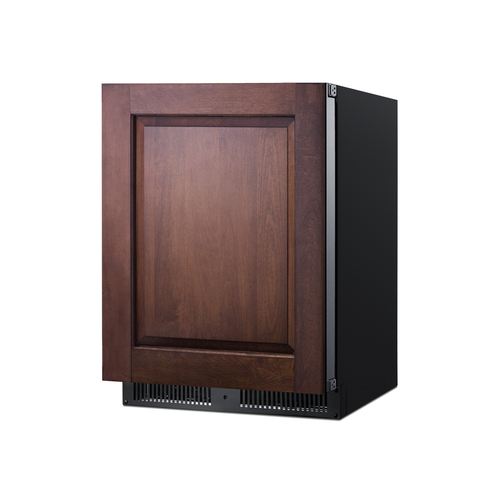

European style articulating door hinge allows the installation of overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; (panel size: 23.4" W x 28.38" H at 3/4" thick and 10 lbs. maximum)
Fully finished door also allows you to choose a traditional stainless steel front if not installing an overlay panel
No-frost operation for minimum user maintenance
Electronic controls located inside the unit for precise temperature management
Efficient and attractive presentation with LED lighting
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Two door racks offer convenient storage for condiments and bottles
Floor is specially slotted to store wine and other bottles safely in place
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Audible alarm will sound if the door is left open longer than one minute
High temperature alarm sounds if the unit's interior goes out of the recommended range
Optional setting lets you disable the lighting and alarm for up to 48 hours
Unit will retain its last settings when power is restored in the event of power loss
Space-saving design that offers easier cleanability
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Pair with the ALFZ53IF frost-free freezer to create a complete refrigerator/freezer set under the counter
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION
SUMMIT's AL54 series features built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience. Sized with a convenient 24" footprint, the AL54IFLHD is just 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished black cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. The stainless steel door features a European-style fully articulating hinge for zero clearance opening. We include a 2-piece bracket kit that allows easy installation of overlay panels to create a custom look that can seamlessly blend into your existing cabinetry design (panel size: 28.38" H x 23.4" W; maximum weight: 10 lbs.). This unit has a flush back for easy cleaning and a right angle plug for a better fit. A factory-installed lock is located in the kickplate. Inside, the AL54IFLHD utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage and two large door racks ideal for keeping condiments and bottles in easy reach. The floor is specially slotted to hold bottles in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. With its deluxe style and user-friendly features, this unit is the perfect choice for ADA compliant kitchens. Additional styles are available, as well a matching frost-free freezer (model ALFZ53IF). Browse the full Summit line to explore your endless options.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
