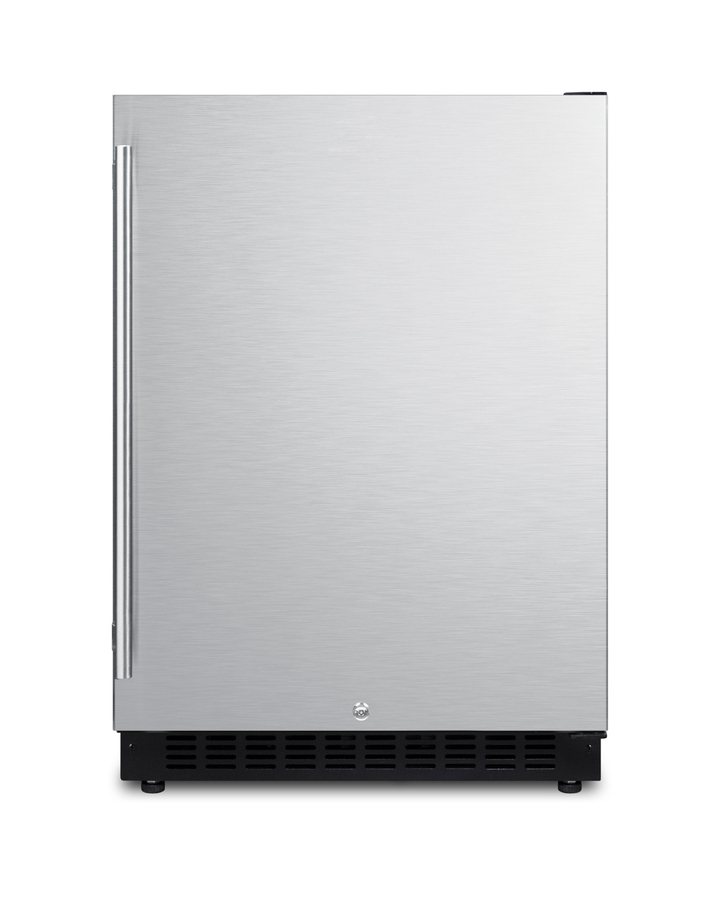

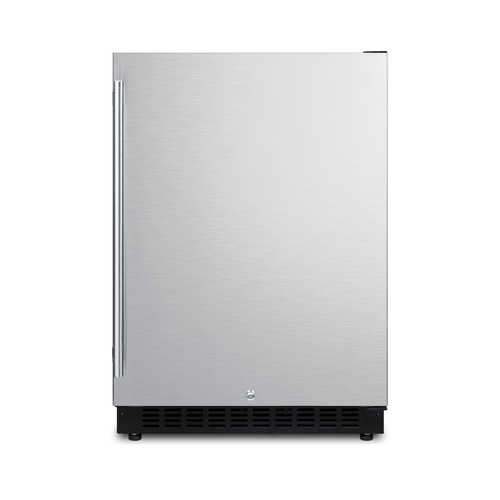

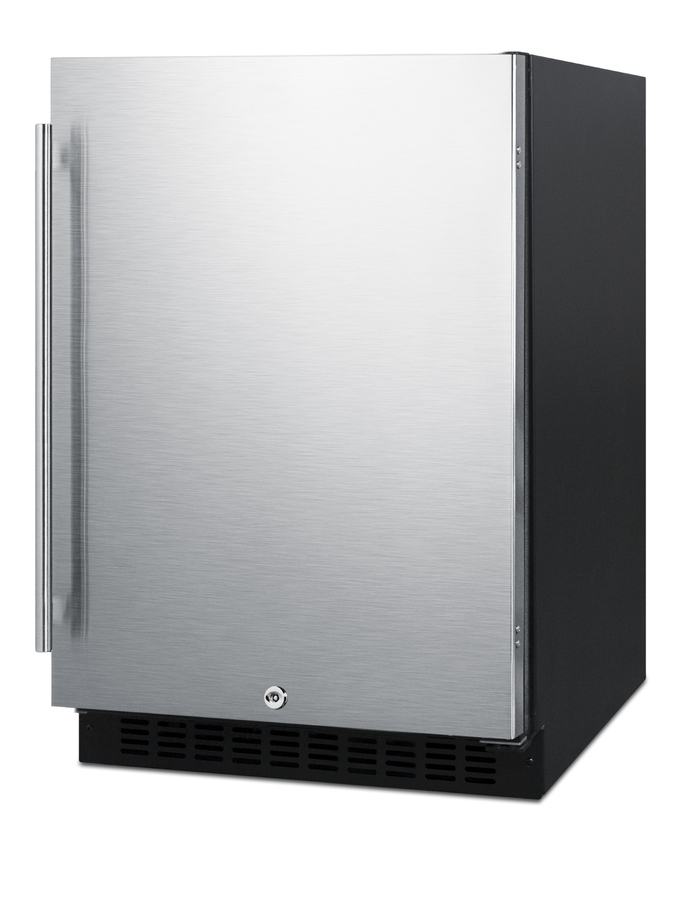

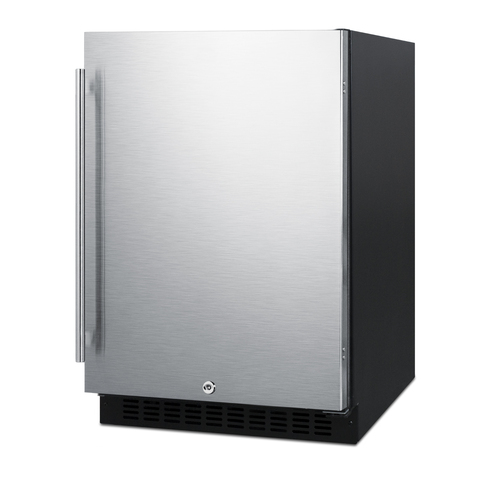

24" Wide Commercial All-Refrigerator, ADA Compliant
Next day shipping
(81cm H x 60cm W x 57cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.63" (57 cm) |
| Depth with Handle | 24.63" (63 cm) |
| Depth with door at 90° | 45.0" (114 cm) |
| Capacity | 4.8 cu.ft. (136 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 270.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 95.0 lbs. (43 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101052304 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Full Door Shelf Qty | 2 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.99oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 to 43ºF |
| Sound Level | 33.3 dB |
|
Dimensions
|
|
| Interior Height | 25.0" (64 cm) |
| Interior Width | 20.0" (51 cm) |
| Interior Depth | 17.5" (44 cm) |
| Compressor Step Height | 3.25" (8 cm) |
| Compressor Step Width | 20.0" (51 cm) |
| Compressor Step Depth | 5.25" (13 cm) |
AVAILABLE UPGRADES
| Exterior | ||||
|---|---|---|---|---|
|
||||
| Handle | ||||
|
||||
| Door | ||||
|
FEATURES
Undercounter all-refrigerator for storage in foodservice settings
ETL-S listed to NSF-7 Standards for use in commercial establishments

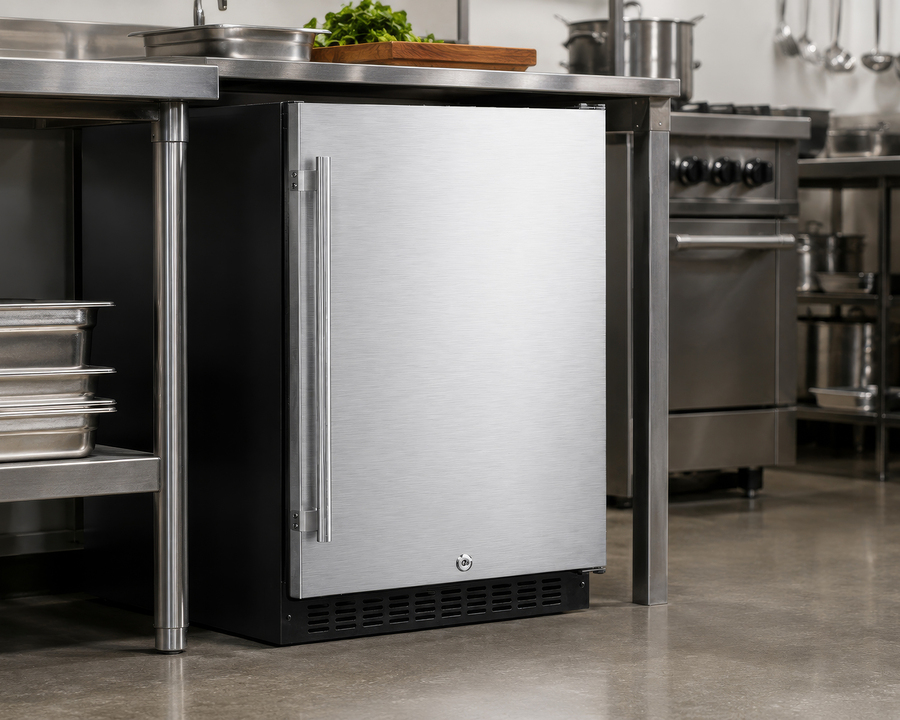

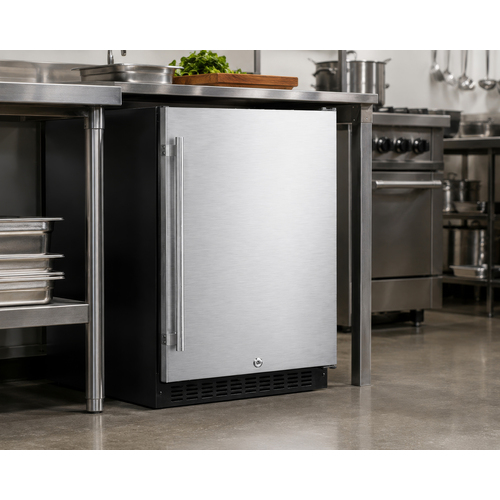

32" height allows easy installation under lower ADA compliant counters
Space-saving design that offers easier cleanability, a crucial feature for meeting NSF standards
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Durable construction with a professional look ideal for restaurants, cafes, convenience storages, and other commercial spaces
Keyed lock for a secure interior to protect stored contents from customers as needed
No-frost operation for minimum staff maintenance
Fan-forced cooling to ensure fast temperature recovery after door openings
Efficient illumination to keep all stored items in view for busy staff

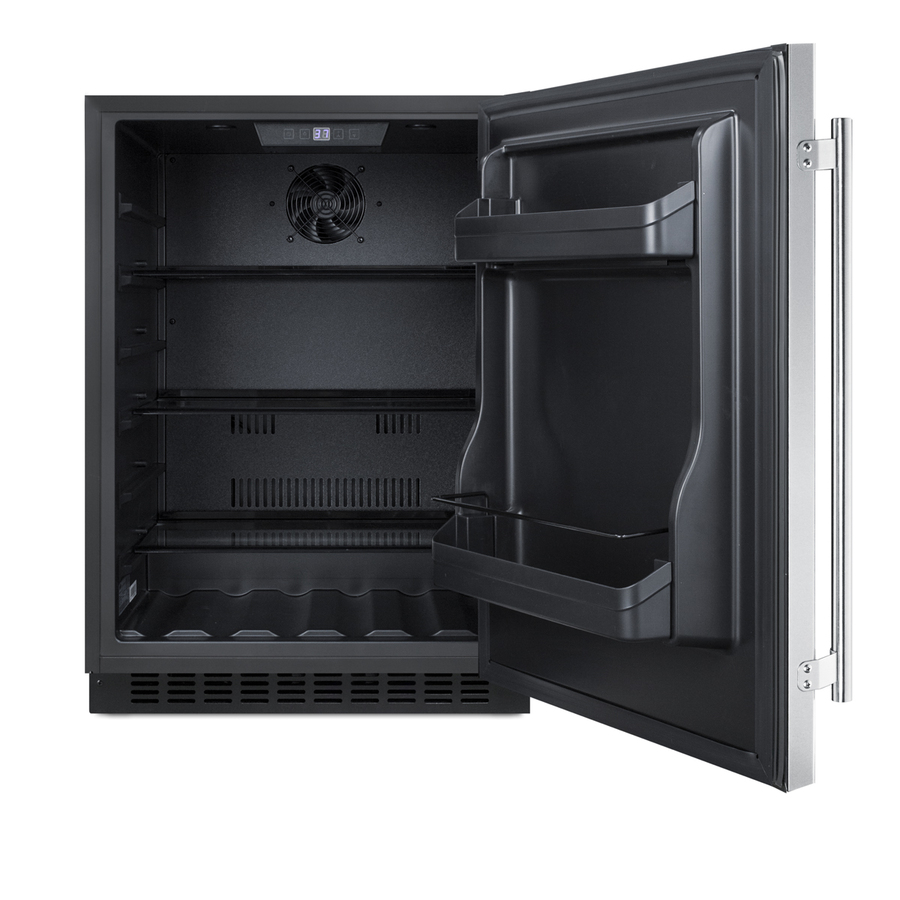

Durable, spill-proof glass shelving that can be rearranged to accommodate various sized products

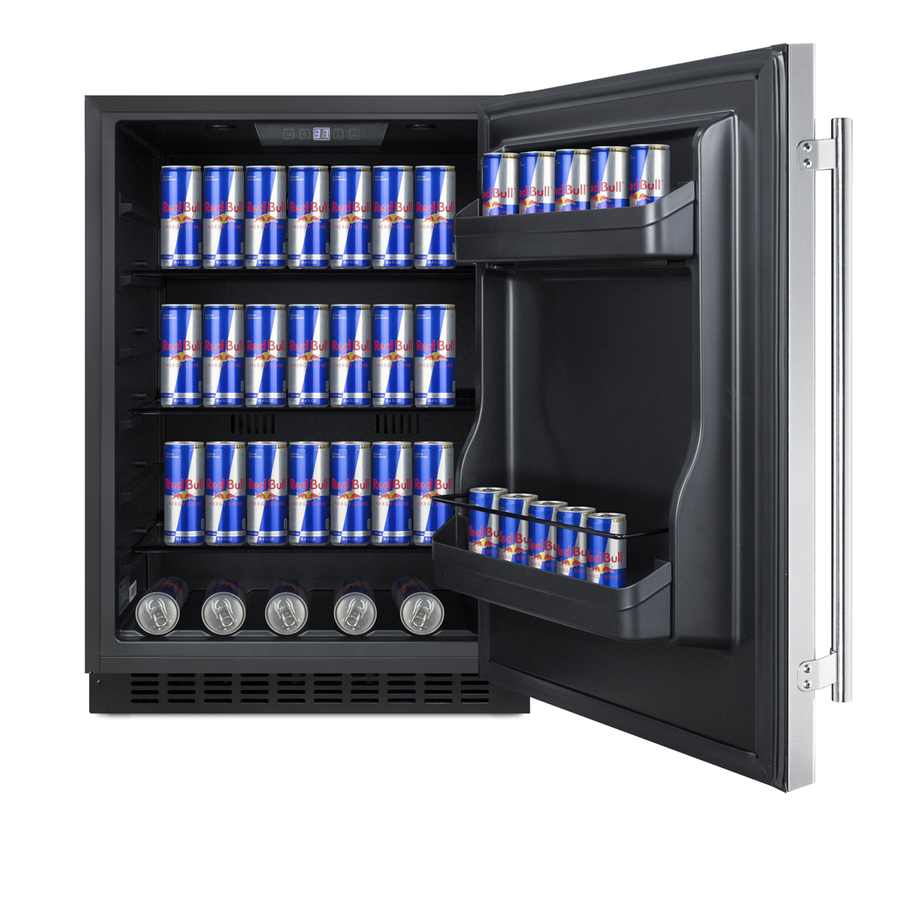

Two door racks offer convenient storage for condiments and bottles
Floor is specially slotted to store wine and other bottles safely in place
Electronic controls located inside the unit for precise temperature management
User-reversible door swing for added flexibility
Audible alarm will sound if the door is left open longer than one minute
High temperature alarm sounds if the unit's interior goes out of the recommended range
Unit will retain its last settings when power is restored in the event of power loss
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Includes a full-length pro handle in chrome
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION
Summit Commercial specializes in manufacturing trusted cold storage equipment approved to NSF-7 for use in foodservice settings. Model ACAR58 is a 24" wide all-refrigerator sized at 32" high to fit under lower ADA compliant counters in commercial settings and public facilities. This unit can be built-in or used freestanding. It features a flush rear for easy cleaning, a requirement of commercial standards. The reversible stainless steel door includes a pro style handle and a factory installed lock for added security in busy settings. Inside, this refrigerator utilizes frost-free operation with fan-forced cooling to ensure low maintenance, even temperature distribution, and fast temperature recovery from door openings. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage and two large door racks ideal for keeping smaller bottles in easy reach. The floor is specially slotted to hold bottles in place. Additional features include an open door alarm and high temperature alarm to alert staff as needed. The ACAR58 refrigerator is ETL-S listed to NSF-7 commercial standards. It's the ideal storage solution for space-restrained restaurants, bodegas, cafes, convenience stores, hotel lounges, and other areas in need of reliable refrigeration in a slim fit.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
