TEL05

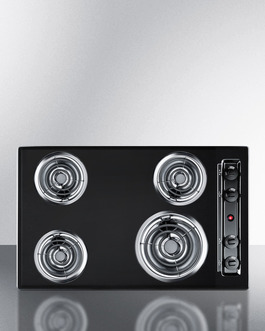

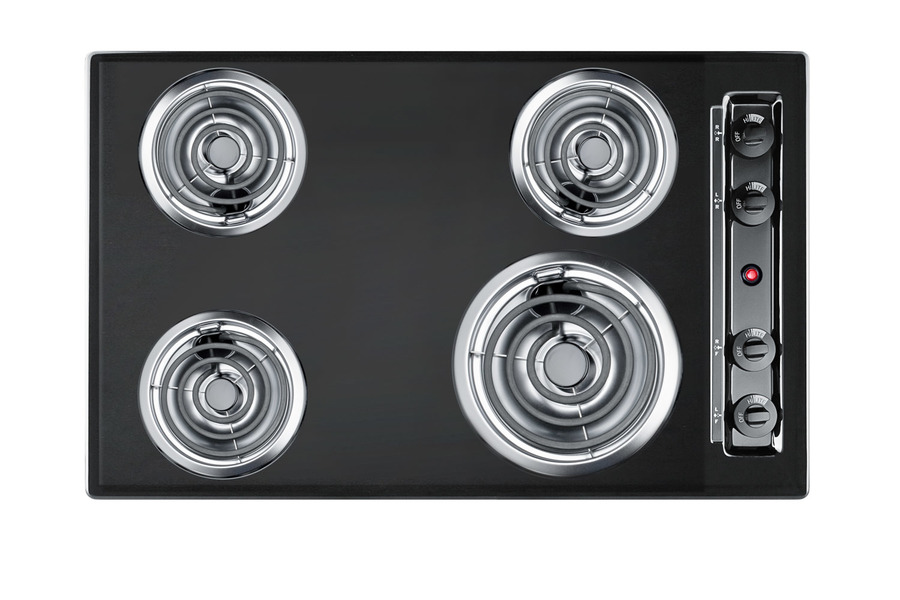

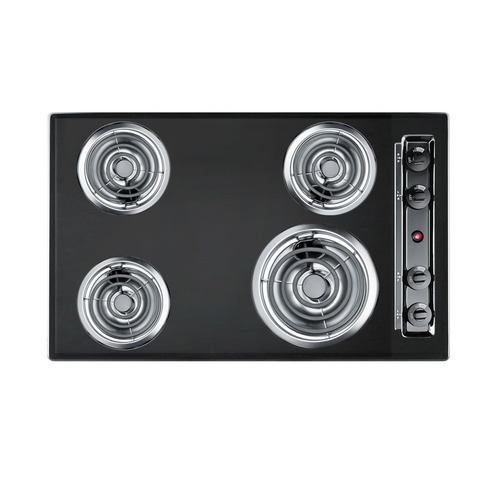

30" Wide 4-Burner Coil Cooktop

SKU: TEL05

Delivery
This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

Made in the USA

3.75" H x 29.75" W x 20.0" D

(10cm H x 76cm W x 51cm D)

OVERVIEW

  • 30" wide for an easy fit in common counter cutouts
  • Coil elements for long-lasting durability
  • Porcelain enamel surface offers easy cleanup and long-term durability
  • Made in the USA

SPECIFICATIONS

Overview
Height of Cabinet 3.75" (10 cm)
Width 29.75" (76 cm)
Depth 20.0" (51 cm)
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Voltage/Frequency 230 V AC/60 Hz
Weight 30.0 lbs. (14 kg)
Shipping Weight 32.0 lbs. (15 kg)
Estimated Time to Ship Next day shipping
Parts & Labor Warranty 1 Year
Electric Cooktop
Heating Type Radiant
Surface Painted
Element Type Coils
Number of Elements 4
controls Dial
Countertop Cutout Width 28.38" (72 cm)
Countertop Cutout Depth 18.63" (47 cm)
Element #1 Size 6.0" (15 cm)
Element #1 Wattage 675.0
Element #2 Size 8.0" (20 cm)
Element #2 Wattage 950.0
Element #3 Size 6.0" (15 cm)
Element #3 Wattage 675.0
Element #4 Size 6.0" (15 cm)
Element #4 Wattage 675.0
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

Summit's built-in electric cooktops offer quality performance at great value, with a range of sizes and styles to suit your kitchen needs.

The TEL05 is a 30" wide cooktop designed to fit 28 3/8" wide x 18 5/8" deep cutouts. It features a porcelain surface in a black finish for a classic look, with a recessed design that helps to contain spills. Side-located push-to-turn knobs offer easy and safe use.

Three 6" coil elements and one 8" element offer reliable heating with lasting durability. Each element includes a removable chrome drip pan for easier cleanup. This is a 220V cooktop and requires professional installation. Cord not included.

The TEL05 is made in the USA. Additional finishes are available, as well as 24" sizes for smaller kitchen spaces. Browse Summit's cooktop line up for more choices.

FEATURES

Coil elements
Traditional design offers reliable heating and strong durability for everyday use
Fits common cutouts
Designed to fit common 28 3/8" W x 18 5/8" D counter cutouts
8" burner
Larger element is ideal for heating wider pots and pans

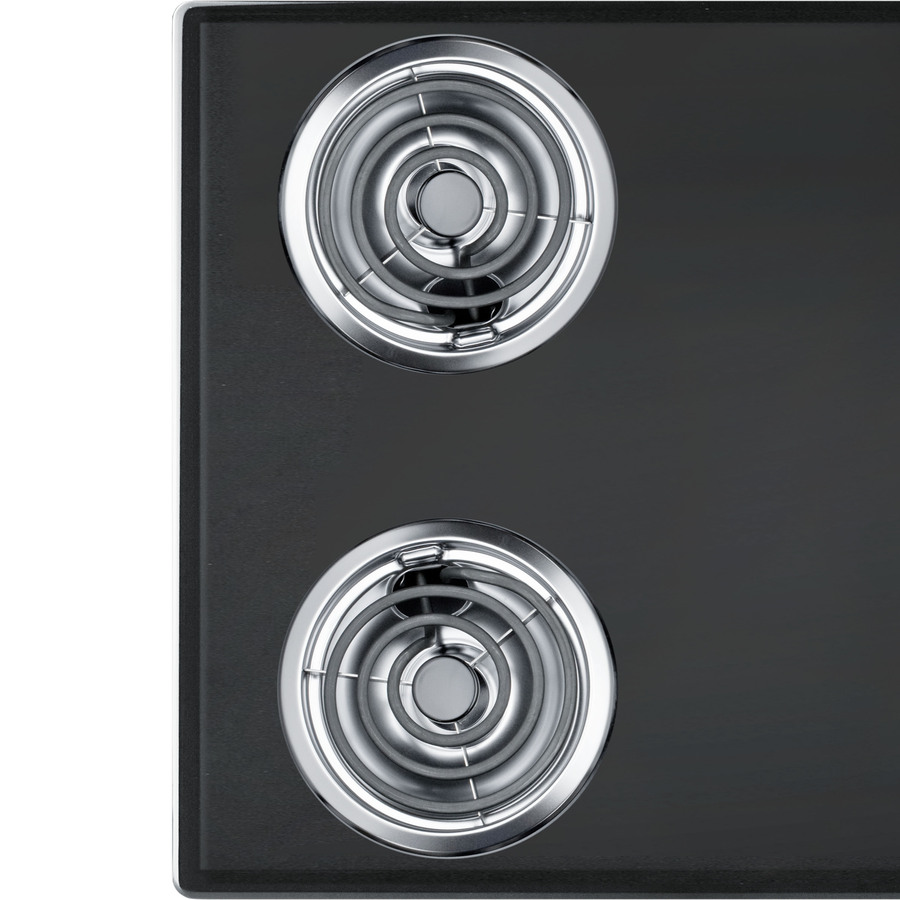

Three 6" burners
Standard burners accommodate most heating needs
Porcelain cooking surface
Black finish on scratch resistant top

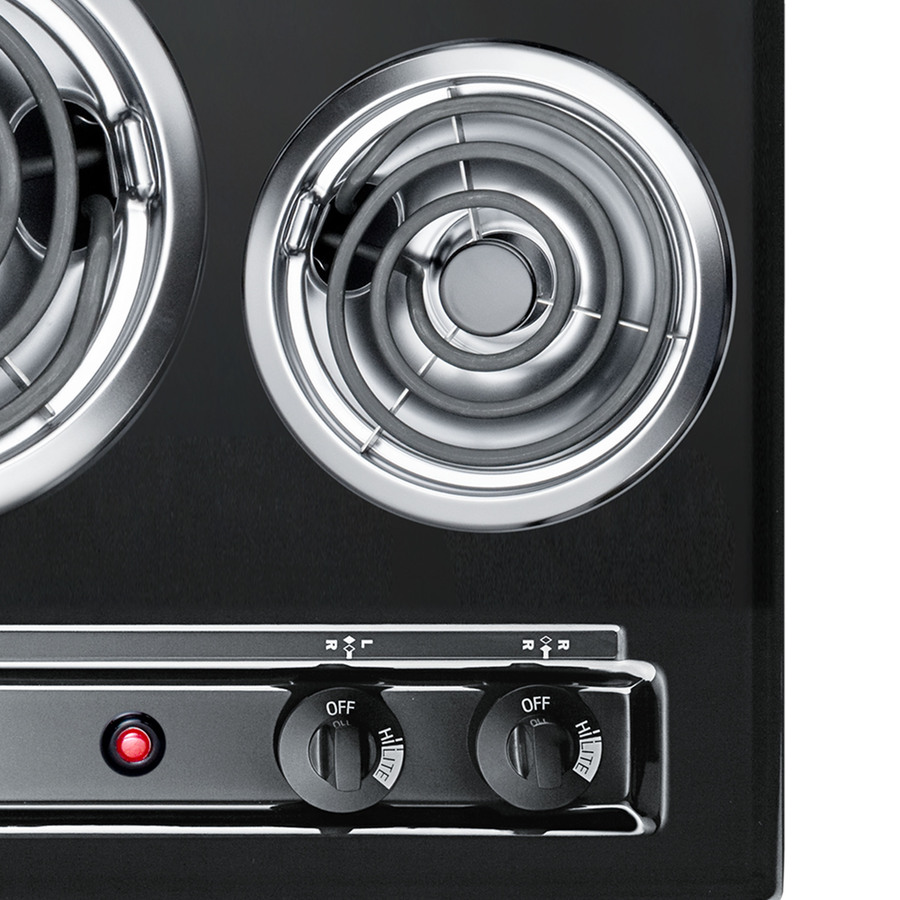

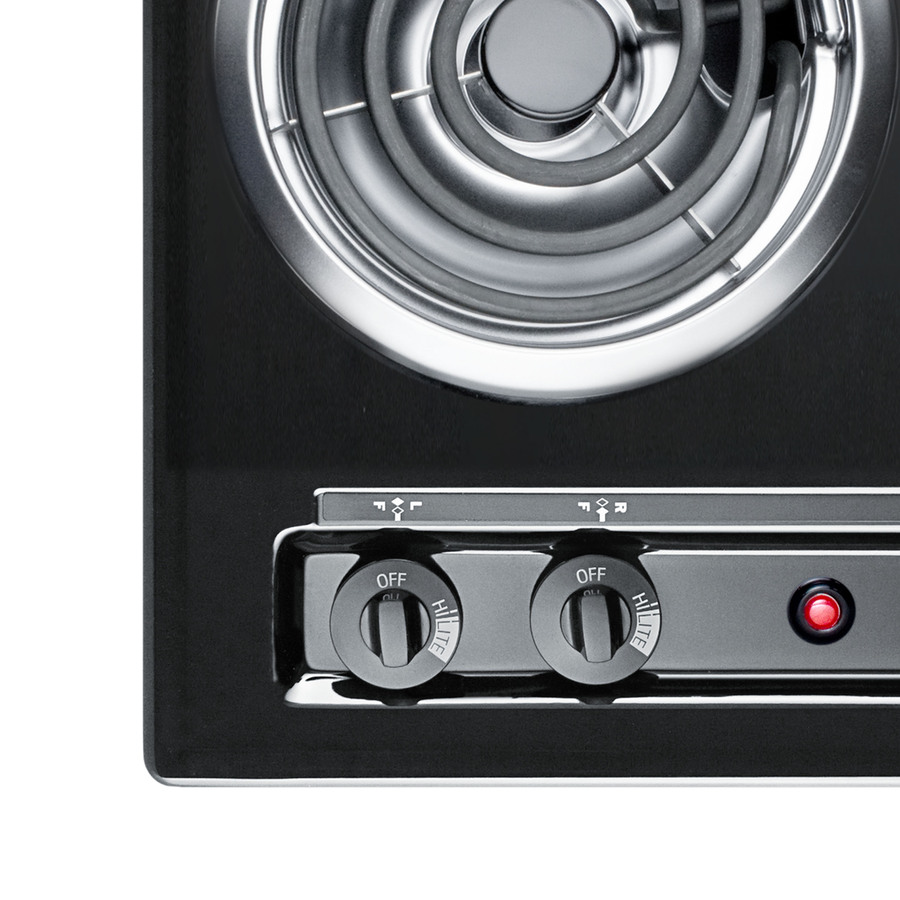

Push-to-turn controls
Knobs require a small amount of force for added safety
Chrome drip bowls
Drip pans help to contain spills and can be removed for easy cleaning
Recessed top
Curved design helps to contain spills on the surface
230V operation
Professional installation required

SPECIFICATIONS

Overview
Height of Cabinet 3.75" (10 cm)
Width 29.75" (76 cm)
Depth 20.0" (51 cm)
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Voltage/Frequency 230 V AC/60 Hz
Weight 30.0 lbs. (14 kg)
Shipping Weight 32.0 lbs. (15 kg)
Estimated Time to Ship Next day shipping
Parts & Labor Warranty 1 Year
Electric Cooktop
Heating Type Radiant
Surface Painted
Element Type Coils
Number of Elements 4
controls Dial
Countertop Cutout Width 28.38" (72 cm)
Countertop Cutout Depth 18.63" (47 cm)
Element #1 Size 6.0" (15 cm)
Element #1 Wattage 675.0
Element #2 Size 8.0" (20 cm)
Element #2 Wattage 950.0
Element #3 Size 6.0" (15 cm)
Element #3 Wattage 675.0
Element #4 Size 6.0" (15 cm)
Element #4 Wattage 675.0

DOWNLOADS

Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
