ZEL05

Made in the USA

3.75" H x 29.75" W x 20.0" D

(10cm H x 76cm W x 51cm D)

OVERVIEW

  • Coil elements for long-lasting durability
  • Chrome finish offers an attractive look for the kitchen
  • 30" wide for an easy fit in common counter cutouts
  • Made in the USA

SPECIFICATIONS

Overview
Height of Cabinet 3.75" (10 cm)
Width 29.75" (76 cm)
Depth 20.0" (51 cm)
Cabinet Chrome
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 30.0
Voltage/Frequency 230 V AC/60 Hz
Weight 30.0 lbs. (14 kg)
Shipping Weight 32.0 lbs. (15 kg)
Estimated Time to Ship Out of stock; ETA 05/24/2019
Parts & Labor Warranty 1 Year
Electric Cooktop
Heating Type Radiant
Element Type Coils
Number of Elements 4
controls Dial
Countertop Cutout Width 28.38" (72 cm)
Countertop Cutout Depth 18.63" (47 cm)
Element #1 Size 6.0" (15 cm)
Element #1 Wattage 675.0
Element #2 Size 8.0" (20 cm)
Element #2 Wattage 950.0
Element #3 Size 6.0" (15 cm)
Element #3 Wattage 675.0
Element #4 Size 6.0" (15 cm)
Element #4 Wattage 675.0
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

Summit's built-in electric cooktops offer quality performance at great value, with a range of sizes and styles to suit your kitchen needs.

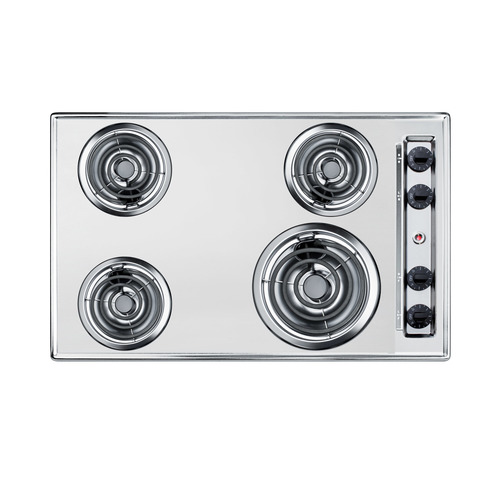

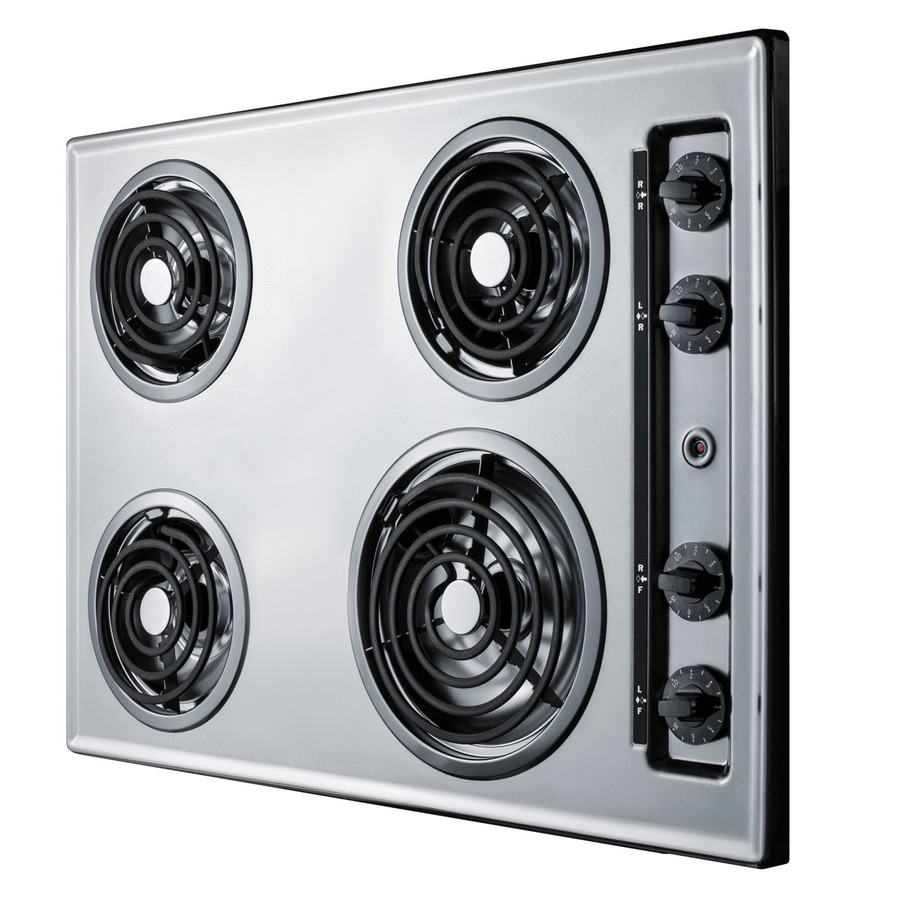

The ZEL05 is a 30" wide cooktop designed to fit 28 3/8" wide x 18 5/8" deep cutouts. It features a chrome finish for an attractive look, with a recessed design that helps to contain spills. Side-located push-to-turn knobs offer easy and safe use.

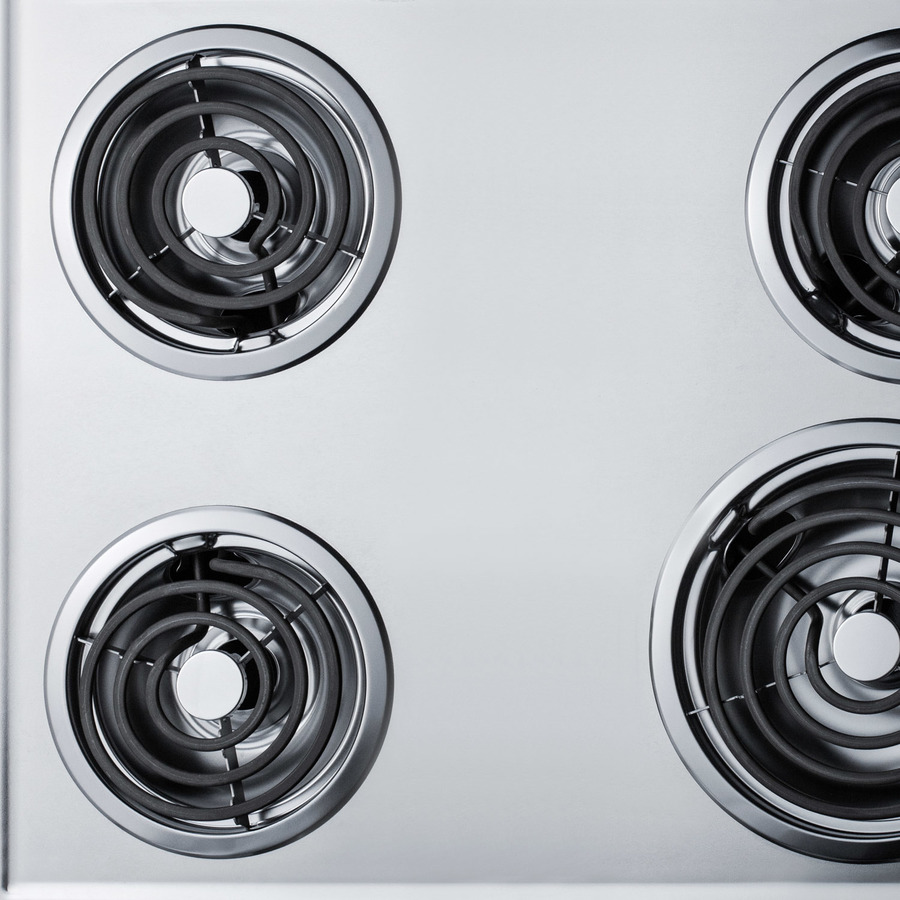

Three 6" coil elements and one 8" element offer reliable heating with lasting durability. Each element includes a removable chrome drip pan for easier cleanup. This is a 220V cooktop and requires professional installation. Cord not included.

The ZEL05 is made in the USA. Additional finishes are available, as well as 24" sizes for smaller kitchen spaces. Browse Summit's cooktop line up for more choices.

FEATURES

Coil elements
Traditional design offers reliable heating and strong durability for everyday use
Fits popular cutout size
Designed to fit common 28 3/8" W x 18 5/8" D counter cutouts
8" burner
Larger element is ideal for heating wider pots and pans
Three 6" burners
Standard burners accommodate most heating needs
Chrome drip bowls
Drip pans help to contain spills and can be removed for easy cleaning

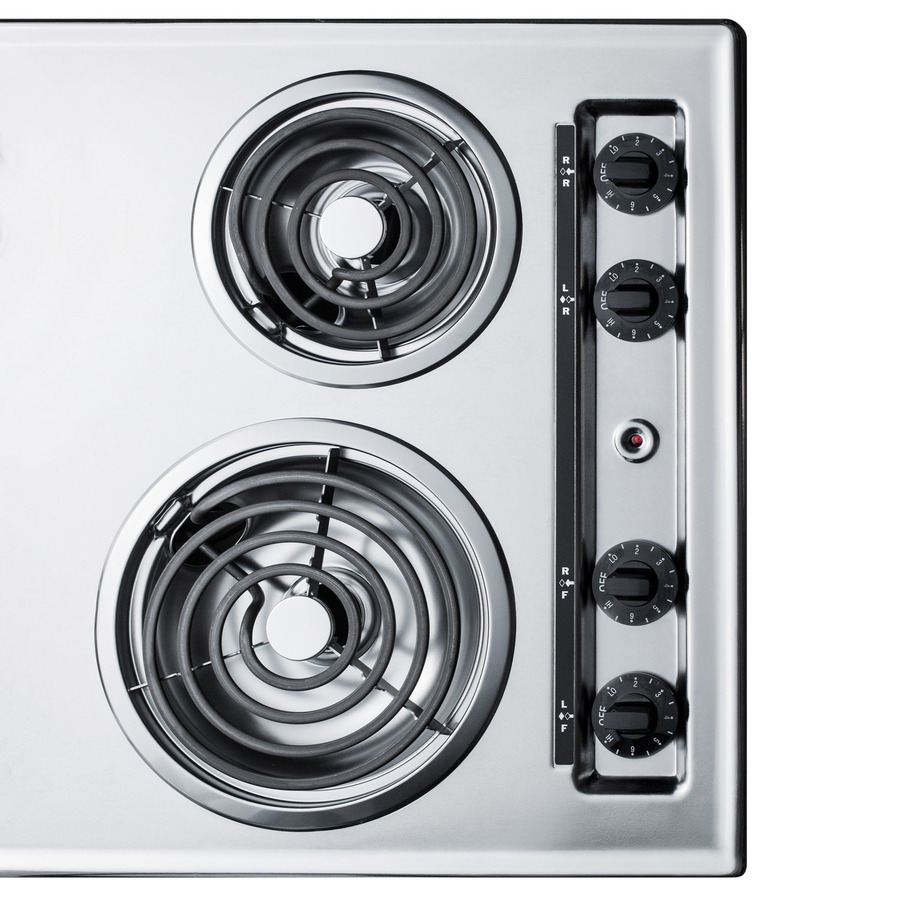

Push-to-turn controls
Knobs require a small amount of force for added safety
Recessed top
Curved design helps to contain spills on the surface
Chrome finish
Metallic design for a professional look with lasting durability
230V operation
Professional installation required

SPECIFICATIONS

Overview
Height of Cabinet 3.75" (10 cm)
Width 29.75" (76 cm)
Depth 20.0" (51 cm)
Cabinet Chrome
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 30.0
Voltage/Frequency 230 V AC/60 Hz
Weight 30.0 lbs. (14 kg)
Shipping Weight 32.0 lbs. (15 kg)
Estimated Time to Ship Out of stock; ETA 05/24/2019
Parts & Labor Warranty 1 Year
Electric Cooktop
Heating Type Radiant
Element Type Coils
Number of Elements 4
controls Dial
Countertop Cutout Width 28.38" (72 cm)
Countertop Cutout Depth 18.63" (47 cm)
Element #1 Size 6.0" (15 cm)
Element #1 Wattage 675.0
Element #2 Size 8.0" (20 cm)
Element #2 Wattage 950.0
Element #3 Size 6.0" (15 cm)
Element #3 Wattage 675.0
Element #4 Size 6.0" (15 cm)
Element #4 Wattage 675.0
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
