ZEL03

Delivery 9240a3e8870753a2ec143c34af2b405742ae73bfeb126dd29f201daa25ab8f11
This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

Made in the USA

3.75" H x 24.0" W x 20.0" D

(10cm H x 61cm W x 51cm D)

OVERVIEW

  • 24" wide for full cooking capacity in smaller kitchen spaces
  • Chrome finish offers an attractive look for the kitchen
  • Coil elements for long-lasting durability
  • Made in the USA

SPECIFICATIONS

Overview
Height of Cabinet 3.75" (10 cm)
Width 24.0" (61 cm)
Depth 20.0" (51 cm)
Cabinet Chrome
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 30.0
Voltage/Frequency 230 V AC/60 Hz
Weight 27.0 lbs. (12 kg)
Shipping Weight 29.0 lbs. (13 kg)
Estimated Time to Ship Next day shipping
Parts & Labor Warranty 1 Year
Electric Cooktop
Heating Type Radiant
Element Type Coils
Number of Elements 4
controls Dial
Countertop Cutout Width 22.63" (57 cm)
Countertop Cutout Depth 18.63" (47 cm)
Element #1 Size 6.0" (15 cm)
Element #1 Wattage 675.0
Element #2 Size 8.0" (20 cm)
Element #2 Wattage 950.0
Element #3 Size 6.0" (15 cm)
Element #3 Wattage 675.0
Element #4 Size 6.0" (15 cm)
Element #4 Wattage 675.0
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

Summit's built-in electric cooktops offer quality performance at great value, with a range of sizes and styles to suit your kitchen needs.

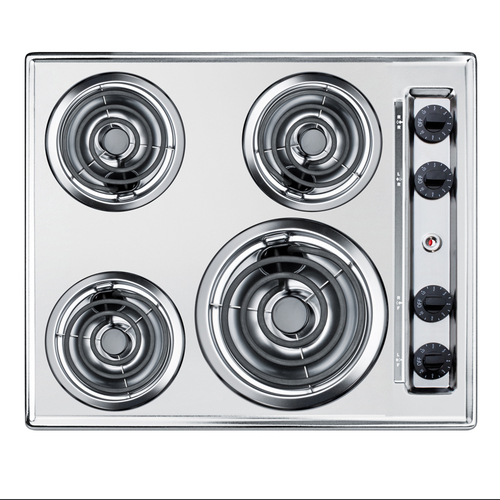

The ZEL03 is a 24" wide cooktop designed to fit 22 5/8" wide x 18 5/8" deep cutouts. It features a chrome finish for an attractive look, with a recessed design that helps to contain spills. Side-located push-to-turn knobs offer easy and safe use.

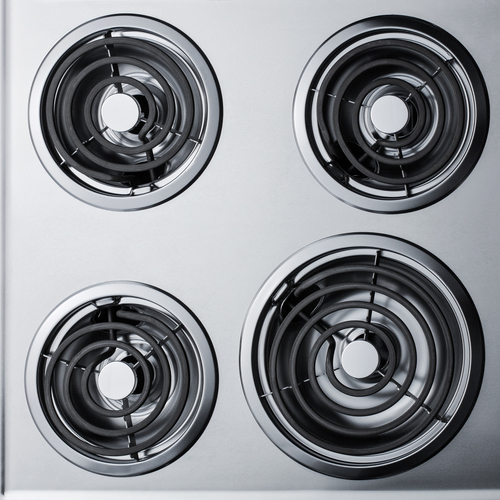

Three 6" coil elements and one 8" element offer reliable heating with lasting durability. Each element includes a removable chrome drip pan for easier cleanup. This is a 220V cooktop and requires professional installation. The cord is not included.

The ZEL03 is made in the USA. Additional finishes are available, as well as 30" sizes for smaller kitchen spaces. Browse Summit's cooktop line up for more choices.

FEATURES

Coil elements
Traditional design offers reliable heating and strong durability for everyday use
Fits popular cutout size
Designed for 22 5/8" W x 18 5/8" D cutouts for an easy fit in smaller kitchens
8" burner
Larger element is ideal for heating wider pots and pans
Three 6" burners
Standard burners accommodate most heating needs
Chrome drip bowls
Drip pans help to contain spills and can be removed for easy cleaning

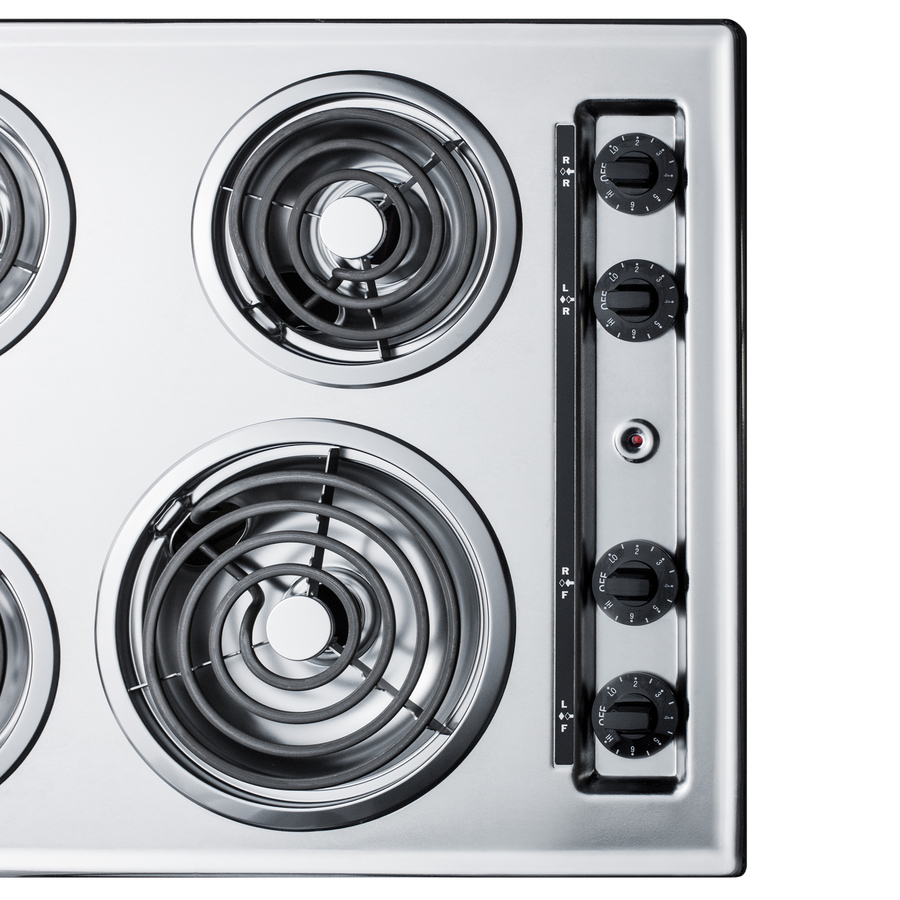

Push-to-turn controls
Knobs require a small amount of force for added safety
Recessed top
Curved design helps to contain spills on the surface
Chrome finish
Metallic design for a professional look with lasting durability
230V operation
Professional installation required

SPECIFICATIONS

Overview
Height of Cabinet 3.75" (10 cm)
Width 24.0" (61 cm)
Depth 20.0" (51 cm)
Cabinet Chrome
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 30.0
Voltage/Frequency 230 V AC/60 Hz
Weight 27.0 lbs. (12 kg)
Shipping Weight 29.0 lbs. (13 kg)
Estimated Time to Ship Next day shipping
Parts & Labor Warranty 1 Year
Electric Cooktop
Heating Type Radiant
Element Type Coils
Number of Elements 4
controls Dial
Countertop Cutout Width 22.63" (57 cm)
Countertop Cutout Depth 18.63" (47 cm)
Element #1 Size 6.0" (15 cm)
Element #1 Wattage 675.0
Element #2 Size 8.0" (20 cm)
Element #2 Wattage 950.0
Element #3 Size 6.0" (15 cm)
Element #3 Wattage 675.0
Element #4 Size 6.0" (15 cm)
Element #4 Wattage 675.0
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
