TEL03

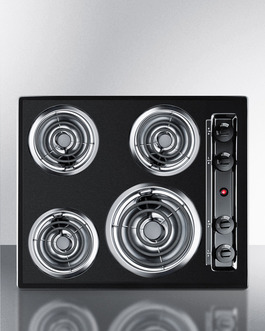

24" Wide 4-Burner Coil Cooktop

SKU: TEL03
Made in the USA
Estimated Time to Ship:

Next day shipping; multi-piece orders may extend lead time. Call 718-893-3900 ext. 507 to discuss

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
3.75" H x 24.0" W x 20.0" D
(10cm H x 61cm W x 51cm D)

Overview
Height of Cabinet 3.75" (10 cm)
Width 24.0" (61 cm)
Depth 20.0" (51 cm)
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Voltage/Frequency 230 V AC/60 Hz
Weight 27.0 lbs. (12 kg)
Shipping Weight 29.0 lbs. (13 kg)
Parts & Labor Warranty 1 Year
UPC 761101000756
Electric Cooktop
Heating Type Radiant
Surface Painted
Element Type Coils
Number of Elements 4
Controls Dial
Countertop Cutout Width 22.63" (57 cm)
Countertop Cutout Depth 18.63" (47 cm)
Element #1 Size 6.0" (15 cm)
Element #1 Wattage 675.0
Element #2 Size 8.0" (20 cm)
Element #2 Wattage 950.0
Element #3 Size 6.0" (15 cm)
Element #3 Wattage 675.0
Element #4 Size 6.0" (15 cm)
Element #4 Wattage 675.0
Power Cord Included No

Made in the USA

Designed and constructed domestically

Classic fit

Fits 22 5/8" W x 18 5/8" D counter cutouts

Porcelain cooking surface

Scratch-resistant top in a jet black finish

Coil elements

Traditional design offers reliable heating and strong durability for everyday use

Safety burners with low wattage outputs

Complies with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off

8" burner

Larger element is ideal for heating wider pots and pans

Three 6" burners

Standard burners accommodate most heating needs

Chrome drip bowls

Each coil element includes a removable chrome pan to catch spills for easier cleanup

Recessed top

Curved design helps to contain spills on the surface

Side controls

Cooktop knobs are located on the right side of the cooktop, reducing the risk of accidentally adjusting the heating in busy kitchens

Push-to-turn controls

Knobs require a small amount of force for added safety

220-240V operation

Professional installation required

Cord not included

Compatible with standard 40 amp 3 or 4-wire range cords

Summit Appliance offers a wide selection of American-made household cooktops built for long-lasting durability in space-challenged kitchens.

The TEL03 is a 24" wide 220-240V electric cooktop designed to fit 22 5/8" wide x 18 5/8" deep cutouts. It features a porcelain surface in a jet black finish for a classic look, with a recessed design that helps to contain spills. Side-located push-to-turn knobs offer easy and safe use, with an indicator lights to show when the cooktop is on.

Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric cooktops, allowing for a slow but steady heating process that will not cycle off. Each element includes a removable chrome drip pan for easier cleanup. This is a 220V cooktop and requires professional installation. It is compatible with a standard 40 amp 3 or 4-wire range cord.

The TEL03 is designed and constructed in the USA. Additional finishes are available, as well as 30" sizes for larger kitchen spaces and matching wall ovens. Browse our website to explore our complete selection.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
