Height of Cabinet 69.75" (177 cm)
Width 23.63" (60 cm)
Depth 26.63" (68 cm)
Depth with Handle 27.75" (70 cm)
Depth with door at 90° 48.75" (124 cm)
Capacity 15.9 cu.ft. (450 L)
Bottles 160 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.7
Voltage/Frequency 115 V AC/60 Hz
Weight 187.0 lbs. (85 kg)
Shipping Weight 220.0 lbs. (100 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 2
Door Swing RHD
Reversible Yes
Shelf Type Wood
Shelf Qty 14
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.91 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 29.5" (75 cm)
Interior Width 1 19.75" (50 cm)
Interior Depth 1 21.0" (53 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 19.75" (50 cm)
Compressor Step Depth 5.5" (14 cm)
Temperature Range 41°F to 55°F (upper zone); 55°F to 72°F (lower zone)
Interior Height 2 31.0" (79 cm)
Interior Width 2 19.75" (50 cm)
Interior Depth 2 21.0" (53 cm)


T1SF Door Tint
Reflective door tint in dark smoke finish for maximum energy savings on full-size and two-door models
T4F Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T3F Door Tint
Reflective door tint in light blue finish for medium energy savings
T2F Door Tint
Tinted door in reflective deep blue finish with high energy savings
Extra keys available for purchase
Door reversal to left hand swing
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.

California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice


Tints f38f71c7257ce8e8379d579d03d127066ebb465738d3759d49e5075b11ff9ae5
Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
Delivery 9240a3e8870753a2ec143c34af2b405742ae73bfeb126dd29f201daa25ab8f11
This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

Dual zone wine cellar lets you store a full collection of red and white wine

69.75" H x 23.63" W x 26.63" D



Invalid Format

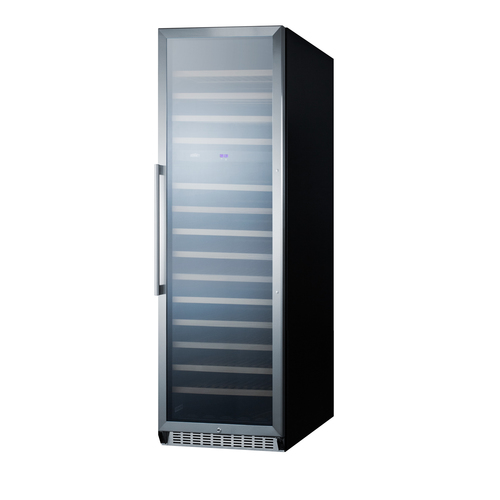

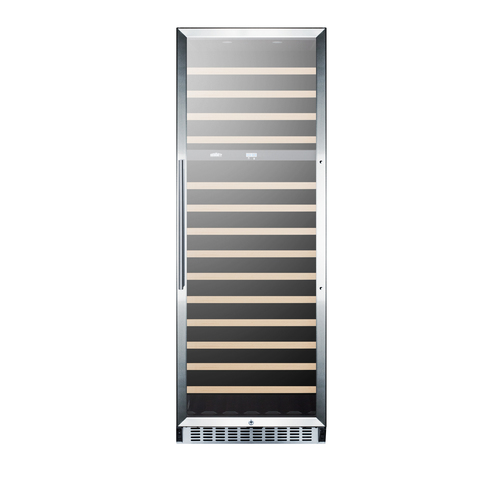

SUMMIT SWC1966 is a full-sized dual zone wine cellar designed for optimum wine storage with user-friendly convenience.

Sized at just under 24" wide and 27" deep, the SWC1966 can store up to 160 standard 750ml Bordeaux bottles on slide-out wooden shelves. Alternatively, this unit can hold up to 118 larger Burgundy style bottles (often used for Chardonnay or Pinot Noir) or a combination of 22 champagne bottles and 132 Bordeaux style. Two digital thermostats let you manage the temperature zones with ease and include an LED temperature display that can be shown in Celsius or Fahrenheit. The larger lower compartment is best suited for red wines stored between 55º and 72ºF, while the upper zone is designed for white wine and champange stored between 41º and 55ºF. Recessed LED lighting offers an attractive touch. Additional features include a Sabbath mode setting, open door alarm, temperature memory function in case of power loss, and high temperature alarm for added protection.

The SWC1966 has a jet black cabinet and reversible stainless steel trimmed glass door that offers a full display of the interior. A sleek stainless steel handle completes the look, and a factory installed lock offers added security. This unit can be used freestanding or built-in with extra rear clearance. See the user manual for more information.

With its ideal size and handy features, the SWC1966 is an elegant yet affordable wine cellar for full storage needs.

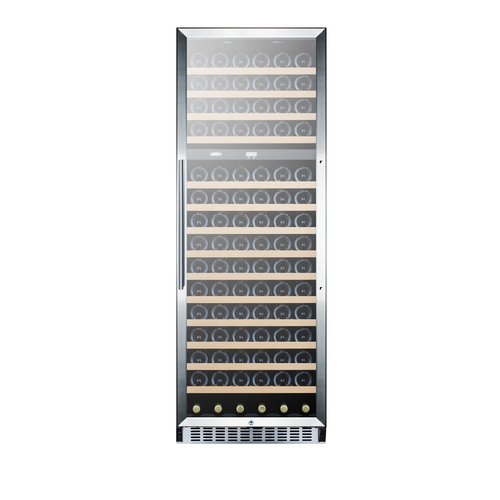

Large capacity
Interior can hold up to 160 standard 750ml Bordeaux style bottles. If using this wine cellar for wider Burgundy style bottles, you can hold up to 118. For champagne, the interior can hold 22 bottles (plus an additional 132 of the standard Bordeaux style)

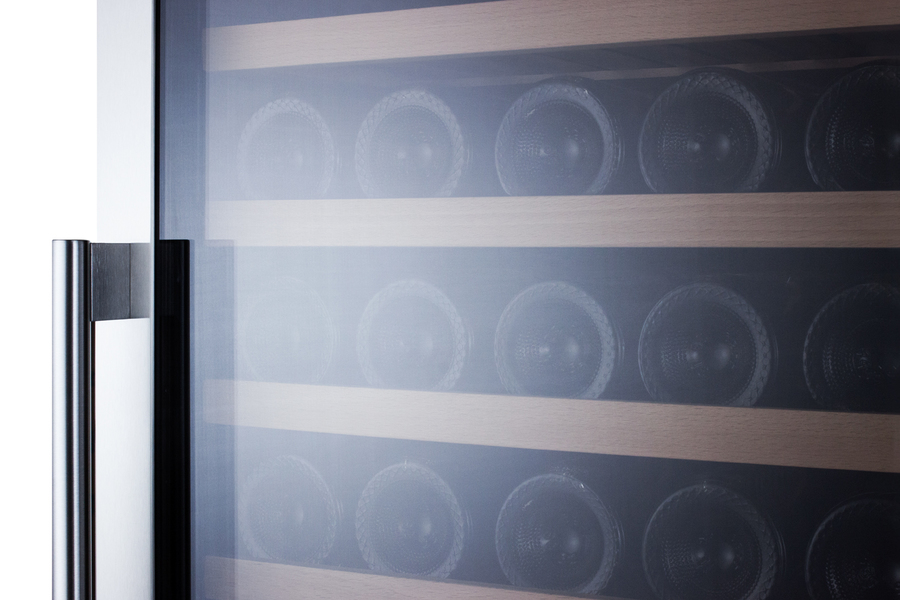

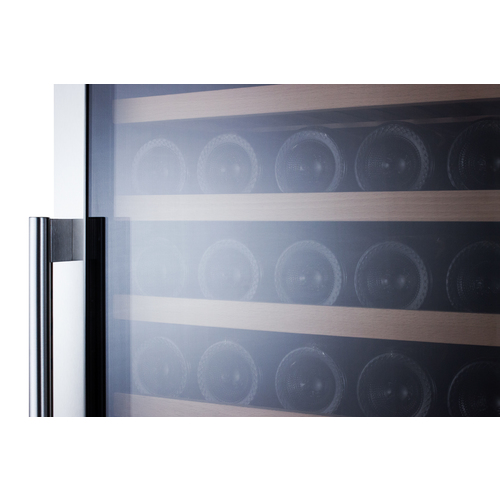

Double pane tempered glass door
Slightly tinted glass provides full view of interior, with a stainless steel trim for added accent
Two temperature zones
Lower zone is ideal for storing red wine (temperature range: 55ºF to 72ºF) while the upper zone accommodates white and sparkling wine stored between 41ºF and 55ºF
Digital thermostats
Set and adjust two temperature zones separately with easy-to-use digital controls with an LED display in Celsius or Fahrenheit
LED lighting
Recessed lighting offers an elegant, efficient view of your collection

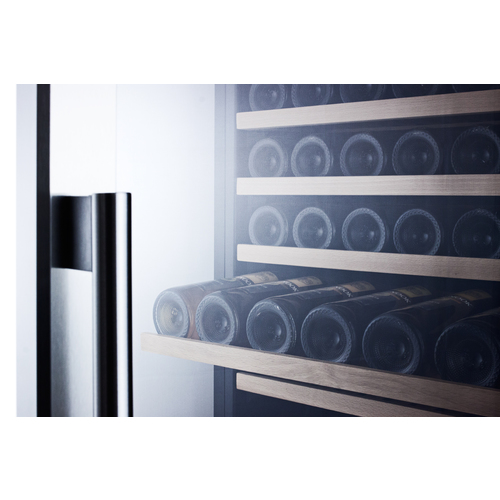

Slide-out wooden shelves
14 wooden shelves offer proper storage
Factory installed lock
Keyed lock for trusted security
Reversible door
User-reversible door swing allows for more flexibility in placing the unit
Fully finished black cabinet
Allows the unit to be used freestanding
Professional handle
Stainless steel handle completes the professional look
Automatic defrost
Reduced user maintenance with auto defrost operation
Modified built-in use
Unit can be installed in built-in applications with at least 2" of clearance in the rear to ensure adequate ventilation
High temperature alarm
Audible alarm sounds if the storage temperature rises out of recommended range
Open door alarm
Alarm sounds if the door is left open for more than 60 seconds
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss
Sabbath Mode
Optional setting lets you disable the lighting and alarm for up to 96 hours
Stainless steel kickplate
Sleek look with added protection
100% CFC free
Environmentally safe operation with no ozone-damaging chemicals
