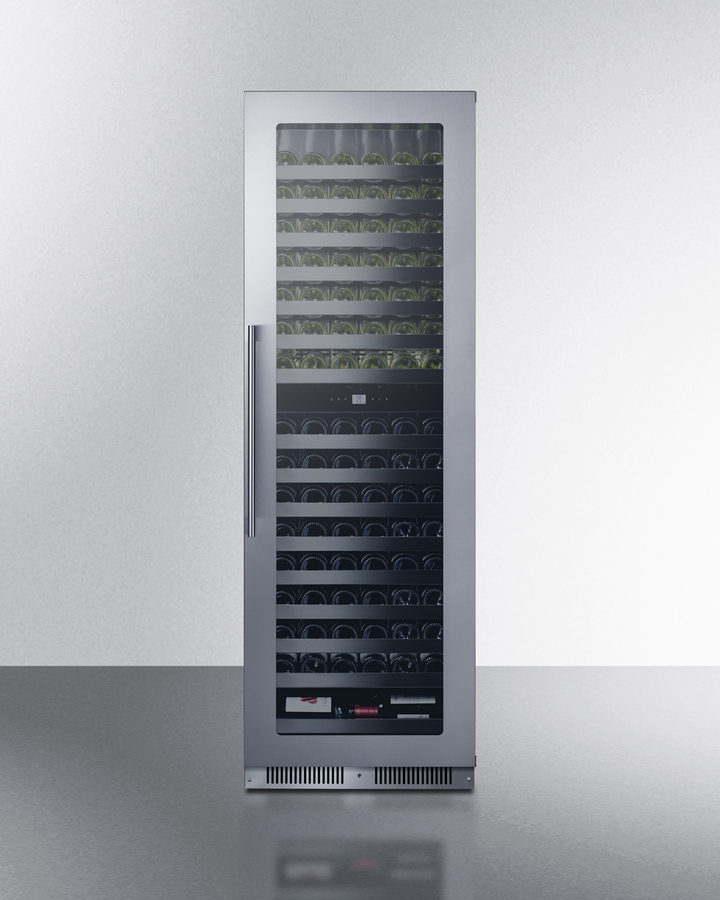

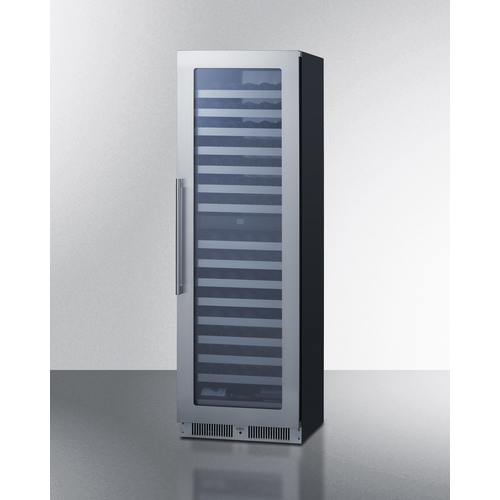

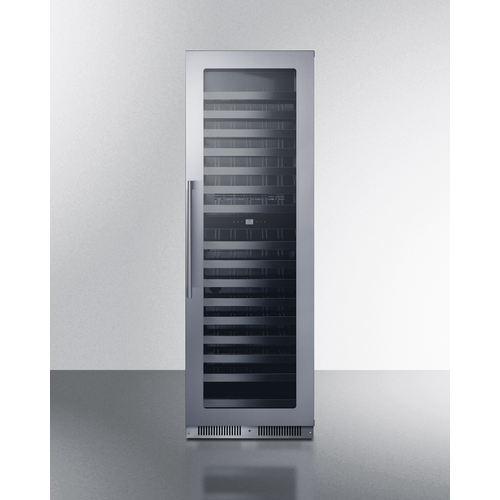

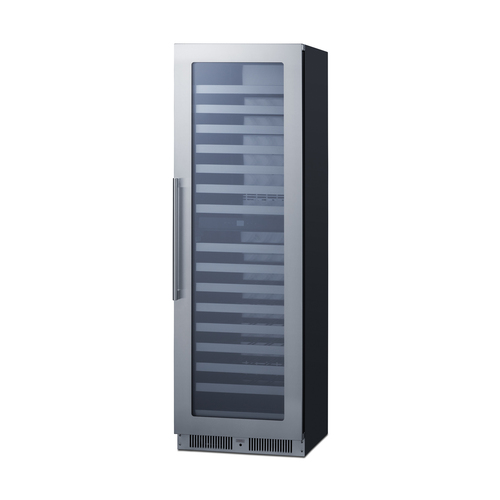

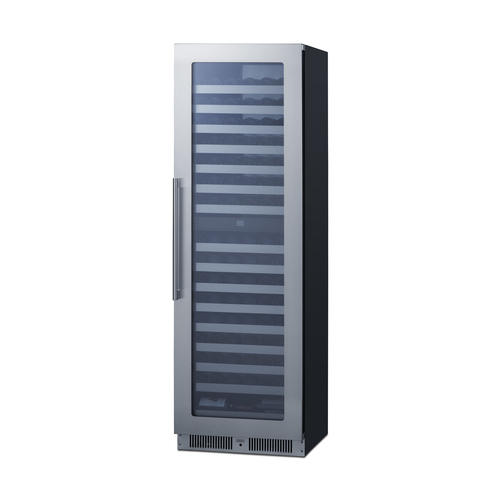

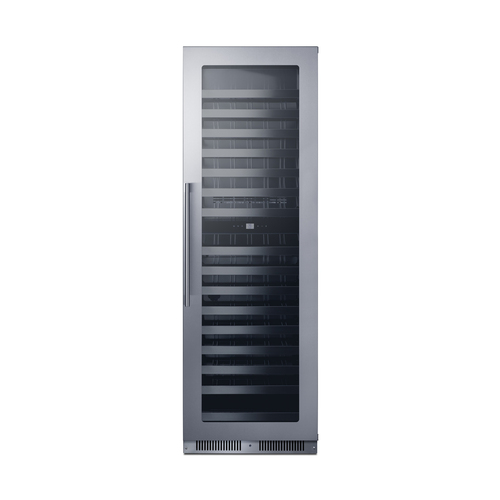

24" Wide Dual Zone Wine Cellar

SKU: SDHWC98
Shallow 18" depth lets you make the most out of limited space with full capacity wine storage and an elegant presentation
Estimated Time to Ship:

Next day shipping

Door Swing:
RHD LHD
Door Trim:

*Additional features may vary

Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

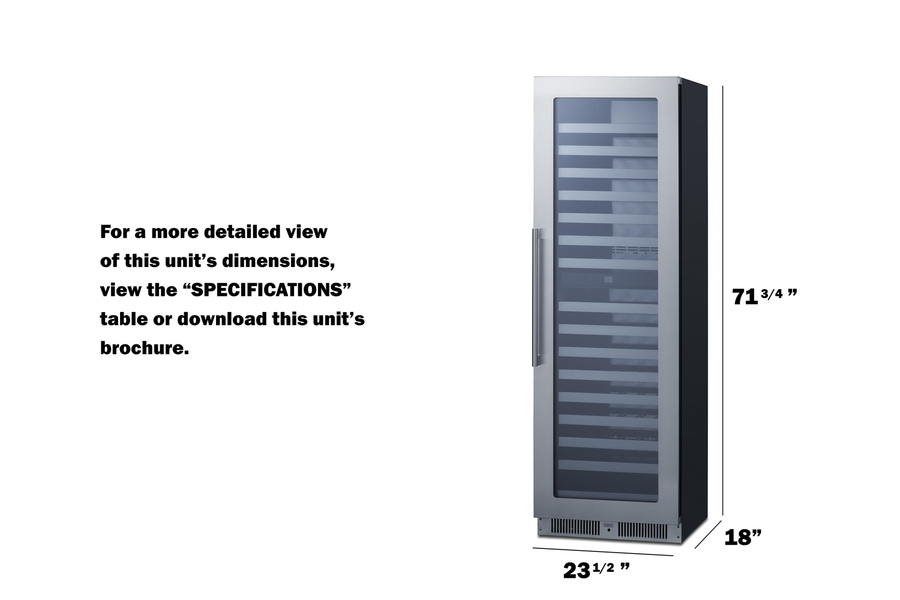

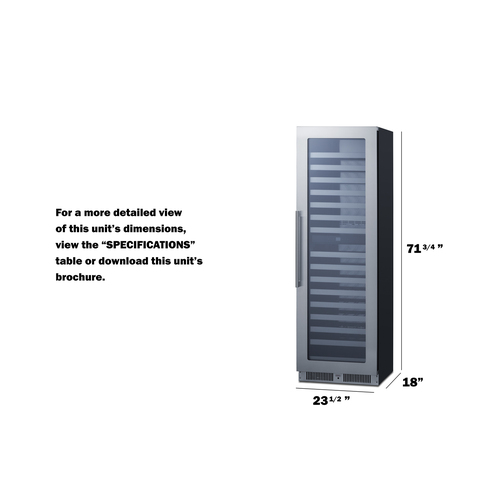

71.75" H x 23.5" W x 18.0" D
(182cm H x 60cm W x 46cm D)

Overview
Height of Cabinet 71.75" (182 cm)
Width 23.5" (60 cm)
Depth 18.0" (46 cm)
Depth with Handle 19.75" (50 cm)
Depth with door at 90° 41.25" (105 cm)
Bottles 98 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 5.0
Voltage/Frequency 115 V AC/60 Hz
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101150536
Wine Cellar
Number of Zones 2
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Shelf Type Wire
Shelf Qty 16
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.41 oz.
Interior Height 1 27.5" (70 cm)
Interior Width 1 19.5" (50 cm)
Interior Depth 1 12.25" (31 cm)
Compressor Step Height 4.5" (11 cm)
Compressor Step Width 19.5" (50 cm)
Compressor Step Depth 5.5" (14 cm)
Temperature Range Upper zone: 41º to 50ºF; Lower zone: 50º to 64ºF
Interior Height 2 34.0" (86 cm)
Interior Width 2 19.5" (50 cm)
Interior Depth 2 12.25" (31 cm)
Sabbath Mode Yes
Sound Level 32.2 dB

Door
T1SF Door Tint
Reflective door tint in dark smoke finish for maximum energy savings on full-size and two-door models
T2F Door Tint
Tinted door in reflective deep blue finish with high energy savings
T4F Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T3F Door Tint
Reflective door tint in light blue finish for medium energy savings
Exterior
LHD - Left hand door swing
Door reversal to left hand swing

24" Wide Premium Wine Cellar

Built-in dual zone 98-bottle wine cooler for residential or commercial storage in shallow cutouts

Shallow depth

18" depth offers slim-fitting elegance, perfect for narrow home bars and kitchen corners, converted spaces, or other spots where you can't fit a full-depth unit

Built-in design

Front-breathing cooling system to allow seamless integration inside cabinetry (recommended opening: 72" H x 24" W x 20" D)

Dual zone storage

Upper zone operates between 41 and 50ºF for chilled white and sparkling wine storage, while the lower zone can be set between 50 and 64ºF to best preserve red wine

Commercially approved

ETL-S listed to NSF-7 Standards for use in commercial establishments

Unbranded exterior

Allows for seamless integration with other appliances

Seamless 304 grade stainless steel door trim

Single-piece stainless steel door trim offers a more deluxe look

Gently tinted glass door

Attractive glass door provides a complete but protected display of stored contents

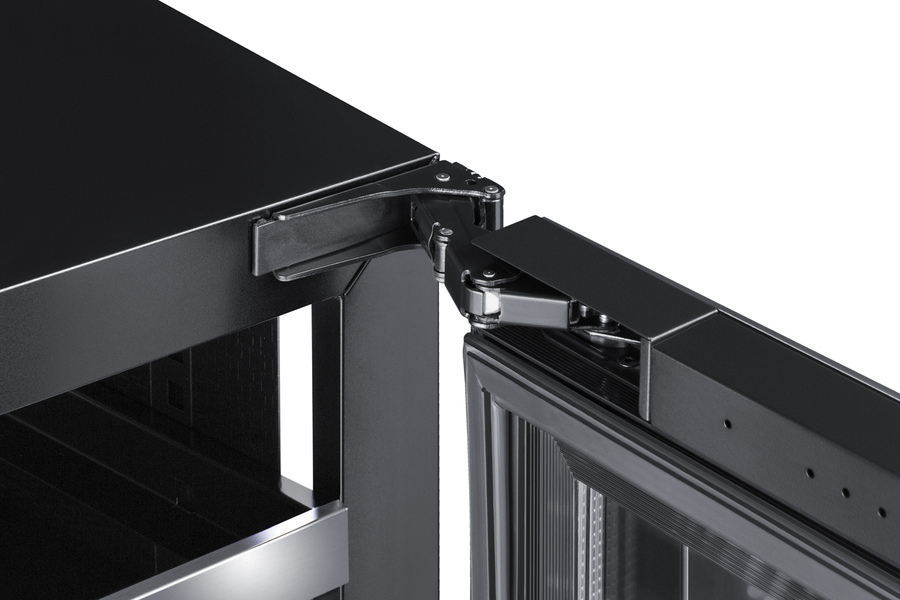

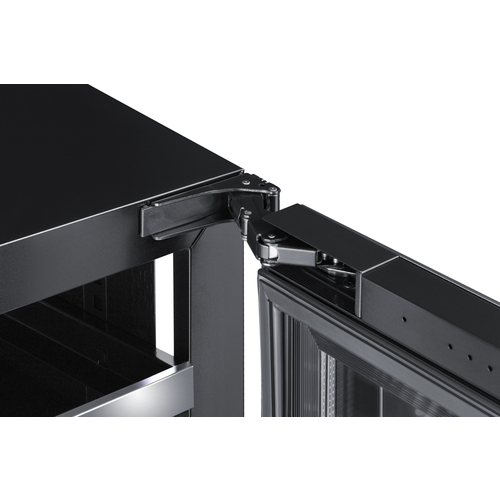

Fully articulating style hinge

European style hinge design ensures a flush fit and allows for a smoother opening

Professional handle

Stainless steel look for added elegance

Automatic defrost

No-frost operation for minimum user maintenance

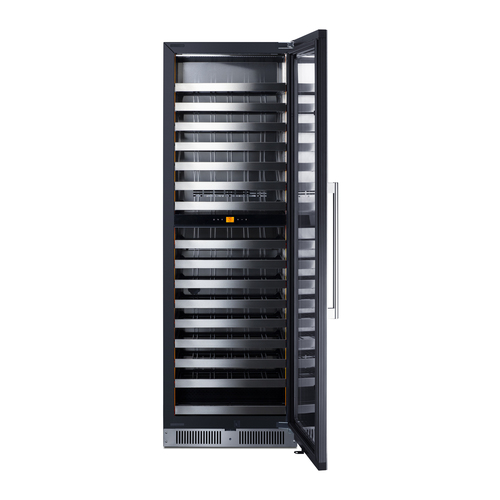

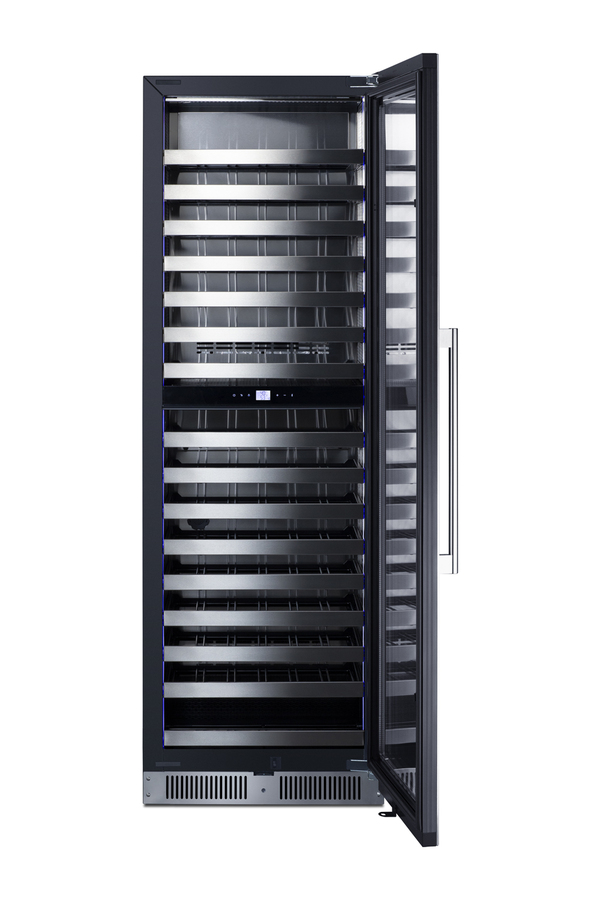

Deluxe wine shelving

Removable commercial grade wire shelving in black with stainless steel from trim for an elegant, modern look

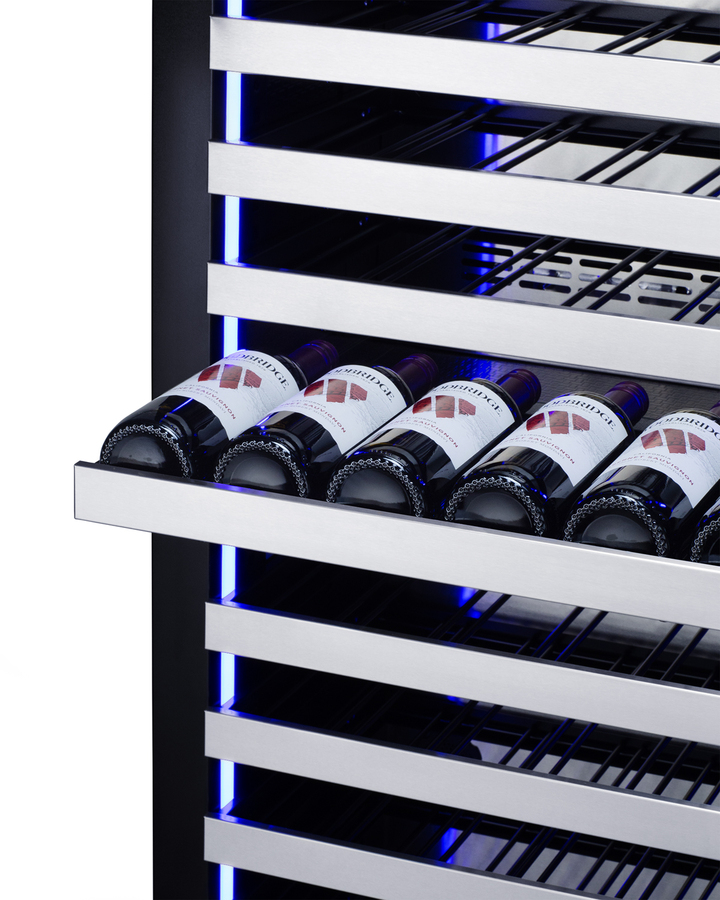

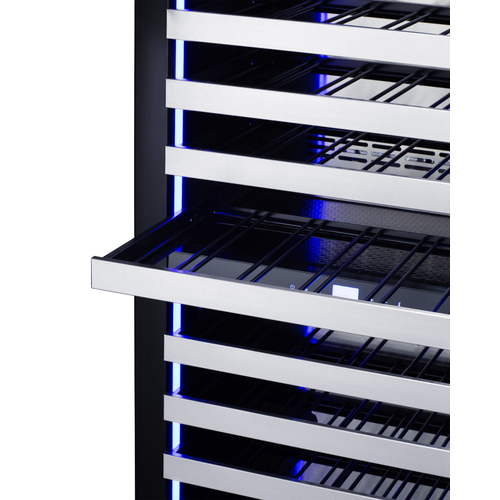

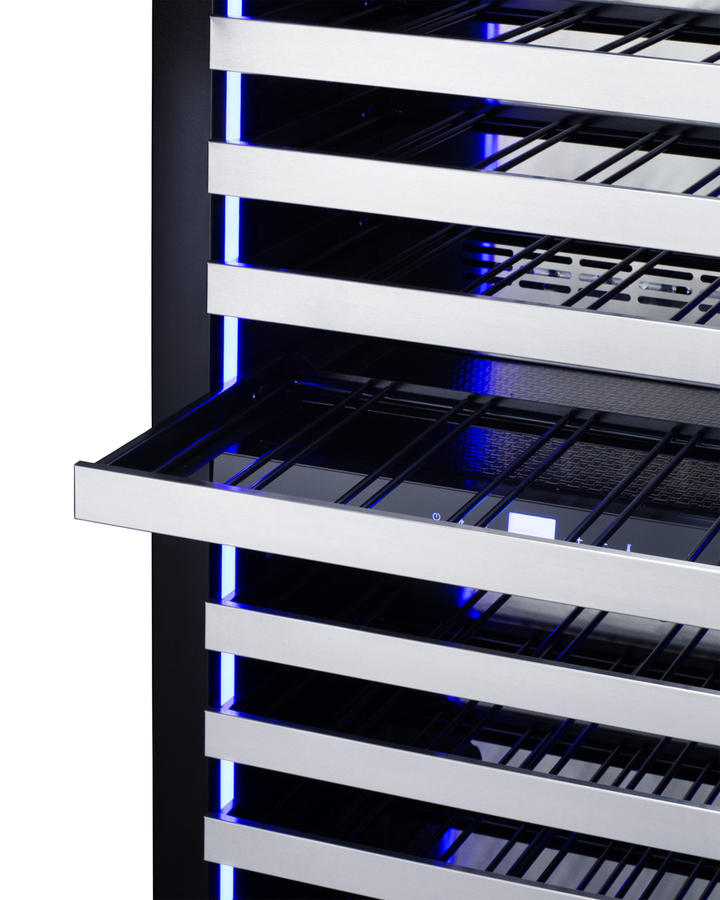

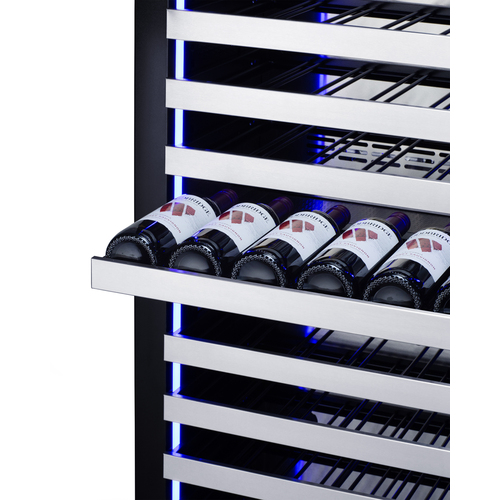

Full-extension shelving

16 shelves on ball-bearing glides glide out smoothly for easier loading and optimum capacity

Vibration-free

Inverter compressor ensures minimal vibration to uphold and protect the integrity of each bottle

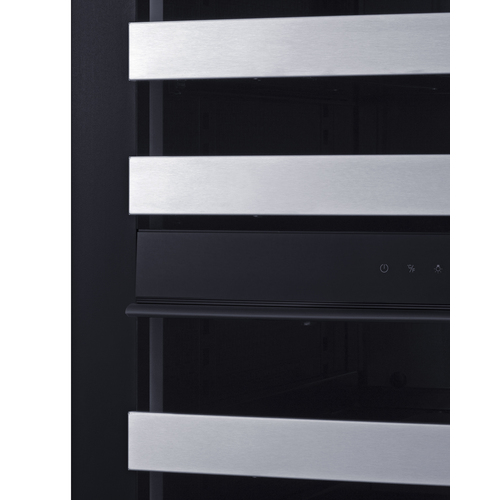

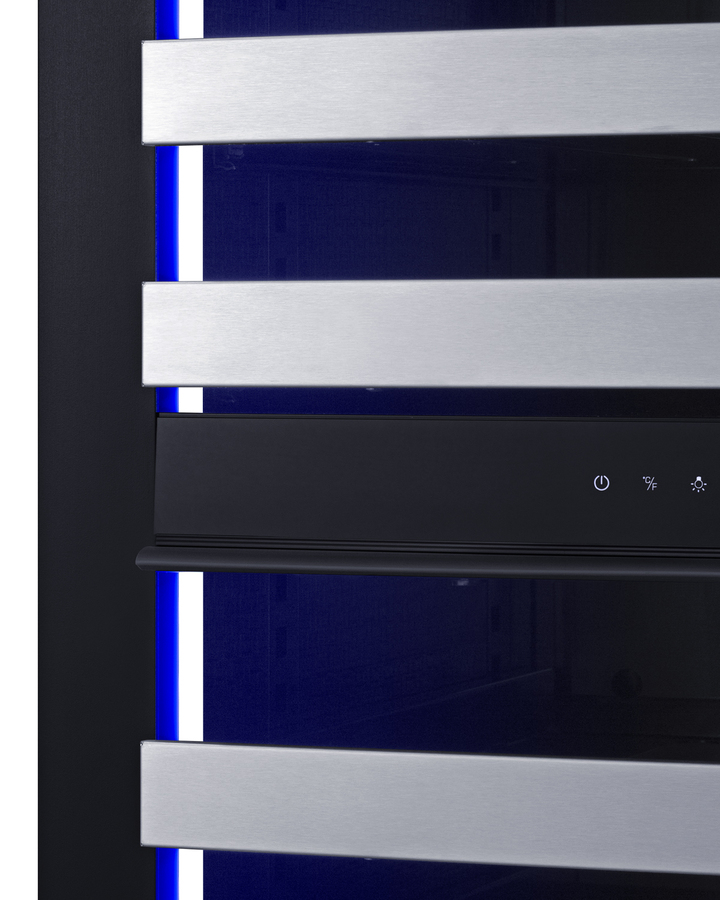

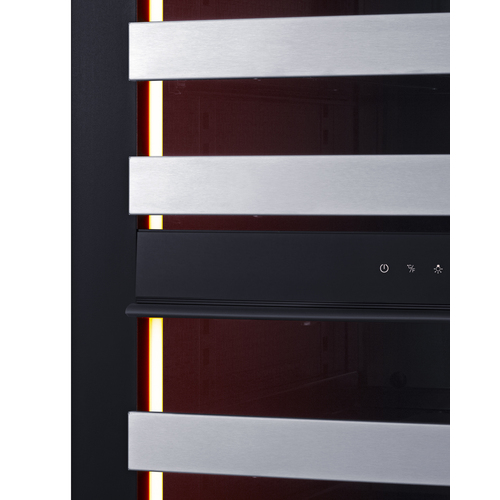

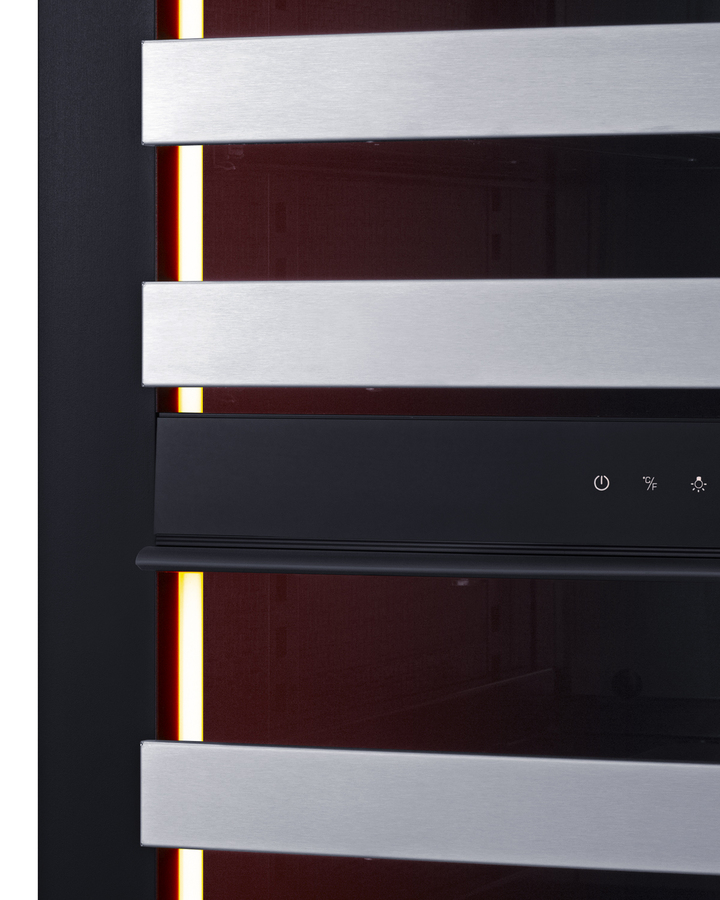

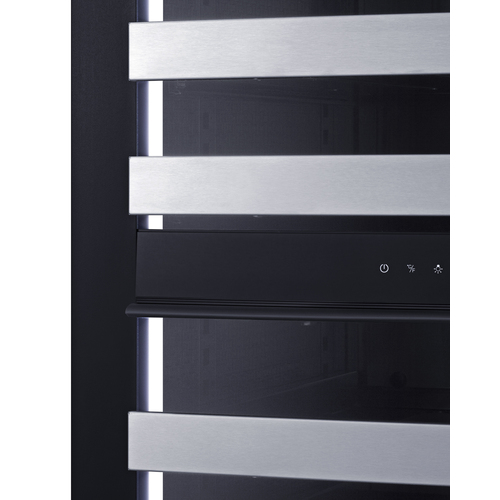

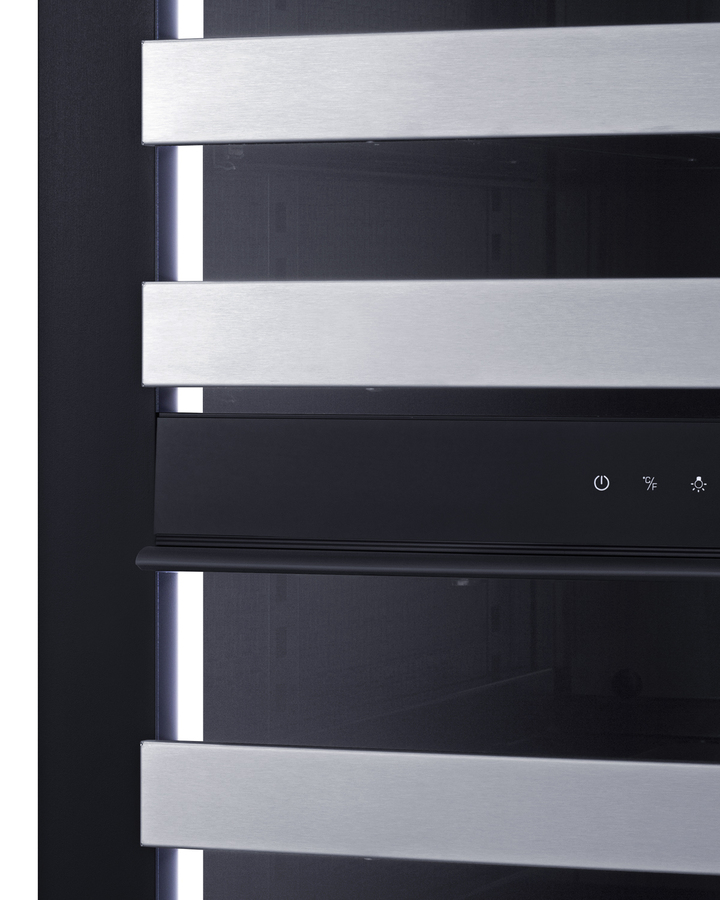

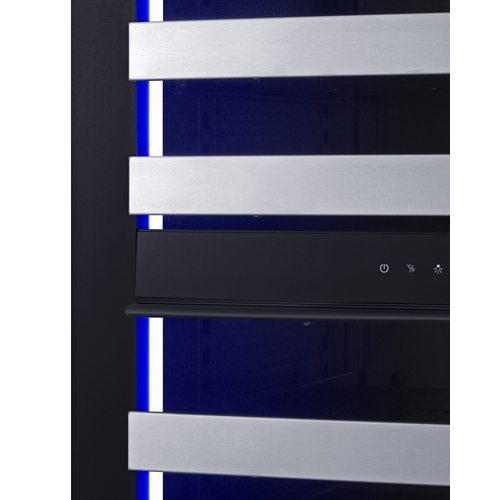

Tri-colored LED lighting

Rotate your presentation style with a choice of blue, white, or amber LED lighting

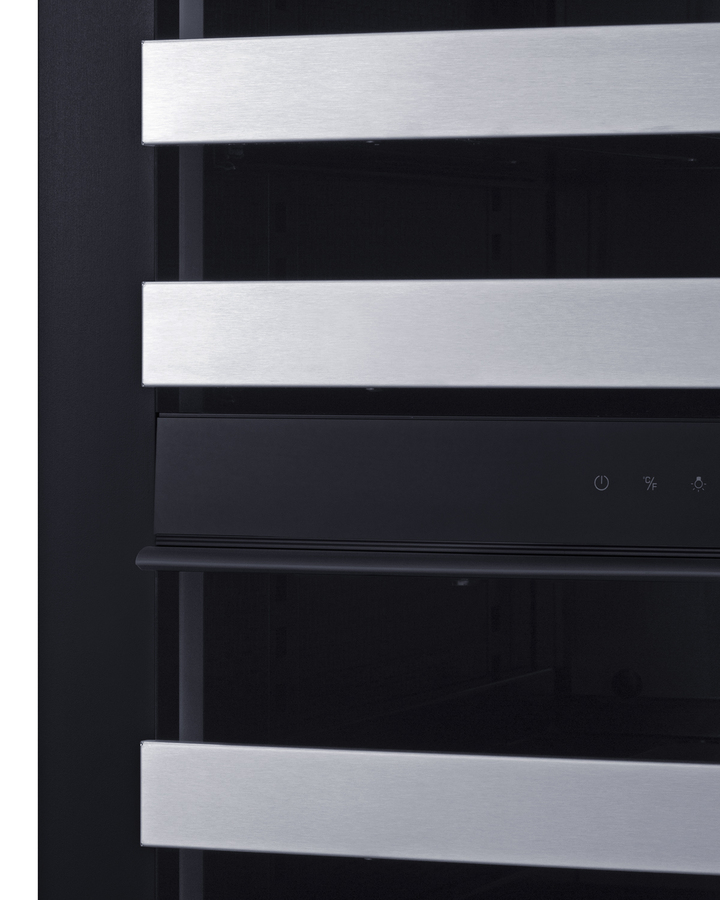

Digital thermostat

Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature

Digital temperature display

Temperature readout can be shown in Celsius or Fahrenheit

Sabbath mode setting

Optional setting lets you disable the lighting and alarm for up to 96 hours

Stainless steel interior rear wall

Stainless steel rear wall protects the unit's integrity and is easier to clean

Factory-installed lock

Keyed lock located in the kickplate for added security as needed

Sealed back

Space-saving design with no exposed coils that offers easier cleanability

Stainless steel kickplate

Complete luxury down to the toe kick

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Quiet operation

Inverter compressor ensures a whisper quiet operation, measured in our testing facilities at just 32.2 dB

Anti-tip bracket

Bracket included and must be installed to prevent tipping

Reversible door

User-reversible door swing for added flexibility to best accommodate your setting

100% CFC free

Environmentally friendly design with no ozone-damaging chemicals

CARB compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit's collection of premium wine cellars brings full functionality, convenience, and elevated style to kitchens and home bars with unique space limitations.

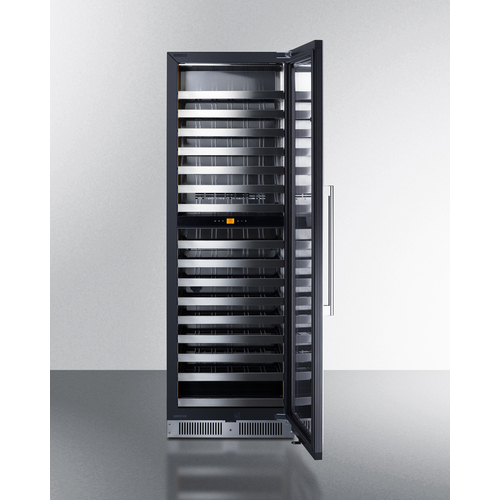

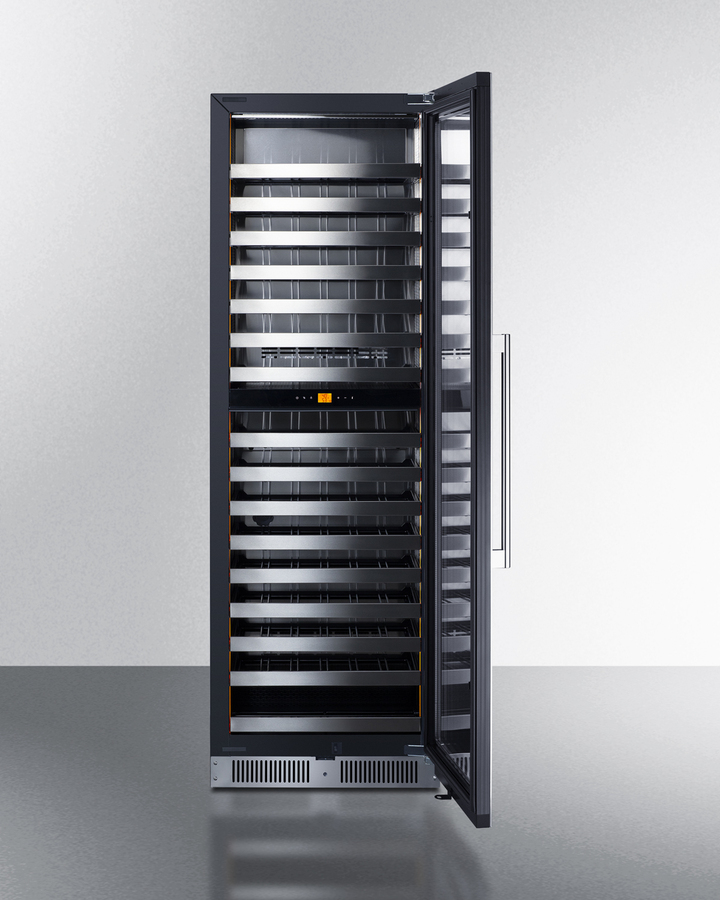

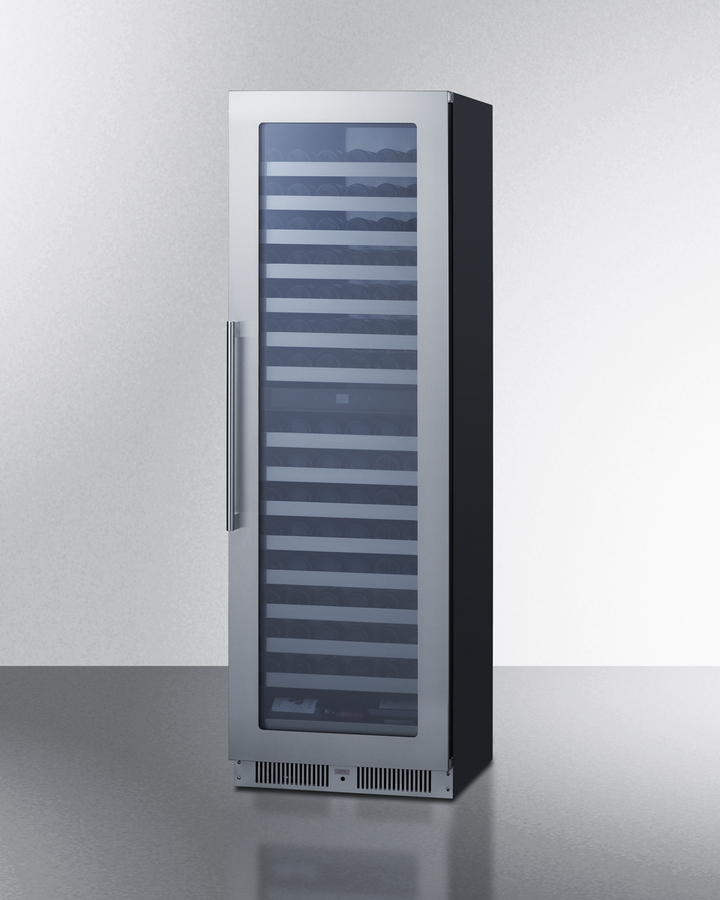

The SDHWC98 is a 24" wide dual zone wine cellar that features a front-breathing design for built-in installation. Sized at just 18" deep, this wine cellar offers slim-fitting elegance, perfect for narrow home bars and kitchen corners, converted spaces, restaurants with limited real estate, or other spots where you can't fit a full-depth unit. Seamless stainless steel trim blends smoothly into the reversible, gently tinted glass door for an elevated look, with a professional stainless steel handle included. This unit has a sealed rear and right-angle cord for a better fit. The fully articulating European-style hinge design ensures smoother opening. A lock is located in the kickplate for added convenience and security.

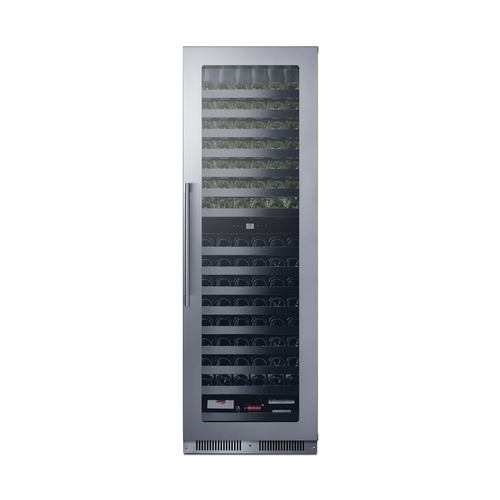

Inside, model SDHWC98 includes a stainless steel rear wall for improved durability and sanitation. Tri-colored LED lighting featuring amber, blue, and white options offers elegant display conditions with dimmable levels that let you create the perfect presentation. The easy-to-use digital control panel allows you to manage the upper temperature chamber between 41 and 50ºF for white or sparkling wine, while the lower zone is designed to store red wine between 50 and 64ºF. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. This unit features commercial grade shelving in a black wire finish with stainless steel front trim. The shelves are full-extension and set on ball-bearing glides for smooth loading.  Optimal storage capacity accommodates up to 98 standard 750ml Bordeaux or Burgundy style bottles (note: your capacity may vary depending on the bottle style).

Model SDHWC98 has two different running modes: Silent mode, which minimizes vibrations to lower noise emissions and creates a more stable storage environment, ideal for preserving your wine's quality. The second, DynaClima mode, optimizes both temperature and humidity distribution for long-term wine storage, mimicking the conditions of a traditional wine storage cabinet.

Additional features include a temperature memory function to restore set temperature in the case of power loss and Sabbath mode, which disables certain functions during periods of religious observance. A built-in alarm audibly warns if the door is left ajar or if the unit rises or falls out of the recommended temperature range.

This model is commercially approved to NSF-7 standards for use in restaurants, bars, and other foodservice establishments. With its uniquely shallow depth, elegant design, and premium features, the SDHWC98 brings true luxury to residential and commercial kitchen spaces. For this unit with a panel-ready door trim, see model SDHWC98PNR. Explore Summit's extensive catalog of wine cellars and beverage centers at summitappliance.com

NOTE: Due to its unique size, this unit should not be used freestanding. To prevent tipping, install the anti-tip bracket included in your packaging when setting up the product.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
