24" Wide Wine Cellar

SKU: SWC1102

Holds 102 standard Bordeaux or larger Burgundy bottles

Out of Stock; ETA: 11/30/2020
Tints
Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.

58.5" H x 23.63" W x 22.63" D

(149cm H x 60cm W x 57cm D)

SPECIFICATIONS

Overview
Height of Cabinet 58.5" (149 cm)
Width 23.63" (60 cm)
Depth 22.63" (57 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 44.88" (114 cm)
Bottles 102 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.7
Voltage/Frequency 115 V AC/60 Hz
Weight 150.0 lbs. (68 kg)
Shipping Weight 157.0 lbs. (71 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Shelf Type Wood
Shelf Qty 12
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.66 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 48.75" (124 cm)
Interior Width 1 20.0" (51 cm)
Interior Depth 1 17.5" (44 cm)
Compressor Step Height 4.0" (10 cm)
Compressor Step Width 20.0" (51 cm)
Compressor Step Depth 5.25" (13 cm)
Level Legs 2
Temperature Range 41 to 72ºF
Sabbath Mode Yes

AVAILABLE UPGRADES

Exterior
LHD - Left hand door swing
Door reversal to left hand swing
Extra key
Extra keys available for purchase
Door
T1SF Door Tint
Reflective door tint in dark smoke finish for maximum energy savings on full-size and two-door models
T2F Door Tint
Tinted door in reflective deep blue finish with high energy savings
T3F Door Tint
Reflective door tint in light blue finish for medium energy savings
T4F Door Tint
Neutral door tint in light smoke finish for moderate energy savings
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

FEATURES

Double pane tempered glass door
Tinted glass provides full view of interior, with a stainless steel trim for added accent
Commercial design
Meets UL-471 commercial standards
Digital thermostat
Intuitive electronic controls make it easy to manage the internal temperature of your collection
Slide-out wooden shelves
12 wooden wine shelves can hold up to 102 bottles
Versatile shelving
Interior can store both standard Bordeaux bottles and wider Burgundy type for Pinot Noir and Chardonnay; see your Shelving Guide for details
LED lighting
Recessed lighting offers an elegant view of your collection
Professional handle
Sleek handle in stainless steel completes the elegant look
Automatic defrost
Reduced user maintenance with auto defrost operation
Factory installed lock
Keyed lock for trusted security
Reversible door
User-reversible door swing allows for more flexibility in placing the unit
Stainless steel kickplate
Matches the handle for an attractive finish
Sealed back
Space saving design with easier cleanability
Fully finished black cabinet
Allows the unit to be used freestanding
Built-in capable
Front-breathing design allows built-in installation
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 96 hours
100% CFC free
Environmentally safe operation with no ozone-damaging chemicals

DESCRIPTION

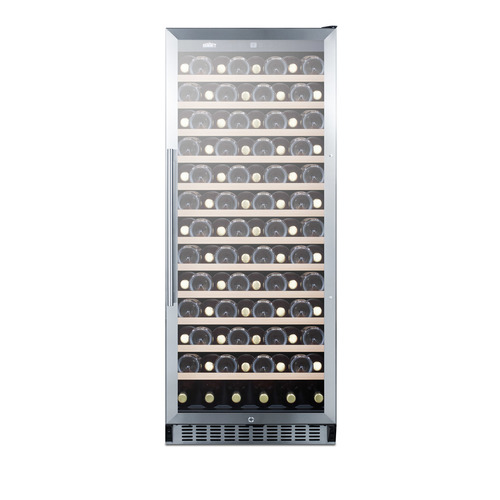

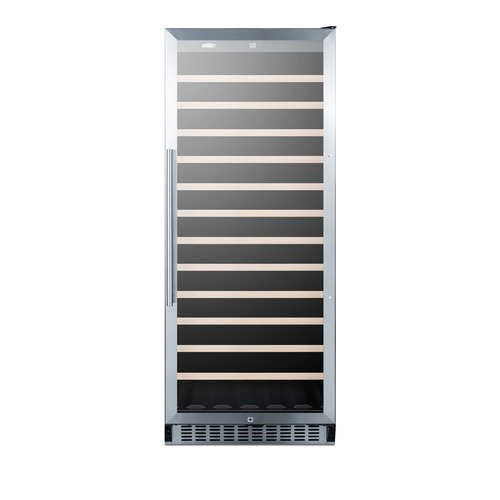

SUMMIT SWC1102 is a mid-sized wine cellar with a deluxe design for optimum storage.

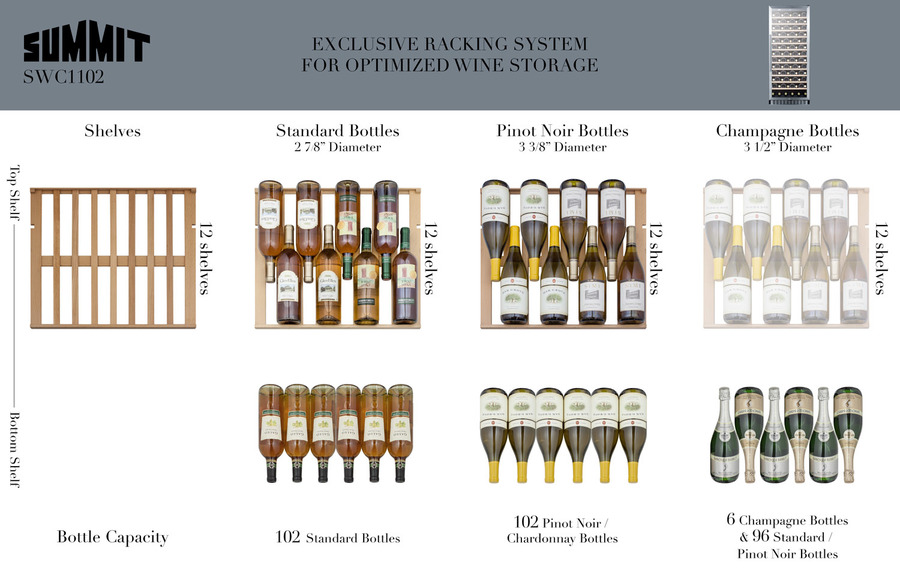

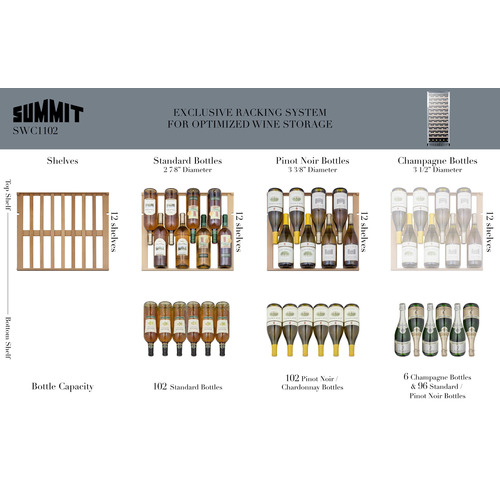

The SWC1102 features twelve slide-out wooden shelves that can store up to 102 of the standard 750ml Bordeaux bottles or larger diameter Pinot Noir/Chardonnay style bottles (for details, see our Racking System Guide in this product's image gallery). The single-zone interior features recessed LED lighting for an attractive presentation. A digital thermostat ensures easy and precise temperature management.

With a front-breathing design and fully finished cabinet, the SWC1102 can be used either built-in or freestanding. It features a jet black cabinet and stainless steel trimmed reversible glass door. A sleek handle and stainless steel kickplate complete the professional look. This unit includes a factory installed lock for added security for your collection.

SPECIFICATIONS

Overview
Height of Cabinet 58.5" (149 cm)
Width 23.63" (60 cm)
Depth 22.63" (57 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 44.88" (114 cm)
Bottles 102 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.7
Voltage/Frequency 115 V AC/60 Hz
Weight 150.0 lbs. (68 kg)
Shipping Weight 157.0 lbs. (71 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Shelf Type Wood
Shelf Qty 12
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.66 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 48.75" (124 cm)
Interior Width 1 20.0" (51 cm)
Interior Depth 1 17.5" (44 cm)
Compressor Step Height 4.0" (10 cm)
Compressor Step Width 20.0" (51 cm)
Compressor Step Depth 5.25" (13 cm)
Level Legs 2
Temperature Range 41 to 72ºF
Sabbath Mode Yes

AVAILABLE UPGRADES

Exterior
LHD - Left hand door swing
Door reversal to left hand swing
Extra key
Extra keys available for purchase
Door
T1SF Door Tint
Reflective door tint in dark smoke finish for maximum energy savings on full-size and two-door models
T2F Door Tint
Tinted door in reflective deep blue finish with high energy savings
T3F Door Tint
Reflective door tint in light blue finish for medium energy savings
T4F Door Tint
Neutral door tint in light smoke finish for moderate energy savings

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
SWC1102.pdf
Download
TECHNICAL DRAWING (.dwg)
SWC1102WINECELLARA-C2000.dwg
Download
MSDS INFORMATION
R600a_K.pdf
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
