24" Wide Wine/Beverage Center

SKU: SWBV24SS
French door swing brings a modern look under the counter
DISCONTINUED
34.5" H x 23.88" W x 23.88" D
(88cm H x 61cm W x 61cm D)

Overview
Height of Cabinet 34.5" (88 cm)
Width 23.88" (61 cm)
Depth 23.88" (61 cm)
Depth with Handle 25.5" (65 cm)
Depth with door at 90° 34.5" (88 cm)
Capacity 5.1 cu.ft. (144 L)
Bottles 21 bottles
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 101.0 lbs. (46 kg)
Shipping Weight 106.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101050850
Wine Cellar
Number of Zones 2
Door Swing French
Adjustable Shelves Yes
Shelf Type Glass and Wire
Shelf Qty 9
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.41 oz.
High Side PSI 277.0
Low Side PSI 103.0
Interior Height 1 26.0" (66 cm)
Interior Width 1 9.38" (24 cm)
Interior Depth 1 18.0" (46 cm)
Compressor Step Height 4.38" (11 cm)
Compressor Step Width 9.38" (24 cm)
Compressor Step Depth 5.5" (14 cm)
Level Legs 2
Wheels 4
Temperature Range 41 to 64ºF
Interior Height 2 26.0" (66 cm)
Interior Width 2 9.38" (24 cm)
Interior Depth 2 18.0" (46 cm)

Stainless steel exterior

Complete stainless steel construction ensures lasting durability and style

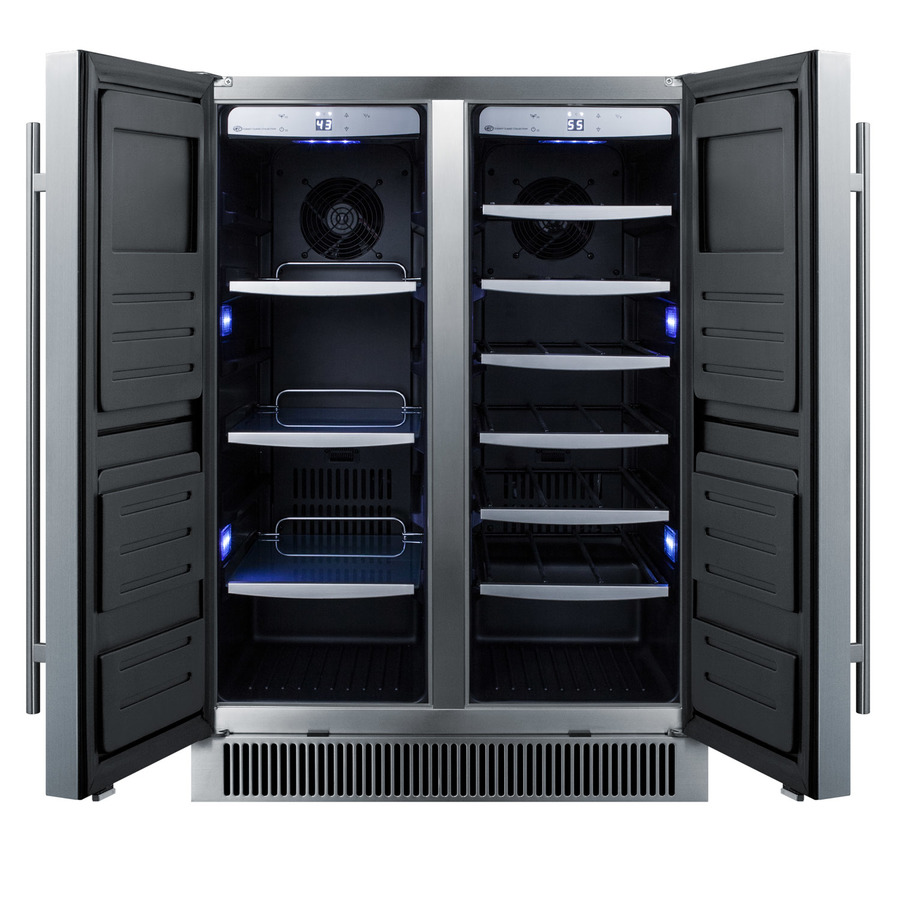

Two temperature zones

Independent temperature zones allow separate storage of wine and craft beer under the proper temperature conditions

Built-in capable

Make the best use of space by installing your unit under the counter and flush with other cabinets

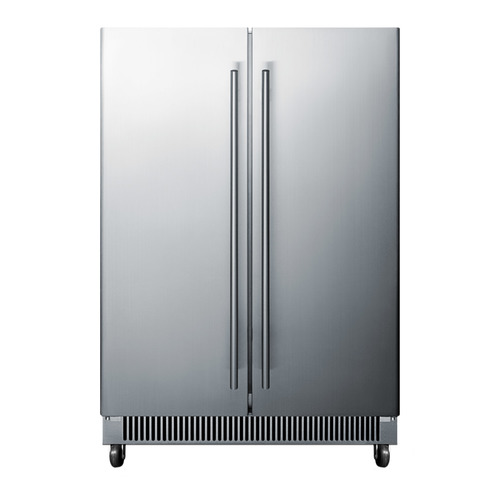

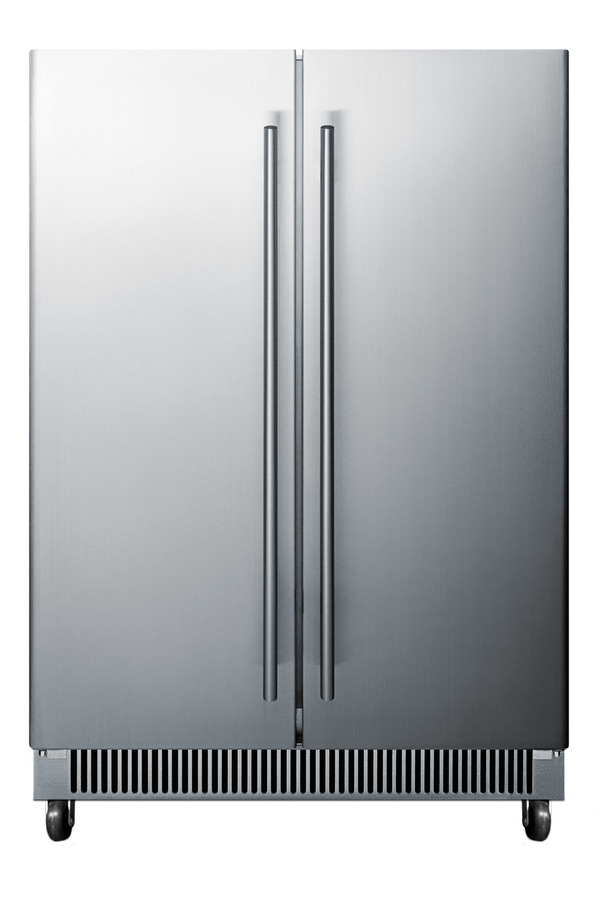

French door swing

Two side-by-side doors with French door opening

Automatic defrost

Reduced maintenance with auto defrost system

Adjustable glass shelves

Frosted glass shelves with silver trim can accommodate up to 60 12 oz. cans of your favorite craft beer

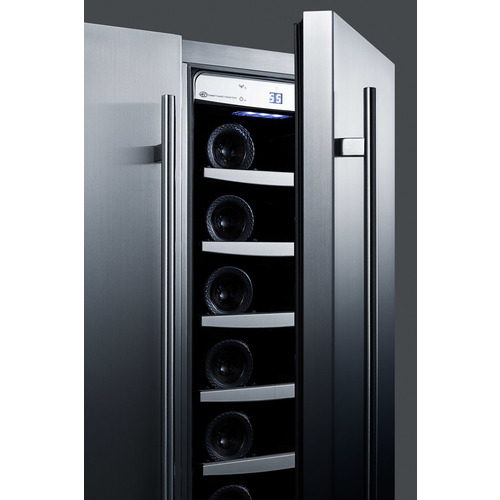

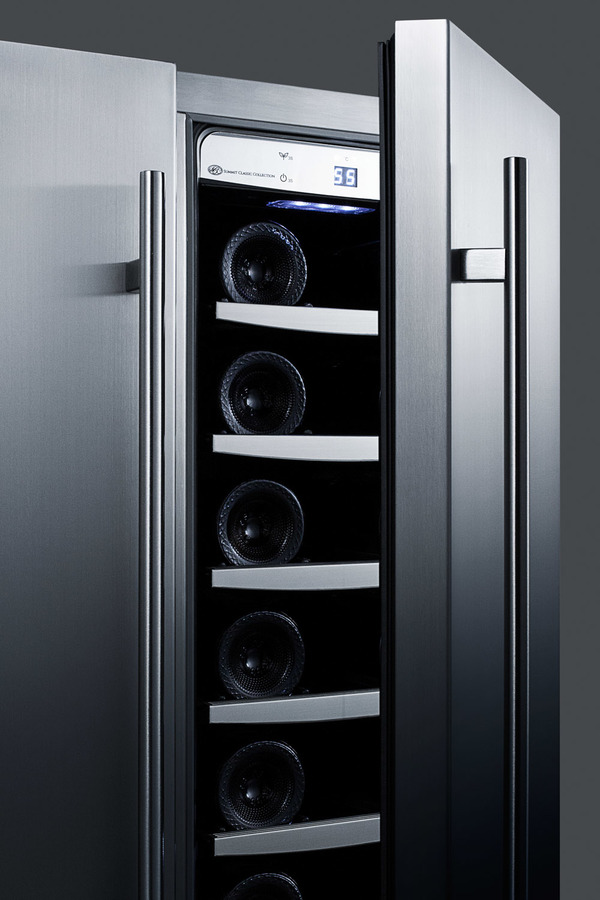

Slide-out wine shelves

6 wine shelves are ideally sized to store up to 21 standard 750 ml bottles, with a silver trimmed accent for an added touch of style

Digital thermostat

Intuitive touch controls located inside the unit make temperature adjustment simple, with a temperature display in Celsius or Fahrenheit

LED lighting

Recessed LED lighting offers an elegant and efficient view of the interior

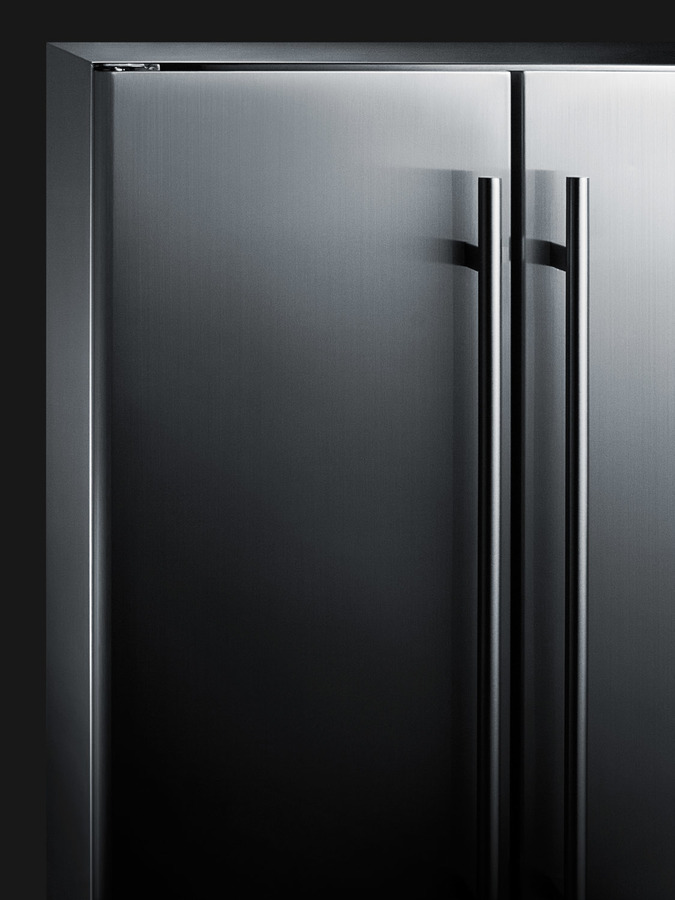

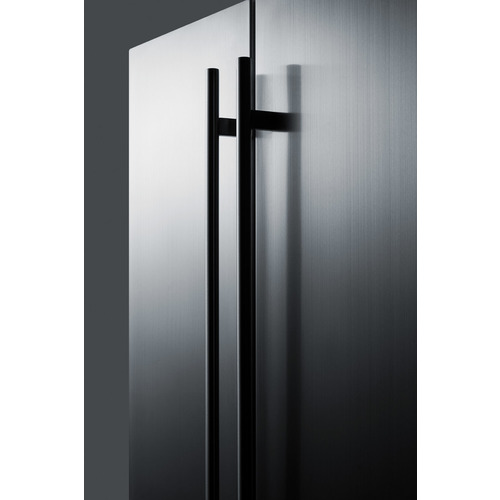

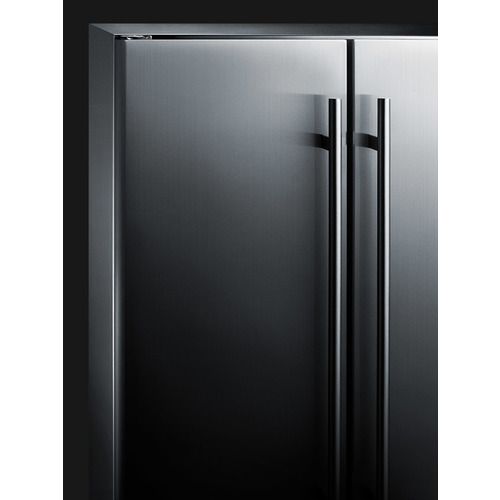

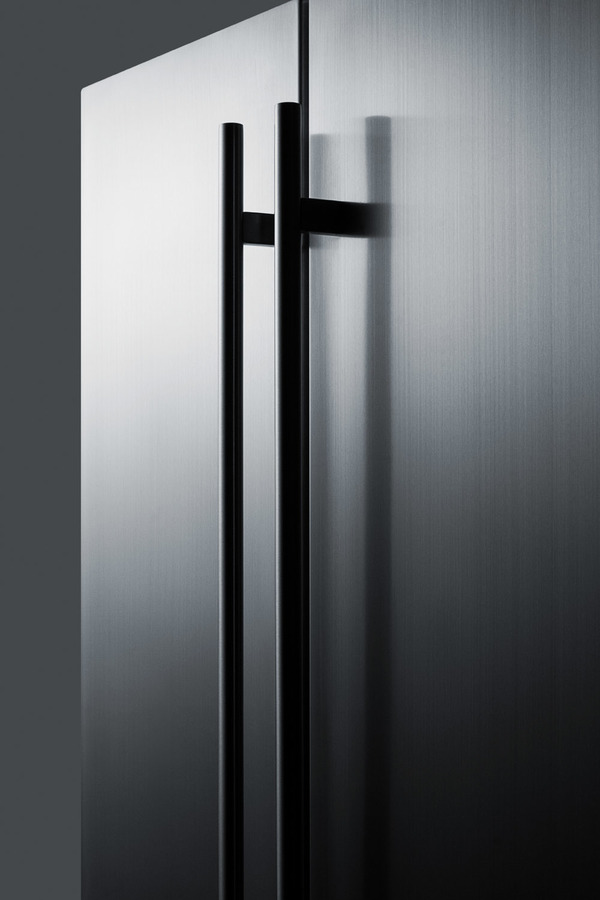

Professional handles

Vertically mounted handles in brushed stainless steel, with a sleek 16mm diameter that matches many popular styles of cabinetry

Fan-forced cooling

Internal fan ensures the interior is evenly cooled from top to bottom

Sealed back

Space saving design with easier cleanability

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Summit offers a variety of unique built-in appliances designed to bring true luxury under the counter.

The SWBV24SS is a 24" wide wine and craft beer center with a solid door design. The front-breathing system allows built-in installation, while the fully finished cabinet also allows freestanding use. The exterior features stainless steel construction for lasting durability and elegance, with sleek handles on the French doors for a modern touch. The stainless steel kickplate completes the look.

Two independent zones let you keep your wine and craft beer collection stored at the right temperature, with separate digital thermostats for easy use. The red wine section includes six slide-out shelves that can accommodate up to 21 standard 750ml bottles of wine, while the cooler white wine or craft beer section includes spill-proof frosted glass shelves. The jet black interior is fully illuminated by recessed LED lighting.

Ideally sized and fully featured, the SWBV24SS is a great choice for kitchens looking to bring deluxe style to wine and beer storage.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
