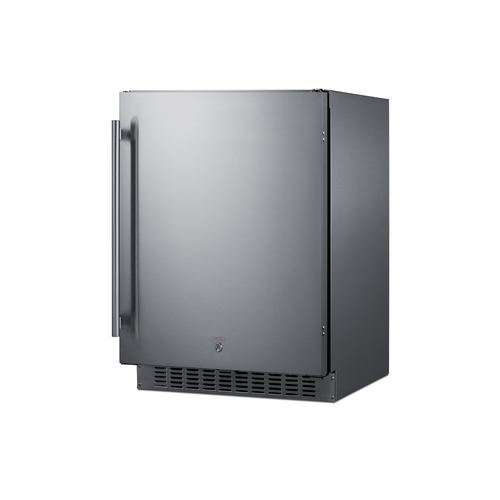

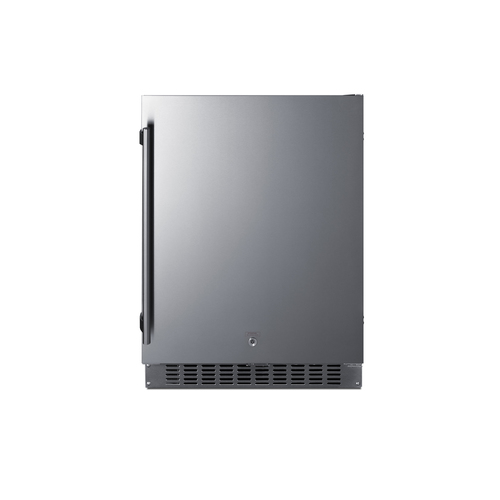

24" Wide Outdoor All-Refrigerator, ADA Compliant

SKU: SPR618OSADA
Weatherproof design and unique under 18" depth for an easy fit in outdoor kitchens with shallower cutouts
Estimated Time to Ship:

Next day shipping

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

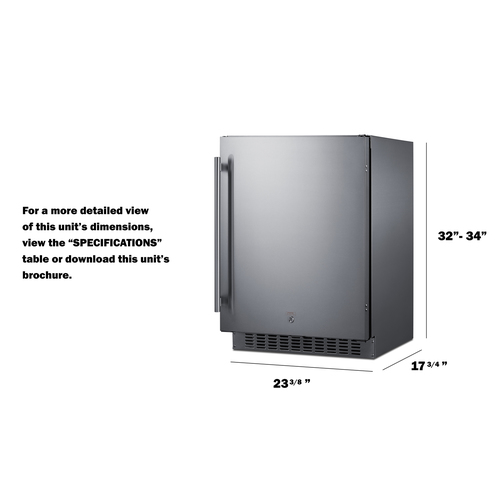

32.0" H x 23.38" W x 17.75" D
(81cm H x 59cm W x 45cm D)

Overview
Height of Cabinet 32.0" (81 cm)
Width 23.38" (59 cm)
Depth 17.75" (45 cm)
Depth with Handle 19.75" (50 cm)
Depth with door at 90° 40.0" (102 cm)
Capacity 3.1 cu.ft. (88 L)
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 215.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 79.0 lbs. (36 kg)
Shipping Weight 125.5 lbs. (57 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101079486
Refrigerator Features
Sabbath Mode Yes
Door Swing RHD
Reversible Yes
Height Adjustable Yes
Shelf Type Chrome
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.38oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 36 to 43ºF
Sound Level 33.1 dB
Dimensions
Interior Height 24.25" (62 cm)
Interior Width 19.5" (50 cm)
Interior Depth 12.25" (31 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 19.5" (50 cm)
Compressor Step Depth 4.25" (11 cm)

Exterior
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing

24" wide all-refrigerator

3.1 cu.ft. interior for residential or commercial cold storage

Less than 18" deep

Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space

Weatherproof design approved for outdoor use

304 grade stainless steel exterior for lasting durability in outdoor kitchens

ADA compliant design

32" height allows easy installation under lower ADA compliant counters

Adjustable height

Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Stainless steel interior

Walls and floor are constructed from stainless steel for added strength and easy cleanup

Stainless steel exterior

Door, cabinet, and kickplate feature stainless steel construction for a luxurious look built to last

Factory installed lock

Keyed lock for a secure interior (2 keys included)

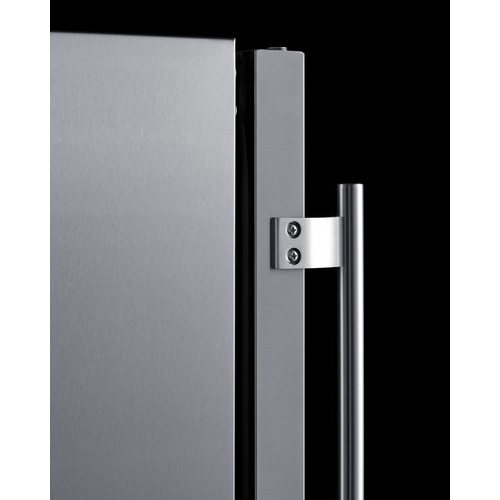

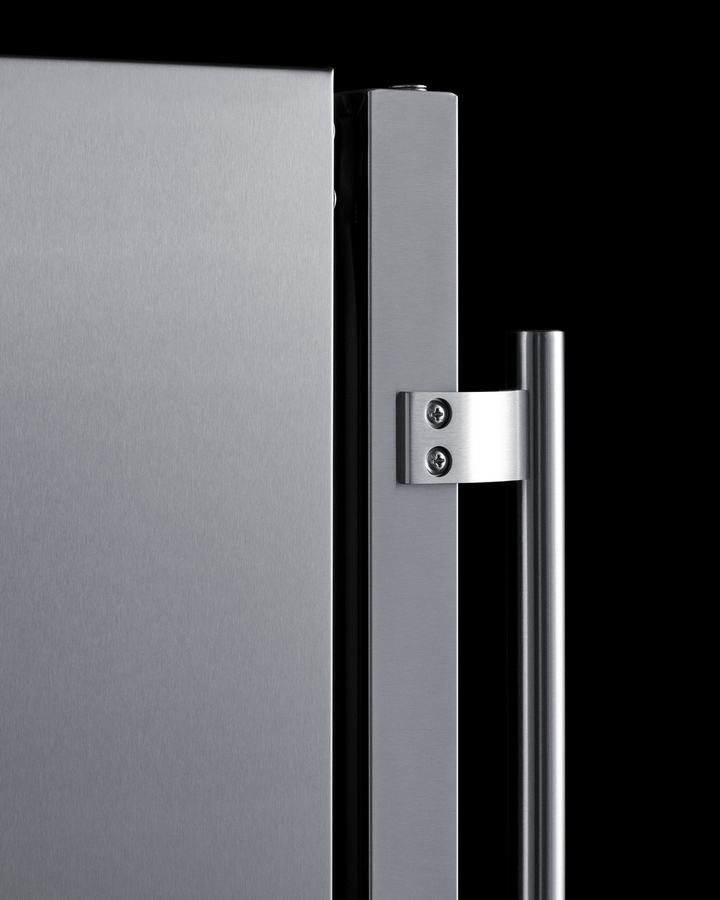

Professional handle

Includes a full-length pro handle in chrome

Frost-free operation

No-frost operation for minimum user maintenance

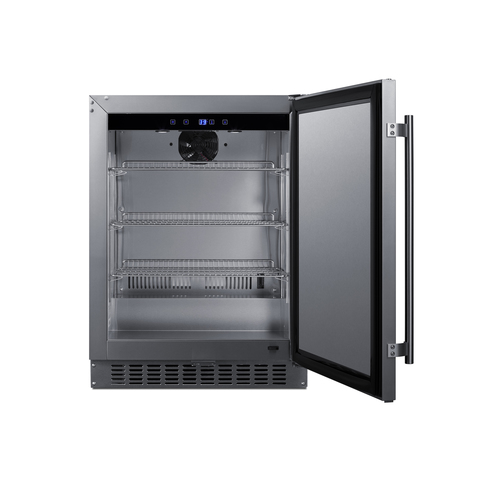

Internal fan

Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

Digital thermostat

Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button

Dimmable LED lighting

Efficient and attractive presentation with LED lighting that can be adjusted between three levels of brightness

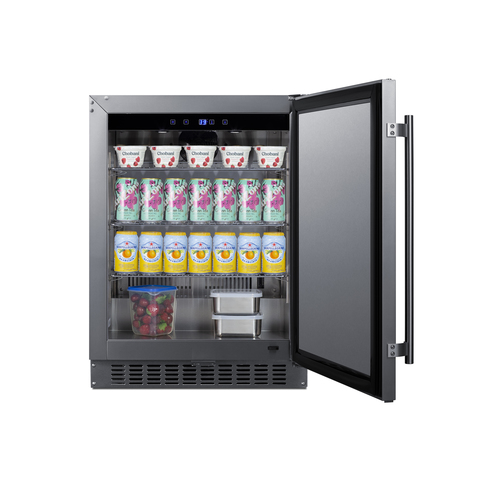

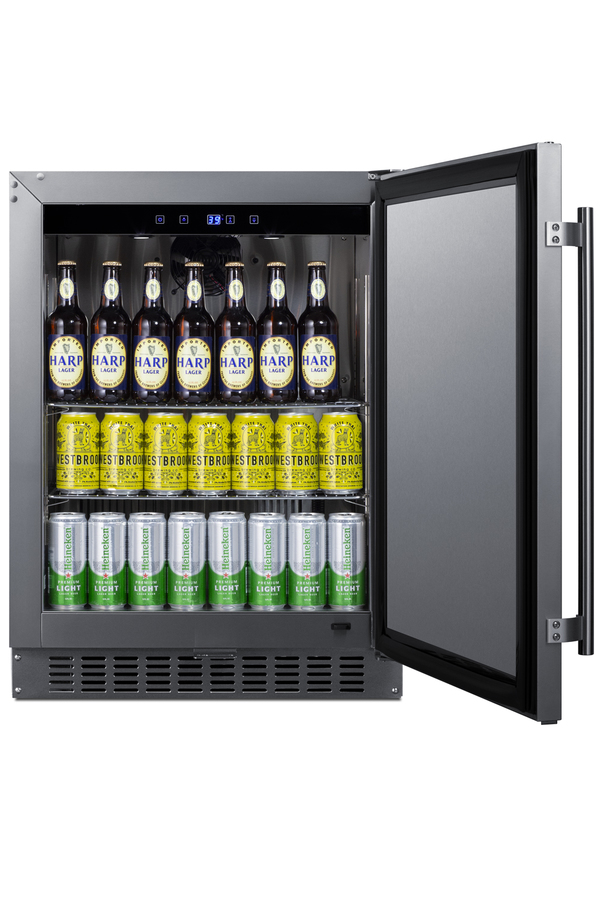

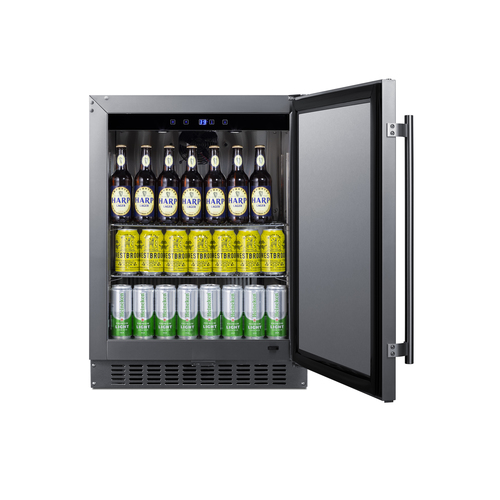

Cantilevered shelving

Adjustable chrome shelves with stainless steel clips allow you to adjust the shelf height for the best fit

Open door alarm

Audible alarm will sound if the door is left open longer than one minute

High temperature alarm

High temperature alarm sounds if the unit's interior goes out of the recommended range

Sabbath mode setting

Optional setting lets you disable the lighting and alarm for up to 48 hours

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Integrated hinge

Flat hinge ensures no added height is needed when installing under a counter

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sealed back

Space-saving design with no exposed coils that offers easier cleanability

Reversible door

User-reversible door swing for added flexibility

Commercially approved

ETL-S listed to NSF-7 Standards for use in commercial establishments

Fully finished cabinet

Allows the unit to be used freestanding

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit's shallow depth series of built-in undercounter refrigeration includes outdoor choices with weatherproof construction in a unique footprint.

Model SPR618OSADA is a 24" wide outdoor all-refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding stainless steel kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished cabinet also allows freestanding use. Complete stainless steel construction on the exterior door and cabinet offer true luxury designed to last in the outdoors. This unit has a sealed rear and right angle cord for a better fit. The door is user-reversible and includes a front lock and pro style handle.

Inside, the SPR618OSADA features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes cantilevered shelving in chrome for flexible storage. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.

The SPR618OSADA refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Additional 18" deep choices are available in 15", 19", and 24" widths, including refrigerator drawers, wine cellars, beverage centers,and more.

Download
BROCHURE w/ DRAWINGS
SPR618OSADA.pdf
Download
TECHNICAL DRAWING (.dwg)
ASDS2413.dwg
Download
ASSEMBLY DRAWING
ASDS2413-Assembly.pdf
Download
MSDS INFORMATION
R600a_K.pdf
Energy Guide

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
