27" Wide 2-Drawer All-Refrigerator, ADA Compliant (Panels Not Included)

SKU: SPR275OS2DPNRADA
True versatility designed for indoor or outdoor use, with a commercial grade design for optimum cooling and panel-ready drawer fronts to create a custom look
Estimated Time to Ship:

2 to 4 days

*Additional features may vary

This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

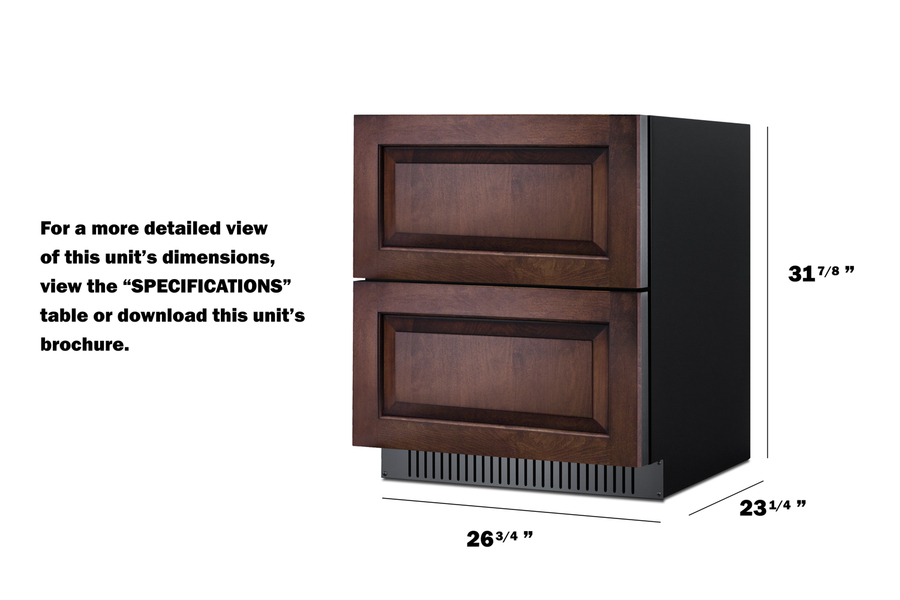

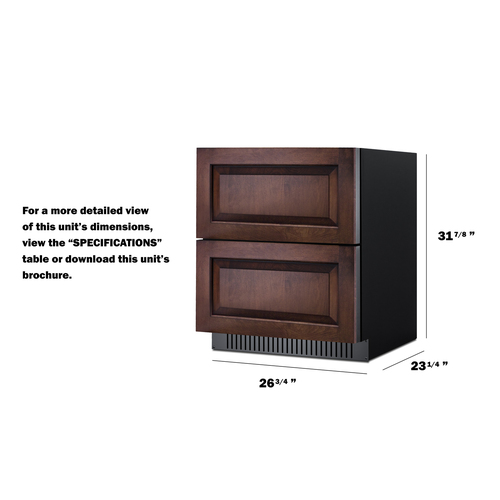

31.88" H x 26.75" W x 23.25" D
(81cm H x 68cm W x 59cm D)

Overview
Height of Cabinet 31.88" (81 cm)
Width 26.75" (68 cm)
Depth 23.25" (59 cm)
Depth with Handle 25.25" (64 cm)
Depth with door at 90° 37.75" (96 cm)
Capacity 4.83 cu.ft. (137 L)
Defrost Type Frost-Free
Door Stainless Steel/Panel-Ready
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 303.0kWh/year
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 121.0 lbs. (55 kg)
Shipping Weight 130.0 lbs. (59 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101090177
Refrigerator Features
Sabbath Mode Yes
Door Swing Drawer
Height Adjustable Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.23oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs Qty 4
Interior Light Yes
Interior Drawers Yes
Interior Drawers Qty 2
Temperature Range 34 to 65ºF
Sound Level 35.2 dB
Drawer Dimensions
Interior Height 1 9.88" (25 cm)
Interior Width 1 21.0" (53 cm)
Interior Depth 1 16.5" (42 cm)
Interior Height 2 8.75" (22 cm)
Interior Width 2 21.0" (53 cm)
Interior Depth 2 16.5" (42 cm)
Dimensions
Compressor Step Height 5.0" (13 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 5.0" (13 cm)

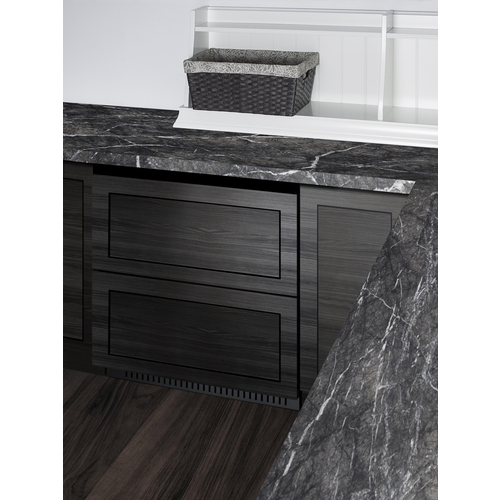

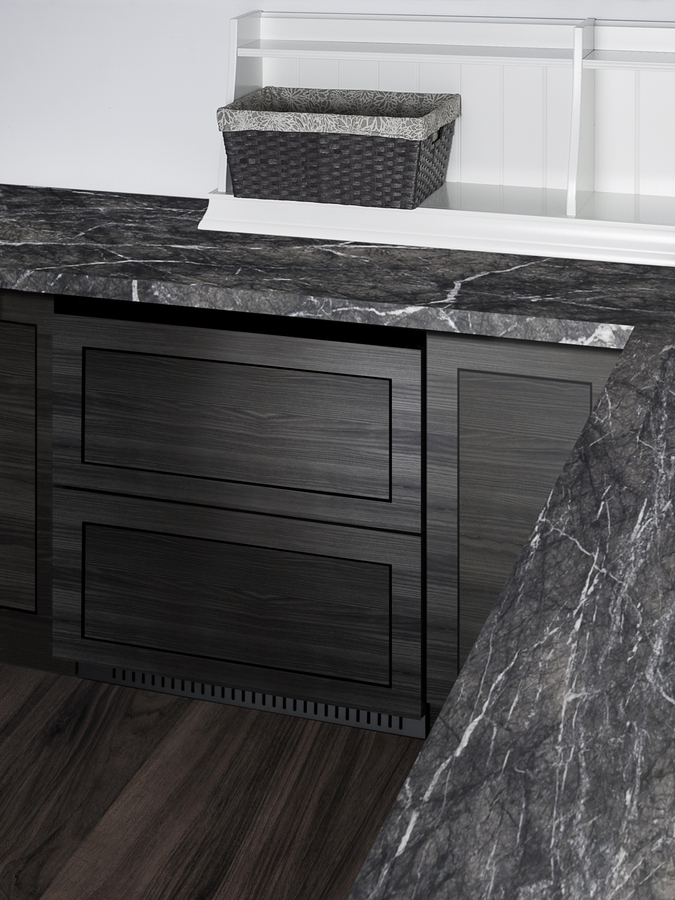

27" wide 2-drawer all-refrigerator

Uniquely sized for built-in installation under counters in residential or commercial kitchen settings

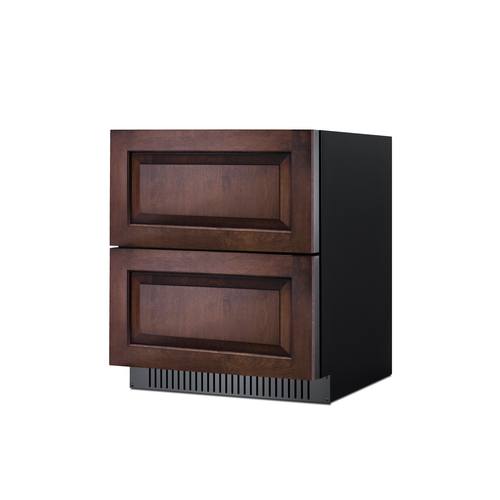

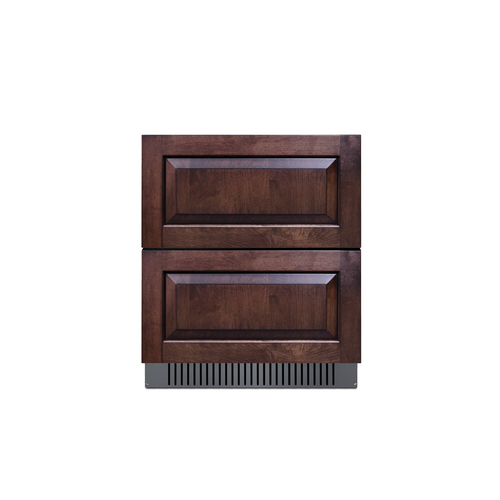

Panel-ready drawer fronts

Drawers can be customized with overlay panels (sized at 26.77" x 13.78" at 3/4" thick) to match or accent existing cabinetry

ADA compliant design

32" height allows easy installation under lower ADA compliant counters

Less than 24" deep

Shallower depth than many similar units in this size class, allowing an easier fit in tight commercial or residential kitchen spaces

Stainless steel drawers

Interior and exterior drawer fronts feature weatherproof stainless steel construction in a horizontal grain for long-lasting luxury under the counter

Built-in capable

Front-breathing design allows the unit to be built-in under counters

Indoor/Outdoor compatible

Durable, weatherproof construction designed to hold up to the elements

Commercially approved

ETL-S listed to NSF-7 standards allows use in commercial kitchens

Wide temperature range

Temperature can be set between 34 and 65ºF for versatile storage of food, beverages, wine, and other items

Professional handles

Included for optional use, or add your own to better match your cabinetry finishes

Frost-free

No-frost operation for minimal user maintenance

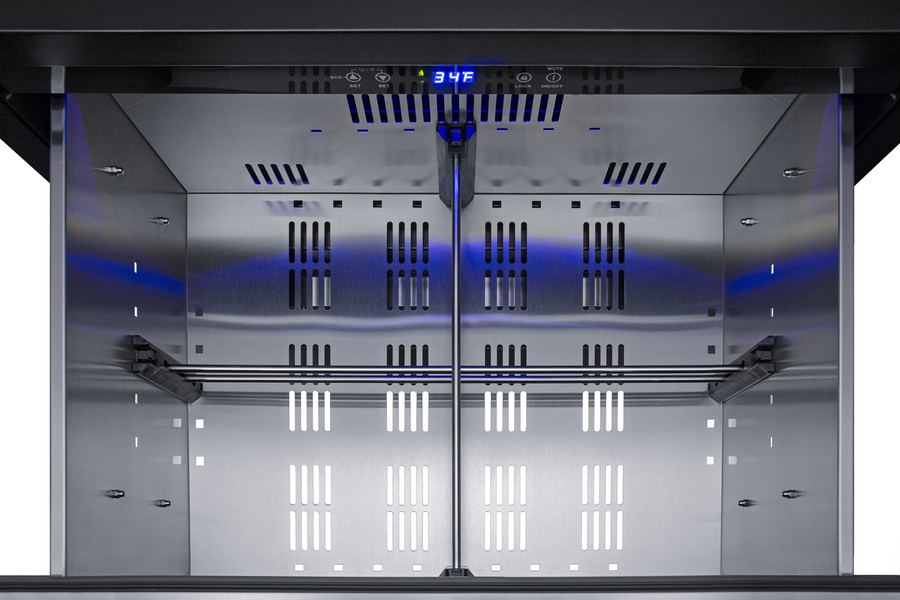

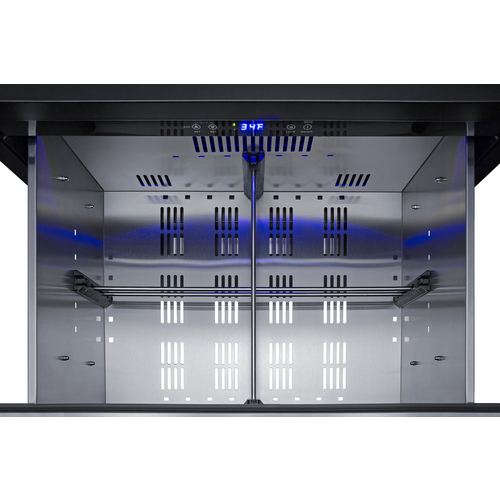

LED lighting

Both drawers feature an LED strip that provides a stunning blue illumination over the interiors

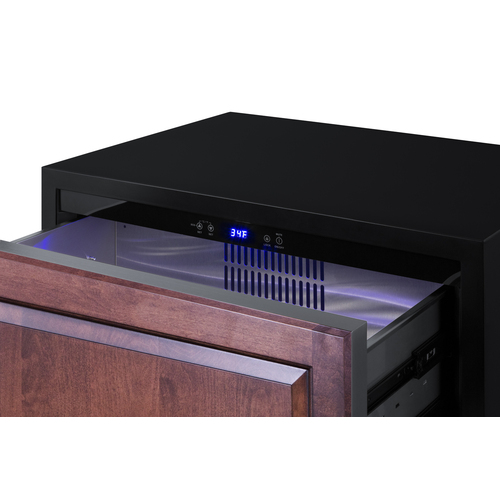

Digital thermostat

Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit

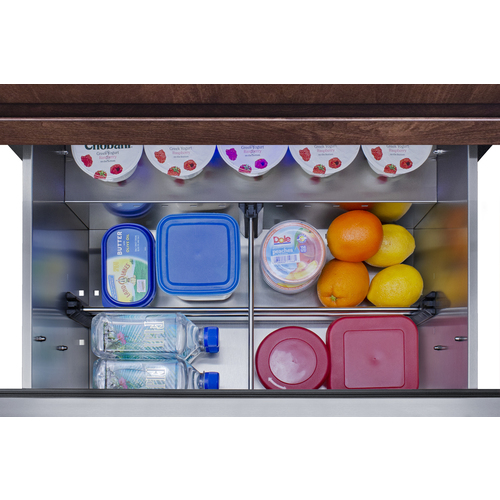

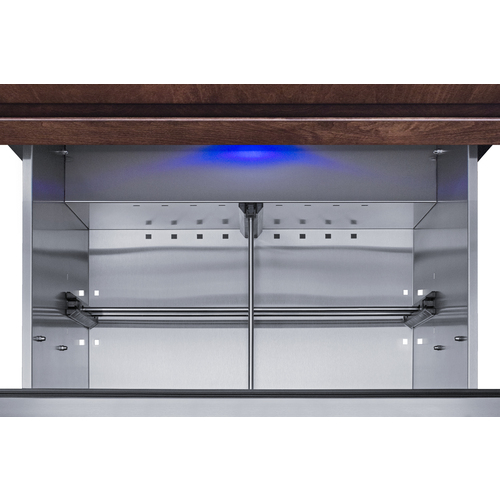

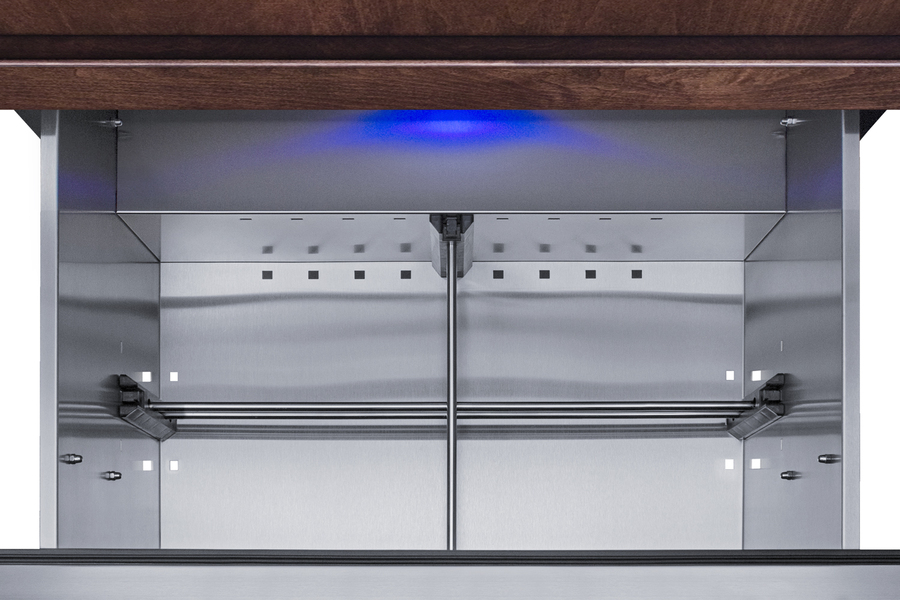

Drawer dividers

Each drawer includes a removable accessory that lets you divide your storage into four sections

Open drawer alarm

Audible alarm sounds if the drawers are left open for more than five minutes

Sabbath mode

Optional feature disables alarms, interior light, and displays for up to 96 hours

Right-angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sealed back

Space-saving design with no exposed coils for easier cleanability

Fan-forced cooling

Provides for efficient, even cooling of the entire unit

Anti-slam drawers

Soft-close glides prevent drawers from slamming shut for additional durability and safety

Anti-tip bracket

Bracket (included) helps prevent tipping for added safety

Fully finished cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit is expanding its popular lineup of built-in undercounter refrigeration with new luxury choices for 27" wide spaces in residential or commercial kitchen indoor and outdoor spaces.

Model SPR275OS2DPNRADA is a 27" wide 2-drawer all-refrigerator sized just under 32" high for an easy fit under lower ADA compliant counters. It comes in a shallow depth just under 24" for added space savings. The drawer fronts are designed to accept overlay panels (sized at 26.77" W x 13.78" H at a 3/4" thickness)  to allow you to create a custom look that best suits your kitchen design. We include a set of handles for optional use, and the drawer fronts are fully finished in stainless steel if you prefer that style. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. The sealed back and right angle plug help to ensure an easy fit.

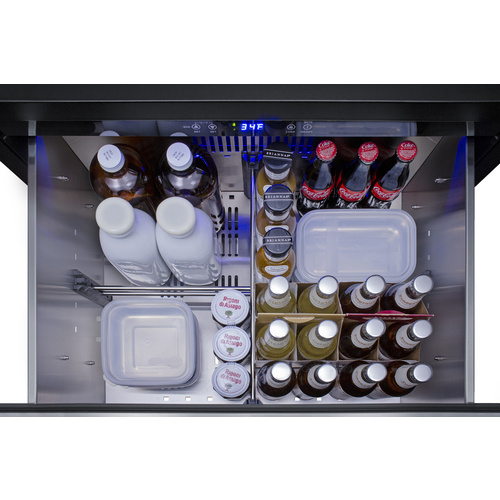

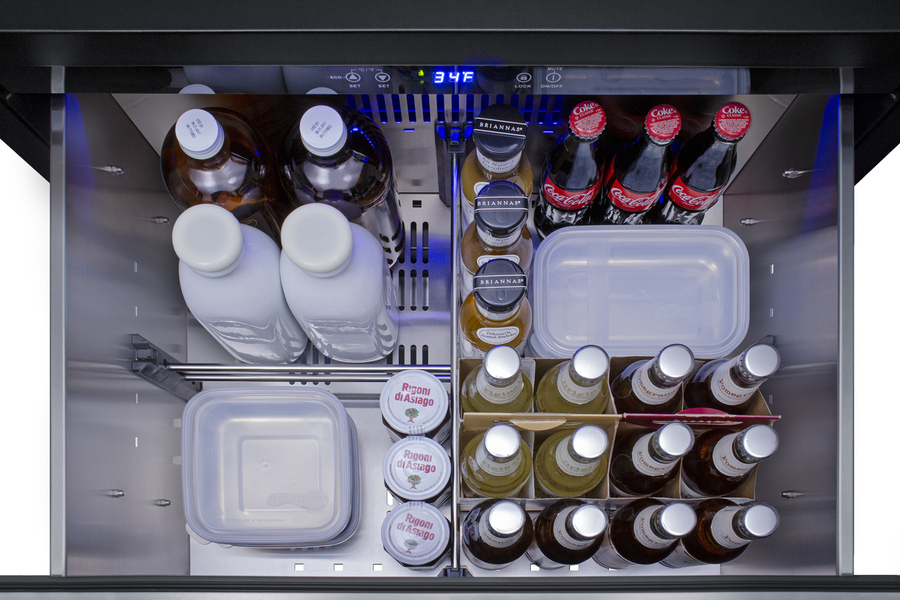

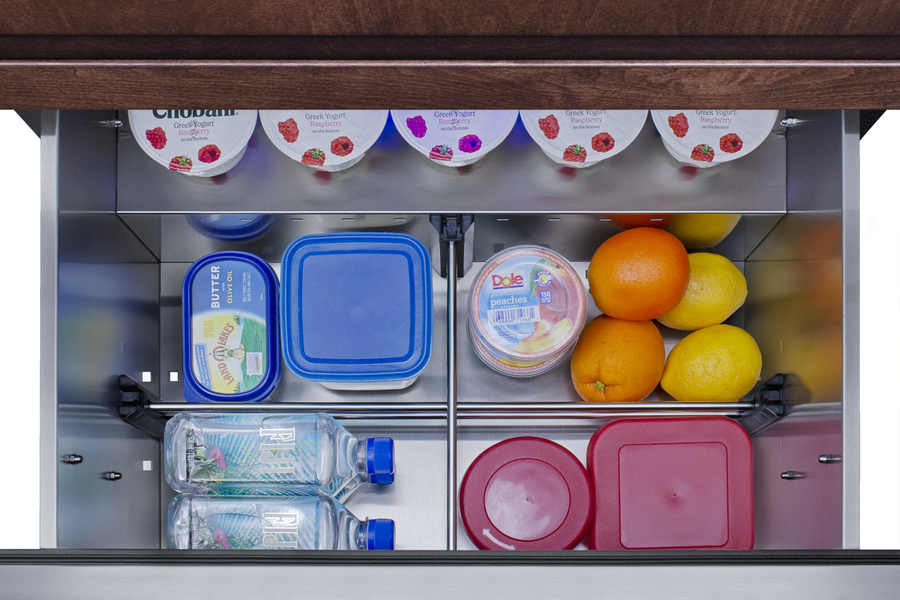

With nearly 5 cu.ft. of interior capacity, the SPR275OS2DPNRADA is perfect for keeping a variety of items in easy reach. Each drawer includes a removable divider that lets you create four adjustable sections inside to help organize the interior. The intuitive digital control panel features a wide range from 34 to 65ºF, allowing you to adjust your storage conditions for standard food items or beverages better held at warmer temperature. The temperature display can be switched from Fahrenheit to Celsius for added convenience.

Both drawers feature LED lighting in a striking blue finish for elegant illumination. Frost-free operation minimizes maintenance and internal fans help to maintain an evenly cooled interior. Additional features include open drawer alarms, a child lock to prevent changes to the controls, an eco mode setting, and a 96 hour sabbath mode to disable certain features for periods of observance.

The SSPR275OS2DPNRADA features weatherproof construction for safe installation in outdoor kitchens. It is ETL-S listed to NSF-7 commercial standards and also complies with residential regulations for home use. In addition to this refrigerator, we also manufacture the same style in a 30" fit. Browse Summit's extensive selection of built-in undercounter refrigeration to discover the perfect fit for virtually any kitchen space.

Download
BROCHURE w/ DRAWINGS
SPR275OS2DPNRADA.pdf
Download
TECHNICAL DRAWING (.dwg)
SPR275OS2DADA.dwg
Download
ASSEMBLY DRAWING
SPR275OS2DADA-Assembly.pdf
Energy Guide

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
