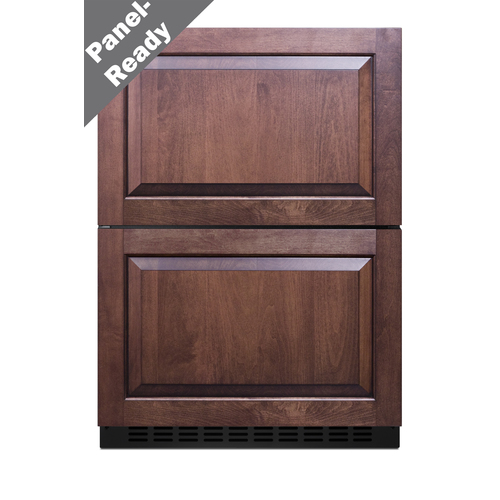

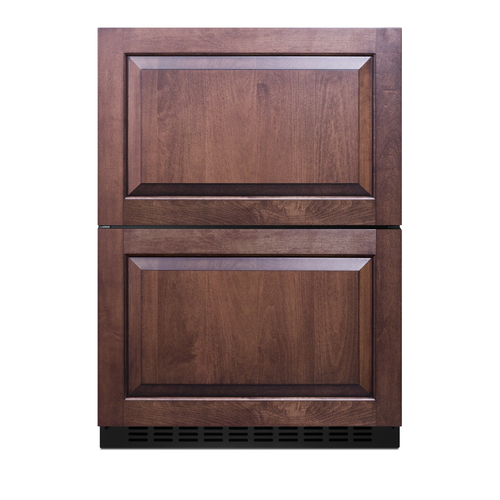

24" Wide 2-Drawer All-Refrigerator, ADA Compliant (Panels Not Included)

SKU: ADRD241PNR
Panel-ready drawers allow you to customize the front to achieve the perfect style for every indoor or outdoor kitchen space
Estimated Time to Ship:

Next day shipping

*Additional features may vary

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.
31.88" H x 23.38" W x 22.5" D
(81cm H x 59cm W x 57cm D)

Overview
Height of Cabinet 31.88" (81 cm)
Width 23.38" (59 cm)
Depth 22.5" (57 cm)
Depth with Handle 23.88" (61 cm)
Depth with door at 90° 34.25" (87 cm)
Capacity 3.7 cu.ft. (105 L)
Defrost Type Frost-Free
Door Panel-Ready
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 185.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 106.0 lbs. (48 kg)
Shipping Weight 129.5 lbs. (59 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101088198
Refrigerator Features
Sabbath Mode Yes
Door Swing Drawer
Height Adjustable Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.38oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 36 to 43ºF
Sound Level 33 dB
Drawer Dimensions
Interior Height 1 8.0" (20 cm)
Interior Width 1 17.0" (43 cm)
Interior Depth 1 14.5" (37 cm)
Interior Height 2 8.0" (20 cm)
Interior Width 2 17.0" (43 cm)
Interior Depth 2 14.5" (37 cm)
Dimensions
Compressor Step Height 4.0" (10 cm)
Compressor Step Width 17.0" (43 cm)
Compressor Step Depth 3.5" (9 cm)

Exterior
SSK - Stainless steel kickplate
Stainless steel kickplate factory installed

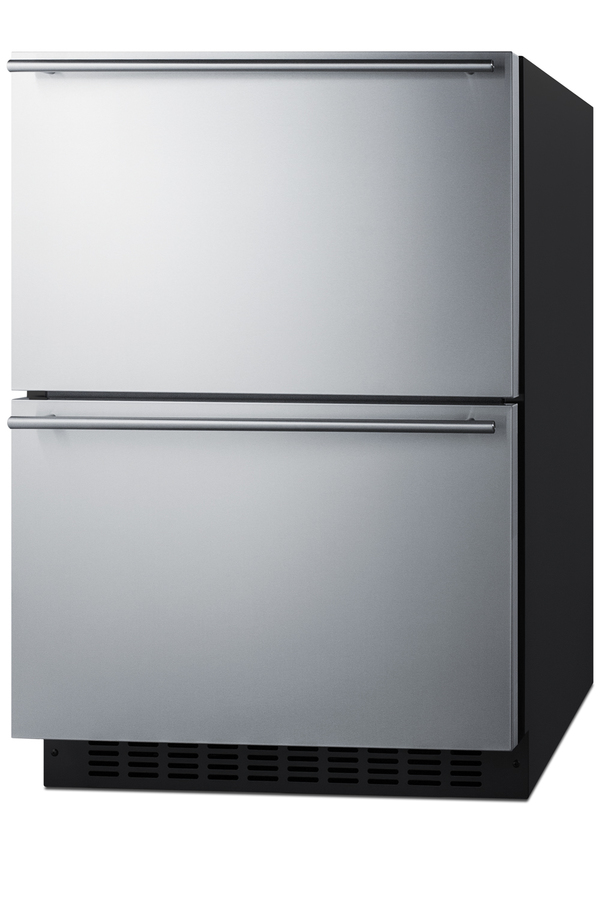

2-Drawer All-Refrigerator

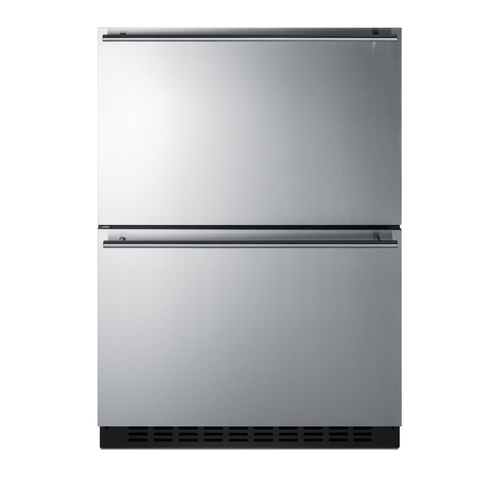

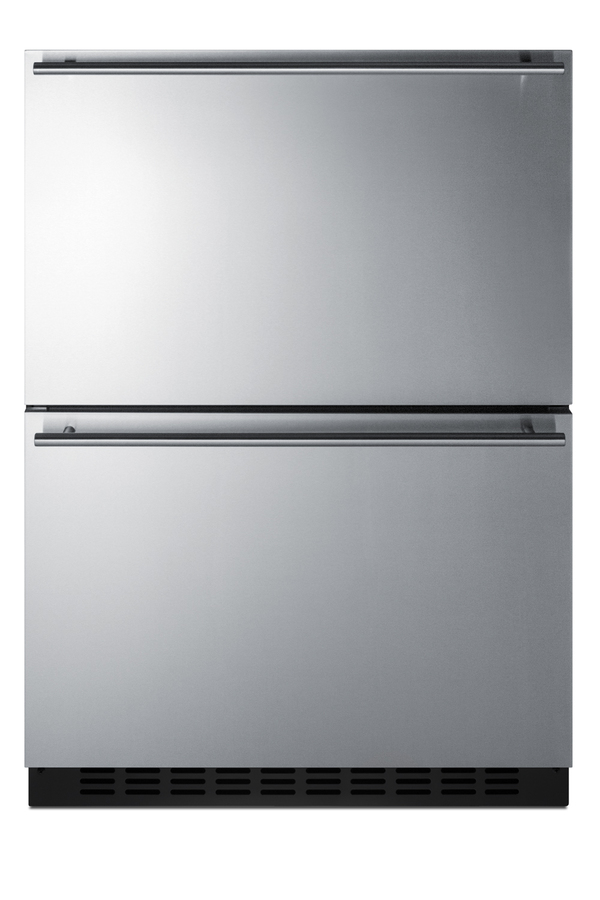

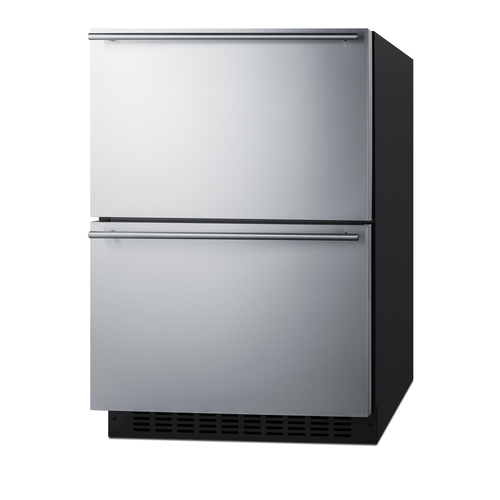

24" wide 3.7 cu.ft. all-refrigerator with two gliding drawers

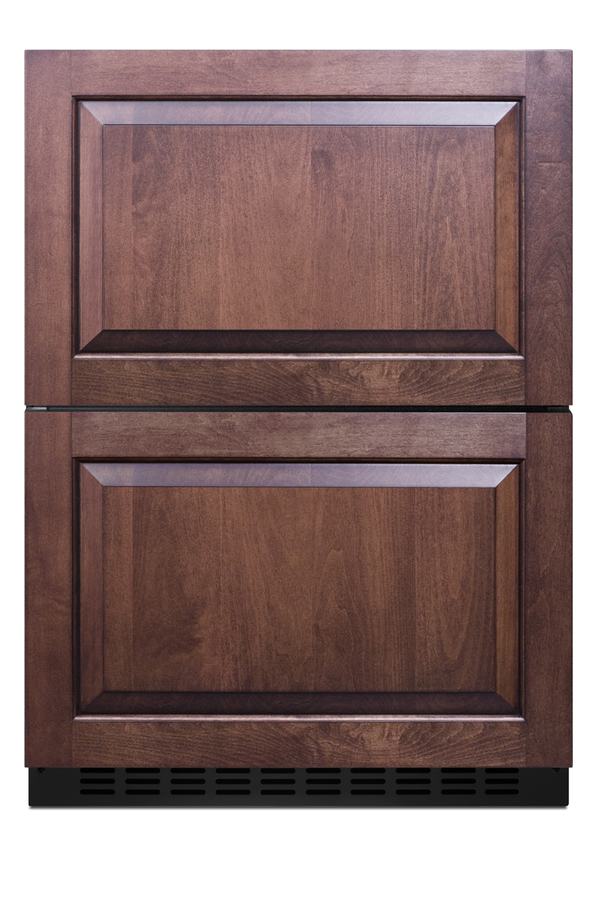

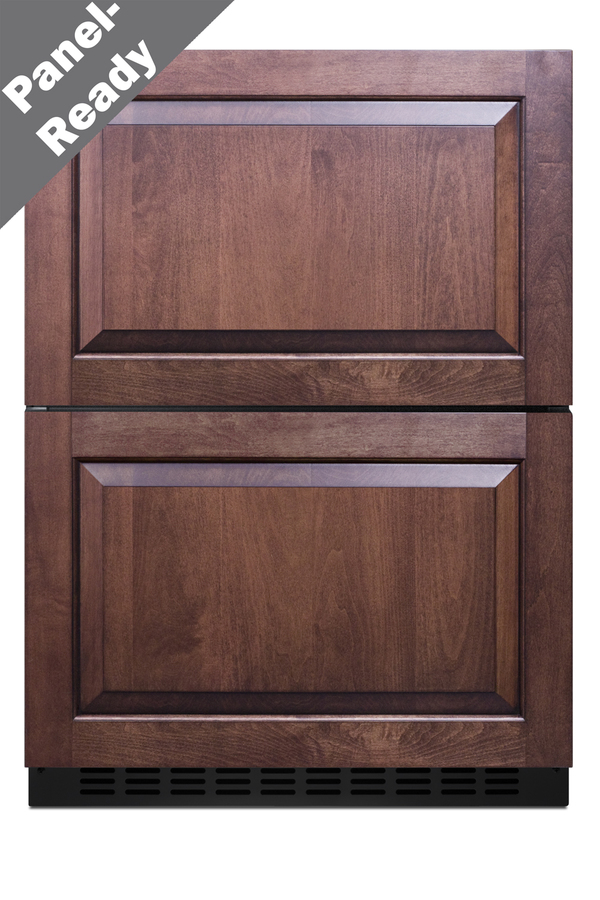

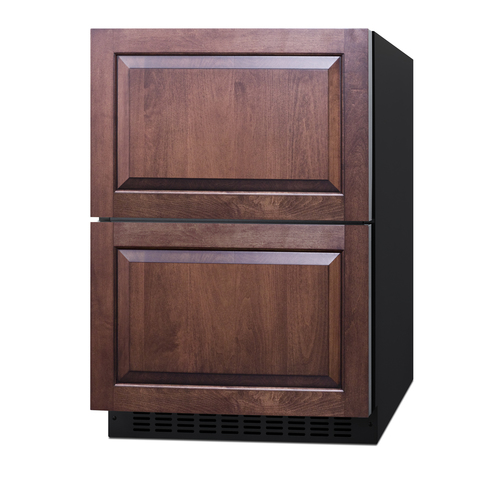

Panel-ready drawer fronts

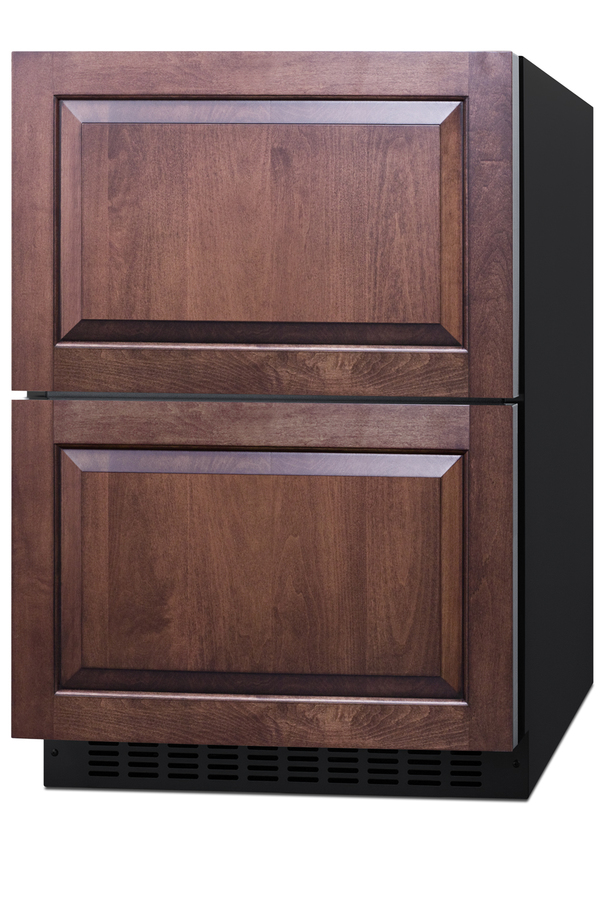

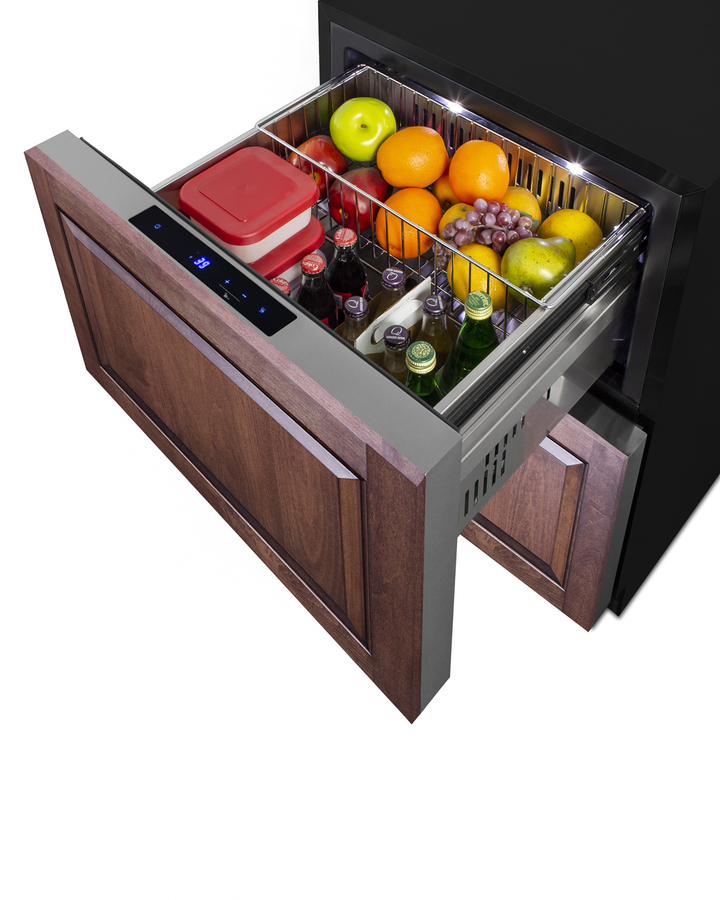

Drawers accept overlay panels (size: 23.43" x 14.1" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design

ADA compliant design

Sized just under 32" high to allow installation under lower ADA compliant counters

Built-in capable

Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 24" wide openings

Indoor/Outdoor compatible

Constructed and approved for outdoor installation (as well as use indoors) with a fully sealed cooling system and weatherproof exterior

Stainless steel drawers

Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for weatherproof durability and elegant style

Professional handles

Sleek stainless steel handles add an elegant touch to any setting

Frost-free

No-frost operation for minimum user maintenance

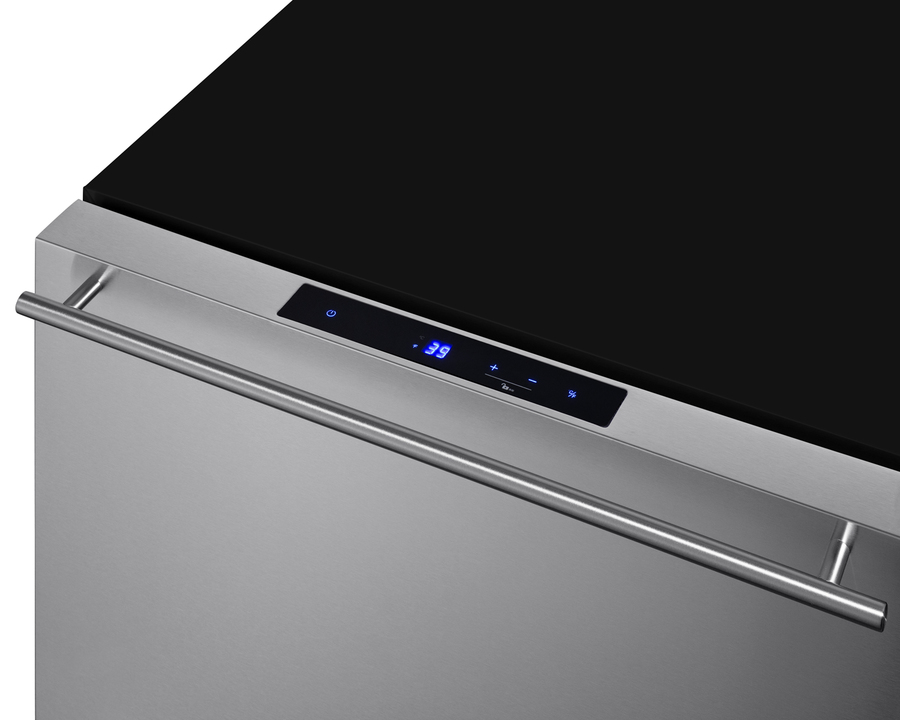

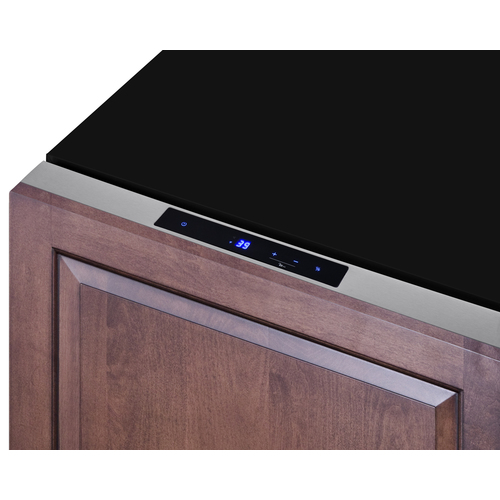

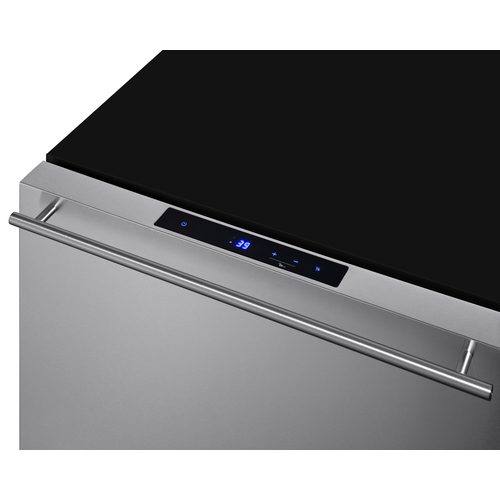

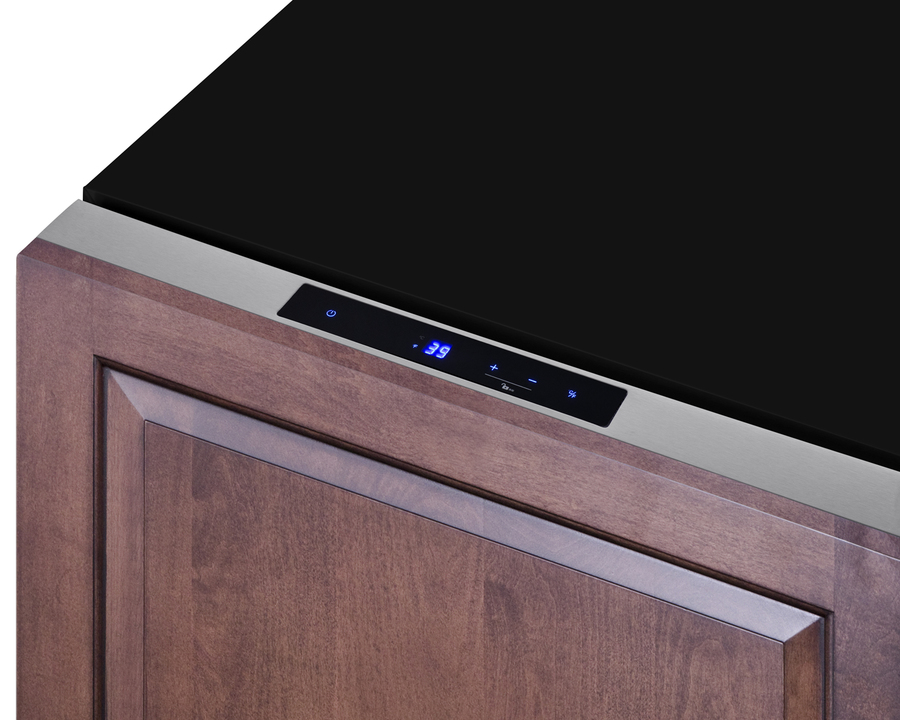

Digital thermostat

Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button

Interior lighting

Elegant LED lighting in a gentle white hue illuminates the top drawer for an easy view of the interior

Fan-forced cooling

Provides for efficient, even cooling of the entire unit

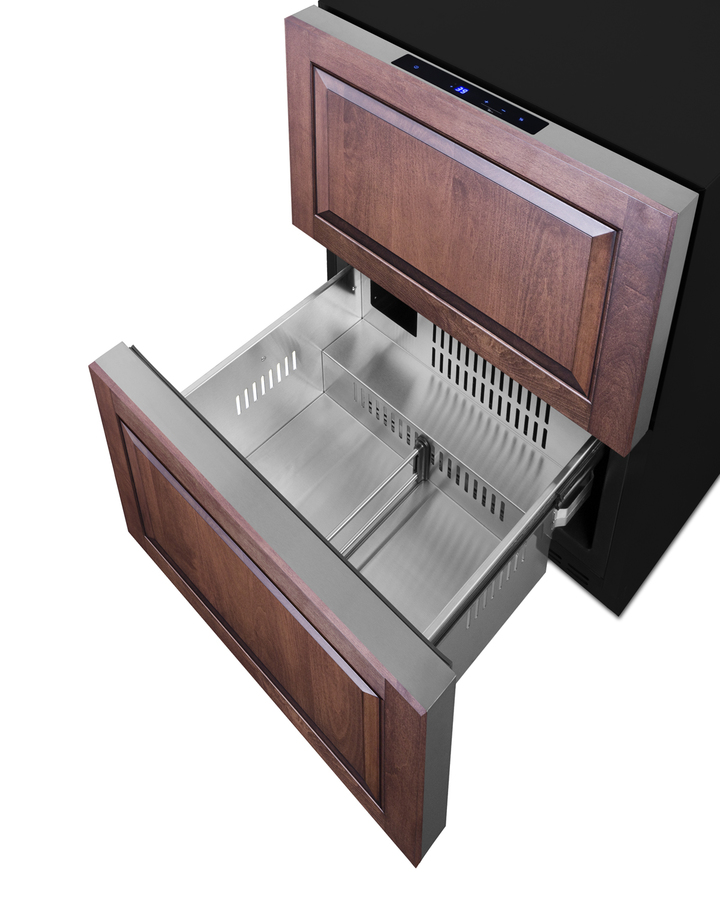

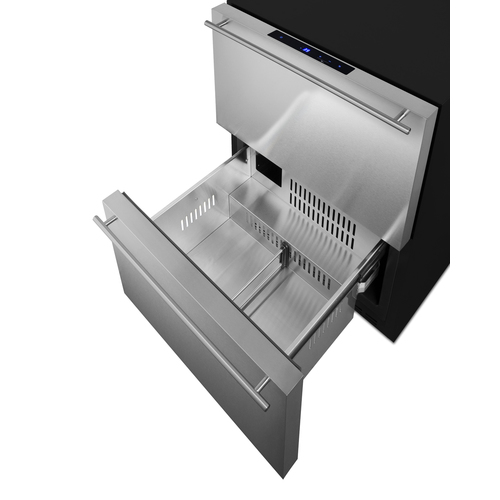

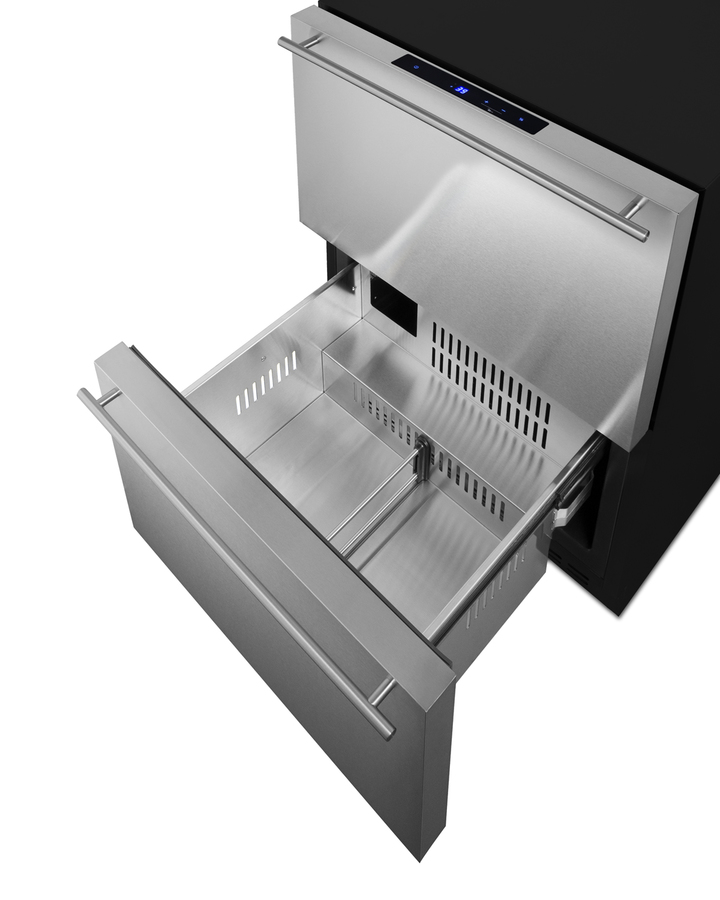

Drawer dividers

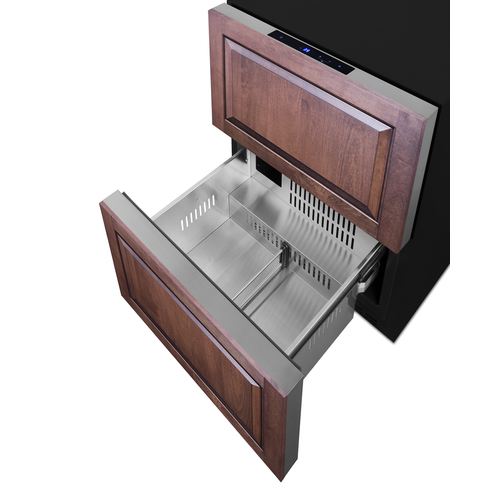

Two adjustable dividers provide flexibility when organizing the interiors

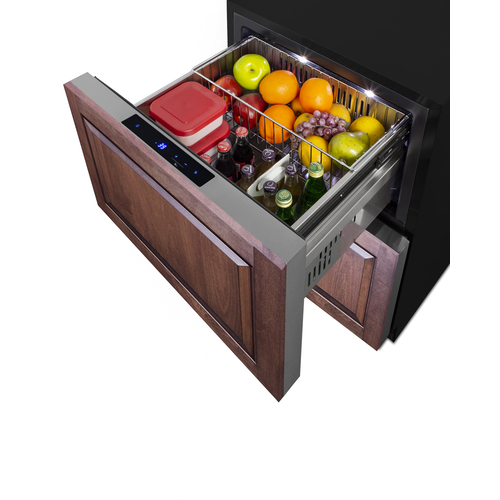

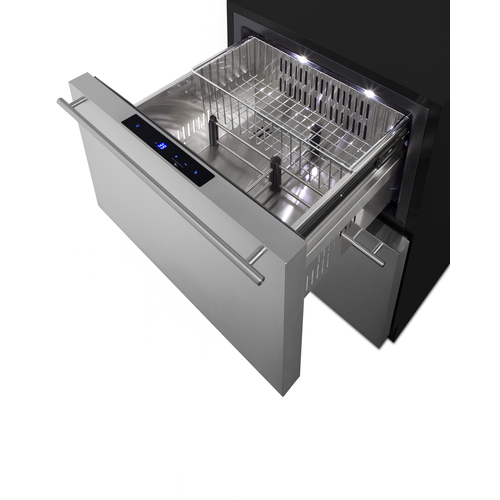

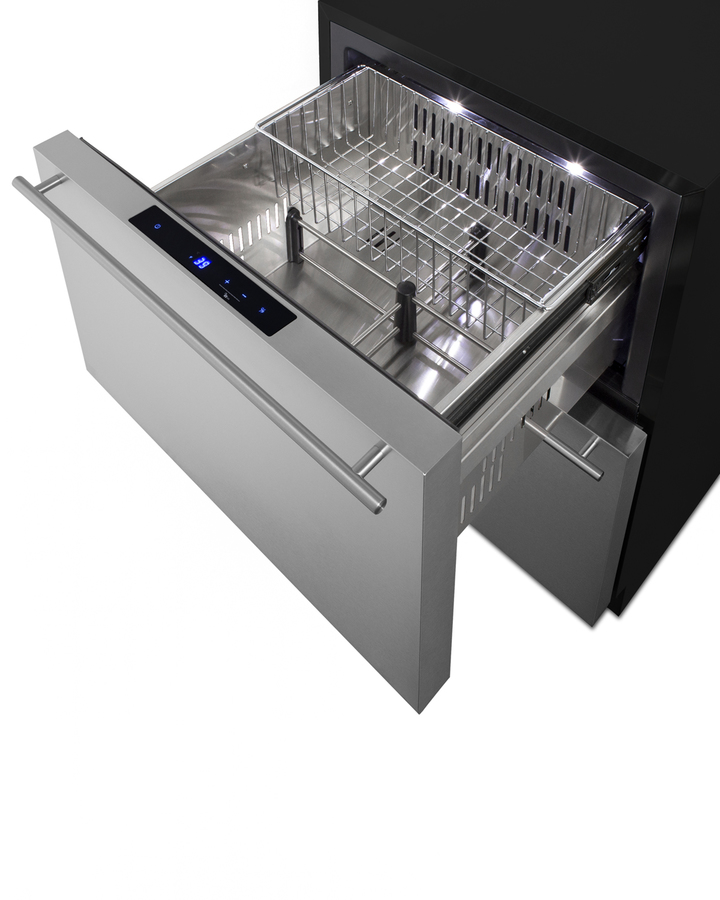

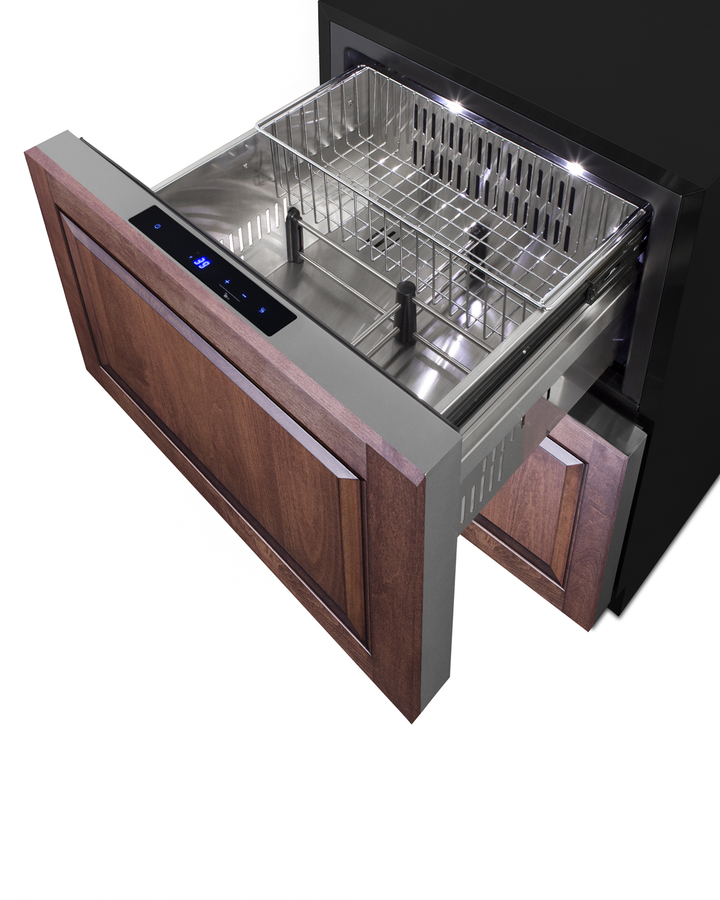

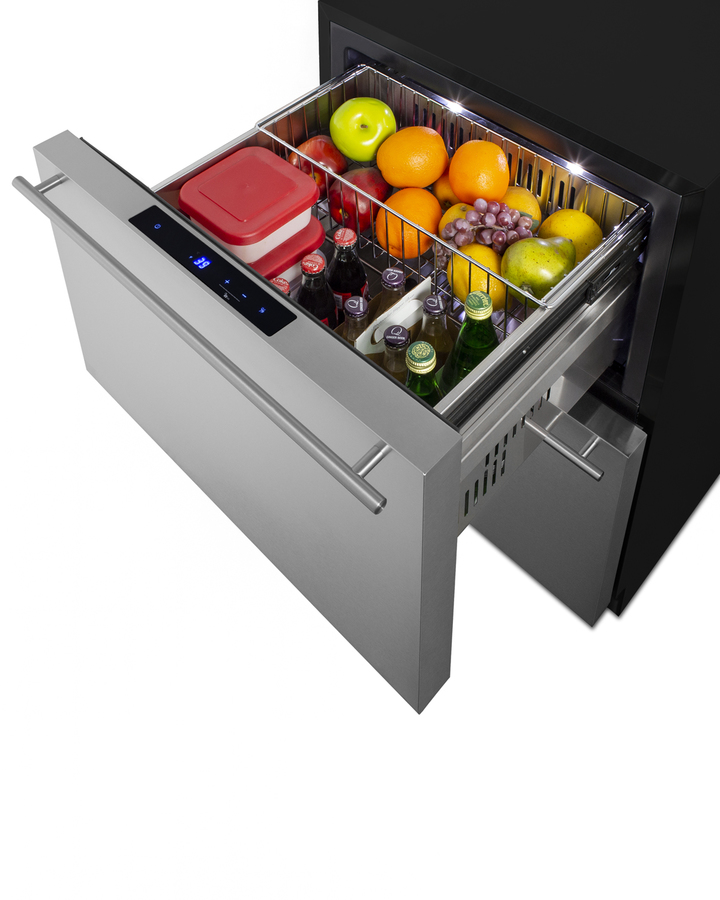

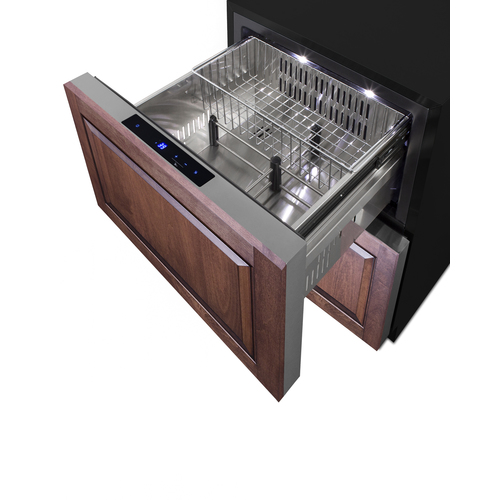

Sliding basket

Removable chrome basket included for added storage convenience

Temperature alarm

High temperature alarm sounds if the unit's interior goes out of the recommended range

Open drawer alarm

Audible alarm will sound if either drawer is left open longer than one minute

Sabbath mode

Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance

Child lock

Disables digital controls after two minutes of activity for added safety

Temperature memory function

Unit will restore the most recent temperature settings after losing power

Right-angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sealed back

Space-saving design with no exposed coils for easier cleanability and added protection from the elements

Fully finished black exterior cabinet

Allows the unit to be used freestanding

Anti-tip bracket

Included and recommended for user-installation to reduce the risk of tipping

Commercially approved

ETL-S listed to NSF-7 standards to allow use in commercial establishments

Matching freezer

Pair with the ADFD243 freezer to create a complete 2-drawer undercounter set

100% CFC free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit manufactures an extensive selection of drawer refrigeration for versatile installation indoor or outdoor kitchen spaces, with customizable designs that allow easy integration into any cabinet style.

Sized at just under 24" wide and 32" high, model ADRD241PNR is a 2-drawer all-refrigerator perfectly designed for built-in or freestanding installation in ADA compliant settings with lower counter height. The drawer fronts are specially designed to accept user-provided overlay panels, allowing you to create a custom look that blends into existing cabinetry (panel dimensions: 23.43" W x 14.1" H  at 3/4" thick). The drawers are fully finished in stainless steel. We include two sleek handles for optional use. This unit comes with a jet black cabinet and sealed back to protect all components from the elements. It can be used in indoor or outdoor spaces.

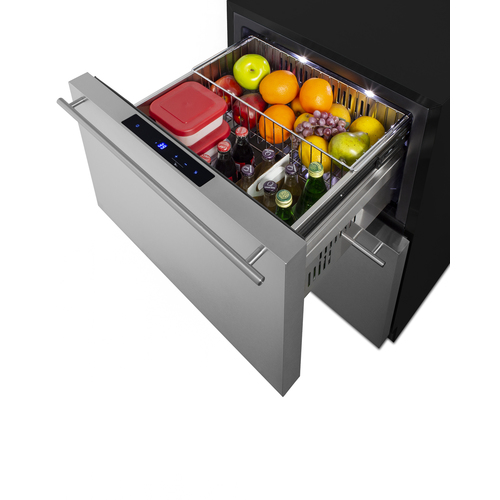

Inside, the ADRD241PNR has a generous 3.7 cu.ft. capacity to accommodate your storage needs. Frost-free operation ensures minimal user maintenance, with fan-forced cooling to evenly distribute the temperature. A digital thermostat, located atop the upper drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two adjustable, removable dividers allow you to separate the drawer compartments into two or four zones to easily accommodate a variety of sizes. A full-width sliding removable chrome basket offers added storage convenience, while white LED lighting makes it easy to view stored contents. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance.

The ADRD241PNR is ETL-S listed to NSF-7 commercial settings and also meets all residential standards for home use. We also offer a matching frost-free freezer (model ADFD243PNR) and this same unit as a 2-zone refrigerator-freezer drawer (model ADRF244PNR). Browse the full Summit line to explore our extensive series of 15", 18", and 24" wide refrigerator drawers.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
