24" Wide Single Zone Built-In Commercial Wine Cellar

SKU: SCR610BLCHCSS

Tints
Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
Commercial meets nsf
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

Stainless steel shelves designed to store champagne and sparkling wine bottles at a slight angle for the perfect display in commercial settings

34.0" H x 23.63" W x 23.5" D

(86cm H x 60cm W x 60cm D)

OVERVIEW

  • ETL-S listed to NSF-7 commercial standards
  • Stainless steel shelving is specially sized to store larger wine and champagne bottles, with adjustable clips pre-positioned to display bottles at a slight angle
  • Digital thermostat offers precise and convenient temperature control with a wide range to accommodate red or white wine
  • Powerful but efficient LED lighting provides a full view of the interior
  • Stainless steel exterior and interior offers added durability and improved sanitation
  • Flexible design allows built-in or freestanding use in 24" spaces

SPECIFICATIONS

Overview
Height of Cabinet 34.0" (86 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.38" (64 cm)
Depth with door at 90° 45.5" (116 cm)
Capacity 5.0 cu.ft. (142 L)
Bottles 20 bottles
Defrost Type Automatic
Door Glass
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 150.0 lbs. (68 kg)
Shipping Weight 155.0 lbs. (70 kg)
Estimated Time to Ship 5 to 7 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible Yes
Shelf Type Steel
Shelf Qty 3
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.99 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 25.0" (64 cm)
Interior Width 1 19.38" (49 cm)
Interior Depth 1 17.38" (44 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 19.38" (49 cm)
Compressor Step Depth 4.63" (12 cm)
Temperature Range 36 to 68ºF

AVAILABLE UPGRADES

Exterior
SSK
Stainless steel kickplate factory installed
LHD - Left hand door swing
Door reversal to left hand swing
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
Extra key
Extra keys available for purchase
CAS6 6" casters
6" high NSF listed casters
Door
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

Summit Commercial offers a unique selection of wine cellars designed for optimum storage and bottle presentation.

The SCR610BLCHCSS is an undercounter  wine cellar built to meet NSF-7 commercial standards. The slim 24 inch footprint takes up minimum floor space, with large 5 cu.ft. interior. This unit features a front-breathing design for built-in installation, with a stainless steel wrapped cabinet that also allows freestanding use. The reversible stainless steel trimmed glass door includes a pro style handle and factory-installed lock for added security.

Inside, the SCR610BLCHCSS includes stainless steel shelving specially designed to hold champagne and sparkling wine bottles at a slight angle, providing a full display of the label. The interior walls and floor are constructed from stainless steel for lasting durability in busy commercial settings. This unit is illuminated through the rear walls with efficient LED lighting in a striking blue hue. The digital control panel offers a wide 36 to 68ºF temperature range that allows you to program the optimum settings for red, white, or sparkling wine.

With its unique design and commercial grade construction, the SCR610BLCHCSS is the perfect undercounter option for storing and displaying larger bottles.  Additional choices are available for outdoor use, and in larger sizes for higher bottle capacity. Browse our website for more options.

FEATURES

Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments
Built-in capable
Make the best use of space by installing this unit under the counter and flush with other cabinetry

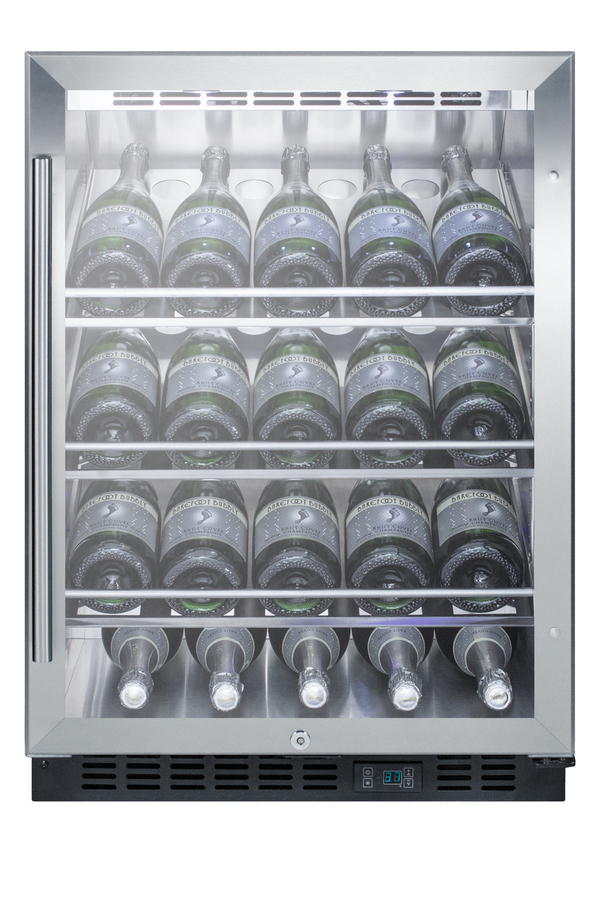

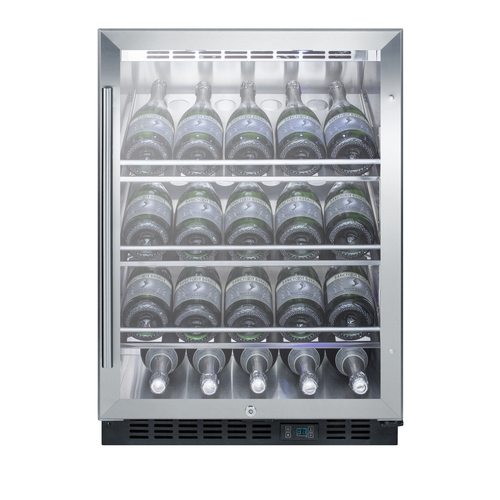

Champagne racks
Stainless steel shelves are specially sized to store wider wine and champagne bottles
Bottle display
Cantilevered clips are pre-installed so that the shelving can be installed at a slight angle to provide a display of the bottle labels. Clips can be adjusted to a flat position to accommodate more shelves

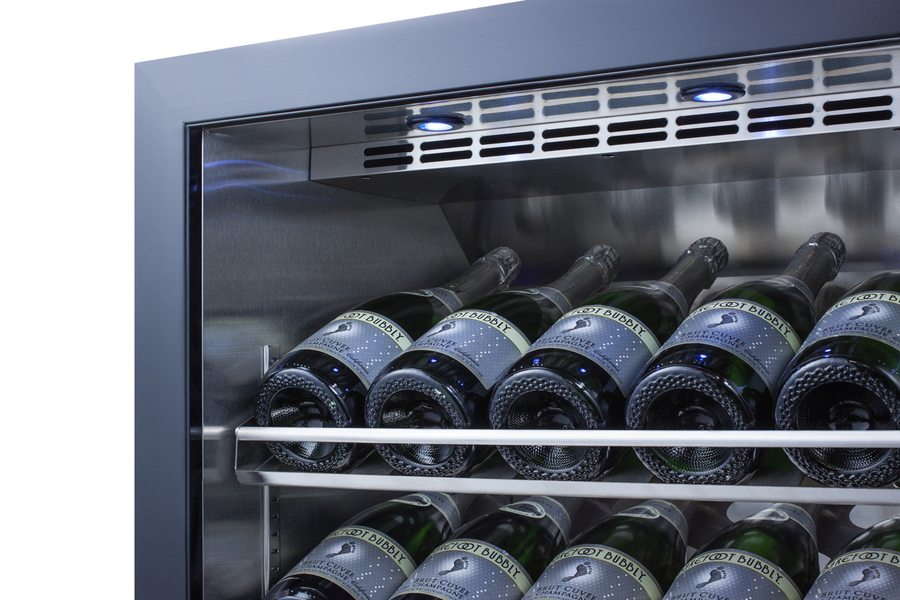

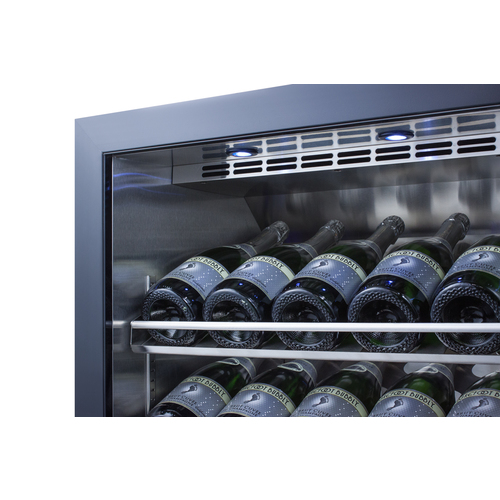

Interior LED lighting
Fully lit interior with a striking blue LED hue, providing an attractive and energy efficient view
Double pane tempered glass door
Stainless steel trimmed glass door offers a full display of stored items
Stainless steel interior
Walls are constructed from stainless steel for added strength and easy cleanup
Factory installed lock
Keyed lock for a secure interior
Digital thermostat
Intuitive digital controls ensure easy temperature management
Reversible door
User-reversible door swing allows for more flexibility in placing the unit
Professional handle
Stainless steel handle completes the professional look
Automatic defrost
Reduced user maintenance with automatic defrost
Fan-forced cooling
Internal fan ensures the interior is evenly cooled from top to bottom
Sealed back
Space saving design with easier cleanability
Stainless steel wrapped cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 34.0" (86 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.38" (64 cm)
Depth with door at 90° 45.5" (116 cm)
Capacity 5.0 cu.ft. (142 L)
Bottles 20 bottles
Defrost Type Automatic
Door Glass
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 150.0 lbs. (68 kg)
Shipping Weight 155.0 lbs. (70 kg)
Estimated Time to Ship 5 to 7 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible Yes
Shelf Type Steel
Shelf Qty 3
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.99 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 25.0" (64 cm)
Interior Width 1 19.38" (49 cm)
Interior Depth 1 17.38" (44 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 19.38" (49 cm)
Compressor Step Depth 4.63" (12 cm)
Temperature Range 36 to 68ºF

AVAILABLE UPGRADES

Exterior
SSK
Stainless steel kickplate factory installed
LHD - Left hand door swing
Door reversal to left hand swing
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
Extra key
Extra keys available for purchase
CAS6 6" casters
6" high NSF listed casters
Door
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
