SCR2464
SHARE THIS PRODUCT
Pinterest E-mail a Friend Print

SPECIFICATIONS

Overview
Height of Cabinet 34.0" (86 cm)
Width 23.63" (60 cm)
Depth 23.63" (60 cm)
Depth with Handle 24.75" (63 cm)
Depth with door at 90° 45.63" (116 cm)
Capacity 4.86 cu.ft. (138 L)
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 270.0kWh/year
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 103.0 lbs. (47 kg)
Shipping Weight 115.0 lbs. (52 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Chrome
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.13oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Light Yes
Dimensions
Interior Height 24.0" (61 cm)
Interior Width 19.0" (48 cm)
Interior Depth 17.25" (44 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 19.0" (48 cm)
Compressor Step Depth 4.5" (11 cm)

AVAILABLE UPGRADES

Exterior
Latch
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD
Door reversal to left hand swing
Lock
KEY
Extra keys available for purchase
Door
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

SCR2464

Tints f38f71c7257ce8e8379d579d03d127066ebb465738d3759d49e5075b11ff9ae5
Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
Delivery 9240a3e8870753a2ec143c34af2b405742ae73bfeb126dd29f201daa25ab8f11
This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
Commercial home ea581a399e3ae77121f807aa081394156550222354be8f27504df77d2fff3a44
This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

Designed for built-in or freestanding use

34.0" H x 23.63" W x 23.63" D

OVERVIEW

WHERE TO BUY

Invalid Format
SUMMIT offers more choices for home and commercial kitchens with a complete line of versatile built-in undercounter refrigerators.

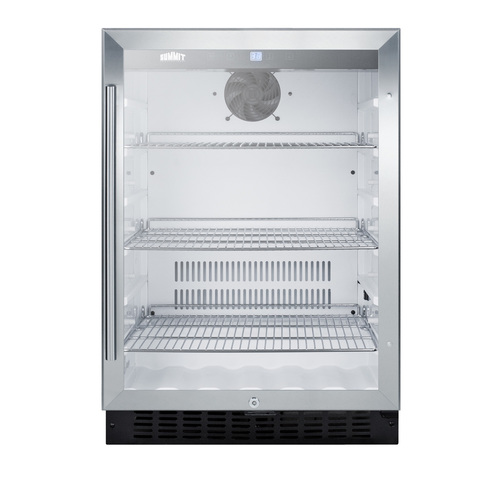

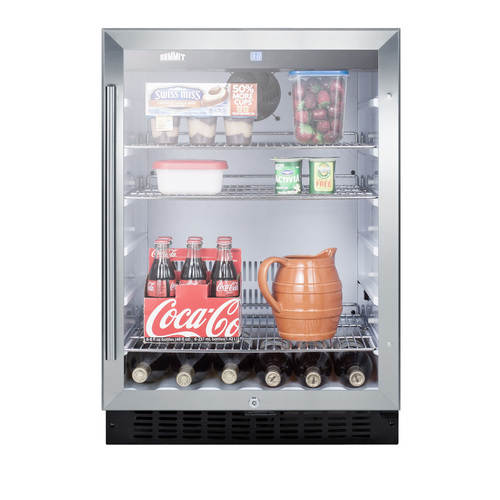

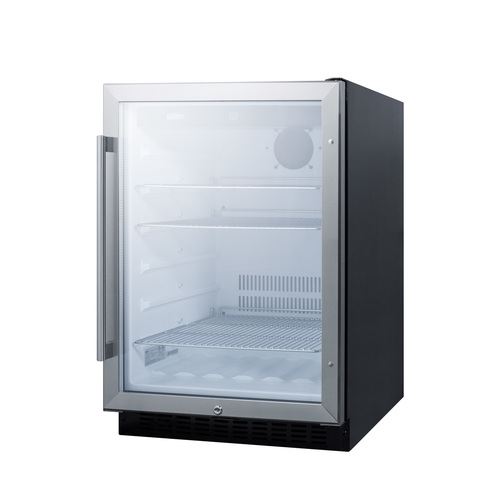

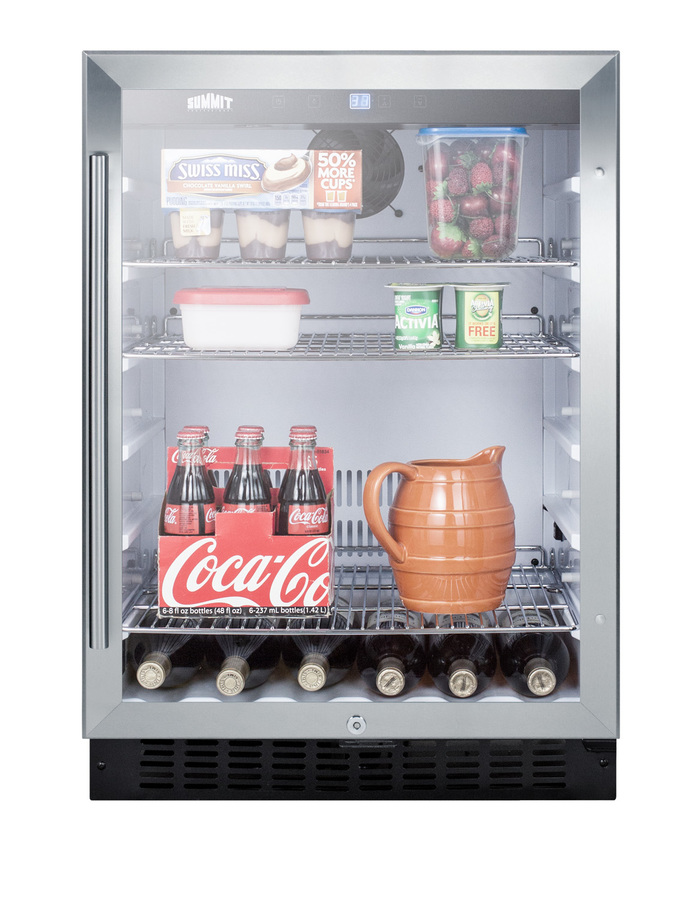

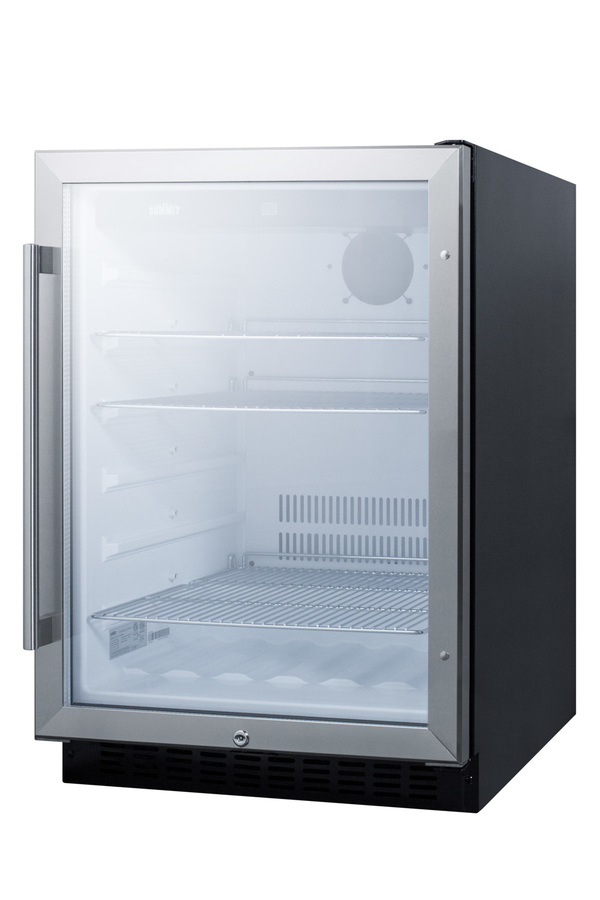

The SCR2464 is a 24" wide all-refrigerator designed for residential or commercial use. The reversible glass door features an attractive stainless steel trim and pro style handle, with a factory installed lock for added security. This unit is front-breathing for built-in installation, but can also be used freestanding. It includes a right angle plug and sealed back for flush installation.

Inside, the SCR2464 includes adjustable chrome shelves to accommodate a variety of sizes. Automatic defrost offers low-maintenance operation, with fan-forced cooling to ensure even temperature distribution. This unit includes a digital control panel, with a temperature and open door alarm included. The white interior with LED lighting provide a bright and attractive view to store ad display your items. This unit is equipped with a Sabbath mode setting that allows you to disable certain features during periods of observance.

The SCR2464 is ETL-S listed to NSF-7 commercial standards and meets UL-471. It also complies with current Department of Energy standards for residential use. With its convenient size and user-friendly features, this is the perfect choice for residential or commercial settings looking for versatile storage under the counter.


FEATURES

Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Glass door
Stainless steel trimmed glass door offers a heat-safe view of stored contents
Factory installed lock
Keyed lock for a secure interior
Professional handle
Includes a stylish handle in stainless steel
Automatic defrost
No-frost operation for minimum user maintenance
Digital thermostat
Electronic controls located inside the unit for precise temperature management
Recessed LED light
Elegant lighting with a convenient on/off switch on the control panel
Adjustable chrome shelves
Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Reversible door
User-reversible door swing for added flexibility
Open door alarm
Audible alarm will sound if the door is left open longer than one minute
High temperature alarm
High temperature alarm sounds if the unit's interior goes out of the recommended range
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 96 hours
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss
Sealed back
Space-saving design that offers easier cleanability
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

DOWNLOADS

Download BROCHURE w/ DRAWINGS
SCR2464.pdf
Download TECHNICAL DRAWING (.dwg)
SCR2464_REF.__A-C_2000_.dwg
Download MSDS INFORMATION
R600a_K.pdf
Energy Guide
