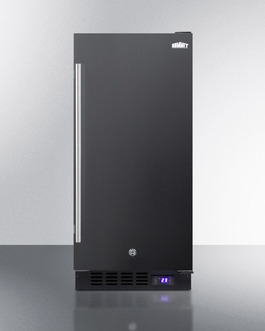

15" Built-In All-Freezer

SKU: SCFF1537B
Frost-free operation in a unique 15" width
DISCONTINUED
This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.
34.0" H x 14.75" W x 22.75" D
(86cm H x 37cm W x 58cm D)

Overview
Height of Cabinet 34.0" (86 cm)
Width 14.75" (37 cm)
Depth 22.75" (58 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 36.25" (92 cm)
Capacity 2.45 cu.ft. (69 L)
Defrost Type Frost-Free
Door Black
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 320.0kWh/year
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 63.0 lbs. (29 kg)
Shipping Weight 73.0 lbs. (33 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101003856
Freezer
Door Swing RHD
Reversible Yes
Interior Height 25.25" (64 cm)
Interior Width 10.25" (26 cm)
Interior Depth 16.38" (42 cm)
Shelf Type Chrome
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.88 oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs 4
Compressor Step Height 3.63" (9 cm)
Compressor Step Width 10.25" (26 cm)
Compressor Step Depth 4.63" (12 cm)

Exterior
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
SSK - Stainless steel kickplate
Stainless steel kickplate factory installed

Built-in capable

Make the best use of space by installing your appliance under the counter

Commercially approved

ETL-S listed to NSF-7 Standards for use in commercial establishments

Factory installed lock

Keyed security on the door

Digital thermostat

Electronic controls for precise temperature management.

Digital display

Temperature readout can be shown in Celsius or Fahrenheit

LED lighting

Gentle illumination with an on/off switch

Frost-free operation

Eliminates the need to manually defrost the interior

Adjustable chrome shelves

Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup

Reversible door

Keep your options flexible with a reversible door that is easy to switch when your arrangement changes

Professional handle

Stainless steel handle completes the professional look

Flush back

Space saving design

Open door alarm

Audible alarm will sound if the door is left ajar for over a minute

Matching refrigerator available

Combine with the FF1532B all-refrigerator for a matching set

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

SUMMIT brings true convenience to small kitchen spaces with the SCFF1537B, a 15" wide fully frost-free all-freezer.

The SCFF1537B is front-breathing for built-in use under counters, but also features a fully finished cabinet to allow freestanding use. The reversible door includes a factory installed lock and professional handle in stainless steel. This unit comes in a jet black finish.

Inside, the SCFF1537B is fully frost-free to minimize user maintenance, with slide-out chrome shelves that can be adjusted to accommodate a variety of items. Recessed LED lighting provides an elegant and efficient display inside the 2.4 cu.ft. interior. This unit includes a digital thermostat in the kickplate for easy and intuitive temperature control. This model is ETL-S listed to NSF-7 standards for commercial use.

With a uniquely slim size and user-friendly features, the SCFF1537B is the ideal freezer for space-challenged homes or commercial establishments. This unit can be paired with the matching FF1532B all-refrigerator as a side-by-side set or combined with our StackRack.

Download
BROCHURE w/ DRAWINGS
SCFF1537B.pdf
Download
TECHNICAL DRAWING (.dwg)
SCFF1537BFREEZERA-C2000.dwg
Download
USE & CARE
SCFF1537Bmanual.pdf
Energy Guide

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
