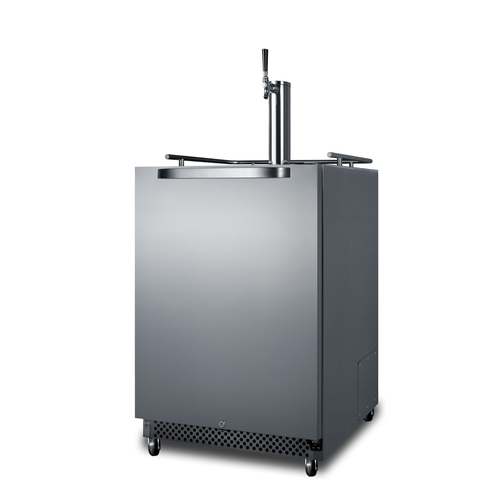

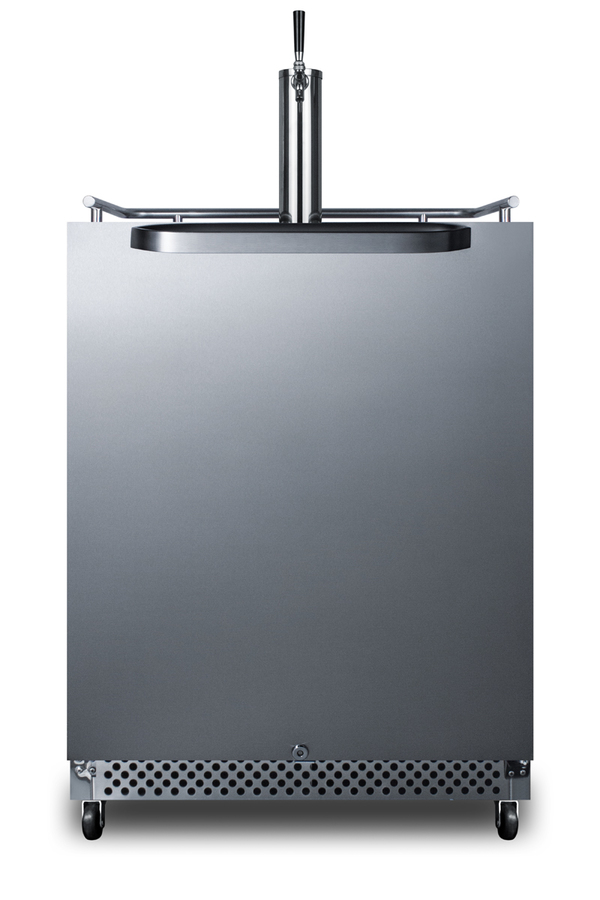

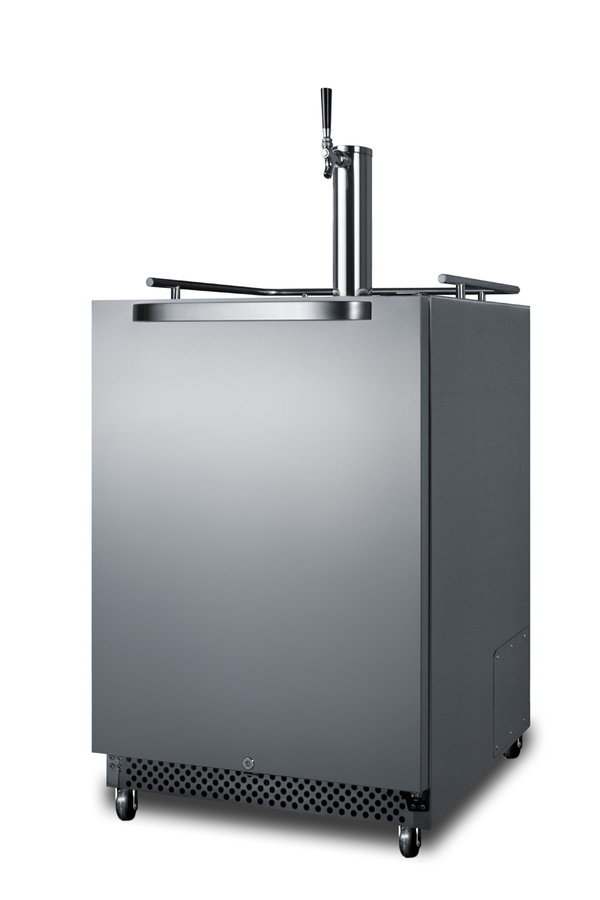

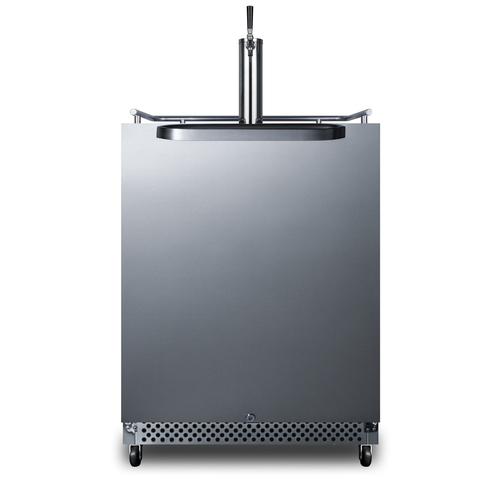

24" Wide Built-In Outdoor Wine Kegerator

SKU: SBC695OSWKD
Durable 304 grade stainless steel exterior designed to hold up in busy commercial outdoor settings
Estimated Time to Ship:

1 to 2 days

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.
34.25" H x 23.75" W x 25.0" D
(87cm H x 60cm W x 64cm D)

Overview
Height of Cabinet 34.25" (87 cm)
Width 23.75" (60 cm)
Depth 25.0" (64 cm)
Depth with Handle 26.88" (68 cm)
Depth with door at 90° 47.75" (121 cm)
Capacity 6.04 cu.ft. (171 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 108.0 lbs. (49 kg)
Shipping Weight 113.0 lbs. (51 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101060040
Kegerator
Door Swing RHD
Reversible Yes
Tap Kit Yes
Height with Tap 50.38" (128 cm)
Number of Taps 1
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant R600a
Refrigerant Amount 1.76 oz.
High Side PSI 220.0
Low Side PSI 43.0
Inter Height 27.0" (69 cm)
Interior Width 20.38" (52 cm)
Interior Depth 21.25" (54 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 9.63" (24 cm)
Compressor Step Depth 2.5" (6 cm)
Wheel Qty 4
Surface Stainless Steel
Temperature Range 32º to 50ºF

Exterior
LHD - Left hand door swing
Door reversal to left hand swing

Commercially approved

ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings

Weatherproof design

Solid construction allows placement in the outdoors

Built-in capable

Front-breathing design allows fully recessed installation under counters

Full-sized wine dispenser

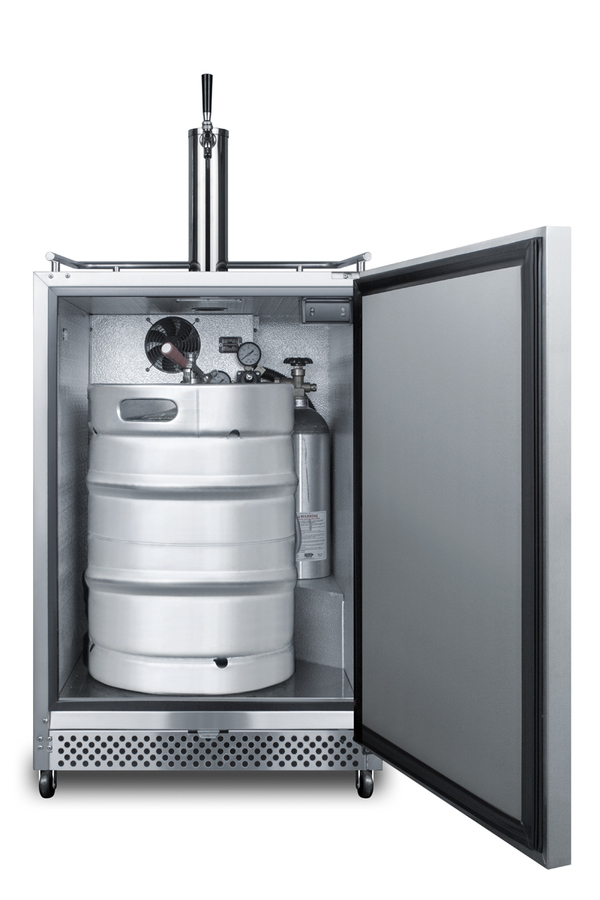

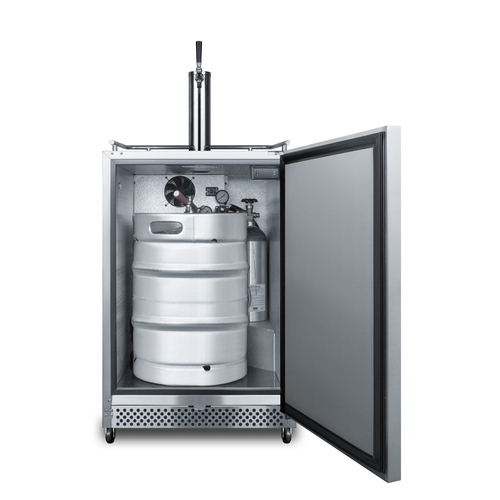

Large interior can accept a full half barrel keg, two slim quarter kegs, or up to three sixth barrel or Cornelius style kegs

Complete tap kit

Ships with a complete wine tap kit that includes a dispenser tower, regulator, and all the connection equipment you need to serve from a 1/6 wine keg or disposable wine keg

Nitrogen/CO2 tank included

Canister is best suited for a 75% nitrogen/25% CO2 mixture

Stainless steel exterior

Door and cabinet are wrapped in 304 grade stainless steel for lasting durability in the outdoors

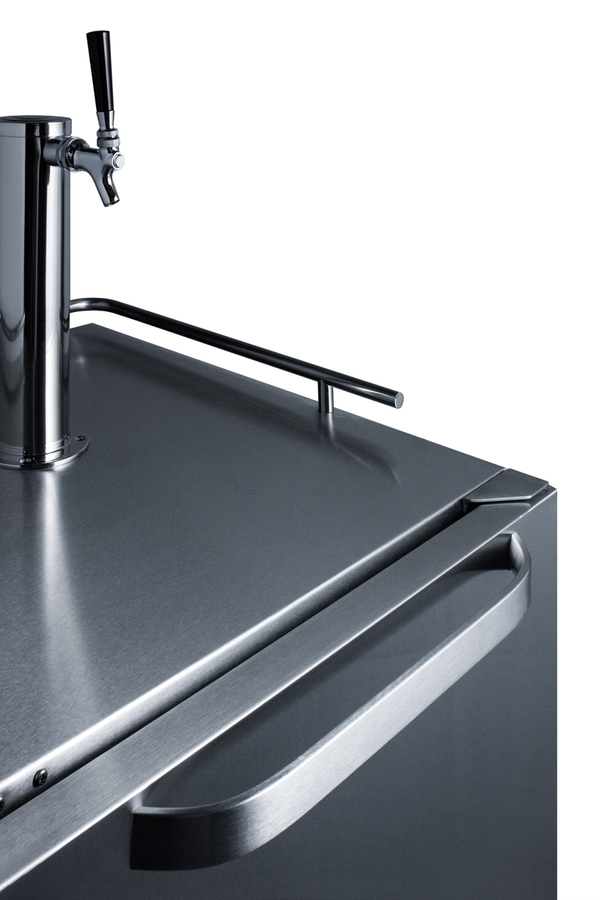

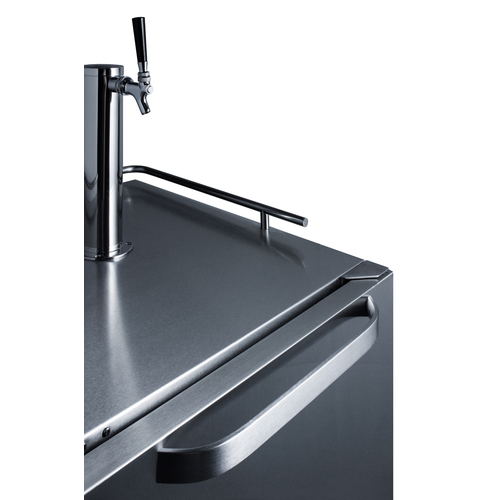

Professional handle

Blade style handle in brushed stainless steel matches many popular styles of cabinetry and grill details

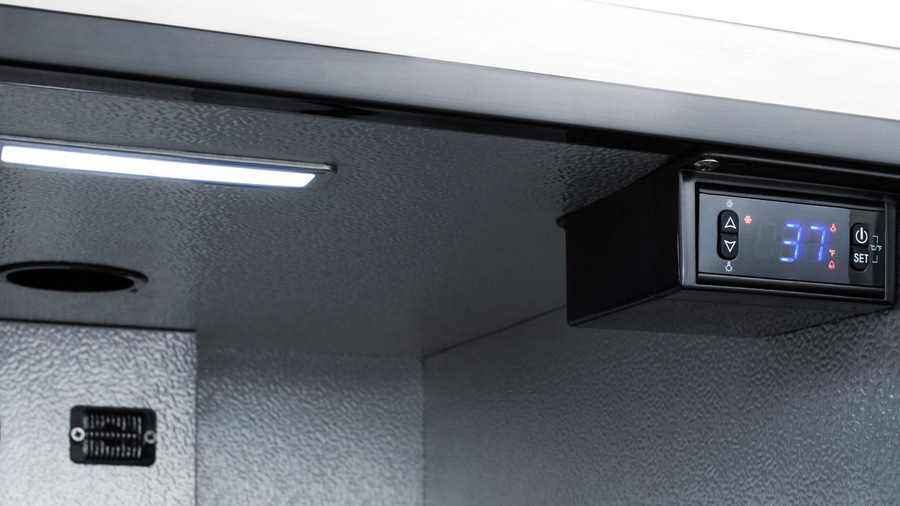

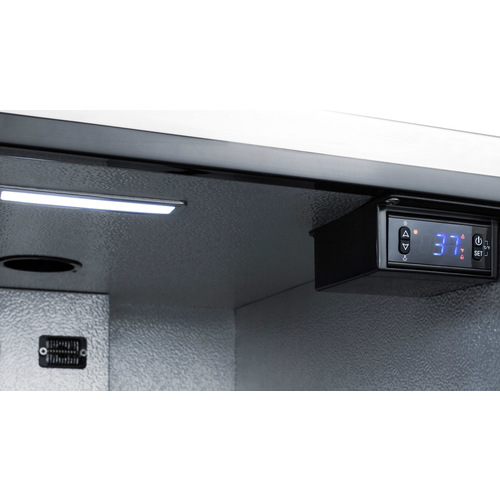

Digital thermostat

Electronic controls ensure easy temperature management for optimum white wine and rosé storage, with a readout viewable in Celsius or Fahrenheit

Automatic defrost

No-frost operation for minimum user maintenance

Factory installed lock

Keyed lock for added security (2 keys included)

Reversible door

User-reversible door swing allows you to easily adjust to better accommodate your setting

Self-closing door

Closing mechanism helps to ensure the door isn't left open to expose kegs to ambient temperature

Casters included (ship unassembled)

Sturdy caster set lets you convert the dispenser for mobile use

Stainless steel guard rail

Durable railing makes it easier to neaten service

Hammered aluminum interior

Added durability for long-lasting use

Stainless steel floor cover

Interior includes steel cover to protect the floor when loading kegs

Open door alarm

Alarm sounds if the door is left open for more than 60 seconds

High/low temperature alarm

Audible alarm sounds if the unit goes out of range

LED lighting

Interior LED lighting automatically illuminates when the door is opened, making it easier to set up your keg

Sealed back

Space saving design with easier cleanability and added protection from the elements

Fully finished cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit Commercial brings quality construction and long-lasting reliability to outdoor and indoor settings with the SBC695OS wine dispenser series.

The SBC695OSWKD is a full-sized weatherproof wine kegerator that can be used indoors or outdoors. It is ETL-S listed to NSF-7 standards and meets UL-471 for commercial applications. The cabinet and door are wrapped in 304 grade stainless steel, with a sealed back designed to protect all electrical components from the elements. This unit features a front-breathing system that allows built-in installation under counters, as well as a fully finished exterior for optional freestanding use. A caster set is included for optional mobility, along with a durable top rail guard. The user-reversible stainless steel door is self-closing to ensure your kegs aren't accidentally exposed to warmer temperature, with an audible alarm that warns if the door is left open for over one minute. This unit includes a stainless steel kickplate and horizontally mounted handle in a sleek blade shape, ideal for matching many popular styles of grills and cabinetry. A factory-installed front lock offers added security.

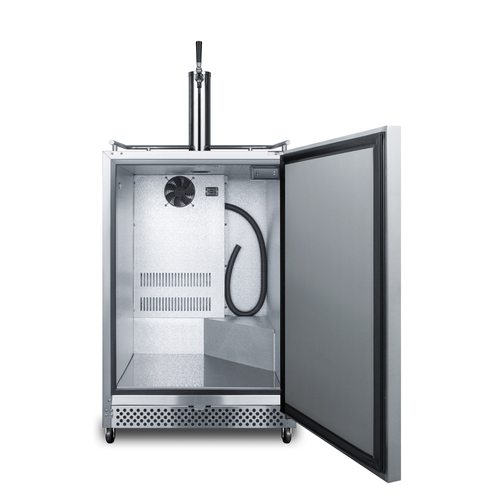

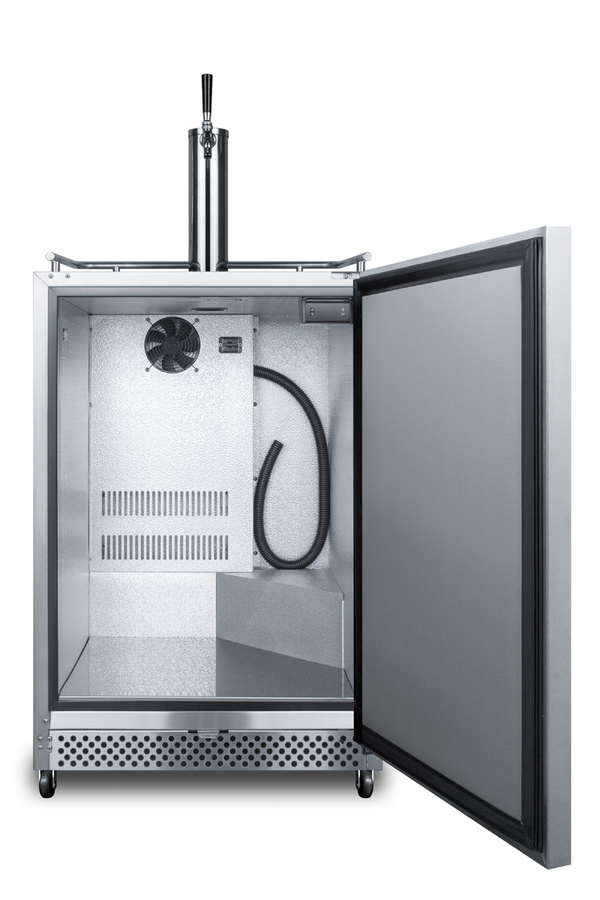

Inside, the SBC695OSWKD comes with hammered aluminum walls and a stainless steel floor designed to protect the interior when loading heavy kegs. A digital thermostat lets you set the wine temperature with reliable precision, with a wide range between 32 and 50ºF to keep white wine and rosé properly chilled. A high/low temperature alarm sounds if the unit's interior goes out of safe storage conditions. We include a complete commercially listed Sankey tap system and draft tower, along with a 5 lb. nitrogen/CO2 tank and regulator. This unit utilizes automatic defrost for low maintenance use. An interior LED light is included to help make the keg setup process more convenient.

With its solid construction, user-friendly features, and attractive design, the SBC695OSWKD is the perfect wine dispenser for indoor or outdoor commercial applications.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
