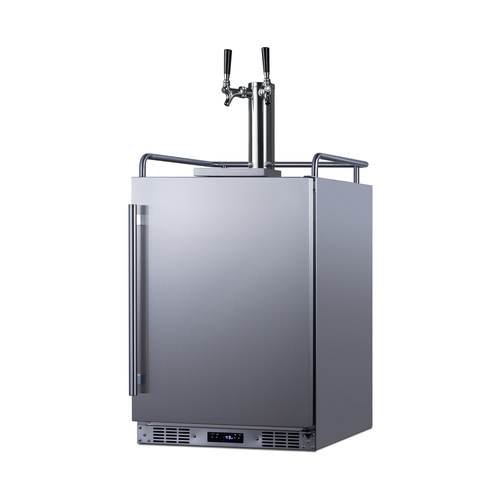

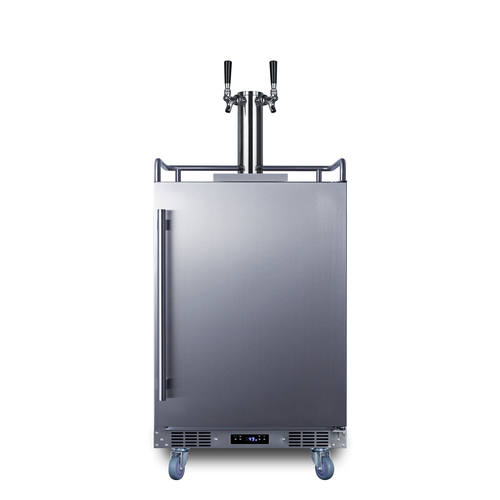

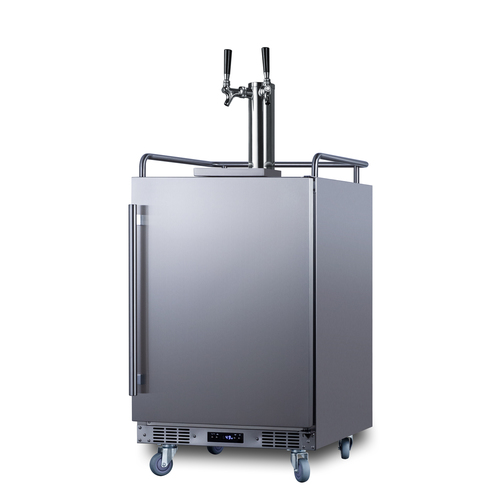

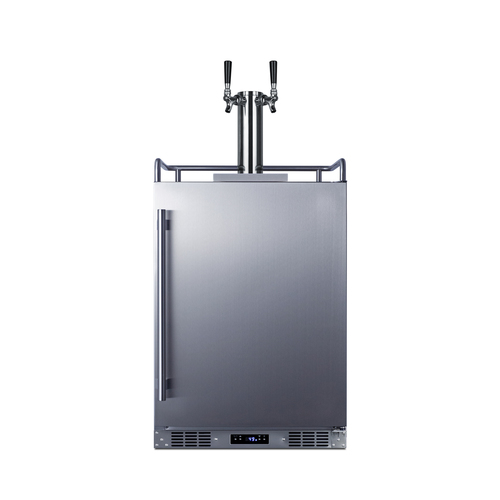

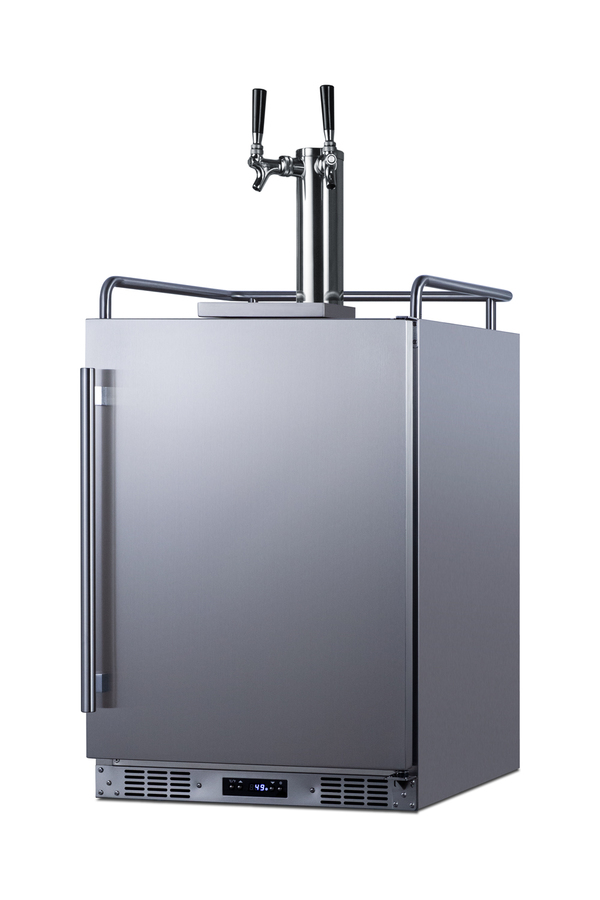

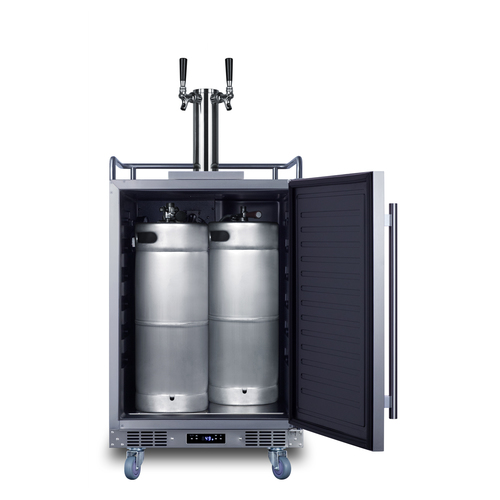

24" Wide Built-In Wine Kegerator

SKU: SBC682WKDTWIN
Versatile construction ideal for indoor/outdoor use in commercial or residential settings
Estimated Time to Ship:

1 to 2 days

This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.
33.63" H x 23.75" W x 24.25" D
(85cm H x 60cm W x 62cm D)

Overview
Height of Cabinet 33.63" (85 cm)
Width 23.75" (60 cm)
Depth 24.25" (62 cm)
Depth with Handle 26.25" (67 cm)
Depth with door at 90° 46.75" (119 cm)
Capacity 5.6 cu.ft. (159 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 305.0kWh/year
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 120.0 lbs. (54 kg)
Shipping Weight 130.0 lbs. (59 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101083988
Kegerator
Door Swing RHD
Reversible Yes
Tap Kit Yes
Height with Tap 51.5" (131 cm)
Number of Taps 2
Adjustable Shelves Yes
Shelf Type Chrome
Shelf Qty 2
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant R600a
Refrigerant Amount 1.06 oz.
High Side PSI 150.0
Low Side PSI 50.0
Inter Height 26.75" (68 cm)
Interior Width 20.0" (51 cm)
Interior Depth 19.0" (48 cm)
Level Legs Qty 4
Wheel Qty 4
Temperature Range 34°F to 68°F (1°C to 20°C)
Sound Level 34.0 db

Exterior
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.

Large capacity wine kegerator

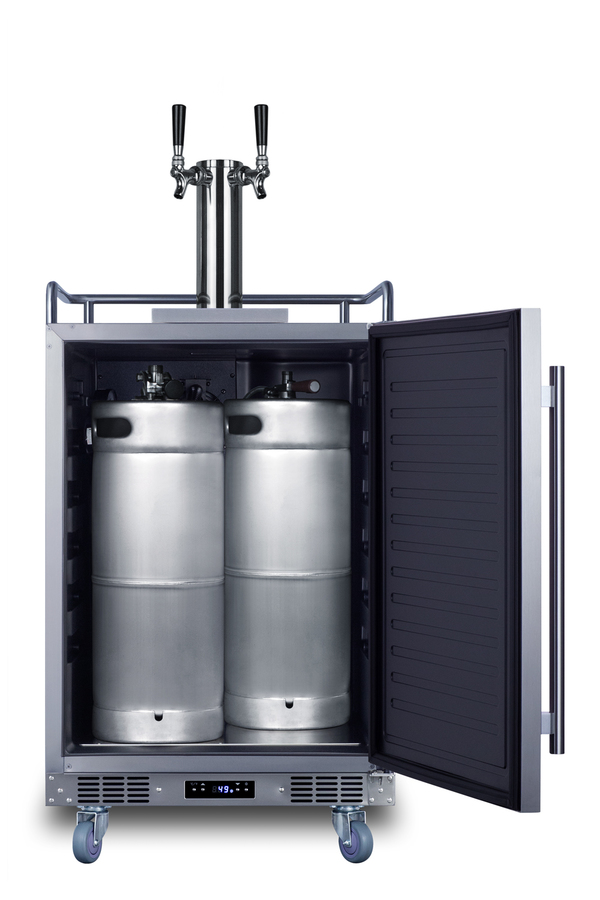

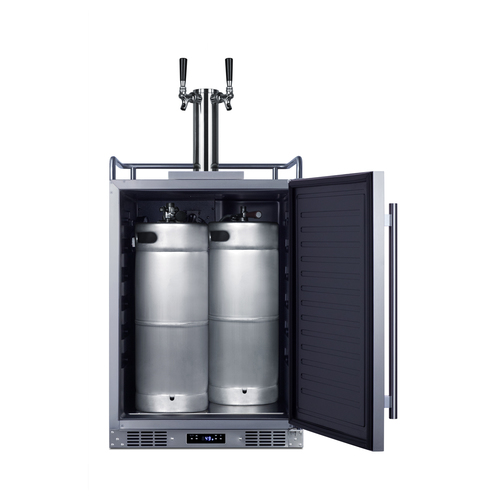

5.6 cu.ft. interior can accept a full half barrel or quarter keg, or up to three sixth barrels or Cornelius style kegs

Commercially approved

ETL-S listed to NSF-7 standards and meets UL-471 for use in commercial settings

Weatherproof design

Solid 304 grade stainless steel construction allows placement in the outdoors

Built-in capable

Front-breathing design allows fully recessed installation under counters

Complete dual tap kit

Ships with a complete twin tap wine tap kit that includes a dispenser tower, regulator, and all the connection equipment you need to serve from a 1/6 wine keg or disposable wine keg

Nitrogen/CO2 tank included

Canister is best suited for a 75% nitrogen/25% CO2 mixture

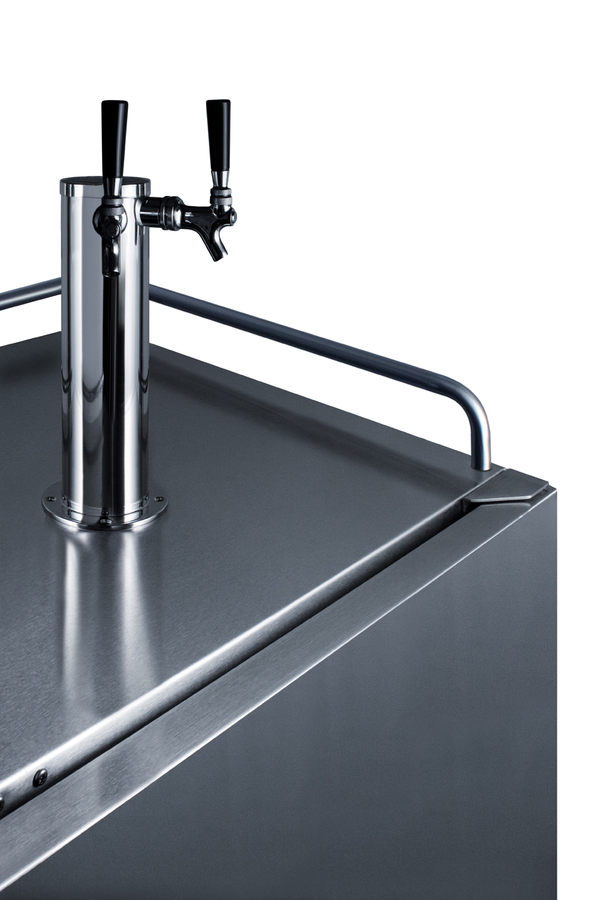

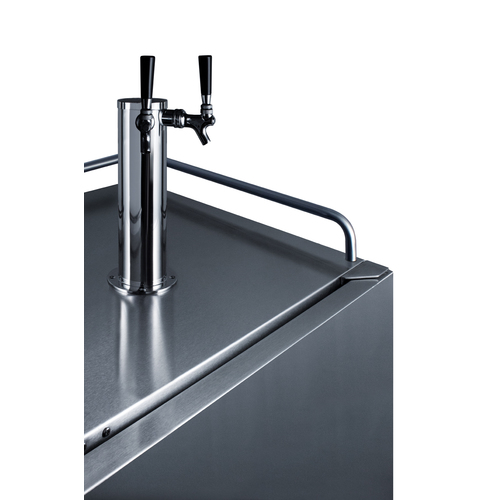

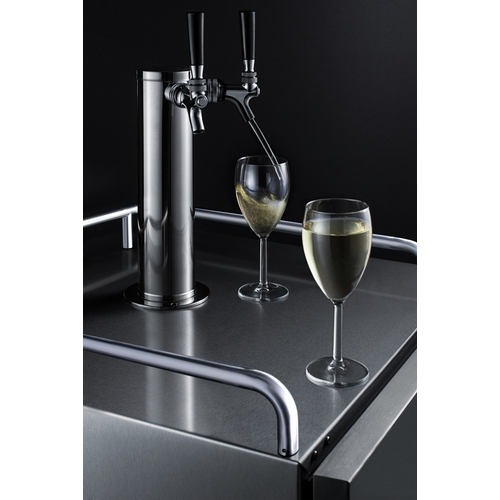

Dual tap system

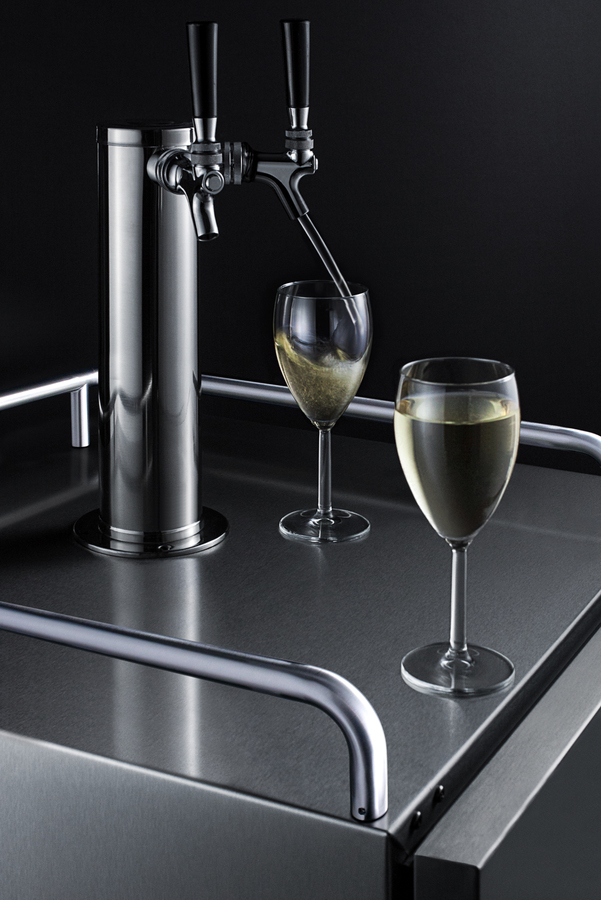

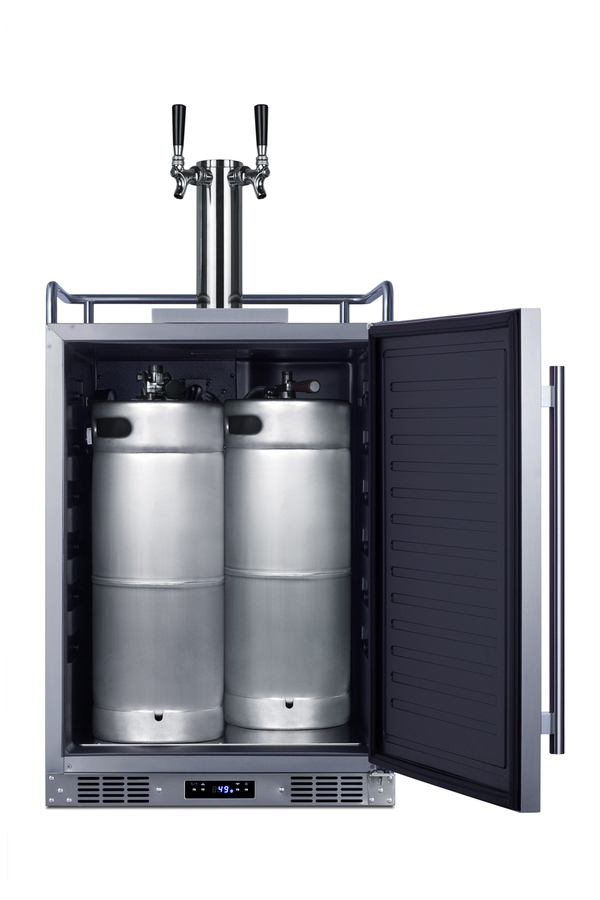

Twin draft tower allows you to serve from two 1/6 (sixtel) sized wine kegs

Automatic defrost

Reduced user maintenance with auto defrost operation

Digital thermostat

Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit

Tap cool system

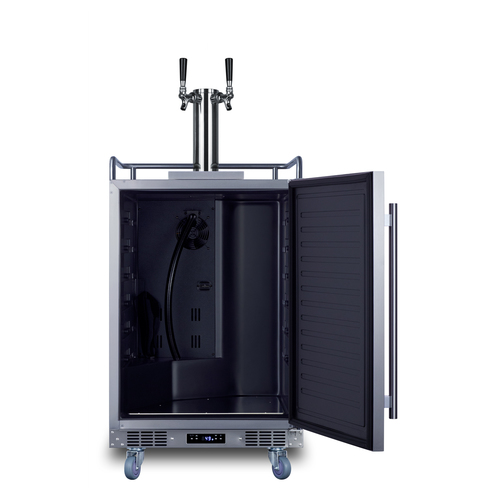

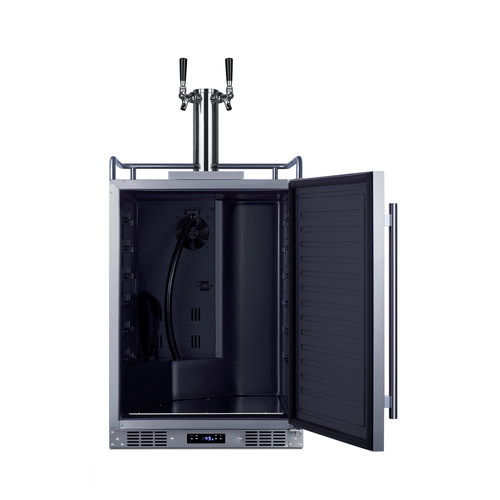

Interior tube allows you to extend the cold air flow up into draft tower, ensuring wine freshly tapped stays chilled

Stainless steel floor cover

Interior includes steel cover to protect the floor when loading kegs

Top guard rail (ships unassembled)

Attractive chrome guard rail helps to reduce spills and neaten service

Stainless steel drip tray

Removable two-piece drip tray catches spills to help contain the mess

Adjustable shelves

2 chrome shelves (with six placement options) allow unit to also function as a beverage refrigerator

Memory IC function

Recovers the unit's last settings in the case of a power outage or disruption

Reversible door

User-reversible door swing for added flexibility

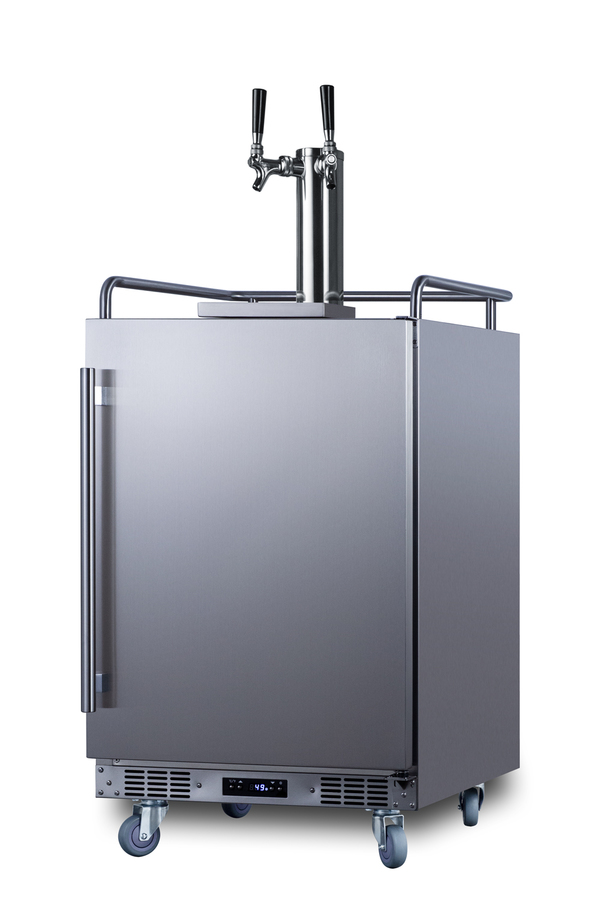

Casters included (ship unassembled)

Four casters (two locking) afford easy portability

Pro style handle

Stainless steel handle adds style to any setting

Fully finished stainless steel cabinet

Allows the dispenser to be used freestanding

Sealed back

Space saving design with easier cleanability

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit manufactures a complete line of versatile built-in kegerators designed for indoor/outdoor use in commercial or residential settings.

The SBC682WKDTWIN is a full-sized wine kegerator that can be used indoors or outdoors. It is ETL-S listed to NSF-7 and meets UL-471 standards for use in commercial establishments. Sized at just 24" wide, it features a weatherproof 304 grade exterior for long-lasting durability safe for use in outdoor settings. The front-breathing system allows built-in installation, while the fully finished cabinet and included caster set make for easy freestanding, portable use. This unit features a user-reversible stainless steel door with a pro style vertically mounted handle. The sealed back allows for easy cleaning of the unit. Additional features include a removable two-piece stainless steel drip tray to collect spills and a chrome guard rail to help keep glasses in place.

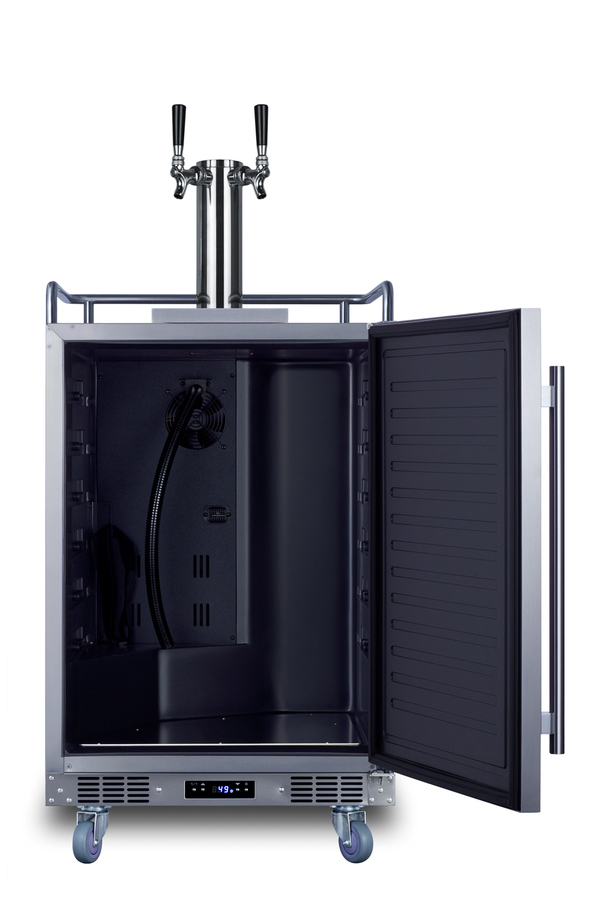

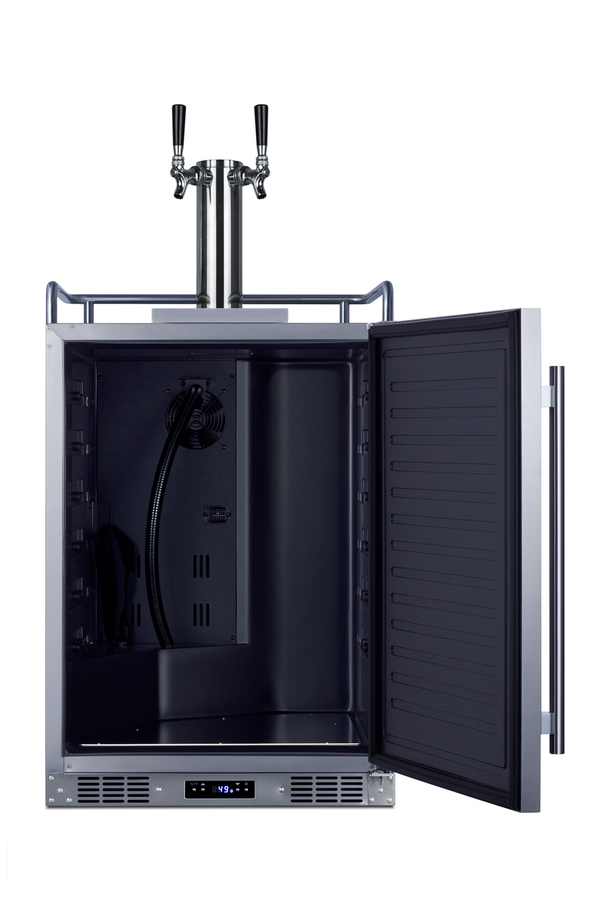

Inside, the 5.6 cu.ft. interior can accommodate a full half or slim quarter keg, or up to three Cornelius or sixth barrel kegs. A digital thermostat lets you set easily manage the unit temperature, with a wide range between 34°F to 68°F to keep your whites or reds under proper storage conditions. We include a complete commercially listed dual tap Sankey tap system and draft tower, along with a nitrogen/CO2 tank and regulator. Two chrome shelves, with six placement options, allow the kegerator to also function as a beverage refrigerator. A tap cool system keeps your wine chilled as it goes through your tower, and a Velcro strap holds the tank in place. The interior floor is made from stainless steel to add protection when loading and removing kegs. Automatic defrost operation ensures minimal user maintenance. The Memory IC function recovers the unit's last settings in the case of a power outage or disruption.

With its solid construction, user-friendly features, and attractive design, the SBC682WKDTWIN is the perfect wine dispenser for indoor or outdoor commercial settings. Additional choices are available with alternate tapping options, including choices to dispense beer and coffee. Browse the full Summit line to explore all of your options.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
