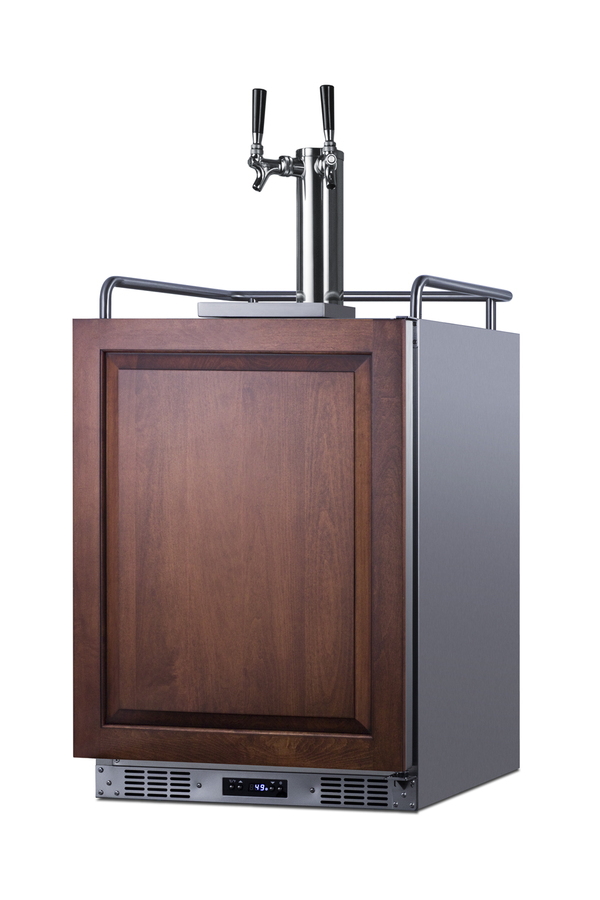

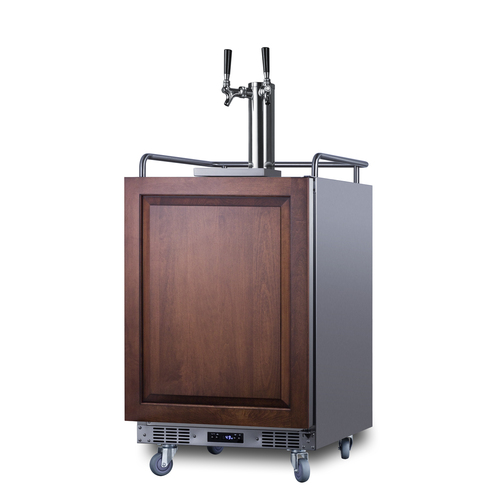

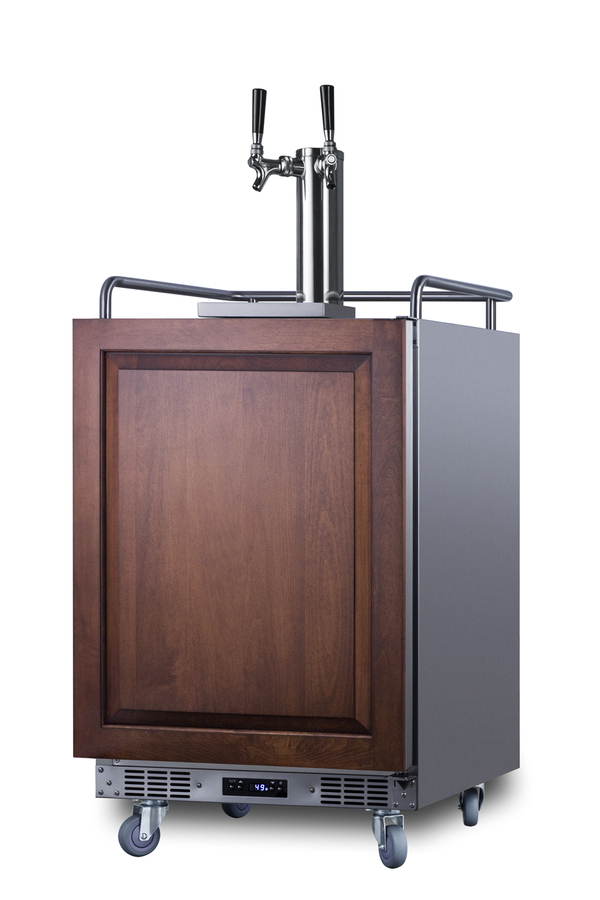

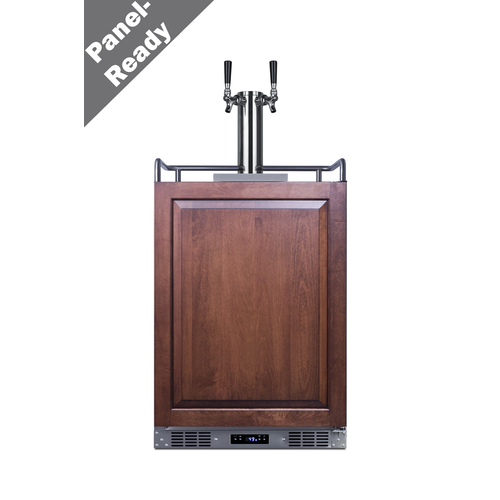

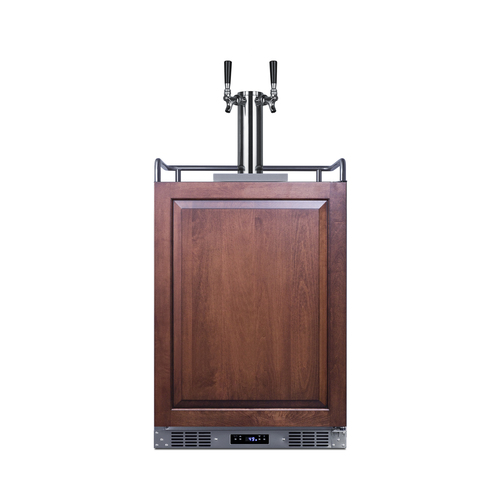

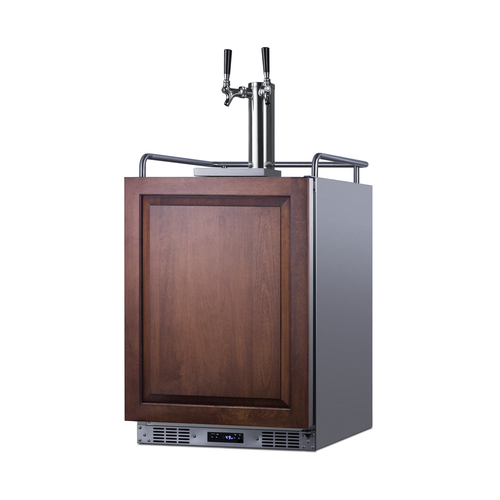

24" Wide Built-In Kegerator (Panel Not Included)

SKU: SBC682PNRTWIN
Panel-ready door allows you to customize the front to achieve the perfect style for every indoor or outdoor kitchen space
Estimated Time to Ship:

2 to 4 days

# of Taps:
1 2 3
Color: Panel-Ready

*Additional features may vary

This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.
33.63" H x 23.75" W x 24.75" D
(85cm H x 60cm W x 63cm D)

Overview
Nominal Height 34.0" (86 cm)
Height of Cabinet 33.63" (85 cm)
Nominal Width 24.0" (61 cm)
Width 23.75" (60 cm)
Nominal Depth 25.0" (64 cm)
Depth 24.75" (63 cm)
Depth with door at 90° 46.75" (119 cm)
Capacity 5.6 cu.ft. (159 L)
Defrost Type Automatic
Door Panel-Ready
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 305.0kWh/year
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 120.0 lbs. (54 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101083964
Kegerator
Door Swing RHD
Reversible Factory Reversible
Tap Kit Yes
Height with Tap 51.5" (131 cm)
Number of Taps 2
Adjustable Shelves Yes
Shelf Type Chrome
Shelf Qty 2
Thermostat Type Digital
Fan Type Interior
Refrigerant R600a
Refrigerant Amount 1.06 oz.
High Side PSI 150.0
Low Side PSI 50.0
Inter Height 26.75" (68 cm)
Interior Width 20.0" (51 cm)
Interior Depth 19.0" (48 cm)
Level Legs Qty 4
Wheel Qty 4
Temperature Range 34°F to 68°F (1°C to 20°C)
Sound Level 34.0 db

Exterior
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)
LHD - Left hand door swing
Door reversal to left hand swing

Large capacity kegerator

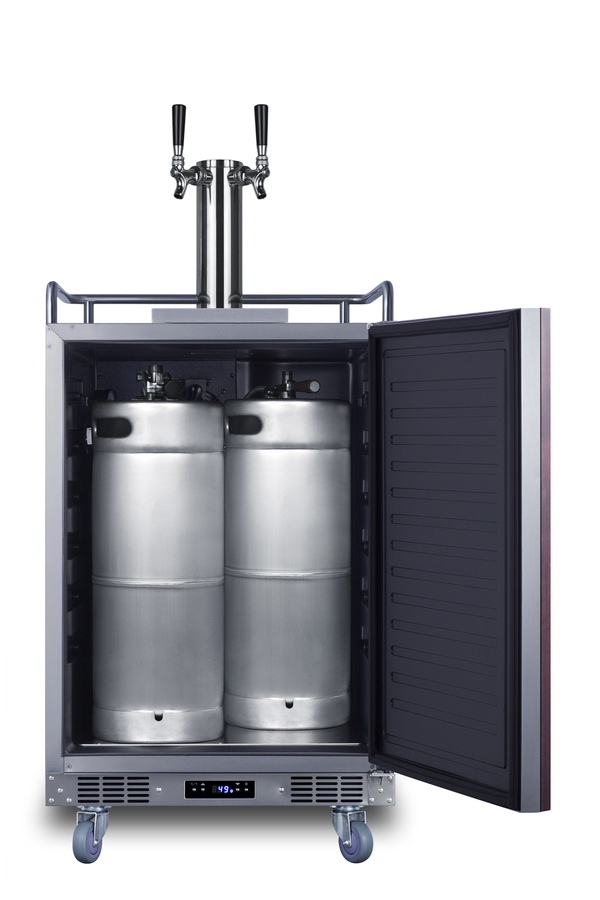

5.6 cu.ft. interior can accept a full half barrel keg, two slim quarter kegs, or up to three sixth barrel or Cornelius style kegs

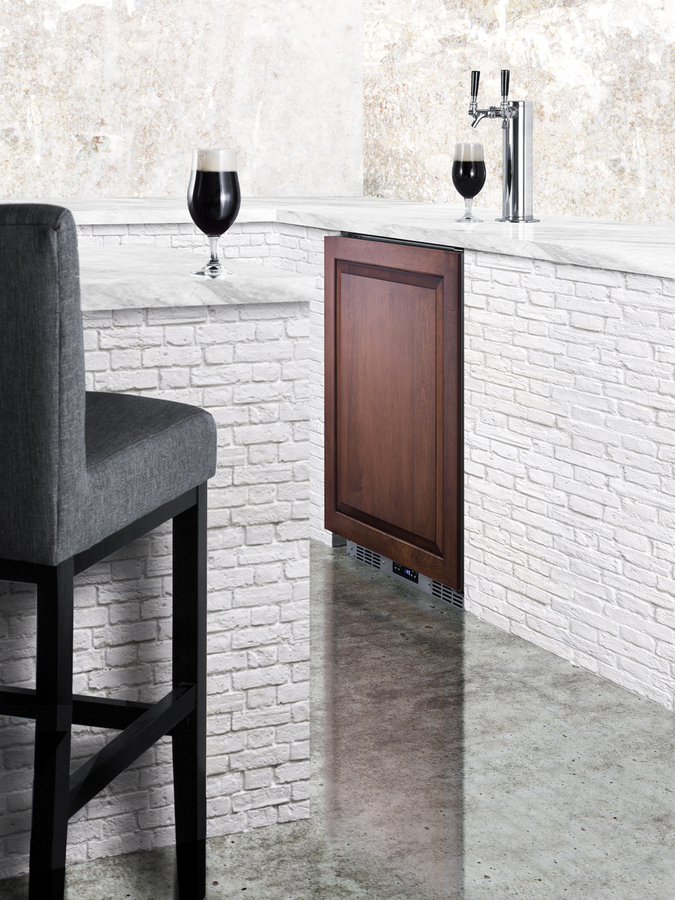

Built-in capable

Front-breathing design allows fully recessed installation under counters

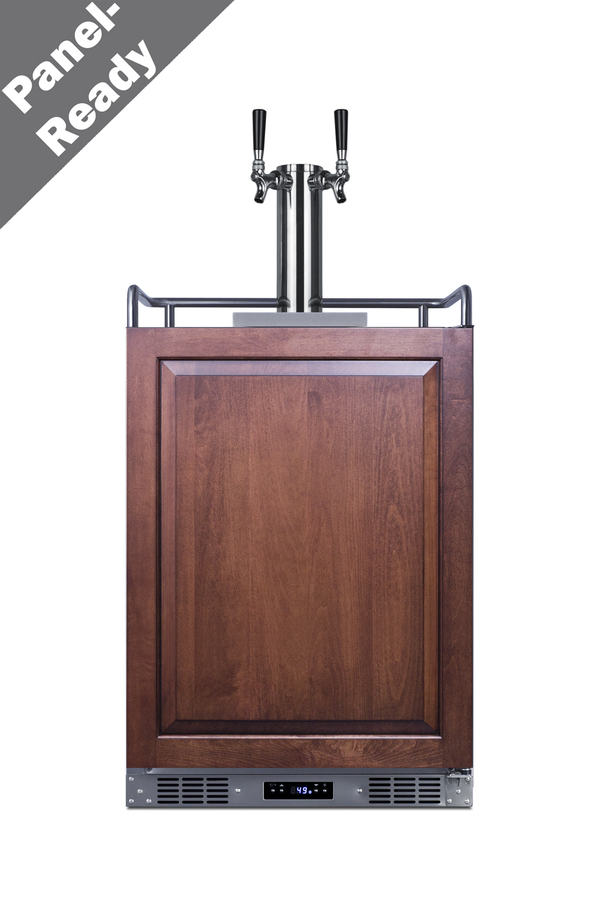

Panel-ready door

Extended hinging allows you to install your own panel overlay on the door, creating a custom look to complement or blend into your own cabinetry (panel size: 29 3/4" H x 23 5/16" W at a 3/4" thickness)

Indoor/Outdoor compatible

Weatherproof construction for safe use in the outdoors

Durable design

Solid 304 grade stainless steel construction ensures long-lasting durability

Complete tap kit

Includes a 5 lb. CO2 tank and regulator, dual tap draft arm, Sankey American tap, and connection hardware

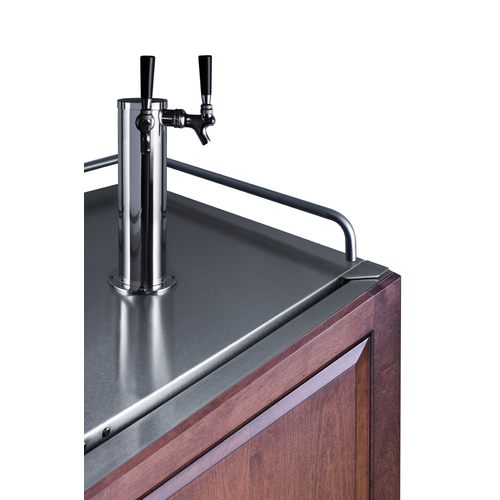

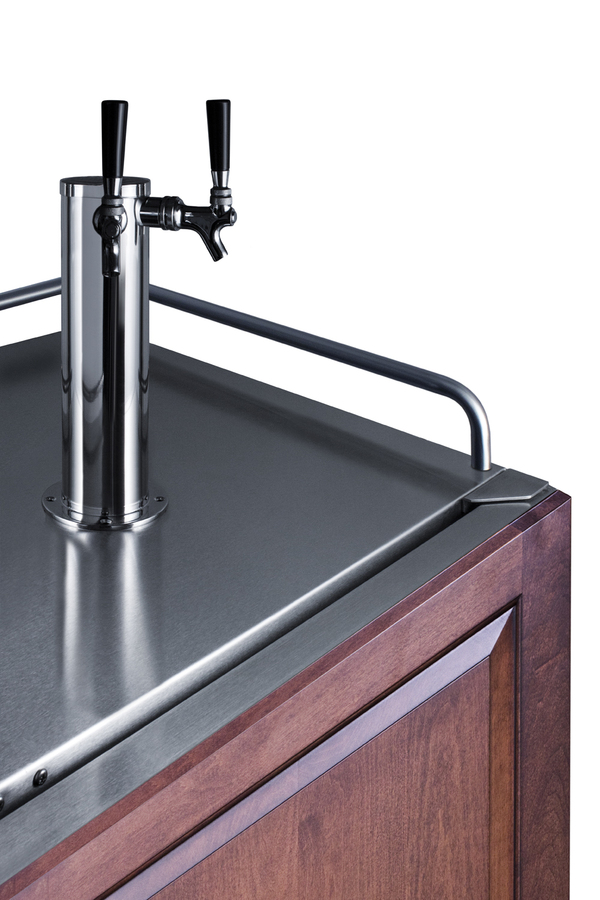

Twin tap system

Twin draft tower allows you to serve from two slim quarter kegs

Automatic defrost

Reduced user maintenance with auto defrost operation

Digital thermostat

Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit

Tap cool system

Keeps cold air flowing to the tower for consistently cold beer

Stainless steel floor cover

Interior includes steel cover to protect the floor when loading kegs

Top guard rail (ships unassembled)

Attractive chrome guard rail helps to reduce spills and neaten service

Stainless steel drip tray

Removable two-piece drip tray catches spills to help contain the mess

Wire shelves

2 wire shelves (with six placement options) allow unit to also function as a beverage refrigerator

Memory IC function

Recovers the unit's last settings in the case of a power outage or disruption

Fully finished stainless steel cabinet

Allows the dispenser to be used freestanding

Sealed back

Space saving design with easier cleanability

Right hand door swing

Default swing is RHD. For hinges that will allow this door to open from the left, add upgrade "LHDHinge"

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit manufactures a complete line of versatile kegerators capable of built-in installation in indoor or outdoor home settings.

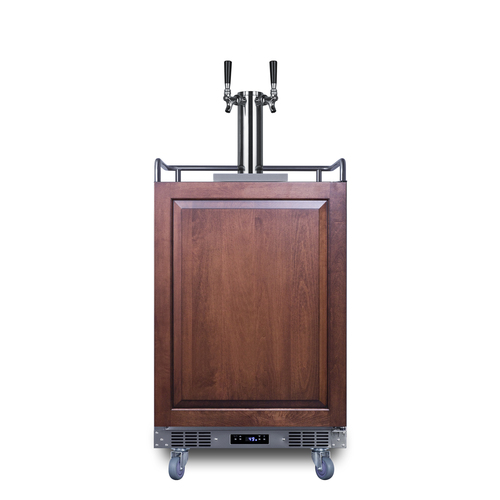

The SBC682PNRTWIN is a full-sized dual tap beer dispenser approved for both residential or commercial use. Sized at just 24" wide, it features a front-breathing system for built-in installation and a fully-finished cabinet that also allows freestanding use, with an included caster set for optional mobility. The exterior features 304 grade stainless steel construction for safe, weatherproof use in the outdoors. The door is designed to accept overlay panels (sized at 29 3/4" H x 23 5/16" W at a 3/4" thickness) to allow you to create a custom look to best suit your own kitchen design. This unit ships with a right hand door swing. For a left hand version, add option "LHDHinge." Additional features include a removable two-piece stainless steel drip tray to collect spills and a chrome guard rail to help keep glasses and mugs in place. This unit has a sealed rear for added protection from the elements.

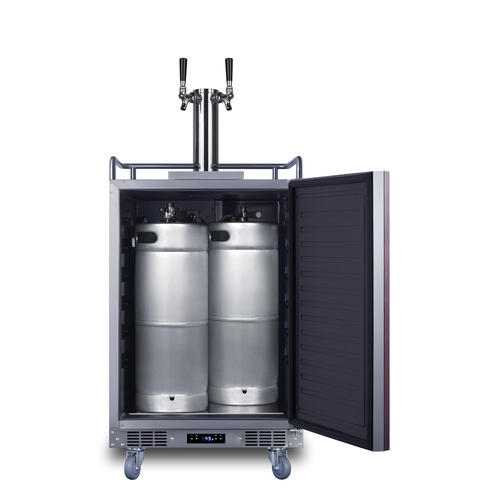

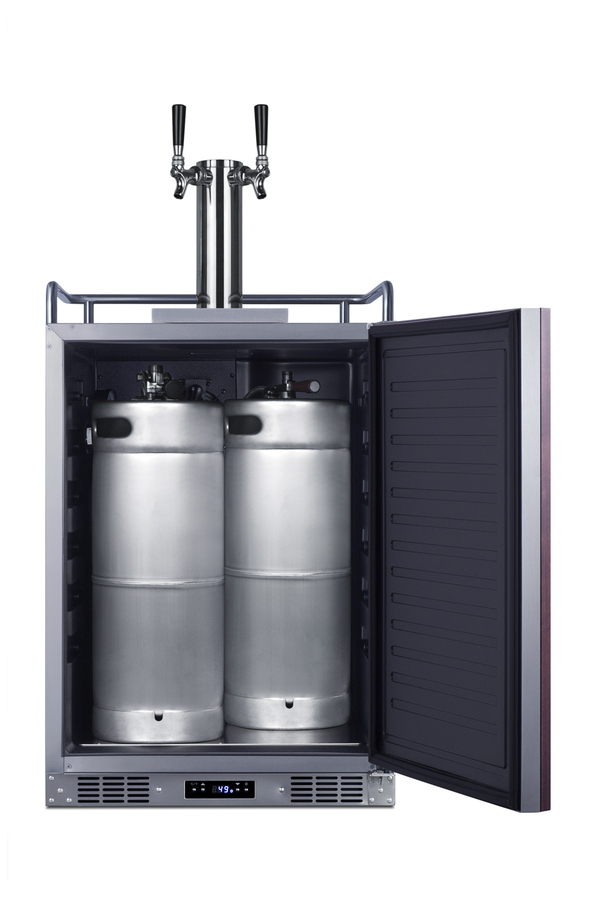

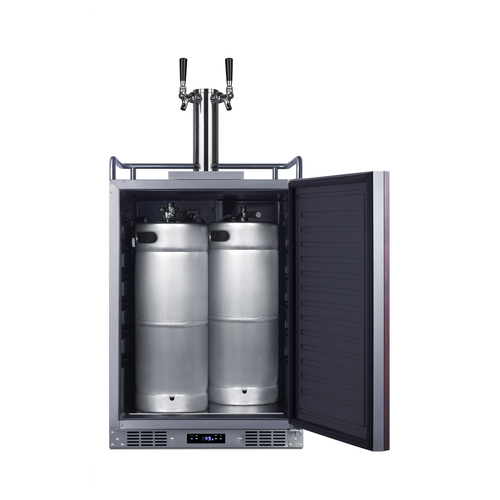

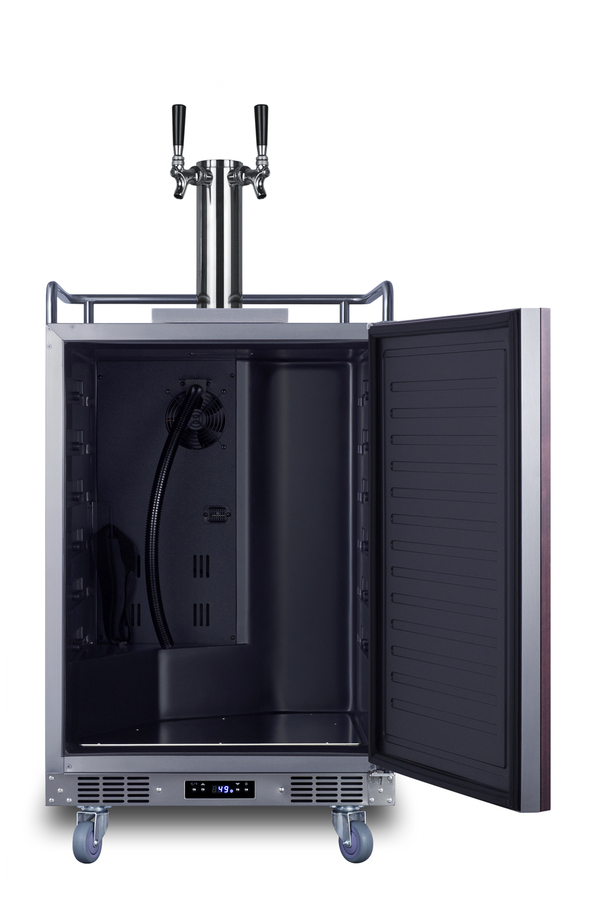

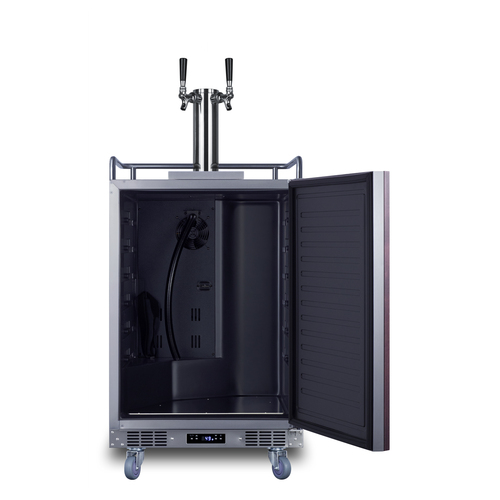

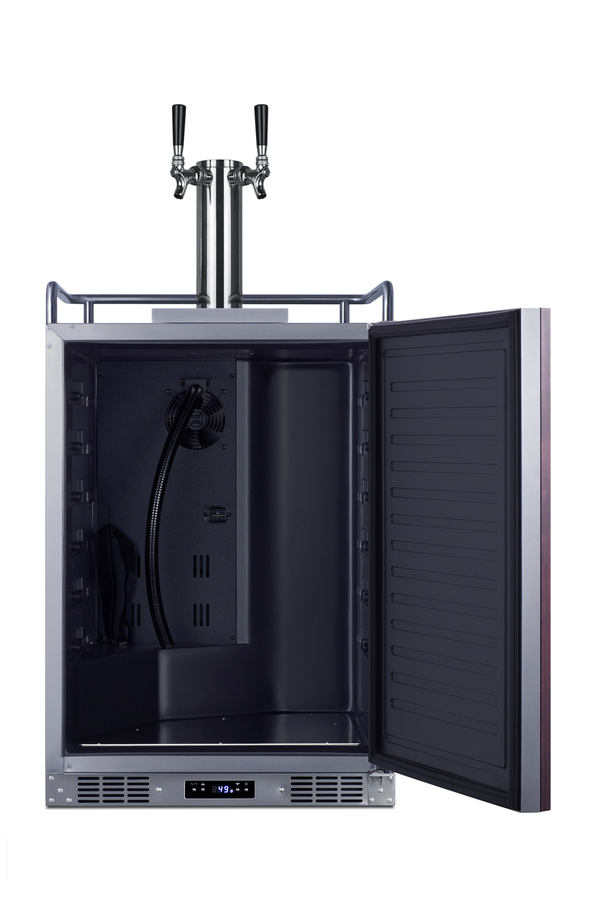

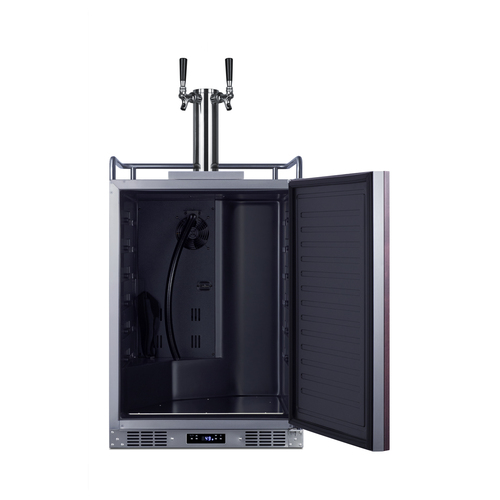

Inside, the 5.6 cu. ft. interior can accommodate a full half or quarter keg, or up to three Cornelius or sixth barrel kegs. We include a complete commercial grade dual tap kit for dispensing your favorite beer, including a Sankey tap system and twin tap draft tower, along with a CO2 tank and regulator. A tap cool system keeps your beer cold as it goes through your tower, and a Velcro strap holds the tank in place. The floor is constructed from stainless steel for added protection when loading and removing kegs. Two chrome shelves, with six placement options, allow the kegerator to also function as a beverage refrigerator. A digital thermostat makes it easy to manage the wide range temperature, while the external digital display has a readout in Celsius or Fahrenheit. Automatic defrost operation ensures minimal user maintenance. The Memory IC function recovers the unit's last settings in the case of a power outage or disruption.

With its solid construction, user-friendly features, and attractive design, the SBC682PNRTWIN is the perfect beer dispenser for indoor or outdoor kitchens. Additional choices are available with alternate tapping options, including choices to dispense wine and coffee. Browse the full Summit line to explore all of your options.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
