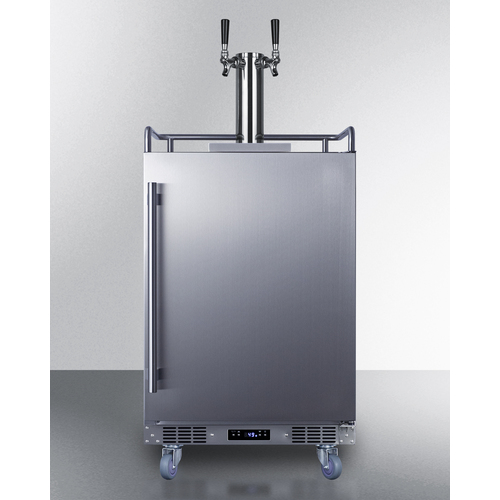

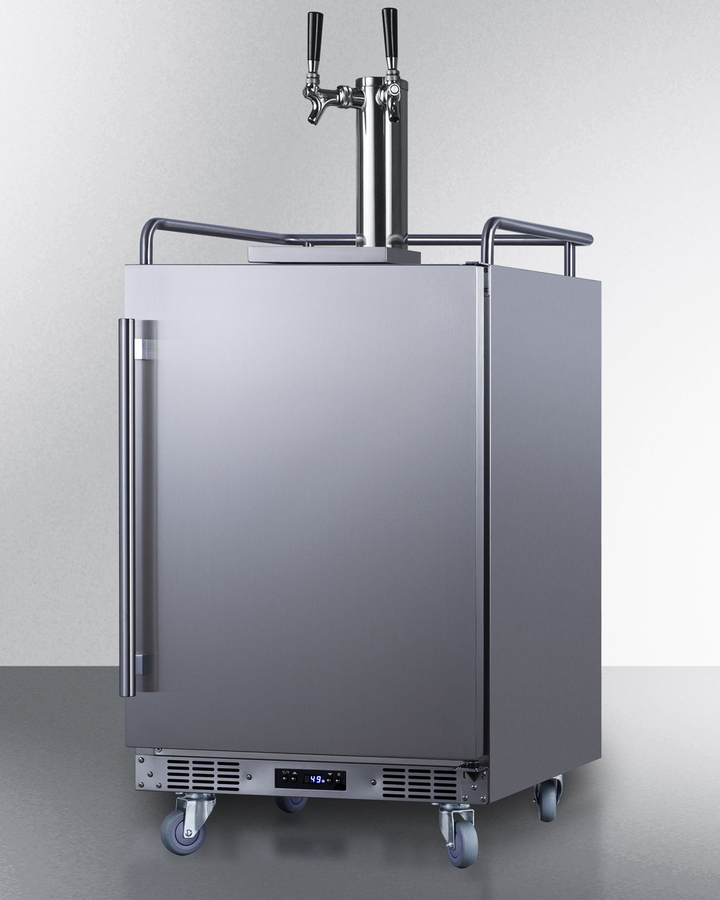

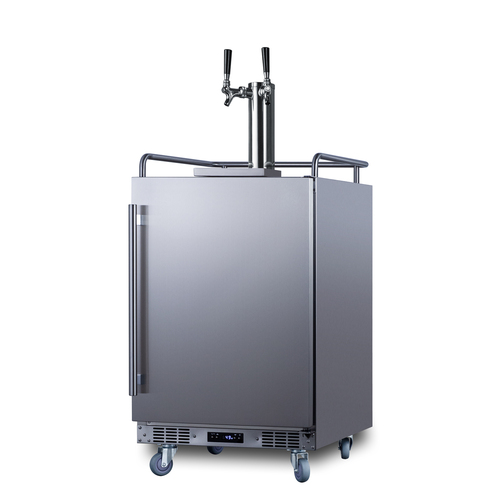

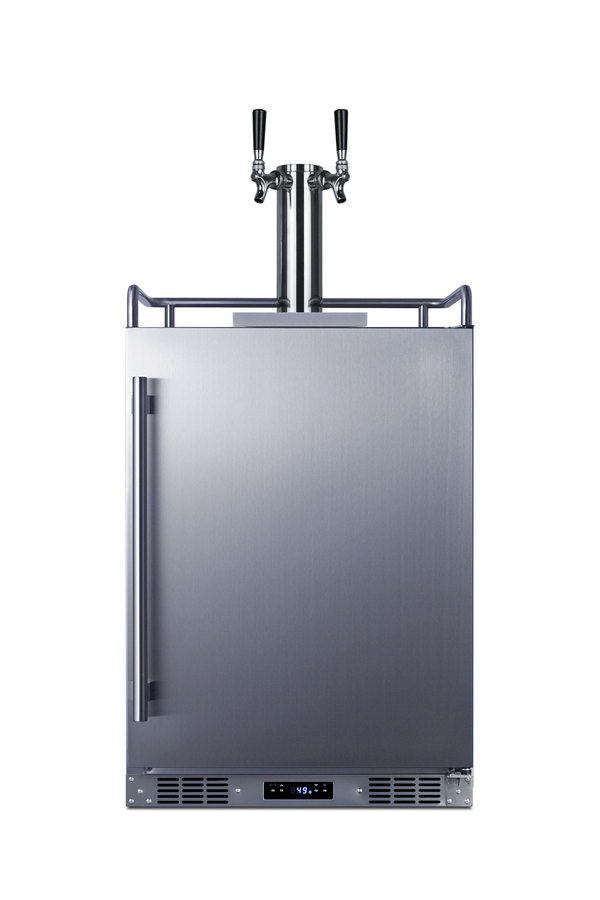

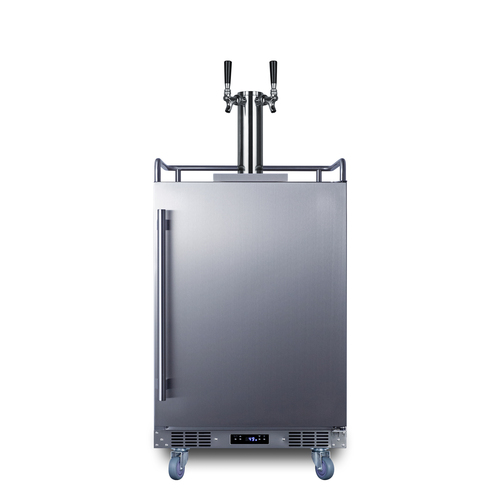

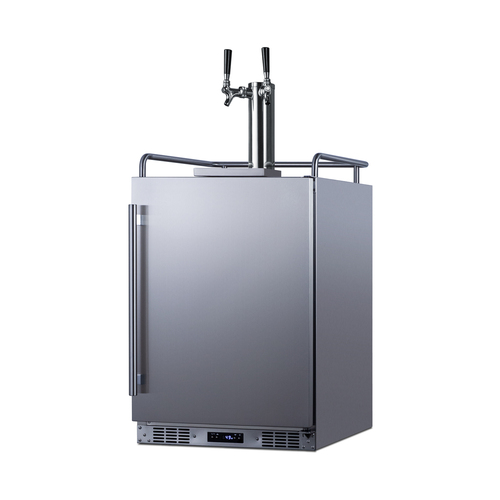

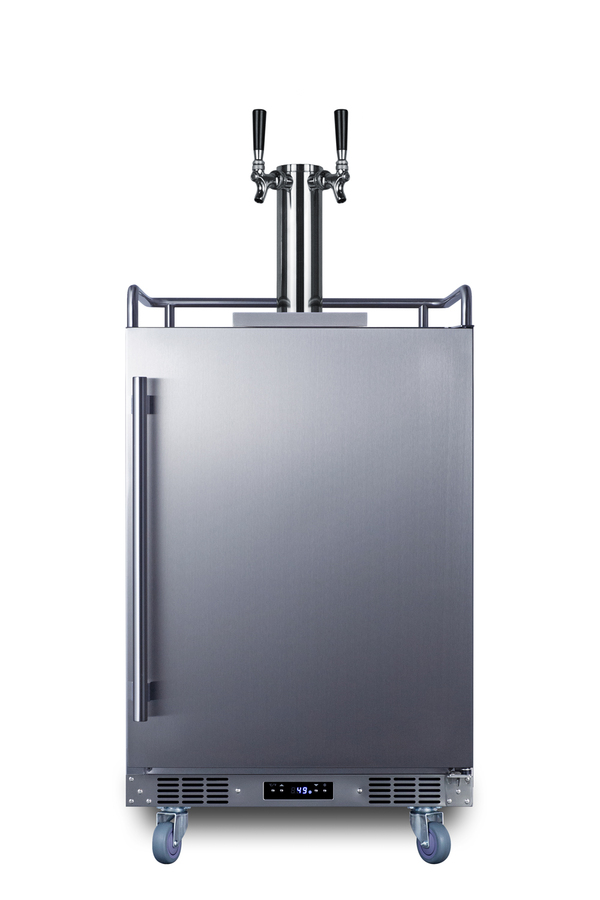

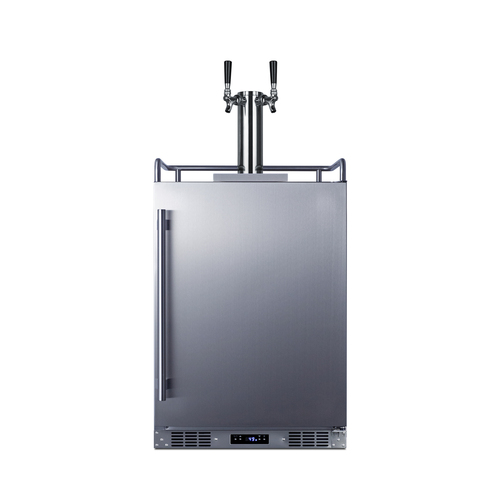

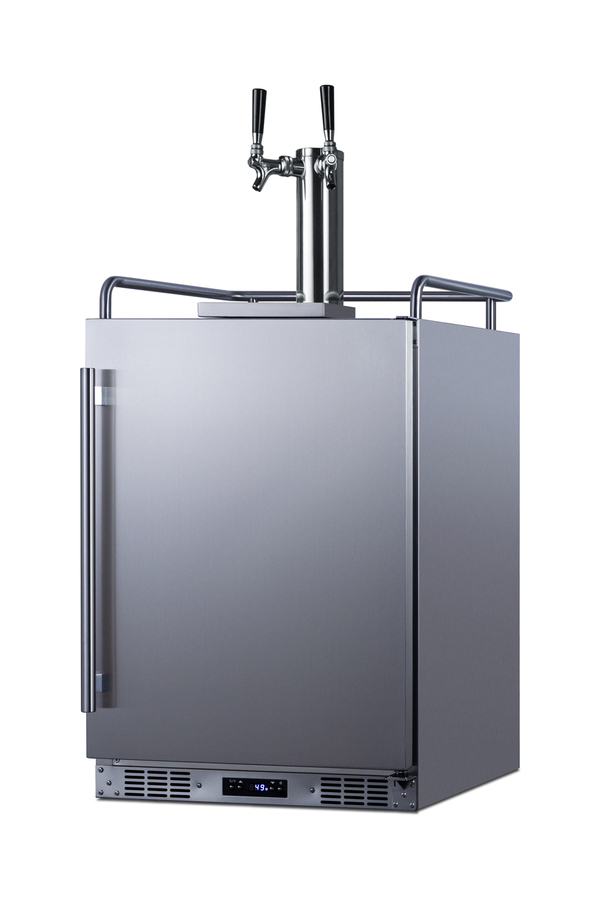

24" Wide Built-In Outdoor Beer & Coffee Kegerator
1 to 2 days
Beer Wine Nitro Coffee Cold Brew Coffee Combo Nitro/Cold Brew Coffee No Tap Kit Combo Beer/Coffee Combo Beer/Wine
*Additional features may vary

(85cm H x 60cm W x 61cm D)
SPECIFICATIONS
Overview
|
|
---|---|
Nominal Height | 34.0" (86 cm) |
Height of Cabinet | 33.63" (85 cm) |
Nominal Width | 24.0" (61 cm) |
Width | 23.75" (60 cm) |
Nominal Depth | 24.0" (61 cm) |
Depth | 24.0" (61 cm) |
Depth with Handle | 26.25" (67 cm) |
Depth with door at 90° | 46.75" (119 cm) |
Capacity | 5.6 cu.ft. (159 L) |
Defrost Type | Automatic |
Door | Stainless Steel |
Cabinet | Stainless Steel |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Energy Usage/Year | 305.0kWh/year |
Amps | 1.25 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 120.0 lbs. (54 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101156675 |
Kegerator
|
|
Door Swing | RHD |
Reversible | Yes |
Tap Kit | Yes |
Height with Tap | 51.5" (131 cm) |
Number of Taps | 2 |
Adjustable Shelves | Yes |
Shelf Type | Chrome |
Shelf Qty | 2 |
Thermostat Type | Digital |
Fan Type | Interior and Exterior |
Refrigerant | R600a |
Refrigerant Amount | 1.06 oz. |
High Side PSI | 150.0 |
Low Side PSI | 50.0 |
Inter Height | 26.75" (68 cm) |
Interior Width | 20.0" (51 cm) |
Interior Depth | 19.0" (48 cm) |
Level Legs Qty | 4 |
Wheel Qty | 4 |
Temperature Range | 34°F to 68°F (1°C to 20°C) |
Sound Level | 34.0 db |
AVAILABLE UPGRADES
Exterior | ||
---|---|---|
|
FEATURES
Dual tap kegerator dispenses both beer and coffee
Ships with a complete twin tap kit that includes a dual dispenser tower, regulators, and all the connection equipment you need to serve from a 1/6 beer or coffee keg
Solid 304 grade stainless steel construction allows placement in the outdoors

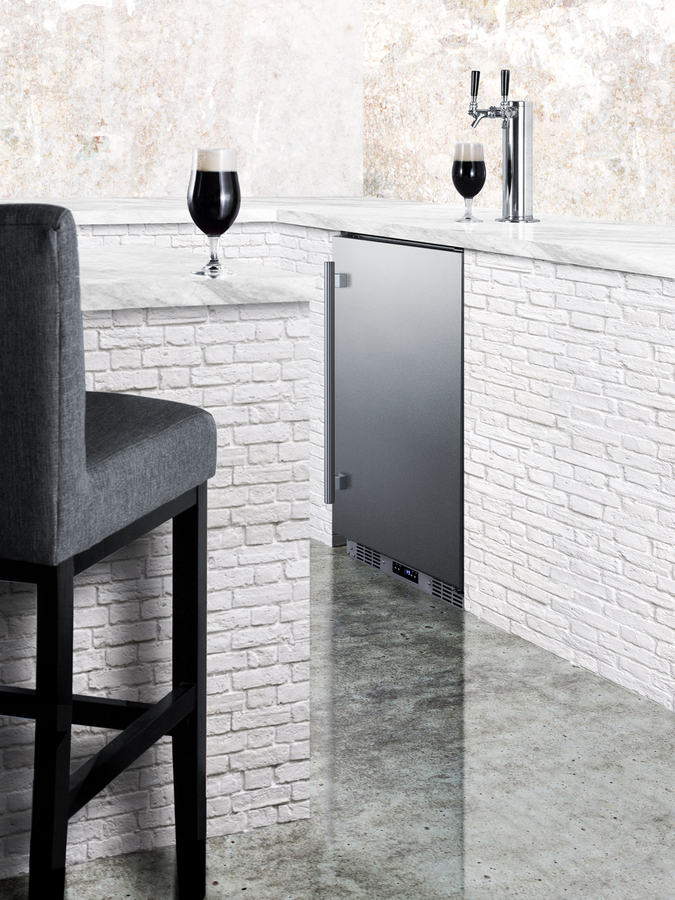

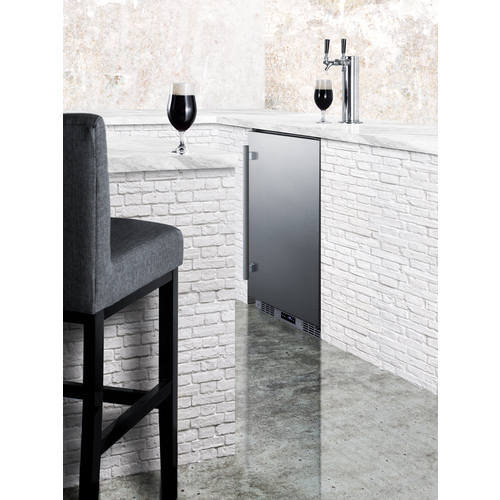

Front-breathing design allows fully recessed installation under counters
ETL-S listed to NSF-7 Standards for use in commercial establishments
Reduced user maintenance with auto defrost operation
Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit

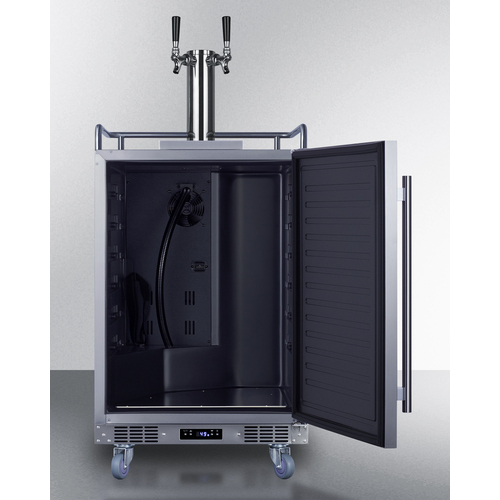

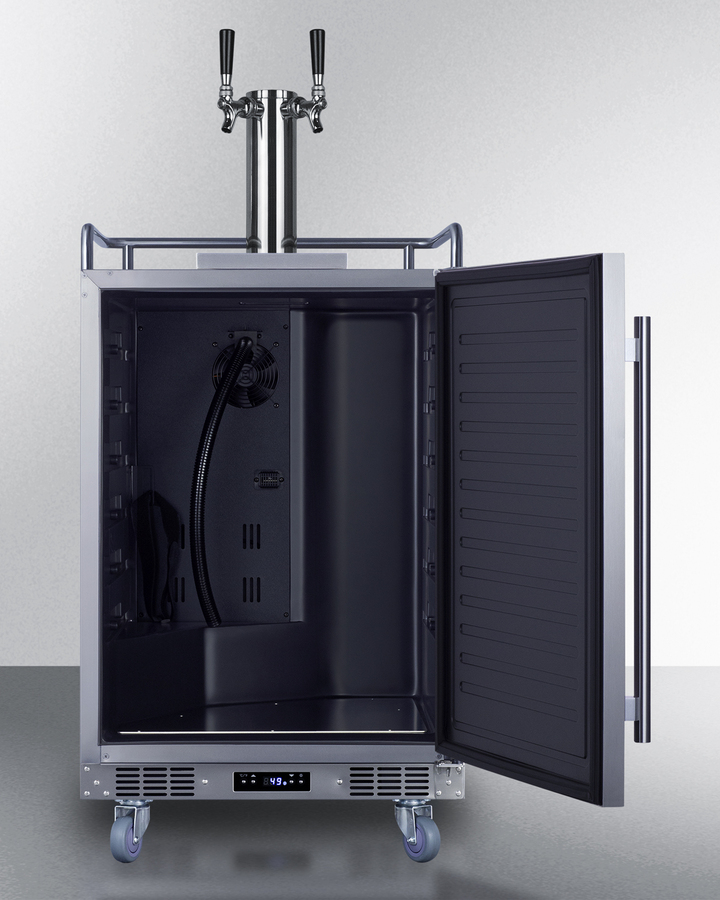

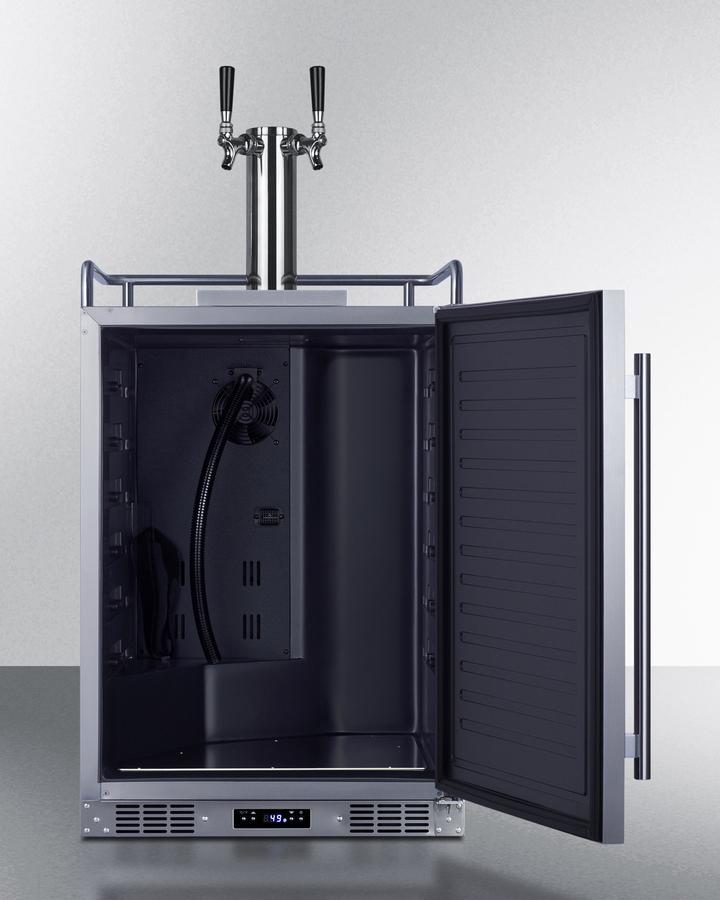

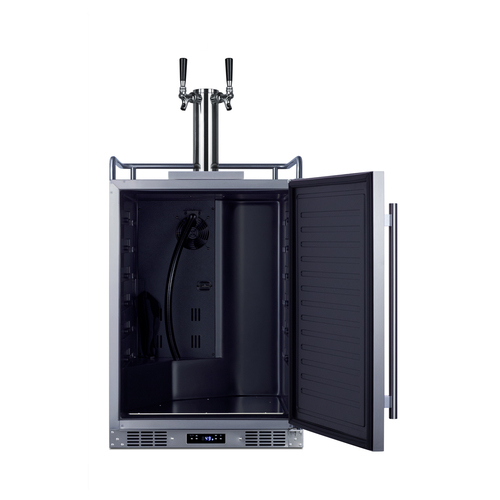

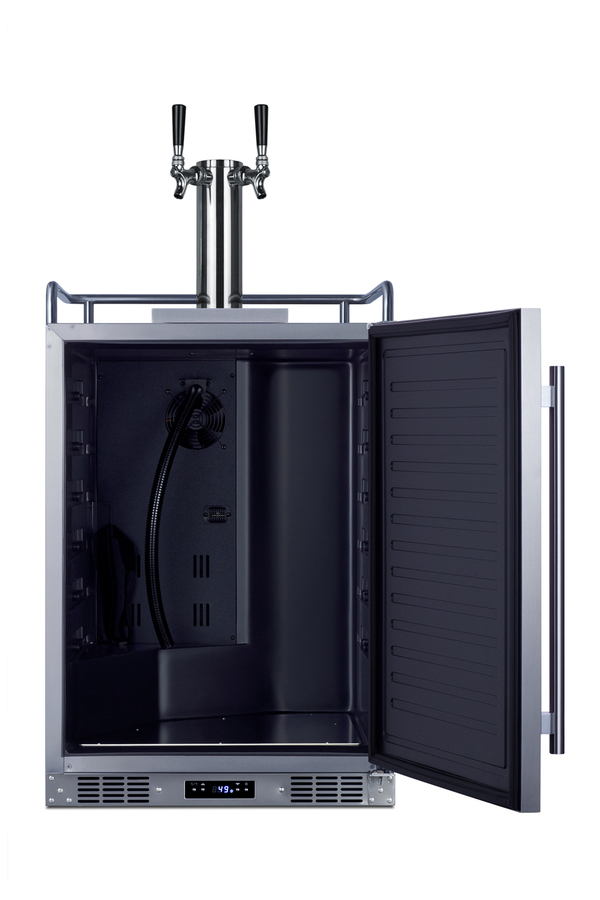

Interior tube allows you to extend the cold air flow up into draft tower, ensuring beer freshly tapped stays cold
Ships with a CO2 tank for beer and nitrogen tank for coffee
Interior includes steel cover to protect the floor when loading kegs

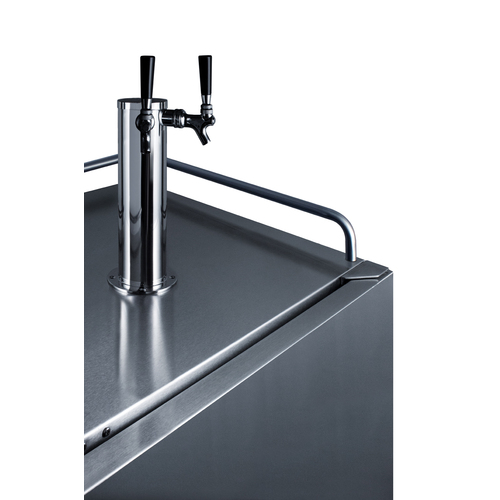

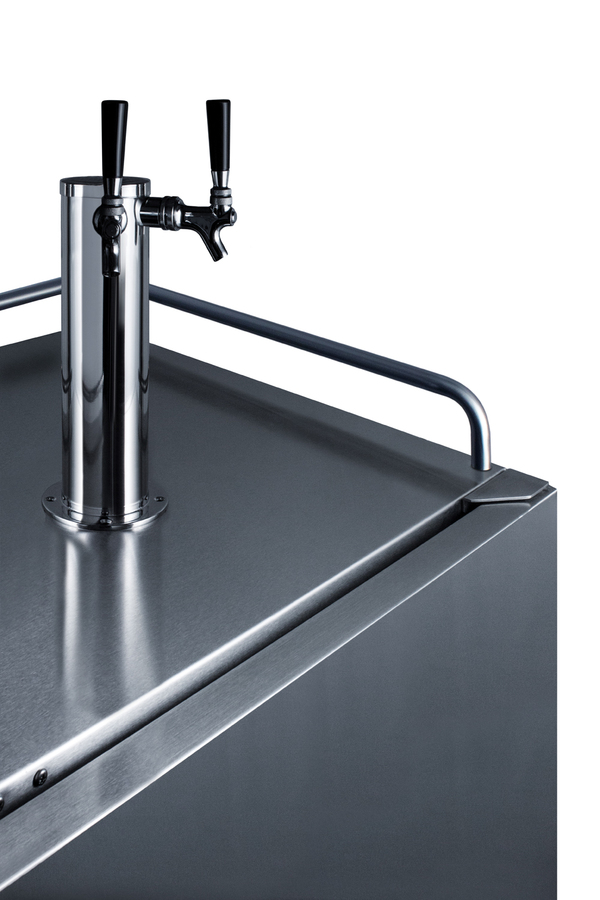

Attractive chrome guard rail helps to reduce spills and neaten service
Removable two-piece drip tray catches spills to help contain the mess
2 chrome shelves (with six placement options) allow unit to also function as a beverage refrigerator
Recovers the unit's last settings in the case of a power outage or disruption
User-reversible door swing for added flexibility

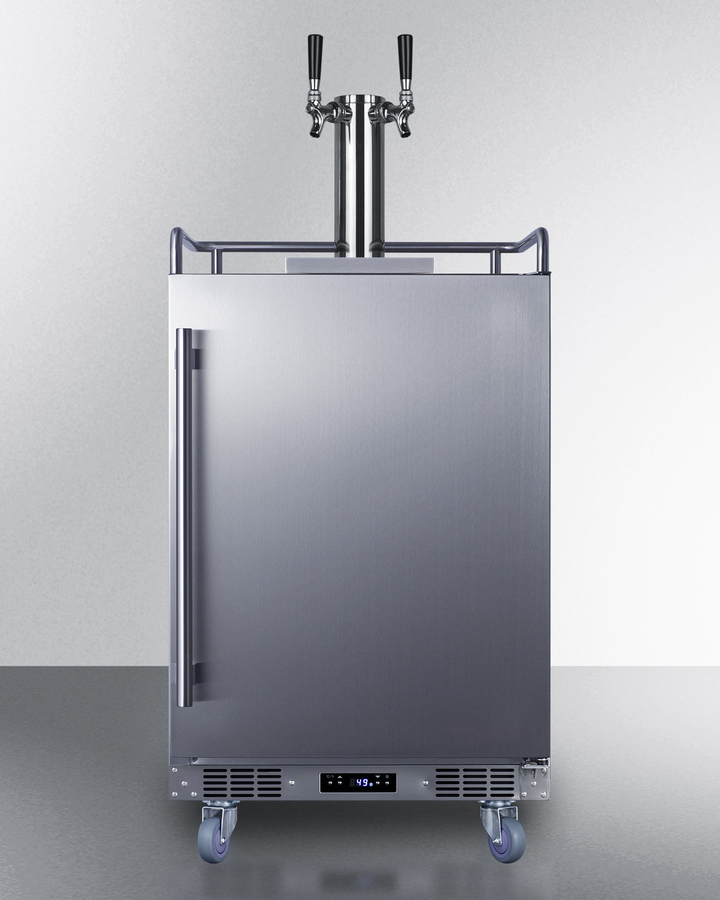

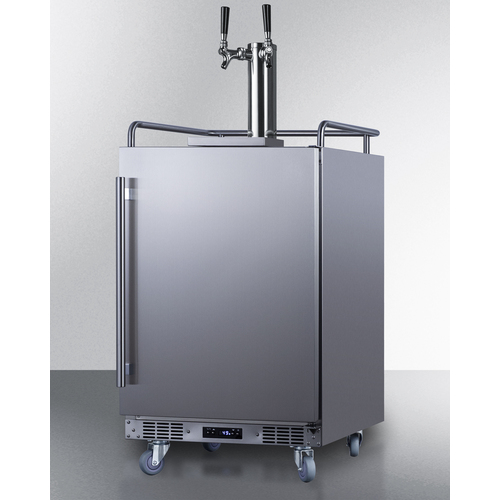

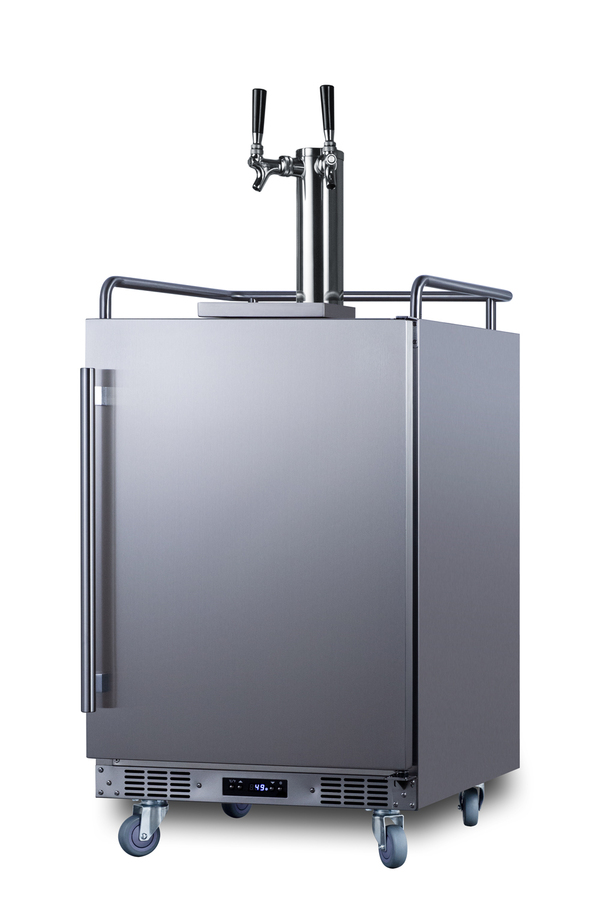

Four casters (two locking) afford easy portability
Stainless steel handle adds style to any setting
Allows the dispenser to be used freestanding
Space saving design with easier cleanability
Environmentally friendly design without ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION

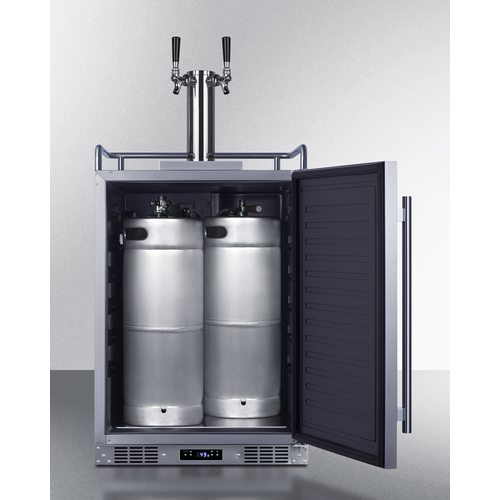

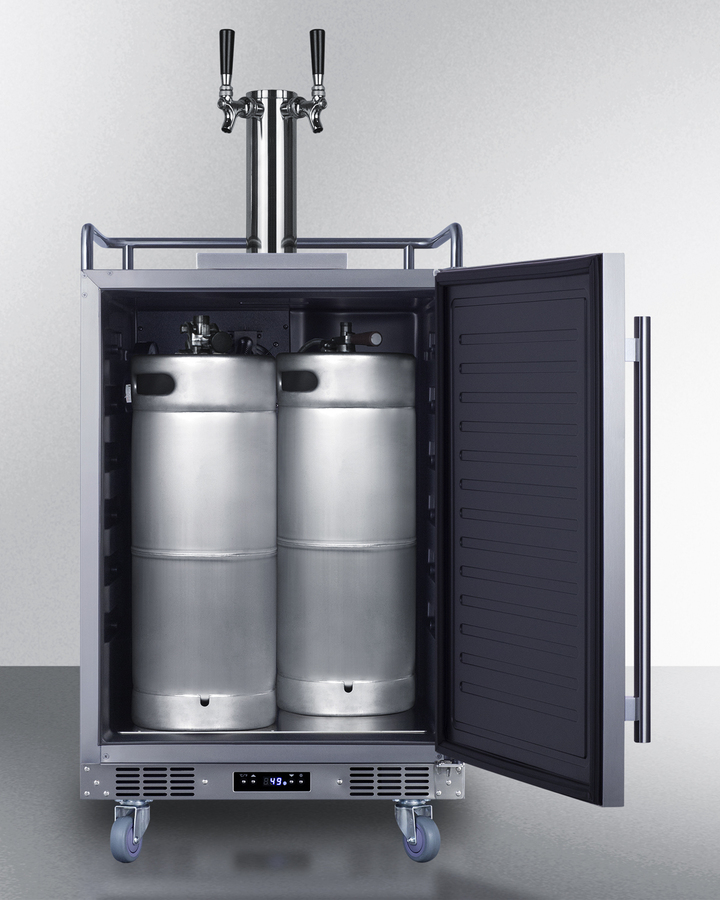

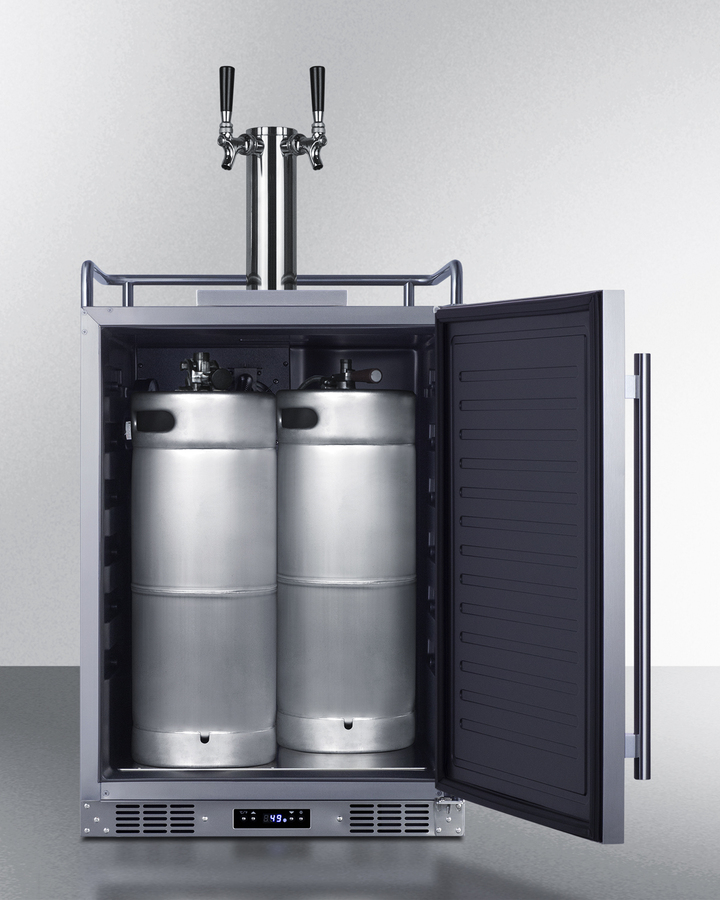

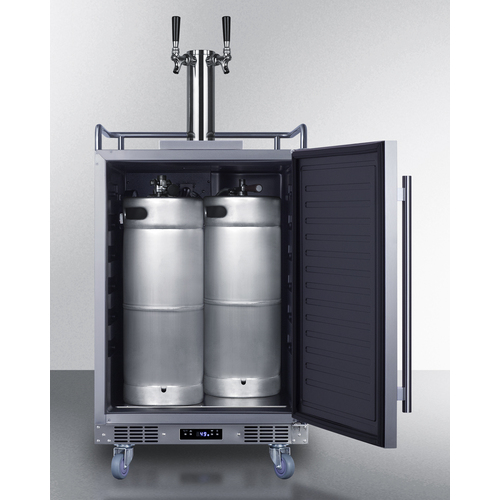

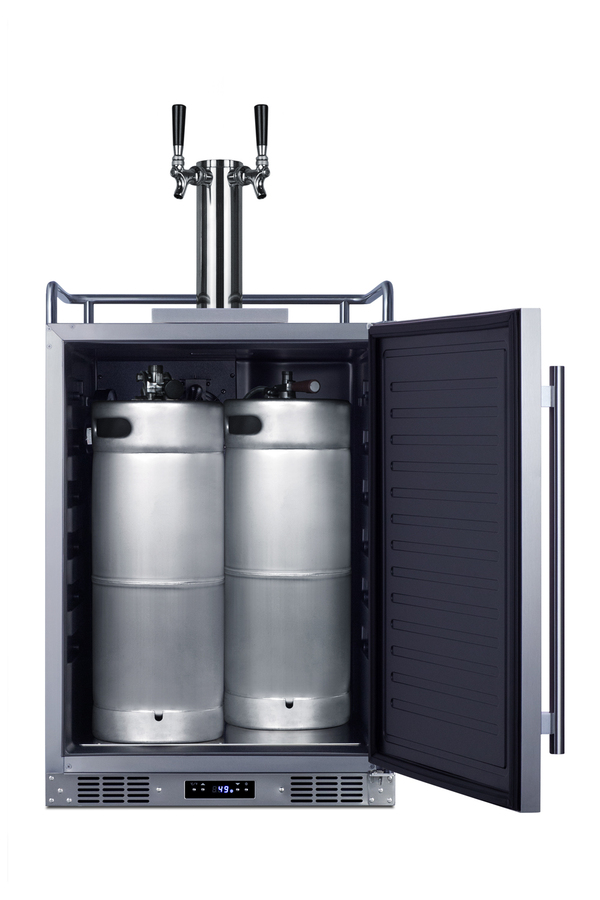

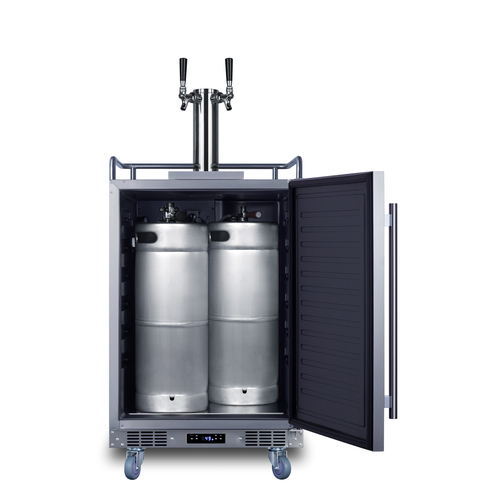

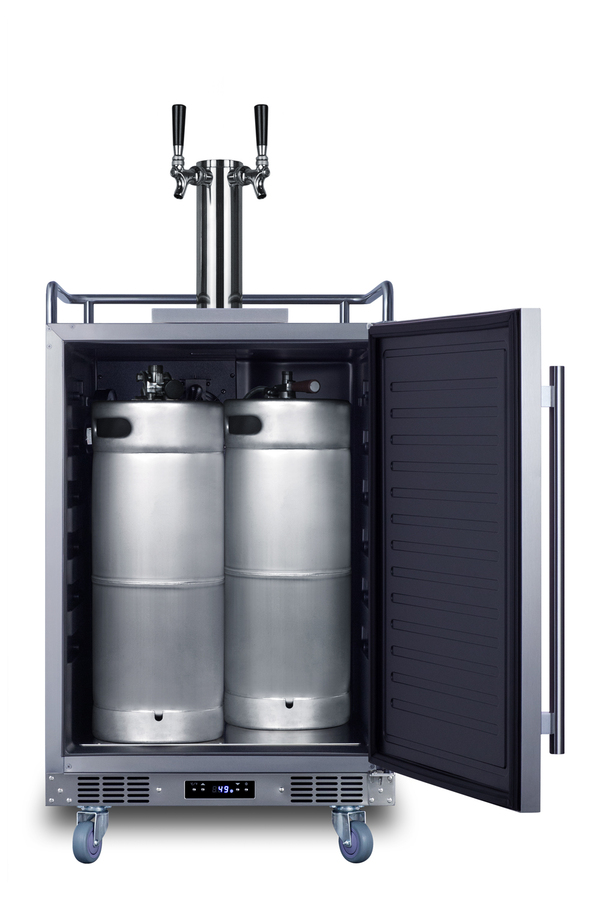

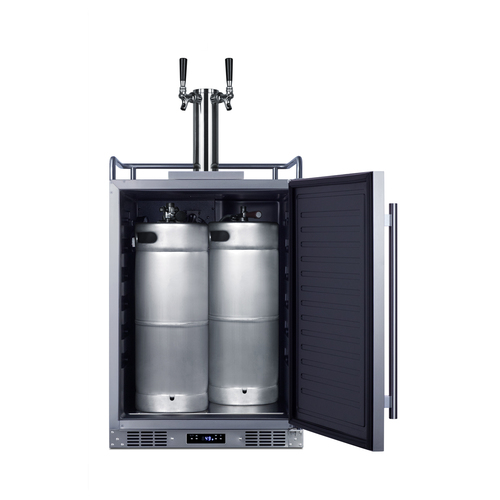

Summit manufactures a complete line of versatile combination kegerators capable of built-in installation in indoor or outdoor home settings. The SBC683OSTWINCFBis a full-sized beer and cold brew coffee dispenser approved for both residential or commercial use. Sized at just 24" wide, it features a front-breathing system for built-in installation and a fully-finished cabinet that also allows freestanding use, with an included caster set for optional mobility. The exterior door and cabinet feature 304 grade stainless steel construction for safe, weatherproof use in the outdoors. The user-reversible door includes a pro style vertically mounted handle to complete the look. Additional features include a removable two-piece stainless steel drip tray to collect spills and a chrome guard rail to help keep glasses and mugs in place. This unit has a sealed rear for added protection from the elements. Inside, the 5.6 cu. ft. interior can accommodate a full half or quarter keg, or up to three Cornelius or sixth barrel kegs. We include a complete Sankey American dual tap kit complete with a draft tower, one 5 lb. nitrogen tank and regulator for coffee and one 5 lb. CO2 tank with regulator for beer, and all the equipment you need to serve wine and beer on tap. A tap cool system keeps your beer cold as it goes through your tower, and a Velcro strap holds the tank in place. The floor is constructed from stainless steel for added protection when loading and removing kegs. Two chrome shelves, with six placement options, allow the kegerator to also function as a beverage refrigerator. A digital thermostat makes it easy to manage the wide range temperature, while the external digital display has a readout in Celsius or Fahrenheit. Automatic defrost operation ensures minimal user maintenance. The Memory IC function recovers the unit's last settings in the case of a power outage or disruption. With its solid construction, user-friendly features, and attractive design, the SBC683OSTWINCFB is the perfect coffee and beer dispenser for any venue or home accommodating all tastes. Additional choices are available with alternate tapping options and in ADA compliant height. Browse the full Summit line to explore all of your options.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
