24" Wide Built-In Wine Kegerator, ADA Compliant

SKU: SBC58WHBIADAWKDTWIN
32 inch height allows installation under lower counters following ADA guidelines
Estimated Time to Ship:

5 to 7 days

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.
This item can be ordered in one of our new vibrant door finishes: cobalt blue, lavender purple, emerald green, or saffron gold. Click the icon to explore our new palette!
32.25" H x 23.63" W x 22.75" D
(82cm H x 60cm W x 58cm D)

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 22.75" (58 cm)
Depth with Handle 24.75" (63 cm)
Depth with door at 90° 45.0" (114 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.2
Voltage/Frequency 115 V AC/60 Hz
Weight 110.0 lbs. (50 kg)
Shipping Weight 120.0 lbs. (54 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101086545
Kegerator
Door Swing RHD
Reversible Factory Reversible
Tap Kit Yes
Height with Tap 47.5" (121 cm)
Number of Taps 2
Thermostat Type Dial
Interior Light Yes
Fan Type Exterior
Refrigerant R600a
Refrigerant Amount 0.64 oz.
High Side PSI 180.0
Low Side PSI 80.0
Inter Height 25.75" (65 cm)
Interior Width 21.0" (53 cm)
Interior Depth 17.75" (45 cm)
Compressor Step Height 6.5" (17 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 5.5" (14 cm)
Temperature Range 34º to 43ºF

Lock
L-SideLock
Add a single keyed lock located on the door's side
Exterior
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
LHD - Left hand door swing
Door reversal to left hand swing
Door
CDG-Emerald green door
Emerald green door wrap with horizontally mounted stainless steel handle and matching kickplate
CDY-Saffron gold door wrap
Saffron gold door wrap with horizontally mounted stainless steel handle and matching kickplate
CDB-Cobalt blue door wrap
Cobalt blue door wrap with horizontally mounted stainless steel handle and matching kickplate
CDP-Lavender purple door wrap
Lavender purple door wrap with horizontally mounted stainless steel handle and matching kickplate

ADA compliant height

Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters

Commercially approved

ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings

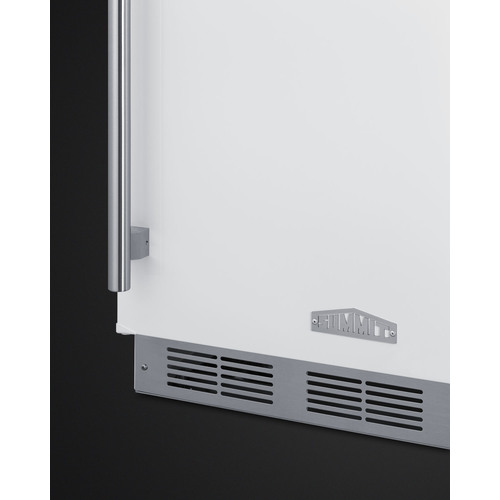

Built-in capable

Front-breathing design allows fully recessed installation under counters

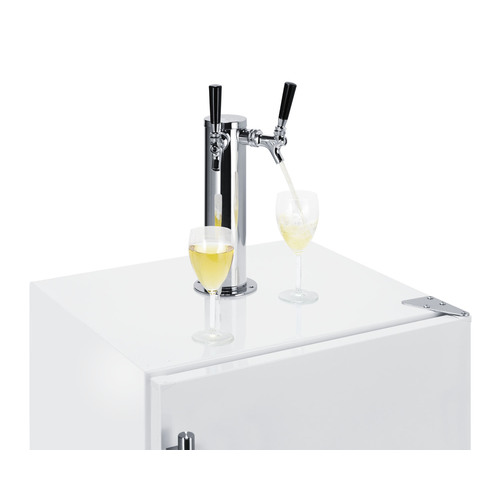

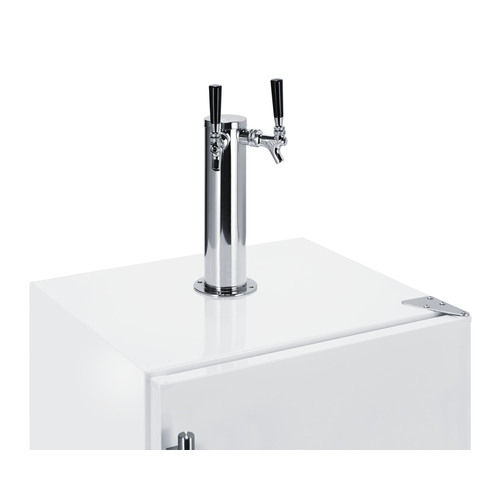

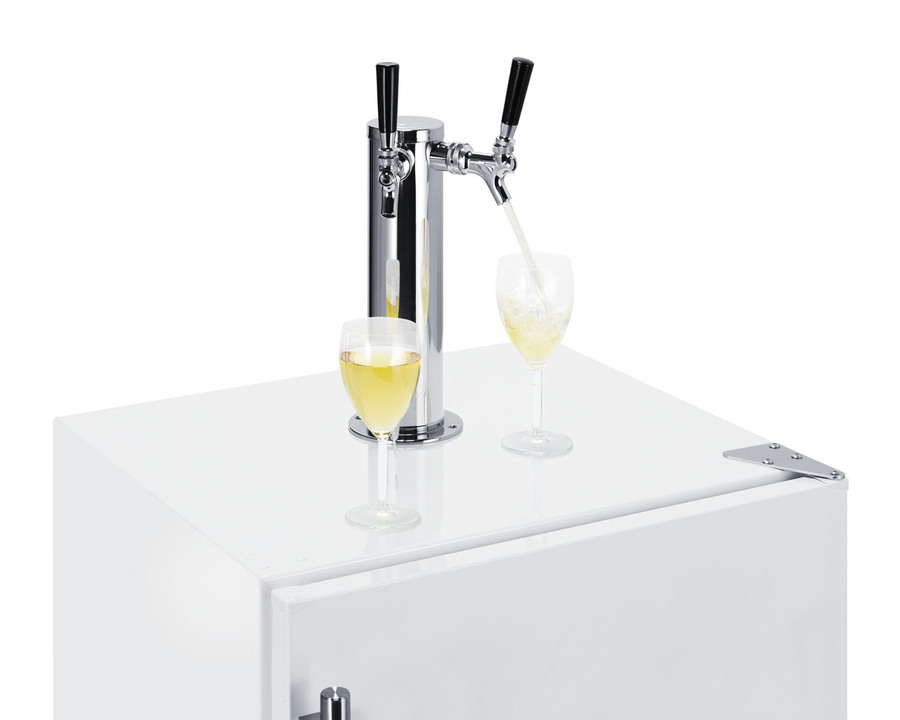

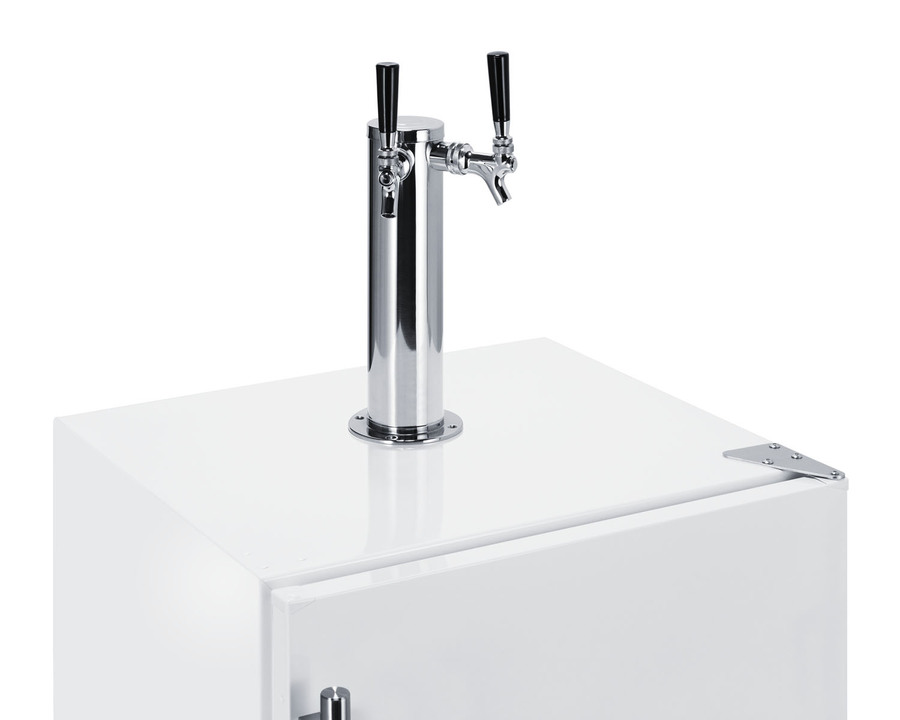

Complete dual tap kit

Ships with a complete twin tap wine tap kit that includes a dispenser tower, regulator, and all the connection equipment you need to serve from a 1/6 wine keg or disposable wine keg

White exterior finish

Classic and clean look suits any setting

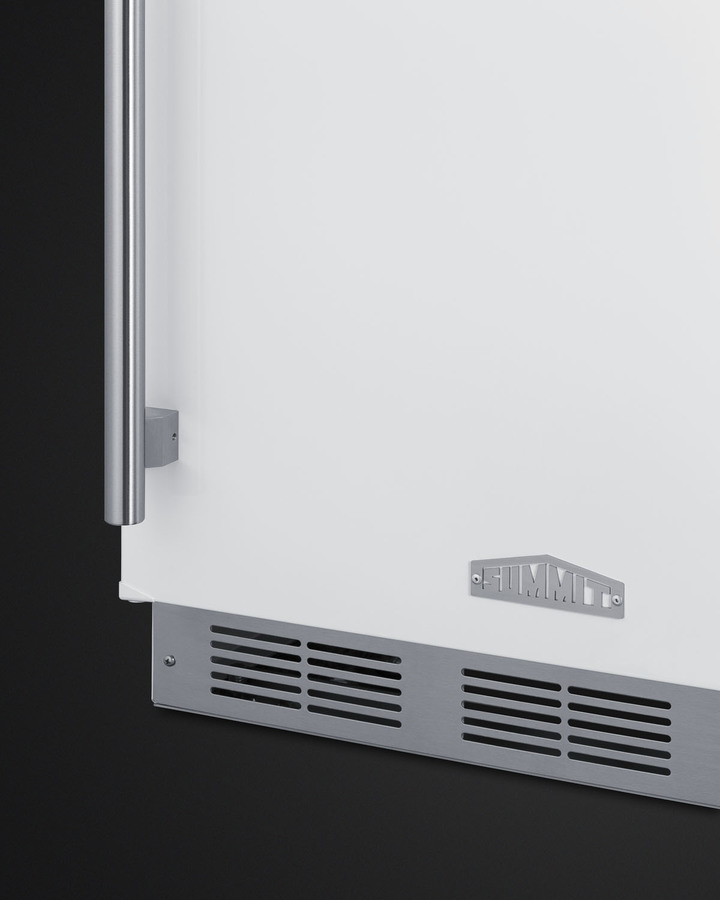

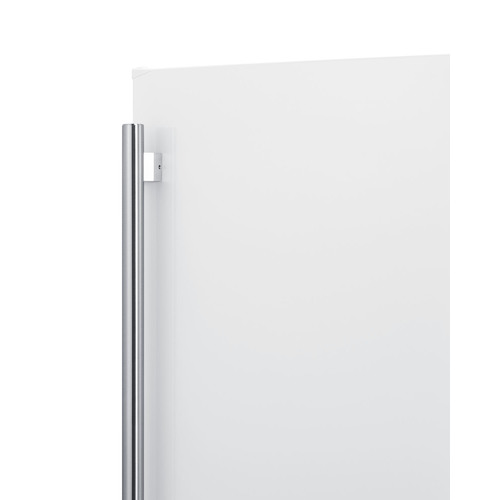

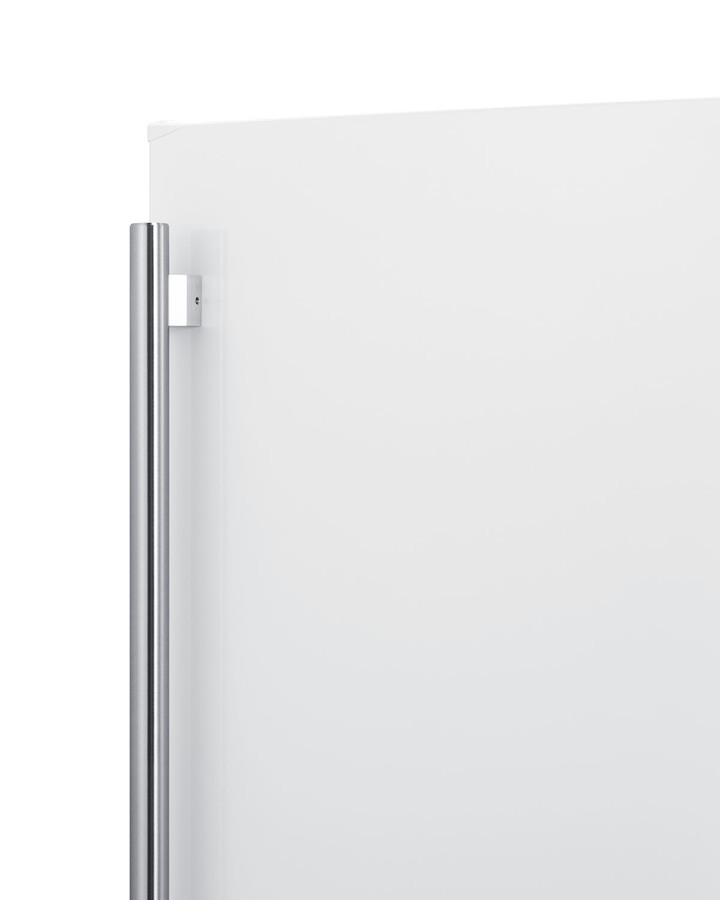

Professional handle

Solid tube style handle in brushed stainless steel offers a modern accent to the white door finish

Adjustable thermostat

Interior dial thermostat ensures easy temperature management

Automatic defrost

No-frost operation for minimum user maintenance

Stainless steel drip tray

Removable two-piece drip tray included for added convenience

Nitrogen/CO2 tank included

Canister is best suited for a 75% nitrogen/25% CO2 mixture

Interior light

Turn the light on when you need it and off when you're done with a convenient rocker switch

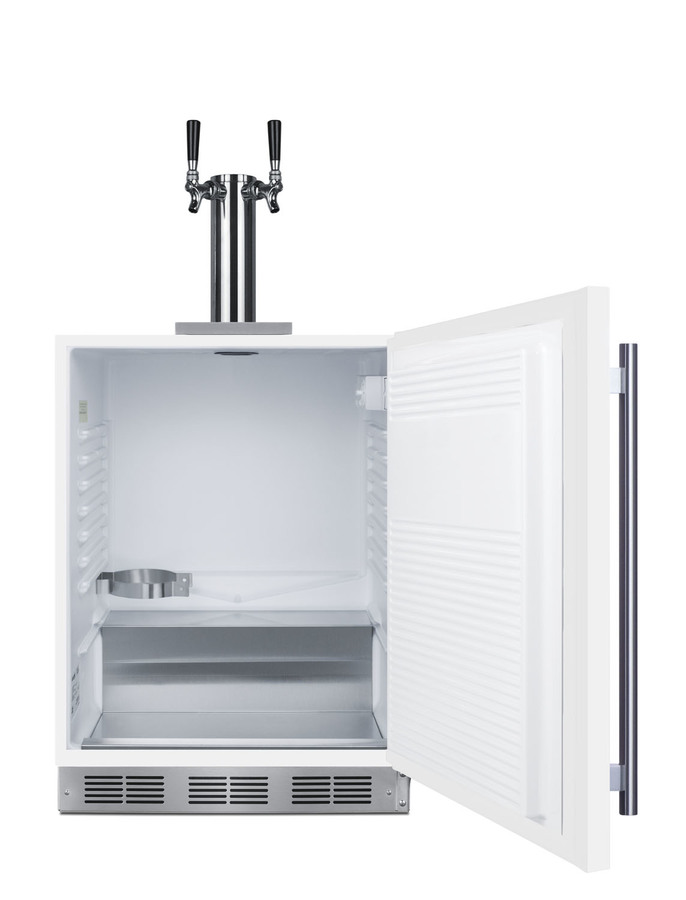

Interior tank holder

Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs

Stainless steel floor cover

Interior includes steel cover to protect the floor when loading kegs

One piece interior liner

Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Hidden evaporator

Cold wall design with hidden evaporator and seamless interior

Fully finished cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit Commercial brings unique appliance choices to ADA compliant settings with a new line of commercial wine dispensers made in Europe.

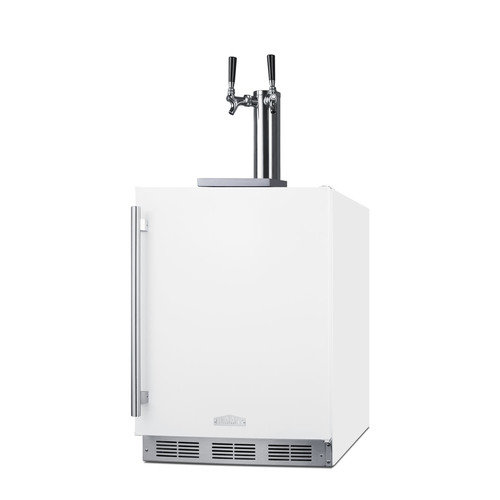

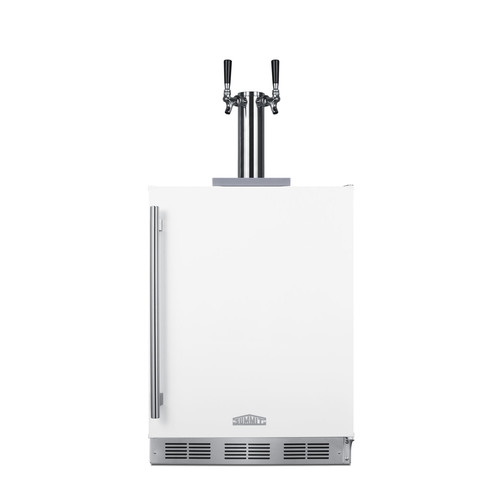

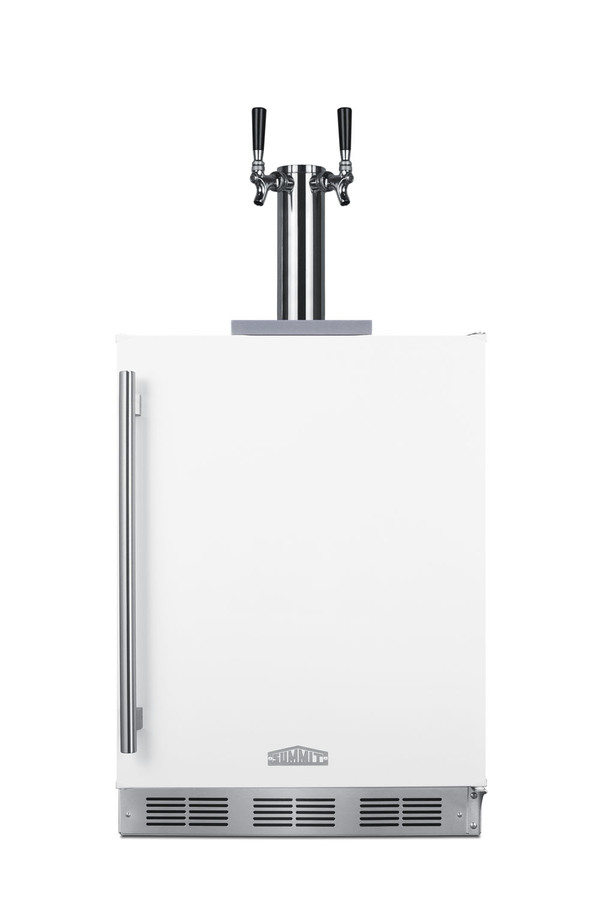

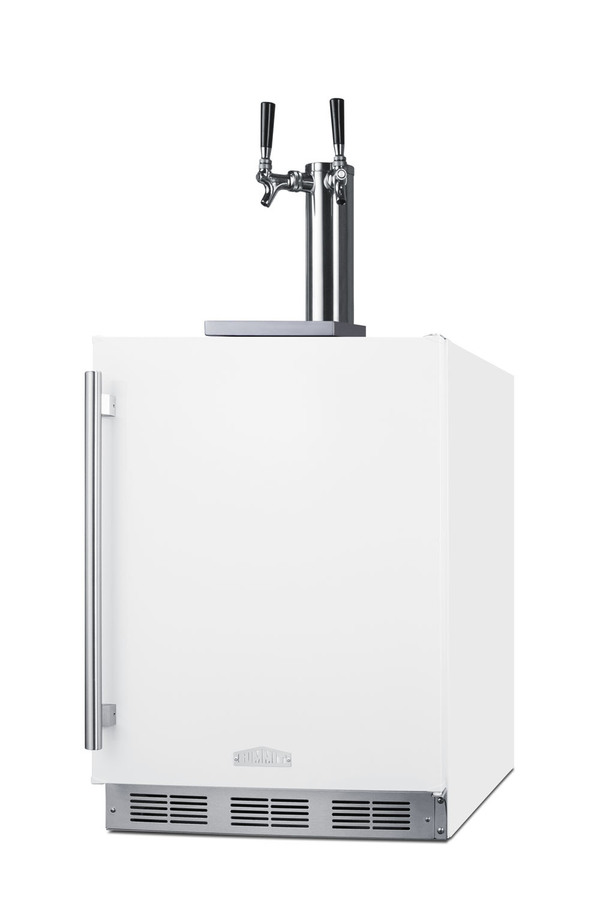

Sized at 32 inches high, the SBC58WHBIADAWKDTWIN is designed to fit under lower ADA compliant counters. The front-breathing design allows built-in installation, while the fully finished cabinet also enables freestanding use. This unit comes in a clean white finish accented by a stainless steel kickplate and pro style handle. We include a removable two-piece stainless steel drip tray for cleaner service. The SBC58WHBIADAWKDTWIN ships with a complete Sankey American dual tap kit complete with a draft tower, 5 lb. nitrogen/CO2 tank and regulator, and all the equipment you need to serve white wine on tap.

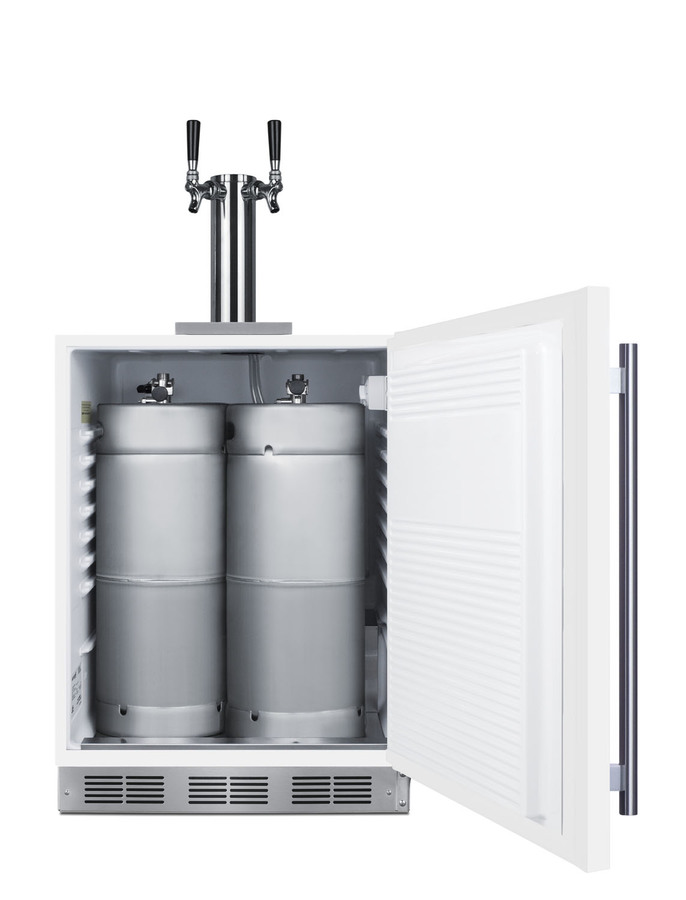

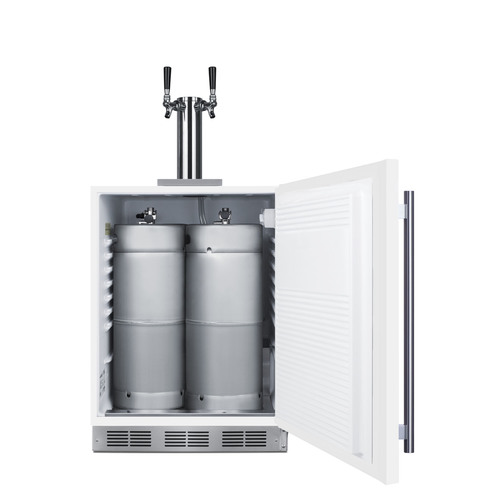

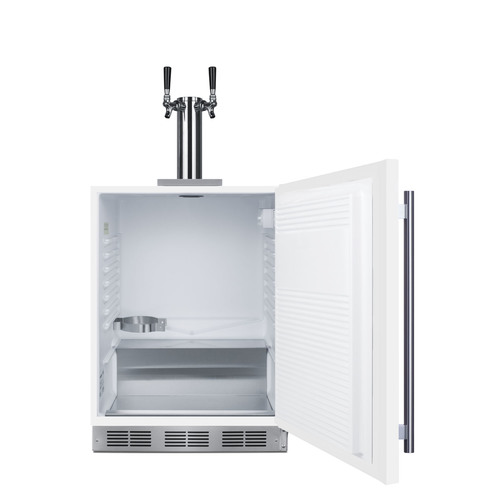

Inside, the SBC58WHBIADAWKDTWIN is designed to hold two 1/6 (sixtel) kegs (note: interior does not accommodate a standard half barrel). Automatic defrost ensures easy user maintenance, with a seamless interior for easier cleaning. The stainless steel floor offers added durability when loading kegs. This unit includes an interior light with an on/off rocker switch and a dial thermostat for easy and intuitive temperature management. A tank bracket is located inside, allowing you to keep the tank in the unit and save on exterior depth.

The SBC58WHBIADAWKDTWIN is ETL-S listed to NSF-7 commercial standards. Additional ADA compliant European kegerators are available with stainless steel, panel-ready, or glass doors. Browse our complete line for more choices.



Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
