MRF1159SS

72.0" H x 23.63" W x 26.0" D

(183cm H x 60cm W x 66cm D)

OVERVIEW

Combination refrigerator-freezer-microwave serves all your kitchen needs
Electrical allocator box protects unit from circuit breaks
Ships fully assembled
True frost-free operation saves you maintenance by preventing icy buildup
Energy efficient refrigerator-freezer for convenience and utility savings
Slim width under 24 inches for easy placement in tight kitchens

SPECIFICATIONS

Overview
Height of Cabinet	72.0" (183 cm)
Width	23.63" (60 cm)
Depth	26.0" (66 cm)
Capacity	10.3 cu.ft. (292 L)
Defrost Type	Frost-Free
Door	Stainless Steel
Cabinet	Black
Weight	195.0 lbs. (88 kg)
Shipping Weight	202.0 lbs. (92 kg)
Estimated Time to Ship	3 to 5 days
Microwave-Refrigerator
Refrigerator Door Swing	RHD
Reversible	Yes
Adjustable Shelves	Yes
Shelf Type	Wire
Shelf Qty	2
Crisper Qty	1
Crisper Finish	Transparent
Crisper Cover	Glass
Full Door Shelves	4
Thermostat Type	Dial
Interior Light	Yes
Refrigerant Type	R134a
Refrigerant Amount	5.3 oz.
High Side PSI	235.0
Low Side PSI	140.0
Refrigerator Interior Height	40.0" (102 cm)
Refrigerator Interior Width	19.5" (50 cm)
Refrigerator Interior Depth	14.0" (36 cm)
Freezer Interior Height	12.25" (31 cm)
Freezer Interior Width	19.0" (48 cm)
Freezer Interior Depth	14.0" (36 cm)
Microwave Wattage	800.0
Microwave Controls	Digital
Specialized Cooking Buttons	Yes

AVAILABLE UPGRADES

Exterior

Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations	LHD - Left hand door swing Door reversal to left hand swing
Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

California residents:

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

DESCRIPTION

SUMMIT offers the industry's widest variety of refrigerator-microwave combination units, with sizes that fit your space and designs to serve your needs.

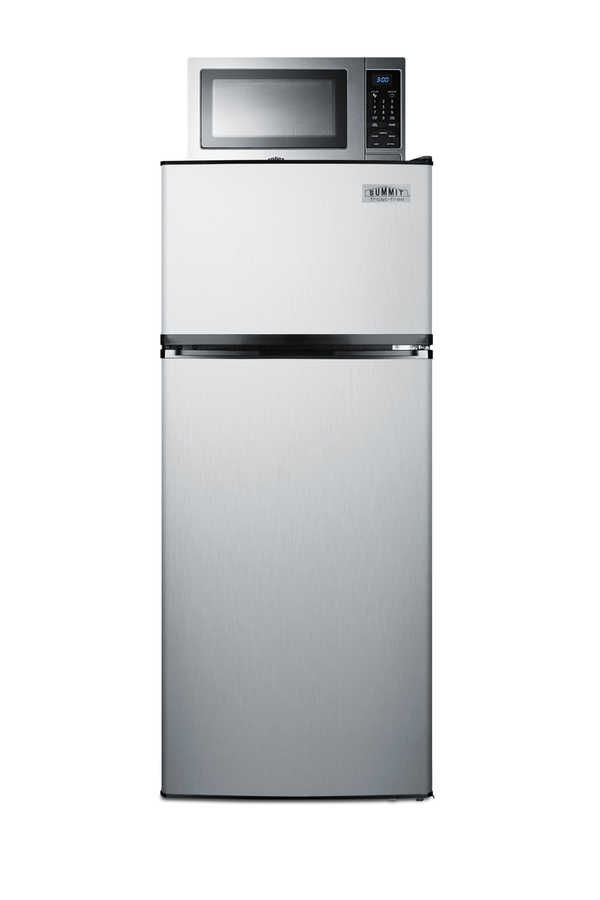

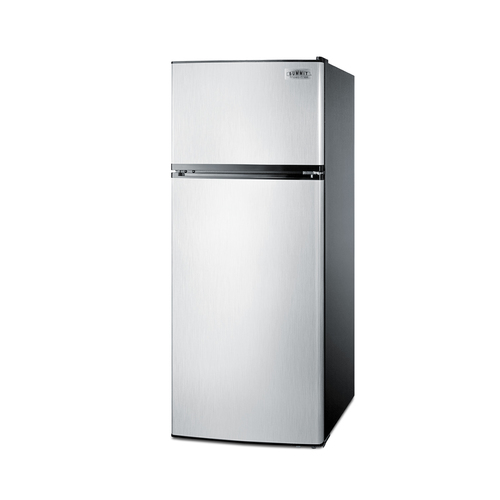

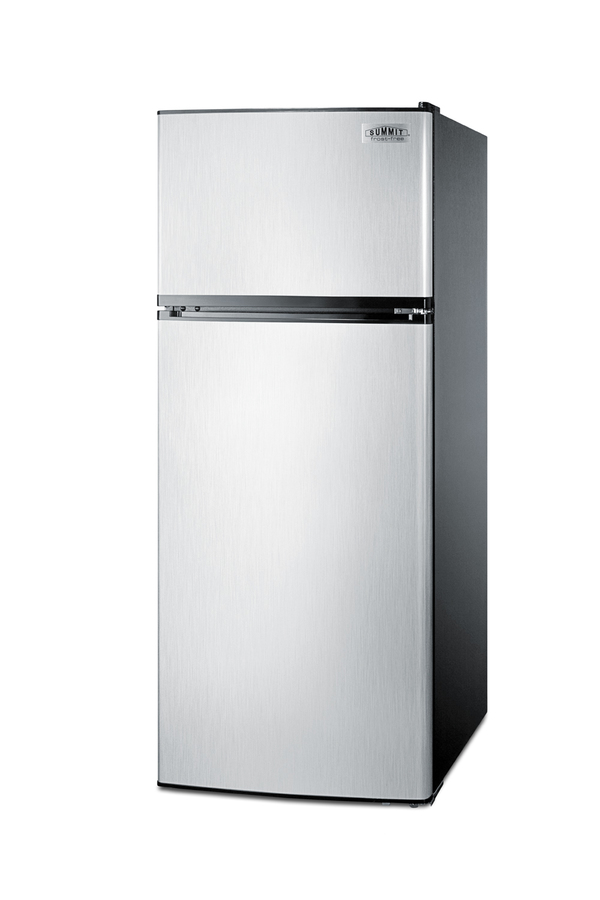

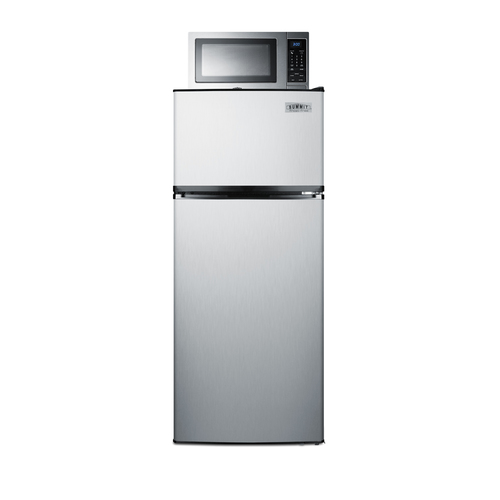

Model MRF1159SS combines a stainless steel microwave with SUMMIT's full-sized two-door FF1159SS refrigerator-freezer. The complete unit is conveniently sized under 24" wide for an easy fit in any tight spot. Model FF1159SS has stainless steel doors and a black cabinet.

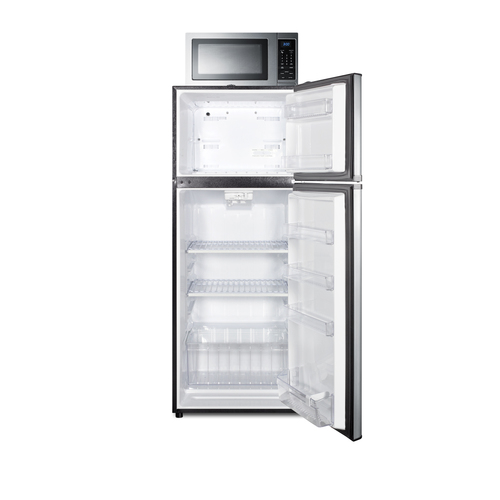

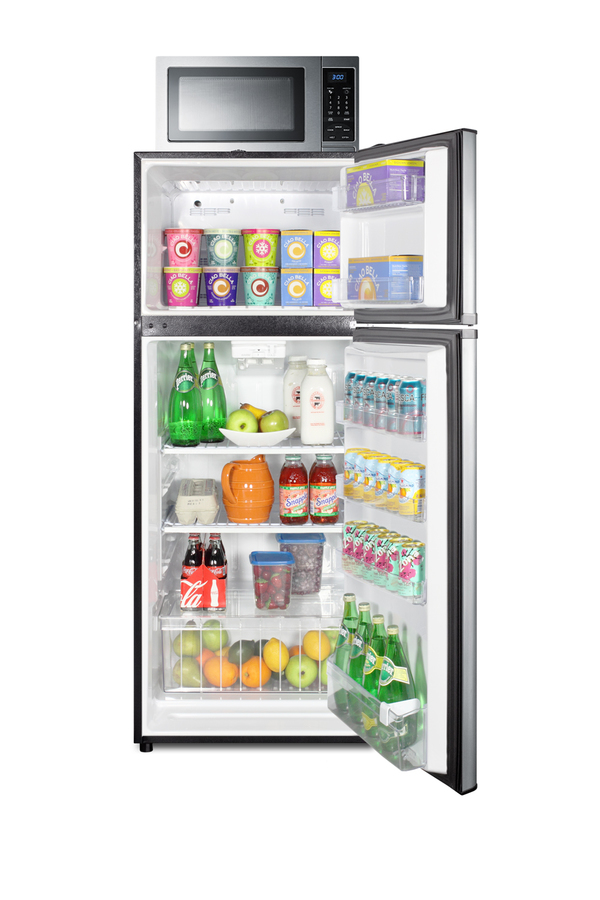

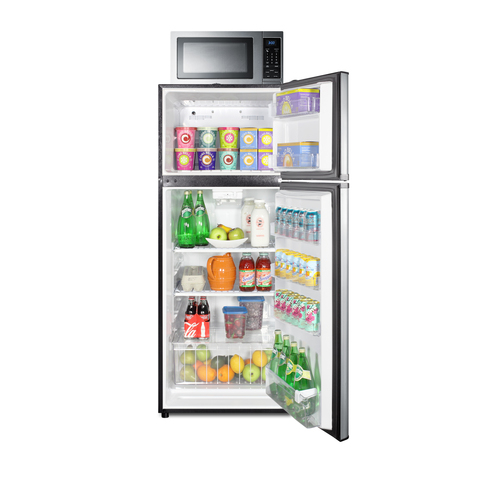

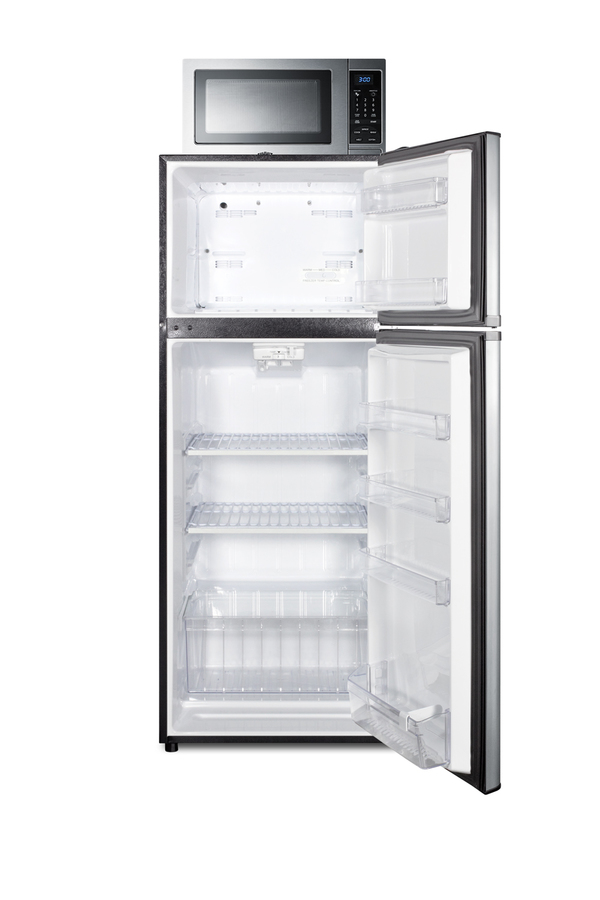

True frost-free operation reduces user maintenance by preventing any ice from building up inside. Additional features include a crisper, adjustable thermostat, adjustable shelves in both compartments and interior lighting.

The MRF1159SS also includes a touchpad microwave fully featured for easy heating. One-touch cook options and variable controls allow easy use.

All of SUMMIT's combination refrigerator-microwaves are shipped fully assembled and ready to use. Plug the microwave, refrigerator-freezer, and a third appliance (such as a coffee maker) into our power allocator box and use its cord for safe one-plug operation. This system protects your circuit breaker and power line by limiting overall power use to 10 amps.

In addition to those models listed in our MRF series, SUMMIT can custom-build refrigerator-microwave combination units to your individual specifications. Contact us today for more information.

FEATURES

Thin-line design
Limited space is no problem for our thin-line models, designed specifically for those hard-to-fit spots

FF1158SS Refrigerator-freezer
Frost-free operation and deluxe interior that includes adjustable shelves, door racks, and crisper

Microwave included
Stainless steel microwave with touchpad controls

Allocator box
Plug the refrigerator-freezer, microwave, and a third appliance into this allocator box for safe operation that limits total power consumption to 10 amps

Ships fully assembled
No assembly required before use

Reversible doors
Refrigerator-freezer door swing can be reversed by user
