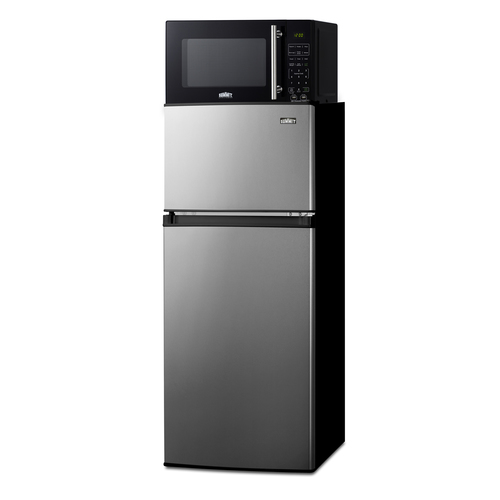

Microwave/Refrigerator-Freezer Combination with Allocator

SKU: MRF73PLA
Fully featured 2-door refrigerator-freezer and compact microwave with USB ports and a built-in allocator for one-plug operation
Estimated Time to Ship:

1 to 2 days

54.38" H x 18.5" W x 19.13" D
(138cm H x 47cm W x 49cm D)

Overview
Height of Cabinet 54.38" (138 cm)
Width 18.5" (47 cm)
Depth 19.13" (49 cm)
Depth with door at 90° 36.0" (91 cm)
Capacity 4.5 cu.ft. (127 L)
Defrost Type Cycle
Door Stainless Look
Cabinet Black
US Electrical Safety CSA
Canadian Electrical Safety CSA-C
Amps 15.0
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Shipping Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101084602
Microwave-Refrigerator
Refrigerator Included CP73PL
Refrigerator Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Shelf Type Glass
Shelf Qty 6
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Full Door Shelves 2
Half Door Shelves 4
Can Storage Yes

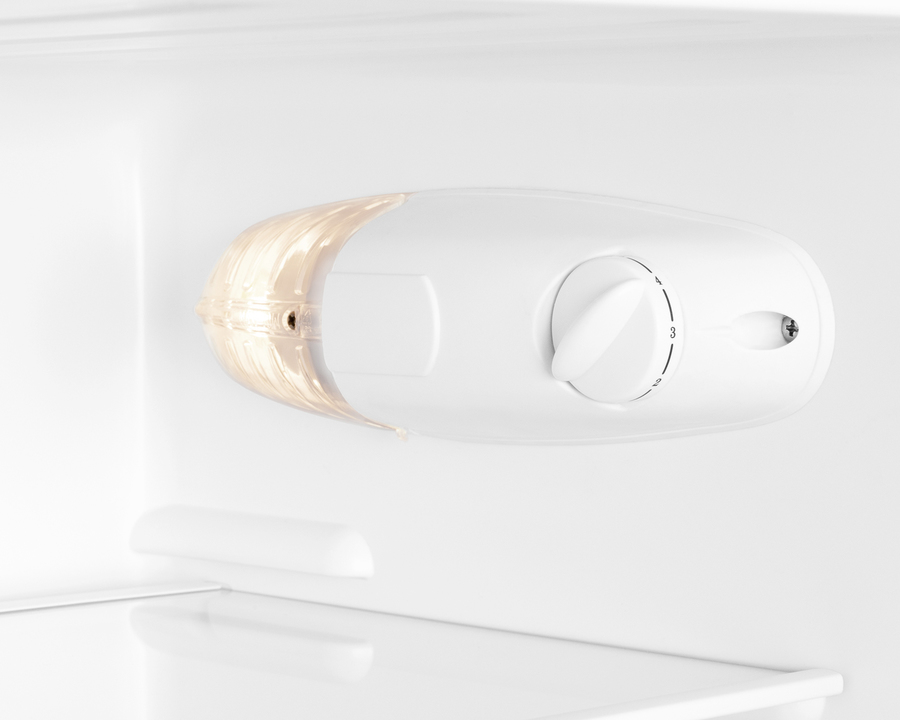

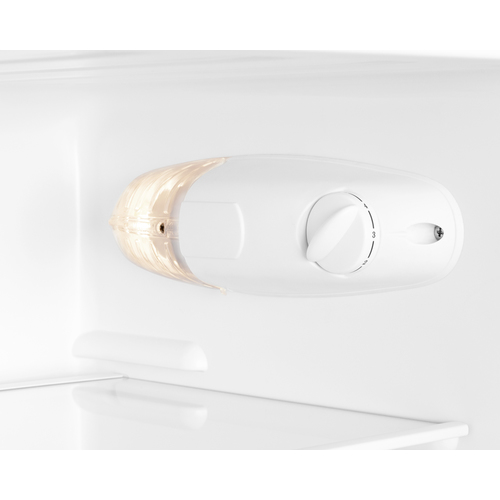

Thermostat Type Dial
Interior Light Yes
Refrigerant Type R600a
Refrigerant Amount 1.37 oz.
High Side PSI 150.0
Low Side PSI 60.0
Refrigerator Interior Height 27.0" (69 cm)
Refrigerator Interior Width 15.5" (39 cm)
Refrigerator Interior Depth 14.5" (37 cm)
Freezer Interior Height 9.63" (24 cm)
Freezer Interior Width 14.0" (36 cm)
Freezer Interior Depth 14.0" (36 cm)
Compressor Step Height 7.5" (19 cm)
Compressor Step Width 15.5" (39 cm)
Compressor Step Depth 4.0" (10 cm)
Level Legs 2
Microwave Wattage 700.0
Microwave Controls Digital
Specialized Cooking Buttons Yes

Exterior
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
MRFAssembly - Have the microwave pre-installed on top of the refrigerator before shipping
Microwave is bracketed to refrigerator in our factory to ship fully assembled in one box

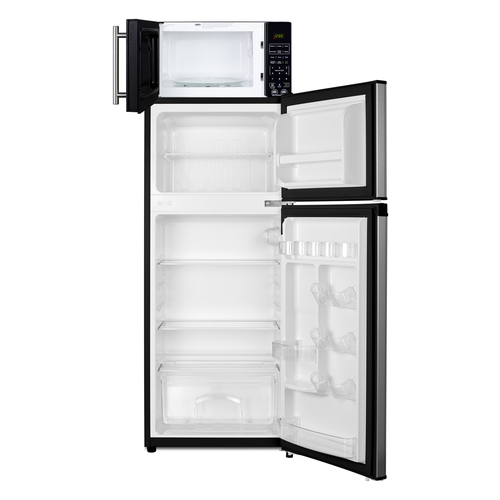

CP73PL Refrigerator-freezer

Two-door mid-sized refrigerator-freezer with cycle defrost and deluxe interior that includes glass shelving, door racks, can holders, and a crisper

SM903BSA microwave

Compact microwave in black with window, stainless steel handle, and digital controls for easy operatoin

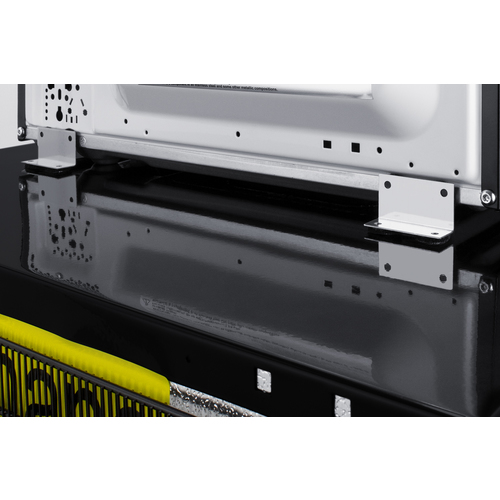

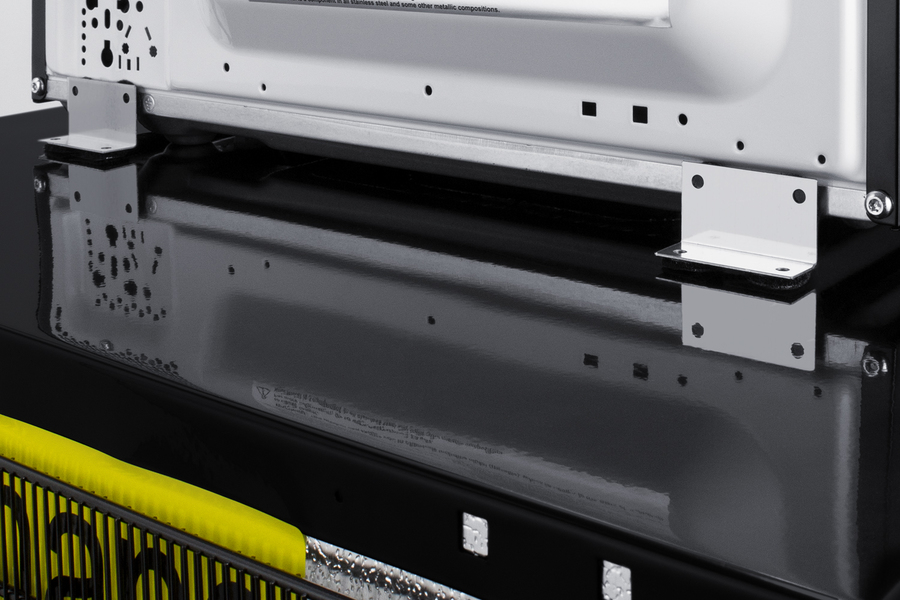

Easy assembly

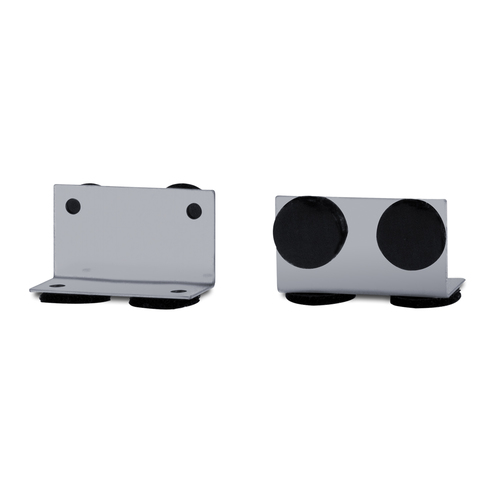

Ships with two removable brackets that let you secure the microwave on top of the refrigerator

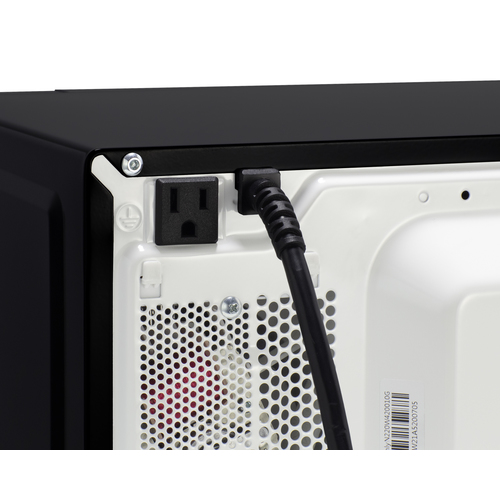

Built-in power allocator

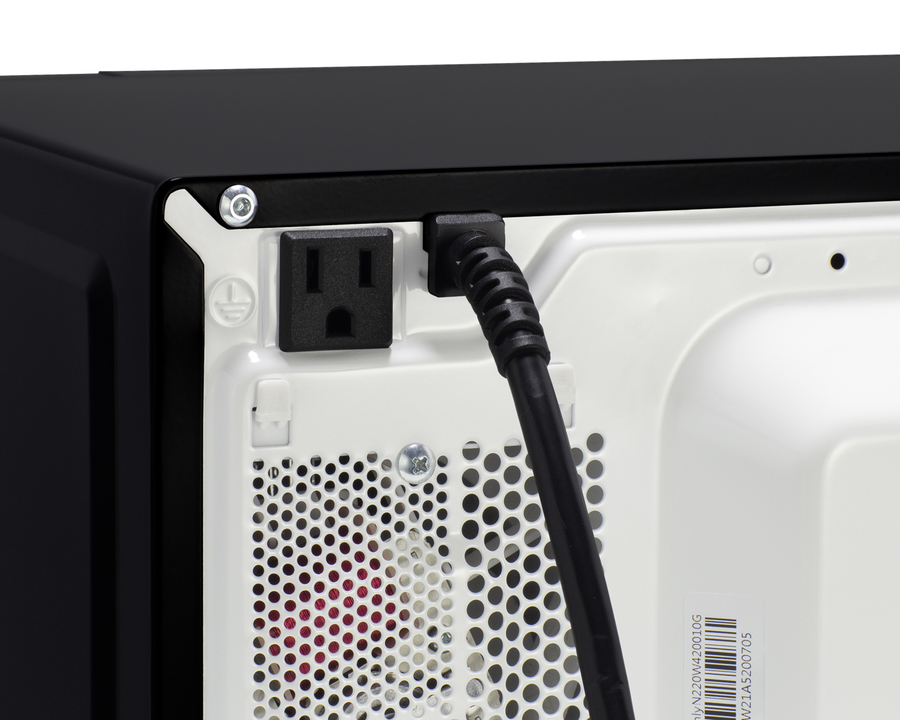

Plug the refrigerator into the microwave's rear outlet for easy 1-plug operation that will temporarily disable the fridge while the microwave is in use to prevent power surges

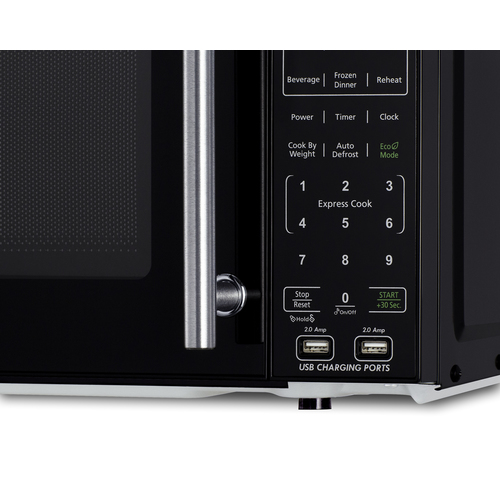

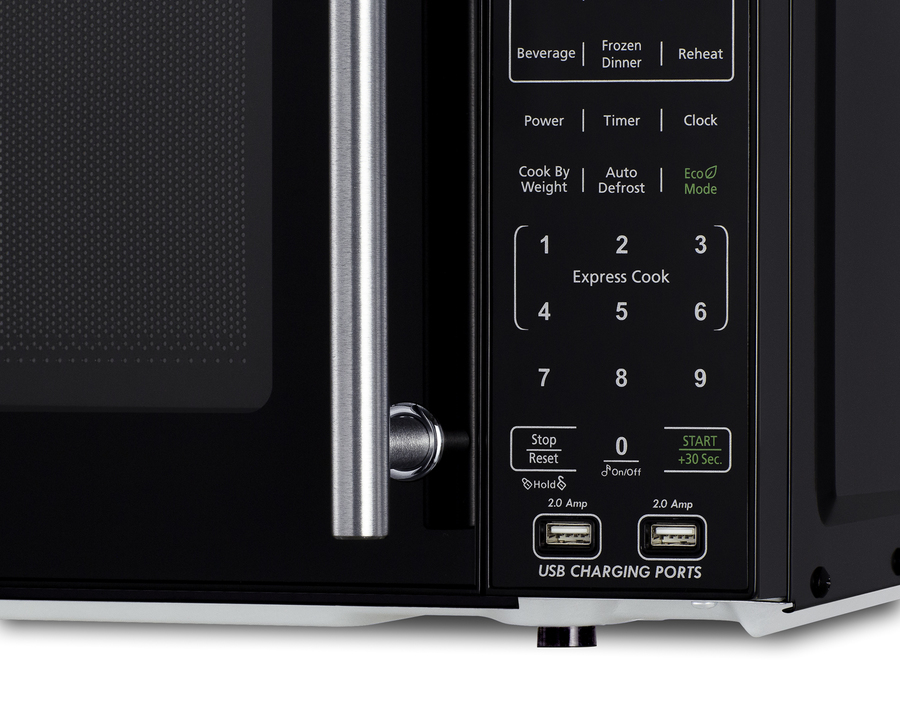

(2) USB ports

Charge your mobile devices through the pre-installed ports, located on the microwave's front for added convenience

Cycle defrost

Combines an automatic defrosting refrigerator with a static manual defrosting freezer to minimize maintenance while protecting freezer contents

Reversible doors (refrigerator)

User-reversible door swing for added flexibility

Sealed back

Allows for a better fit and easier cleanability

Stainless steel handle (microwave)

Easy-grab handle in brushed stainless steel elevates the look for the microwave

One-touch cooking

Pre-programmed settings for potatoes, pizza, beverages, popcorn, frozen dinners, and reheating, as well as options for multi-stage cooking, cook by weight, and auto defrost

Smoke alarm

Audible and visual alerts if the microwave interior reaches high levels of smoke concentration

Air Blowing Function

Microwave can be set to run at zero power for 2 minutes, a useful function for refreshing the interior after long periods of inactivity or if the interior has heavy smoke residue inside

Mute function

Press and hold ON/OFF for 3 seconds to disable the sound of your microwave

Eco Mode

Power-saving option lets you disable the digital display

Right angle plug (microwave)

Microwave's cord design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Stainless steel look and black cabinet finish

Microwave and refrigerator cabinet comes in black, with the refrigerator doors offering the look of brushed stainless steel but in a fingerprint-resistant finish for easier cleaning

Thin-line design

Limited space is no problem for our thin-line models, designed specifically for those hard-to-fit spots

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit's innovative MRF series offers combination refrigerator-microwaves with one-plug operation, ideal for hotels and other settings looking to maximize user convenience.

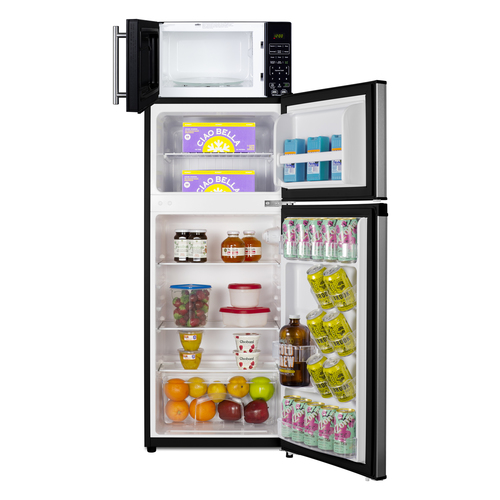

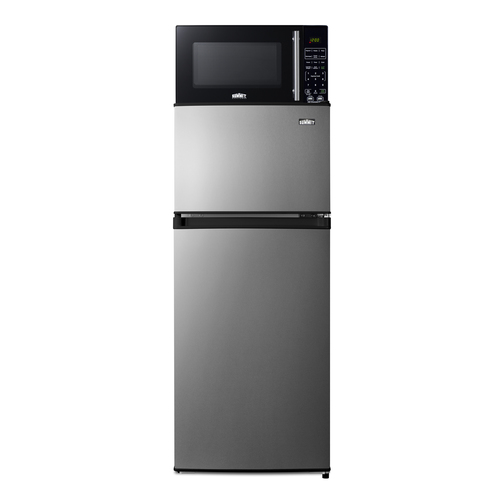

Model MRF73PLA combines a fully featured compact microwave with our two-door mid-sized CP73PL refrigerator-freezer. The complete unit is sized at just 19" wide for an easy fit. The refrigerator-freezer comes in a black cabinet finish with user-reversible doors in a stainless steel look, offering an attractive appearance without the need to clean off fingerprints and smudges. The microwave includes a built-in allocator, allowing you to plug the fridge directly into the microwave. The allocator will temporarily disable the power of the refrigerator while the microwave is in use, resuming after the cooking cycle is complete in order to protect against power surges.

The SM903BSA microwave comes in a jet black finish with an easy-grab handle in brushed stainless steel to complement the refrigerator. Two USB ports are included to charge mobile devices. The microwave has a door window and digital touchpad control panel with one-touch settings for common meals, including frozen food, potatoes, pizza, and popcorn. Safety features include a smoke alarm and child lock, with an air blow function to help refresh the interior. The display and end-of-cycle alerts can be disabled and muted as needed. We include two brackets that let you set the microwave on top of the refrigerator and gently secure with included adhesive.

The MRF73PLA ships on one pallet in three boxes (refrigerator-freezer CP73PL, microwave SM903BSA, and our MRFKit bracket set). If you prefer to have the unit fully assembled before shipping, add option "MRFAssembly" upon order (note: this will incur an additional charge and added lead time). Alternate combinations can be created by ordering your choice of a Summit refrigerator, the SM903BSA microwave, and our MRFKit. For more information, contact our product specialists at 718-893-3900 ext. 507.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
