6 Cu.Ft. Chest Freezer

SKU: FOCUS73
Made for Summit by Elcold in Denmark, with digital controls and improved insulation for optimum storage
DISCONTINUED- REPLACED BY NOVA22
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

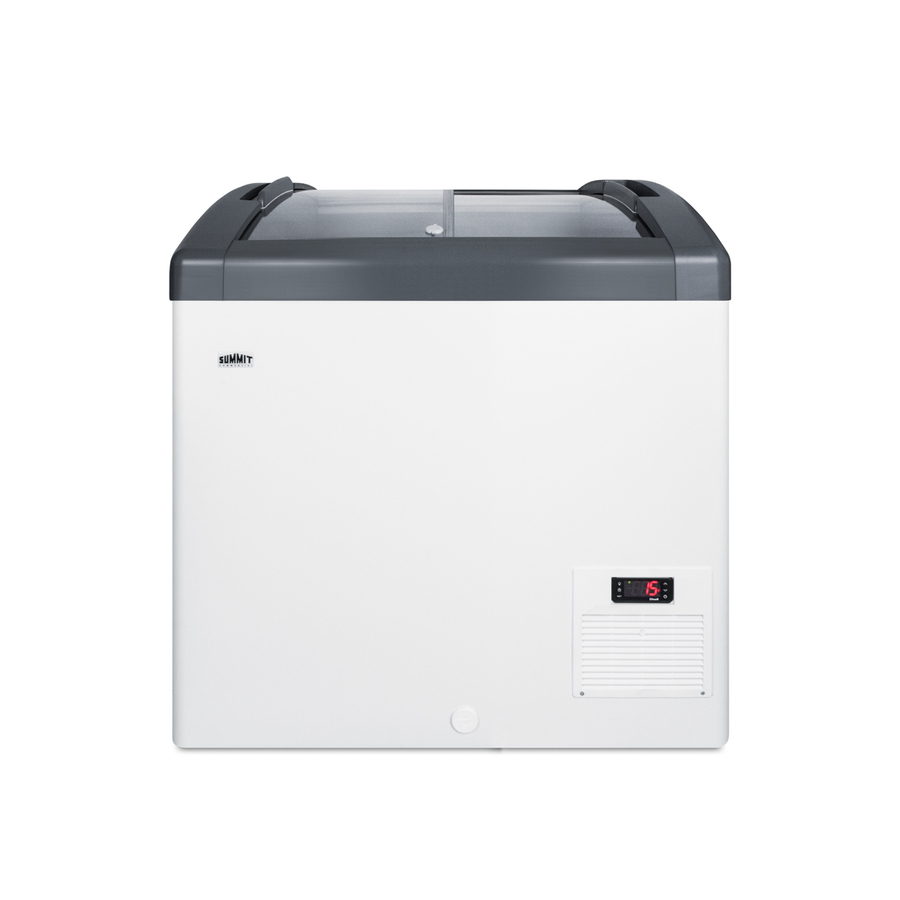

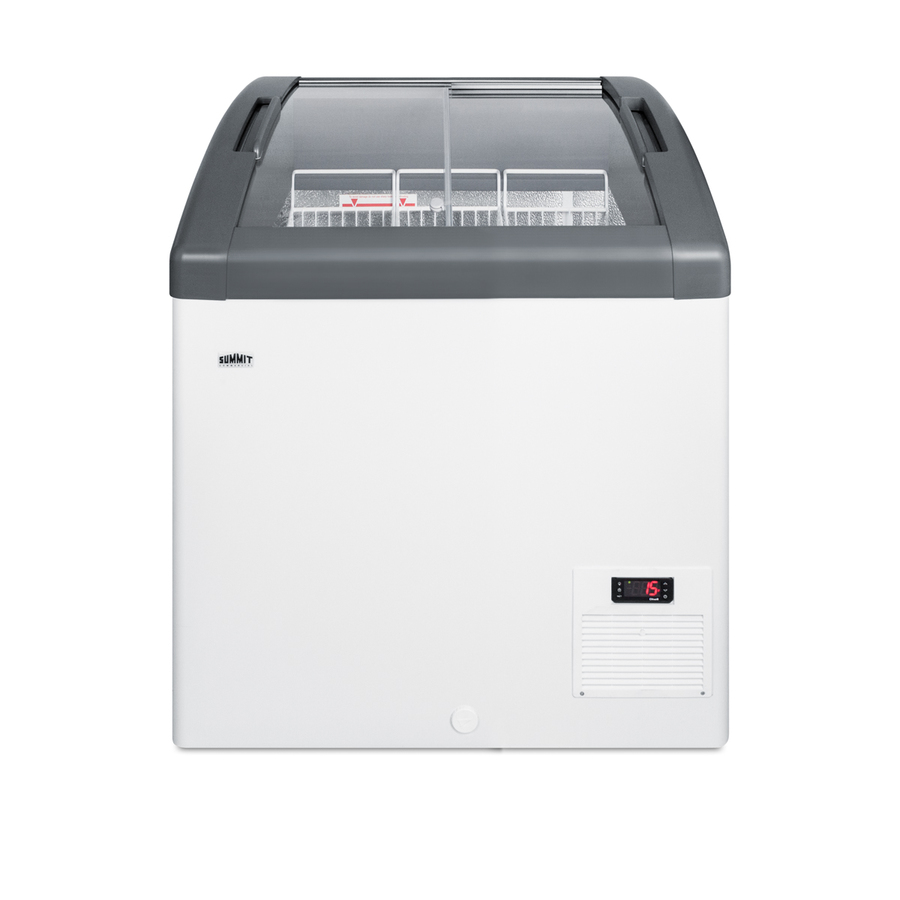

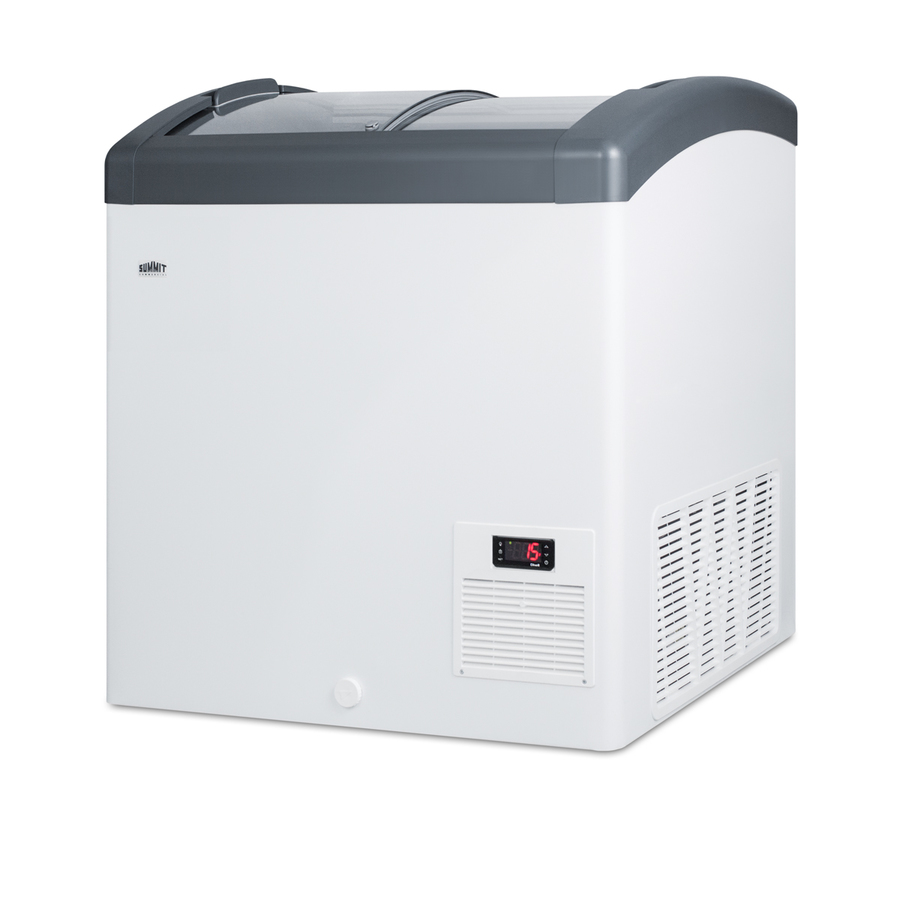

30.75" H x 28.63" W x 25.88" D
(78cm H x 73cm W x 66cm D)

Overview
Height of Cabinet 30.75" (78 cm)
Width 28.63" (73 cm)
Depth 25.88" (66 cm)
Capacity 5.7 cu.ft. (161 L)
Defrost Type Manual
Door Glass
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation UL-S
Amps 6.6
Voltage/Frequency 115 V AC/60 Hz
Weight 98.0 lbs. (44 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101060200
Freezer
Door Swing Sliding
Interior Height 20.75" (53 cm)
Interior Width 22.5" (57 cm)
Interior Depth 19.63" (50 cm)
Thermostat Type Digital
Refrigerant Type R290a
Refrigerant Amount 1.94 oz.
High Side PSI 345.0
Low Side PSI 140.0
Compressor Step Height 9.75" (25 cm)
Compressor Step Width 7.88" (20 cm)
Compressor Step Depth 19.63" (50 cm)
Temperature Range -13 to 23ºF

Commercially approved

UL-S listed to NSF-7 Standards for use in commercial establishments

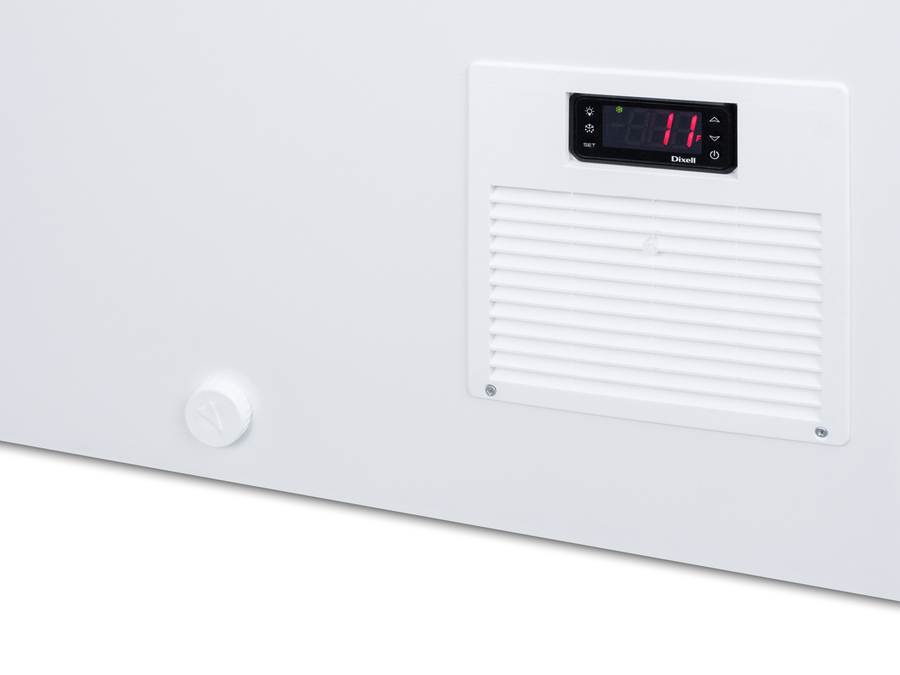

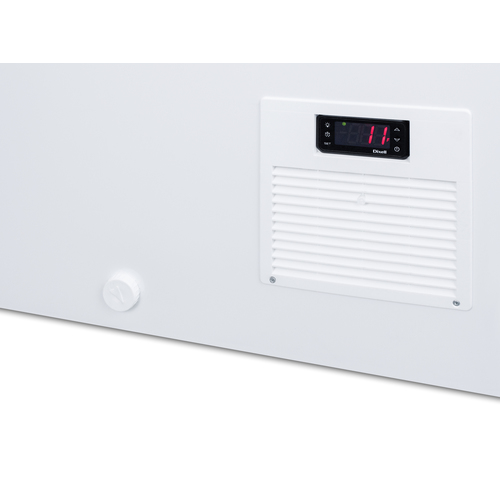

Digital thermostat

Electronic controls for more precise temperature management

Wide temperature range

Digital thermostat can be set between -13 and +23ºF to accommodate a variety of frozen treats

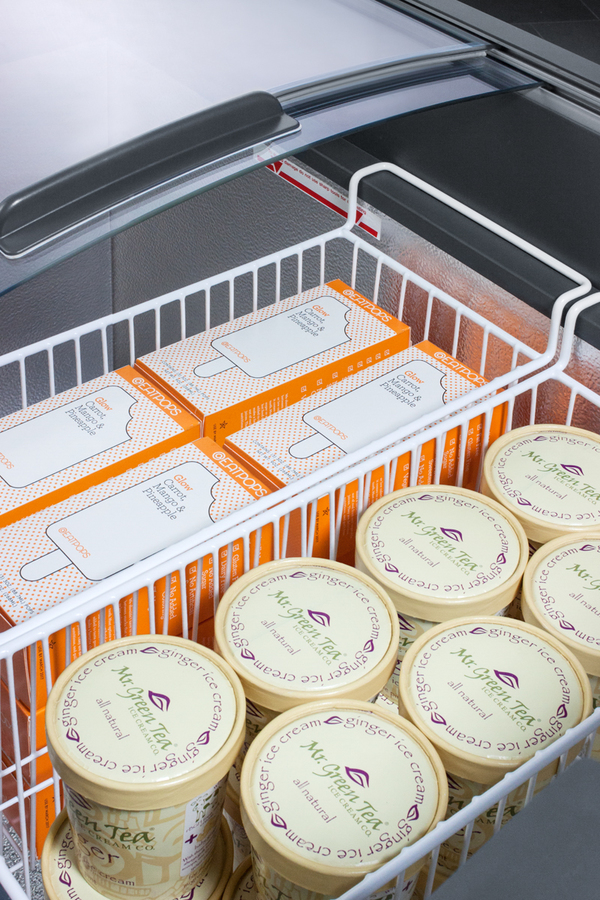

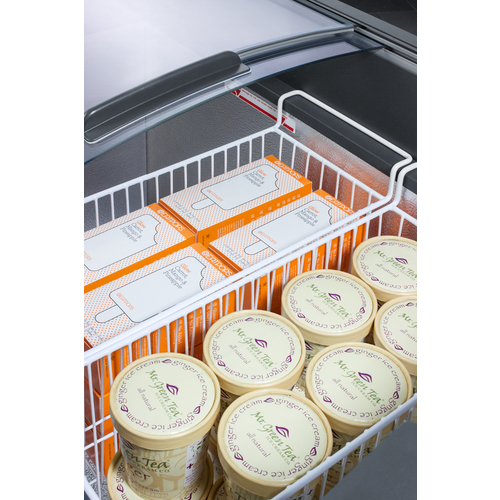

Baskets included

Three epoxy-coated wire baskets included to store novelty items

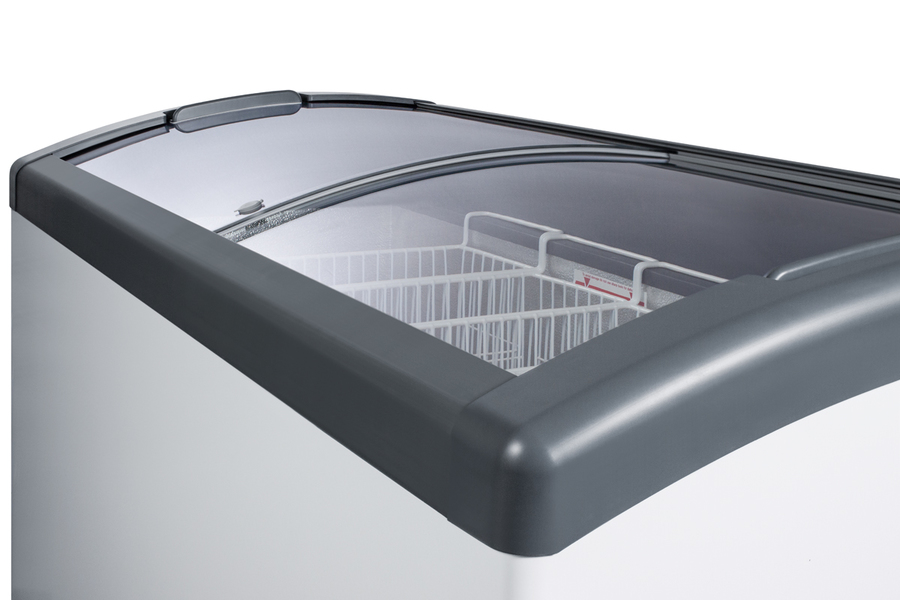

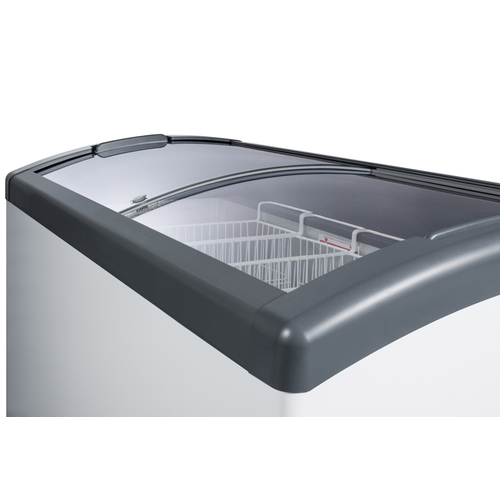

Angled top

Curved design makes it easier for customers to view interior contents

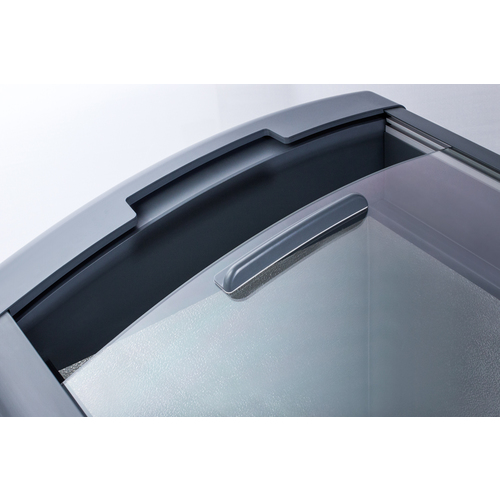

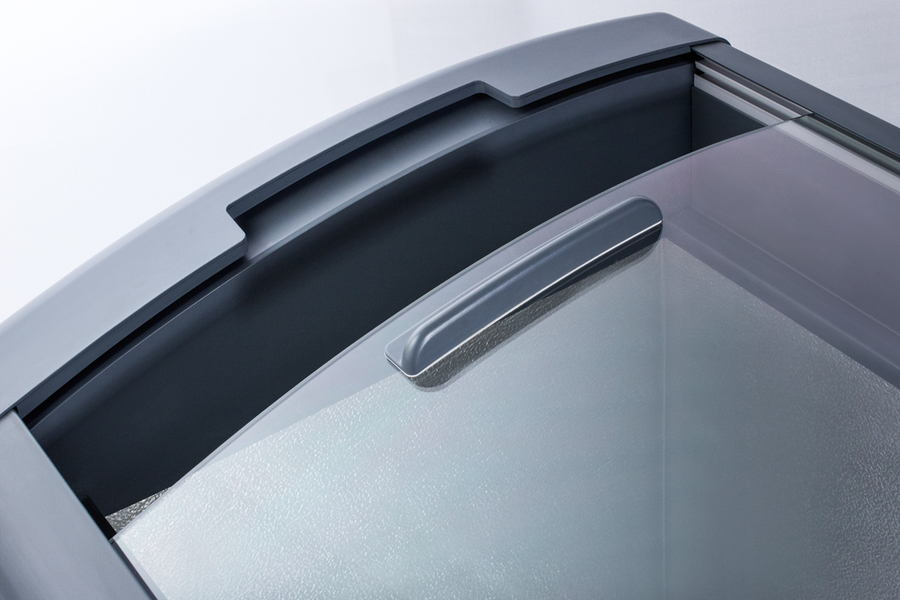

Sliding glass lid

Two tempered glass lids on ball-bearing glides slide open and closed easily for added efficiency

Strong insulation

3" thick insulation helps to ensure items stay cold

Manual defrost

Static cooling system for improved temperature stability

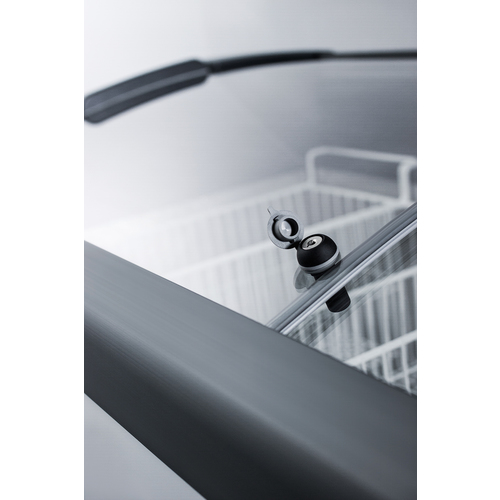

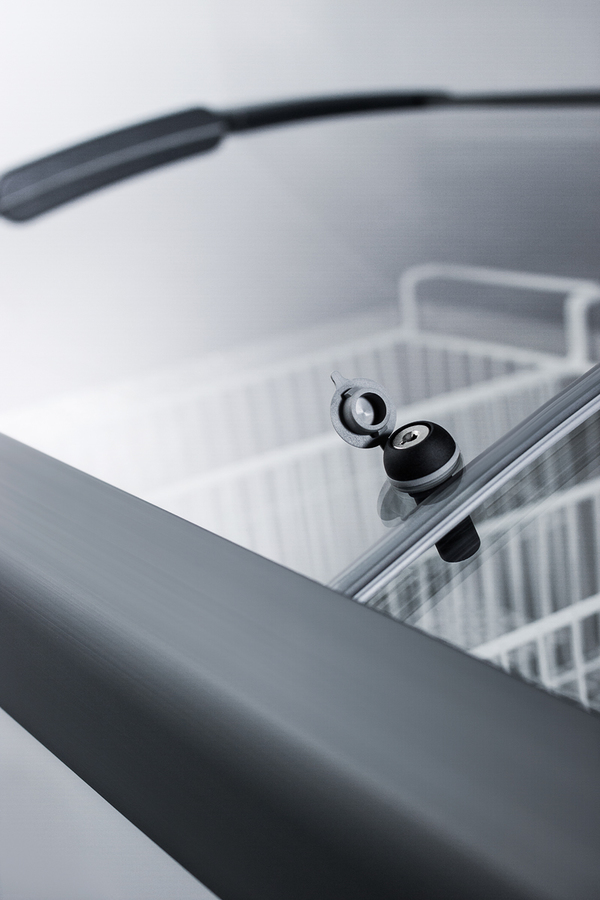

Removable lock

A keyed lock is included for optional use

Hammered aluminum interior

Durable and easy to clean

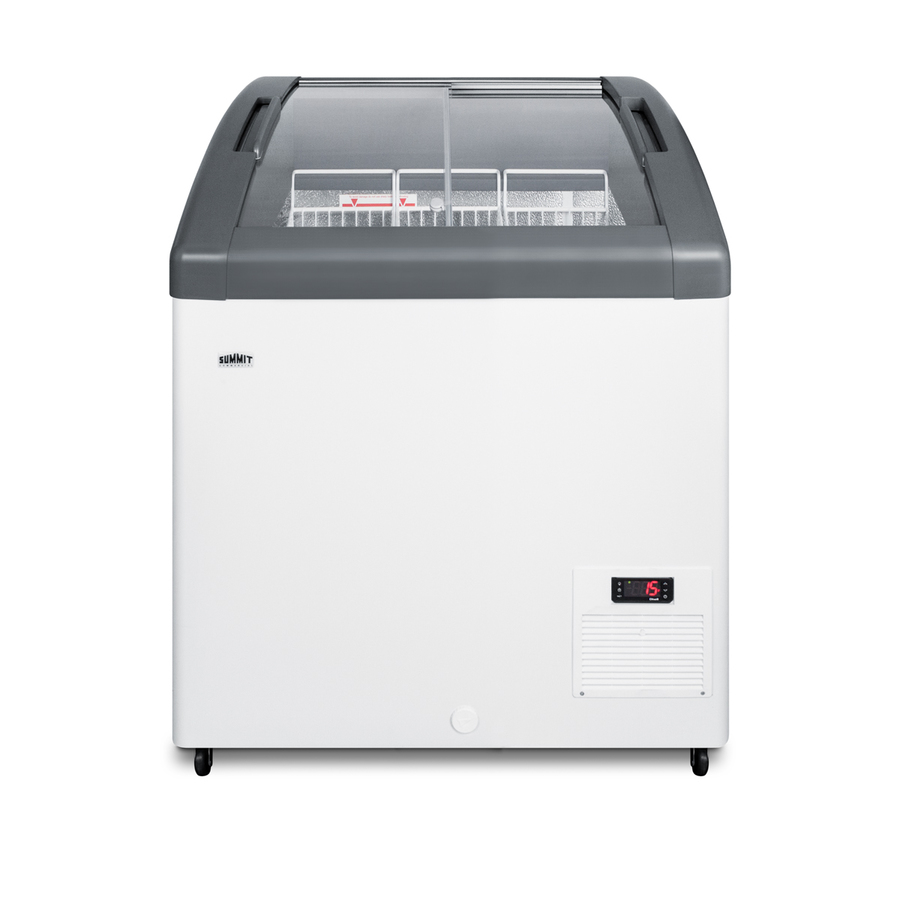

Casters

Heavy duty wheels for smooth mobility (ship unassembled)

Fan-cooled compressor

Offers improved temperature performance throughout the interior

Defrost drain

Front located for easier defrosting

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit Commercial's line of curved top ice cream freezers features a deluxe European design to provide quality storage and an optimum product display.

Made for us by Elcold in Denmark, the FOCUS73 features two tempered glass lids on ball-bearing glides that open smoothly for added efficiency. The angled top offers increased visibility to help maximize impulse sales. This unit includes a removable keyed lock to allow users the option of securing their goods. The white cabinet suits any setting, while the gray lid trim offers an added touch of clean style. We include a set of sturdy commercial casters for users to install if they prefer the freezer more mobile. The digital thermostat is externally located for easy temperature management, with a wide range from -13 to 23ºF to accommodate a variety of desserts. We pre-set the unit to -4ºF.

Inside, the FOCUS73 features hammered aluminum walls designed for lasting durability in busy commercial settings. We include three epoxy coated wire novelty baskets, ideal for storing frozen treats and designed to easily glide back and forth as needed. This unit utilizes a manual defrost cooling system with environmentally friendly R290a cooling agent and extra thick insulation to ensure added reliability. A drain is included for easy defrosting.

The FOCUS73 is UL-S listed to NSF-7 commercial standards. Additional sizes are available.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
