19" Wide Refrigerator-Freezer

SKU: CP72W

Perfectly sized for dorm rooms & other smaller kitchen spaces

Estimated Time to Ship: Next day shipping
This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

44.63" H x 18.5" W x 19.13" D

(113cm H x 47cm W x 49cm D)

SPECIFICATIONS

Overview
Height of Cabinet 44.63" (113 cm)
Height to Hinge Cap 44.63" (113 cm)
Width 18.5" (47 cm)
Width with Door Open 19.5" (50 cm)
Depth 19.13" (49 cm)
Depth with door at 90° 36.0" (91 cm)
Capacity 4.5 cu.ft. (127 L)
Defrost Type Cycle
Door White
Cabinet White
US Electrical Safety CSA
Canadian Electrical Safety CSA-C
Energy Usage/Year 327.0kWh/year
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 61.0 lbs. (28 kg)
Shipping Weight 66.0 lbs. (30 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101076171
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior Height 27.0" (69 cm)
Refrigerator - Interior Width 15.5" (39 cm)
Refrigerator - Interior Depth 14.5" (37 cm)
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 6
Refrigerator - Full Door Shelves 2
Refrigerator - Half Door Shelves 4
Can Storage Yes
Freezer - Interior Height 9.63" (24 cm)
Freezer - Interior Width 14.0" (36 cm)
Freezer - Interior Depth 14.0" (36 cm)
Freezer - Shelf Type Wire
Freezer - Shelf Qty 1
Freezer - Full Door Shelves 1
Thermostat Type Dial
Refrigerant Type R600a
Refrigerant Amount 1.37 oz.
High Side PSI 150.0
Low Side PSI 60.0
Level Legs 2
Compressor Step Height 7.5" (19 cm)
Compressor Step Width 15.5" (39 cm)
Compressor Step Depth 4.0" (10 cm)

AVAILABLE UPGRADES

Exterior
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

FEATURES

Compact size
Unique dimensions offers a full 4.5 cu.ft. capacity in a conveniently slim fit
ADA compliant design
Low height and accessible controls meet ADA guidelines for user accessibility
Adjustable glass shelves
Two spill-proof shelves made from solid safety glass offer convenient and flexible storage in the refrigerator compartment
Door storage
Door shelves in both the refrigerator and freezer compartments offer convenient storage
Curved door racks
Curved door racks in the refrigerator compartment hold cans and bottles in place for added convenience
Fruit and vegetable crisper
Get the longest life and best taste out of produce by storing it in a convenient slide drawer
Full freezer shelf
Removable wire shelf included to accommodate a variety of sizes inside the top freezer compartment
Interior light
Automatically illuminates when you open the door of the fresh food section

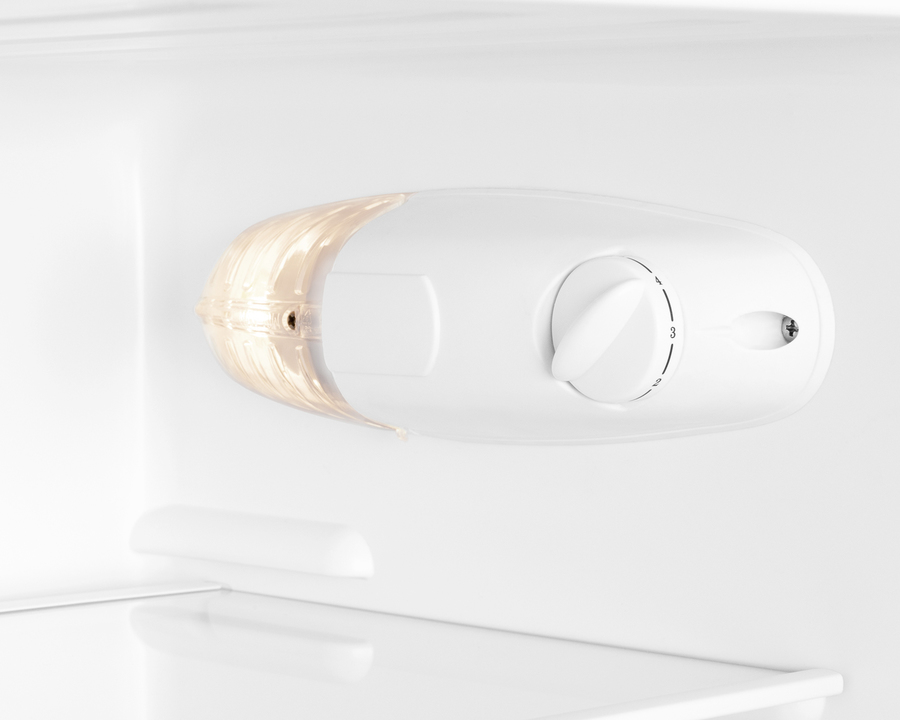

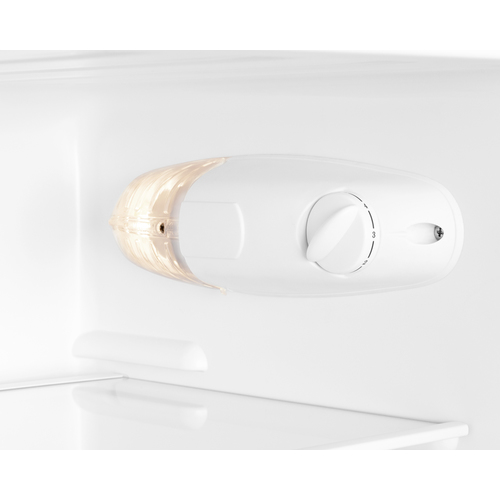

Adjustable thermostat
Dial thermostat located inside for easy temperature management
Cycle defrost
Combines an automatic defrosting refrigerator with a manual defrost freezer for a quality performance with energy savings
Reversible doors
User-reversible door swing allows you to switch the configuration for a better fit in your kitchen
All-white finish
Glossy white doors with a textured white cabinet finish provide a classic look perfect for any kitchen space
Sealed back
Space-saving design with no exposed coils in the rear offers easy cleanability
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

DESCRIPTION

SUMMIT's line of refrigerator-freezers feature slim dimensions for smaller kitchens and superior construction for years of reliable service.

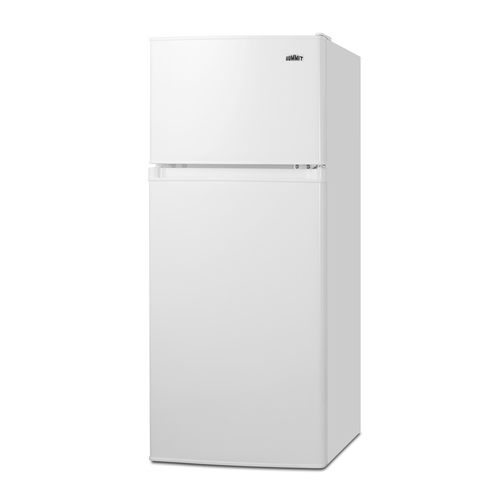

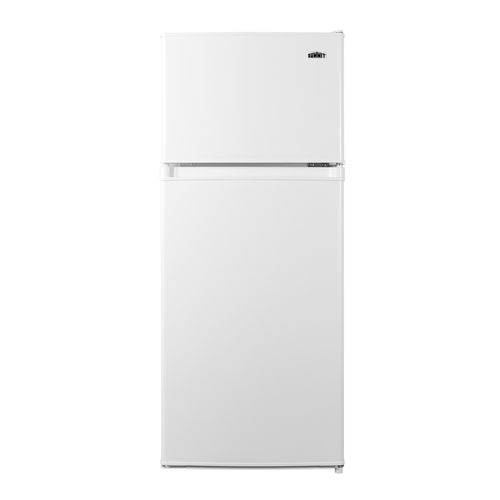

The CP72W is a two-door refrigerator-freezer sized just under 19" wide, with a 45" height that meets ADA guidelines to provide accessibility to wheelchair users. It features a textured white cabinet finish with user-reversible doors and a sealed back for a better fit and easier cleanability.

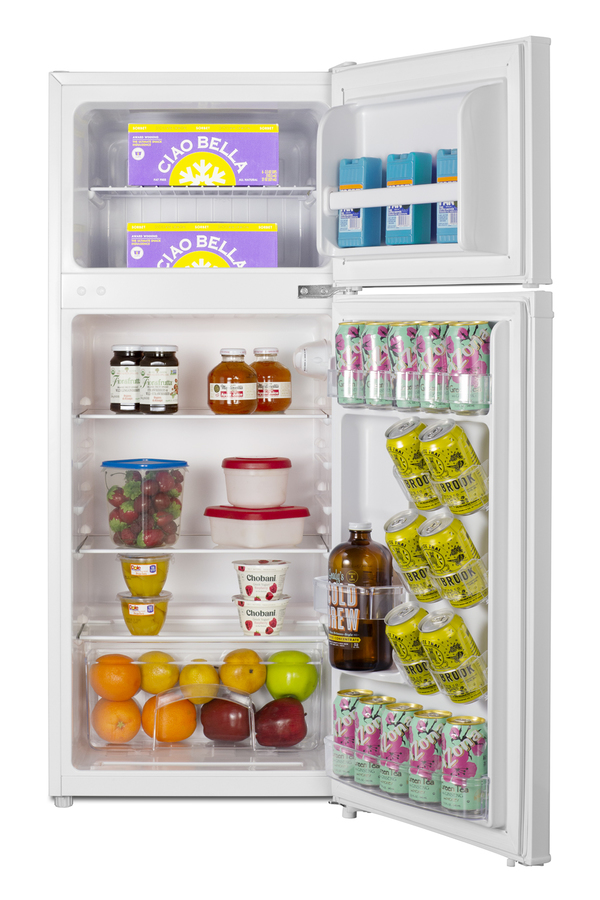

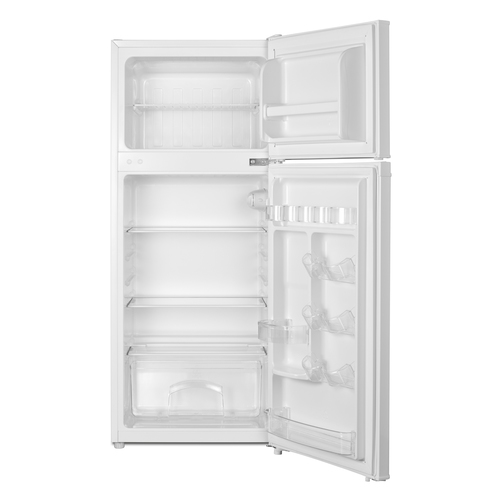

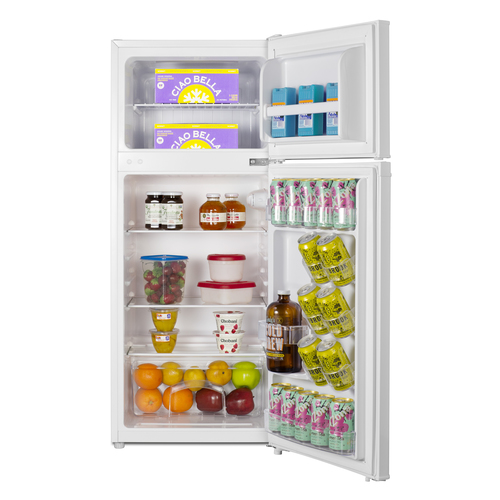

Inside, the CP72W utilizes low maintenance automatic defrost in the refrigerated section and static manual defrost in the freezer. The refrigerator has two adjustable spill-proof glass shelves for easy storage, while door storage includes a mixture of curved shelves for holding cans and bottles in place and straight shelves for condiments and other refrigerated items for added versatility. A large pull-out crisper drawer keeps your greens fresh. The freezer section comes with a removable wire shelf, as well as a full door rack, for storage convenience. A dial thermostat provides easy temperature management of the 4.5 cu.ft. interior, while the refrigerator section includes an automatic interior light for an easy view of stored contents.

With its unique size and fully-featured interior, the CP73PL is ideal for studio apartments, dormitories, offices, and other small-spaced environments seeking reliable cold storage in a slim-fitting design. For this unit with stainless steel look doors, see the CP73PL.

SPECIFICATIONS

Overview
Height of Cabinet 44.63" (113 cm)
Height to Hinge Cap 44.63" (113 cm)
Width 18.5" (47 cm)
Width with Door Open 19.5" (50 cm)
Depth 19.13" (49 cm)
Depth with door at 90° 36.0" (91 cm)
Capacity 4.5 cu.ft. (127 L)
Defrost Type Cycle
Door White
Cabinet White
US Electrical Safety CSA
Canadian Electrical Safety CSA-C
Energy Usage/Year 327.0kWh/year
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 61.0 lbs. (28 kg)
Shipping Weight 66.0 lbs. (30 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101076171
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior Height 27.0" (69 cm)
Refrigerator - Interior Width 15.5" (39 cm)
Refrigerator - Interior Depth 14.5" (37 cm)
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 6
Refrigerator - Full Door Shelves 2
Refrigerator - Half Door Shelves 4
Can Storage Yes
Freezer - Interior Height 9.63" (24 cm)
Freezer - Interior Width 14.0" (36 cm)
Freezer - Interior Depth 14.0" (36 cm)
Freezer - Shelf Type Wire
Freezer - Shelf Qty 1
Freezer - Full Door Shelves 1
Thermostat Type Dial
Refrigerant Type R600a
Refrigerant Amount 1.37 oz.
High Side PSI 150.0
Low Side PSI 60.0
Level Legs 2
Compressor Step Height 7.5" (19 cm)
Compressor Step Width 15.5" (39 cm)
Compressor Step Depth 4.0" (10 cm)

AVAILABLE UPGRADES

Exterior
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
CP72W.pdf
Download
TECHNICAL DRAWING (.dwg)
CP72W_CP73PL_REF._FREEZER__A-C_2018_.dwg
Energy Guide
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
