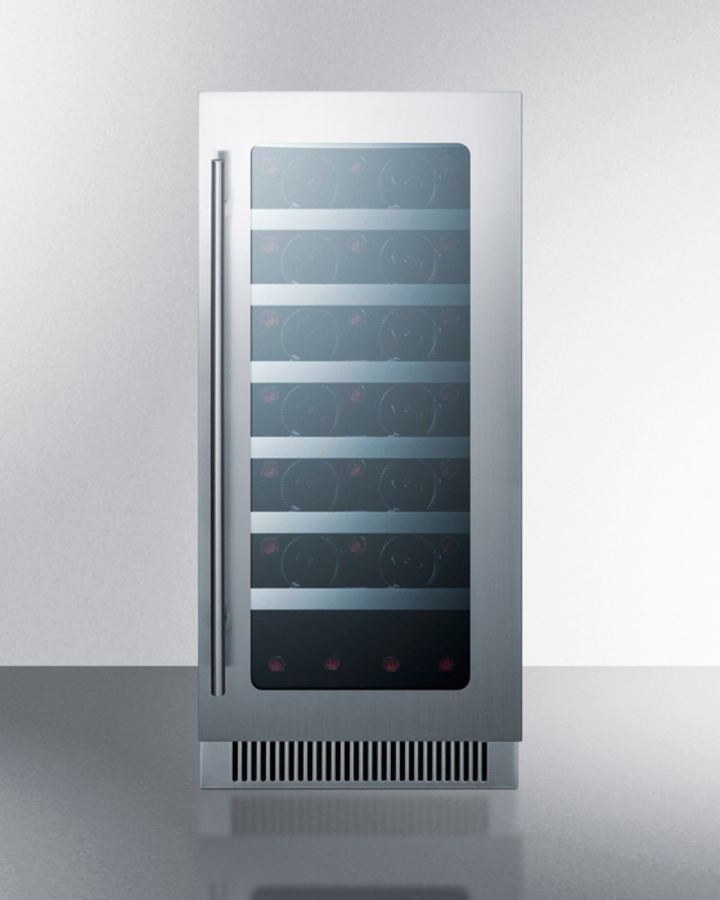

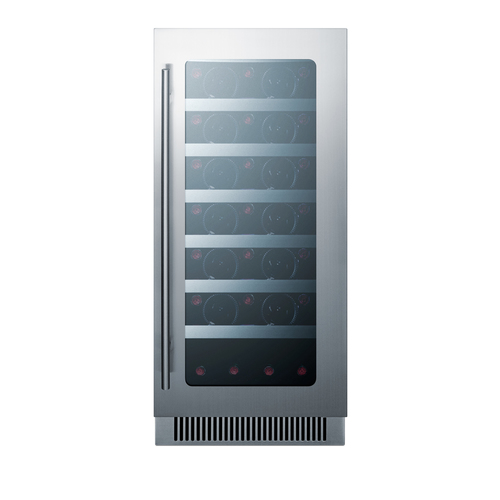

CL15WC full

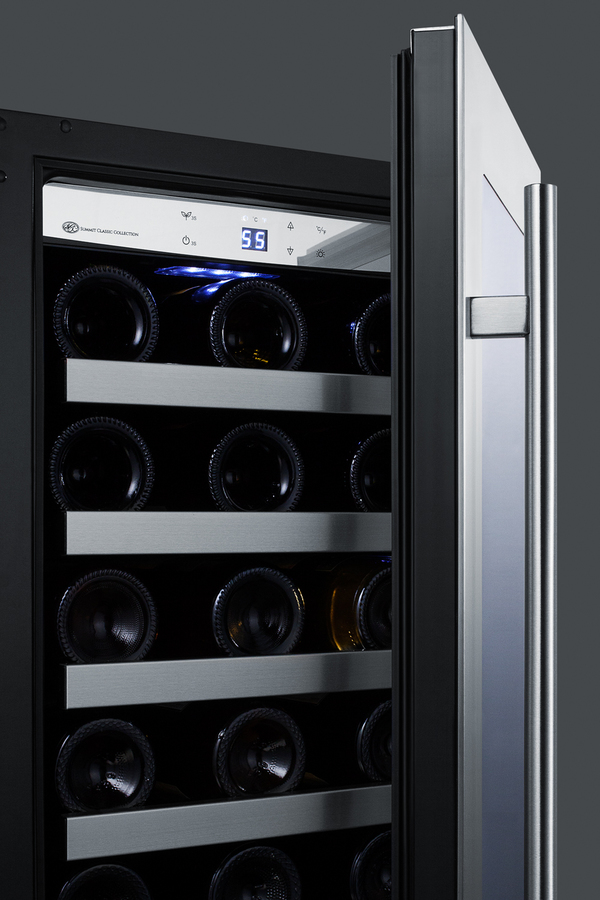

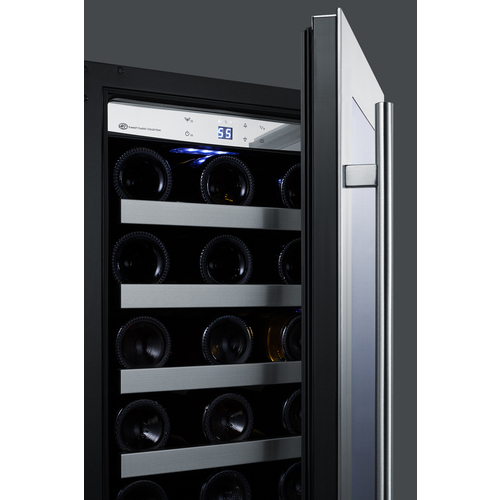

CL15WC door detail
CL15WC side door
CL15WC shelf
CL15WC open
SHARE THIS PRODUCT
Pinterest E-mail a Friend Print

SPECIFICATIONS

Overview
Height of Cabinet 34.5" (88 cm)
Width 15.0" (38 cm)
Depth 23.38" (59 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 37.25" (95 cm)
Capacity 3.2 cu.ft. (91 L)
Bottles 34 bottles
Defrost Type Automatic
Door Glass
Cabinet Stainless Steel
US Electrical Safety CSA
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 80.0 lbs. (36 kg)
Shipping Weight 100.0 lbs. (45 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Shelf Type Wood
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R134a
Refrigerant Amount 1.59 oz.
High Side PSI 250.0
Low Side PSI 103.0
Interior Height 1 26.0" (66 cm)
Interior Width 1 12.0" (30 cm)
Interior Depth 1 18.0" (46 cm)
Compressor Step Height 4.5" (11 cm)
Compressor Step Width 12.0" (30 cm)
Compressor Step Depth 5.75" (15 cm)
Level Legs 2
Temperature Range 39°F to 64°F

AVAILABLE UPGRADES

Exterior
LHD
Door reversal to left hand swing


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

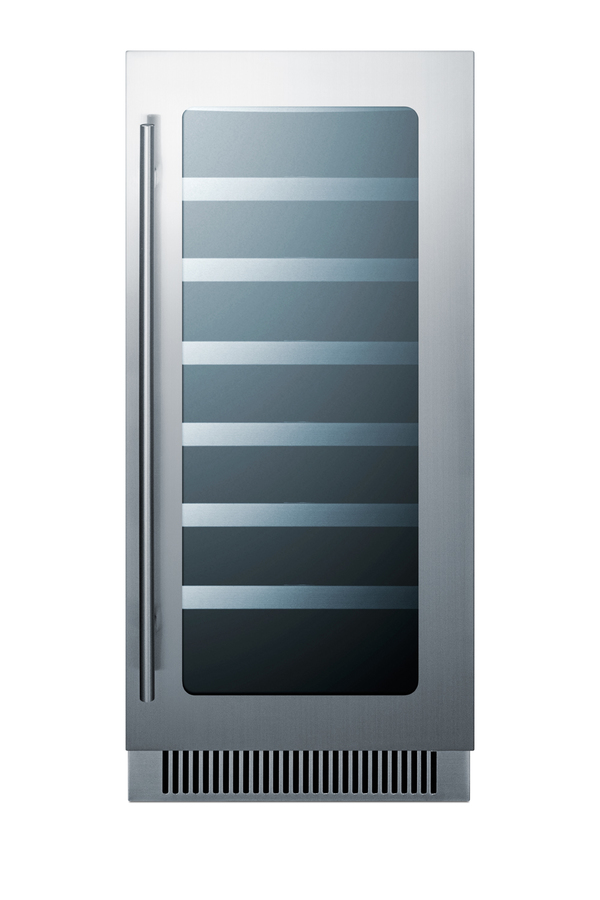

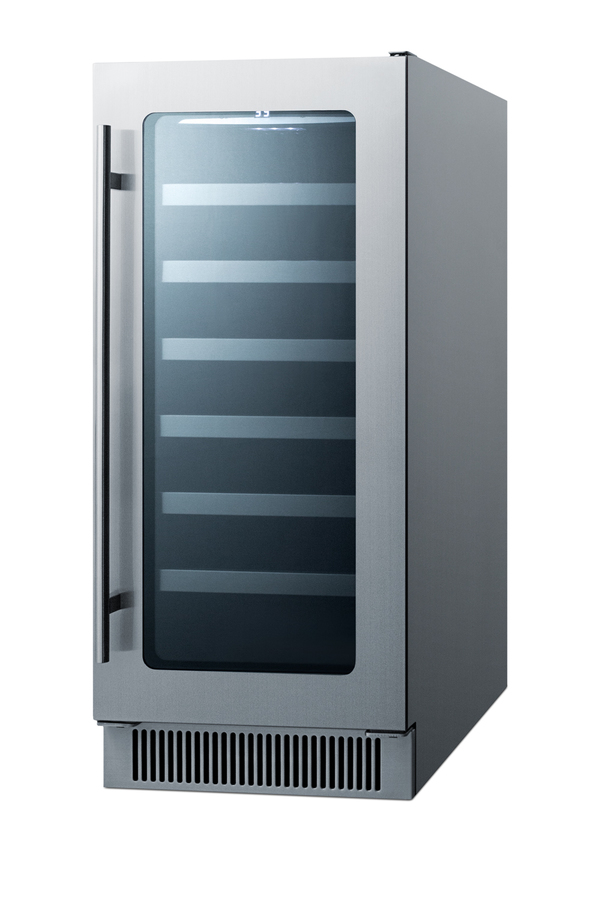

CL15WCCSS

Ultra thin tinted door with seamless stainless steel trim

34.5" H x 15.0" W x 23.38" D

OVERVIEW

WHERE TO BUY

Invalid Format
The SUMMIT Classic Collection features deluxe undercounter appliances designed to bring modern luxury into the home.

At just 15" wide, the CL15WCCSS is the perfect wine cellar to complete any home wet bar. The front breathing design allows built-in installation under counters, while the fully finished cabinet also enables freestanding use. This unit features a stainless steel wrapped cabinet. The seamless stainless steel door trim blends right into the softly tinted low-e glass, with a sleek stainless steel handle and designer kickplate completing the stunning look. Inside, white LED lighting complements the black interior and illuminates your collection.

The CL15WCCSS can store up to 34 standard 750ml Bordeaux bottles, or a combination of 8 wider "Burgundy" style bottles (typically used for Pinot Noir or Chardonnay) with 25 Bordeaux bottles. The bottom can hold three champagne bottles. Slide-out wooden shelves feature a black finish and stainless steel trim. The interior control panel includes a digital thermostat for easy and intuitive operation, with a readout viewable in Celsius or Fahrenheit. Additional features include a user-reversible door, conservation mode for energy savings, and a temperature memory function to restore set temperature in the case of power loss.  A built-in alarm audibly warns if the door is left ajar or if the unit rises or falls out of the recommended temperature.

Uniquely styled and fully featured, the CL15WCCSS brings true luxury to small kitchen spaces.

FEATURES

Built-in capable
Make the best use of space by installing your appliance under the counter
Low-e glass door
Gently tinted glass provides a full view of stored wine while protecting your collection with energy efficient low-e glass

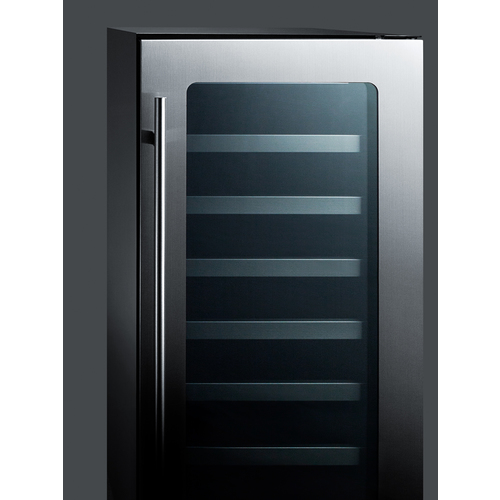

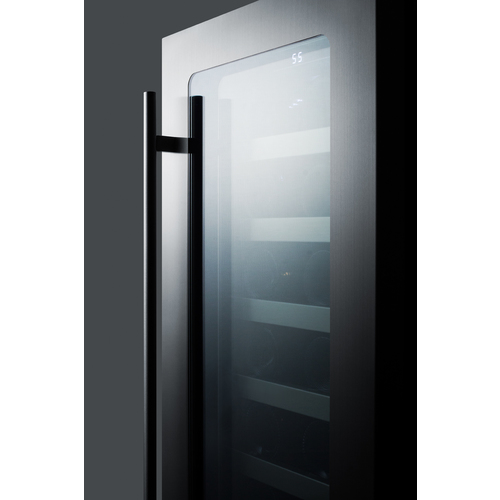

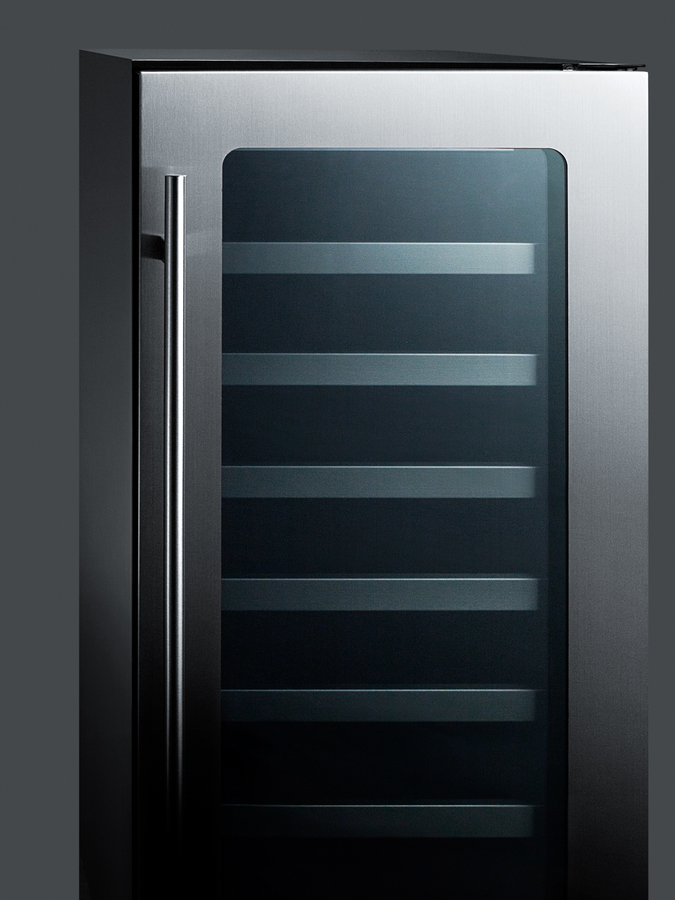

Seamless stainless steel trim
Glass is framed by seamless 304 grade stainless steel
Stainless steel exterior
Cabinet is fully wrapped in stainless steel for lasting durability
Digital thermostat
Electronic controls for precise temperature management
Digital display
Temperature readout can be shown in Celsius or Fahrenheit

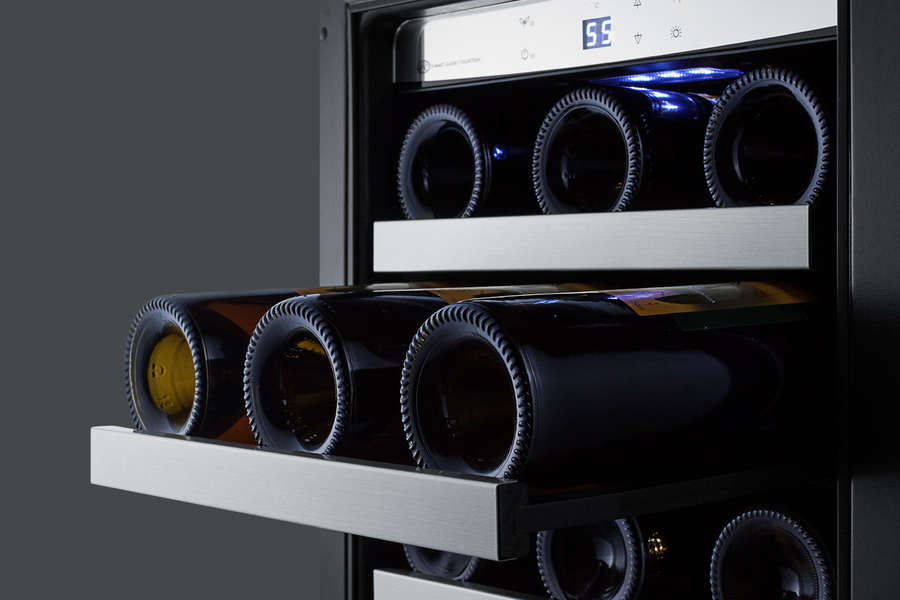

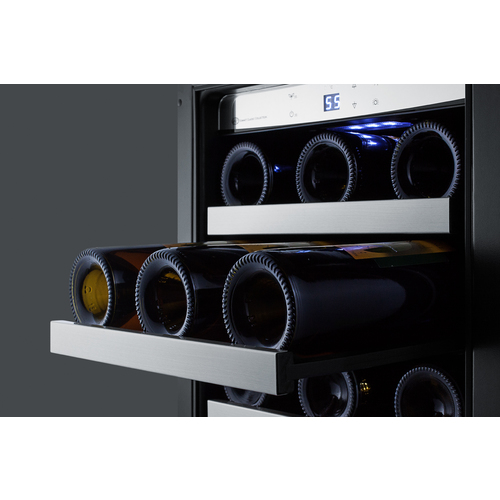

Stainless steel trimmed wooden shelves
Black wooden shelves feature stainless steel trim for an added touch of elegance
Versatile storage
Interior can hold up to 34 standard 750ml Bordeaux style bottles. If using this wine cellar for wider Burgundy/Pinot Noir bottles, you can store up to 8 of those bottles with 25 of the Bordeaux style. The floor can hold three champagne bottles
White LED lighting
Unique white light offers elegant illumination for the jet black interior

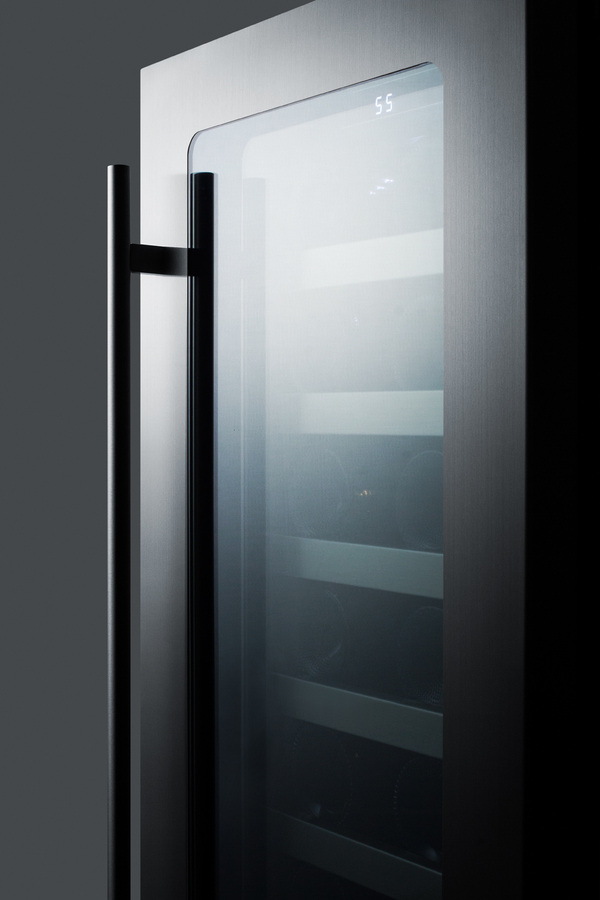

Professional handle
Vertically mounted handle in brushed stainless steel features a sleek 16mm diameter that suits many popular styles of cabinetry
Reversible door
User-reversible door swing allows for more flexibility in placing the unit
Stainless steel kickplate
Completes the professional look down to the toe kick
Temperature alarm
Audibly alerts if the interior temperature rises or falls out of the recommended wine storage range
Open door alarm
Audible alarm will sound if the door is left ajar
Fan-forced cooling
Internal fan ensures the interior is evenly cooled from top to bottom
Automatic defrost
Reduced maintenance and steady temperature performance
Sealed back
Space saving design with easier cleanability
Energy conservation mode
Lets you disable some of the electrical features to save on energy use
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss
Fully finished cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

DOWNLOADS

Download BROCHURE w/ DRAWINGS
CL15WCCSS.pdf
Download TECHNICAL DRAWING (.dwg)
CL15WCWINECELLARA-C2000.dwg
