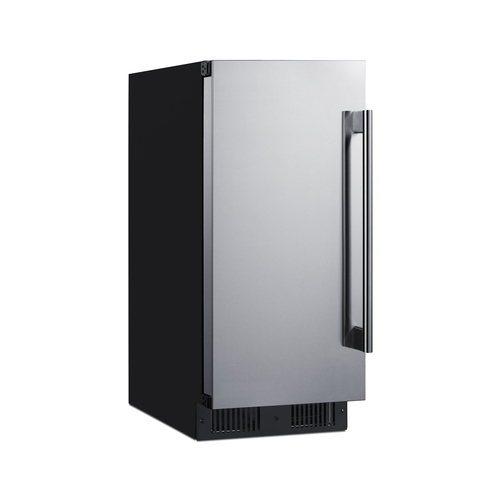

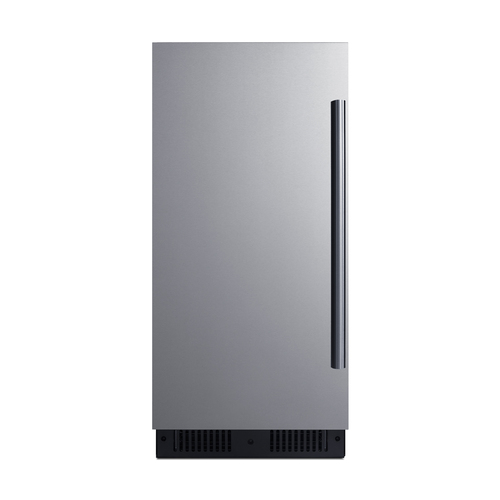

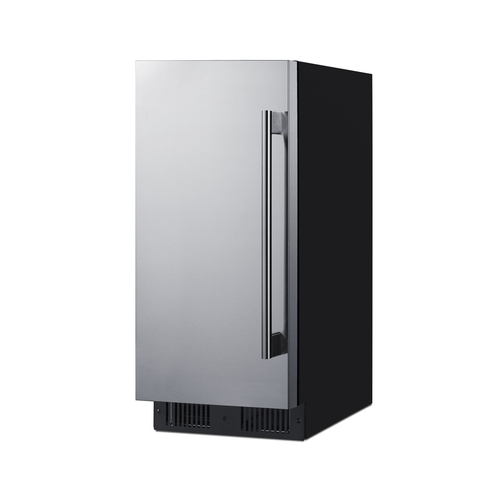

15" Wide Built-In All-Refrigerator, ADA Compliant
1 to 2 days
(81cm H x 37cm W x 58cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 32.0" (81 cm) |
| Width | 14.75" (37 cm) |
| Depth | 22.75" (58 cm) |
| Depth with Handle | 24.5" (62 cm) |
| Depth with door at 90° | 38.0" (97 cm) |
| Capacity | 2.54 cu.ft. (72 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 240.0kWh/year |
| Amps | 1.0 |
| Plug Type | NEMA 5-15P (Right Angle) |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 60.0 lbs. (27 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101091808 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | LHD |
| Reversible | No |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Full Door Shelf Qty | 2 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.78oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36°F to 43°F |
| Sound Level | 32.6 dB |
|
Dimensions
|
|
| Interior Height | 25.0" (64 cm) |
| Interior Width | 10.5" (27 cm) |
| Interior Depth | 16.75" (43 cm) |
| Compressor Step Height | 3.5" (9 cm) |
| Compressor Step Width | 10.5" (27 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
AVAILABLE UPGRADES
| Exterior | |
|---|---|
|
FEATURES

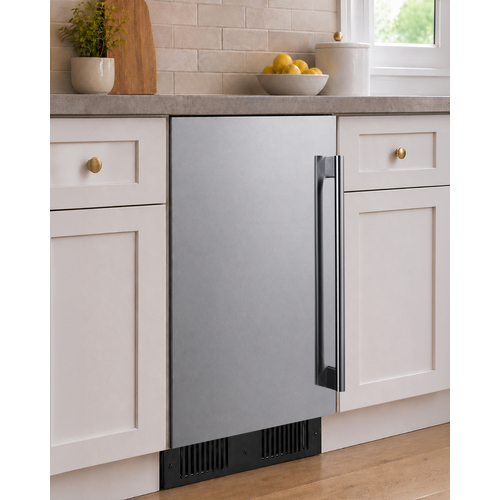

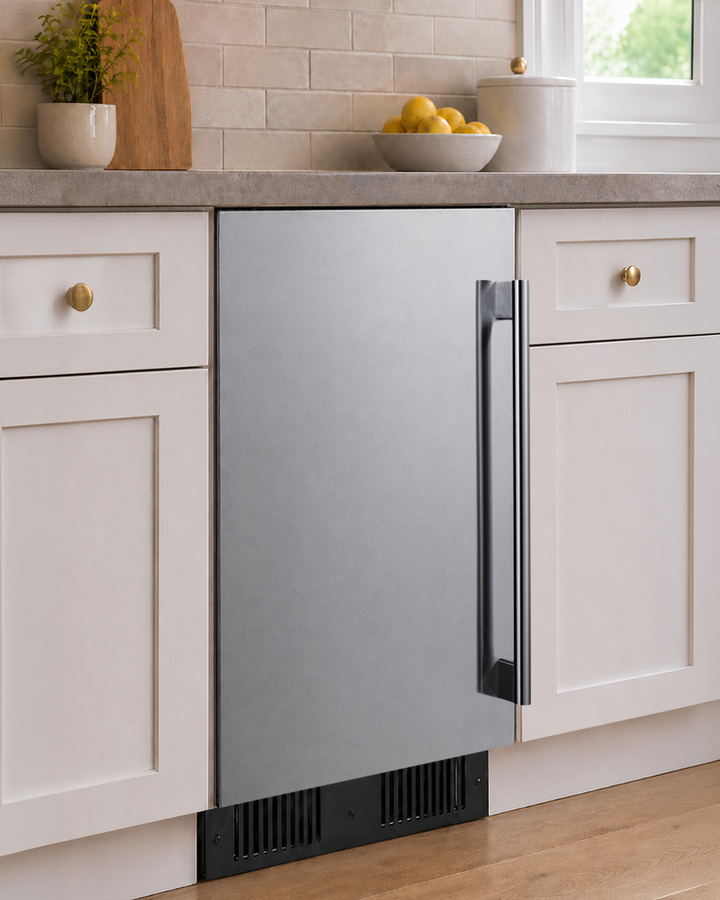

32" high all-refrigerator designed for built-in installation under ADA counters
32" height allows an easy fit in ADA compliant spaces
Make the best use of space by installing your appliance under the counter
Keyed lock for a secure interior, with two keys included

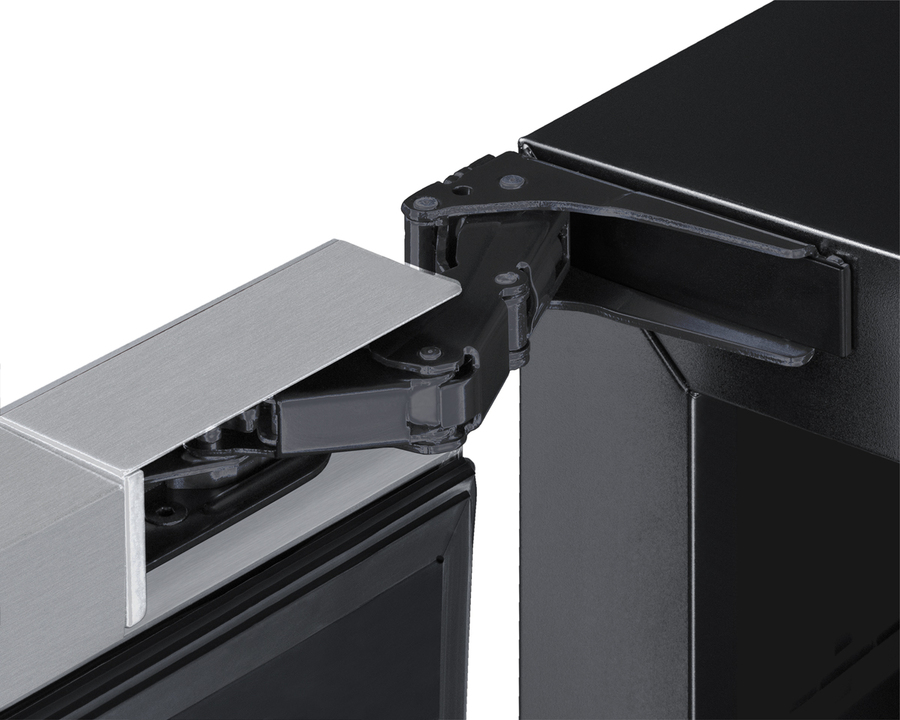

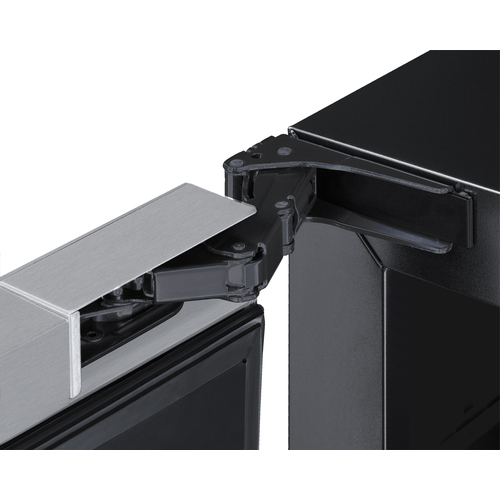

Smoother opening and a better fit with an integrated European hinge
Electronic controls for precise temperature management.
Temperature readout can be shown in Celsius or Fahrenheit
Gentle illumination with an on/off switch
No-frost operation ensures reduced maintenance

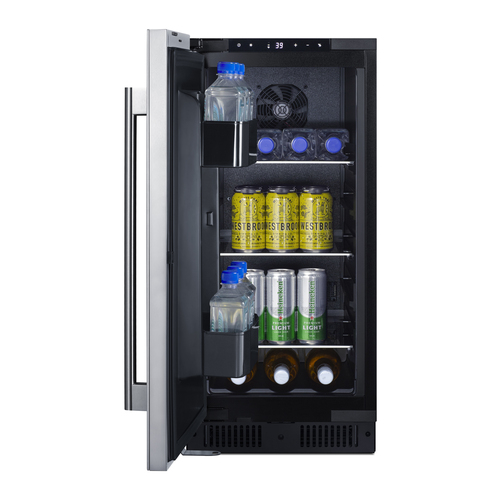

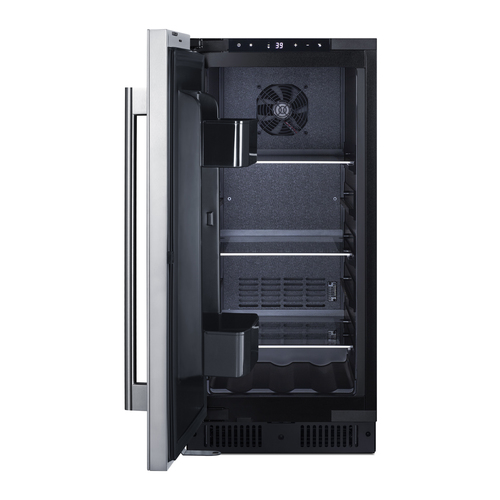

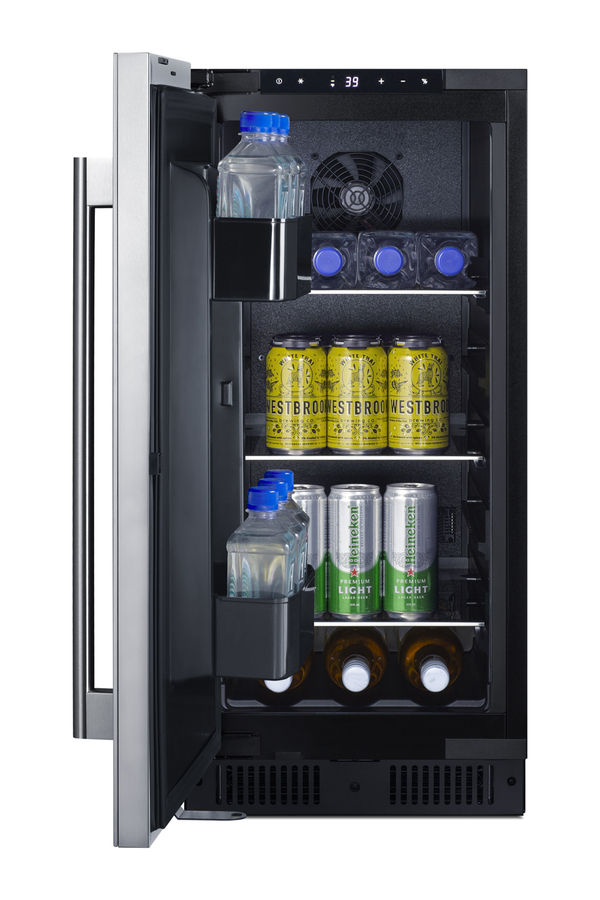

Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Two racks offer the perfect storage solution for tall bottles and condiments
Stainless steel handle completes the professional look
Space saving design that is easy to clean
Optional setting lets you disable the lighting and alarm for up to 48 hours
Alarm sounds if the door is left open for more than 60 seconds
Audible alarm sounds if the interior temperature rises out of set range
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
In the event of power loss, unit will return to its last settings when power is restored
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION
Summit offers the industry's largest selection of 32" high ADA compliant appliances, with quality choices for built-in or freestanding use in 15" wide spaces. The ALR15BSS is a 2.2 cu.ft. all-refrigerator with a front-breathing system for built-in use. It comes with a black cabinet and stainless steel wrapped door, with a pro style handle to match. The front lock offers added safety. The fully articulating European style hinge design ensures smoother opening. This unit has a sealed back for easier cleanup. At just under 32" high, it's perfect for fitting under lower counters following ADA guidelines. Inside, the ALR15BSS features a jet black finish and convenient frost-free operation for minimum maintenance. Fan-forced cooling helps to stabilize the temperature inside. Adjustable glass shelves offer spill-proof storage and two door racks are ideal for keeping condiments and bottles within reach. This unit comes with a digital control panel for easy temperature management, with a temperature readout viewable in Celsius and Fahrenheit. Additional features include an open door and high temperature alarm, temperature memory function, and Sabbath mode to allow users to disable certain electrical functions during periods of observance. Recessed LED lighting offers an attractive, energy efficient view. With its premium design and ADA compliant height, this refrigerator is perfect for a variety of spaces. Additional choices for 15" wide spaces, as well as ADA compliant applications, can be found in Summit's extensive product catalog. Browse our website for more options.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
