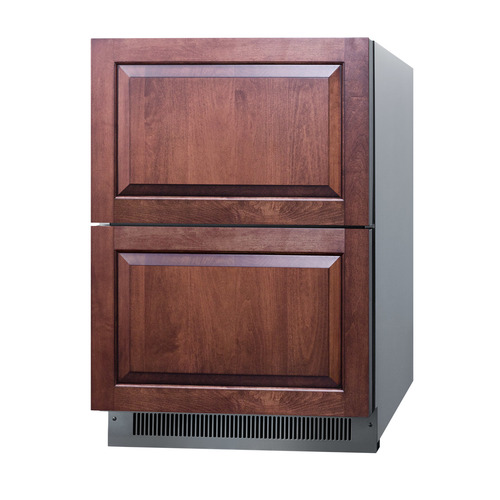

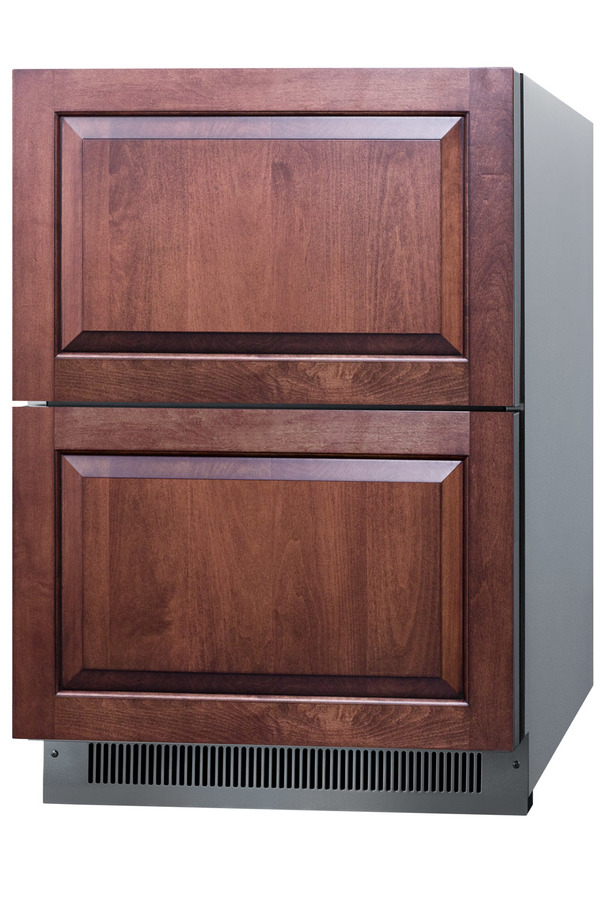

24" Wide 2-Drawer All-Refrigerator, ADA Compliant (Panels Not Included)

SKU: ADRD24PNR
Panel-ready drawers allow you to customize the front to achieve the perfect style for every indoor or outdoor kitchen space
Estimated Time to Ship:

Next day shipping

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.
32.0" H x 23.38" W x 22.75" D
(81cm H x 59cm W x 58cm D)

Overview
Height of Cabinet 32.0" (81 cm)
Width 23.38" (59 cm)
Depth 22.75" (58 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 37.88" (96 cm)
Capacity 4.8 cu.ft. (136 L)
Defrost Type Frost-Free
Door Stainless Steel/Panel-Ready
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 272.0kWh/year
Amps 0.5
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Shipping Weight 150.0 lbs. (68 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101088716
Refrigerator Features
Sabbath Mode Yes
Door Swing Drawer
Height Adjustable Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.09oz.
High Side PSI 320.0
Low Side PSI 120.0
Level Legs Qty 4
Interior Light Yes
Interior Drawers Yes
Interior Drawers Qty 2
Temperature Range 34 to 43ºF
Sound Level 34.3 dB
Drawer Dimensions
Interior Height 1 7.0" (18 cm)
Interior Width 1 16.75" (43 cm)
Interior Depth 1 15.25" (39 cm)
Interior Height 2 8.0" (20 cm)
Interior Width 2 16.75" (43 cm)
Interior Depth 2 15.25" (39 cm)
Dimensions
Compressor Step Height 4.5" (11 cm)
Compressor Step Width 16.75" (43 cm)
Compressor Step Depth 5.5" (14 cm)

ENERGY STAR certified

Ensures unit runs efficiently with an environmentally friendly performance

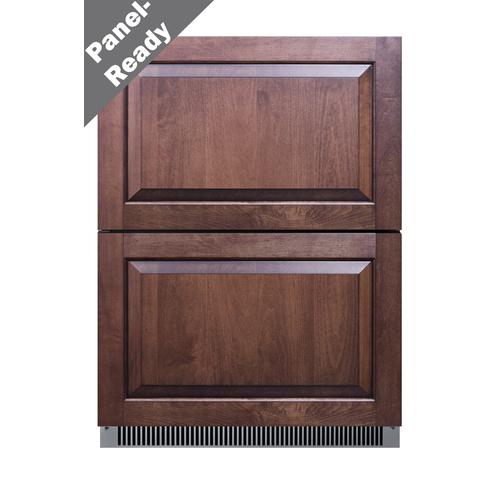

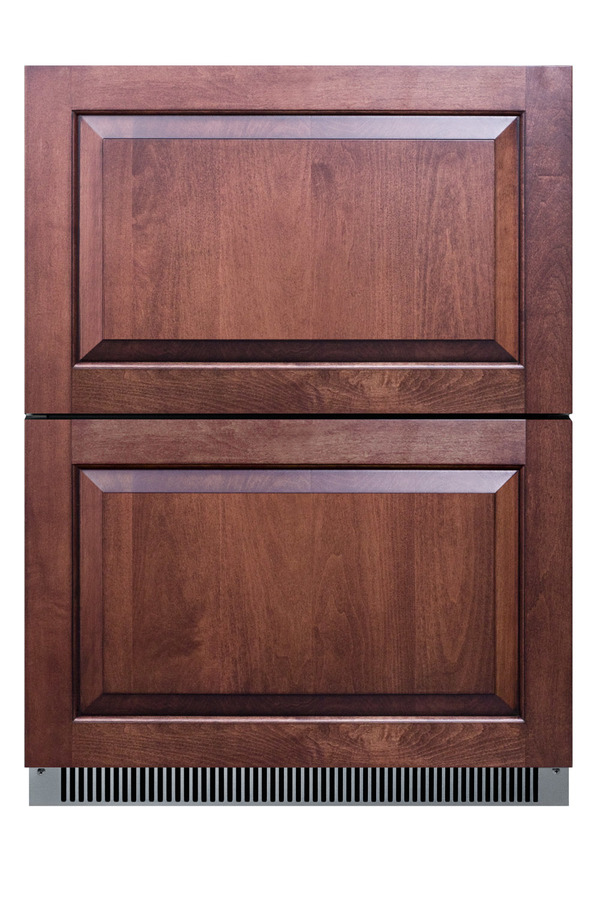

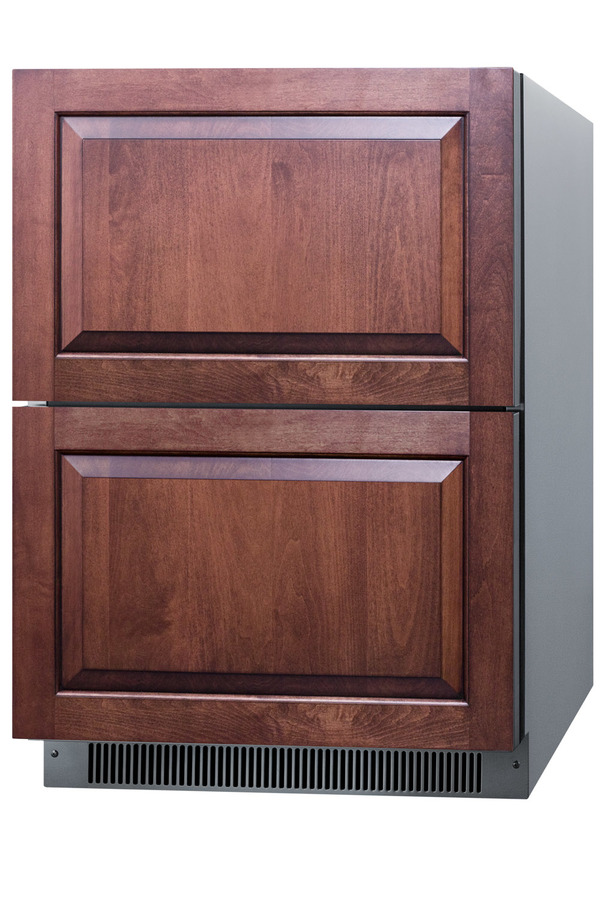

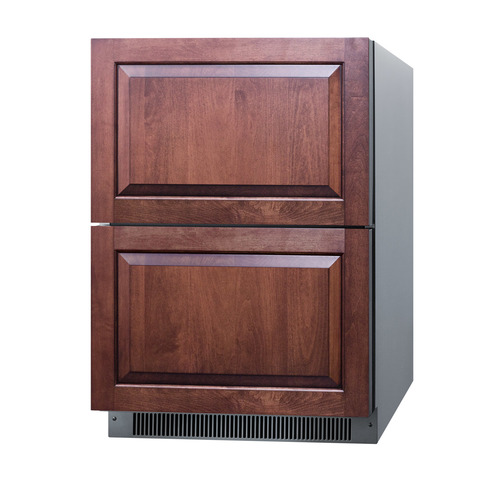

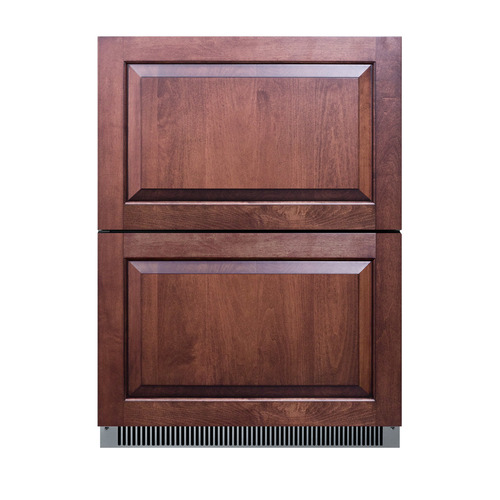

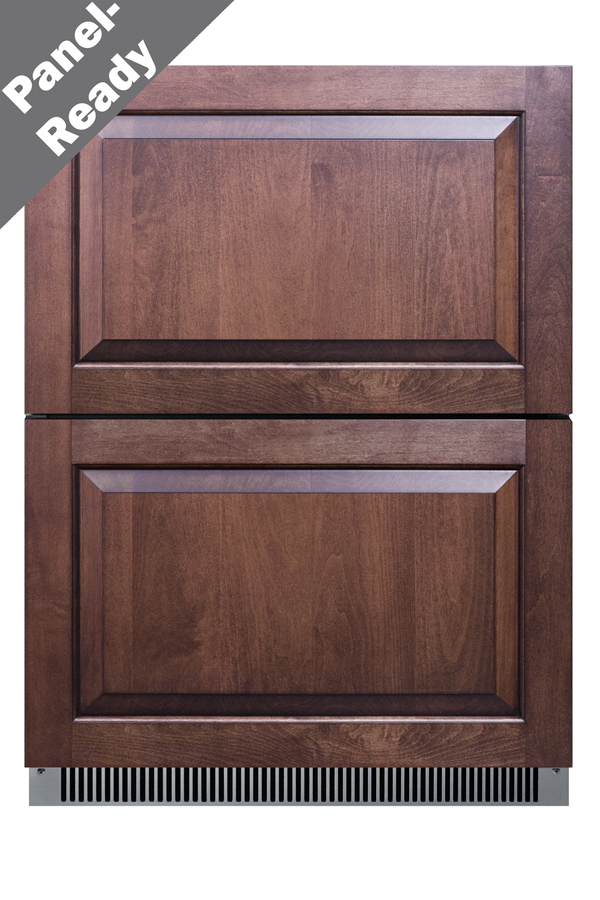

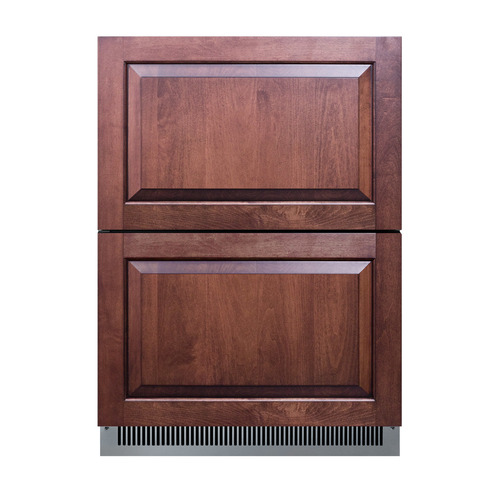

Panel-ready drawer fronts

Drawers can be customized with overlay panels sized (at 23.34" x 14.17" at 3/4" thick) to match or accent existing cabinetry

Commercially approved

ETL-S listed to NSF-7 standards for commercial use

ADA compliant

32” height allows for installation within ADA-compliant spaces

Adjustable height

Unit can be raised to 34.25", with a taller kickplate included for a seamless look

Built-in capable

Front-breathing design allows the unit to be built-in under counters

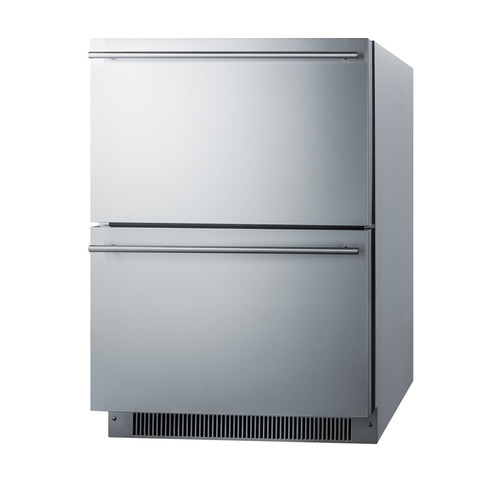

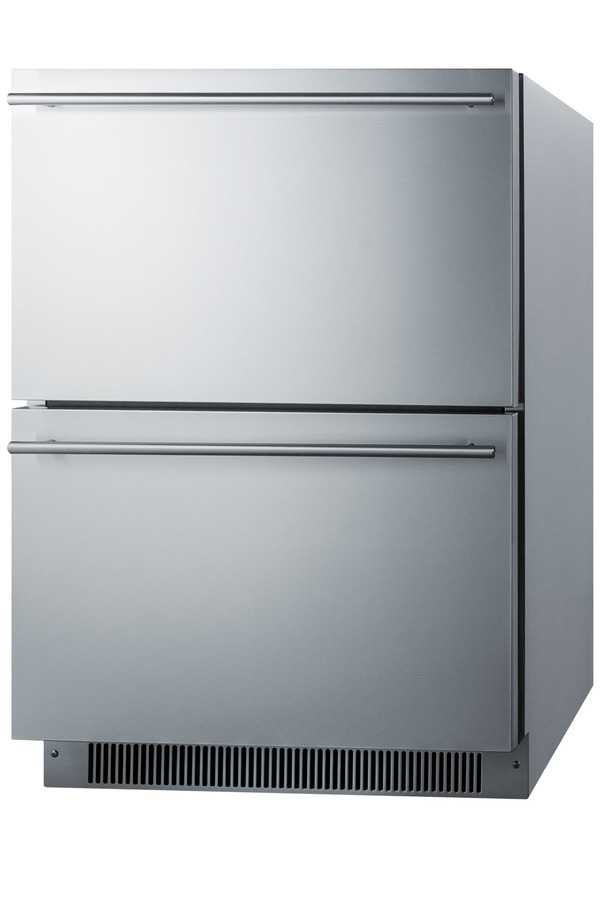

Stainless steel construction

Complete 304 grade stainless steel construction provides durability while maintaining an elegant look

Indoor/Outdoor compatible

Durable, weatherproof construction designed to hold up to the elements

Professional handles

Stainless steel handles add style to any setting

Frost-free

No-frost operation for minimal user maintenance

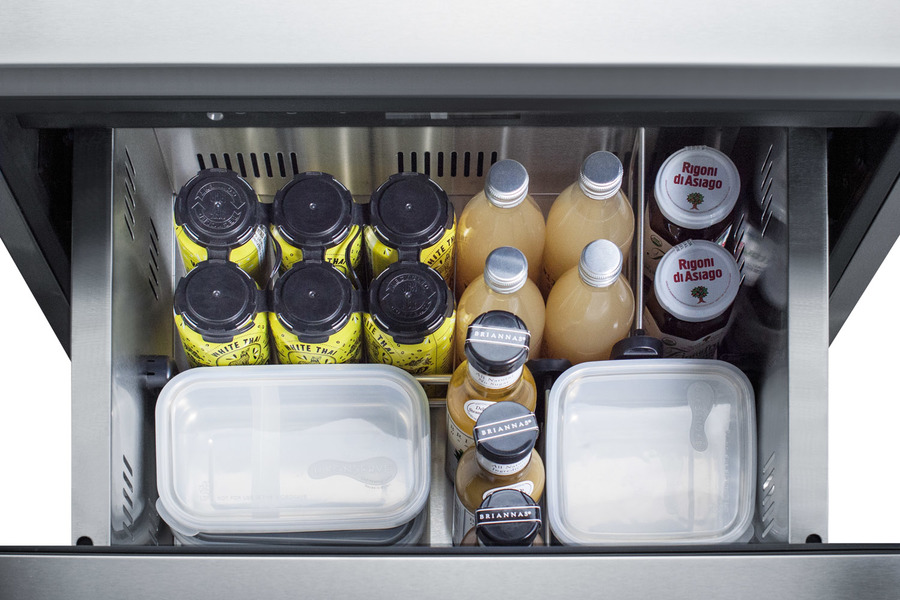

Interior lighting

Soft LED lighting makes for easy viewing of each drawer’s contents

Digital thermostat

Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit

Digital display

Large display allows for easy readability and unit control

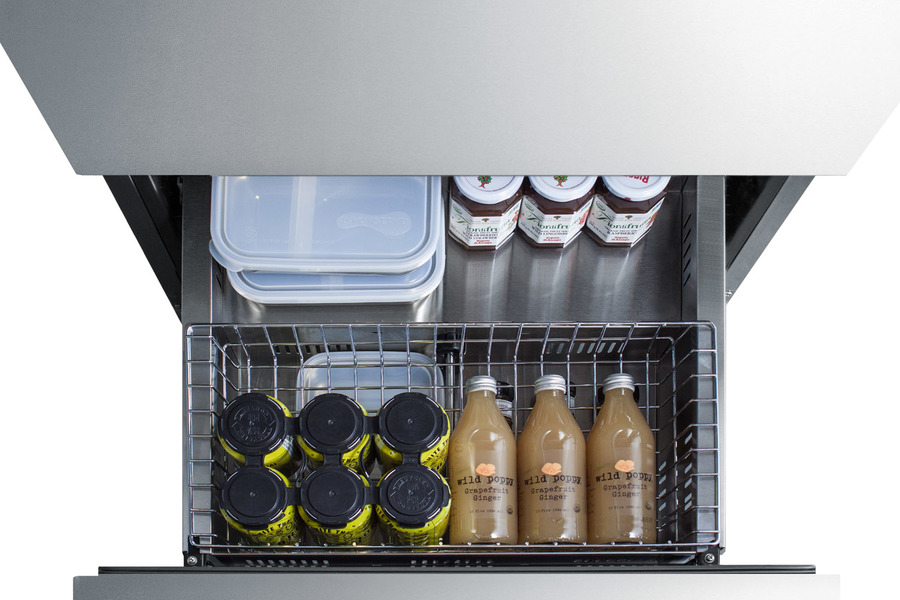

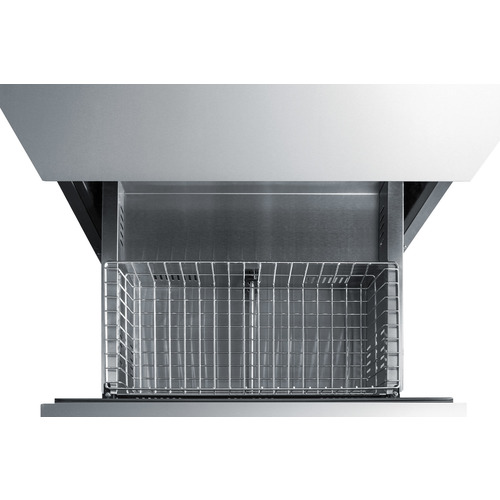

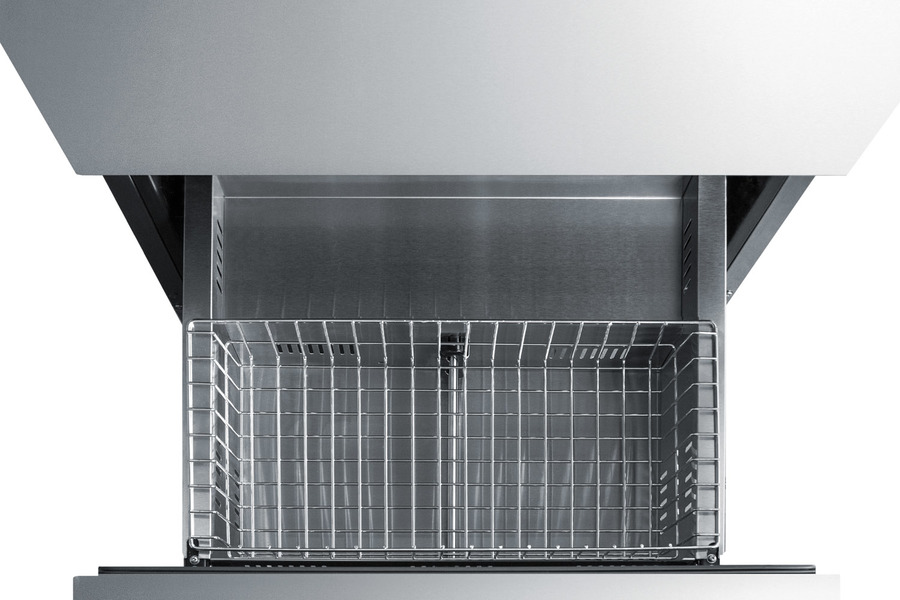

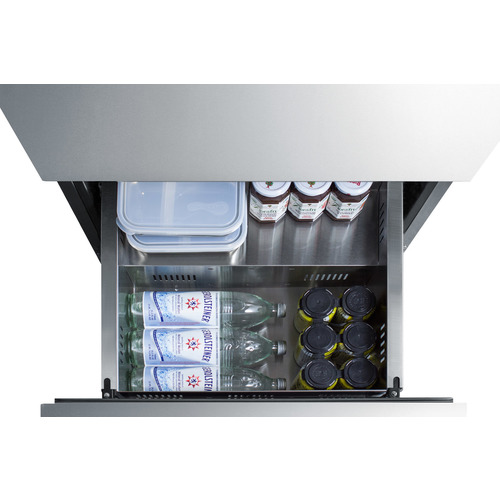

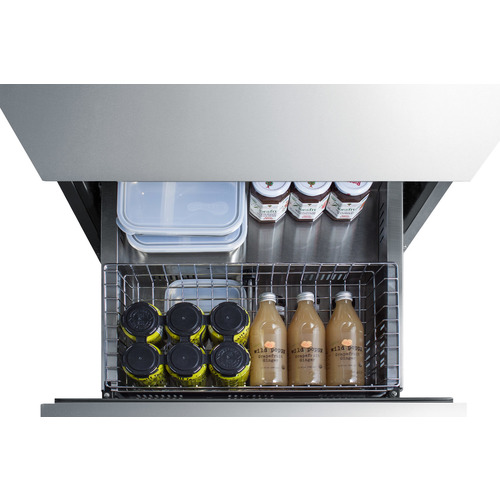

Sliding basket

Removable basket included for additional storage convenience

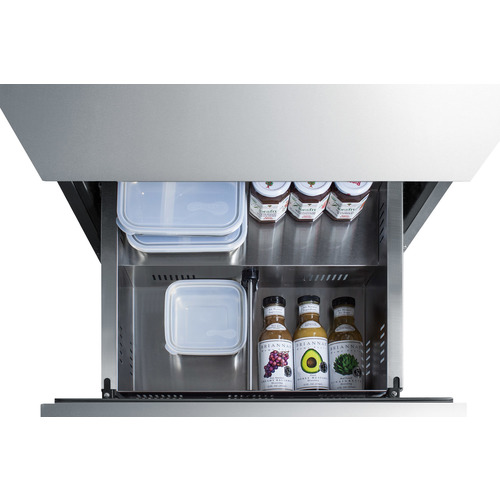

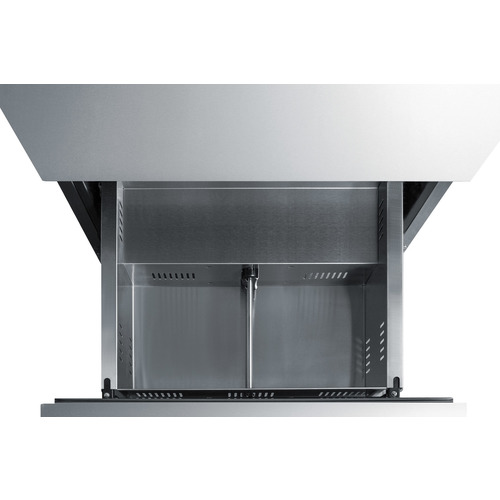

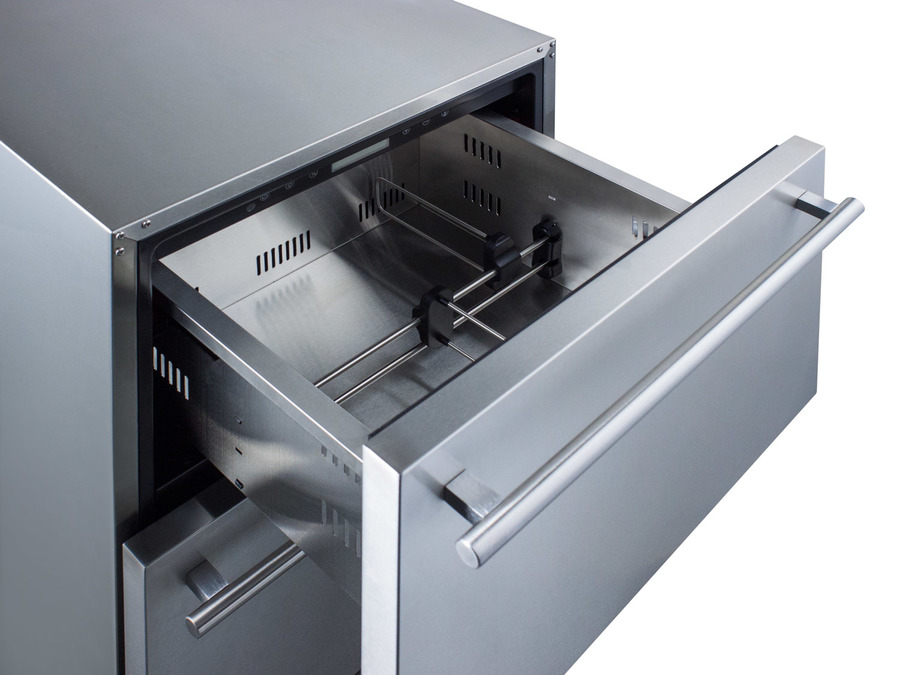

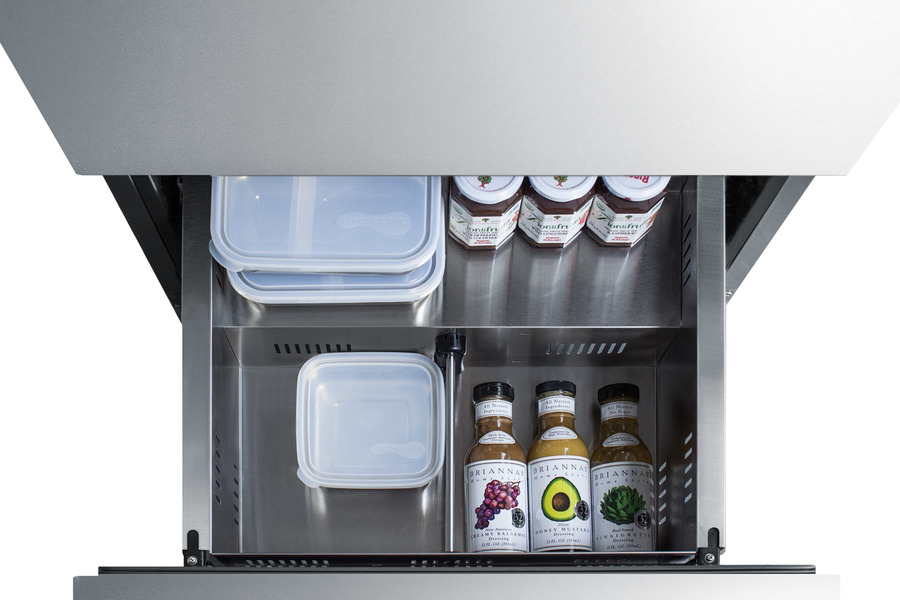

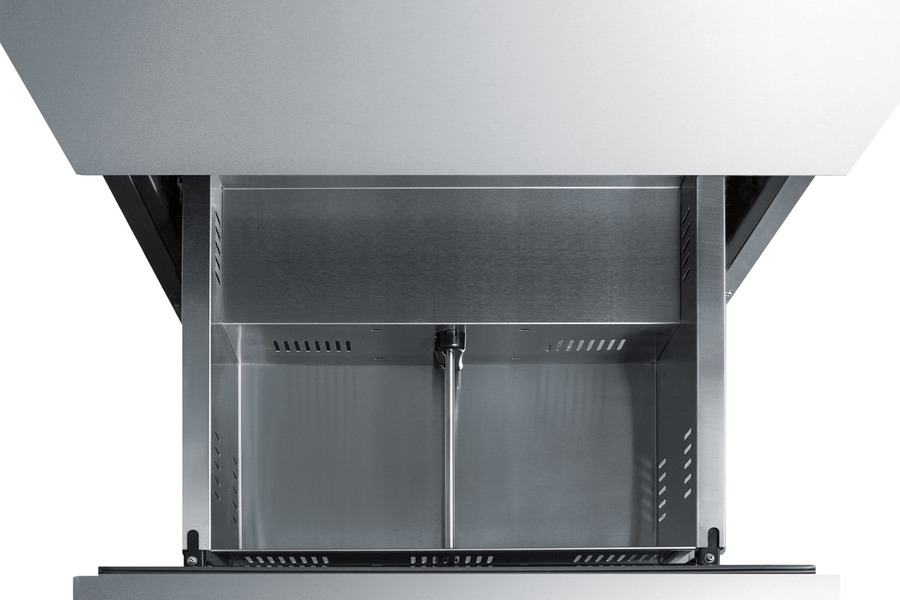

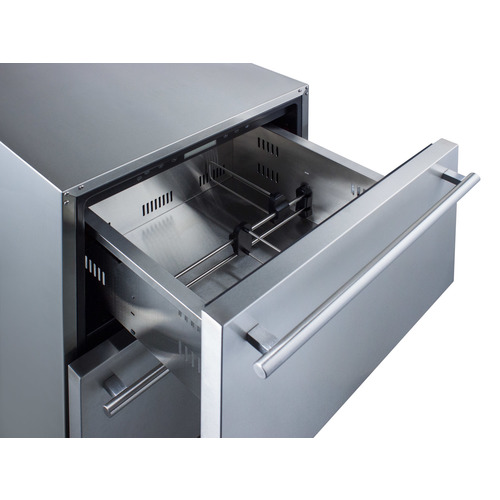

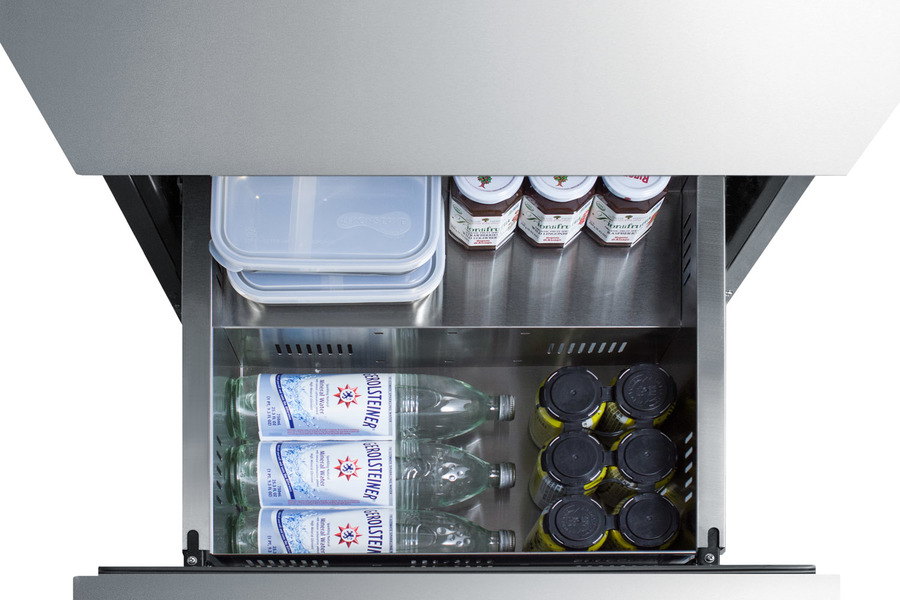

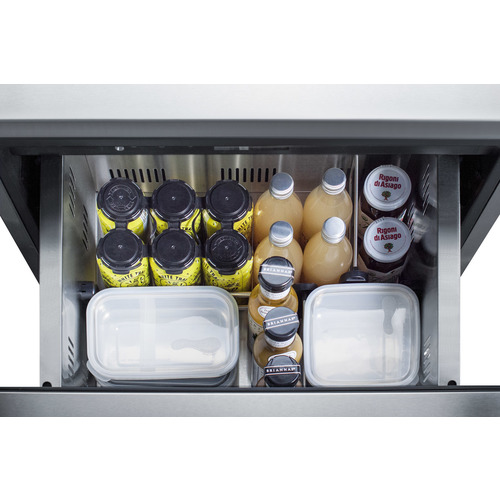

Drawer dividers

Two adjustable dividers provide flexibility when organizing the 4.8 cu.ft. interior

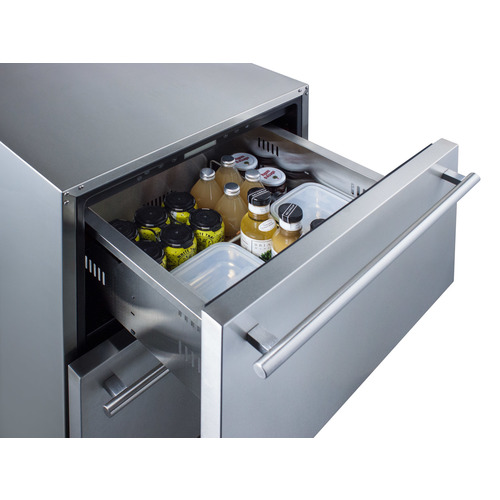

Removable drawers

Allows for easy cleaning and organization within the interior of the unit

Temperature alarm

Alarm alerts you if the unit’s temperature goes beyond recommended high and low temperature ranges

Door alarm

Audible alarm sounds if the drawers are left open for more than five minutes

Sabbath mode

Optional feature disables alarms, interior light, and displays for up to 96 hours

Right-angle plug

Space-saving plug allows unit to sit flush against the wall

Sealed back

Space-saving and makes for quick cleaning of the unit’s exterior

Fan-forced cooling

Provides for efficient, even cooling of the entire unit

Temperature memory

Unit will retain temperature settings after losing power

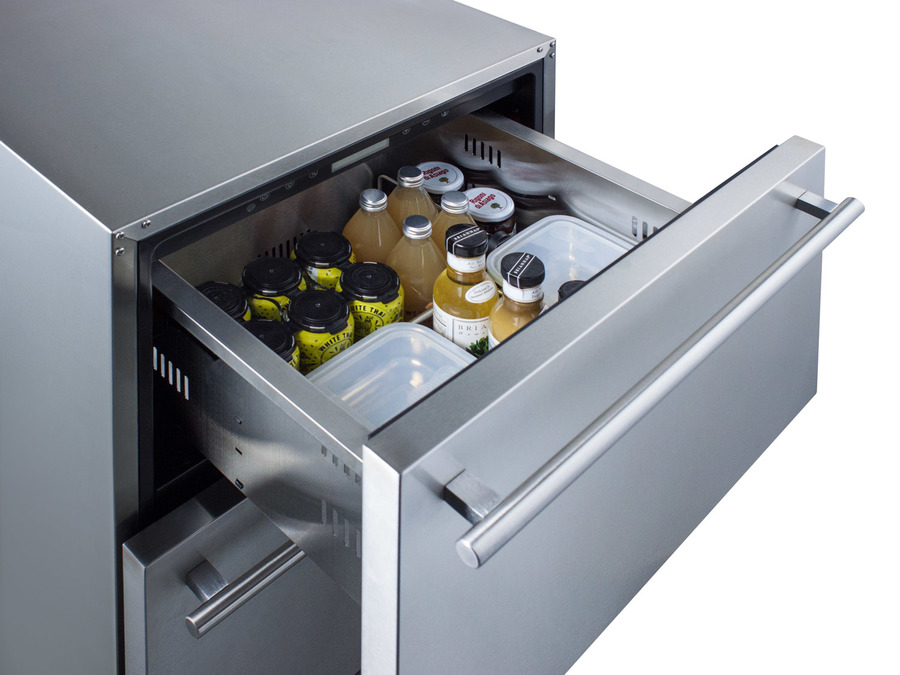

Anti-slam drawers

Soft-close glides prevent drawers from slamming shut for additional durability and safety

Anti-tip bracket

Bracket (included) helps prevent tipping for added safety

Fully finished cabinet

Allows the unit to be used freestanding

Matching freezer available

Pair with Summit's frost-free ADFD2D24PNR to create a matching side-by-side set

100% CFC free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit manufactures an extensive selection of drawer refrigeration for versatile installation indoor or outdoor kitchen spaces, with customizable designs that allow easy integration into any cabinet style.

The ADRD24PNR is a two-drawer all-refrigerator sized at 32 inches high for installation under ADA compliant counters. We include an extra stainless steel kickplate and leveling legs to raise the height to 34 1/4 inches to suit more standard applications. The front-breathing design and finished cabinet allow for built-in or freestanding use. The drawer fronts are specially designed to accept user-provided overlay panels, allowing you to create a custom look that blends into existing cabinetry (panel dimensions: 23.34" W x 14.17" H  at 3/4" thick). Complete 304 stainless steel construction inside and out offers durability in a professional look. Soft close glides deliver added safety by preventing the drawers from slamming. The drawers can be customized with overlay panels to match or accent existing cabinetry design, while the stainless steel kickplate and stylish handles complete the look.

Frost-free operation ensures minimum user maintenance inside the 4.8 cu ft. interior. Two adjustable dividers allow for flexibility in storage, while the removable basket provides additional storage options. Additionally, removable drawers provide versatility and easy cleaning of the unit’s interior. The LED light makes it easy to view stored contents when loading or unloading each drawer.

Additional features ensure efficiency and ease of use. These include temperature and open drawer alarms. The digital thermostat and display make it easy to manage the temperature. A temperature memory function helps to recover temperature settings in the event of a power loss, while Sabbath Mode disables certain electrical features during periods of religious observance.

The ADRD24PNR is perfect for use in home or commercial settings. This unit is ETL-S listed to NSF-7 standards, and its ENERGY STAR certification assures efficient and environmentally friendly operation. For a matching frost-free freezer, see model ADFD2D24PNR.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
