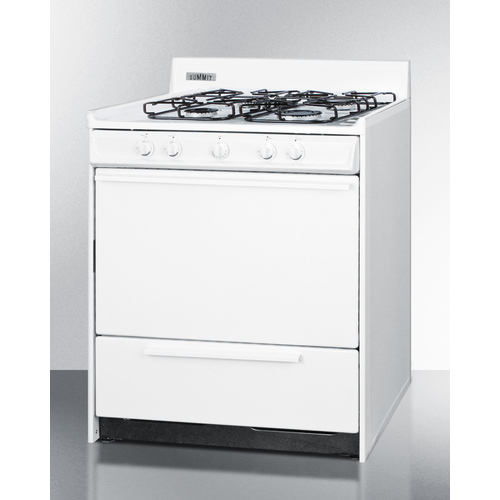

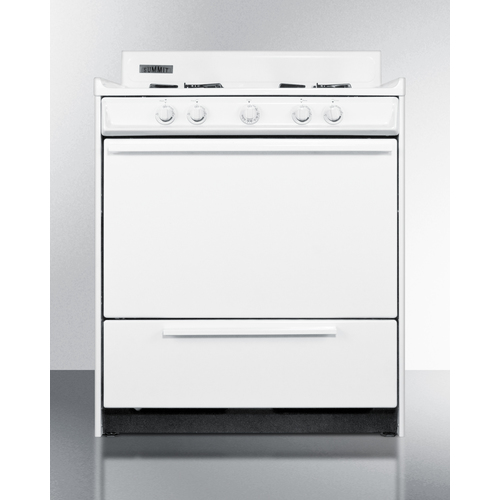

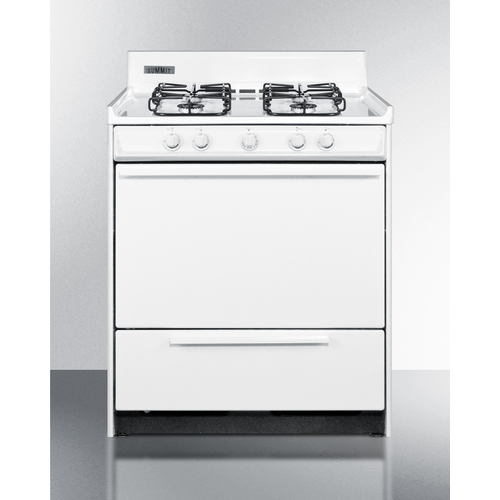

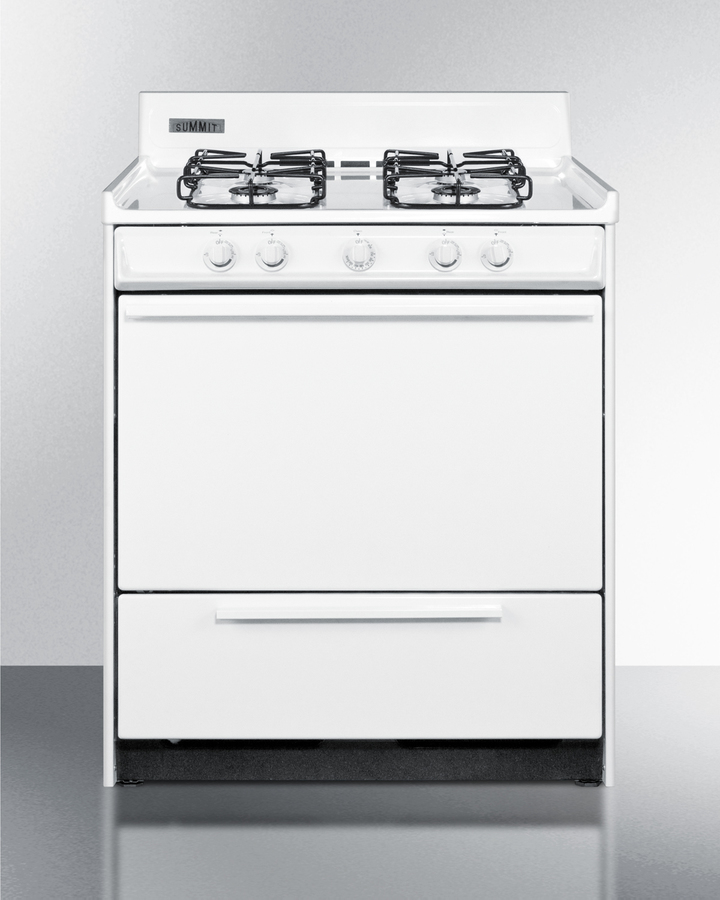

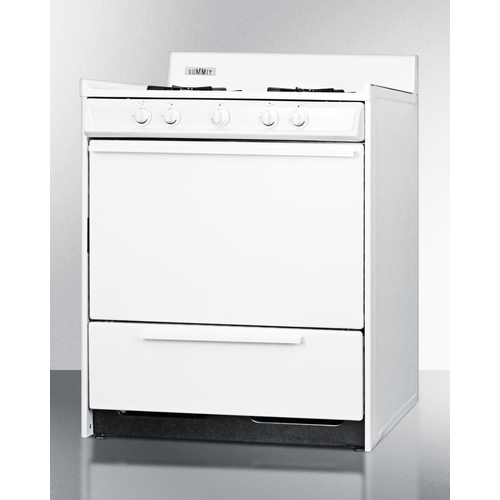

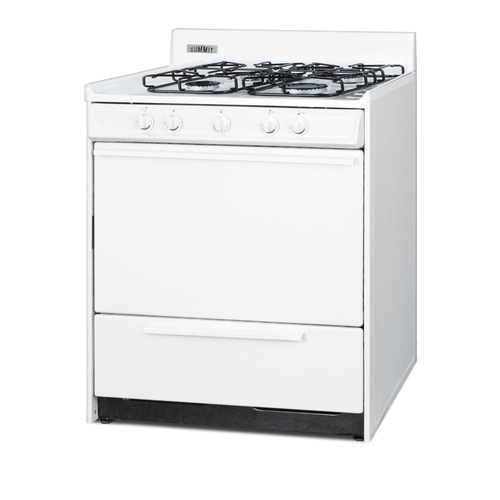

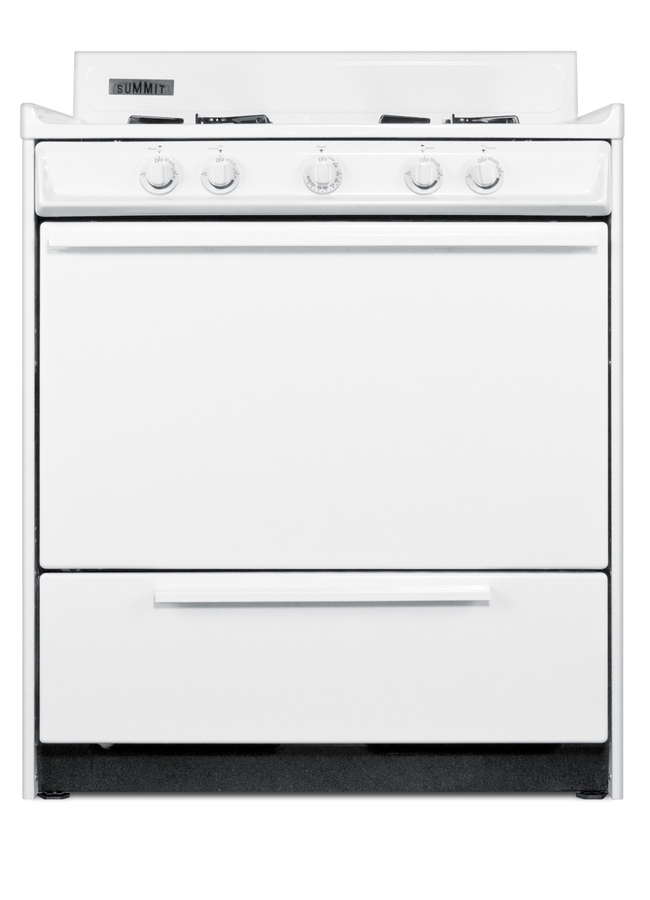

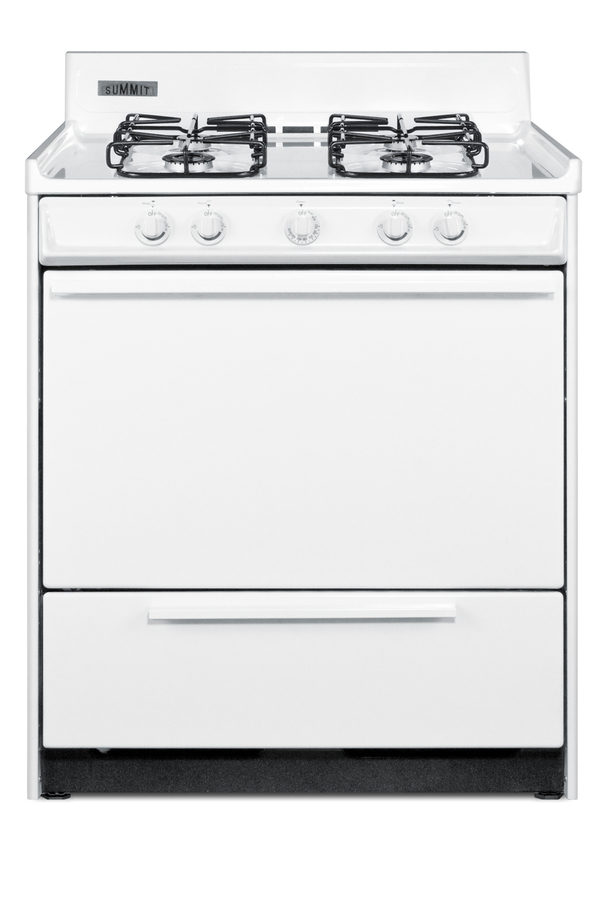

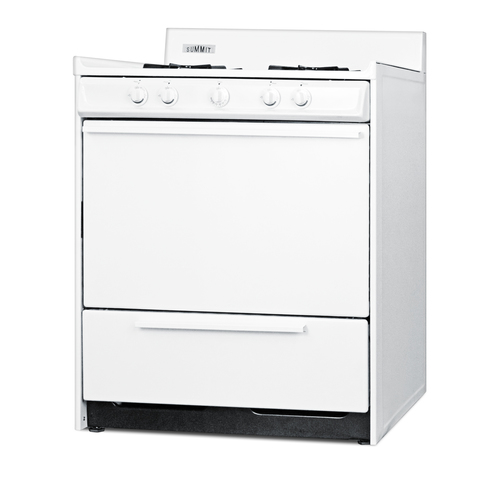

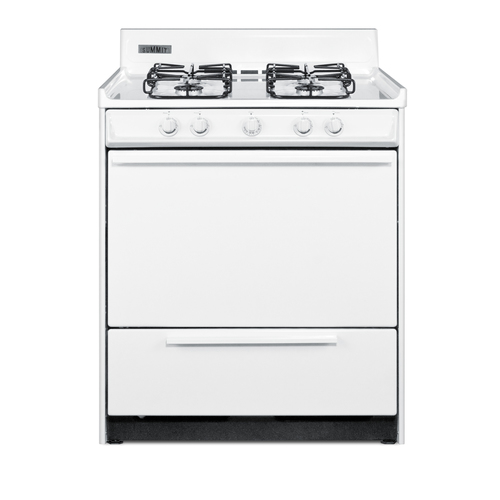

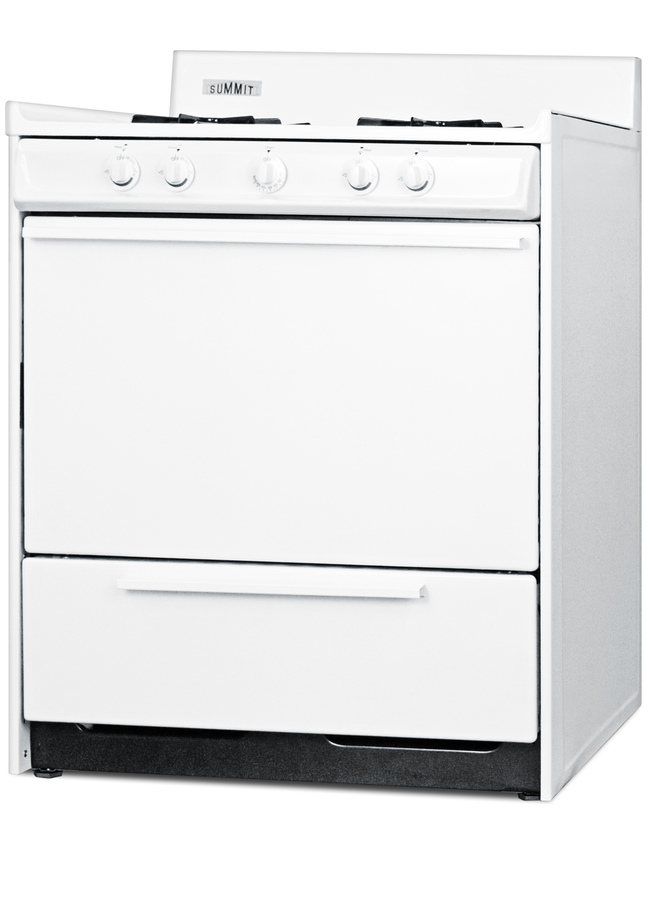

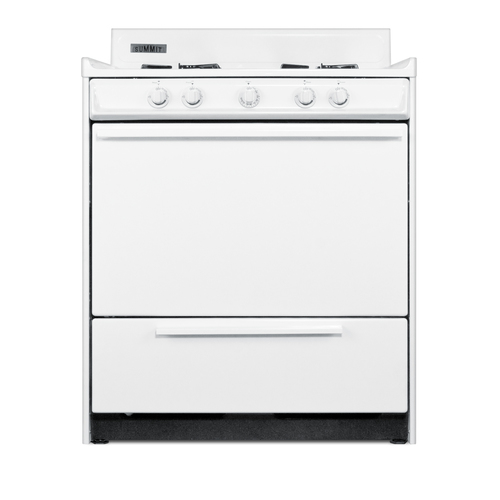

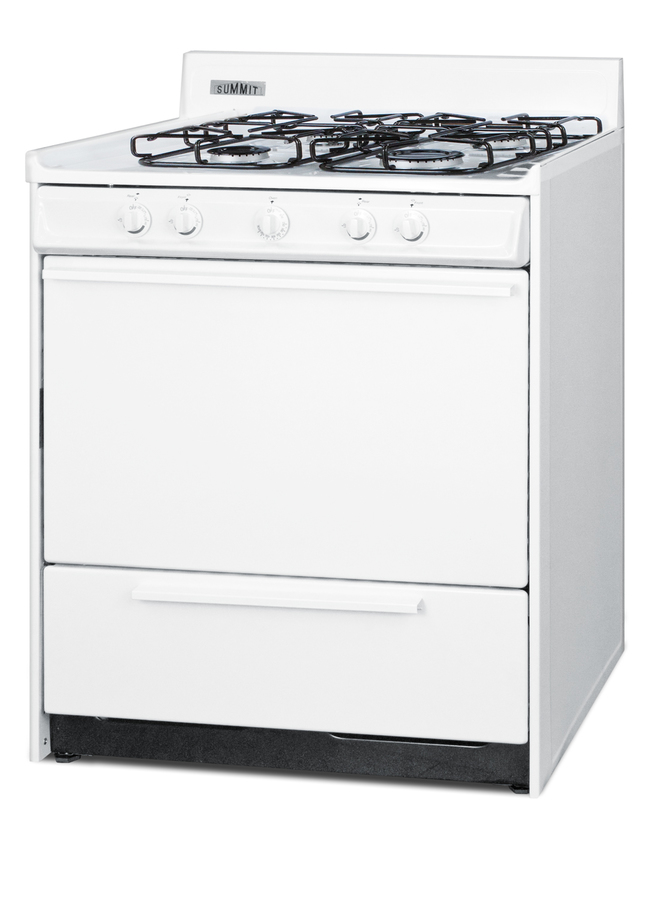

30" Wide Gas Range
(102cm H x 76cm W x 61cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 40.0" (102 cm) |
| Width | 30.0" (76 cm) |
| Depth | 24.0" (61 cm) |
| Door | White |
| Cabinet | White |
| US Electrical Safety | CSA |
| Weight | 165.0 lbs. (75 kg) |
| Shipping Weight | 172.0 lbs. (78 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101051239 |
|
Gas Range
|
|
| Ignition | Spark |
| LP Convertible | With Kit LP S2 Accessory |
| Oven Capacity | 3.7 cu.ft |
| Cooktop Surface | Porcelain |
| Burner Type | Sealed |
| Number of Burners | 4 |
| Burner #1 BTU | 12000.0 |
| Burner #2 BTU | 9100.0 |
| Burner #3 BTU | 9100.0 |
| Burner #4 BTU | 5000.0 |
| Burner Controls | Dial |
| Oven Controls | Dial |
| Backguard | Yes |
| Cleaning Type | Manual |
| Oven Rack Qty | 2 |
| Oven Interior Height | 14.0" (36 cm) |
| Oven Interior Width | 24.0" (61 cm) |
| Oven Interior Depth | 19.0" (48 cm) |
| Broiler Location | Below Oven |
| Broiler Door | White |
| Oven Door | White |
AVAILABLE UPGRADES
| Exterior | |
|---|---|
|
|
| Interior | |
|
FEATURES
Natural gas range; can be converted to LP Gas in our shop or ordered with KIT LP S2 for conversion
Easy cleanup on boil-overs and accidental spills
Right front burner features 12,000 BTU output for powerful cooking
Burners include a removable cap for easy cleaning
Gas spark ignition for automatic lighting of burners
Lower compartment for separate broiling with even heat distribution
White porcelain removable oven top and door
Two-piece porcelain broiler tray with grease well
To prevent accidents, knobs require a small amount of force when turning
Smart design limits the depth and protects adjacent cabinets

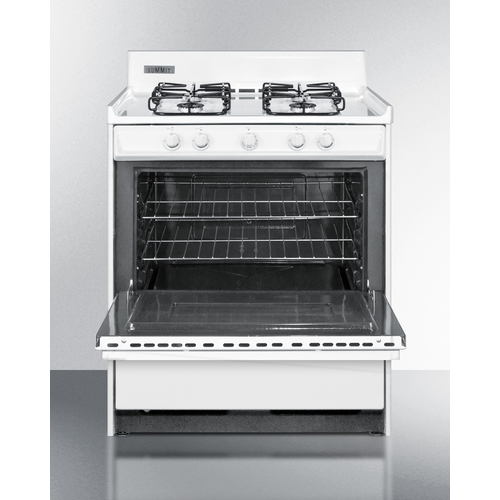

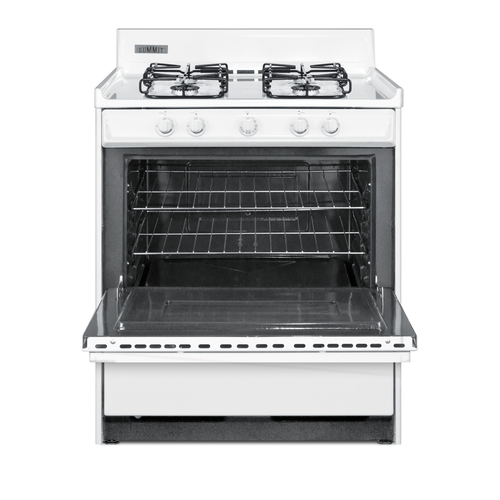

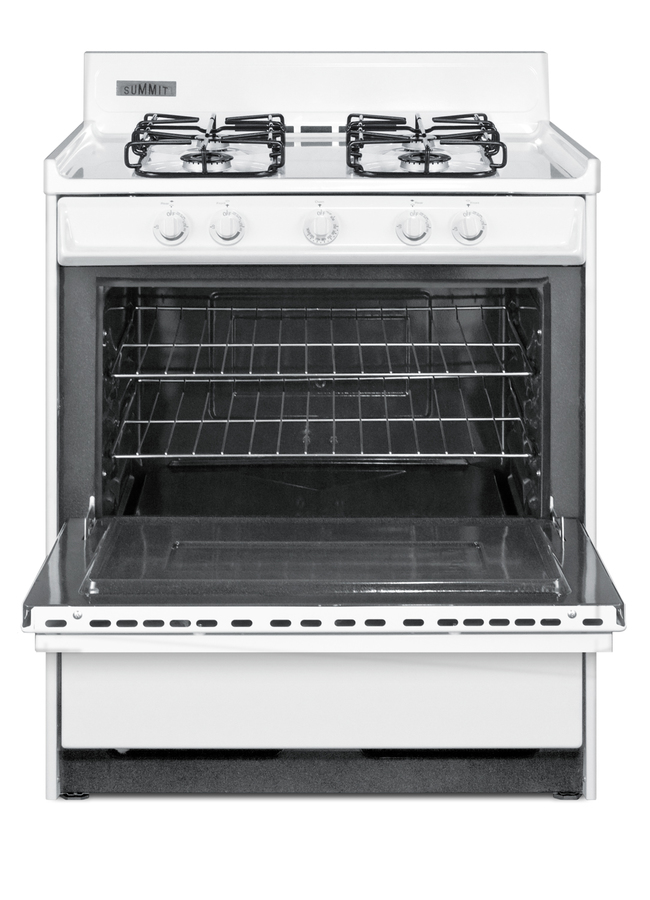

Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
Upfront controls and easy-to-operate knobs offer easier accessibility
DESCRIPTION
SUMMIT offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens. The WTM2107S is a residential gas range sized at 30" wide, with a generous 3.7 cu.ft oven interior that still can accommodate large trays. The broiler is located below the oven in a drop-down compartment. Four sealed gas burners offer safer cleaning and cleaner cooking, including one 12000 BTU burner for faster heating. This unit has a drop-down compartment for broiling and utilizes an electronic ignition system for added safety. The WTM2107S comes in an all-white exterior finish. Fully constructed from steel and porcelain, Summit's American-made cooking line offers long-lasting quality for the home. Additional choices are available in 20" and 24" wide fits.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
