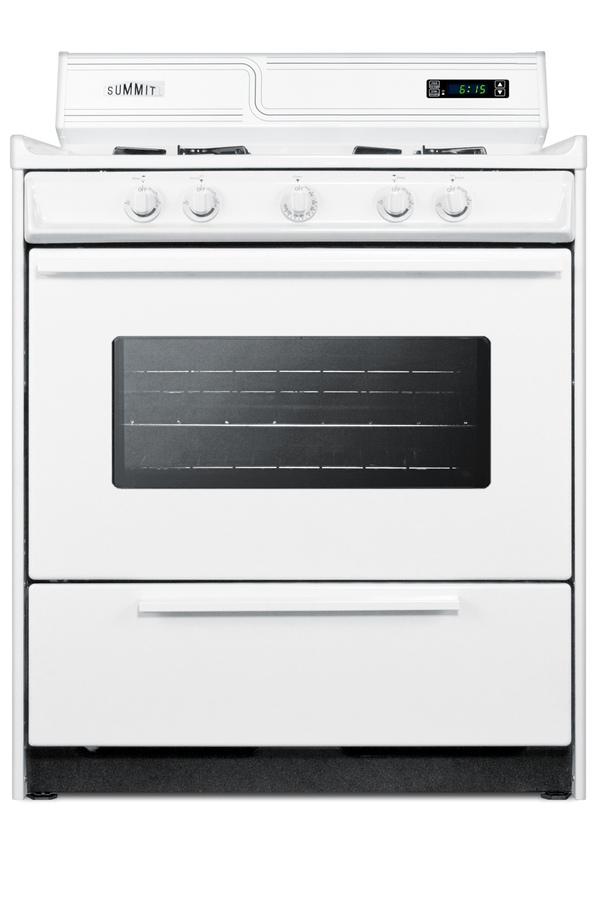

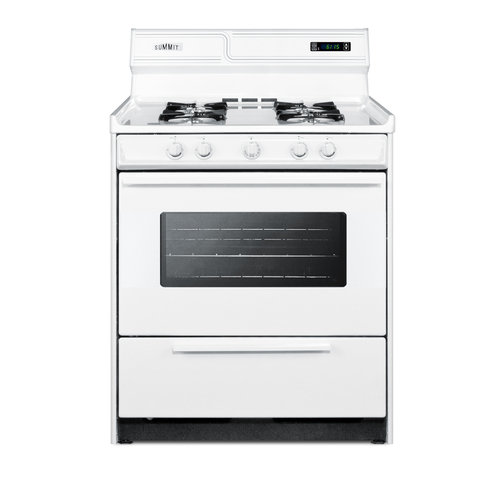

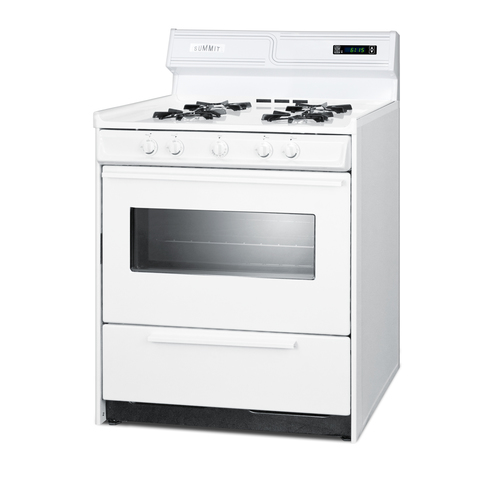

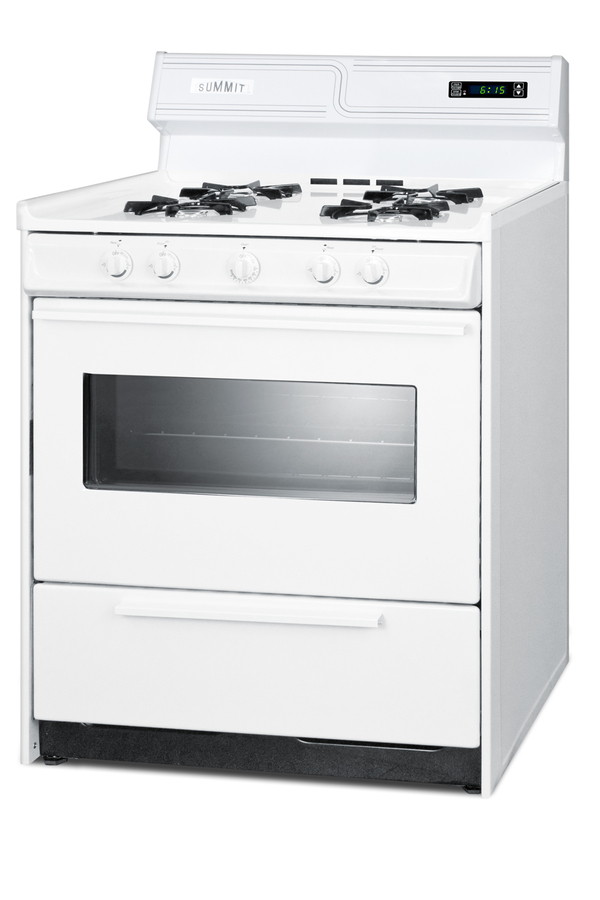

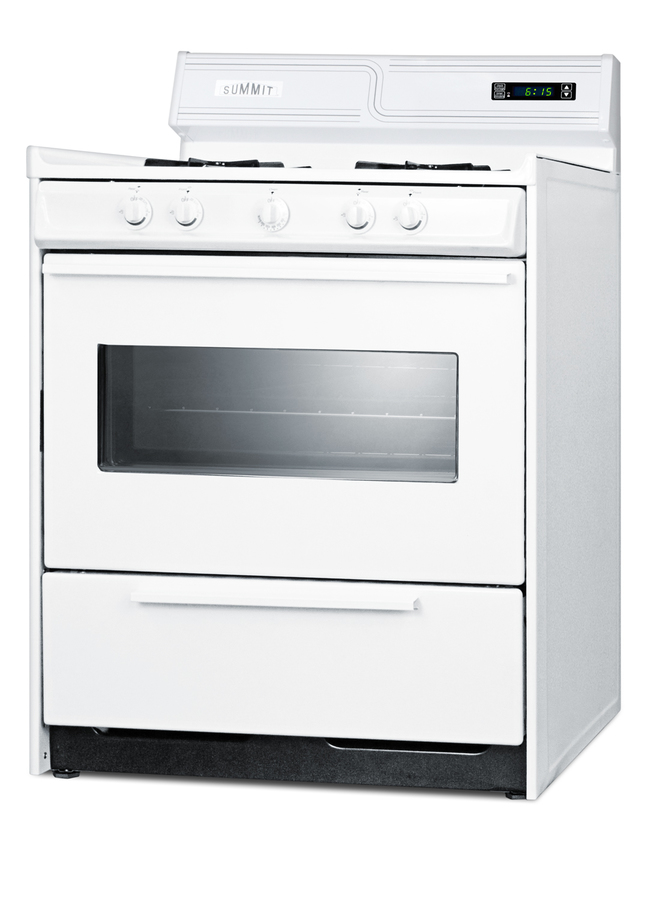

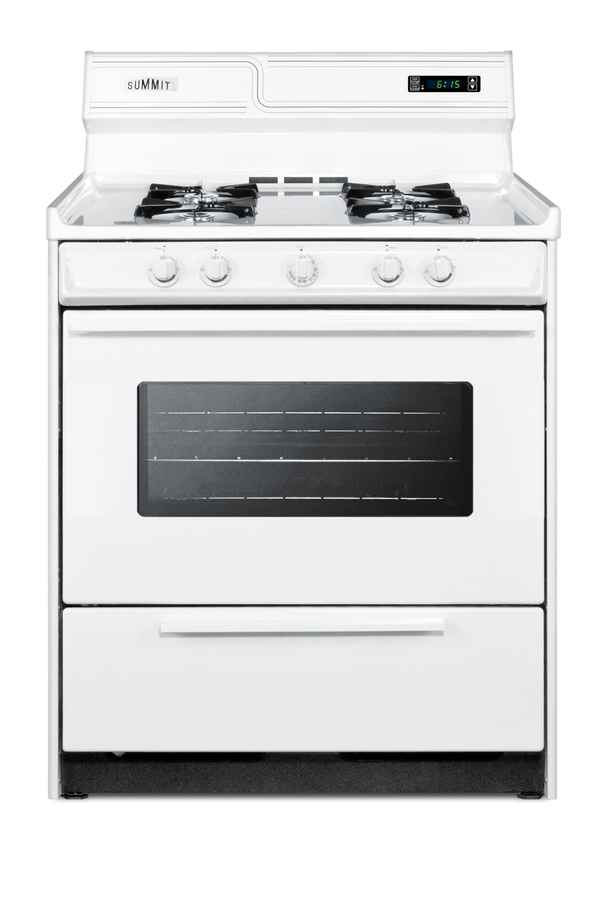

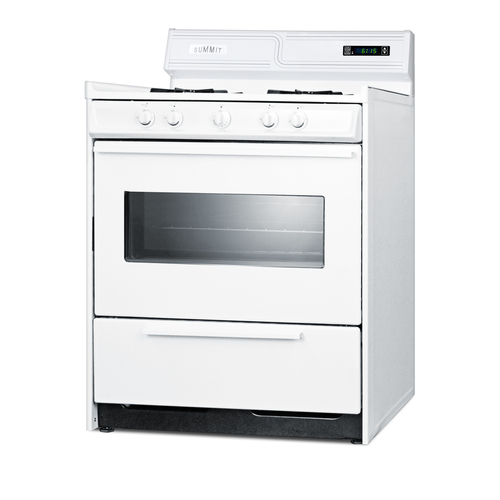

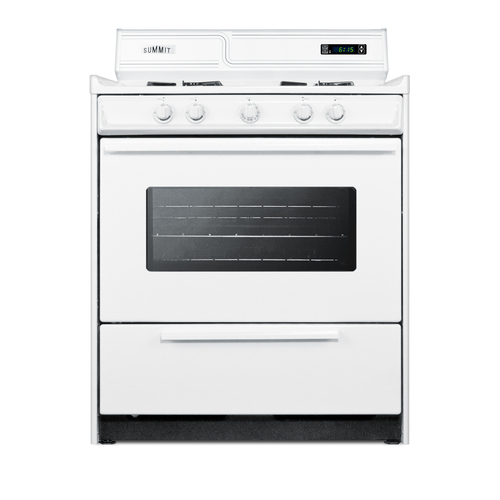

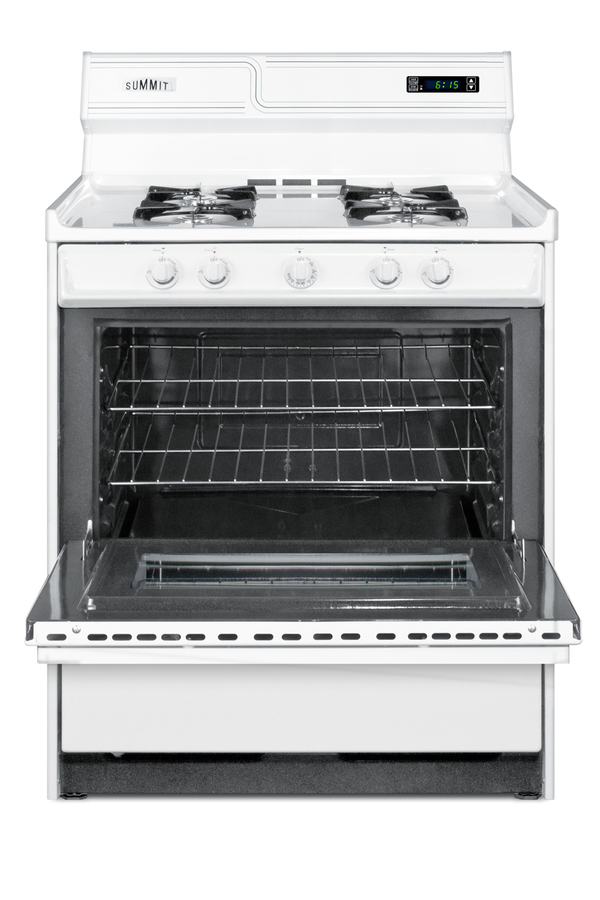

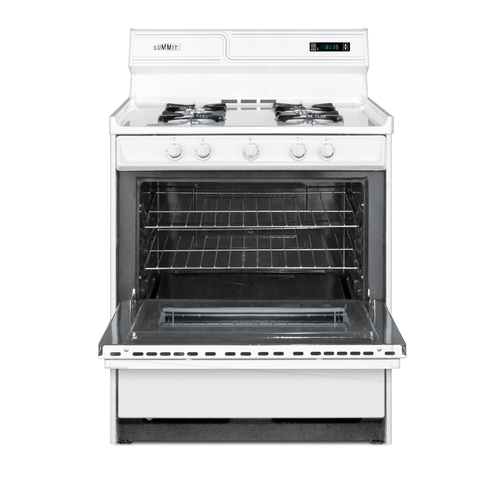

30" Wide Gas Range

SKU: WNM2307KW

Delivery
This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

Made in the USA

44.0" H x 30.0" W x 24.0" D

(112cm H x 76cm W x 61cm D)

OVERVIEW

  • 30" wide gas range made in the USA
  • Gas spark ignition adds convenience and safety
  • Oven window includes light for easy baking
  • Deluxe backguard includes digital clock and timer
  • Lower broiler compartment provides even heat distribution

SPECIFICATIONS

Overview
Height of Cabinet 44.0" (112 cm)
Width 30.0" (76 cm)
Depth 24.0" (61 cm)
Door White
Cabinet White
Weight 170.0 lbs. (77 kg)
Shipping Weight 177.0 lbs. (80 kg)
Parts & Labor Warranty 1 Year
Gas Range
Ignition Spark
LP Convertible With Kit LP Accessory
Oven Capacity 3.7 cu.ft
Cooktop Surface Porcelain
Burner Type Open
Number of Burners 4
Burner #1 BTU 9000.0
Burner #2 BTU 9000.0
Burner #3 BTU 9000.0
Burner #4 BTU 9000.0
Burner Controls Dial
Oven Controls Dial
Oven Light Yes
Cooking Timer Yes
Backguard Yes
Backguard Display Yes
Oven Window Yes
Oven Interior Height 14.0" (36 cm)
Oven Interior Width 24.0" (61 cm)
Oven Interior Depth 19.0" (48 cm)
Broiler Location Below Oven
Broiler Door White
Oven Door White/Window

AVAILABLE UPGRADES

Interior
Canadian Range Conversion
Range is modified at factory to meet CSA-C standards
Exterior
LP Conversion
Have this range factory converted to LP gas. KIT LP is included
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

SUMMIT offers a wide selection of household ranges with high quality construction at superior value.

The WNM2307KW is a deluxe model with full features and a large oven for family meals. The 30" width fits well in apartments and houses with limited space.

Fully equipped for stress-free cooking, the WNM2307KW includes a digital clock and timer. A lower broiler drawer allows for even crisping and the see-through oven window with light lets you keep an eye on your baking. A durable yet elegant porcelain construction makes this unit a wise investment in value and luxury.

FEATURES

Gas range
Natural gas range; can be converted to LP Gas in our shop or ordered with KIT LP for conversion
Electronic ignition
Gas spark ignition for automatic lighting of burners
Porcelain construction
White porcelain removable oven top and oven door
Oven window and light
Provides a convenient and full-lit view of oven contents
Broiler drawer
Lower compartment for separate broiling with even heat distribution
Broiler pan included
Two-piece porcelain broiler tray with grease well
Recessed oven door
Smart design limits the depth and protects adjacent cabinets
Deluxe backguard
High backguard to protect wall from back splashes
Digital clock and timer
Backguard includes time readout

SPECIFICATIONS

Overview
Height of Cabinet 44.0" (112 cm)
Width 30.0" (76 cm)
Depth 24.0" (61 cm)
Door White
Cabinet White
Weight 170.0 lbs. (77 kg)
Shipping Weight 177.0 lbs. (80 kg)
Parts & Labor Warranty 1 Year
Gas Range
Ignition Spark
LP Convertible With Kit LP Accessory
Oven Capacity 3.7 cu.ft
Cooktop Surface Porcelain
Burner Type Open
Number of Burners 4
Burner #1 BTU 9000.0
Burner #2 BTU 9000.0
Burner #3 BTU 9000.0
Burner #4 BTU 9000.0
Burner Controls Dial
Oven Controls Dial
Oven Light Yes
Cooking Timer Yes
Backguard Yes
Backguard Display Yes
Oven Window Yes
Oven Interior Height 14.0" (36 cm)
Oven Interior Width 24.0" (61 cm)
Oven Interior Depth 19.0" (48 cm)
Broiler Location Below Oven
Broiler Door White
Oven Door White/Window

AVAILABLE UPGRADES

Interior
Canadian Range Conversion
Range is modified at factory to meet CSA-C standards
Exterior
LP Conversion
Have this range factory converted to LP gas. KIT LP is included
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
