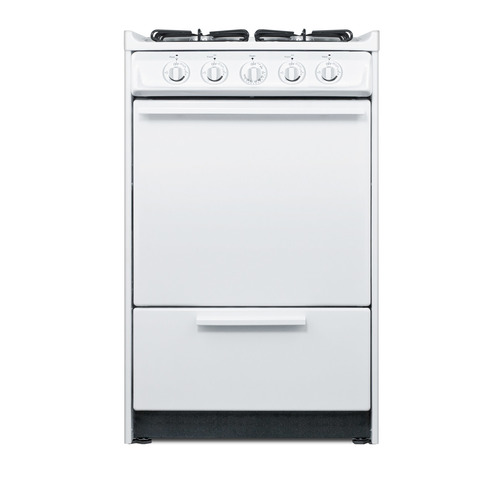

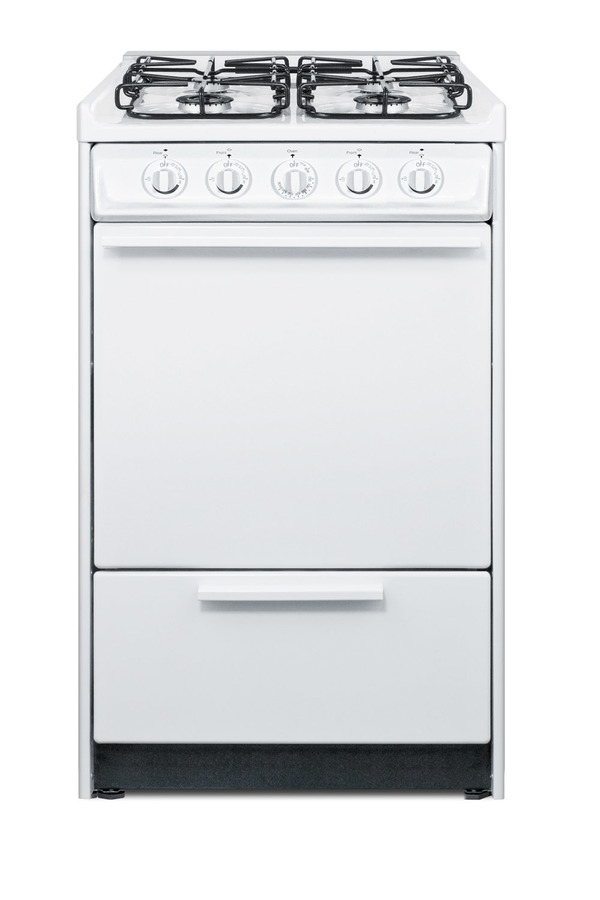

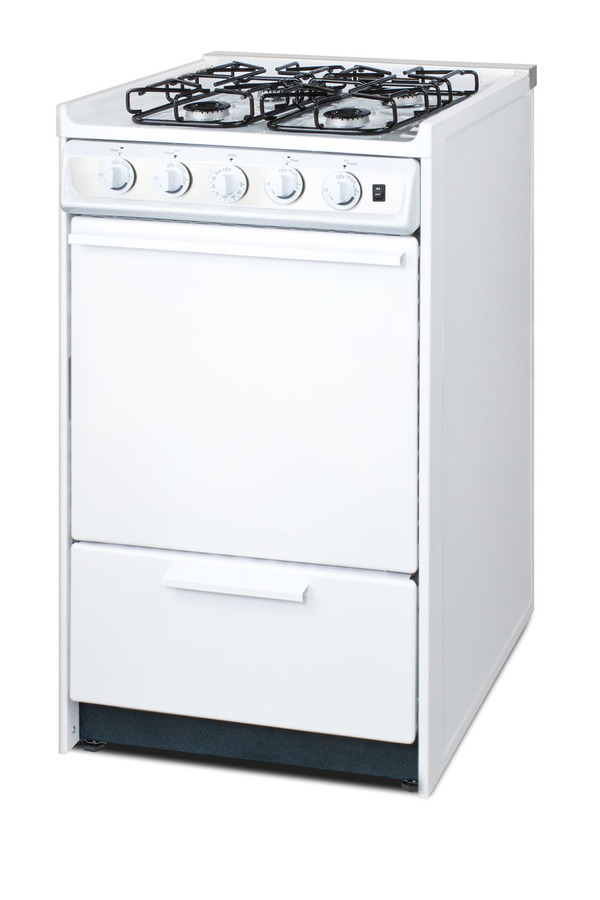

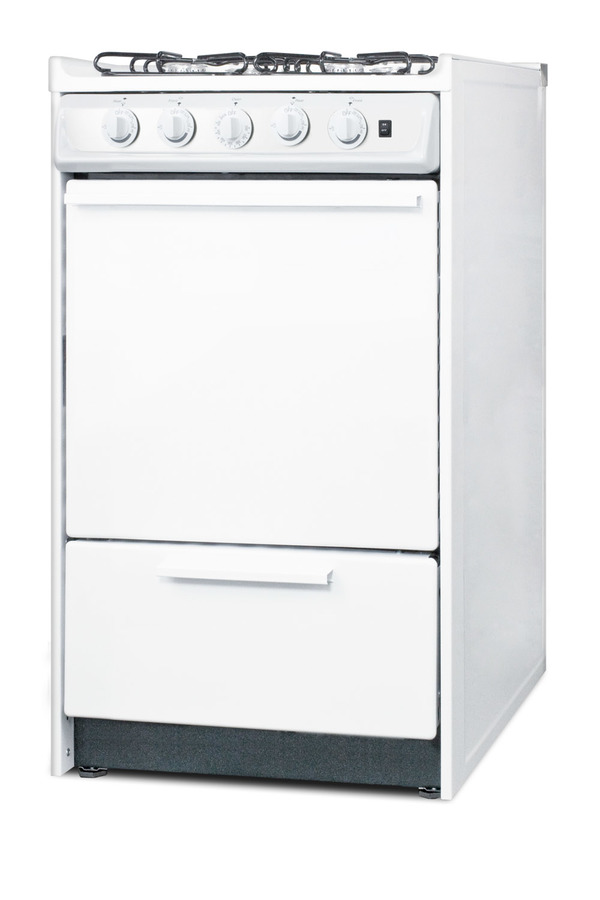

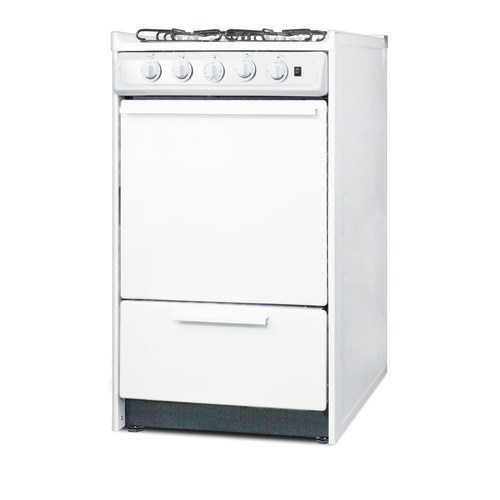

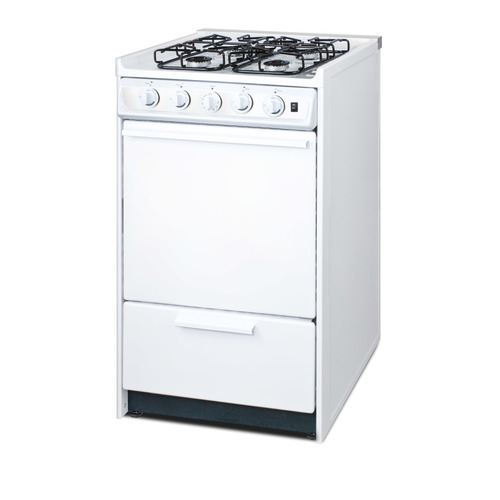

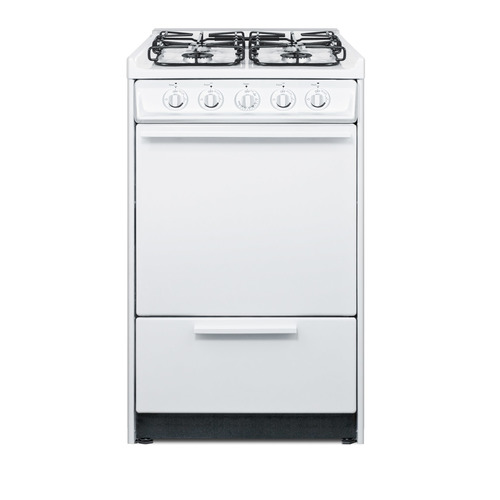

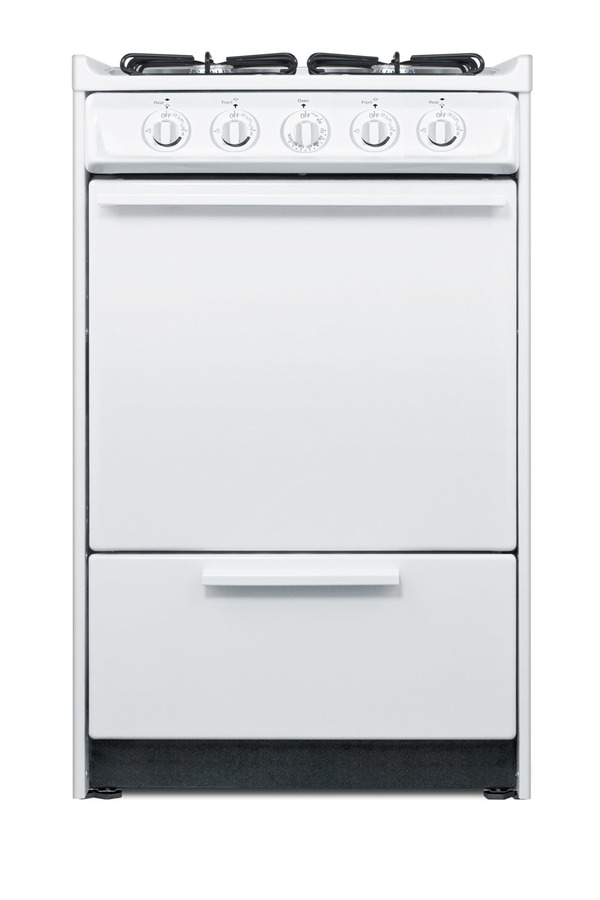

20" Wide Gas Range

SKU: WTM1107RS

Made in the USA with sealed burners

36.0" H x 20.0" W x 24.0" D

(91cm H x 51cm W x 61cm D)

OVERVIEW

  • Slim 20 inch width fits easily in small kitchens
  • Four sealed gas burners for cleaner cooking
  • Slide-in look with flat backguard
  • Porcelain construction on range top and oven for true durability
  • Made in the U.S.A.

SPECIFICATIONS

Overview
Height of Cabinet 36.0" (91 cm)
Width 20.0" (51 cm)
Depth 24.0" (61 cm)
Door White
Cabinet White
US Electrical Safety CSA
Weight 140.0 lbs. (64 kg)
Shipping Weight 145.0 lbs. (66 kg)
Parts & Labor Warranty 1 Year
Gas Range
Ignition Spark
LP Convertible With Kit LP S2 Accessory
Oven Capacity 2.46 cu.ft
Cooktop Surface Porcelain
Burner Type Sealed
Number of Burners 4
Burner #1 BTU 9100.0
Burner #2 BTU 9100.0
Burner #3 BTU 9100.0
Burner #4 BTU 9100.0
Burner Controls Dial
Oven Controls Dial
Cleaning Type Manual
Oven Rack Qty 2
Oven Interior Height 14.0" (36 cm)
Oven Interior Width 16.0" (41 cm)
Oven Interior Depth 19.0" (48 cm)
Broiler Location Below Oven

AVAILABLE UPGRADES

Interior
Canadian Range Conversion
Range is modified at factory to meet CSA-C standards
Exterior
LP Conversion
Have this range factory converted to LP gas. KIT LP is included
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

SUMMIT offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens.

The WTM1107RS is an apartment-sized gas range sized at just 20" wide, with a generous 2.46 cu.ft oven interior that still can accommodate large trays. The broiler is located below the oven in a drop-down compartment. Four sealed 9100 BTU gas burners offer safer cleaning and cleaner cooking. This unit utilizes an electronic ignition system for added safety.

The WTM1107SRT comes in a white finish. The low stainless steel backguard creates a modern slide-in look that is easier to integrate into your own kitchen design.

Fully constructed from steel and porcelain, Summit's American-made cooking line offers long-lasting quality for the home. Additional choices are available in 24" and 30" wide fits.


FEATURES

Slim 20 inch width
Apartment sized to fit in small or galley kitchens
Slide-in look
Low backguard can blend into other cabinetry and lets you choose your own wall design behind the range
Four sealed 9100BTU burners
Easy cleanup on boil-overs and accidental spills
Electronic ignition
Gas spark ignition for automatic lighting of burners
Porcelain construction
White porcelain removable oven top and door
Stainless steel rear trim
Low rear trim is finished in stainless steel for an attractive look
Drop-down broiler compartment
Lower compartment for separate broiling with even heat distribution
Broiler pan included
Two-piece porcelain broiler tray with grease well
Recessed oven door
Smart design limits the depth and protects adjacent cabinets
Push-to-turn burner knobs
To prevent accidents, knobs require a small amount of force when turning
Removable burner caps
Burners include a removable cap for easy cleaning

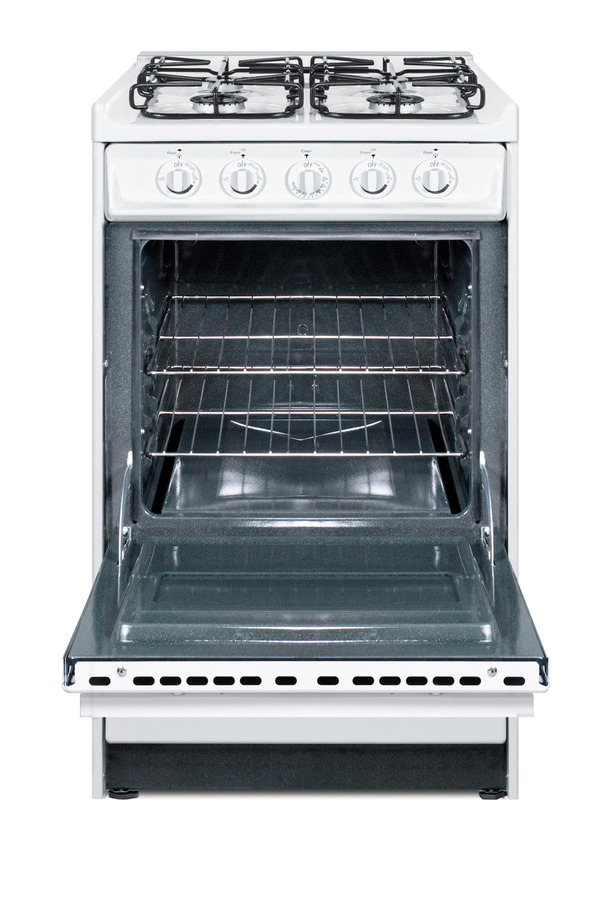

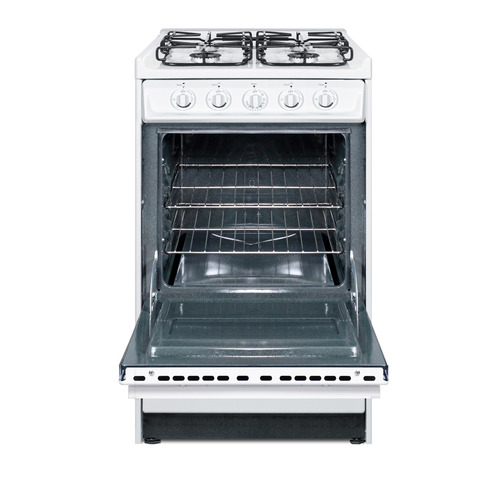

Oven racks
Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
Gas range (preset for natural gas)
For LP conversion, contact our office at 718-893-3900 ext. 220
ADA compliant design
Upfront controls and easy-to-operate knobs offer easier accessibility

SPECIFICATIONS

Overview
Height of Cabinet 36.0" (91 cm)
Width 20.0" (51 cm)
Depth 24.0" (61 cm)
Door White
Cabinet White
US Electrical Safety CSA
Weight 140.0 lbs. (64 kg)
Shipping Weight 145.0 lbs. (66 kg)
Parts & Labor Warranty 1 Year
Gas Range
Ignition Spark
LP Convertible With Kit LP S2 Accessory
Oven Capacity 2.46 cu.ft
Cooktop Surface Porcelain
Burner Type Sealed
Number of Burners 4
Burner #1 BTU 9100.0
Burner #2 BTU 9100.0
Burner #3 BTU 9100.0
Burner #4 BTU 9100.0
Burner Controls Dial
Oven Controls Dial
Cleaning Type Manual
Oven Rack Qty 2
Oven Interior Height 14.0" (36 cm)
Oven Interior Width 16.0" (41 cm)
Oven Interior Depth 19.0" (48 cm)
Broiler Location Below Oven

AVAILABLE UPGRADES

Interior
Canadian Range Conversion
Range is modified at factory to meet CSA-C standards
Exterior
LP Conversion
Have this range factory converted to LP gas. KIT LP is included
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
