TTM6107CSW

Delivery 9240a3e8870753a2ec143c34af2b405742ae73bfeb126dd29f201daa25ab8f11

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

Made in the USA with sealed burners

40.0" H x 24.0" W x 24.0" D

(102cm H x 61cm W x 61cm D)

OVERVIEW

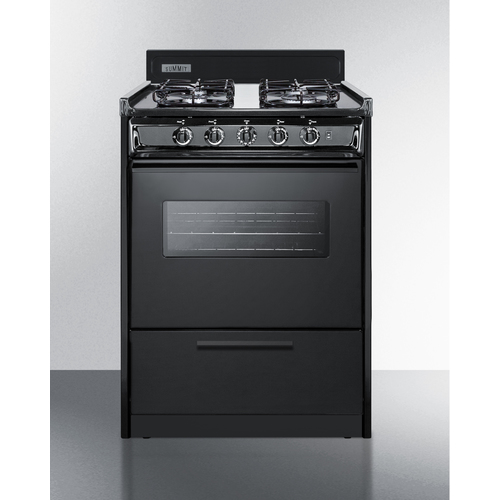

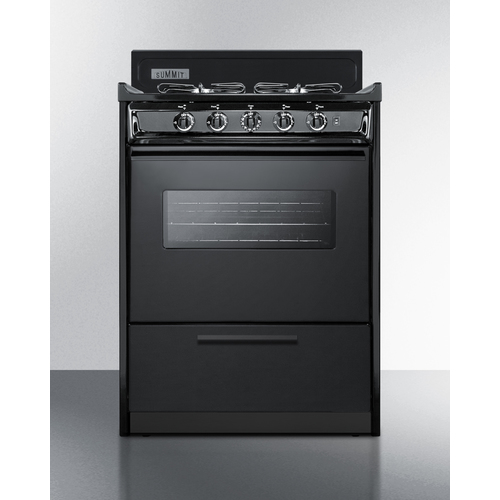

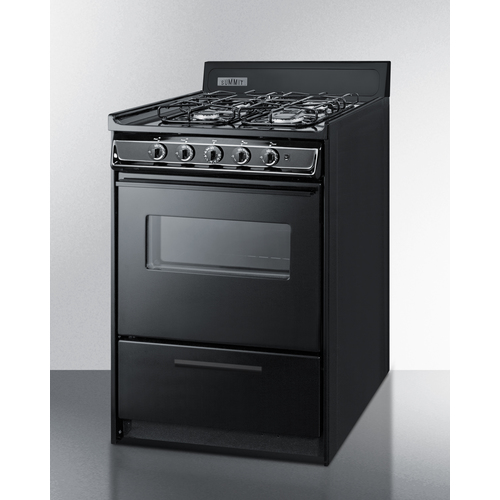

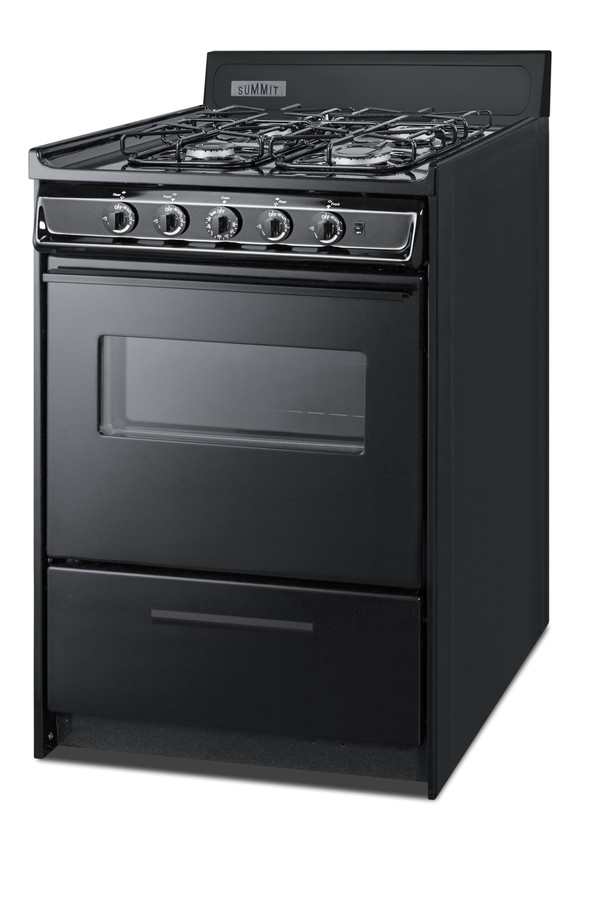

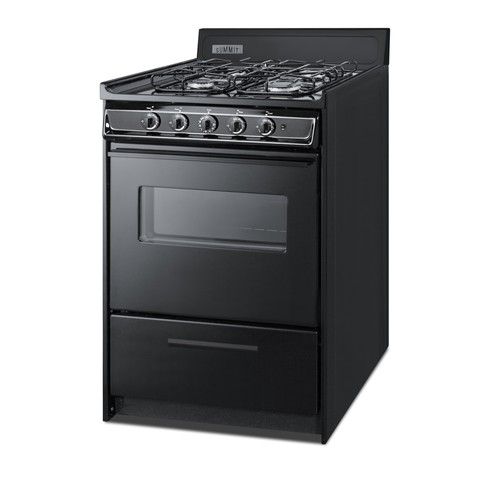

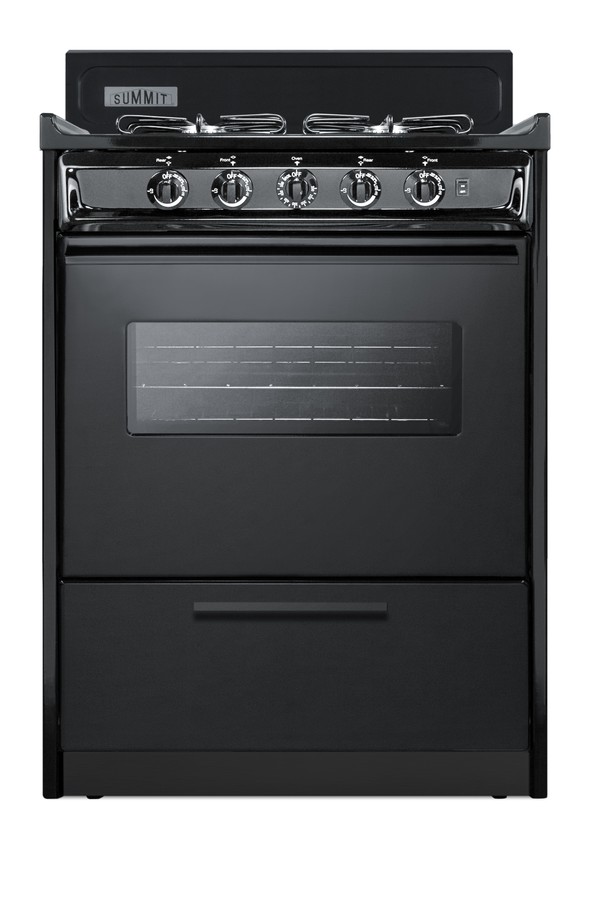

Slim 24 inch width fits easily in small kitchens
Includes an oven window and light for easier cooking
Gas spark ignition adds convenience and safety
Porcelain construction on range top and oven for true durability
Four sealed gas burners for cleaner cooking
Made in the U.S.A.

SPECIFICATIONS

Overview
Height of Cabinet	40.0" (102 cm)
Width	24.0" (61 cm)
Depth	24.0" (61 cm)
Door	Black
Cabinet	Black
US Electrical Safety	CSA
Weight	150.0 lbs. (68 kg)
Shipping Weight	157.0 lbs. (71 kg)
Parts & Labor Warranty	1 Year
Gas Range
Ignition	Spark
LP Convertible	With Kit LP S2 Accessory
Oven Capacity	2.92 cu.ft
Cooktop Surface	Porcelain
Burner Type	Sealed
Number of Burners	4
Burner #1 BTU	12000.0
Burner #2 BTU	9100.0
Burner #3 BTU	9100.0
Burner #4 BTU	5000.0
Burner Controls	Dial
Oven Controls	Dial
Oven Light	Yes
Backguard	Yes
Cleaning Type	Manual
Oven Rack Qty	2
Oven Window	Yes
Oven Interior Height	14.0" (36 cm)
Oven Interior Width	19.0" (48 cm)
Oven Interior Depth	19.0" (48 cm)
Broiler Location	Below Oven
Broiler Door	Black
Oven Door	Black

AVAILABLE UPGRADES

Interior

Canadian Range Conversion

Range is modified at factory to meet CSA-C standards

Exterior

LP Conversion

Have this range factory converted to LP gas. KIT LP is included

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

California residents:

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

DESCRIPTION

SUMMIT offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens.

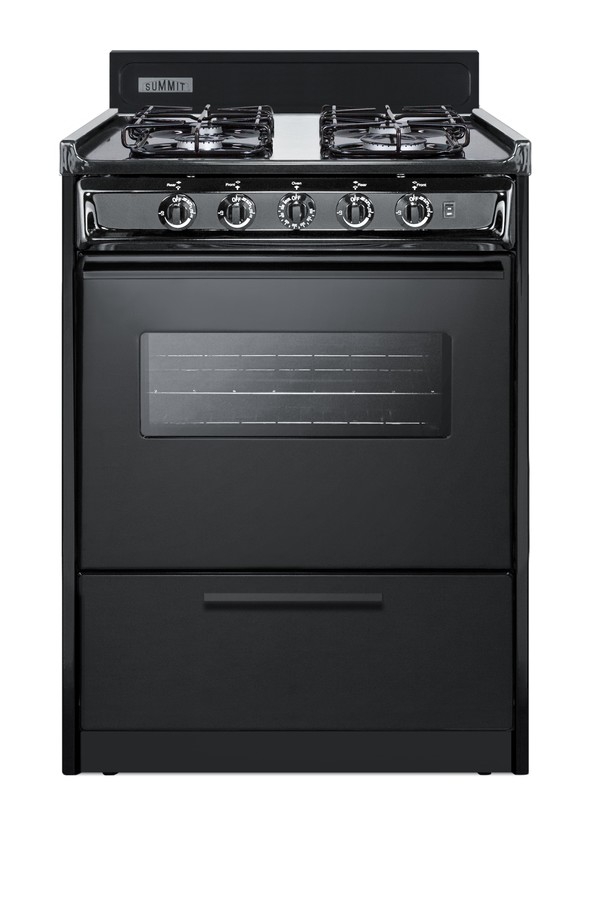

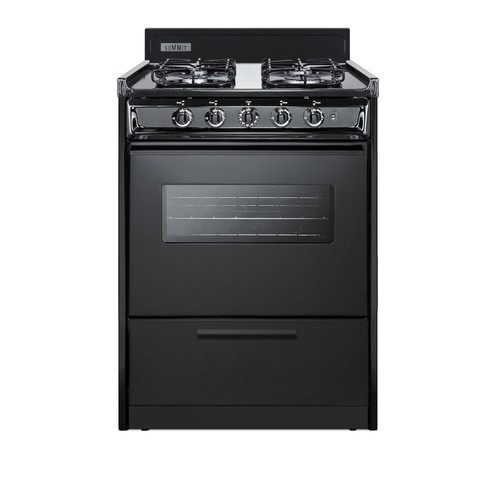

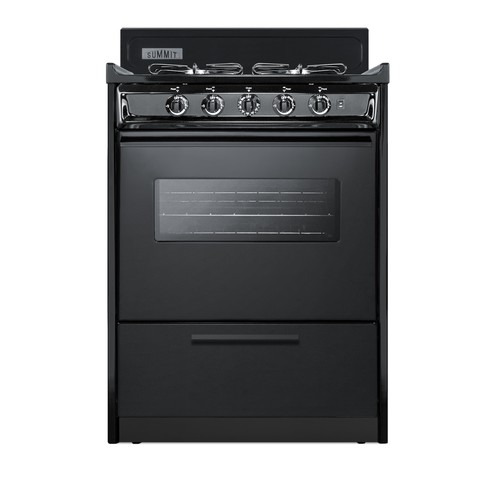

The TTM6107CSW is an apartment-sized gas range sized at just 24" wide, with a generous 2.92 cu.ft oven interior that still can accommodate large trays. The oven includes a window and interior light to make it easier for users to monitor their cooking without opening the door and releasing heat. This unit has a drop-down compartment for broiling and utilizes an electronic ignition system for added safety. Recessed doors and a 24" depth also help to maximize kitchen space while protecting adjacent cabinetry.

Four sealed gas burners offer safer and cleaner cooking. This new model includes a high output 12000 BTU burner for powerful heating conveniently located in the front right corner for easy access. This unit also includes a 5000 BTU  burner in the rear, an ideal design for simmering at lower power or keeping food warm without overcooking.

The TTM6107CSW comes in a jet black exterior finish. Fully constructed from steel and porcelain, Summit's American-made cooking line offers long-lasting quality for the home. Additional choices are available in 20" and 30" wide fits.

FEATURES

Slim 24 inch width
Apartment sized to fit in small or galley kitchens

Four sealed burners
Easy cleanup on boil-overs and accidental spills

High output burner
Right front burner features 12,000 BTU output for powerful cooking

Low output simmer burner
Rear left burner reaches a maximum of 5000 BTUs, ideal for simmering sensitive items or keeping dishes warm without overheating

Black finish
Jet black exterior finish for a modern look in any kitchen

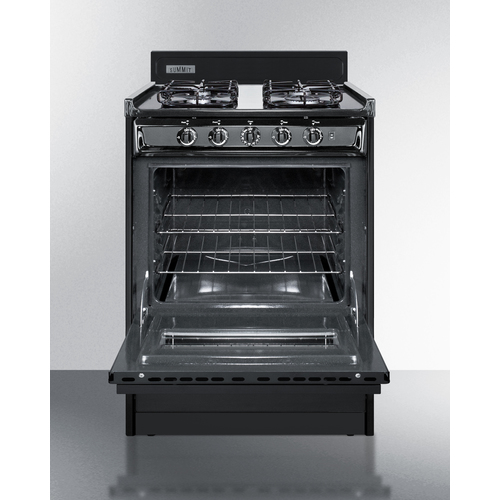

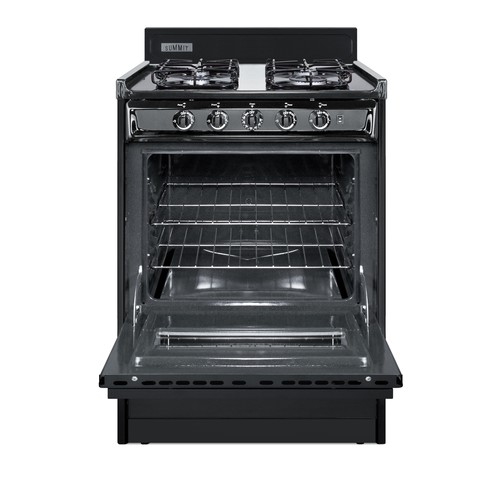

Oven window with light
Easier monitoring of your cooking with an oven window and on/off light

Removable burner caps
Burners include a removable cap for easy cleaning

Broiler compartment
Lower compartment for separate broiling with even heat distribution

Electronic ignition
Gas spark ignition for automatic lighting of burners

Porcelain construction
Solid construction for long-lasting durability

Broiler pan included
Two-piece porcelain broiler tray with grease well

Push-to-turn burner knobs
To prevent accidents, knobs require a small amount of force when turning

Recessed oven door
Smart design limits the depth and protects adjacent cabinets

Oven racks

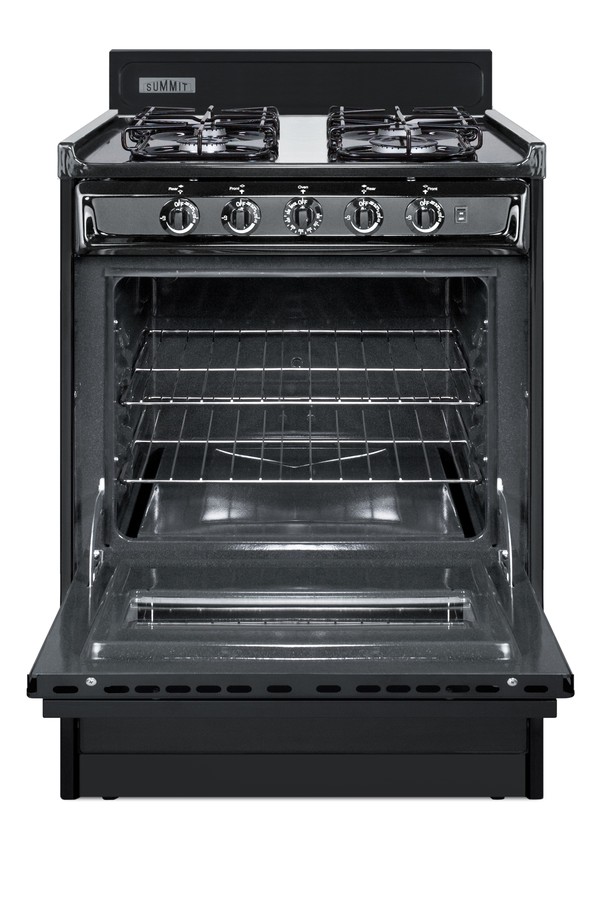

Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes

Gas range (preset for natural gas)
For LP conversion, contact our office at 718-893-3900 ext. 220

ADA compliant design
Upfront controls and easy-to-operate knobs offer easier accessibility
