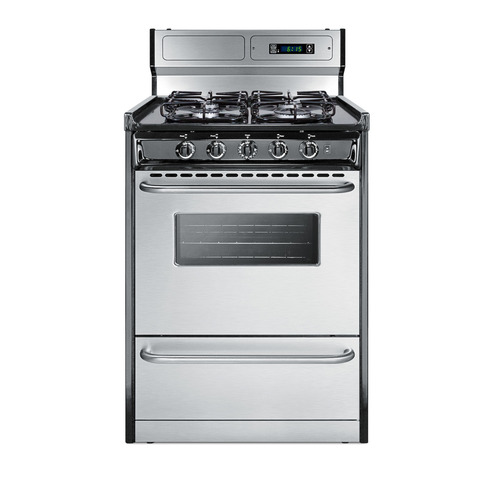

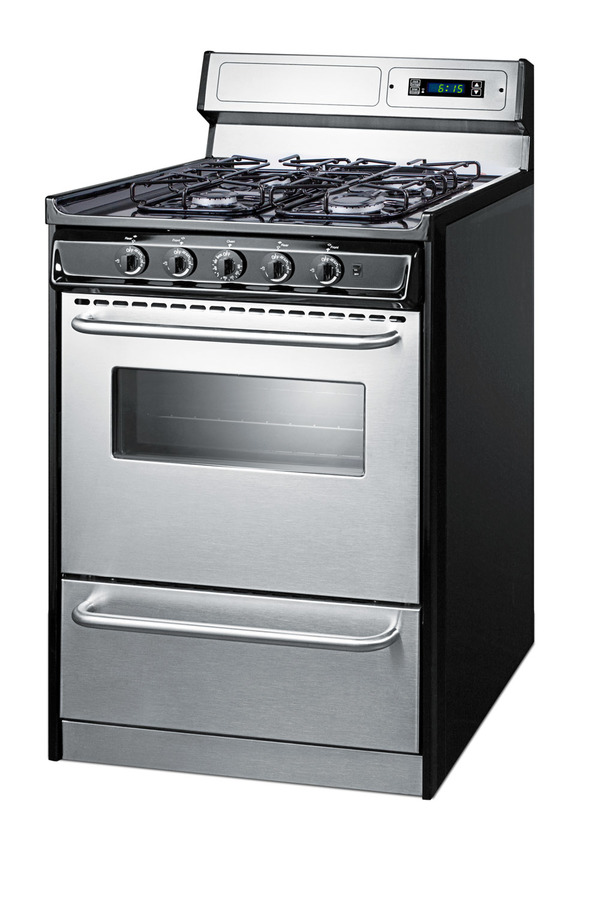

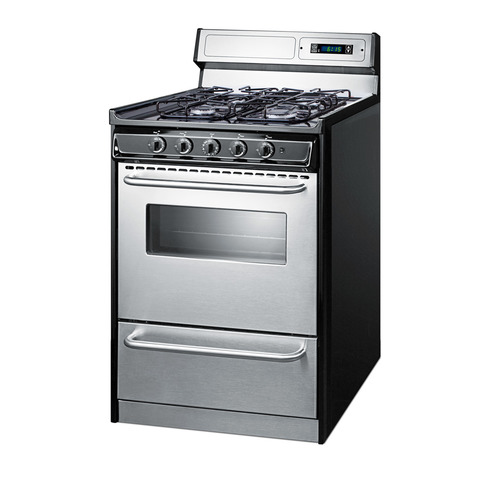

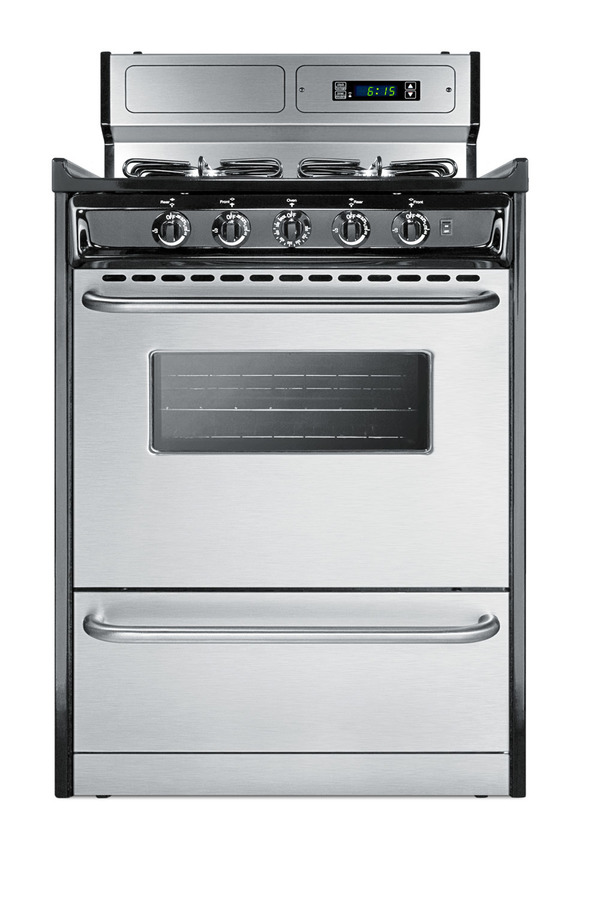

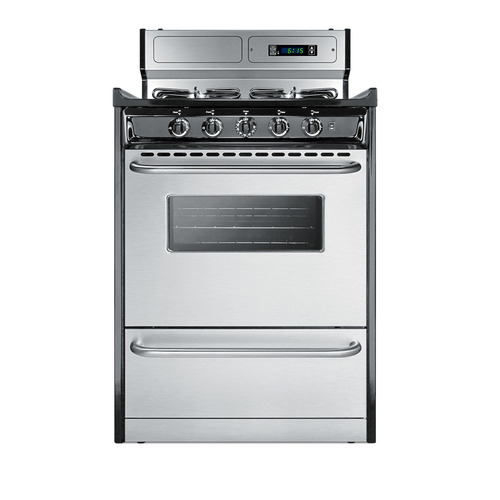

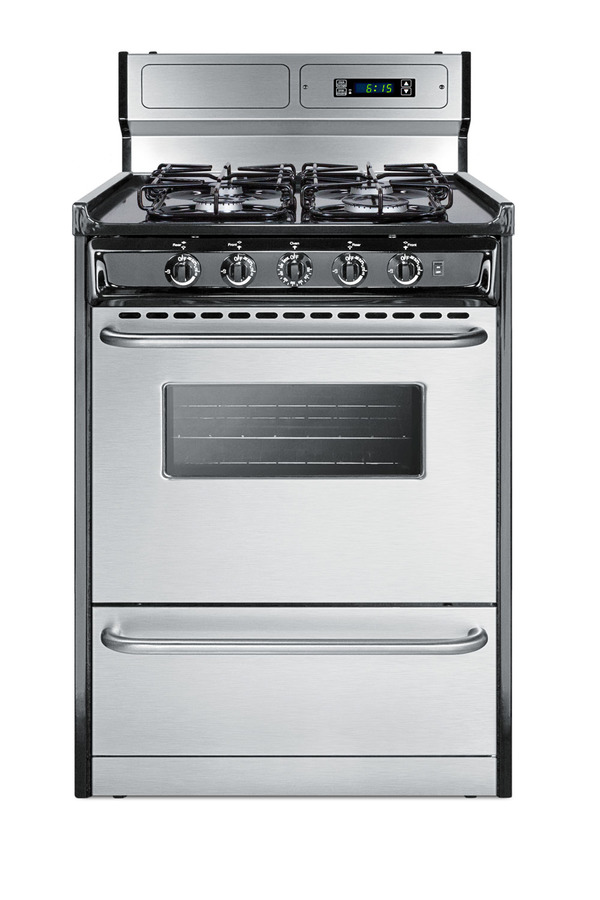

24" Wide Gas Range, Sealed Burners

SKU: TTM6307BKSW
Made in the USA with sealed burners and stainless steel construction
Estimated Time to Ship:

Next day shipping

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
44.0" H x 24.0" W x 24.0" D
(112cm H x 61cm W x 61cm D)

Overview
Height of Cabinet 44.0" (112 cm)
Width 24.0" (61 cm)
Depth 24.0" (61 cm)
Door Stainless Steel
Cabinet Black
US Electrical Safety CSA
Weight 135.0 lbs. (61 kg)
Shipping Weight 160.0 lbs. (73 kg)
Parts & Labor Warranty 1 Year
UPC 761101086163
Gas Range
Ignition Spark
LP Convertible With Kit LP S2 Accessory
Oven Capacity 2.92 cu.ft
Cooktop Surface Porcelain
Burner Type Sealed
Number of Burners 4
Burner #1 BTU 12000.0
Burner #2 BTU 9100.0
Burner #3 BTU 9100.0
Burner #4 BTU 5000.0
Burner Controls Dial
Oven Controls Dial
Oven Light Yes
Cooking Timer Yes
Backguard Yes
Backguard Display Yes
Cleaning Type Manual
Oven Window Yes
Oven Interior Height 14.0" (36 cm)
Oven Interior Width 19.0" (48 cm)
Oven Interior Depth 19.0" (48 cm)
Broiler Location Below Oven

Interior
Canadian Range Conversion
Range is modified at factory to meet CSA-C standards
Exterior
LP Conversion
Have this range factory converted to LP gas. KIT LP is included

Made in the USA

Designed and constructed domestically

Slim 24 inch width

Apartment-sized width offers all the functionality you need in a smaller footprint

24 inch depth

Shallower fit is ideal for L-shaped and galley kitchens

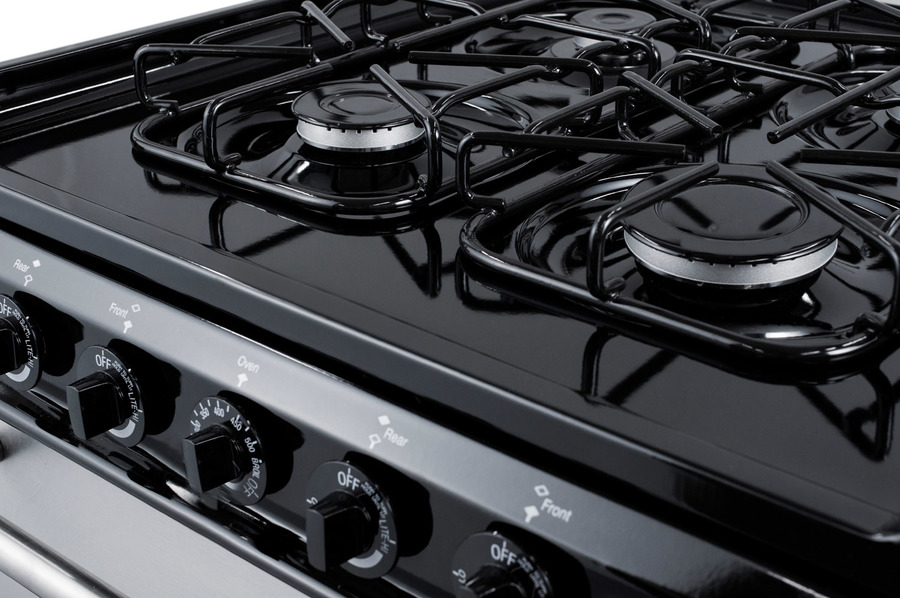

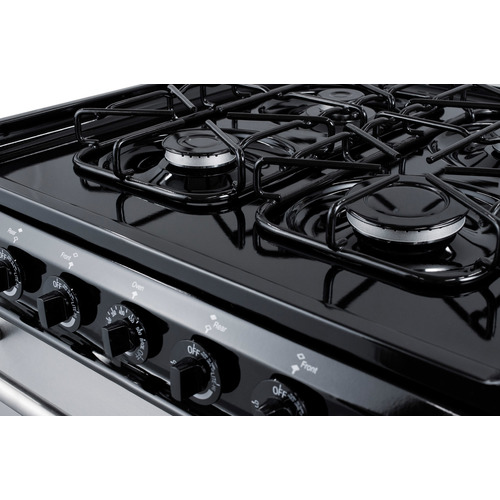

Four sealed burners

Easy cleanup on boil-overs and accidental spills

High output burner

Right front burner features 12,000 BTU output for powerful cooking

Low output simmer burner

Rear left burner reaches a maximum of 5000 BTUs, ideal for simmering sensitive items or keeping dishes warm without overheating

Stainless steel finish

Doors and backguard are constructed from brushed stainless steel for modern luxury built to last

Professional towel bar handles

Curved handles in brushed stainless steel offer an easier grip in attractive style

Designed for natural gas

Set for use with natural gas connection. To convert for propane use, add Kit LP S2

Electronic ignition

Spark ignition system with a pre-installed 115V 3-prong cord

Oven window and interior lighting

Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door

Deluxe backguard

8" high backguard helps to protect your walls from spills and splashes

Digital clock and timer

Backguard includes clock and timer for added convenience

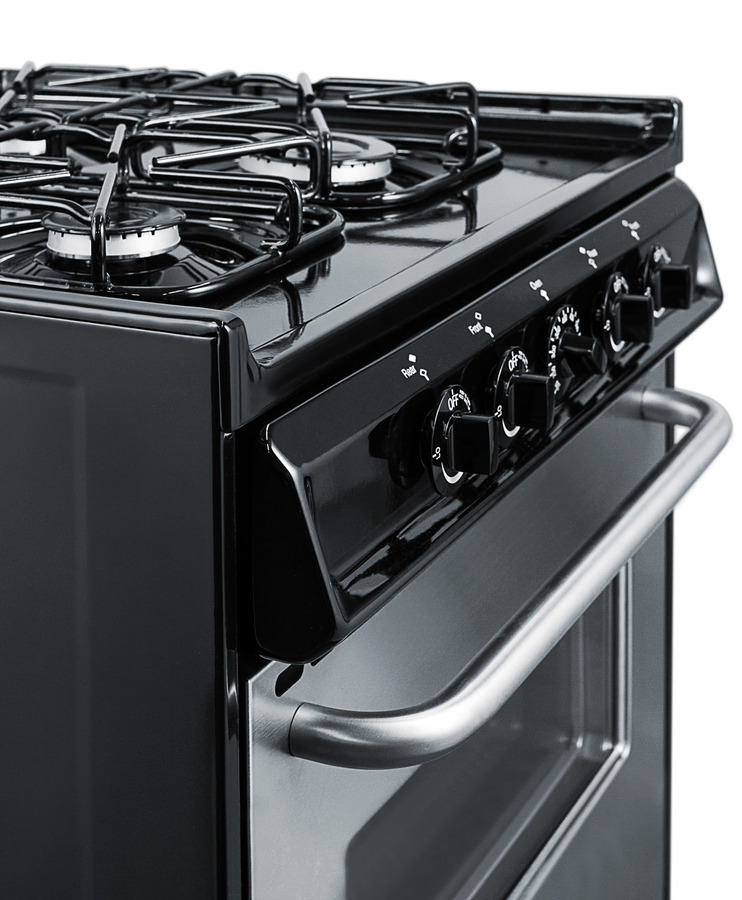

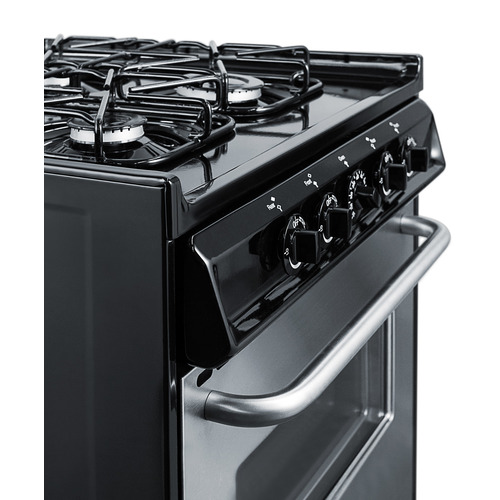

Upfront oven/burner controls

Push-to-turn knobs offer easier, safer access, preventing users from reaching over hot burners to adjust

Recessed oven door

Smart design limits the depth and protects adjacent cabinets

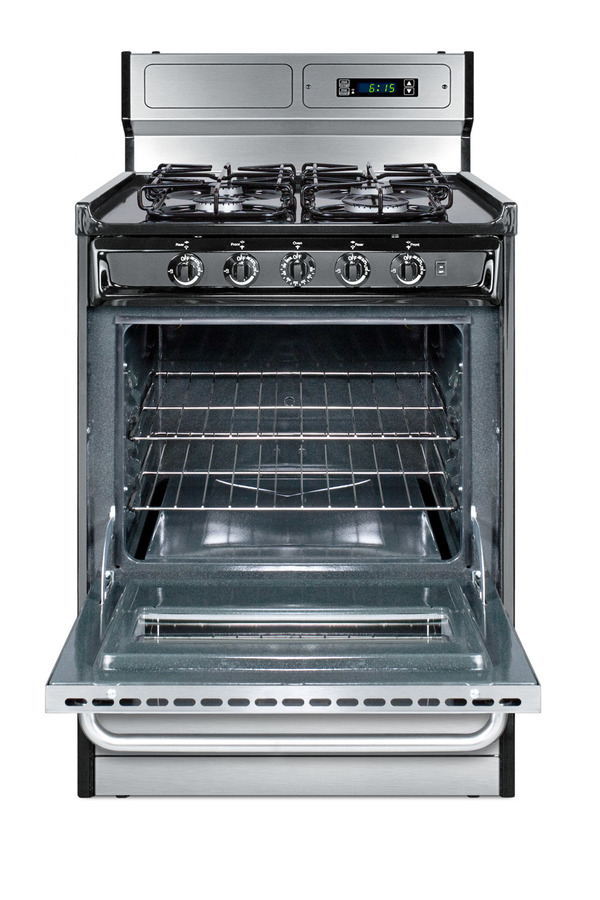

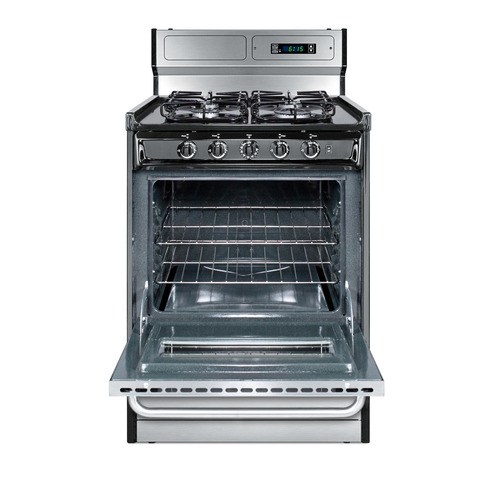

Adjustable oven racks

Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes

Broiler compartment

Lower drop-down compartment for separate broiling with even heat distribution

Porcelain construction

Oven interior features high quality porcelain construction for long-lasting durability, while the cooking surface is made from scratch resistant porcelain enamel

Removable burner caps

Burners include a removable cap for easy cleaning

Recessed surface

Smart design helps to contain spills

Removable oven door and range top

Allows for easier cleaning as needed

Broiler pan

Two-piece broiler pan included

Anti-tip bracket

Included for user installation to help prevent tipping

Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens.

The TTM6307BKSW is 24" wide apartment-sized gas range with a generous 2.92 cu.ft porcelain oven interior that can fit large trays. Two adjustable oven racks are included. An oven window and on/off interior light allow you to easily keep watch over your cooking. The broiler is located below the oven in a drop-down compartment. Four sealed gas burners offer safer and cleaner cooking, with a high output 12000 BTU burner for powerful heating conveniently located in the front right corner for easy access. This unit also includes a 5000 BTU  burner in the rear, an ideal design for simmering at lower power or keeping food warm without overcooking. Upfront push-to-turn knobs let you adjust your cooking without reaching over hot burners. This unit utilizes an electronic ignition system for added safety.

Stainless steel doors feature professional style towel bar handles, bringing classic elegance to smaller kitchen spaces. The deluxe 8" high backguard includes a digital clock and timer for added convenience when cooking. This unit has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts.

With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 20", 30", and 36" wide fits. This unit ships ready for natural gas connections. To use with propane, add the Kit LP S2.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
