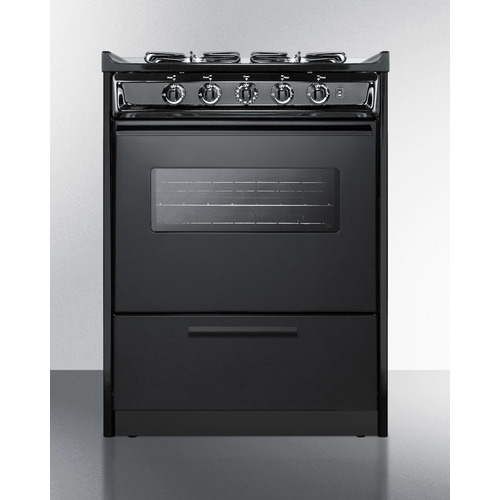

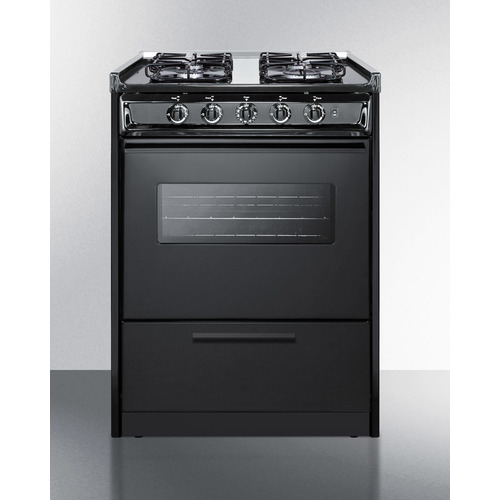

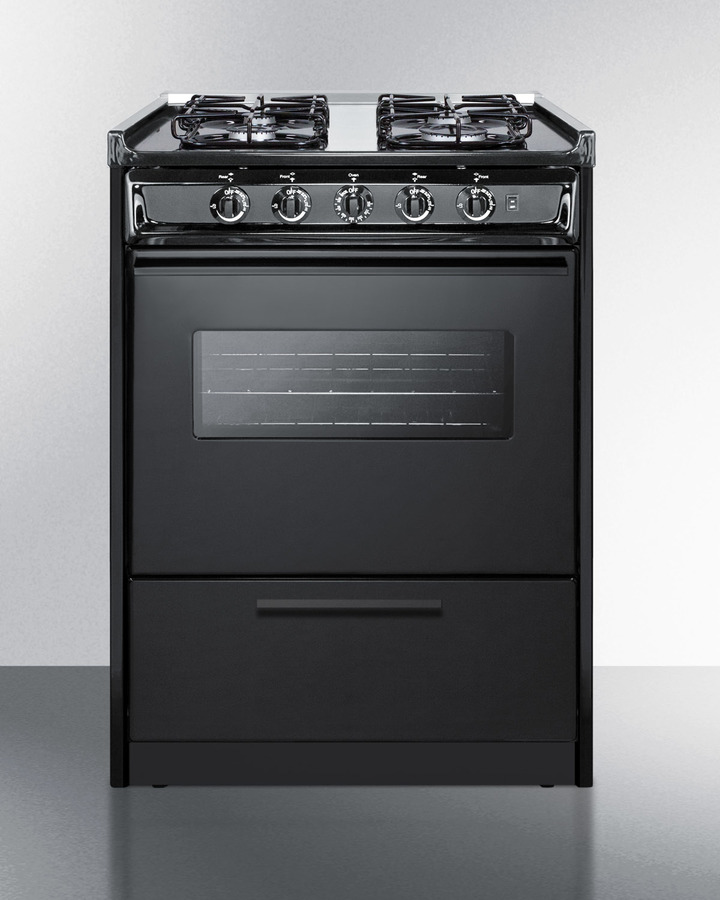

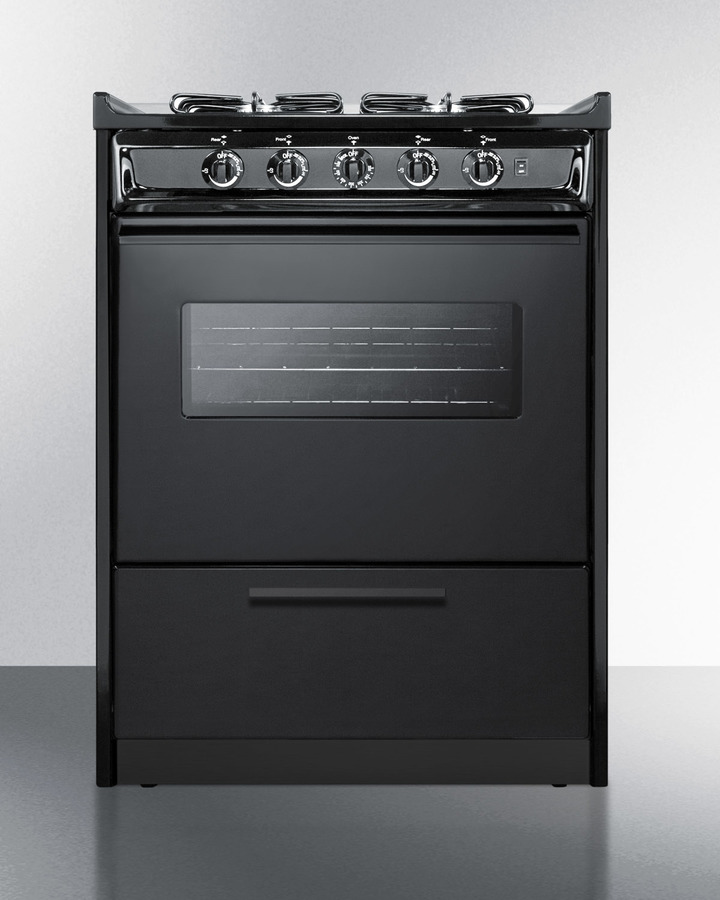

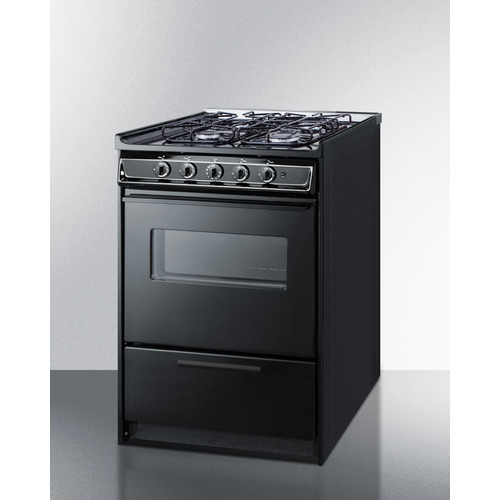

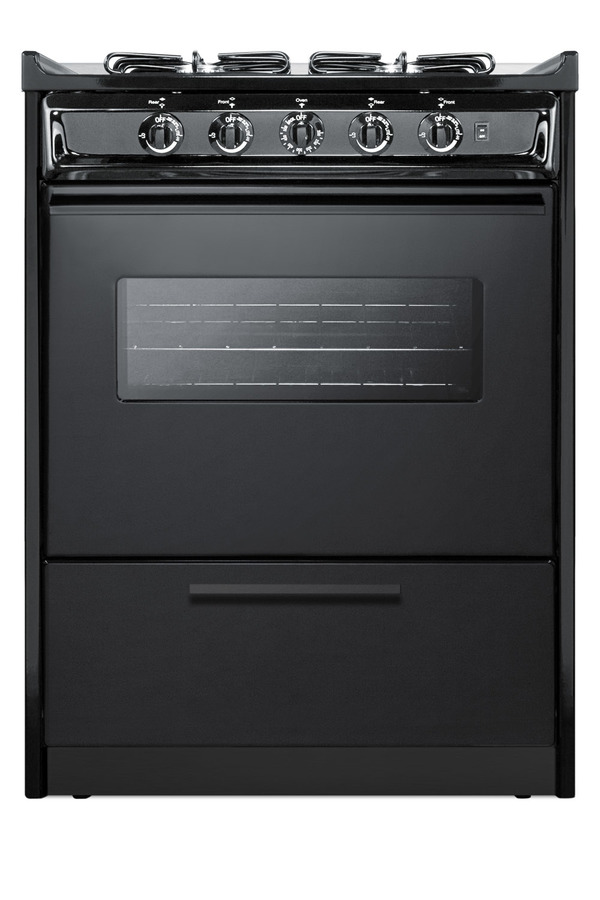

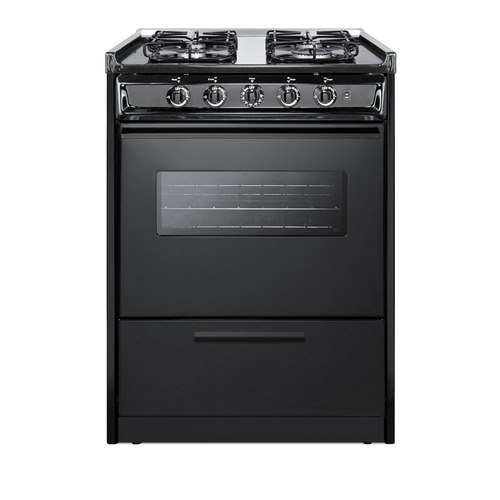

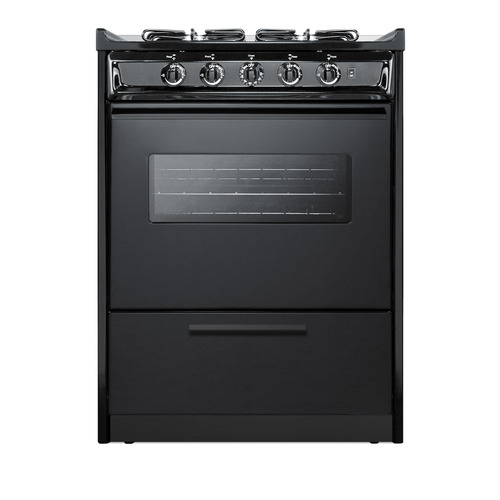

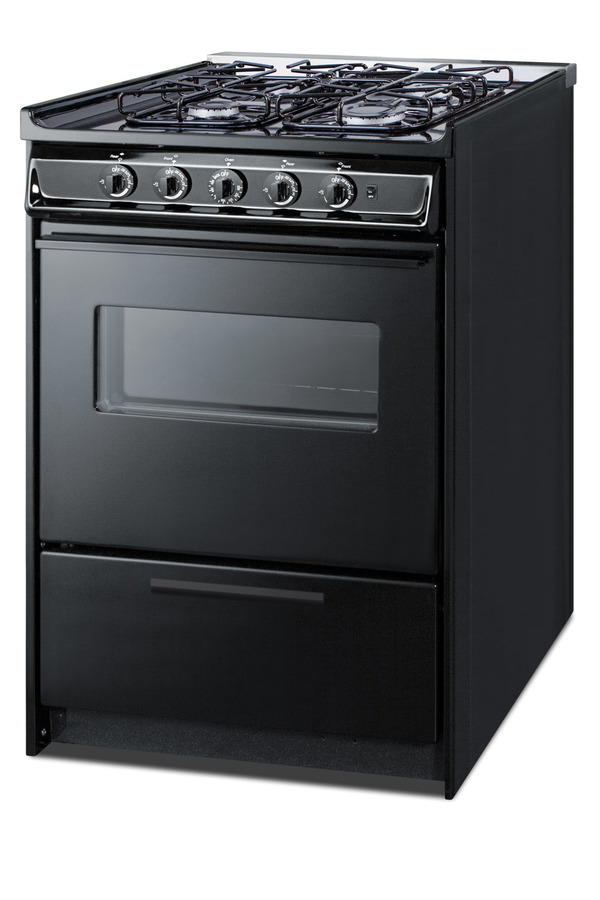

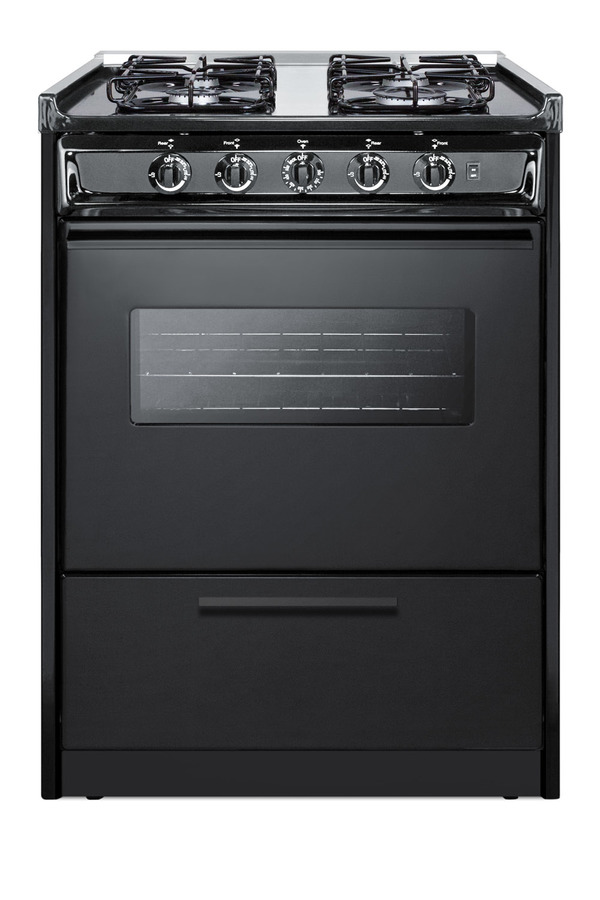

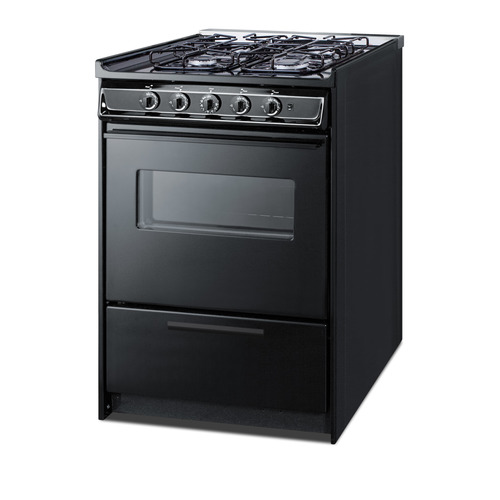

TTM6107CRSW

Made in the USA with sealed burners

36.0" H x 24.0" W x 24.0" D

(91cm H x 61cm W x 61cm D)

OVERVIEW

  • Slim 24 inch width fits easily in small kitchens
  • Slide-in look with flat backguard
  • Four sealed gas burners for cleaner cooking
  • Includes an oven window and light for easier cooking
  • Porcelain construction on range top and oven for true durability
  • Made in the U.S.A.

SPECIFICATIONS

Overview
Height of Cabinet 36.0" (91 cm)
Width 24.0" (61 cm)
Depth 24.0" (61 cm)
Door Black
Cabinet Black
US Electrical Safety CSA
Weight 150.0 lbs. (68 kg)
Shipping Weight 157.0 lbs. (71 kg)
Parts & Labor Warranty 1 Year
Gas Range
Ignition Spark
LP Convertible With Kit LP S2 Accessory
Oven Capacity 2.92 cu.ft
Cooktop Surface Porcelain
Burner Type Sealed
Number of Burners 4
Burner #1 BTU 12000.0
Burner #2 BTU 9100.0
Burner #3 BTU 9100.0
Burner #4 BTU 5000.0
Burner Controls Dial
Oven Controls Dial
Oven Light Yes
Cleaning Type Manual
Oven Rack Qty 2
Oven Window Yes
Oven Interior Height 14.0" (36 cm)
Oven Interior Width 19.0" (48 cm)
Oven Interior Depth 19.0" (48 cm)
Broiler Location Below Oven

AVAILABLE UPGRADES

Interior
Canadian Range Conversion
Range is modified at factory to meet CSA-C standards
Exterior
LP Conversion
Have this range factory converted to LP gas. KIT LP is included
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

SUMMIT offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens.

The TTM6107CRSW is an apartment-sized gas range sized at just 20" wide, with a generous 2.92 cu.ft oven interior that still can accommodate large trays. The oven includes a window and interior light to make it easier for users to monitor their cooking without opening the door and releasing heat. The broiler is located below the oven in a drop-down compartment. Four sealed gas burners offer safer and cleaner cooking. This new model includes a high output 12000 BTU burner for powerful heating conveniently located in the front right corner for easy access. This unit also includes a 5000 BTU  burner in the rear, an ideal design for simmering at lower power or keeping food warm without overcooking. This unit utilizes an electronic ignition system for added safety.

The TTM6107CSWRT comes in a jet black finish. The low stainless steel backguard creates a modern slide-in look that is easier to integrate into your own kitchen design. Recessed doors and a 24" depth also help to maximize kitchen space while protecting adjacent cabinetry.

Fully constructed from steel and porcelain, Summit's American-made cooking line offers long-lasting quality for the home. Additional choices are available in 20" and 30" wide fits.

FEATURES

Slim 24 inch width
Apartment sized to fit in small or galley kitchens
Slide-in look
Flat backguard can blend into other cabinetry and lets you choose your own wall design behind the range
Four sealed burners
Easy cleanup on boil-overs and accidental spills
High output burner
Right front burner features 12,000 BTU output for powerful cooking
Low output simmer burner
Rear left burner reaches a maximum of 5000 BTUs, ideal for simmering sensitive items or keeping dishes warm without overheating
Stainless steel rear trim
Low rear trim is finished in stainless steel for an attractive look

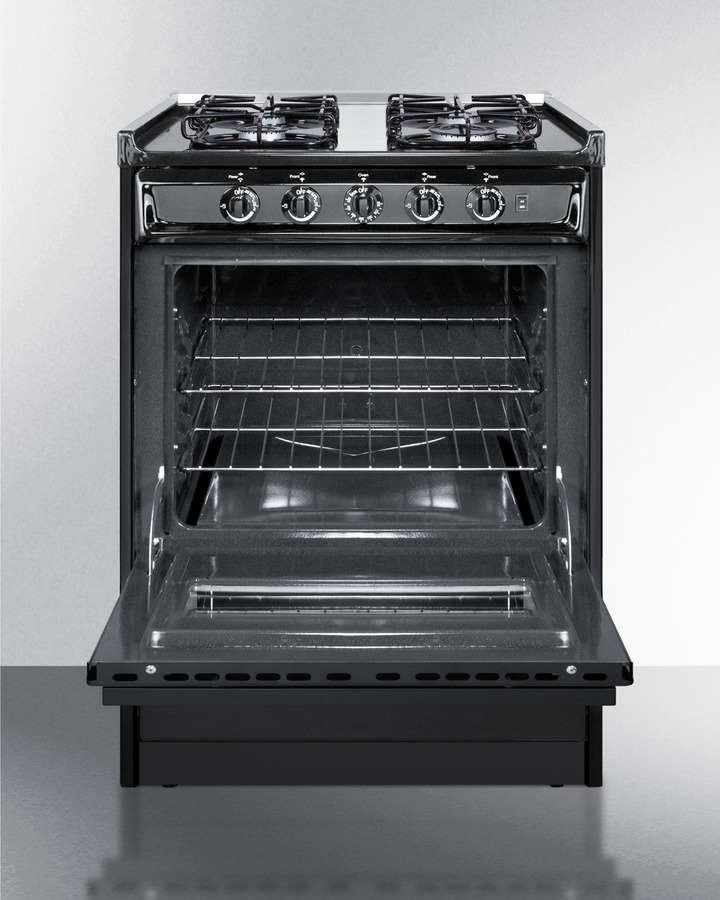

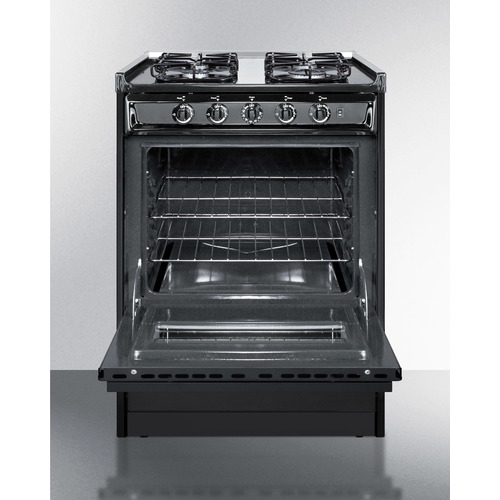

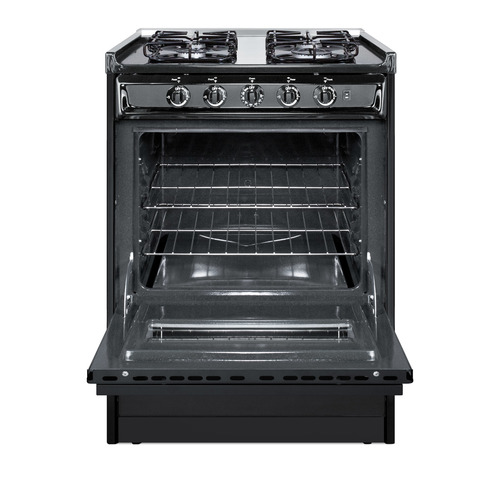

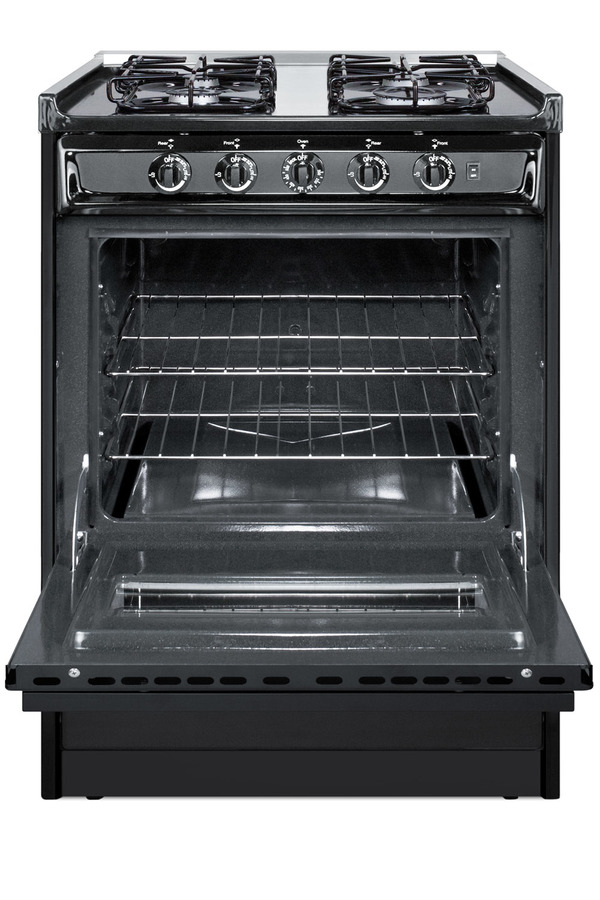

Oven window with light
Easier monitoring of your cooking with an oven window and on/off light
Porcelain construction
Black porcelain removable oven top and door
Electronic ignition
Gas spark ignition for automatic lighting of burners
Drop-down broiler compartment
Lower compartment for separate broiling with even heat distribution
Broiler pan included
Two-piece porcelain broiler tray with grease well
Push-to-turn burner knobs
To prevent accidents, knobs require a small amount of force when turning
Removable burner caps
Burners include a removable cap for easy cleaning
Recessed oven door
Smart design limits the depth and protects adjacent cabinets
Oven racks
Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
Gas range (preset for natural gas)
For LP conversion, contact our office at 718-893-3900 ext. 220
ADA compliant design
Upfront controls and easy-to-operate knobs offer easier accessibility

SPECIFICATIONS

Overview
Height of Cabinet 36.0" (91 cm)
Width 24.0" (61 cm)
Depth 24.0" (61 cm)
Door Black
Cabinet Black
US Electrical Safety CSA
Weight 150.0 lbs. (68 kg)
Shipping Weight 157.0 lbs. (71 kg)
Parts & Labor Warranty 1 Year
Gas Range
Ignition Spark
LP Convertible With Kit LP S2 Accessory
Oven Capacity 2.92 cu.ft
Cooktop Surface Porcelain
Burner Type Sealed
Number of Burners 4
Burner #1 BTU 12000.0
Burner #2 BTU 9100.0
Burner #3 BTU 9100.0
Burner #4 BTU 5000.0
Burner Controls Dial
Oven Controls Dial
Oven Light Yes
Cleaning Type Manual
Oven Rack Qty 2
Oven Window Yes
Oven Interior Height 14.0" (36 cm)
Oven Interior Width 19.0" (48 cm)
Oven Interior Depth 19.0" (48 cm)
Broiler Location Below Oven

AVAILABLE UPGRADES

Interior
Canadian Range Conversion
Range is modified at factory to meet CSA-C standards
Exterior
LP Conversion
Have this range factory converted to LP gas. KIT LP is included
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
