24" Wide Gas Range

SKU: TTM61027BRSW

Made in the USA with sealed burners and stainless steel construction

36.0" H x 24.0" W x 24.0" D

(91cm H x 61cm W x 61cm D)

OVERVIEW

Slim 24" width is ideal for use in smaller kitchens
Slide-in look to blend seamlessly into other cabinetry
Stainless steel doors with towel bar handles bring a professional look to the kitchen
Sealed burners offer safer cooking and easier cleanup
Made in the U.S.A.
Replaces TNM61027BFRWY

SPECIFICATIONS

Overview
Height of Cabinet	36.0" (91 cm)
Width	24.0" (61 cm)
Depth	24.0" (61 cm)
Door	Stainless Steel
Cabinet	Black
US Electrical Safety	CSA
Weight	135.0 lbs. (61 kg)
Shipping Weight	140.0 lbs. (64 kg)
Estimated Time to Ship	Next day shipping
Parts & Labor Warranty	1 Year
Gas Range
Ignition	Spark
LP Convertible	With Kit LP S2 Accessory
Oven Capacity	2.92 cu.ft
Cooktop Surface	Porcelain
Burner Type	Sealed
Number of Burners	4
Burner #1 BTU	12000.0
Burner #2 BTU	9100.0
Burner #3 BTU	9100.0
Burner #4 BTU	5000.0
Burner Controls	Dial
Oven Controls	Dial
Oven Light	Yes
Cleaning Type	Manual
Oven Rack Qty	2
Oven Window	Yes
Oven Interior Height	14.0" (36 cm)
Oven Interior Width	19.0" (48 cm)
Oven Interior Depth	19.0" (48 cm)
Broiler Location	Below Oven

AVAILABLE UPGRADES

Exterior

LP Conversion

Have this range factory converted to LP gas. KIT LP is included

Interior

Canadian Range Conversion

Range is modified at factory to meet CSA-C standards

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

California residents:

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

DESCRIPTION

SUMMIT PROFESSIONAL brings luxury and convenience to smaller kitchen spaces with a quality line of slim-fitting ranges made in the U.S.A.

The TTM61027BRSW is a 24" wide gas range ideal for use inside apartments and other settings with space-challenged kitchens. The stainless steel exterior offers lasting durability and modern style, with professional towel bar handles on the oven and lower broiler compartment to complete the look. The oven includes a window and interior light to make it easy to monitor your cooking. This 'slide-in' unit has a low stainless steel backguard that blends into counters and lets you customize the wall behind your range. Recessed doors and a 24" depth also help to maximize kitchen space while protecting adjacent cabinetry.

Four sealed gas burners offer safer and cleaner cooking. This new model includes a high output 12000 BTU burner for powerful heating conveniently located in the front right corner for easy access. This unit also includes a 5000 BTU  burner in the rear, an ideal design for simmering at lower power or keeping food warm without overcooking.

Constructed from steel and porcelain, Summit's American-made cooking line offers long-lasting quality for the home. Additional choices are available in 20" and 30" wide fits.

FEATURES

Slide-in look
Flat backguard can blend into other cabinetry and lets you choose your own wall design behind the range

Slim 24 inch width
Ideally sized for apartments, galley kitchens, and other settings with space limitations

Four sealed burners
Easy cleanup on boil-overs and accidental spills

High output burner
Right front burner features 12,000 BTU output for powerful cooking

Low output simmer burner
Rear left burner reaches a maximum of 5000 BTUs, ideal for simmering sensitive items or keeping dishes warm without overheating

Stainless steel oven and broiler door
Lasting quality with professional style for the home

Professional towel bar handles
Curved handles in brushed stainless steel offer a luxurious look and an easy grip

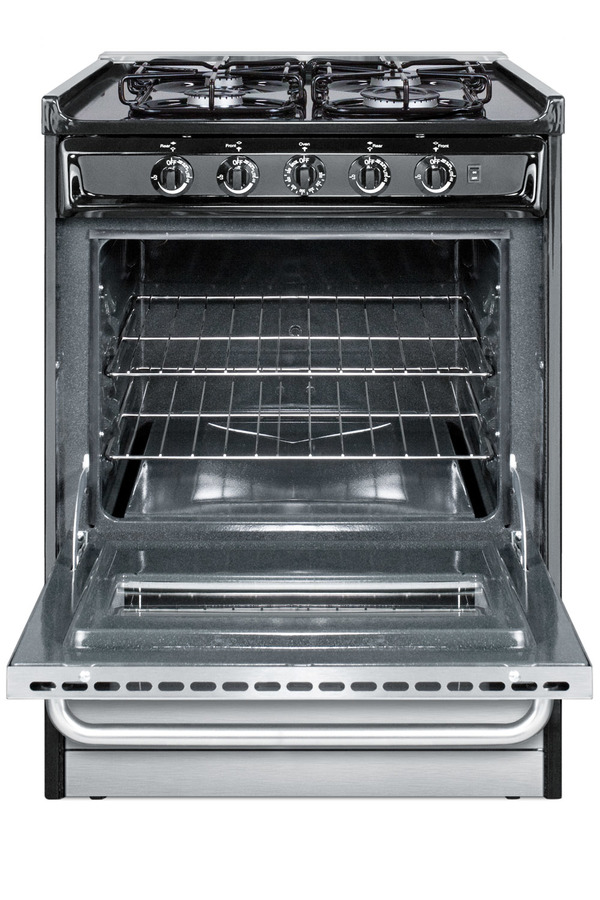

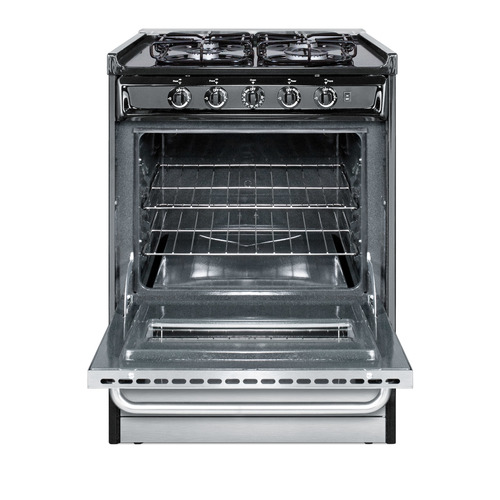

Oven window with light
Easier monitoring of your cooking with an oven window and on/off light

Electronic ignition
Gas spark ignition for automatic lighting of burners

Broiler compartment
Drop-down lower compartment offers the ideal conditions for broiling

Removable burner caps
Burners include a removable cap for easy cleaning

Recessed top
Smart design helps to contain spills

Push-to-turn knobs
To prevent accidents, knobs require a small amount of force when turning

Oven racks
Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes

Porcelain construction
Oven interior features high quality porcelain construction for long-lasting durability, while the cooking surface is made from scratch resistant porcelain enamel

Two-piece broiler tray
Durable broiler tray with grill cover is included for cooking convenience

Gas range (preset for natural gas)
For LP conversion, contact our office at 718-893-3900 ext. 220

ADA compliant design
Upfront controls and easy-to-operate knobs offer easier accessibility

SPECIFICATIONS

Overview
Height of Cabinet	36.0" (91 cm)
Width	24.0" (61 cm)
Depth	24.0" (61 cm)
Door	Stainless Steel
Cabinet	Black
US Electrical Safety	CSA
Weight	135.0 lbs. (61 kg)
Shipping Weight	140.0 lbs. (64 kg)
Estimated Time to Ship	Next day shipping
Parts & Labor Warranty	1 Year
Gas Range
Ignition	Spark
LP Convertible	With Kit LP S2 Accessory
Oven Capacity	2.92 cu.ft
Cooktop Surface	Porcelain
Burner Type	Sealed
Number of Burners	4
Burner #1 BTU	12000.0
Burner #2 BTU	9100.0
Burner #3 BTU	9100.0
Burner #4 BTU	5000.0
Burner Controls	Dial
Oven Controls	Dial
Oven Light	Yes
Cleaning Type	Manual
Oven Rack Qty	2
Oven Window	Yes
Oven Interior Height	14.0" (36 cm)
Oven Interior Width	19.0" (48 cm)
Oven Interior Depth	19.0" (48 cm)
Broiler Location	Below Oven
