TTL033S

Delivery 9240a3e8870753a2ec143c34af2b405742ae73bfeb126dd29f201daa25ab8f11
This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

Made in the USA with heavy duty cast iron grates

4.0" H x 24.0" W x 20.0" D

(10cm H x 61cm W x 51cm D)

OVERVIEW

  • Sealed burners ensure a cleaner cooking experience
  • 24" width for the perfect fit
  • Durable cast iron grates hold up to heavy cookware
  • Porcelain enamel surface offers easy cleanup and long-term durability
  • Wide range of flame adjustment allows you to get more precision in heating
  • Made in the USA

SPECIFICATIONS

Overview
Height of Cabinet 4.0" (10 cm)
Width 24.0" (61 cm)
Depth 20.0" (51 cm)
Cabinet Black
US Electrical Safety CSA
Canadian Electrical Safety CSA-C
Weight 27.0 lbs. (12 kg)
Shipping Weight 29.0 lbs. (13 kg)
Parts & Labor Warranty 1 Year
Gas Cooktop
Ignition Spark
LP Convertible With Kit LP S2 Accessory
Number of Burners 4
Controls Dial
Surface Painted
Grate Material Cast Iron
Cutout Width 22.63" (57 cm)
Cutout Depth 18.63" (47 cm)
Burner #1 BTU 12000.0
Burner #2 BTU 9100.0
Burner #3 BTU 9100.0
Burner #4 BTU 5000.0
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

Made in the U.S.A., Summit's gas cooktops offer lasting quality and reliable cooking for smaller kitchen spaces.

The TTL033S is a 24" wide 4-burner cooktop designed for 22 5/8" W x 18 5/8" D cutouts. The scratch-resistant porcelain surface features a jet black finish and recessed design to better contain spills. The side-located push-to-turn dial knobs offer easy use. Two sets of continuous cast iron grates are designed to hold up to heavy pots and pans.

Four sealed Sabaf burners with removable burner caps ensure safer and cleaner cooking. The TTL033S includes a high output 12000 BTU burner for powerful heating, conveniently located in front for easy access. The rear 5000 BTU burner is ideal for simmering at lower power or keeping food warm without overcooking. Two standard 9100 BTU burners meet most cooking needs. This unit utilizes electronic spark ignition and includes a pre-installed 3-pronged cord.

The TTL033S is set for natural gas and can be converted to propane connections with the purchase of our Kit LP S2. Additional choices are available in white and chrome.

FEATURES

Sealed Sabaf® burners
Quality burners with cast iron tops ensure lasting durability and easier cleanup

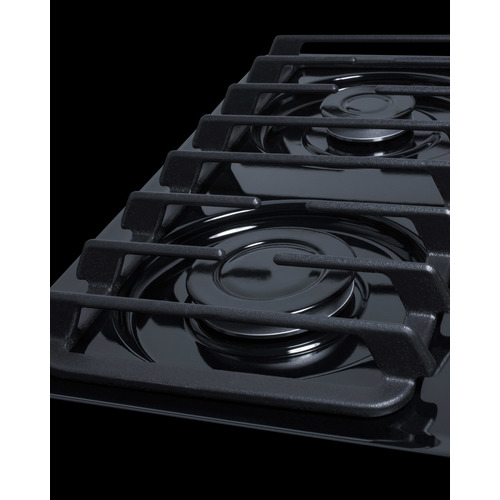

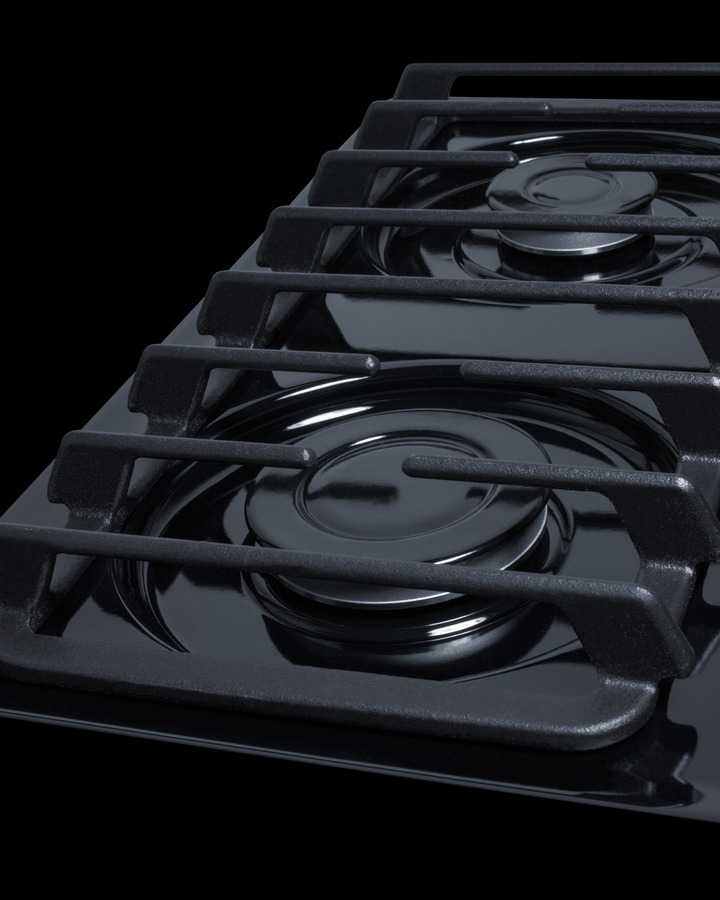

Cast iron grates
Two sets of continuous grates in heavy duty cast iron hold up to large cookware
Fits common cutouts
Designed for 22 5/8" W x 18 5/8" D cutouts for an easy fit in smaller kitchens
Power burner
Front left burner features 12,000 BTU output for powerful cooking
Simmer burner
Rear burner on right side reaches maximum of 5,000 BTUs to allow more precise heating of sensitive items
Two standard burners
Front right and rear left burners offer 9100 BTUs of cooking power to accommodate most dishes
Push-to-turn knobs
To prevent accidents, knobs require a small amount of force when turning
Recessed top
Curved design helps to contain spills on the surface for easier cleanup
Porcelain cooking surface
Black glossy finish on scratch resistant top
Removable burner caps
Burners include a removable cap for easy cleaning
Electronic/gas spark ignition
Gas spark ignition for automatic lighting of burners
Cord included
Pre-installed 115V 3-pronged power cord
Convertible with kit
Unit is set for natural gas. To use with LP gas, order Summit Kit LP S2 accessory

SPECIFICATIONS

Overview
Height of Cabinet 4.0" (10 cm)
Width 24.0" (61 cm)
Depth 20.0" (51 cm)
Cabinet Black
US Electrical Safety CSA
Canadian Electrical Safety CSA-C
Weight 27.0 lbs. (12 kg)
Shipping Weight 29.0 lbs. (13 kg)
Parts & Labor Warranty 1 Year
Gas Cooktop
Ignition Spark
LP Convertible With Kit LP S2 Accessory
Number of Burners 4
Controls Dial
Surface Painted
Grate Material Cast Iron
Cutout Width 22.63" (57 cm)
Cutout Depth 18.63" (47 cm)
Burner #1 BTU 12000.0
Burner #2 BTU 9100.0
Burner #3 BTU 9100.0
Burner #4 BTU 5000.0
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
