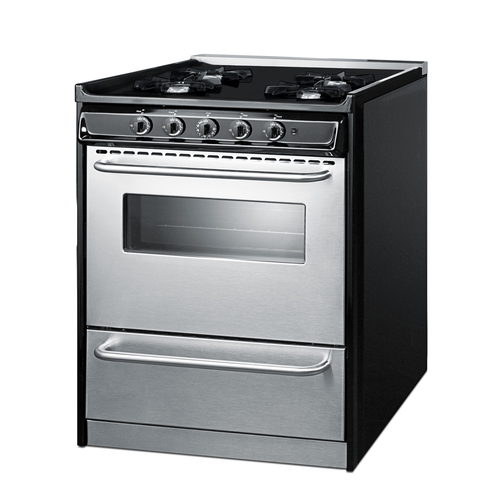

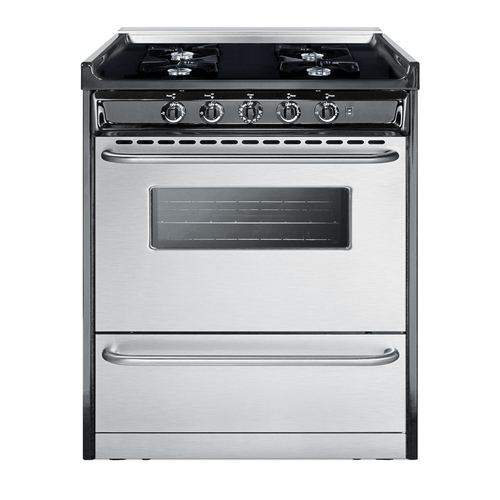

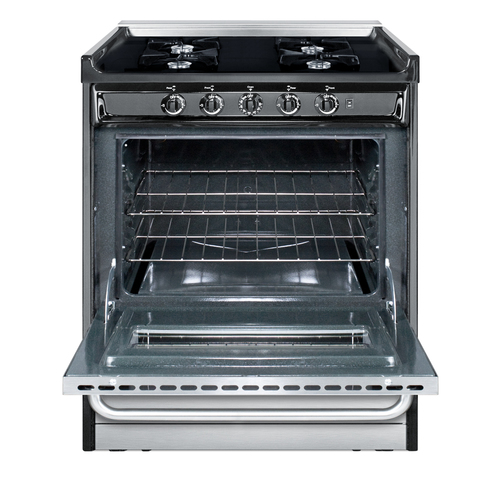

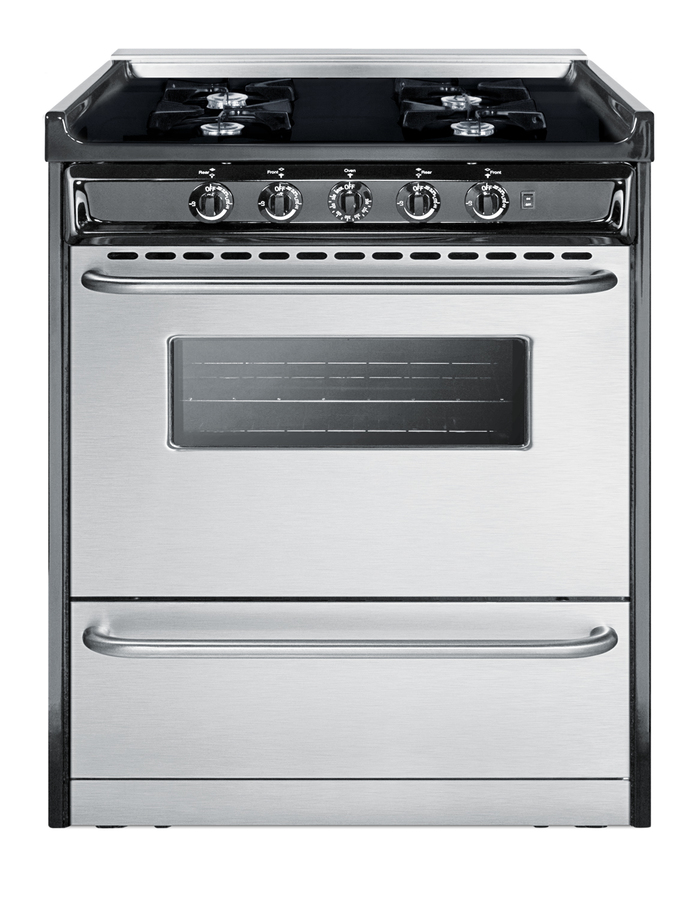

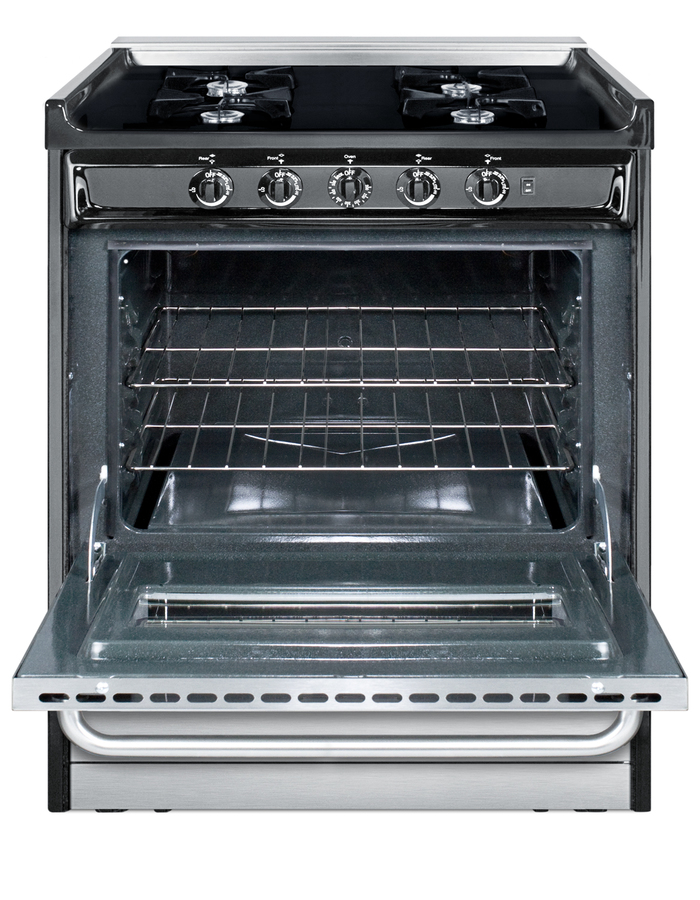

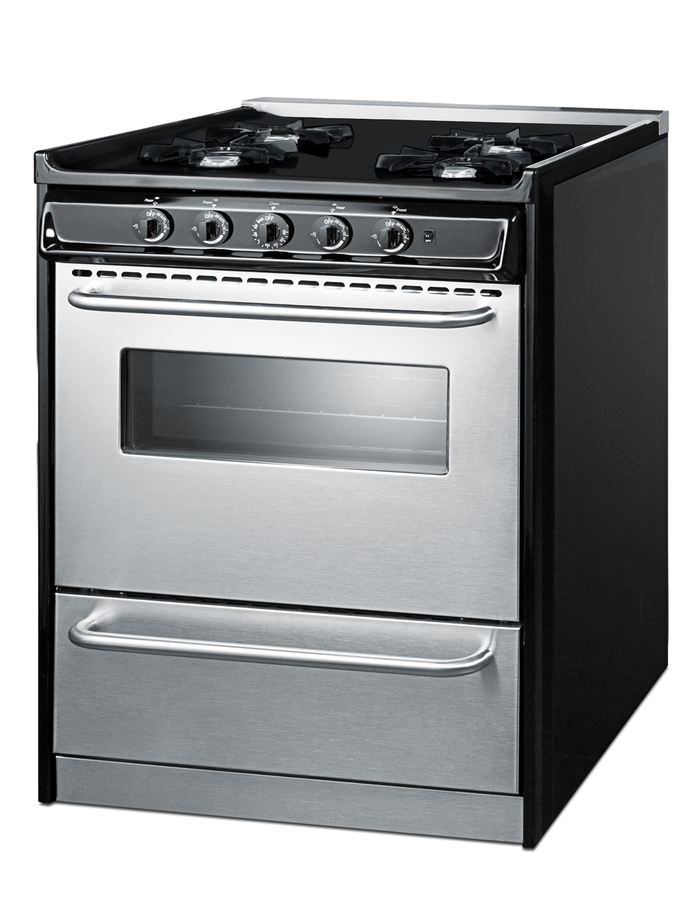

30" Wide Gas Range, Open Burners
Next day shipping; multi-piece orders may extend lead time. Call 718-893-3900 ext. 507 to discuss
(91cm H x 76cm W x 61cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 36.0" (91 cm) |
| Width | 30.0" (76 cm) |
| Depth | 24.0" (61 cm) |
| Door | Stainless Steel |
| Cabinet | Black |
| US Electrical Safety | CSA |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 170.0 lbs. (77 kg) |
| Shipping Weight | 179.0 lbs. (81 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101079202 |
|
Gas Range
|
|
| Ignition | Spark |
| LP Convertible | With Kit LP Accessory |
| Oven Capacity | 3.69 cu.ft |
| Cooktop Surface | Porcelain |
| Burner Type | Open |
| Number of Burners | 4 |
| Burner #1 BTU | 9000.0 |
| Burner #2 BTU | 9000.0 |
| Burner #3 BTU | 9000.0 |
| Burner #4 BTU | 9000.0 |
| Burner Controls | Dial |
| Oven Controls | Dial |
| Oven Light | Yes |
| Cleaning Type | Manual |
| Oven Rack Qty | 2 |
| Oven Window | Yes |
| Oven Interior Height | 14.0" (36 cm) |
| Oven Interior Width | 24.0" (61 cm) |
| Oven Interior Depth | 19.0" (48 cm) |
| Broiler Location | Below Oven |
AVAILABLE UPGRADES
| Exterior | |
|---|---|
|
|
| Interior | |
|
FEATURES
Designed and constructed domestically
Standard size ideal for most kitchens
Shallower fit is ideal for L-shaped and galley kitchens
Low backguard trimmed in stainless steel makes it easier to integrate your own backsplash design
Doors are constructed from brushed stainless steel for modern luxury built to last
Curved handles in brushed stainless steel offer an easier grip in attractive style
9000 BTU burners with built-in enamel grates to meet most cooking needs
Set for use with natural gas connection. To convert for propane use, add Kit LP
Spark ignition system with a pre-installed 115V 3-prong cord
Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door
Push-to-turn knobs offer easier, safer access, preventing users from reaching over hot burners to adjust
Smart design limits the depth and protects adjacent cabinets
Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
Lower drop-down compartment for separate broiling with even heat distribution
Oven interior features high quality porcelain construction for long-lasting durability, while the cooking surface is made from scratch resistant porcelain enamel
Smart design helps to contain spills
Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act guidelines
Included for user installation to help prevent tipping
Two-piece porcelain broiler tray with grease well
DESCRIPTION
Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens. The TNM2107BRW is 30" wide apartment-sized gas range with a generous 3.7 cu.ft porcelain oven interior that can fit large trays. Two adjustable oven racks are included. An oven window and on/off interior light allow you to easily keep watch over your cooking. The broiler is located below the oven in a drop-down compartment. Four open 9000 BTU gas burners accommodate most of your stovetop heating needs, with upfront push-to-turn knobs that let you adjust your cooking without reaching over hot burners. This unit utilizes an electronic ignition system for added safety. Stainless steel doors feature professional style towel bar handles, bringing classic elegance to smaller kitchen spaces. The low stainless steel trimmed backguard creates a slide-in look, allowing you to customize the space behind your range in the style of your choice. This unit has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts. With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 20", 24", and 36" wide fits. This unit ships ready for natural gas connections. To use with propane, add the Kit LP.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
